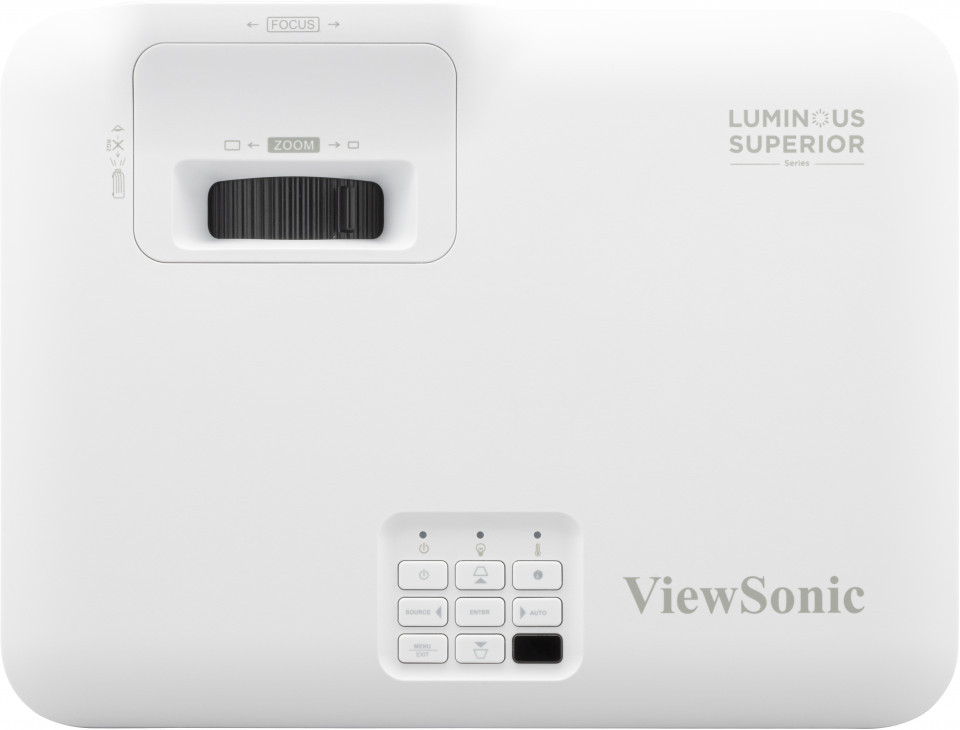

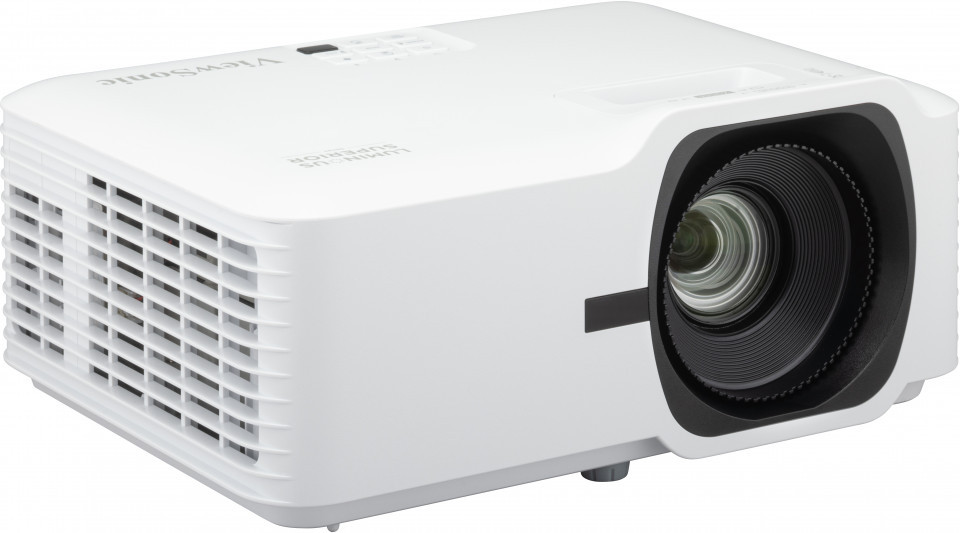

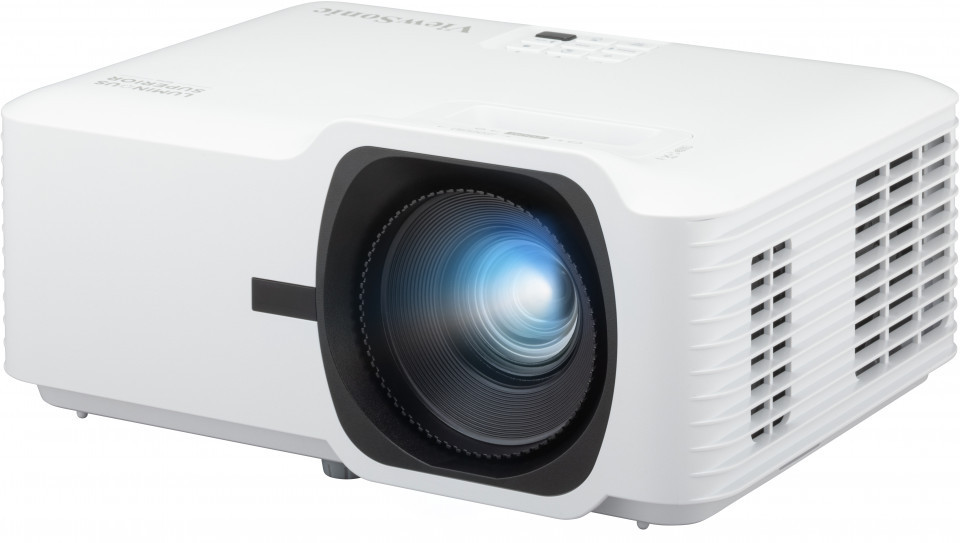

OVERVIEW
The LS740W belongs to ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector line up designed for
commercial and educational spaces. With its adoption of the 3rd generation laser phosphor technology, it delivers 5,000 ANSI
Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an
eco-friendly and cost-effective solution, while the projector‘s light weight and compact design reduces transportation costs.

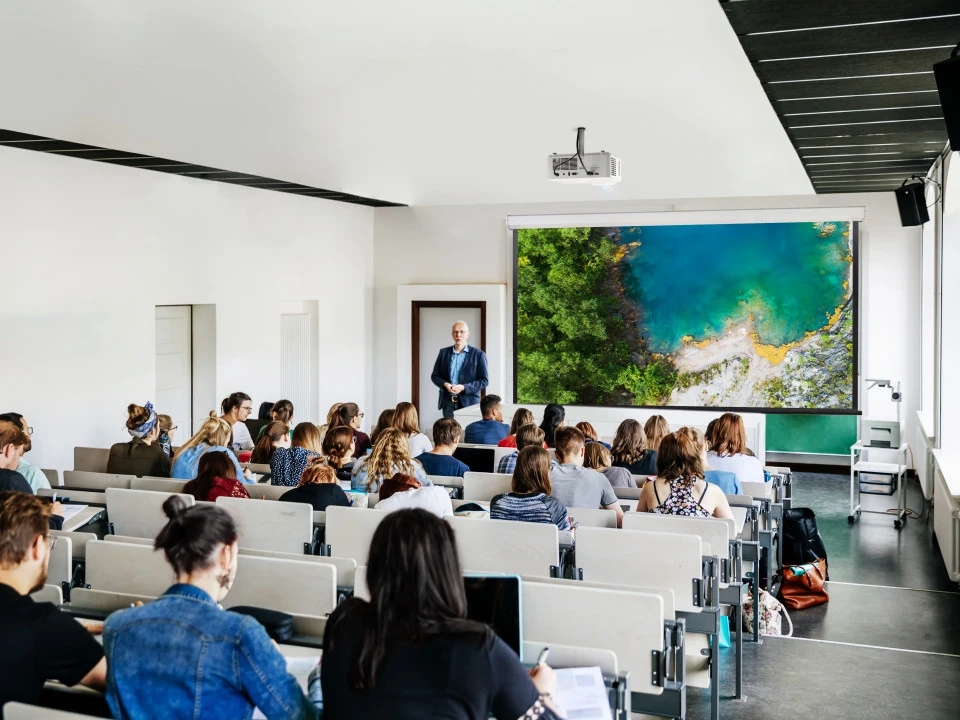

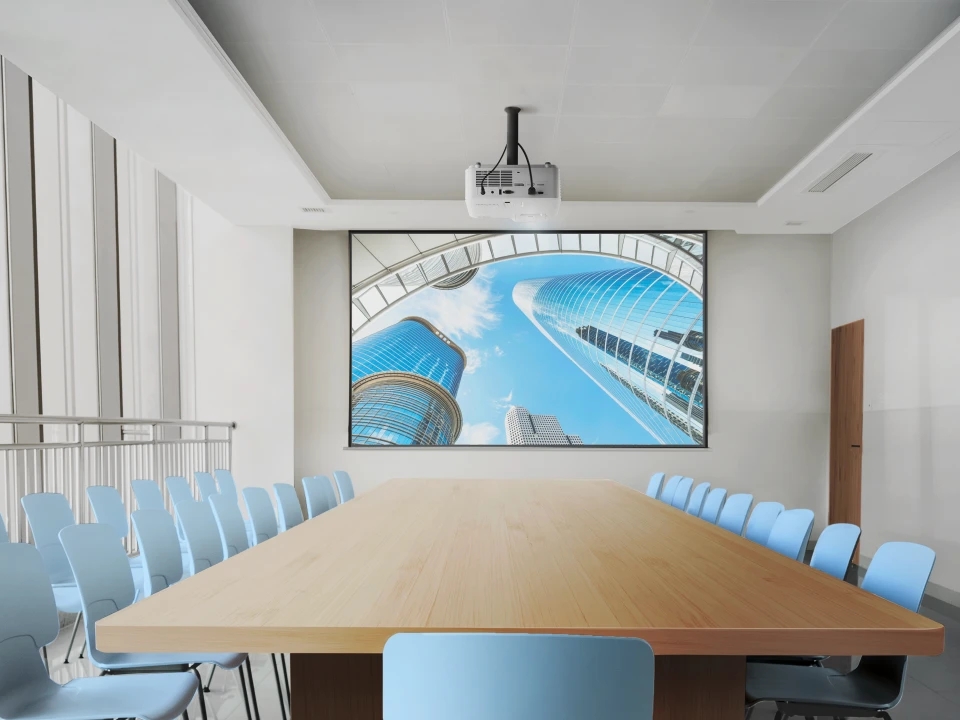

With up to 300“ projection and high native contrast, it is well-suited for boardrooms, lecture halls, and public spaces. This
projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mode for easy setup
and versatile applications.
Bright, Compact, Durable

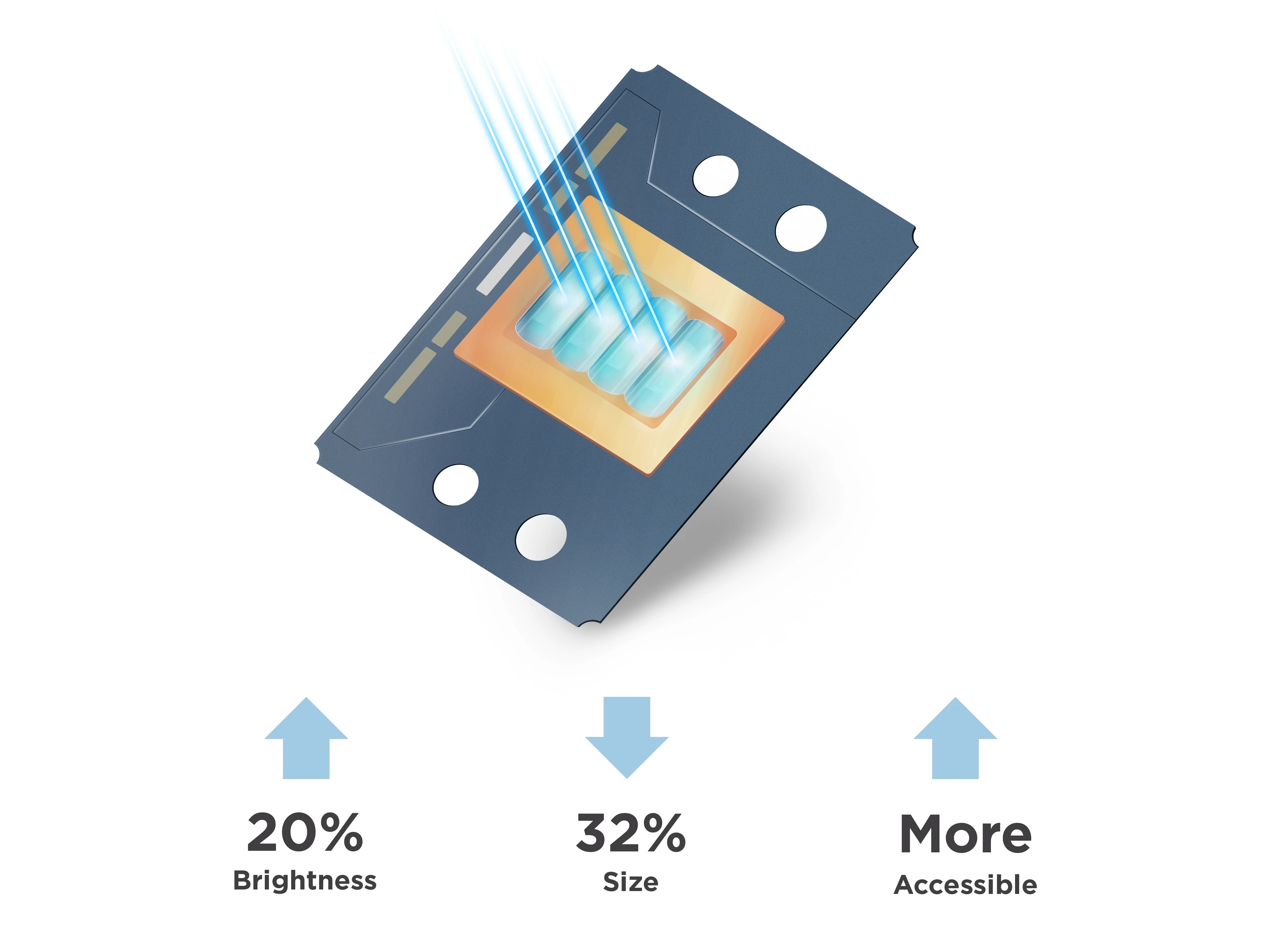

The LS740W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better
luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light
source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality
even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright Images for Large Venues
Delivering 5,000 ANSI Lumens, the LS740W provides vibrant and clear projection in all lighting conditions for auditoriums,
boardrooms, public venues, and other expansive spaces.
Unmatched Contrasts, Enhanced Visibility
The projector's high native contrast ratio, achieved through its Texas Instruments 0.65" DMD chip, enables deeper blacks and
brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.
High Native Contrast Ratio
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of
commercial displays.
Easy and Cost-effective Installation
The LS740W is 35% lighter in weight and 35% smaller in size compared to its predecessor and even most competing projectors
in the market, greatly reducing the cost of transportation and increasing the ease of installation.
Lighter Weight, Compact Size

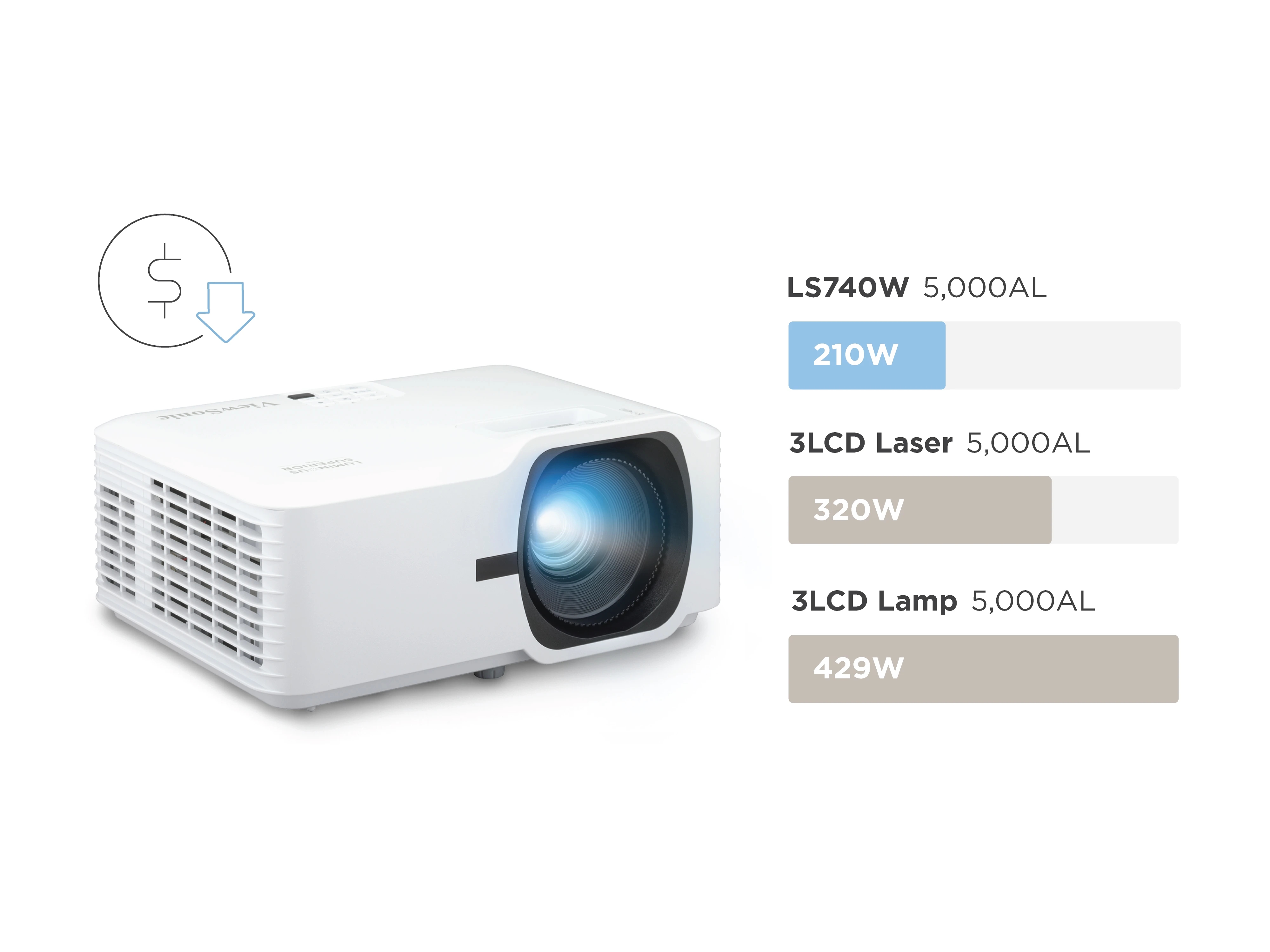

Save on Costs and Energy
With its advanced lamp-free light source, the LS740W offers a highly energy-efficient and cost-saving display solution by
consuming up to 51% less power than competing projectors.

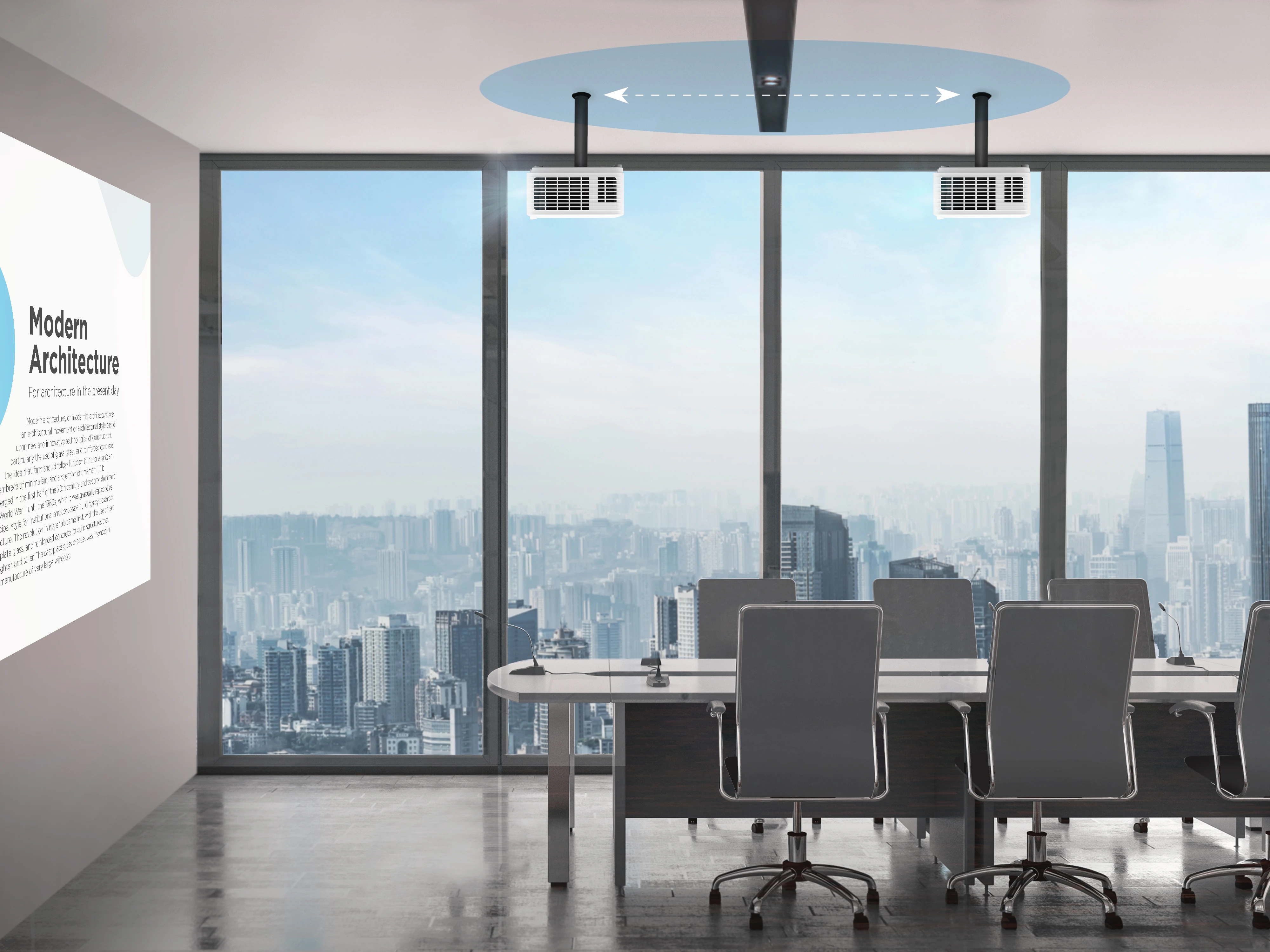

Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the
desired image size without needing to change the existing interior design.

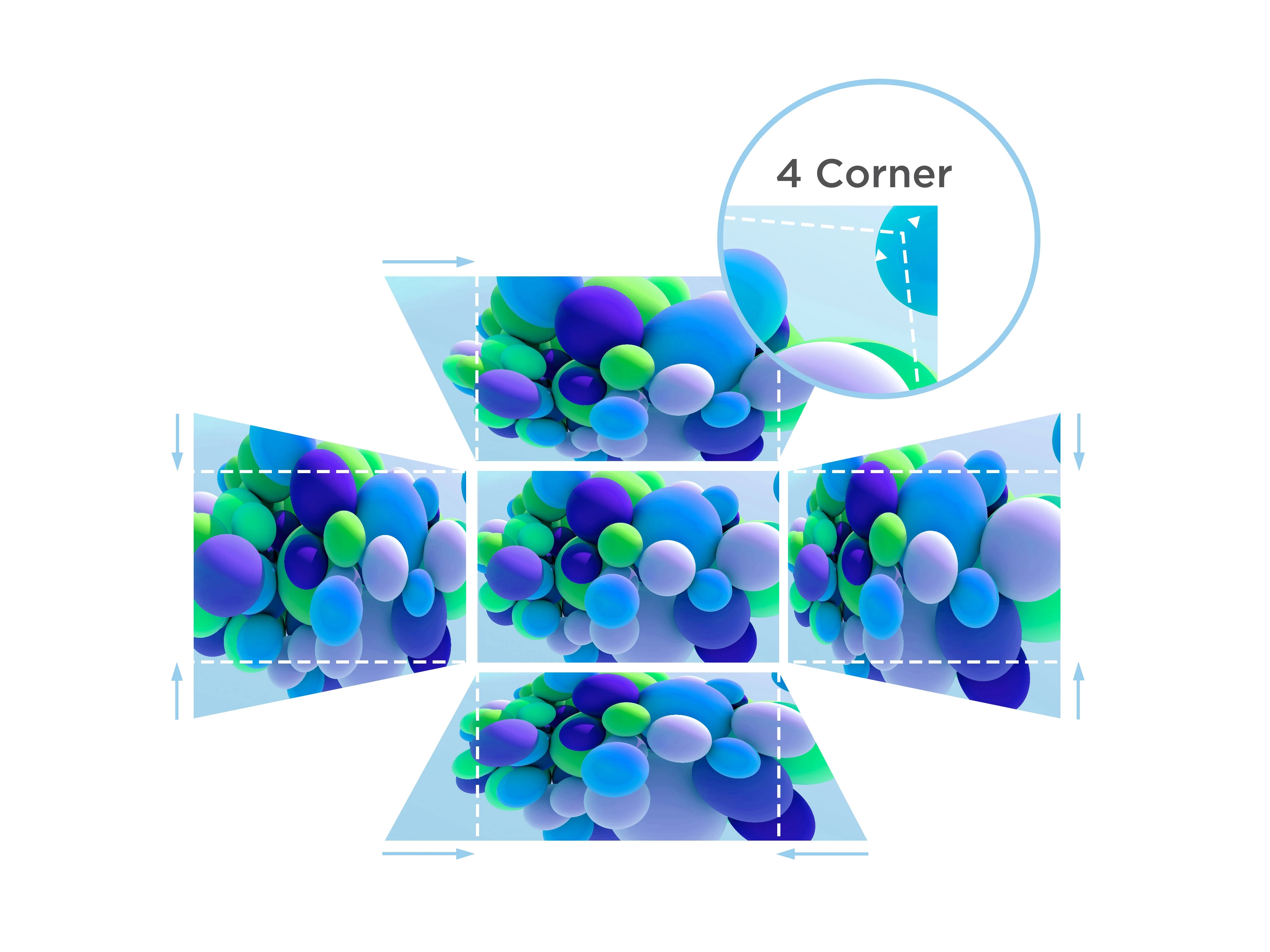

Get Perfectly-shaped Images Effortlessly
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a
perfectly proportioned picture every time.
H/V Keystone Correction, 4 Corner Adjustment

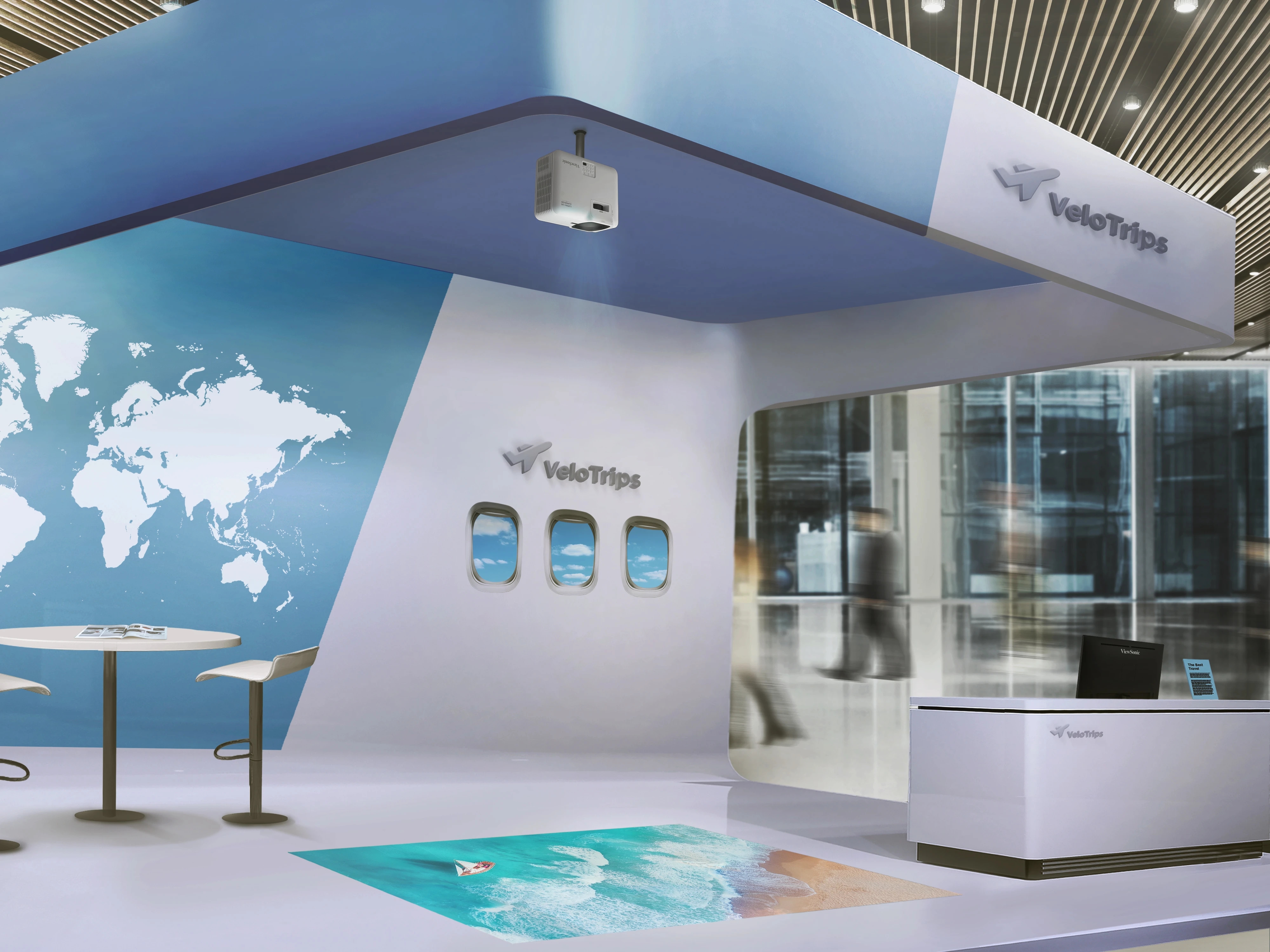

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further
expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, elevating your presentation witha true-to-life color experience.

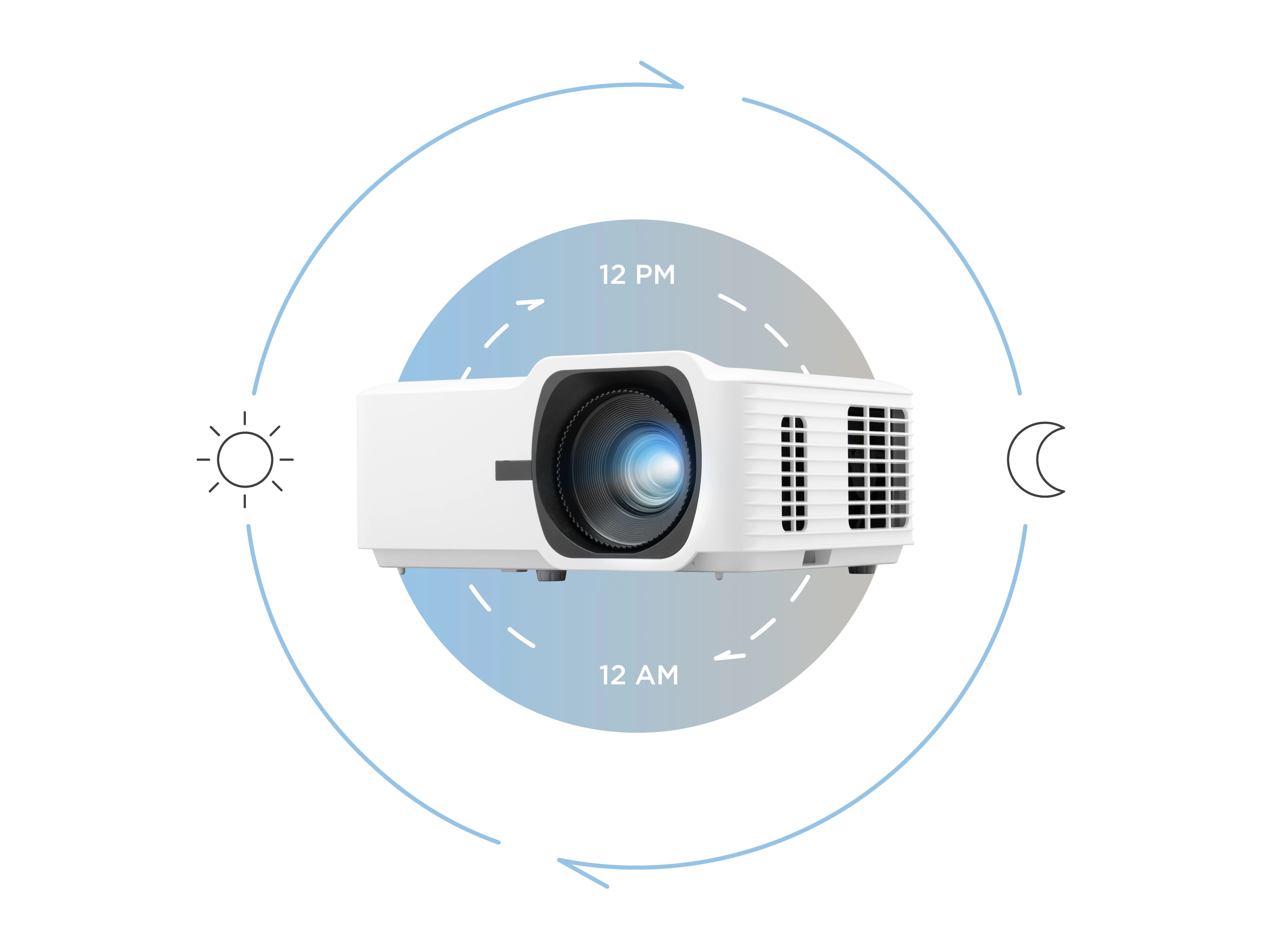

Non-stop 24/7 Operation
The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This
makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other
public spaces.

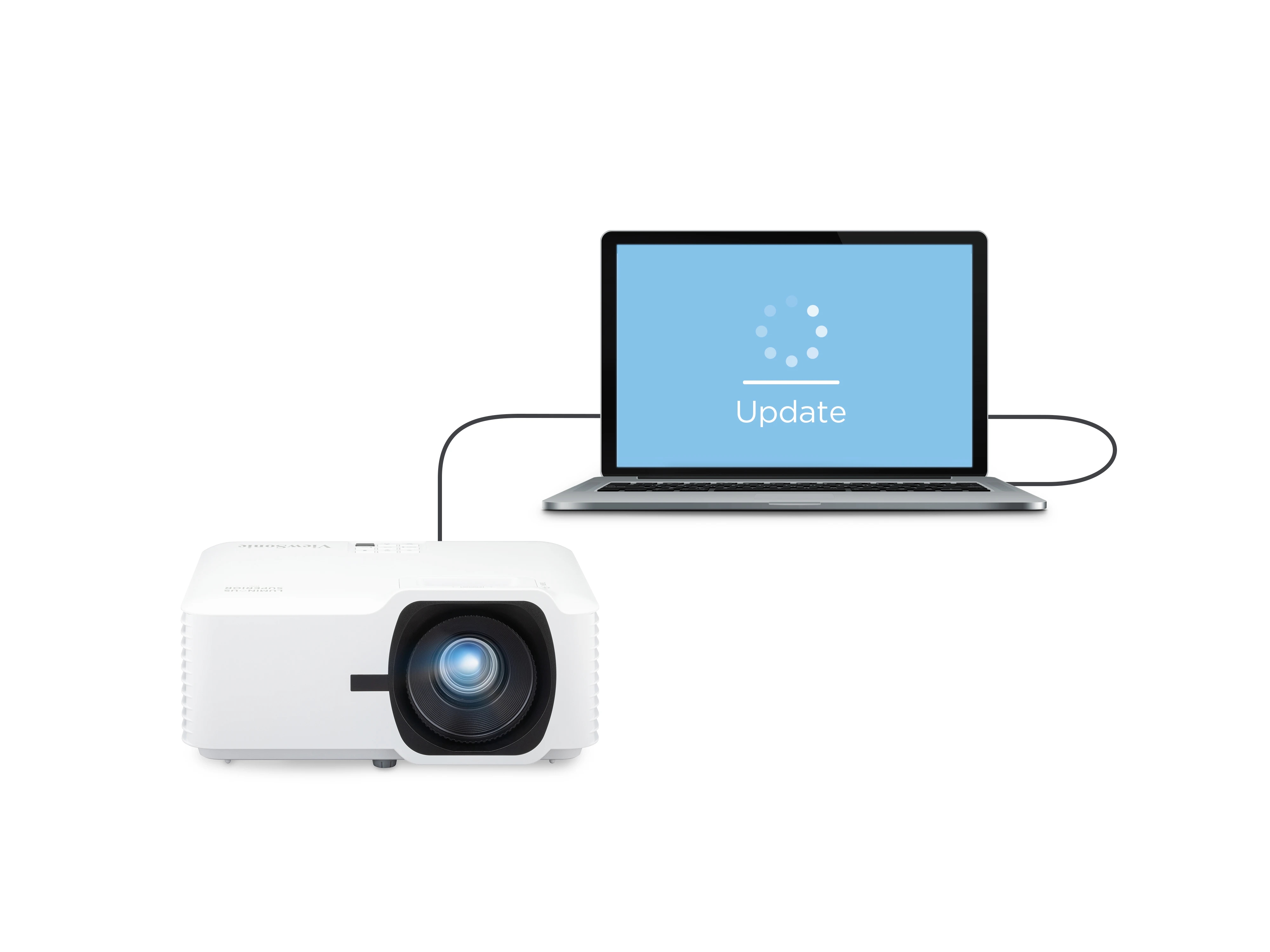

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop

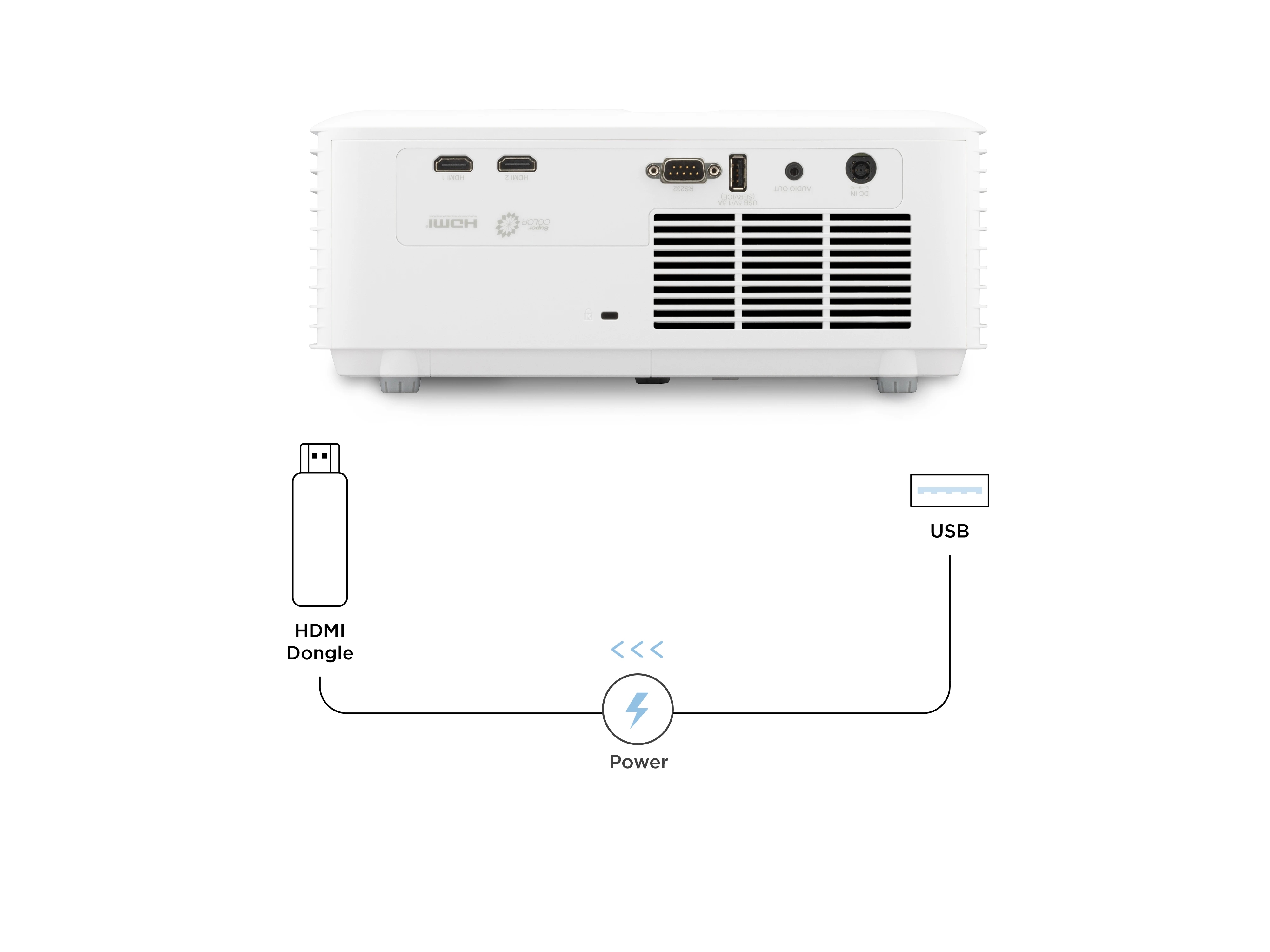

Directly Power Wireless HDMI Dongle
The built-in 5V/1.5A USB-A output conveniently delivers power to a wireless HDMI dongle, eliminating the need for separate
power adapters when streaming multimedia content.

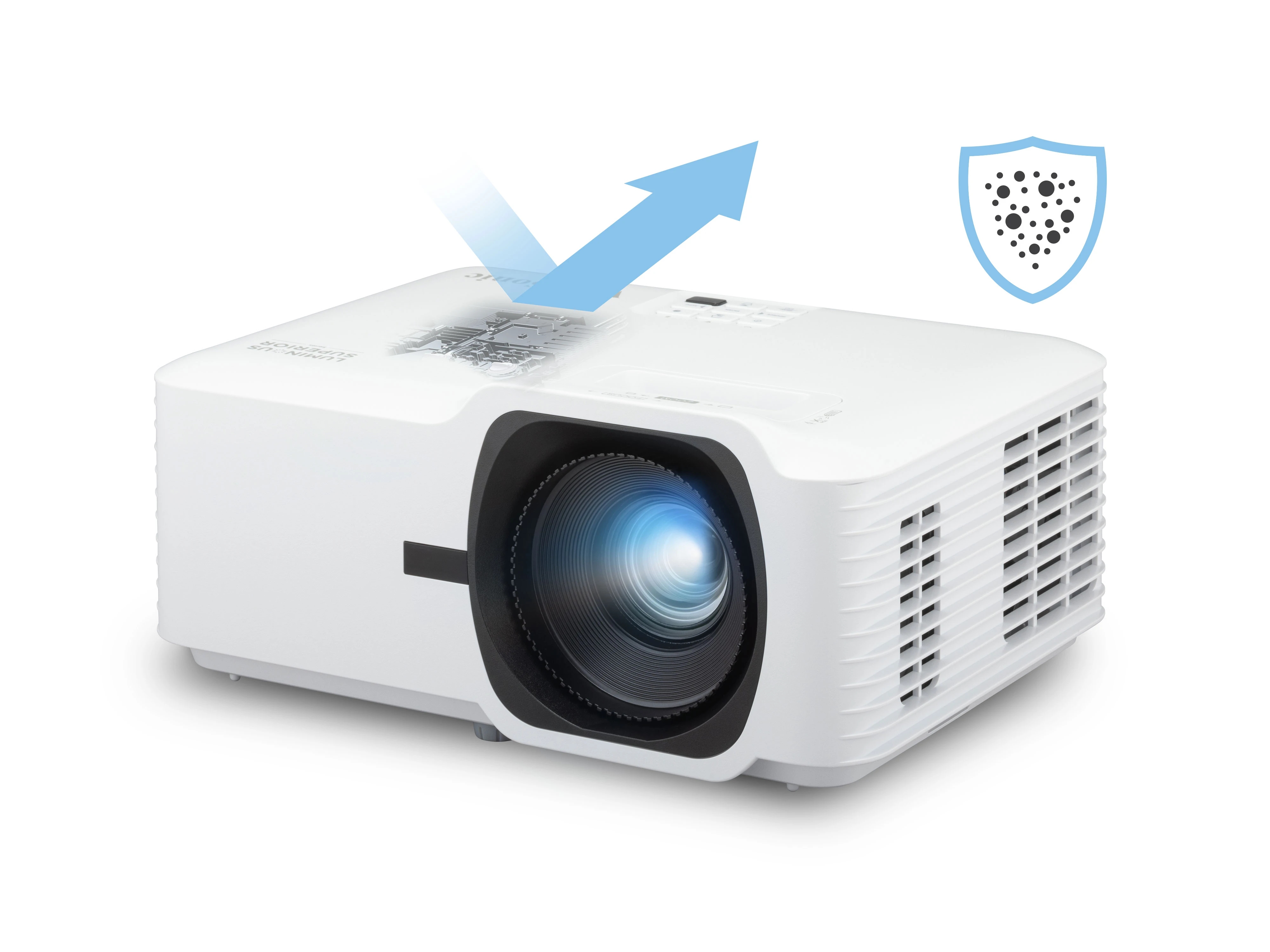

Enhanced Dust Resistance
Maintain crystal-clear image quality and product longevity with an advanced IP6X sealed engine design that prevents dust from
entering and affecting internal components.

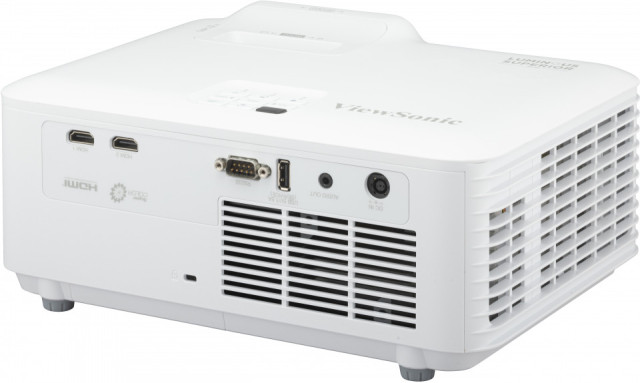

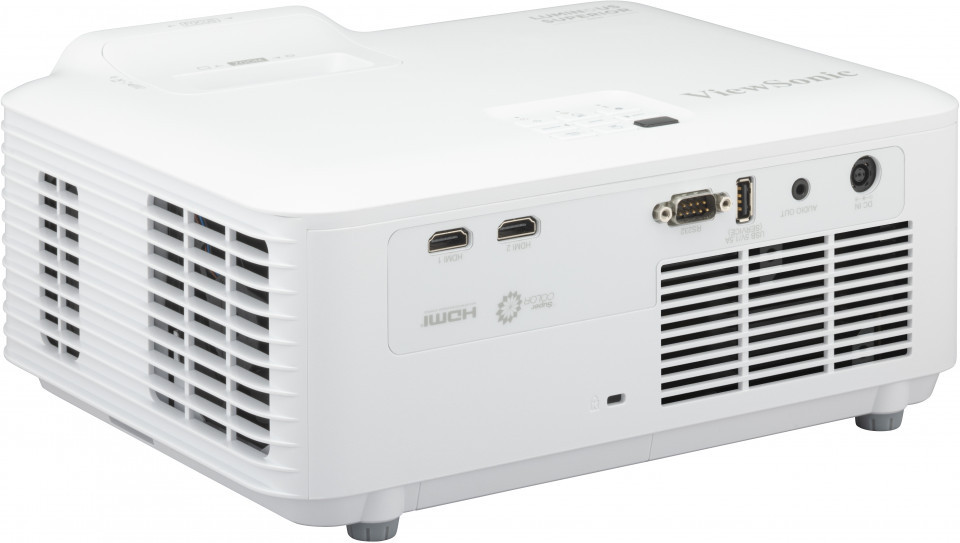

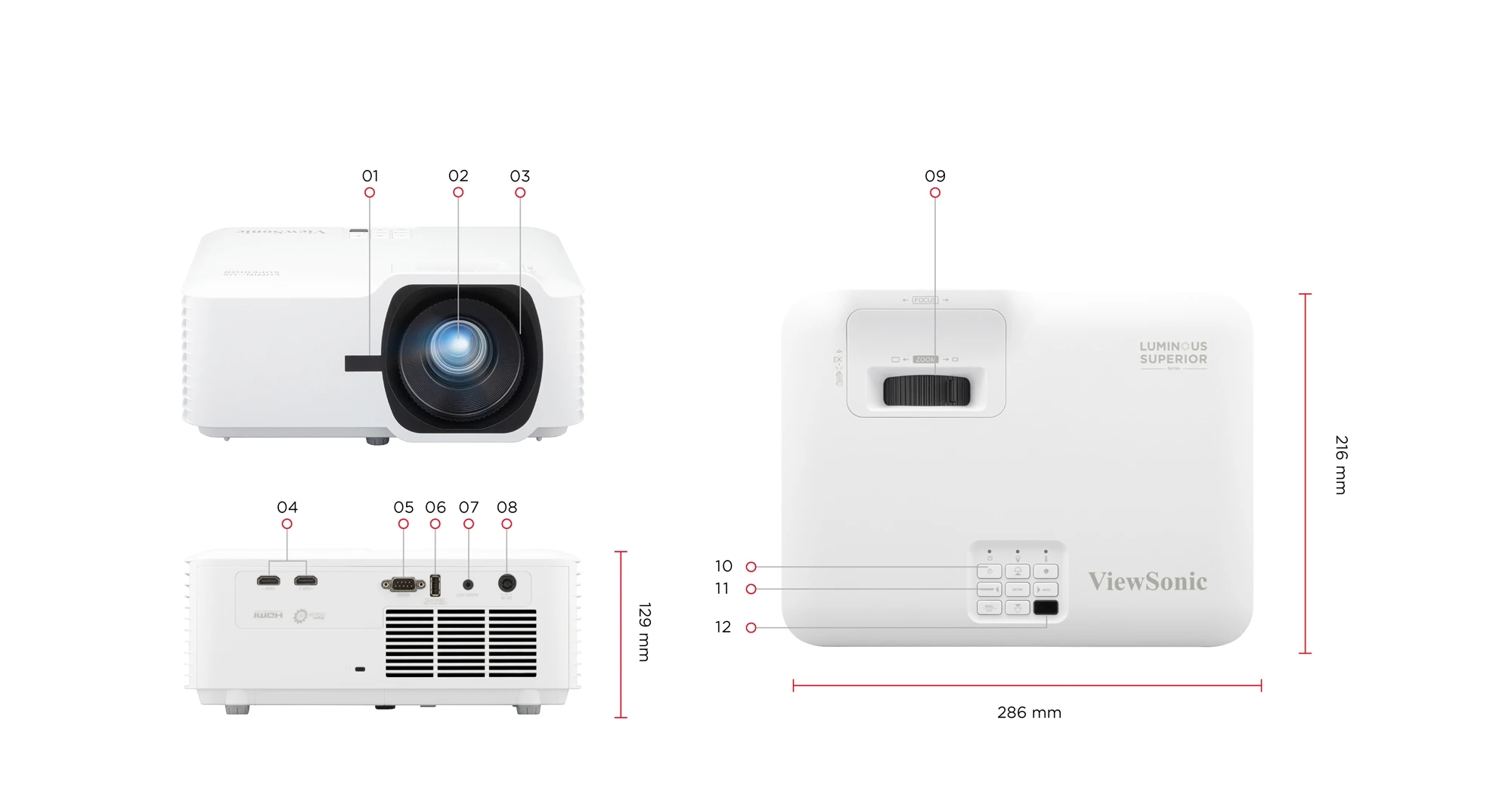

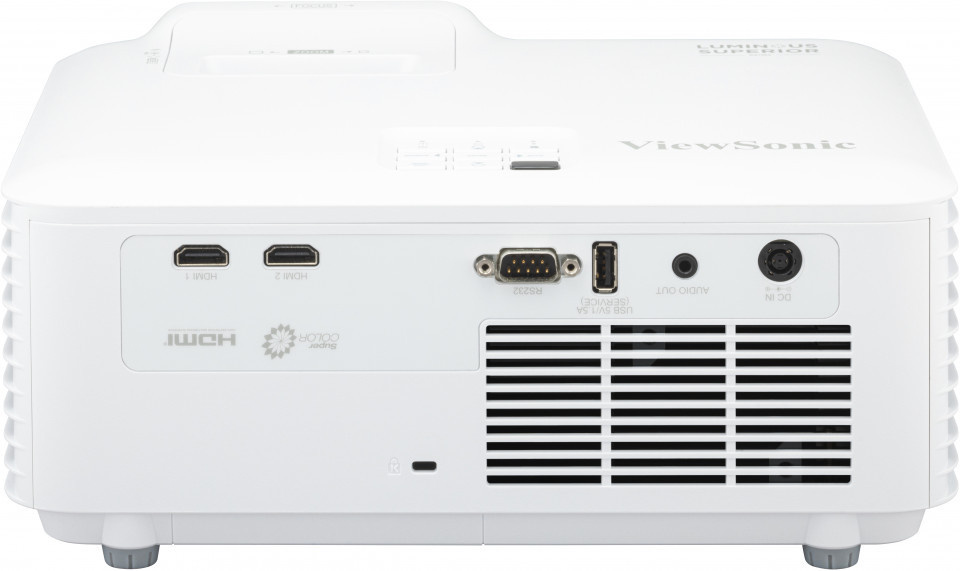

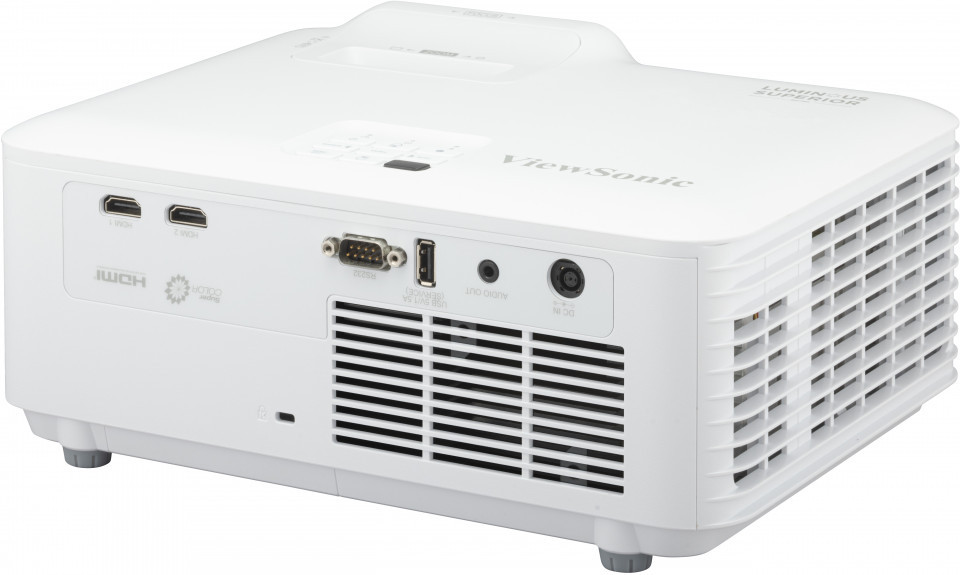

Dimensions & I/O Ports
1. Front IR 4. HDMI x2 7. Audio Out 10. Power Button
2. Lens 5. RS232 8. DC In 11. Keypad
3. Focus Ring 6. USB-A (5V/1.5A, Service) 9. Zoom Ring 12. Top IR
SPECIFICATIONS
Specification
Projection System: 0.65" WXGA
Native Resolution: 1280x800
Brightness: 5000 (ANSI Lumens)
Brightness (Center Lumens): 6000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.43-2.78, f=16.90-21.61mm
Projection Offset: 124%+/-10%
Throw Ratio: 1.18-1.54
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.77-9.98m
(100"@2.54m)
Keystone: H:+/-30° , V:+/-30°
Audible Noise (Normal): 30dB
Audible Noise (Eco): 24dB
Input Lag: 49.5ms
Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
*RB-Reduced Blanking
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 24-120Hz
Input
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Output
Audio-out (3.5mm): 1
Speaker: 15W
USB Type A (Power): 1 (5V/1.5A)
Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 11.79A
Power Consumption: Normal: 210W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 3.00kg
Gross Weight: 4.70kg
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish,
Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish,
Arabic, Czech, Thai, Vietnamese, total 20 languages
