Introduction to Interactive Sliding Screen
As the name suggests, an interactive sliding rail screen is a display screen that can slide along a track. It is a new type of multimedia presentation method, where exhibition panels or LCD video walls
are arranged on a display wall resembling a coordinate axis as the background, while a set of sliding mechanical structures is installed in front to hang LCD TVs.Sensor points are pre-arranged
at different positions on the background wall.When a viewer pushes the LCD TV along the track, the TV automatically plays the corresponding content upon sensing each point.
The content can be images, text, or videos.
Principle of Interactive Sliding Screen Technology
Different touch points are set at the corresponding positions on the images, and sensor circuits are pre-installed on the sliding track. Whenever someone moves the display
screen to the corresponding sensing point, the sensor signal will be triggered, and the display screen will automatically switch to the corresponding content.

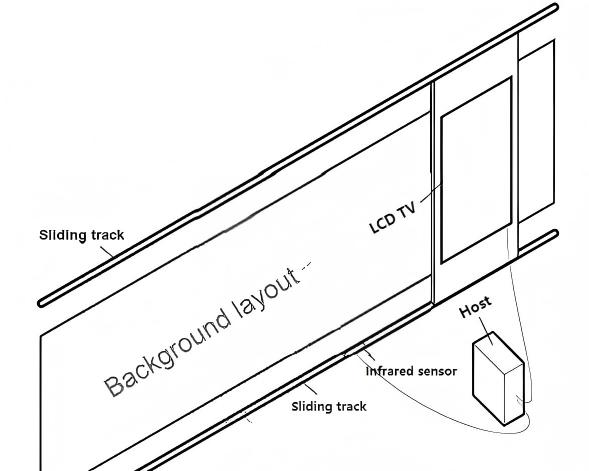

Interactive Sliding Rail Schematic
Interactive sliding screen system composition
The interactive sliding screen mainly consists of a customized sliding track, a plasma TV, infrared sensors, a lightbox, and a computer.

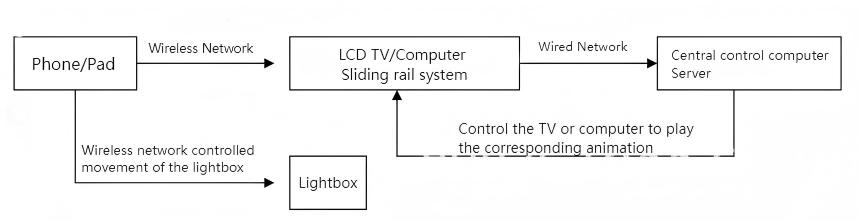

Interactive Sliding Screen Control Logic
When people move the display screen to different points, the sensor signal will be triggered when the point coincides with the screen,
and then the screen will automatically play the corresponding video content.
Interactive sliding screen device：
1. Control Program
This program is responsible for controlling the mobile motor, and the interactive sliding screen relies on it to achieve sliding functionality.
2. Guide Rail and Pulley
A concave guide rail is used in conjunction with a convex pulley to enable sliding.

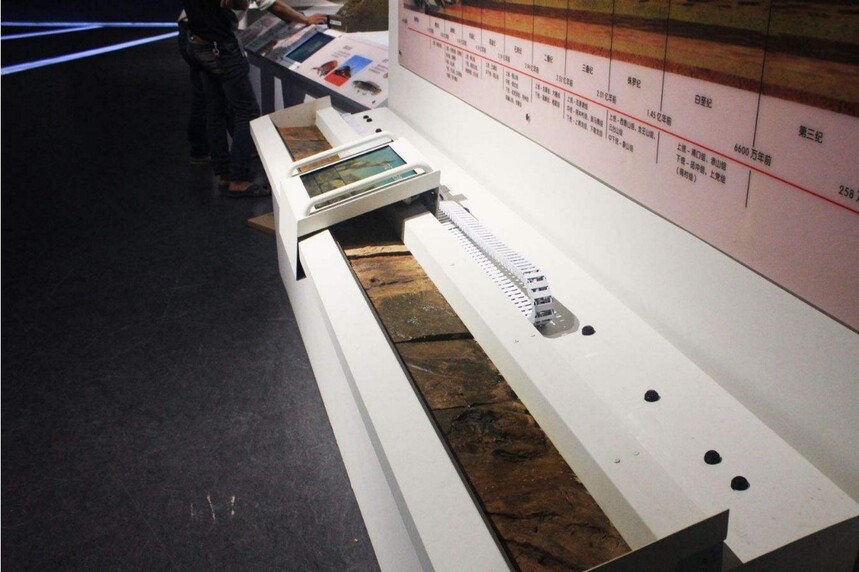

3. Drag Chain
The drag chain, with a width of 3 cm, is grooved to a depth of over 15 cm for smoother sliding performance.
4. Mounting Bracket
The TV mounting bracket is used to hold the screen, and it is customized according to the size of the screen.
5. Sliding Screen
Liquid crystal displays (LCDs) or light-emitting diode (LED) screens can be used. Currently, in many scenarios, TVs are also customized to create interactive sliding TVs.
Interactive Sliding Screen Classification
Interactive sliding screens can be divided into interactive sliding screens and interactive rotating screens.

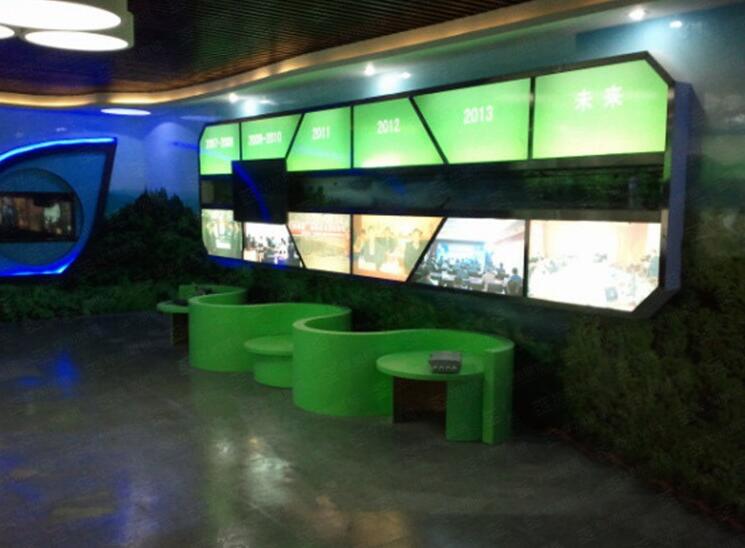

The interactive sliding screen uses a customized system to achieve automatic continuity for dynamic targets. The dynamic display wall breaks the
constraints of traditional electronic exhibits, requiring no manual control. Once visitors approach the screen, the large-screen system immediately
activates and moves along with the person's movements.

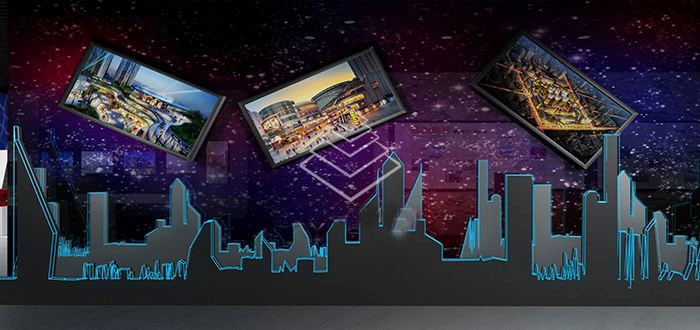

The interactive rotating screen, also known as a swinging screen, can rotate to any angle according to customized content.
Combined with product display, it creates magical visual effects during the rotation on the screen.
Interactive Sliding Screen Quotation
1. Customized sliding door motor control program: CNY5,000-8,000/pc.
2. Photoelectric switch 0-30cm diffuse reflection: CNY150/pc.
3. Guide rail pulleys, concave guide rails, convex pulleys, including power cords: CNY1,000/pc.
4.Control board 4 in 4 out: ×2pcs, CNY200/pc.
5.12V centralized power supply 1 input 2 output, 1 input 3 output: CNY110/pc.
6. The tank track is 3 cm wide, with grooves more than 15 cm deep: CNY30/m.
7. Custom Development of TV Wall Mounts: CNY400/set.
8. Custom development of control software: CNY30,000-100,000/set.
9. Custom development of 55" LCD screen: CNY11,000/set.
*In addition to the basic configuration quotation, the displayed content is also a major factor in determining the price of an interactive slide screen.
The quotation for content in the form of images and text is 80,000 to 200,000 RMB, while the quotation for content in the form of animations is 150,000 to 500,000 RMB.*
Advantages of interactive sliding screen
1. Carries a large amount of information
It can convey more information to be displayed. Compared to images and text, it is more space-saving, making the entire
exhibition hall more vivid and dynamic, truly achieving energy saving, power efficiency, and low-carbon environmental protection.
2. Clear at a glance for reference.
It facilitates customers' further understanding of the product and features a combination of fun, interactive, entertaining, and
practical effects, with the interactive entertainment experience being particularly prominent.
3. Lighten the burden on commentators
Turning dull text into visual displays on a sliding screen can achieve a very intelligent explanation effect and also save on the
cost of narrators.
4. Good publicity effect
This novel interactive approach will attract more visitors to watch and achieve excellent promotional effects.
Precautions for On-Site Installation of Interactive Track Screens
1. Precautions for On-Site Installation of Interactive Track Screens.
2. Pay attention to the wiring issues of the display screen, infrared sensor, and computer host.
3. There needs to be some space in front of the screen to allow for interaction with people.
4. Pay attention to the height of the sliding screen installation to facilitate audience operation.
Application areas of interactive sliding screen
The application of interactive sliding screens is becoming increasingly widespread, and of course, the forms of display are varied. Interactive sliding TVs are one of them and are also widely used.

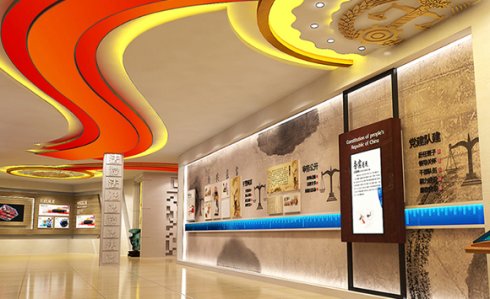

1. Museum: Generally used to display the content of images on walls, allowing dull and monotonous textual content to be well narrated in videos. Visitors can clearly see the content being presented at a glance.2. Car launch event: It is generally used to display cars. Usually, people only look at cars to understand their exterior and interior, but they are not clear about the structure of the car. However, an interactive sliding screen allows the audience to clearly and profoundly understand the internal structure of the car.
3. Corporate Exhibition Hall: The interactive sliding screen can reflect major events that have occurred over the years, allowing people to clearly understand the company's achievements and future development.
