Introduction to Immersive Projection
Immersive projection is a popular projection form in recent years. It mainly uses multi-channel projection fusion technology to project the projection image completely
onto the projection screen, allowing the audience to be immersed in it and feel the shock. Immersive projection surrounds the audience from all aspects, can fully cover the audience's
field of view, and achieves a sense of immersion that other ordinary projections cannot achieve.
Principle of Immersive Projection

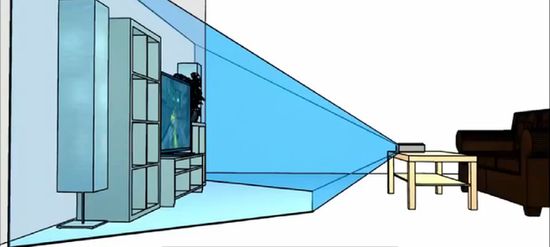

The principle of immersive projection is to use projectors to cast images onto large or multi-sided projection screens, and then rely on multi-channel projection fusion technology to
make the images present better effects. The system can provide a room-sized cubic projection display space with four (or six) sides. Combined with an audio system
and a motion capture system, it creates an immersive three-dimensional audio-visual interactive experience.
Features of Immersive Projection
1. Realistic Vertual Environment
2. Takes Up Little Space
3. Custom Configuration
4. Rear Projection

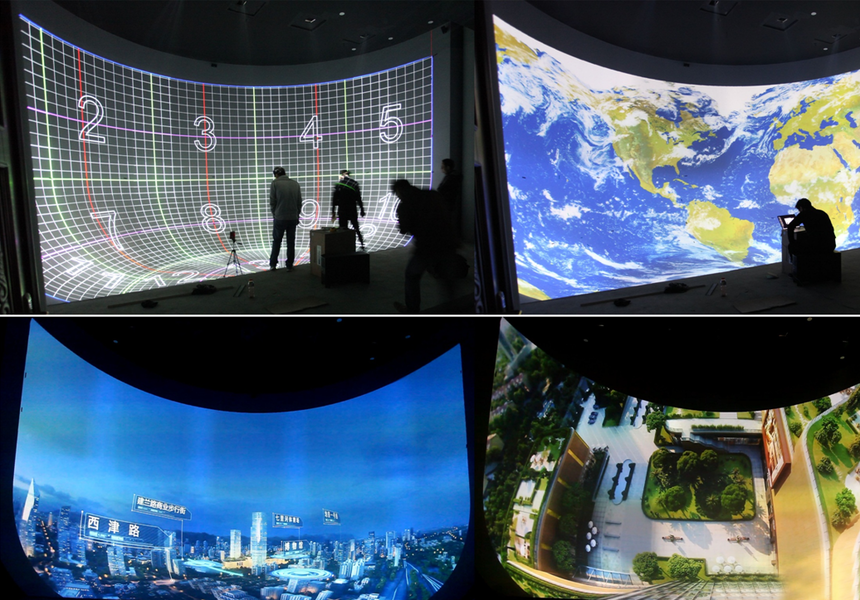

Immersive projection integration

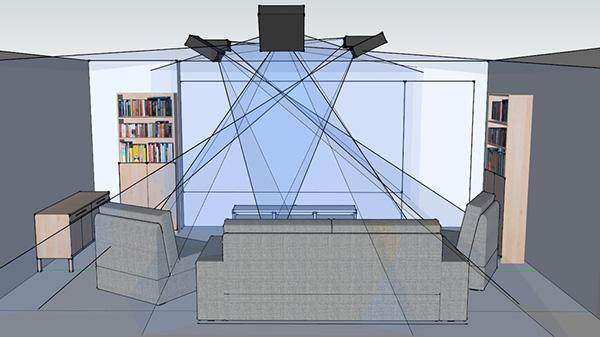

Principle: Images are projected onto the projection screen via projectors. Each individual projected image has an overlapping part at the joint, which is processed by
projection fusion technology to eliminate the excess brightness in the overlapping light area, thereby ensuring the integrity of a single image.
Devices:
Hardware Requirements
1. Central Control Host/Database i5/GTX750/4G/500G2
2. Multi-Screen Converter (Optional)
3. Integrated Software System (FusionV5 5.0)
4. Projectors
5. Display devices: Projection Screens, LED Display Screens, Other Media
6. Bracket and Frame Struture
7. Sensing Devices
8. Audio System
Software Requirements:
1. Integrated Software
2. Control Software
3. Audio and Video Playback/Control Software
4. Sensing software
Advantages: Immersive projection fusion can increase the resolution of the image, offer a larger image size, and adapt to various requirements according
to actual needs, presenting a more perfect three-dimensional immersive experience.
Immersive Projection Devices
1. Projectors
Due to the large image size of immersive projection, three or more projectors are usually required. To ensure image quality and stability, well-known brands should be selected, and the projectors must have high lumens.
2. Host Computer
Choosing a higher-specification host can handle the operating system more stably
3. Projection blending software
When multiple projectors are used for projection, the problem of incomplete images may occur. Projection blending software is mainly used to eliminate gaps and make the images more perfect.
4. Audio System
Having only stunning visuals is not enough; to achieve an immersive experience, surround sound is needed to create the atmosphere.
5. Control Software
Control the playback of multiple projectors.
6. Projection content
There is a professional film production team, capable of customizing projection content.
Immersive Projection Quotation
The price of immersive projection generally ranges from CNY200,000 to CNY1,000,000 yuan, mainly calculated based on the projection area. Of course, some software
and hardware equipment can also affect the quotation. Below, let's take a look at the price list for immersive projection equipment.
|
Device Name |
Discription |
Price |
| Hardware |
Projectors |
Three or more units |
CNY20000/pc |
| Projection Screen |
Arc Screen, Surround Screen |
CNY2500/m² |
| Playback System |
Customized demand |
CNY5000/unit |
| Audio System |
Stereo Sound |
CNY8000/unit |
| Software |
Synchronous Control Software |
Play Simultaneously |
CNY8000/unit |
| Film Production |
Customized demand |
CNY5000/second |
| Projection Fusion |
Determined according to the quantity of projectors |
CNY4000/Channel |
| Playback Software |
Multi-point Playback |
CNY20000/set |
Space Requirements for Immersive Projection
1. Multi-dimensional Enclosed Space: It can provide a room-sized cubic projection display space with four (or six) sides for multiple participants. All participants are fully immersed in
an advanced virtual simulation environment surrounded by stereoscopic projection images. With the help of corresponding virtual reality interactive devices (such as data gloves,
force feedback devices, position trackers, etc.), they can obtain an immersive high-resolution 3D audio-visual image and a free interactive experience.
2. The indoor height should be no less than 3.5 meters to accommodate the space for multiple projectors and display devices. Immersive games built with multi-projection display technology
and somatosensory interaction technology can bring players a highly immersive visual experience and interactive experience. Immersive games based on multi-projection display technology
usually occupy a relatively large physical space.
3. The light should not be too bright; otherwise, it will affect the display effect.
Immersive Projection Classification
Immersive projection is a type of projection, and the common types of immersive projection include the following:

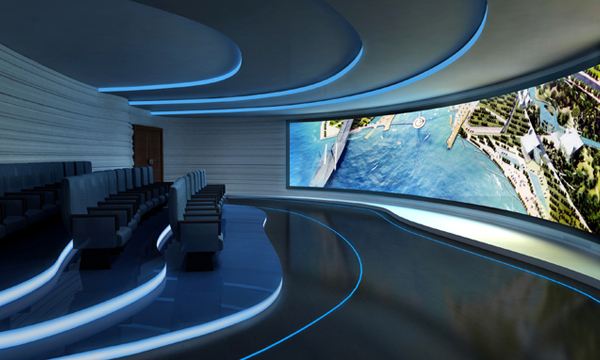

Arc Screen Projection:
Arc screen projection presents an ultra-large projected image with a seamless splicing effect through projection blending technology. It can be customized to any curvature
and designed specifically according to the actual venue, creating a stunning immersive effect.
Features:
1. Visual Impack
The stunning visuals provide the audience with a strong immersive experience, and paired with stereo sound effects, they create a powerful audio-visual impact.
2. Personalized customization
The arc screen can be determined based on the on-site environment and specific needs, so both its size and curvature can be customized.
3. Strong Stereoscopic Effect
The 360-degree viewing effect enables the audience to experience a stereoscopic visual effect.
4. Flexibility
Supports multiple video sources for playback, making it very flexible and versatile to use.

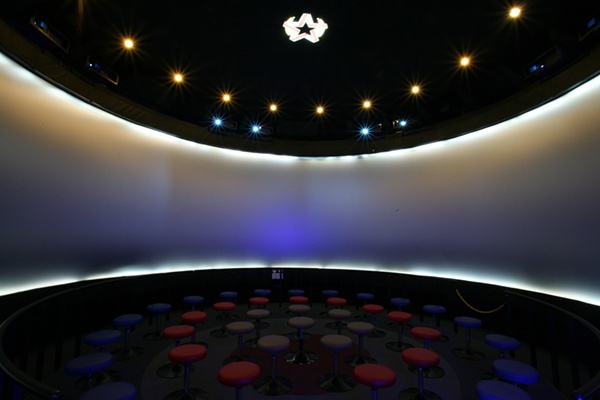

Circular Screen Projection/Curved Screen Projection
Circular Screen Projection is a projection technology that uses a circular, arc-shaped, or curved surface as the projection screen. It surrounds the audience within the circular screen,
and the presented ultra-large image can fully meet the audience's visual requirements. Combined with the surrounding stereophonic sound effects and the content of the film, it creates an immersive audio-visual feast.
Features:
1. Multi-channel seamless splicing makes the projected image more complete and clear.
2. Multiple projection methods can be selected, such as rear projection and front projection, which shortens the projection distance.
3. The special projection method greatly enhances the sense of depth in the image.
4. The size can be adjusted according to specific needs, offering greater flexibility.
5. Due to the use of multiple projectors and edge blending technology, the image resolution is higher.
6. The immersive audio-visual experience is incomparable to that of other projection methods.
7. Supports playback from multiple sources.
8. Show projection images with high-tech technology, featuring a fashionable and stunning effect.

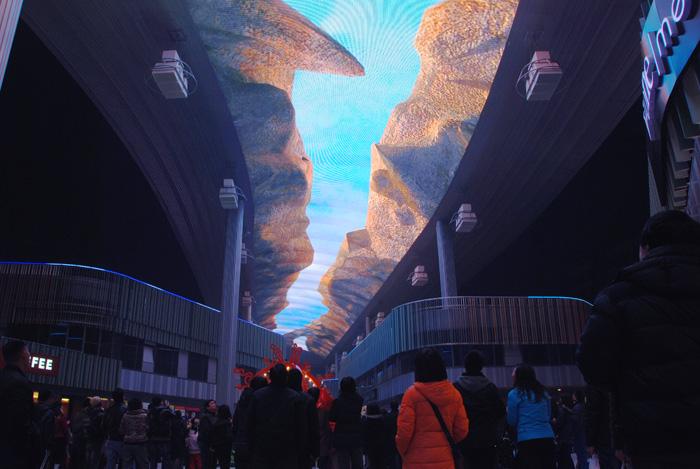

Sky Screen Projection
Sky Screen Projection is an innovative special-shaped projection method. Its characteristic is that the projection screen is above our heads, which can be either
a ceiling or an LED tiled screen, delivering a stunning visual experience.
Features:
1. Size: The size of the projected image and area can be customized according to the customer's requirements.
2. Content customization: The projection content can be tailored according to the desired effect and venue requirements.
3. Interactivity: An interactive system can be added to enhance the interactive experience effect of the sky screen projection.
4. Stunning effect: The combination of projection images and surround sound can create a more realistic and impressive visual experience.

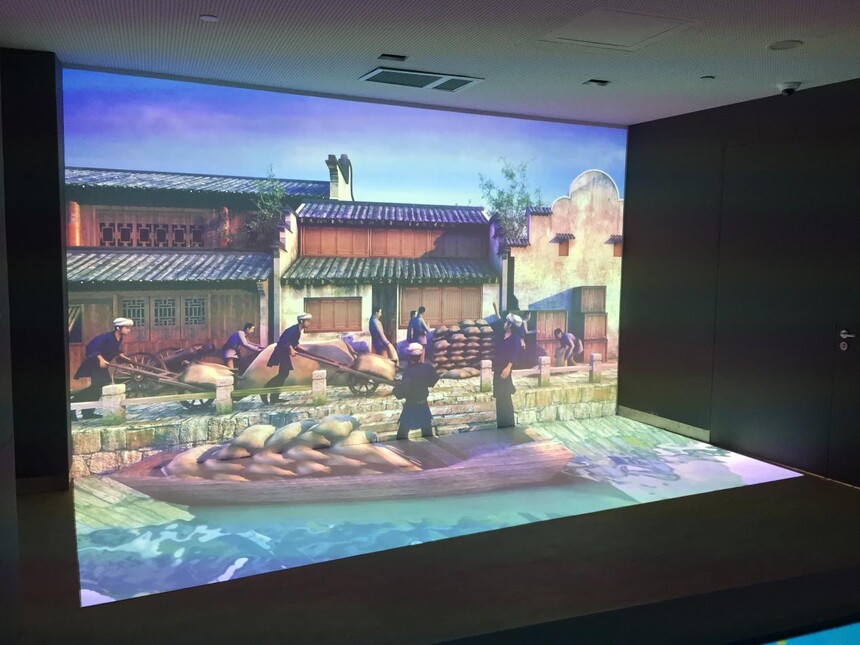

L-shaped folding screen projection
L-shaped Folded Screen Projection is generally composed of two screens or directly formed by utilizing walls and floors. Then, two projectors
and projection fusion technology are used to create a perfectly seamless image. This projection method can generate
an immersive experience without relying on any additional equipment.
Features:
1. The projection screen is easy to install, the equipment is simple, and it is quite flexible.
2. High cost-performance: Compared to other immersive projections, the L-shaped folding screen has a lower cost, but the projected image quality is not inferior, so it has a high cost-performance ratio.
3. Wide Application: The projected content of the L-shaped folded screen projection can be customized, and it has low requirements for installation environments, making it suitable for various fields.
Advantages of Immersive Projection:
1. Complete picture, large size
The splicing of multiple images and the processing of projection fusion technology result in a more complete and larger-sized image, delivering a stronger visual impact.
2. High Resolution
Each projector displays a portion of the image, and the resolution does not decrease as the image gets larger, so the picture quality remains very clear.
3. Strong Sense of Layer in the Image
Using edge fusion technology can enhance both the brightness and resolution of the image, thereby strengthening the overall sense of depth in the picture.
4. Immersive interactive experience
Being in such an immersive environment, combined with an interactive system, can make the audience feel as if they are truly there.
5. Flexible and Versatile
Suitable for various exhibition hall environments, highly adaptable.
Application of Immersive Projection

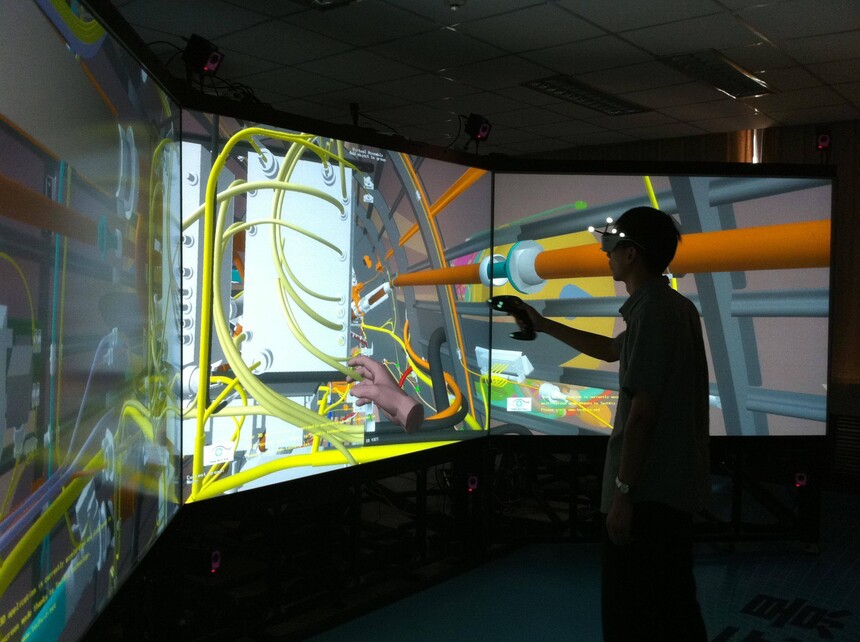

1. VR virtual roaming exhibition hall
VR virtual exhibition hall: The immersive experience makes participants feel as if they are truly there, as if they are part of it.

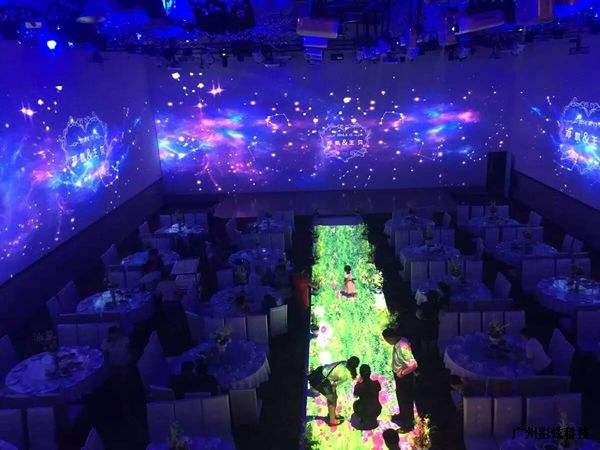

2. Immersive Restaurant:
Boasting a unique style, the restaurant allows diners to enjoy meals in an immersive environment. This can attract more customer flow for the restaurant and enhance its status.

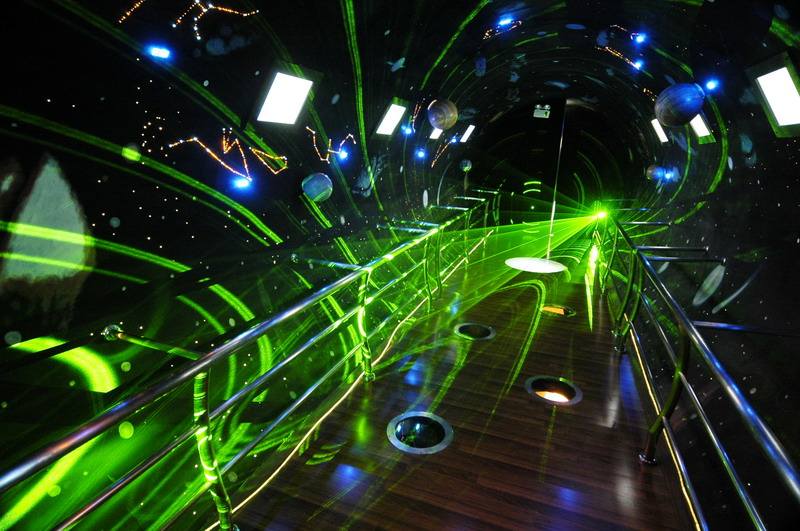

3. Science and Technology Museum: Immersive visual experience enhances the sense of technology in the museum.

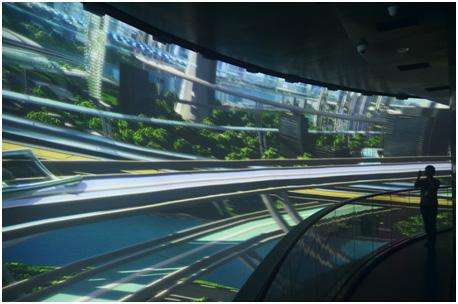

4. Urban Planning Museum: It presents the urban landscape in a three-dimensional way, showcasing the present and looking forward to the future.

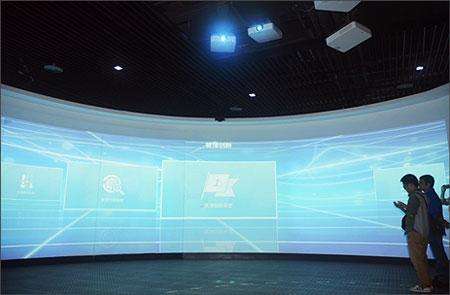

5. Corporate Exhibition Hall: High-tech is used to display corporate products, which can better promote the products and enhance the grand momentum of the corporate planning hall.

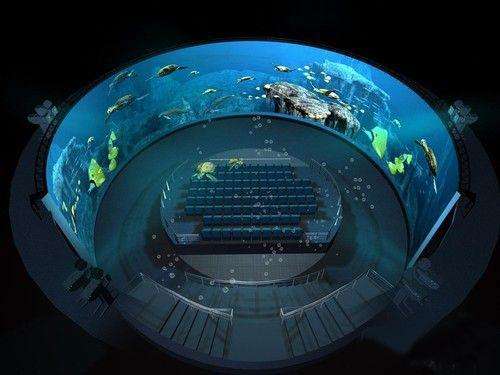

What is an immersive cinema?
efers to a cinema that uses fusion technology to blend the images projected by multiple projectors, thereby forming a complete picture. Then, the picture is spliced to
create film displays in multiple directions such as front, rear, left, right, up and down. Combined with three-dimensional surround sound, it
creates an all-around viewing experience that allows the audience to be fully immersed in it.
The main advantages of immersive cinemas
1. Virality: Immersive theaters are high-tech creations with an inherent aura of attraction, capable of drawing people's attention whenever they appear.
2. Customization: Immersive cinema can adapt to a wide range of viewing environments and are highly flexible.
3. Stunning Experience: The immersive cinema adopts an encircling display method. Combined with high-definition images and three-dimensional sound
effects, it provides the audience with an experience of being truly immersed in the scene.
4. Interactivity: When people are in an immersive cinema, they can participate in it and experience the images and sound effects in an all-round way.
Trends in Immersive Projection Development
The emergence of Immersive Projection has gradually replaced traditional projection technology, changed people's perception of projection,
and brought them a stunning visual experience. Currently, immersive projection has been widely applied in various venues, which has
greatly enhanced the fun and sense of technology of these venues and effectively attracted people's attention.
Meanwhile, the currently popular 3D, 4D, 5D and even 7D cinemas are striving to create such an "immersive"
experience, which is also the development direction of cinemas in the future.
