OVERVIEW

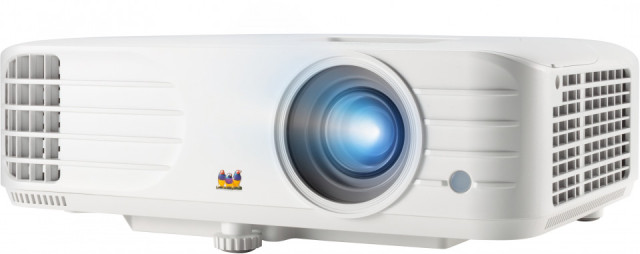

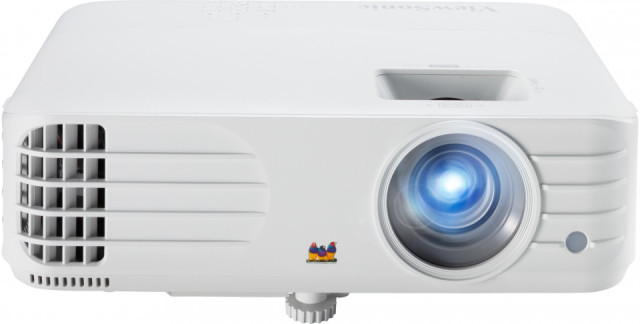

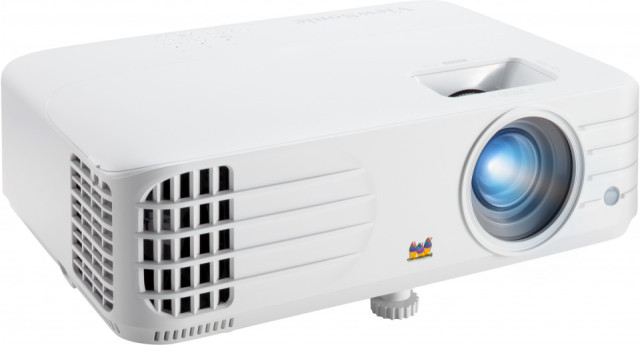

The ViewSonic PX701HDH is a high brightness 3,500 ANSI lumens projector featuring a Full HD 1080p resolution that offers
impressive visual performance in a brightly lit living room or meeting room. The projector adopts the latest lamp design to
extend lamp life of up to 20,000 hours under SuperEco+ mode, effectively reducing lamp replacement and maintenance costs.
A digital lens shift allows users to make adjustments by remote control, it’s also compatible with the vColorTuner function for
colour profile exchange and adjustments. The dual HDMI inputs and USB power supply allow users to connect to a
multitude of multimedia devices for gaming, movies, or a wireless dongle for wireless presentation.
Bright and Clear Images Anywhere
A 3,500 ANSI Lumens of brightness and a 1080p Full HD resolution guarantee bright and clear images in any environment,
including rooms with high levels of ambient lights.
3,500 ANSI Lumens 1080p Full HD
Vivid Colour Performance
ViewSonic’s proprietary SuperColor™ technology displays a wide colour range, ensuring that users enjoy a true-to-life colour
performance in both bright and dark environments without sacrificing image quality.
The Energy-efficient SuperEco+ Mode for a Lamp
Life of up
to 20,000 Hours
With the latest technology to enhance lamp life, the SuperEco+ mode greatly extends the durability of the PX701HD from 15,000
hours to 20,000 hours of use with a signal input.SuperEco+ Mode: when the projector has not received an input signal for 5
minutes, the projected images are dimmed by 40%, extending the lamp’s lifespan to 20,000 hours on average for reliable long-
term usage.

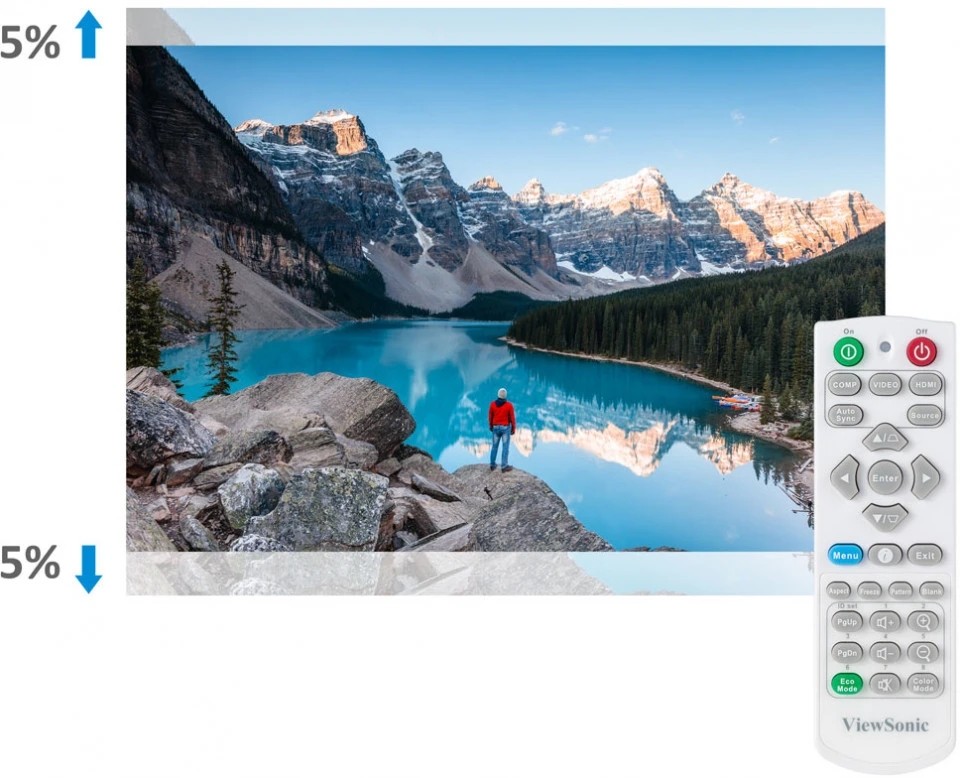

Flexibility in Image Projection
The PX701HDH offers 10% flexibility of vertical image adjustment, so the users can shift
the image up or down without distorting the image with remote control, making the installation quicker and easier.

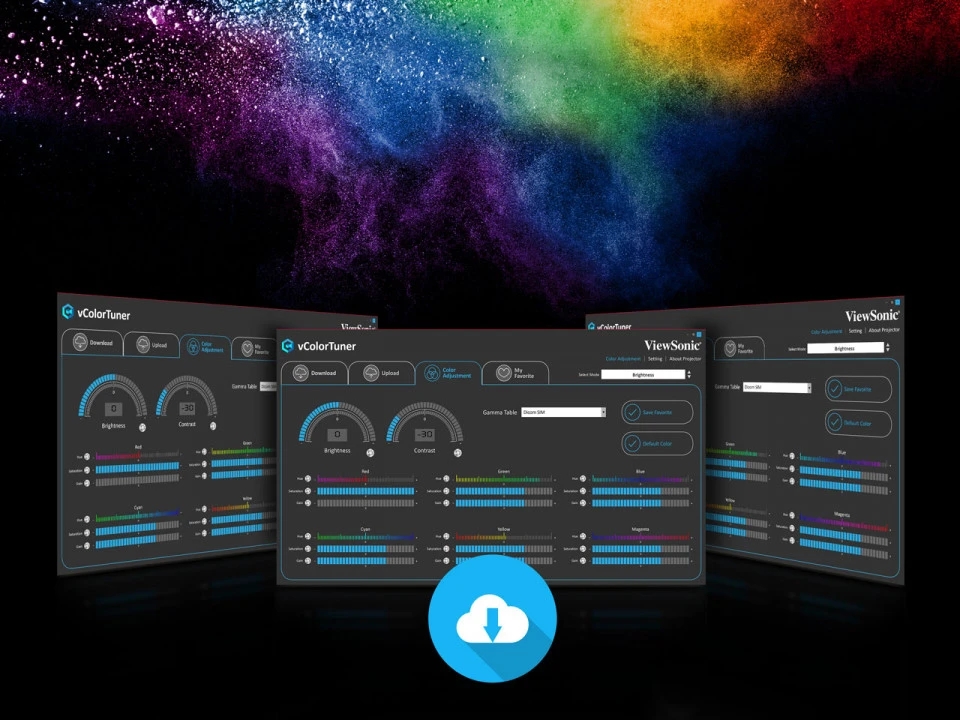

Colour Profile Preference with vColorTuner
By using a cloud-based colour profile exchange, users can create their own colour profile to fit their preferences and share with
others. Also, users can download other profiles from their projectors and fine-tune them as their own.
Customised User Modes for Your Colour Preference
Aside from ViewSonic’s default picture mode, two extra user modes were added to ensure that the users can save their preferred
settings with up to a total of 7 colour modes.

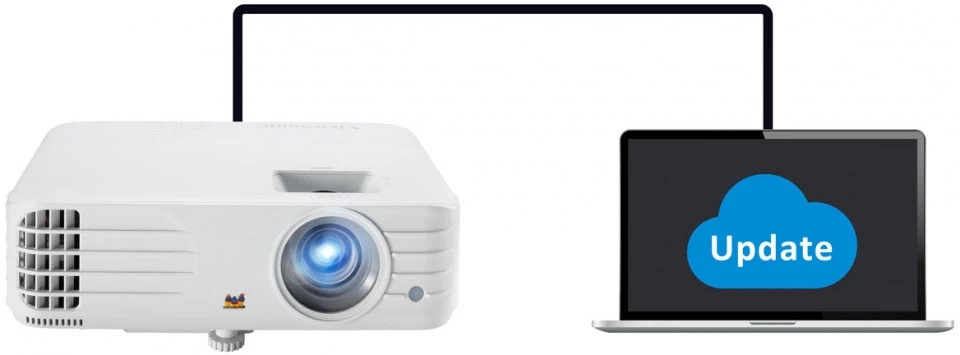

A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date
easily and conveniently; no need to take your projector into a service centre for software updates.

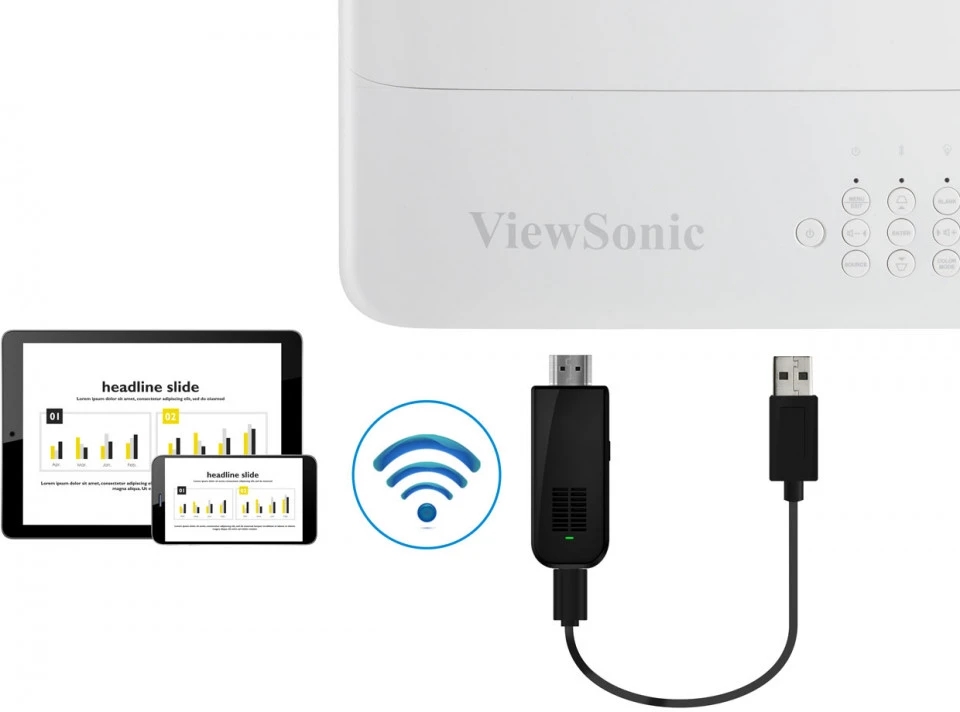

Integrated Power Source
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate
power adaptors when streaming your favourite multimedia content.

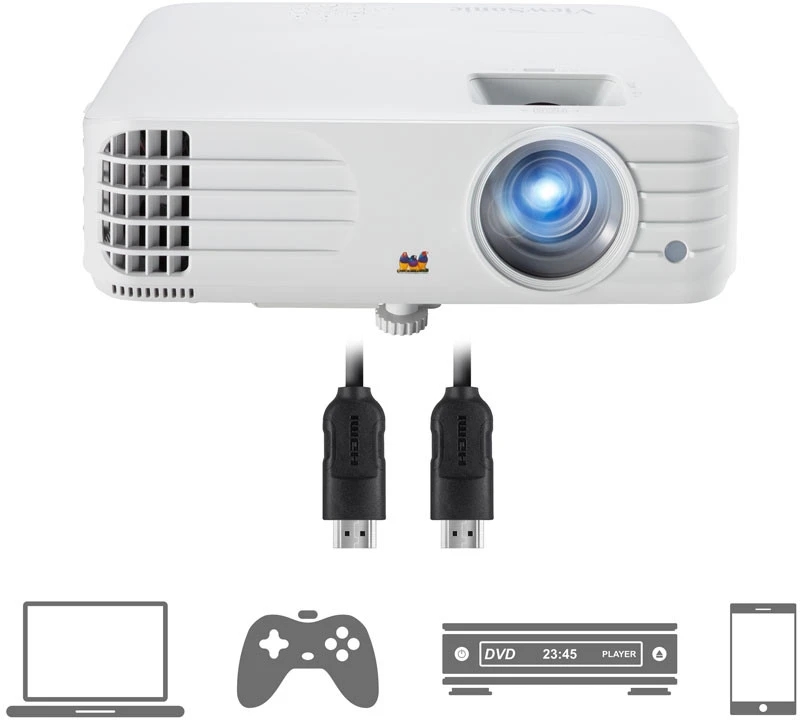

Extensive Connectivity
Dual HDMI ports provide enough connectivity to support any of your HDMI multimedia devices, delivering a big screen
experience for any occasion.
Immersive 3D Viewing
The PX701HDH is capable of projecting 3D content directly from 3D Blu-ray players and HDMI-enabled devices such as laptops,
tablets, and media players via HDMI connection.

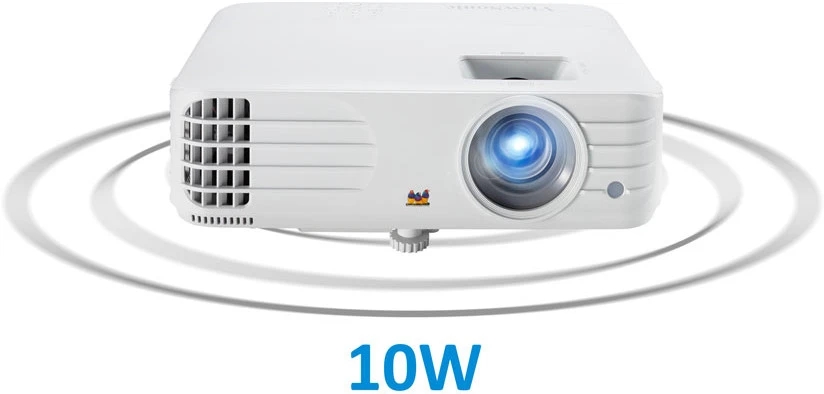

Powerful Sound
The PX701HDH is equipped with a larger speaker, delivering immersive audio performance.

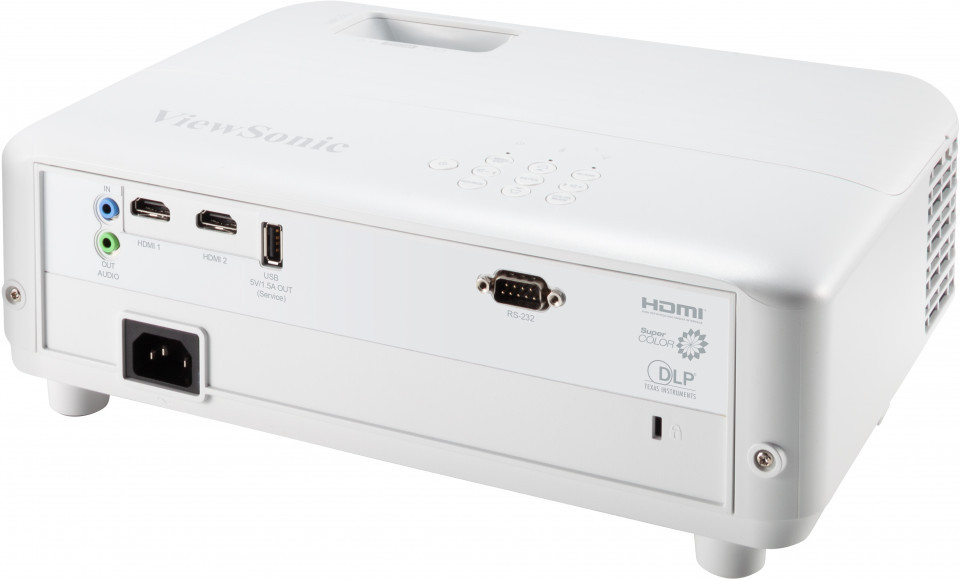

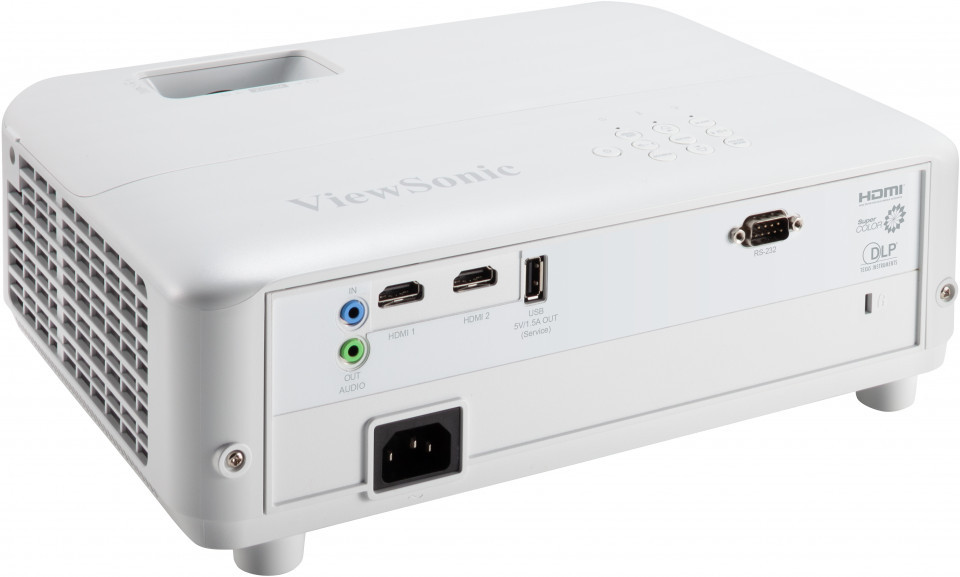

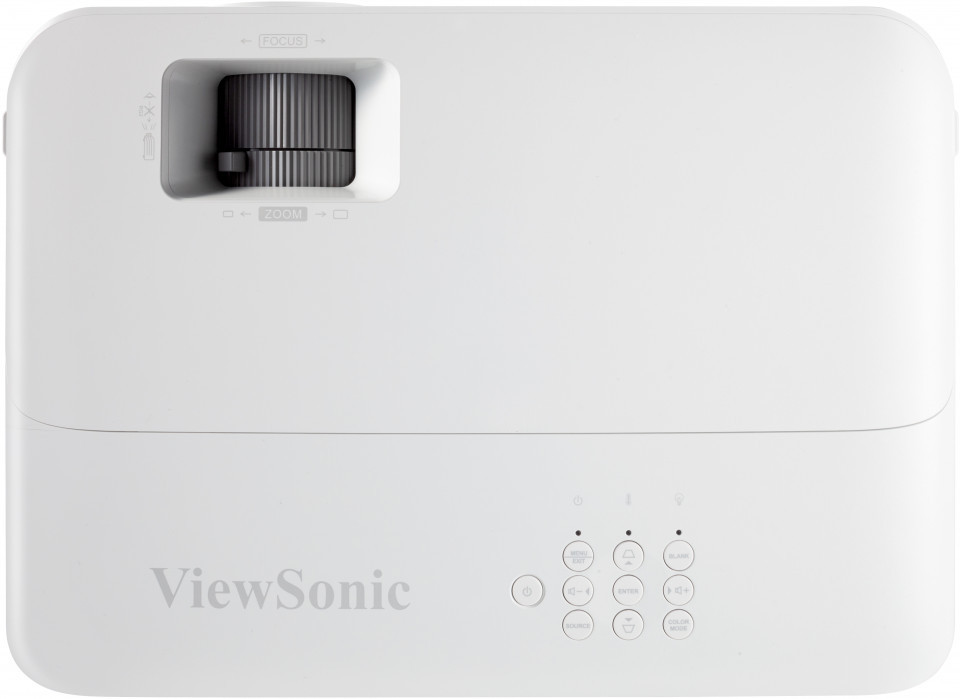

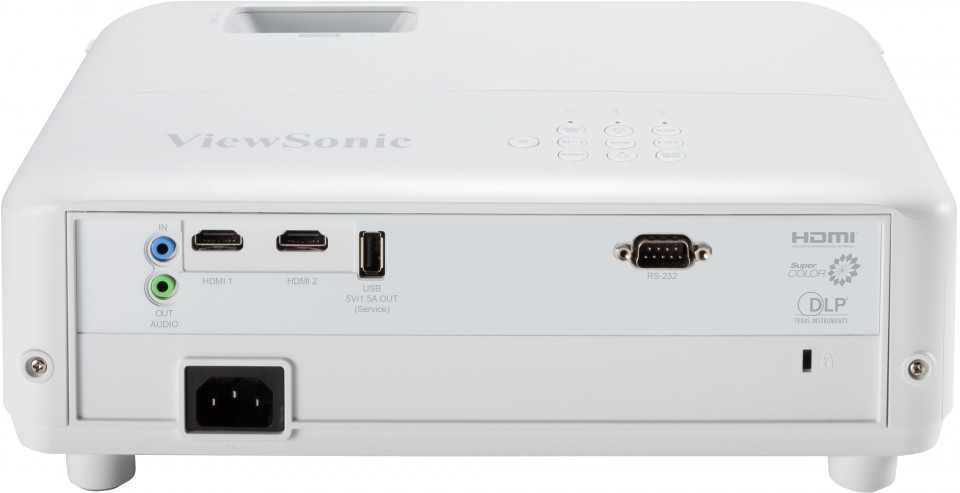

Dimension & I/O Ports
1. Keypad 4. Zoom/Focus 7. Audio In/Out 10. RS232
2. LED Indicator 5. Projection Lens 8. HDMI 11. Kensington Lock
3. Power Key 6. Front IR 9. USB Type A
SPECIFICATIONS
Specification
Projection System: 0.47" 1080p
Native Resolution: 1920x1080
Brightness: 3500 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 12000:1
Contrast Ratio: 15000:1
Display Color: 1.07 Billion Colors
Light Source Type: Lamp
Light Source Life (hours) with Normal Mode: 5000
Light Source Life (hours) with SuperEco Mode: 20000
Lamp Watt: 203W
Lens: F=2.0-2.05, f=15.843-17.445mm
Projection Offset: 110%+/-6%
Throw Ratio: 1.5-1.65
Optical Zoom: 1.1x
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 1m-10.96m
(100"@3.32m)
Keystone: +/- 40° (V)
Lens Shift V. Range: +/- 5% (Digital)
Audible Noise (Normal): 31dB
Audible Noise (Eco): 27dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Audio-out (3.5mm): 1
Speaker: 10W
USB Type A (Power): 1 (5V/1.5A)
Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 300W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.59kg
Gross Weight: 3.75kg
Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
Packing Dimensions: 415x168x297mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian,
India, Arabic, Vietnamese, Greek, Total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish,
Arabic, Czech, Thai, Vietnamese, Total 20 languages
