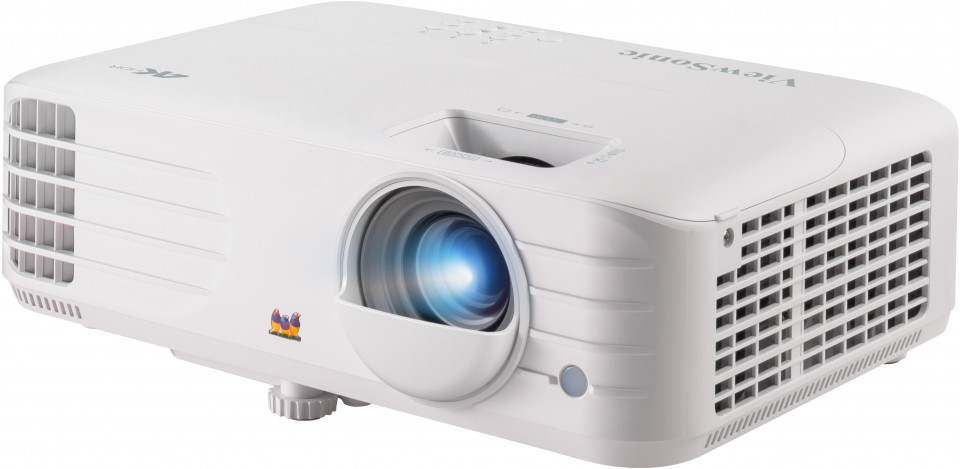

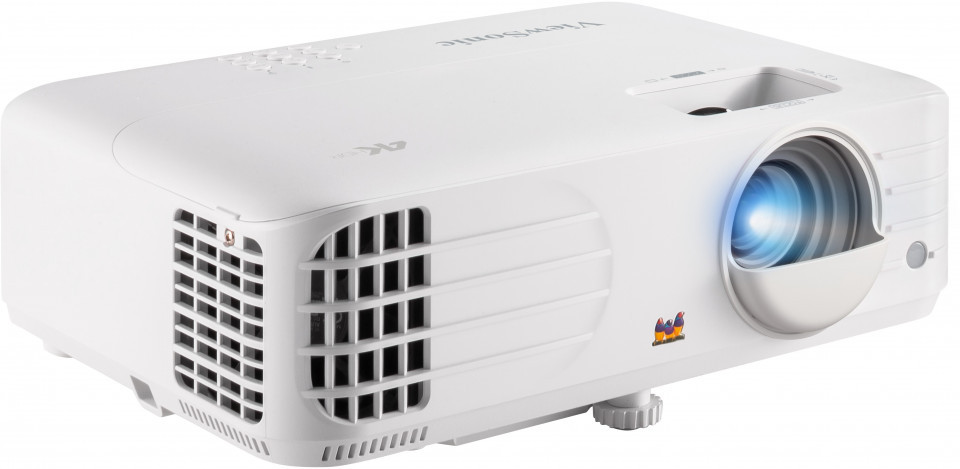

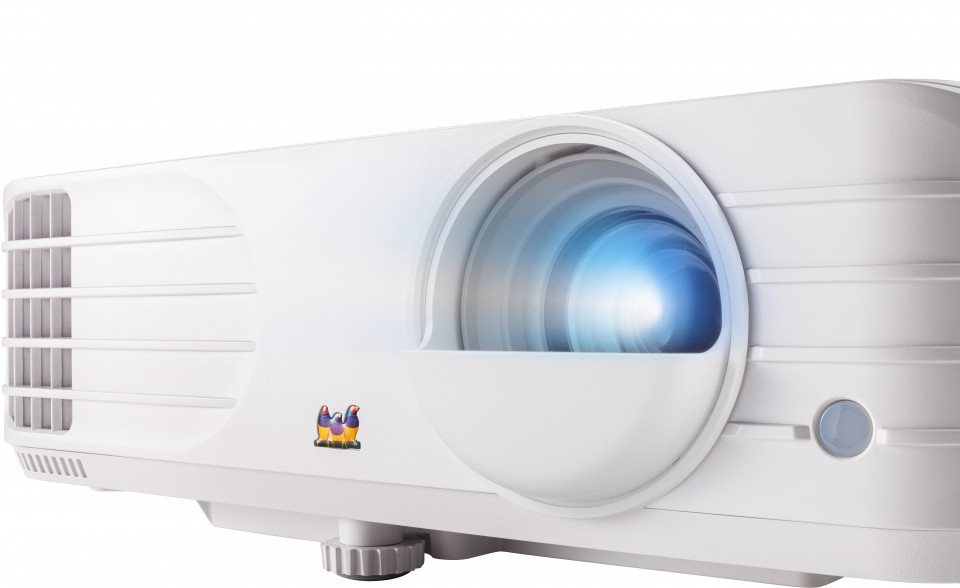

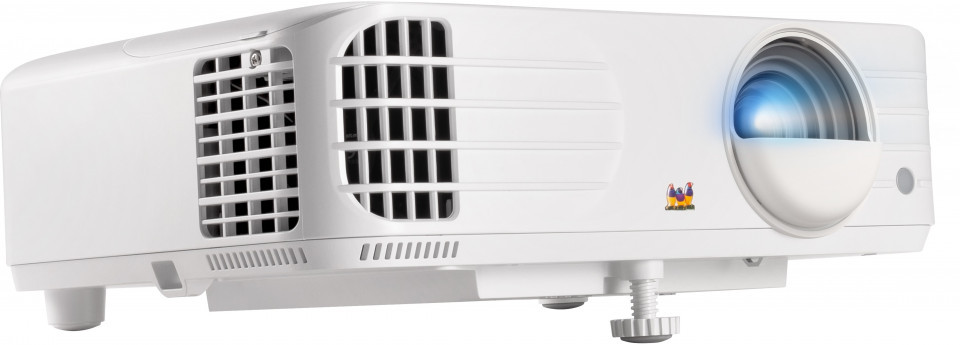

OVERVIEW
The PX701-4K is a 3,200 ANSI Lumens high brightness 4K home projector, a great-value choice for upgrading to 4K. Take in
impressive visuals in true 4K clarity supporting HDR/HLG, or upgrade your gaming experience to the next level with 4.2ms
Ultra-Fast Input and 240Hz refresh rate. Project an up-to-300” big screen on any surface easier than ever with powerful
warping, auto V keystone, H/V keystone and 4-corner adjustment. In addition, the energy-efficient 20,000 hours long lamp life
gives it an even lower total cost of ownership than the typical lamp projector.
True 4K Clarity with HDR/HLG Support
In addition to the stunningly detailed images that true 4K resolution can offer, the projector also supports HDR and HLG content
to produce more dynamic-looking images and bringing flat images to life with more displayable information in the darker and
brighter parts of a scene.
Ultimate Gaming Experience with Ultra-Fast Input
Say goodbye to motion blur and missed attacks due to input lag! With our 4.2ms Ultra-Fast Input* and hyper-responsive 240Hz
refresh rate, plus the microsecond-level response time**, you can game with low delay and seamless viewing of fast-moving
objects that would bring your KDA to the next level.
*To enable 4.2ms Ultra-Fast Input, turn it on in Advanced Settings and make sure the input content is with 240Hz refresh rate. When enabled, the highest
resolution supported is 1080p.
**The response time stated refers to the reaction time of DMD chip.
4.2ms Ultra-Fast Input & 240Hz Refresh Rate
Effortless Image Adjustment
Be it on the side table in the living room, bedroom or any other location you like, the projector can provide perfectly shaped
images with comprehensive H/V keystone and 4 corner adjustment capabilities. The auto V keystone further frees you from
manual adjustments no matter how you tilt the projector, up or down.
H/V Keystone Auto V Keystone

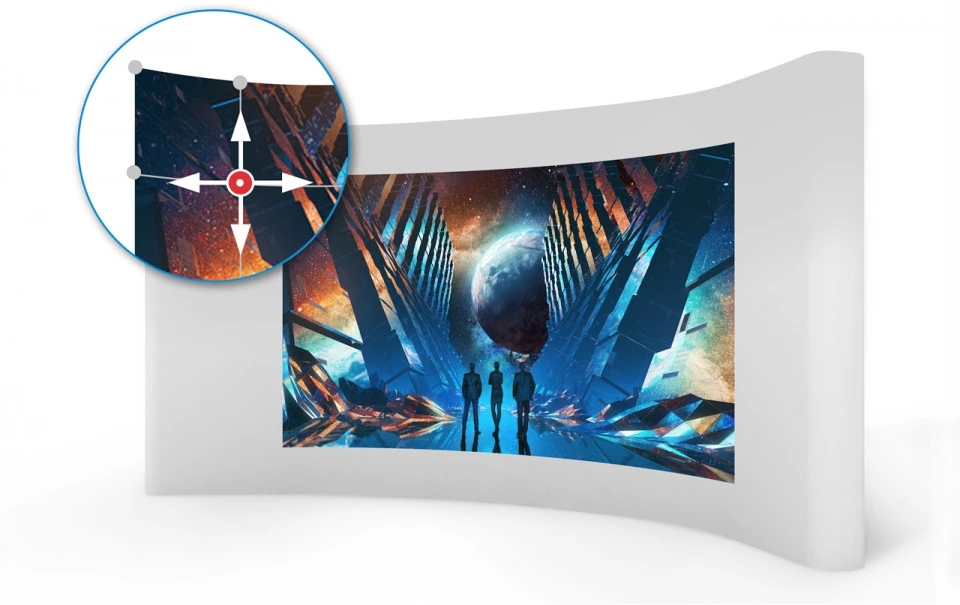

Perfect Projection Even on Curvy Surface
Who says projection only works on a flat surface? With our advanced Projector Warping Tool, the distorted image can be
perfectly shaped through multiple point adjustments, even when projected on a spherical shape, a cylinder, etc.

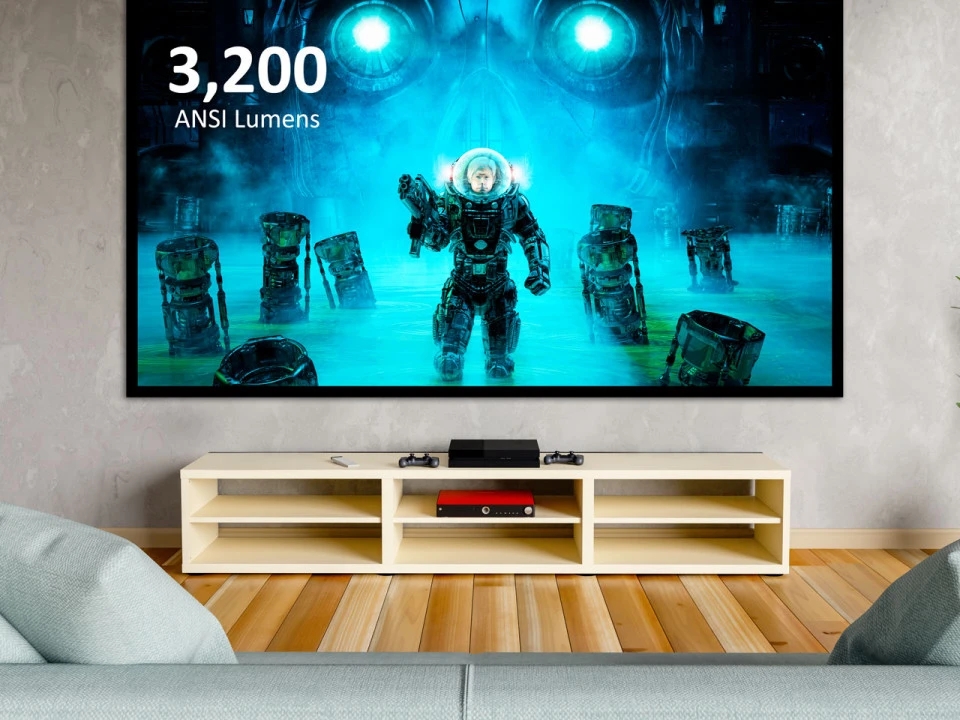

Incredibly Clarity Day or Night
Boasting 3,200 ANSI Lumens high brightness, the PX701-4K projects consistent bright and clear images for you to spontaneously
enjoy gaming and sports, anytime, or anywhere.
Larger Screen Size, Lower Cost-Per-Inch
Compromise no more. Immerse yourself in over-100” stunning audiovisuals with flexible installation and effortless transportation
which saves time, manpower and money.
Reliable Long-Term Lifespan
The latest SuperEco+ mode technology greatly extends the lamp life of the projector from 15,000 hours to 20,000 hours –
meaning 4 hours a day for more than 13 years – saving you maintenance cost and effort.

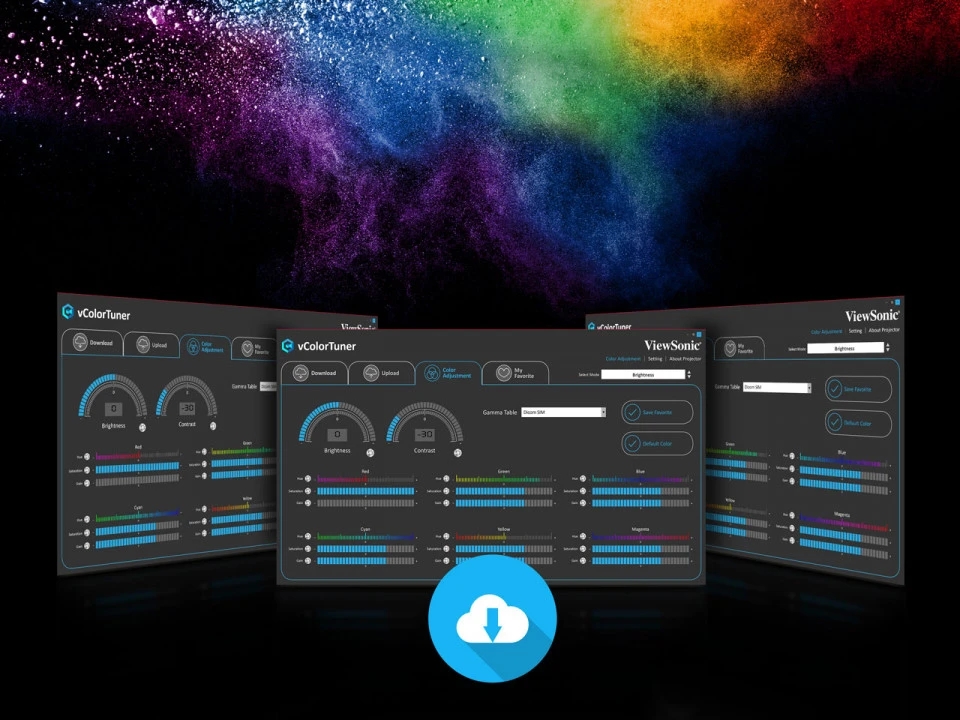

Customize Color Profiles As You Wish
By using a cloud-based color profile exchange, users can create their own color profile to fit their preferences and share with
others. Also, users can download other profiles from their projectors and fine-tune them as their own.

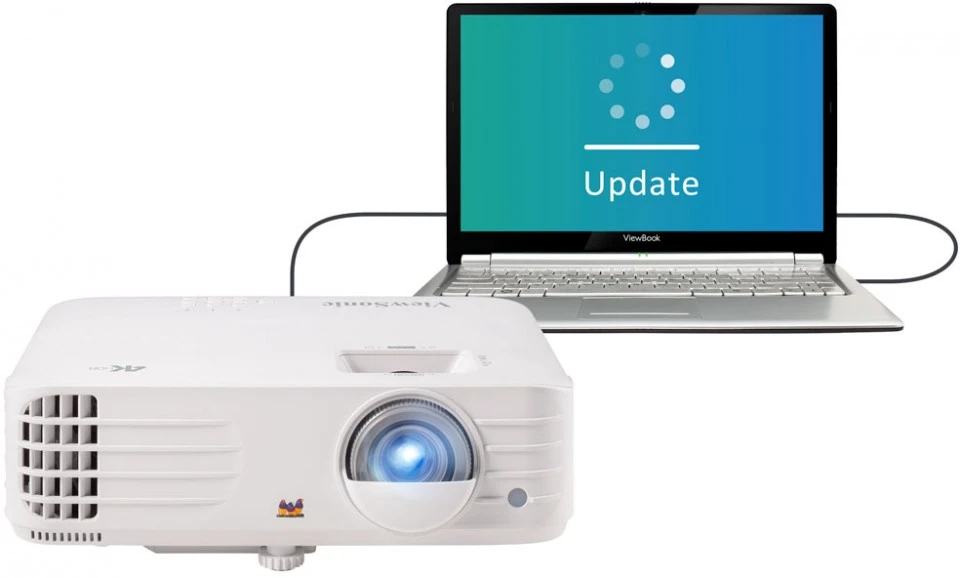

A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and
conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.
*The latest projector software update can be found in the download section at the bottom of the page when available.

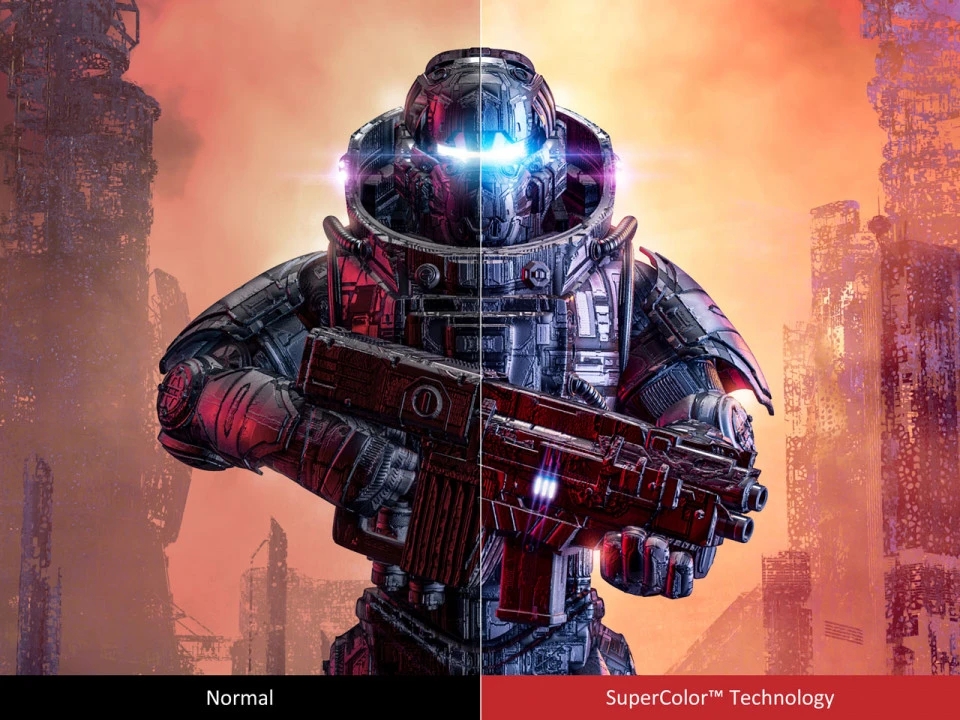

SuperColor™ Performance
ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensures that users enjoy a true-to-life color
performance in both bright and dark environments without sacrificing image quality.

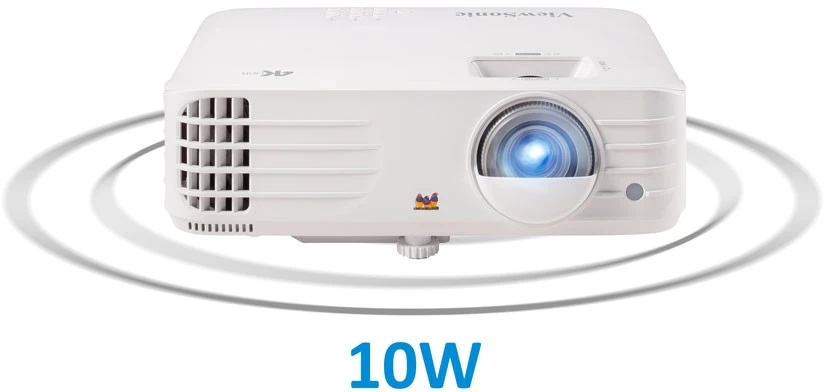

Satisfying Audio Performance
The projector is embedded with a 10W speaker to deliver satisfying audio performance right out of the box.

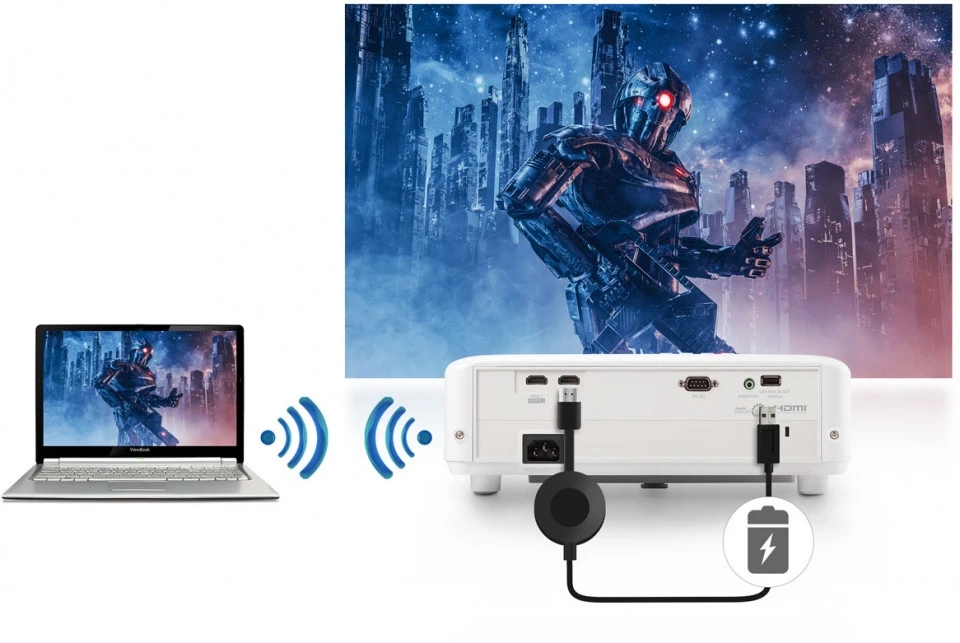

USB Type-A Power Supply for HDMI Wireless
Dongles
A built-in USB power output (5V/1.5A) can be used to supply power HDMI wireless dongles, like Chromecast, Amazon Fire TV
stick, etc., eliminating the need for separate power adapters when streaming your favorite multimedia content.

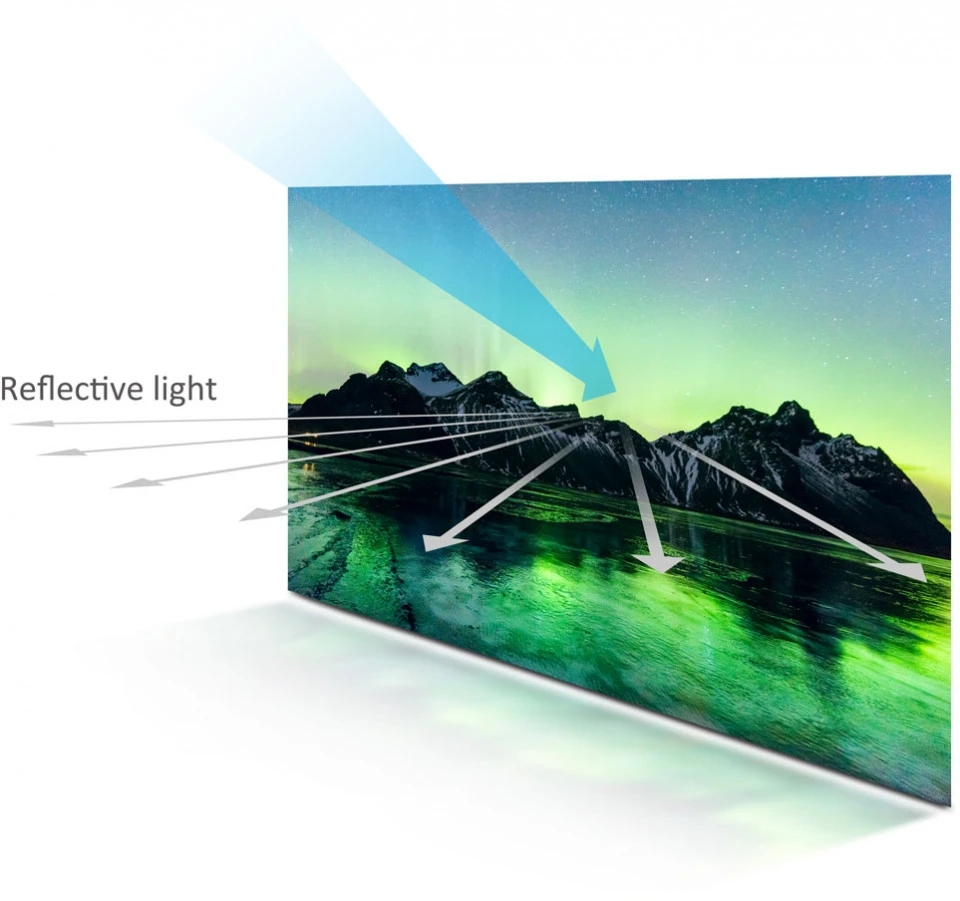

A More Comfortable Viewing Experience
Utilizing reflective light, which bounces off the wall or projector screen before hitting your eyes, the projector makes the viewing
experience virtually blue light free, less invasive to your sight and reduces eyestrain over prolonged viewing periods.

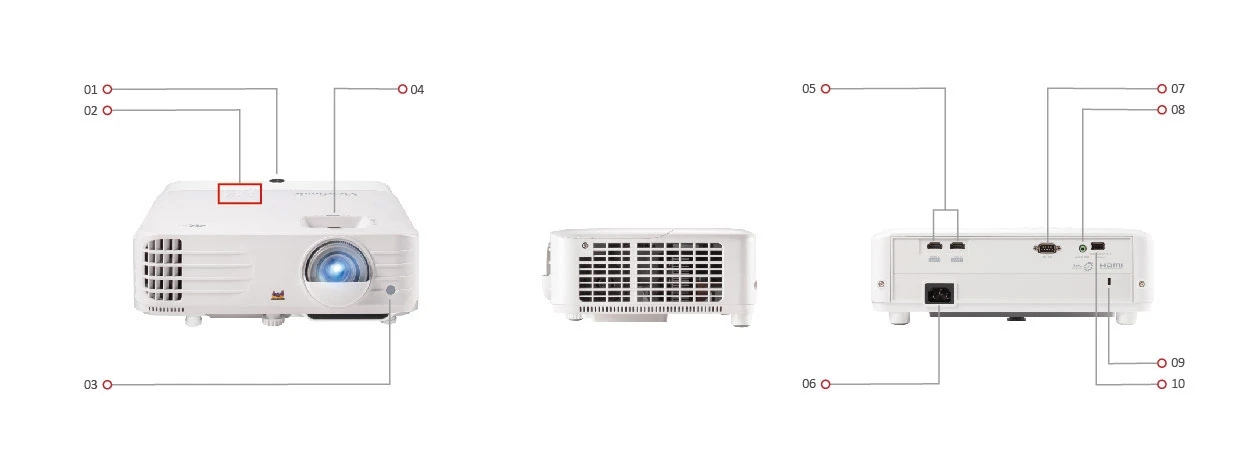

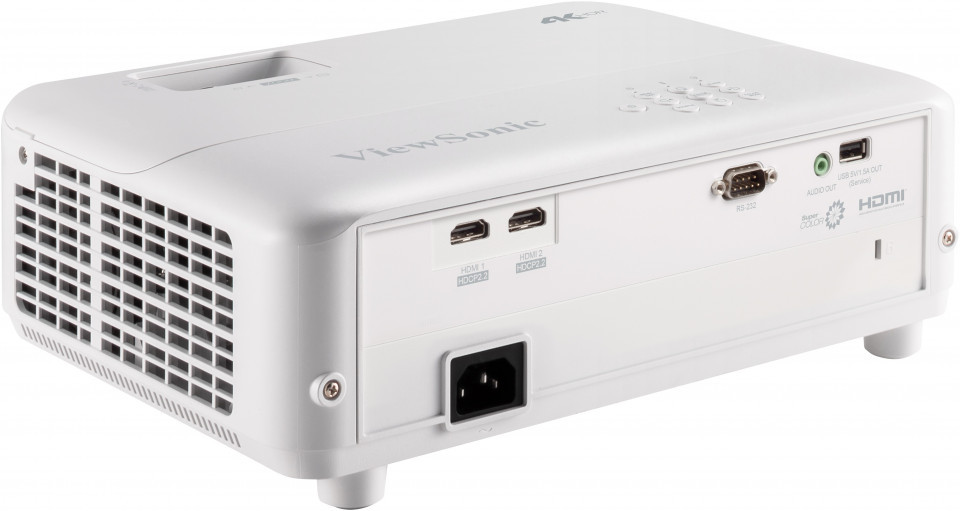

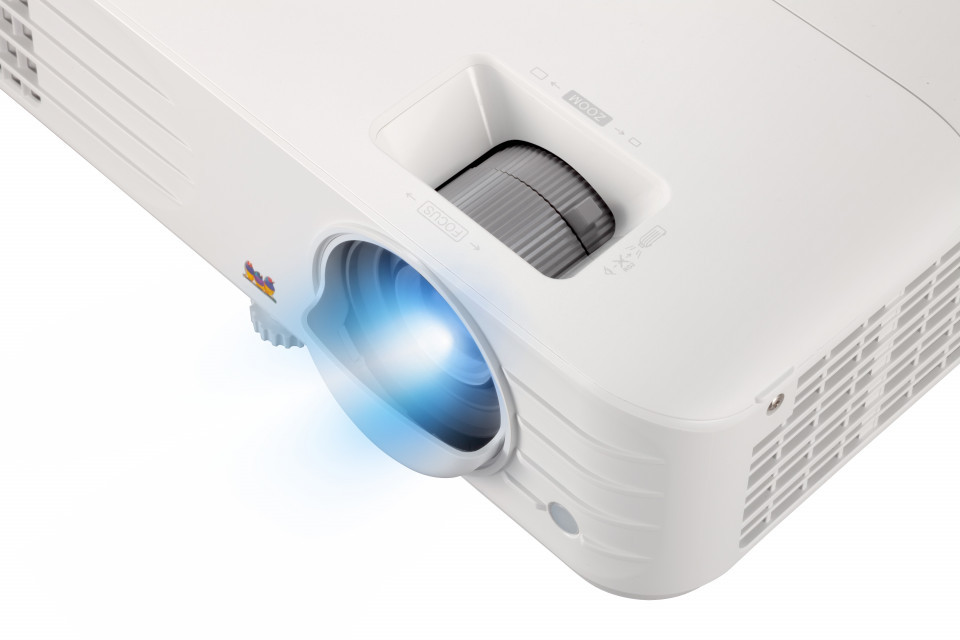

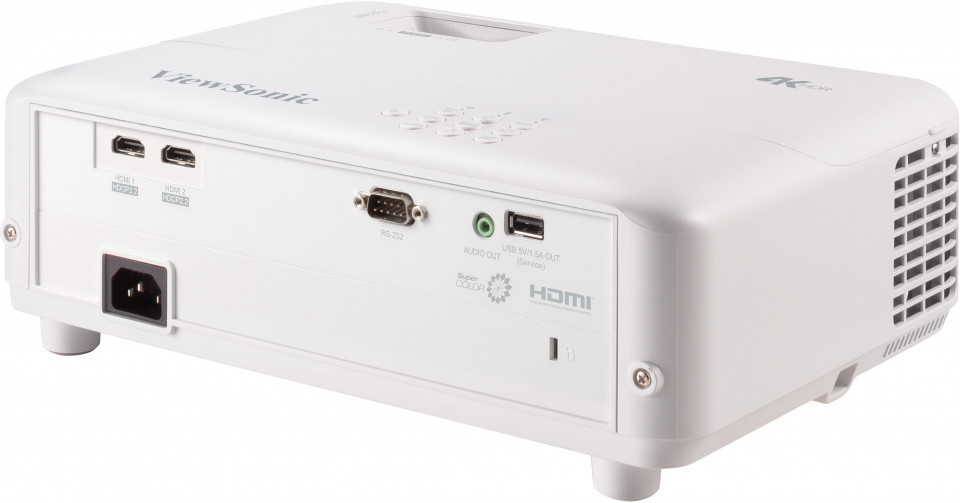

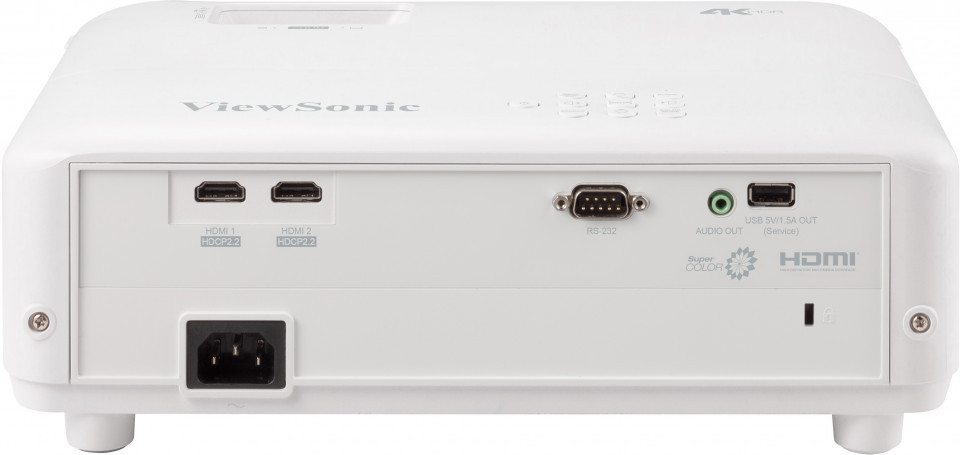

1. Power Key 4. Zoom/Focus Ring 7. RS-232 10. USB Type A(5V/1.5A)
2. Keypad 5. HDMI X 2 8. Audio Out
3. Front IR 6. AC In 9. Kensinton Lock
SPECIFICATIONS
Specification
Projection System: 0.47
Native Resolution: 3840x2160
Brightness: 3200 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 12000:1
Display Color: 1.07 Billion Colors
Light Source Type: Lamp
Light Source Life (hours) with Normal Mode: 6000
Light Source Life (hours) with SuperEco Mode: 20000
Lamp Watt: 203W
Lens: F=2.0-2.05, f=15.843-17.445mm
Projection Offset: 120%+/-6%
Throw Ratio: 1.5-1.65
Optical Zoom: 1.1x
Digital Zoom: 0.8x-2.0x
Image Size: 30
Throw Distance: 1m-10.96m, (100
Keystone: H:+/-40° , V:+/-40°
Audible Noise (Normal): 32dB
Audible Noise (Eco): 28dB
Input Lag: 4.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 720p, 1080i, 1080p, 2160P
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-240Hz
Input
HDMI: 2 , (HDMI 2.0b/ HDCP 1.4/2.2)
Output
Audio out (3.5mm): 1
Speaker: 10W
USB Type A (Power): 1 (5V/ 1.5A)
Control
RS232 (DB 9-pin male): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz, (AC in)
Power Consumption: Normal: 265W, Standby: <0.5W
Operating Temperature: 0~40℃
Net Weight: 2.8kg

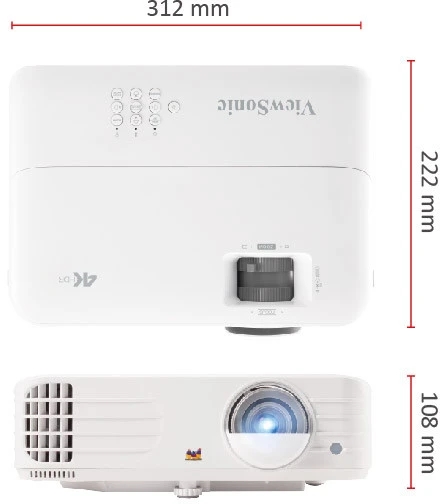

Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese,
Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
