Specification
Projection System: 0.55" XGA
Native Resolution: 1024x768

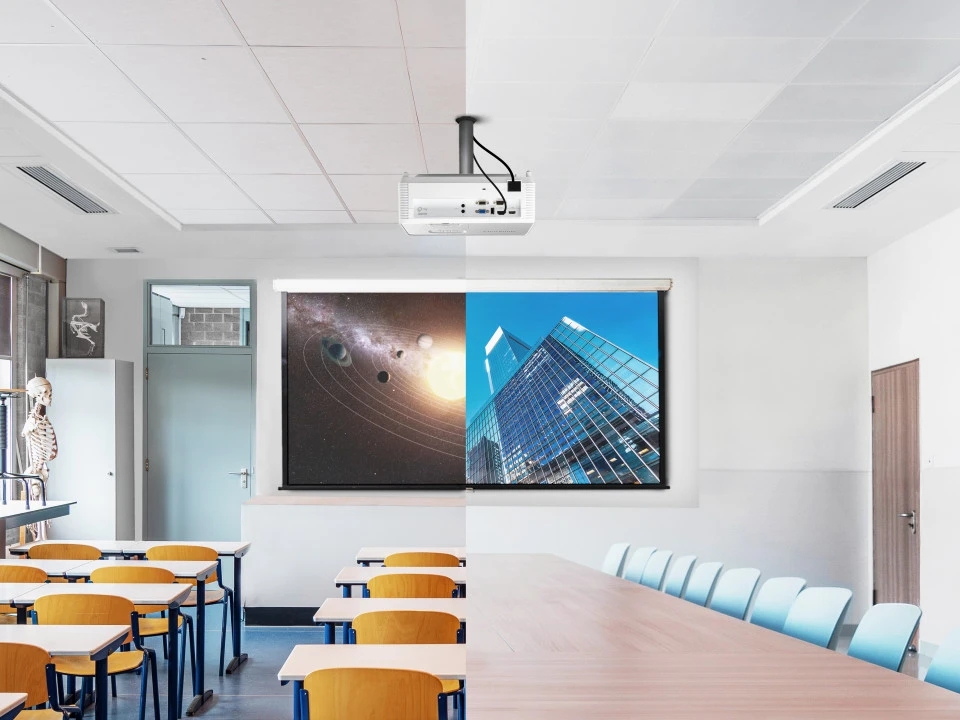

Brightness: 4000 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 15000:1
Display Color: 1.07 Billion Colors
Light Source Type: 240W UHP Lamp
Light Source Life (hours) with Normal Mode: 4000
Light Source Life (hours) with SuperEco Mode: 12000
Lens: F=2.7, f=7.15mm
Projection Offset: 130%+/-10%

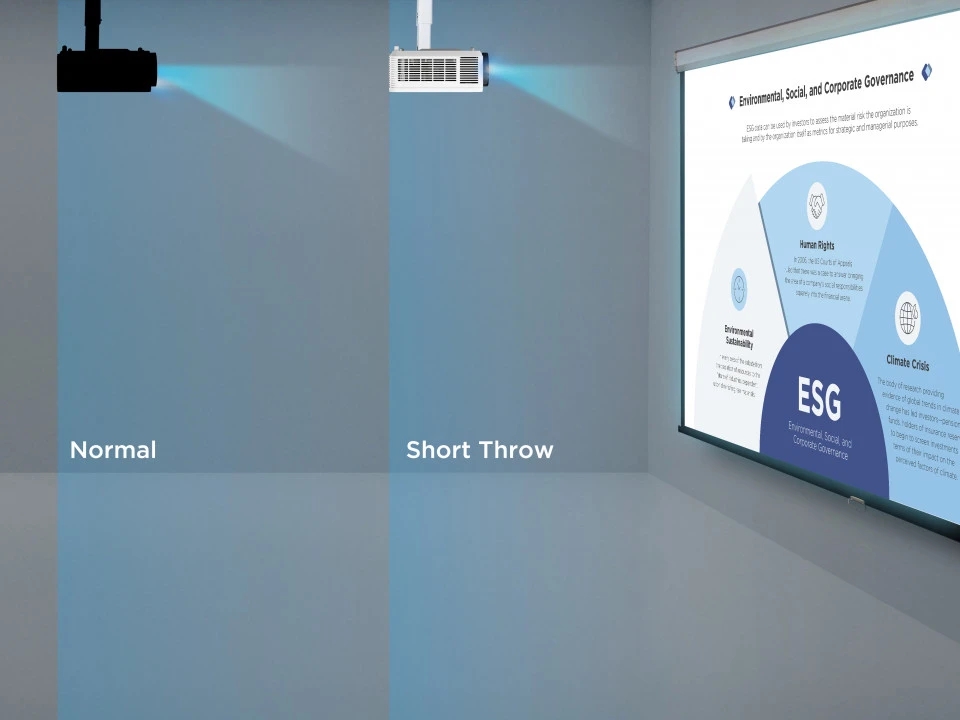

Throw Ratio: 0.616
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 60"-300"
Throw Distance: 0.75m-3.76m
(77"@0.96m)
Keystone: +19°/-19° (V)
Audible Noise (Normal): 34dB
Audible Noise (Eco) : 25dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz

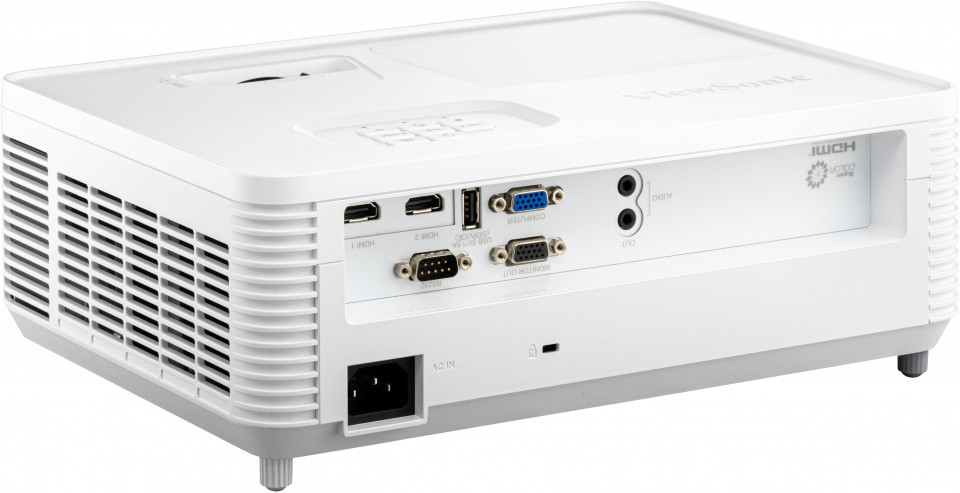

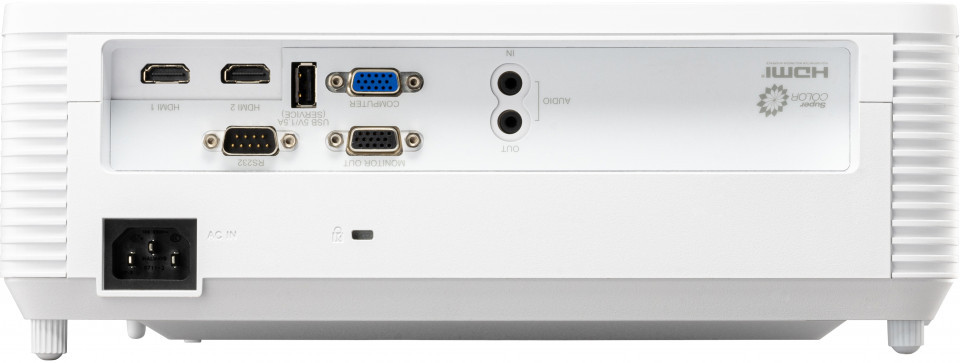

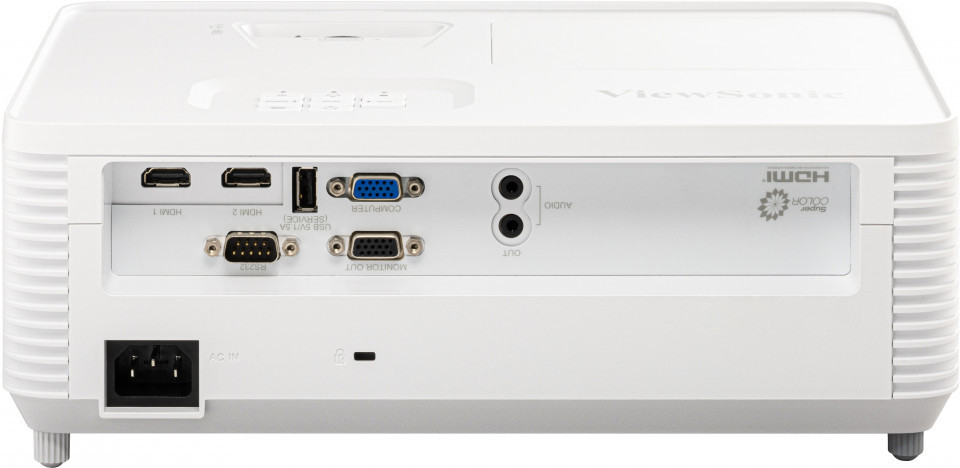

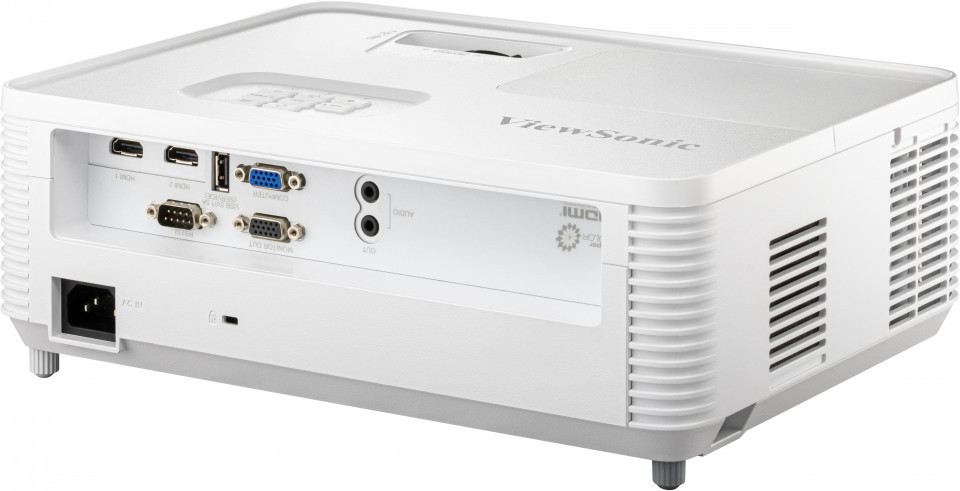

Input
Computer in (share with component): 1

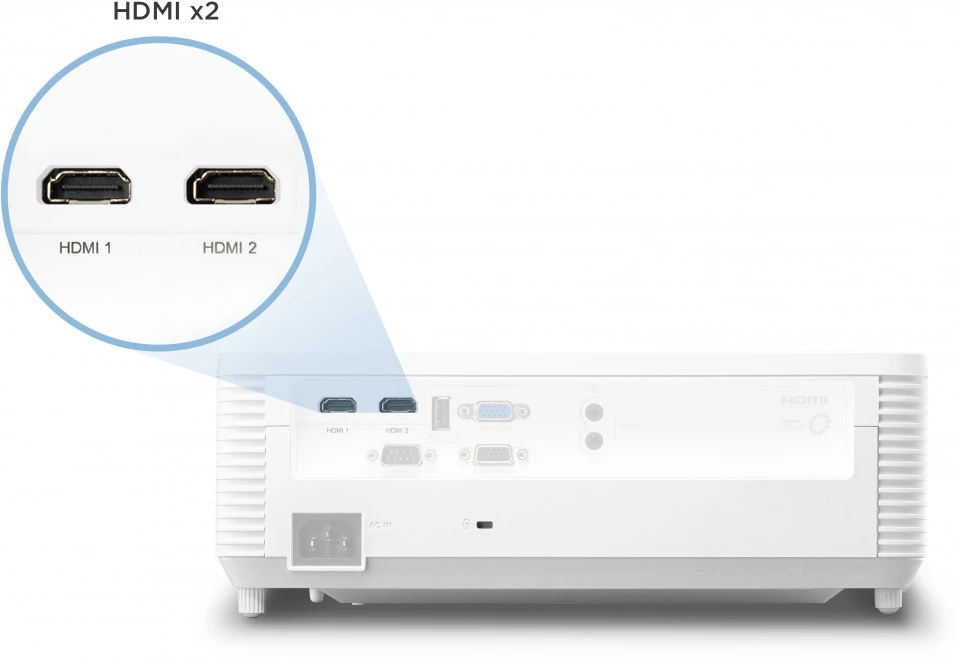

HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1

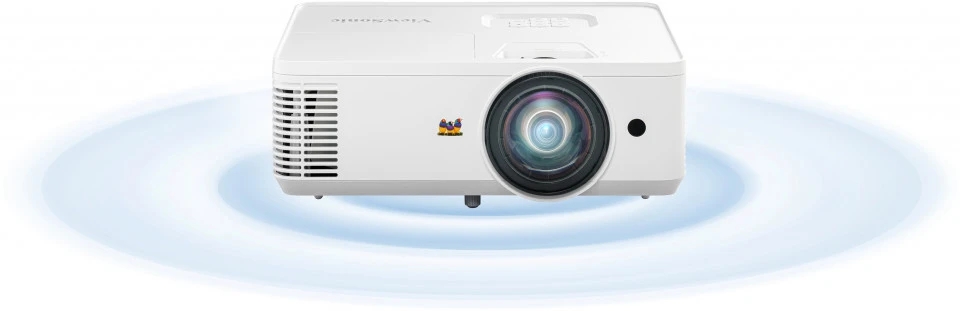

Speaker: 16W

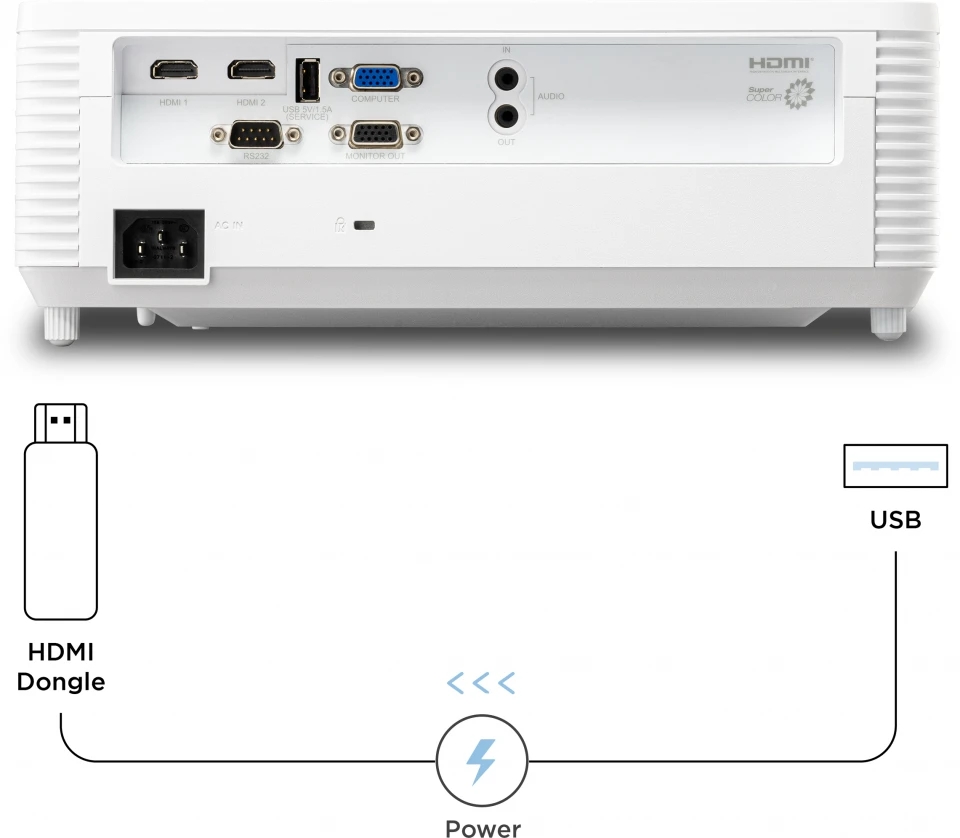

USB Type A (Power): 1 (5V/1.5A)
Control
RS232 (DB 9-pin male): 1

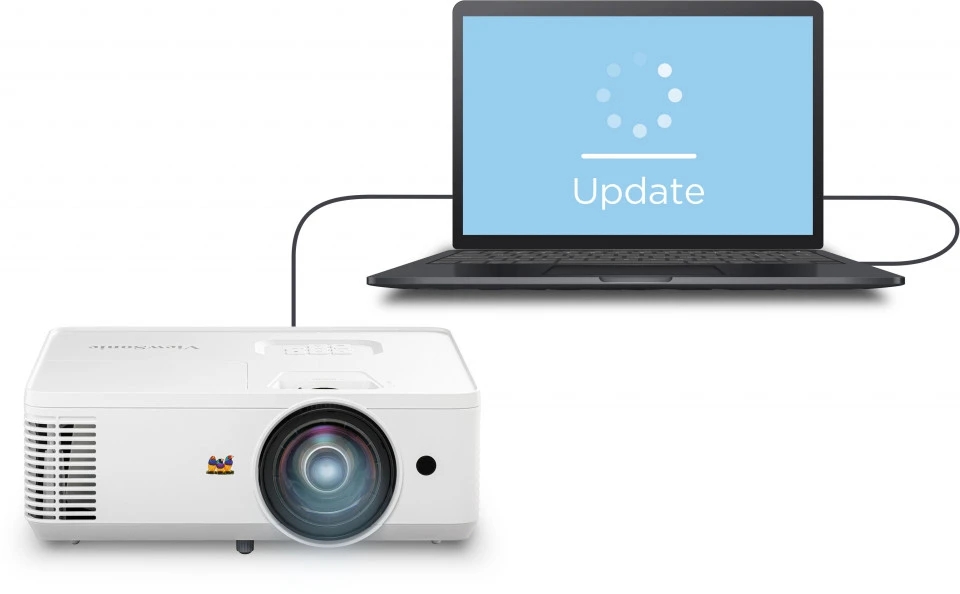

USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 295W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.87kg
Gross Weight: 4.08Kg

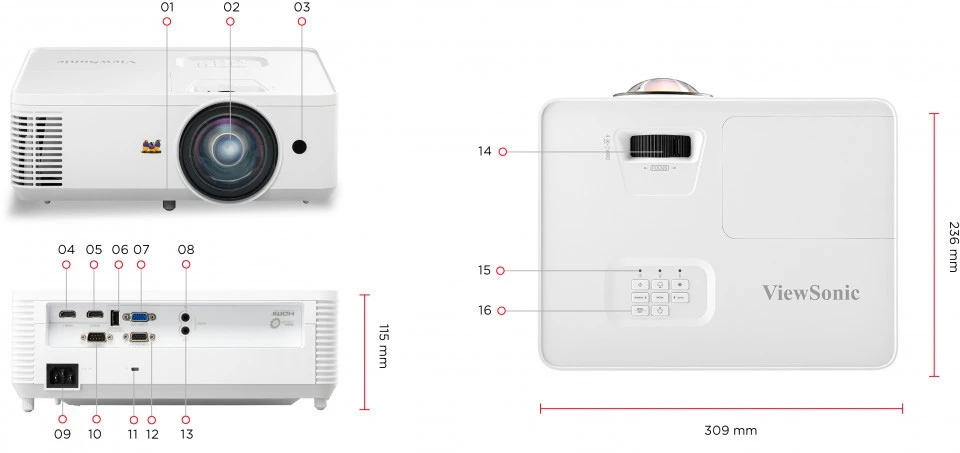

Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
Packing Dimensions: 400x337x168mm
OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai,
Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
