OVERVIEW

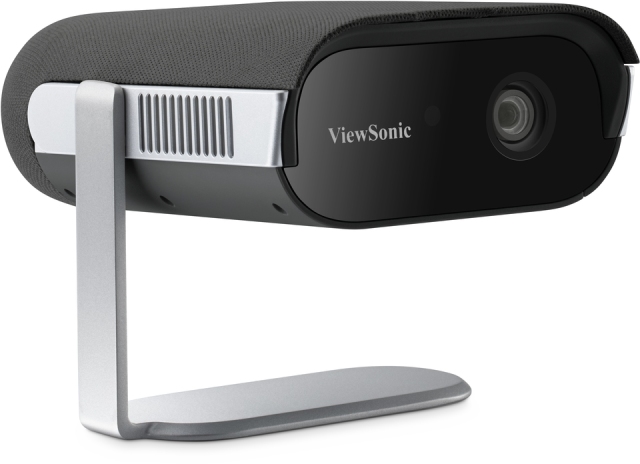

The M1 Max portable smart LED projector is your premium gateway to an elevated entertainment experience, boasting the
signature ViewSonic M1 series design. Weighing less than 1kg, it offers 1080p resolution and built-in Google TV for seamless
streaming. With a patented 3-in-1 smart stand for 360-degree projection, instant auto focus, and auto H/V keystone
correction, it's designed for ultimate flexibility. Enjoy immersive visuals up to 100" with Harman Kardon speakers delivering rich
sound, whether indoors or outdoors. The integrated battery powers convenient use, with power bank support for extended
viewing. Stay connected with Bluetooth, Wi-Fi, and USB-C streaming for a complete all-in-one entertainment experience.
Versatile 3-in-1 Stand
Streaming Heaven with Built-in
Google TV
Enjoy your favorite streaming content on a large screen wherever you go
with the M1 Max portable projector. With built-in Google TV, you can easily
access popular services like Netflix, Disney+, YouTube, and more—no
external dongle needed. Google TV's unified interface and personalized
recommendations, combined with the ultra-large screen, provide a
seamless and immersive streaming experience.
*Disney+ availability varies by country.
**The apps herein are for demo purpose only. The Apps and their trademarks or logos are the
properties of their respective owners, unaffiliated with ViewSonic, and not sponsors or endorsers of
the Product
360-degree Projection
for Unlimited Creativity
Make every weekend an adventure with the M1 Max. Whether you're
cozied up in bed for a show marathon or laughing with friends at a
backyard barbecue, its 360-degree projection and automatic keystone
correction make it effortless to project impressive images onto the ceiling,
wall, floor, or any surface you choose.
Hands-Free Setup from Any Angle
Say goodbye to rigid, front-and-center projector setups. The M1 Max’s auto horizontal and
vertical keystone, along with 4-corner adjustments, ensures effortlessly aligned images—
even when projecting at an angle. Transform your bedroom into a cinematic
entertainment space within seconds by placing it on the nightstand beside your bed.
Instant Auto Focus at the Speed of Light
Instant and accurate distance ranging on any surface is achieved by the
industry-leading Time-of-Flight (ToF) technology, automatically delivering
perfectly focused visuals in a matter of seconds.

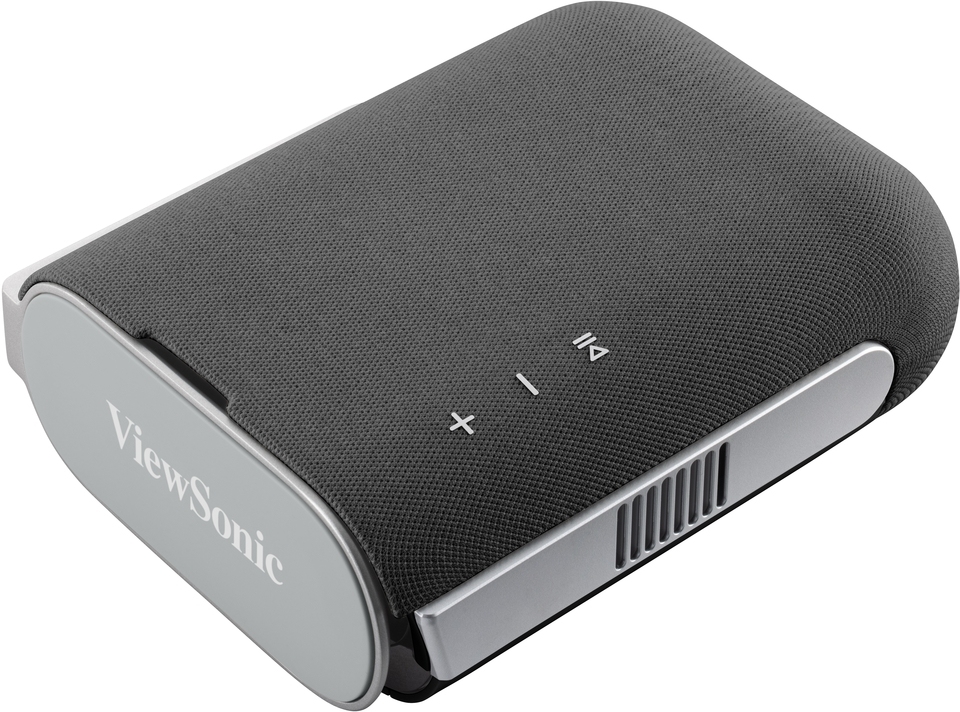

Ultra-portable, Easy to Carry
The M1 Max is small enough to fit in the palm of your hand and weighs less than 1kg –
making it easy to put in your bag or backpack for big screen anywhere you go.
Built-in Battery for
Any Spontaneous Trip
The M1 Max is a must-have for any spontaneous adventure. Featuring a built-in battery, it provides on-the-go entertainment for up to 2 hours,
eliminating the hassle of tangled cords or the need for a power source. For extended battery life, you can even power it with a USB-C power bank.*
*The power bank should deliver at least 45W (15V/3A) and support the Power Delivery (PD) protocol output.
1080p Full HD
for Captivating Details
Experience every detail with ultra-sharp image quality delivered in Full
HD 1080p resolution for a visual spectacle wherever you are.

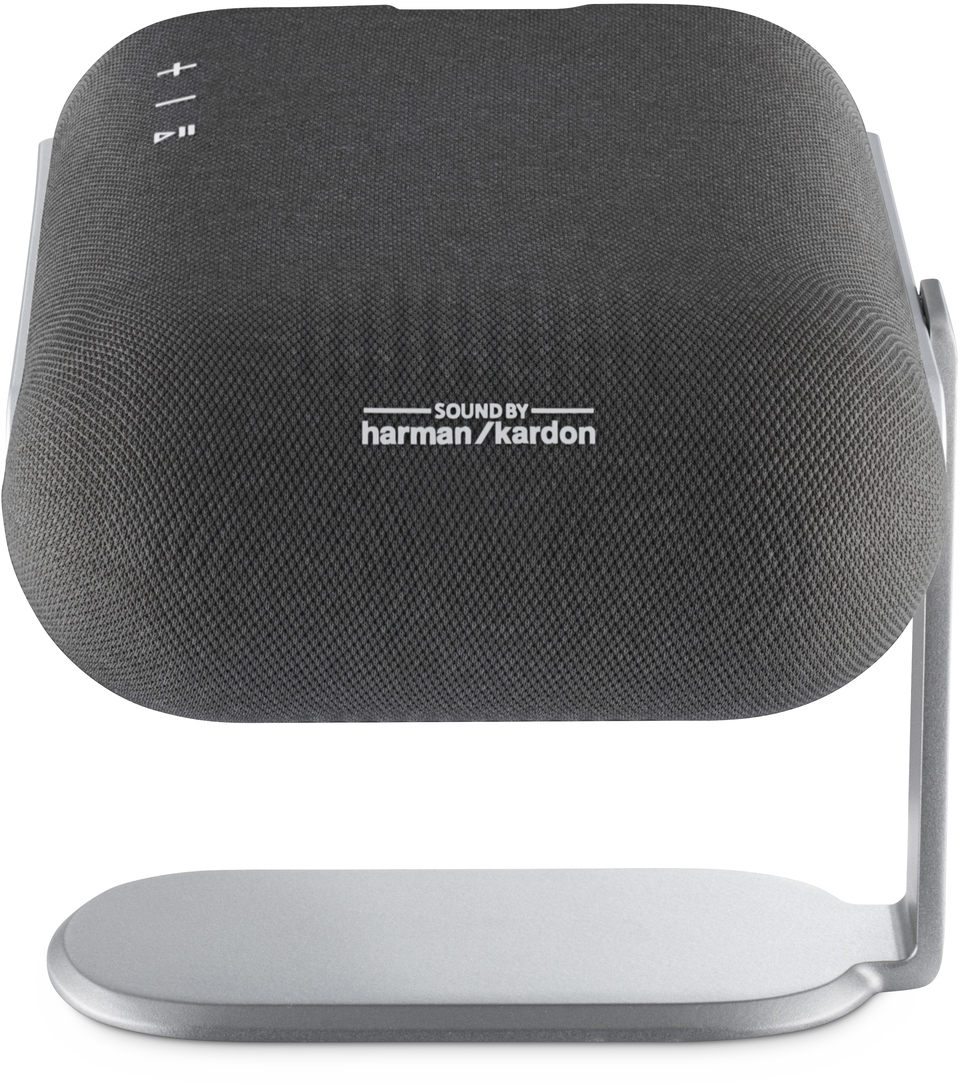

Mind-blowing Audio by Harman Kardon
Experience the immersive power of the built-in Harman Kardon speakers. Dive into a world of powerful,
crystal-clear sound whether you're enjoying your favorite movies, the latest live concerts, or thrilling gaming adventures.
Ultimate Spectacle with
True-to-life Colors
Experience enhanced visuals with ViewSonic's Cinema SuperColor+™ Technology. Offering a 125% Rec.709 color gamut,
it delivers vibrant colors, making every on-screen moment a captivating and immersive visual experience.
Direct Content Streaming via USB-C
Experience seamless streaming and charging in one go! Connect your mobile devices, including the latest iPhone, to the M1 Max using a USB-C
cable and effortlessly project video streaming, FaceTime calls, or Nintendo® Switch gaming onto the big screen, all without the need for a
docking station.
*Devices must support USB-C video streaming.
**iPhone models prior to iPhone 15 require an Apple-authorized Lightning to HDMI adapter.
***The projector does not provide power to the Nintendo® Switch while connected.
Designed with
Eye Care in Mind
Experience enhanced eye comfort with the M1 Max, certified by TÜV SÜD
for its low blue-light ratio. Its reflective light technology minimizes
eyestrain for longer, more comfortable viewing sessions, allowing you to
enjoy your favorite shows and movies with peace of mind and well-
protected eyes.
*The low blue light mode can be set up manually in the Color Mode menu.
Wireless Screen Mirroring
from Your Smart Devices
Immerse yourself in seamless playback of your favorite content with high-
speed 5GHz Wi-Fi connectivity. Effortlessly cast or mirror content from
your devices to the big screen, all without the need for cables.
Bluetooth Audio Streaming
Wirelessly stream audio from the projector to your Bluetooth headphones, letting you escape
the outside world and fully immerse yourself in big-screen entertainment.

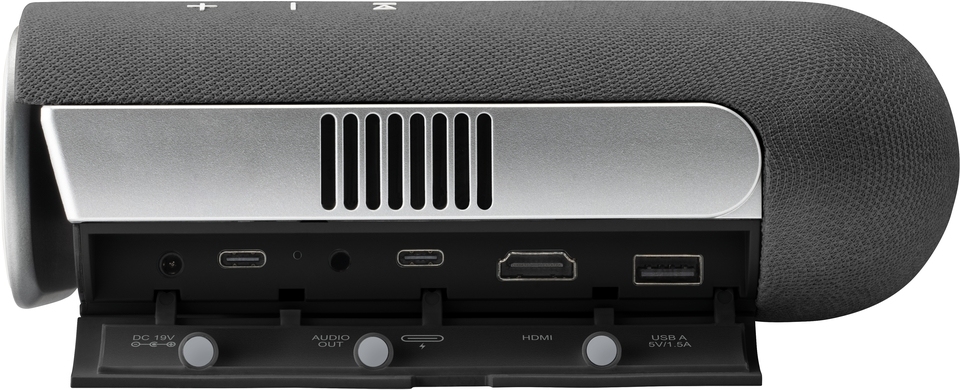

Dimensions & I/O Connectivity
1. Auto Focus Sensor 4. IR Receiver 7. USB-C (5V/1A) 10. USB-A (5V/1A)
2. Lens 5. Smart Stand 8. Audio Out
3. Touch Keypad 6. DC In (19V) 9. HDMI
SPECIFICATIONS
Specification
Projection System: 0.23" 1080p
Native Resolution: 1920x1080
Brightness: 500 (LED Lumens)
Contrast Ratio: 120000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 60000
Lens: F=1.7, f=7.4mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.2
Optical Zoom: Fixed
Digital Zoom: 0.8x-1.0x
Image Size: 40"-100"
Throw Distance: 0.8-2.67m
(40"@1.07m)
Keystone: H:+/-40° , V: +/-40°
Audible Noise (Normal): 26dB
Audible Noise (Eco): 25dB
Local Storage: Total 8GB
(4GB available storage)
Input Lag: 165ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-85Hz
Input
HDMI: 1
(HDMI 1.4, HDCP 1.4)
USB Type C: 1(Video/5V/1A out ,
DC in /15V/3A )
USB Type A: 1
(USB2.0 Reader)
Wifi Input: 1 (5Gn)
Output
Audio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT5.0)
Speaker: 3W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 - 5V/1A,
share with USB A Input)
Control
USB Type A (Services): 1
(share with USB A Input)
Others
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19VDC / 3.26A
Battery:
12000mAh(4000mAh 3.7Vx3)
(1.5hrs@Normal, 2hrs@Eco)
Power Consumption: Normal: 46W
Standby: <0.5W
Operating Temperature: 0~35℃
Carton: Color
Net Weight: 0.96kg
Gross Weight: 2.02kg
Dimensions (WxDxH) with Adjustment Foot: 182x141x62mm
Packing Dimensions: 235x190x130mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Hungarian Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
