OVERVIEW
The LX700-4KE RGB projector sets a new standard in home cinema with its RGB laser technology, enhancing image quality for
an exceptional viewing experience. Utilizing advanced laser projection, it achieves 100% BT.2020 color gamut coverage,
delivering vivid, lifelike colors that bring your favorite shows to life. With 5,200 RGB Laser Lumens, 4K UHD resolution, and
HDR/HLG support, it ensures a bright, crystal-clear, vibrant viewing experience at any time. The projector's high contrast ratio,
powered by the Texas Instruments 0.65-inch DMD chip, reveals intricate details in dark scenes and enriches blacks for
complete visual immersion. Its 1.6x optical zoom, vertical lens shift, and side projection capabilities, complemented by H/V
keystone and 4-corner adjustment, offer versatile installation options, making setup and home cinema upgrades effortless. As
one of the first “Designed for Xbox” projectors, it also provides outstanding gaming performance at an optimal 1440p@120Hz,
ensuring total immersion in all your home entertainment pursuits.
Cutting-Edge RGB Laser Technology
Experience visual excellence with the cutting-edge RGB laser technology. More advanced than traditional laser
counterpart, this revolutionary technology combines red, green, and blue laser diodes to generate high-quality images
with the expansive BT.2020 color gamut. The mercury-free and lamp-free light source guarantees consistent brightness
for up to 30,000 hours, ensuring lasting entertainment enjoyment.
Next-level Color Brilliance
with BT.2020
This RGB laser projector offers an expansive color gamut, covering 100% of
the BT.2020 color space, delivering true-to-life colors that exceed the
digital cinema standard of DCI-P3. Get ready to embark on a breathtaking
journey of vivid colors, all from the best seat in the house—yours.
Ultimate Viewing
Experience with 4K HDR
Immerse yourself in unparalleled clarity with true Ultra HD, enriched by
the vibrant visuals of HDR/HLG and 3D support. With 8.3 million pixels,
this projector's 4K resolution vividly brings movies, sports, games, and
your favorite streaming content to life.
Bright Images Anytime
Explore a new visual dimension with the LX700-4KE RGB, delivering bright
images at 5,200 RGB Laser Lumens. Enjoy cinematic experiences at any
time, day or night, in any lighting condition, without the need to dim the
lights or draw the curtains.
Bigger Chip, Higher Contrast,
Deeper Immersion
The LX700-4KE RGB takes your viewing experience to new heights with
its advanced Texas Instruments 0.65-inch DMD chip, boasting a higher
native contrast ratio than the conventional 0.47-inch chip. Rediscover
your favorite movies and games in a new light, reveling in the stunning
depth of deeper blacks and the vivid detail of every shade in dark scenes.
Superior Performance with DLP Technology
Experience cinematic excellence with the LX700-4KE RGB, which utilizes Digital Light Processing (DLP) technology—a staple in 90% of global digital
cinemas. This technology offers you a viewing experience that is nothing short of premium.
Adaptable to Any Environment
with Optical Zoom
Equipped with a 1.6x optical zoom lens, the projector gives users the flexibility to select the
ideal setup location within a range, achieving the desired image size without altering the
existing interior design.
V Lens Shift for Flexibility in Installation
The LX700-4KE RGB allows for effortless vertical image adjustment directly from the projector, ensuring a perfect fit for your space without the
hassle of interior modifications. With its convenient, tool-free lens shift control knobs, installation is a breeze.
Get Perfectly-shaped Images Effortlessly
Central positioning is no longer a necessity. With advanced horizontal and vertical keystone correction and 4-corner adjustment, this RGB laser
projector ensures perfectly-shaped images from any position, simplifying setup and enabling projection from any angle.
Easy Audio Integration with HDMI eARC
With HDMI eARC, the LX700-4KE RGB can transmit high-quality audio content to an external audio system using a single HDMI cable. This
preserves the original sound quality while reducing cable clutter for an enhanced audiovisual experience.
Designed with Eye Care in Mind The LX700-4KE RGB is certified by TÜV SÜD for its low blue light emission, contributing to enhanced eye protection. This projector uses reflective light, which bounces off the wall or screen before reaching your eyes, enabling prolonged viewing with minimal eyestrain. *The low blue light mode can be activated manually.
Ready for Next-Gen Console Gaming
with 1440p @ 120Hz
Designed for home theater use, the LX700-4KE RGB also excels in gaming. It is among the first “Designed for Xbox” projectors, supporting Xbox-
exclusive resolution and refresh rate combinations. With 1440p at 120Hz, it offers an optimal balance, ideal for popular consoles like Xbox X/S and
PS5. Its ability to auto-adjust to the best settings further ensures a seamless gaming experience.
*The gaming consoles of brands stated herein are for demo purpose only and not included in the Product. The aforesaid devices are the properties of their respective owners,
unaffiliated with ViewSonic, and are neither sponsors nor endorsers of the Product.
Ultimate Gaming Experience with Ultra-Fast Input Boasting a 4.2ms Ultra-Fast Input*, a hyper-responsive 240Hz refresh rate,
and microsecond-level response time**, the LX700-4KE RGB ensures
seamless viewing, even during action-packed situations. * The projector's standard refresh rate is 60Hz. To activate the 4.2ms Ultra-Fast Input,
enable it in the Advanced Settings and ensure the input content is at a 240Hz refresh rate.
When this feature is enabled, the maximum supported resolution is 1080p. **The stated response time refers to the reaction time of the DMD chip.
Ideal Companion for Your
Favorite Streaming Devices
Indulge in endless streaming pleasure on the big screen with your favorite streaming device. The LX700-
4KE RGB is compatible with popular streaming devices, including Chromecast, Apple TV, Fire TV, and Roku,
ensuring a seamless streaming experience with the device you're already familiar with. Additionally, the
built-in USB-A port serves as a convenient charging hub for your streaming device, eliminating the need
for separate power adapters.
*The streaming devices of brands stated herein are for demo purpose only and are not preinstalled and not included in the
Product. The aforesaid devices are the properties of their respective owners, unaffiliated with ViewSonic, and are neither sponsors
nor endorsers of the Product.
**The Product’s aforesaid compatibility with streaming devices of brands not stated herein may vary based on specifications.
Please verify before purchasing the Product.
***The ability to power external devices via USB-A depends on the specific power requirements of the connected device.
Upgrade Your Experience
with Wireless Content Casting
Enhance your projector with the WPD-700 Wireless Screen Casting Kit for
seamless content sharing. The WPD-700 enables you to enjoy unlimited
content wirelessly from Netflix, Disney+, and more without the frustration
of having a black screen after casting DRM-protected content.
*The aforesaid streaming platforms and their logos are used for demonstration purposes
only. They are the properties of their respective owners, unaffiliated with ViewSonic, and
neither sponsors nor endorsers of the product.

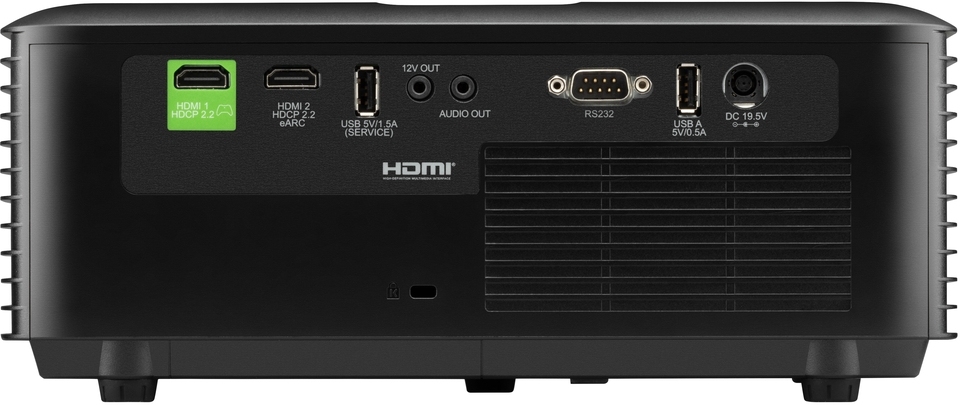

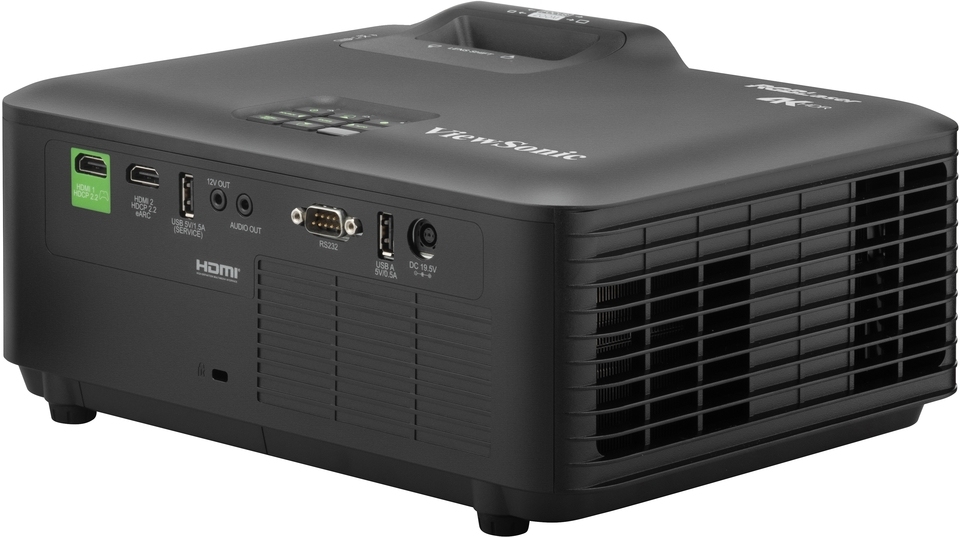

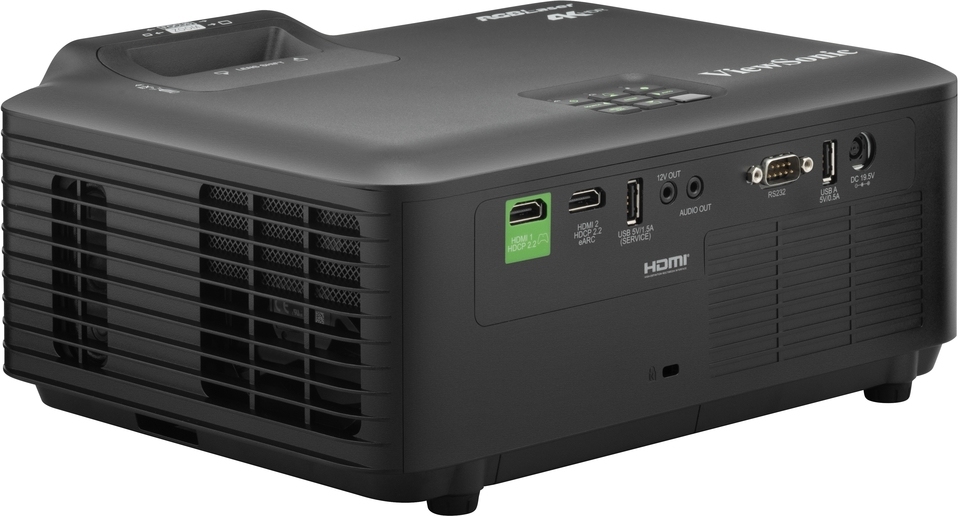

Dimensions & I/O Connectivity
1. Focus Ring 6. Top IR 10. HDMI 2-eARC 14. RS232
2. Zoom Ring 7. Front IR (HDMI 2.0/ HDCP 2.2) 15. USB-A (5V/0.5A)
3. Lens Shift Control Knob 8. Lens 11. USB-A (5V/1.5A, Service) 16. DC In
4. Power Button 9. HDMI 1-Xbox 12. 12V Trigger
5. Keypad (HDMI 2.0/ HDCP 2.2) 13. Audio Out
SPECIFICATIONS
Specification
Projection System: 0.65" 4K-UHD
Native Resolution: 3840x2160
Brightness: 5200 (RGB Laser Lumens)
Contrast Ratio: 3500000:1
Display Color: 1.07 Billion Colors
Light Source Type: RGB Laser
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.5-3.26, f=20.911-32.62mm
Projection Offset: 137%+/-10%
Throw Ratio: 1.4-2.24
Optical Zoom: 1.6x
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.93-14.88m
(100"@3.10m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: +0%, -15%
Audible Noise (Normal): 30dB
Audible Noise (Eco): 27dB
Input Lag: 4.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-255KHz
Vertical Scan Rate: 23-240Hz
Input
HDMI: 2
(HDMI 2.0/ HDCP 2.2)
Output
Audio-out (3.5mm): 1
Audio-out (HDMI ARC): 1 (eARC)
(Share with HDMI Input)
Speaker: 15W
USB Type A (Power): 2
(USB2.0 - 5V/0.5A x1,
USB2.0 - 5V/1.5A x1,
share with USB A Service)
12V Trigger (3.5mm): 1
Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23A
Power Consumption: Normal: 145W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.70kg
Gross Weight: 4.00kg
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Greek, Norsk. Total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
