OVERVIEW

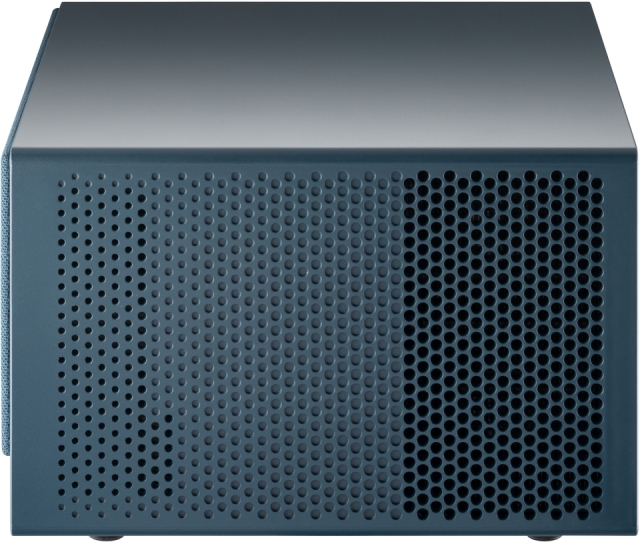

Indulge in big-screen entertainment without breaking the bank with the ViewSonic LX60HDE. This 1080p Full HD projector is
equipped with Google TV and a native Netflix app, delivering seamless streaming pleasure on a screen of up to 140 inches
without the need for an external dongle. Setting up is a breeze with automatic functions like auto focus for clear images, auto
screen fit, and auto obstacle avoidance for hassle-free experience. Additionally, the auto H/V keystone correction and 4-corner
adjustment ensure the projected image is always symmetrical, allowing you to achieve perfect images and enjoy your favorite
content regardless of the projector's position. With a sealed engine design, it offers enhanced durability against dust and
moisture for long-lasting image quality. Enjoy wireless screen mirroring with built-in Wi-Fi and Bluetooth for easy connectivity.
Streaming Heaven with Built-in
Google TV Enjoy your favorite streaming content on a large screen effortlessly with the built-in Google
TV system. Access popular services like Netflix, Disney+, YouTube, and more without needing
an external dongle. Google TV's unified interface and personalized recommendations, paired
with the ultra-large screen, provide a seamless and immersive streaming experience.
*The apps herein are for demo purpose only. The Apps and their trademarks or logos are the
properties of their respective owners, unaffiliated with ViewSonic, and not sponsors or e
ndorsers of the Product.
Captivating Large Visuals
Experience every detail with ultra-sharp Full HD 1080p resolution on a screen up to 140
inches. Enjoy enhanced clarity and immersive viewing, ensuring you never miss a moment of
your favorite movies and shows.
1080p FHD, Up to 140”
Sealed Engine, Enhanced Durability
Thanks to its sealed optical engine design, the projector offers superior dust and moisture
resistance, ensuring a longer lifespan and consistent image quality without the hassle and
cost of filter maintenance. Additionally, you won't have to worry about black dots on the
projection screen or light leakage disrupting your viewing experience.
Dust-proof, Filter-free
Auto Image Focus in Seconds
Auto focus ensures you achieve clear images effortlessly within seconds by automatically
measuring the distance to the projected surface and making the necessary adjustments,
saving you time and effort.
Hands-Free Setup from Any Angle
Experience instant cinematic immersion with a quick and hassle-free setup. Featuring a
comprehensive automatic horizontal and vertical keystone with 4-corner adjustment, the
projector effortlessly displays symmetrical images from different angles.
Auto H/V Keystone Correction, 4-Corner
Adjustment
Perfect Screen Size Match
Thanks to the auto screen fit feature, the projector automatically adjusts the image size and
shape to perfectly match the screen. Just sit back, relax, and enjoy!
Smart Obstacle Avoidance
Featuring auto obstacle avoidance, the projector can detect objects like paintings and plants
that overlap the projected image and automatically resize it to maintain a clear view. No
need to stand up and rearrange things—just let the show begin.
Bluetooth Audio Streaming
Wirelessly stream audio from the projector to your Bluetooth headphones, letting you escape
the outside world and fully immerse yourself in big-screen entertainment.
*Only works with “smart system” input source
Wireless Screen Mirroring from Your
Smart Devices
Dive into your favorite contents within seconds thanks to 5GHz high-speed Wi-Fi
connectivity. You can cast or mirror content from your devices to the big screen cable-free.
*Only works with “smart system” input source
*To enable the AirPlay function, you may need to install a third-party application.
One-Click Entertainment
Enjoy an immersive visual experience at the push of a button. Instant power-on lets you start
watching your favorite shows immediately.
Flexible Setup with Digital Zoom
Setting up is now more convenient with the 0.8X-1.0X digital zoom function. Zoom out the
projected image to fit your desired screen size from the same distance without moving the
projector.Dimensions & I/O Ports

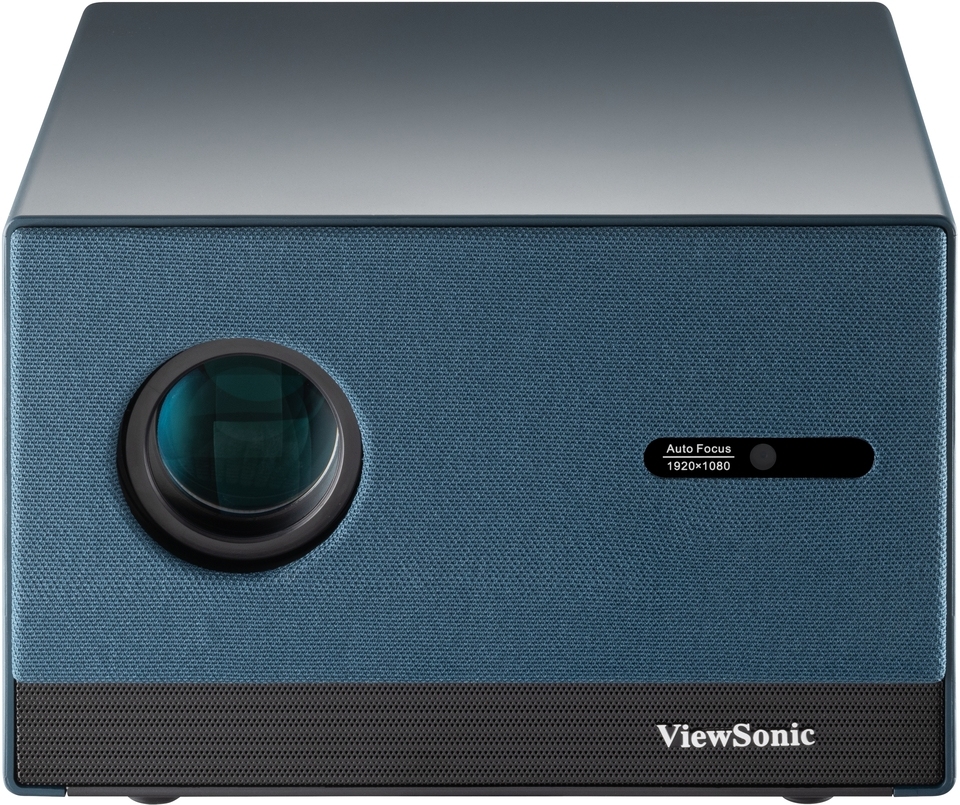

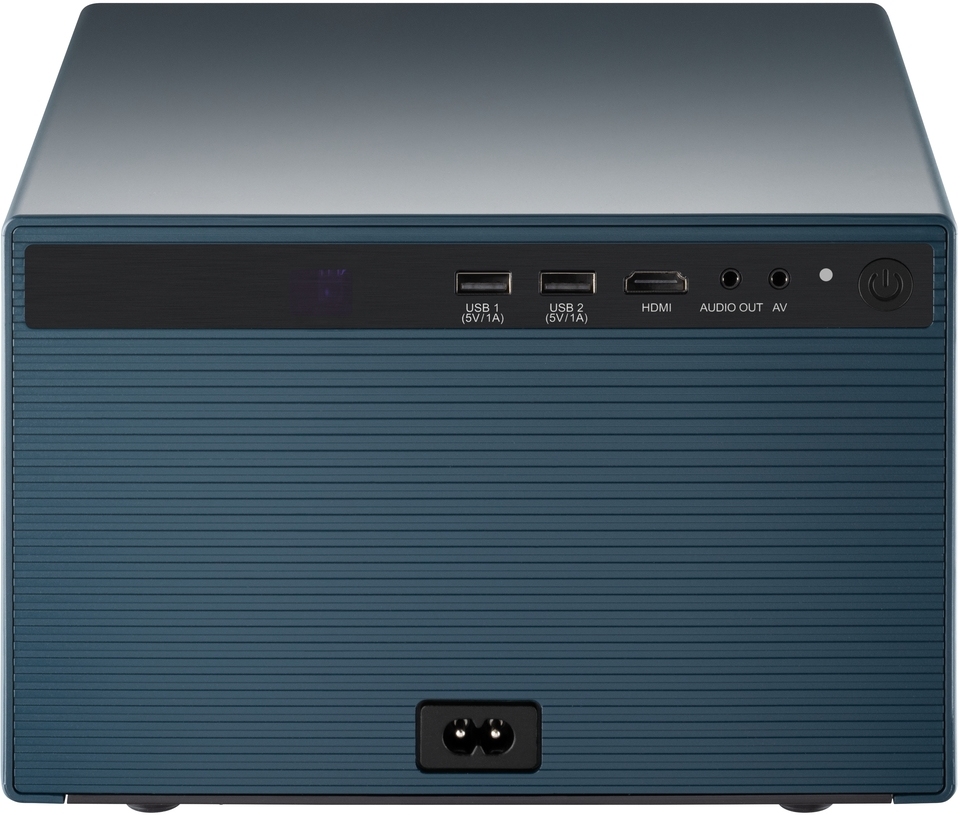

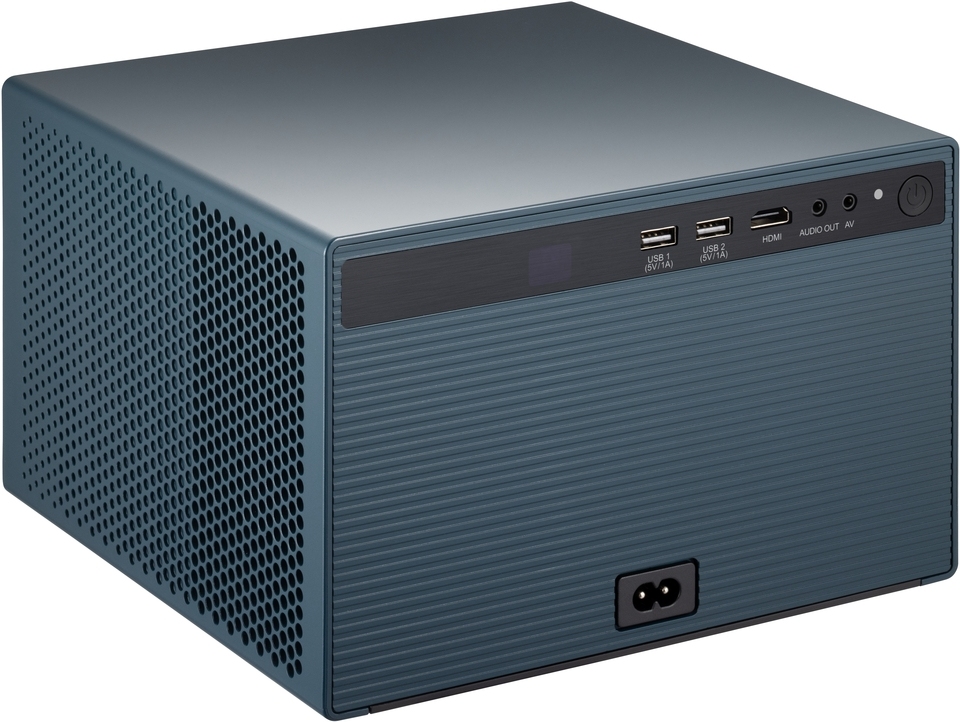

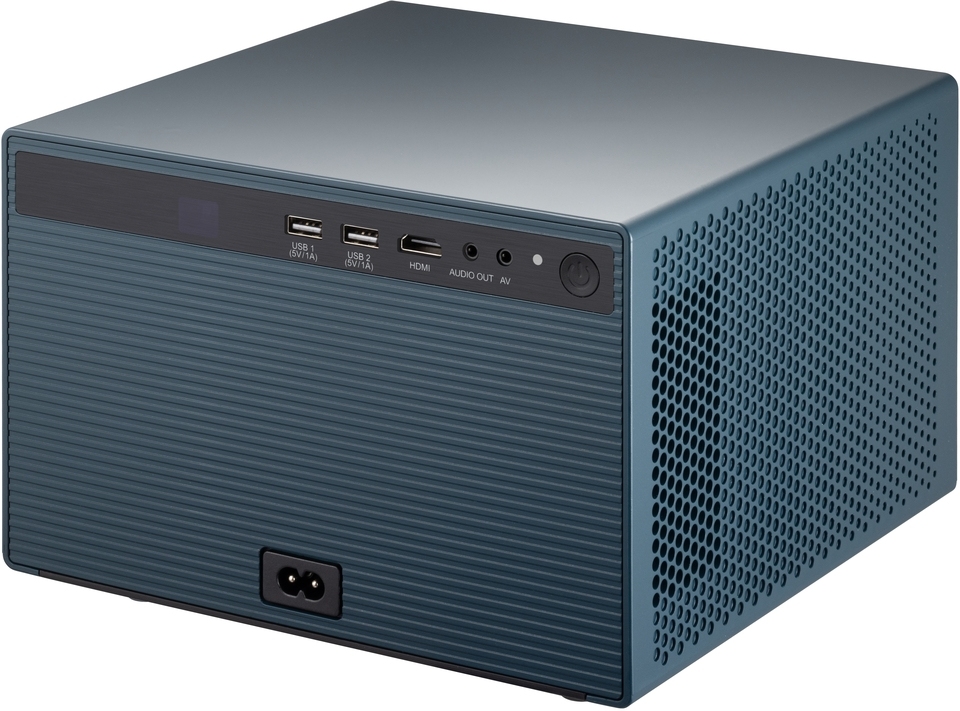

1. Lens 5. USB-A (5V/1A , Service) x2 8. AV In
2. Auto Focus Camera 6. HDMI 9. Power Button
3 & 4. IR Receiver 7. Audio Out 10. AC In
SPECIFICATIONS
Specification
Projection System: 1LCD 1080P
Native Resolution: 1920x1080
Brightness: 630 (ANSI Lumens)
Contrast Ratio: 4500:1
Display Color: 16.7 Million Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 20000
Lens: F=2.9, f=125mm
Projection Offset: 0%+/-5%
Throw Ratio: 1.2
Digital Zoom: 0.8x-1.0x
Image Size: 50"-140"
Throw Distance: 1.42m-3.8m
(100"@2.28m)
Keystone: H:+/-40° , V: +/-40°
Audible Noise (Normal): 40dB
Local Storage: Total 8GB
(4GB available storage)
Input Lag: 163ms
Resolution Support: VGA(640 x 480) to Full HD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 23-85Hz
Input
AV in (3.5mm): 1
HDMI: 1
(HDMI 1.4/ HDCP 1.4)
USB Type A: 2
(USB2.0 Reader)
Wifi Input: 1 (5Gn)
Output
Audio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT5.0)
Speaker: 5W Cube x2
(Full range x2)
USB Type A (Power): 2
(USB2.0 - 5V/1A,
share with USB A Input)
Control
USB Type A (Services): 2
(share with USB A Input)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: TBD
Standby: <0.5W
Operating Temperature: 0~35℃
Carton: Color
Net Weight: 3.12kg
Gross Weight: 4.3kg
Dimensions (WxDxH) with Adjustment Foot: 228x227x159mm
Packing Dimensions: 315x232x323mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Hungarian Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
