OVERVIEW
The LSD400HD-ST is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for
commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000
ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness
and cost-efficiency by reducing up to 59% power consumption than competing lamp projectors. With a 0.5 short throw, it
delivers a 100” image from just 1.1 meters, ideal for immersive visuals in space-constrained environments. Delivering
ultra-large projections up to 300” in sharp 1080p Full HD resolution, this projector leverages high native contrast from a 0.65”
DMD chip with DLP technology. Equipped with H/V keystone & 4 corner correction, and 360° projection, the LSD400HD-ST
supports flexible installation options, making it an excellent choice for golf simulation setups, exhibitions, and retail applications.
Bright, Compact, Durable

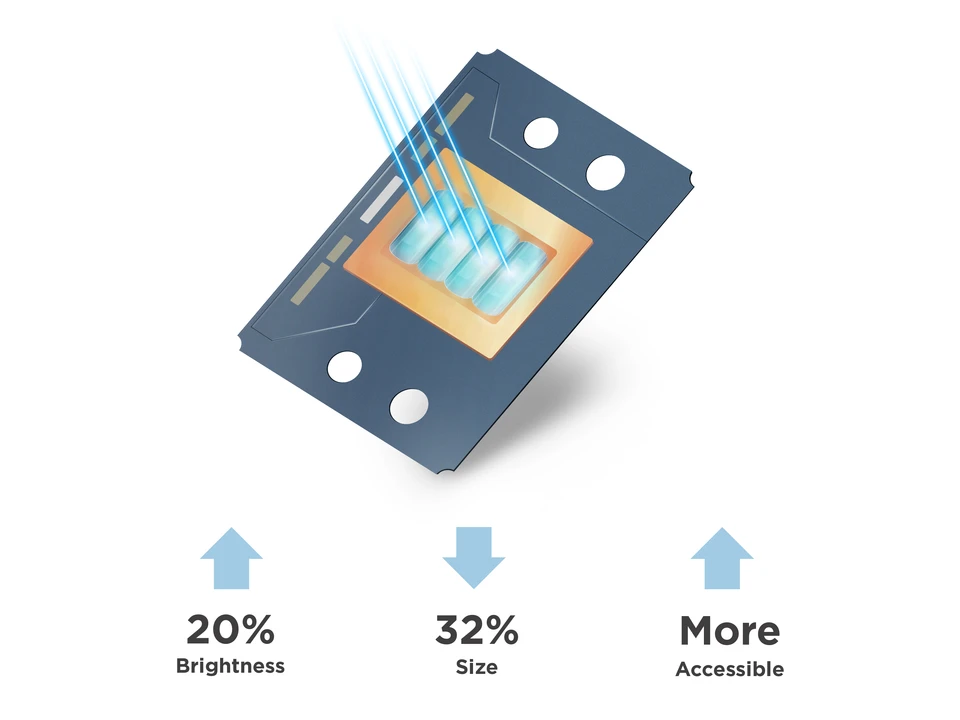

The LSD400HD-ST incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and
achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous
generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without
maintenance, ensuring consistent image quality even during extended periods of use.
3rd-gen Laser Phosphor Technology
Brilliant Clarity in Every Detail

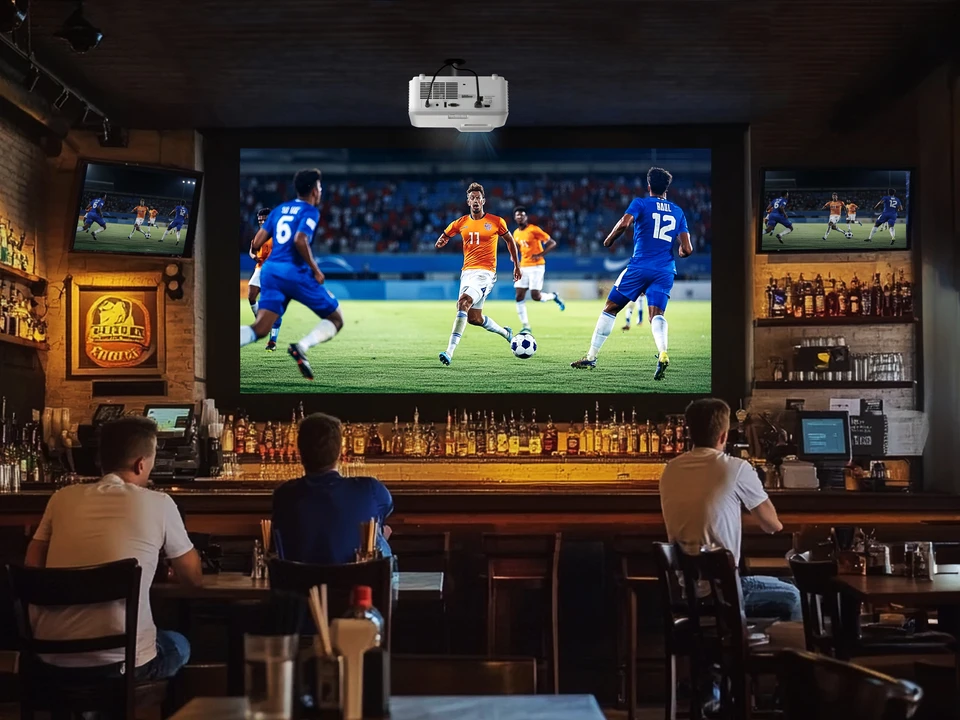

Delivering 4,000 ANSI Lumens, the LSD400HD-ST projects vibrant, razor-sharp images in 1080p Full HD, making it ideal
for golf simulators, exhibitions, and retail environments.
4,000 ANSI Lumens, 1080p FHD
Go Big, Even in Small Spaces
Enjoy large images even in small spaces with a 0.5 short throw ratio. Capable of projecting a 100” screen from just 1.1
meters away, the LSD400HD-ST allows flexible installation—delivering immersive golf simulation experiences from the
comfort of your home.

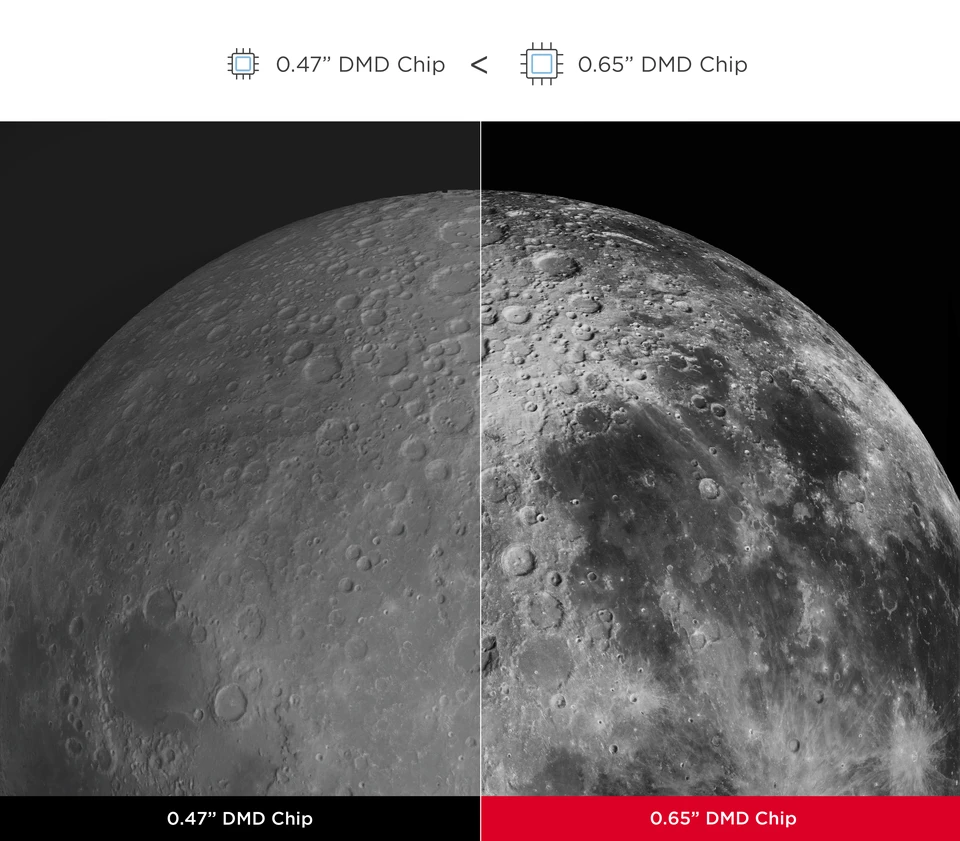

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LSD400HD-ST, boasting high contrast thanks to DLP technology and an advanced
0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing
experience.
0.65” DMD Chip, High Native Contrast Ratio

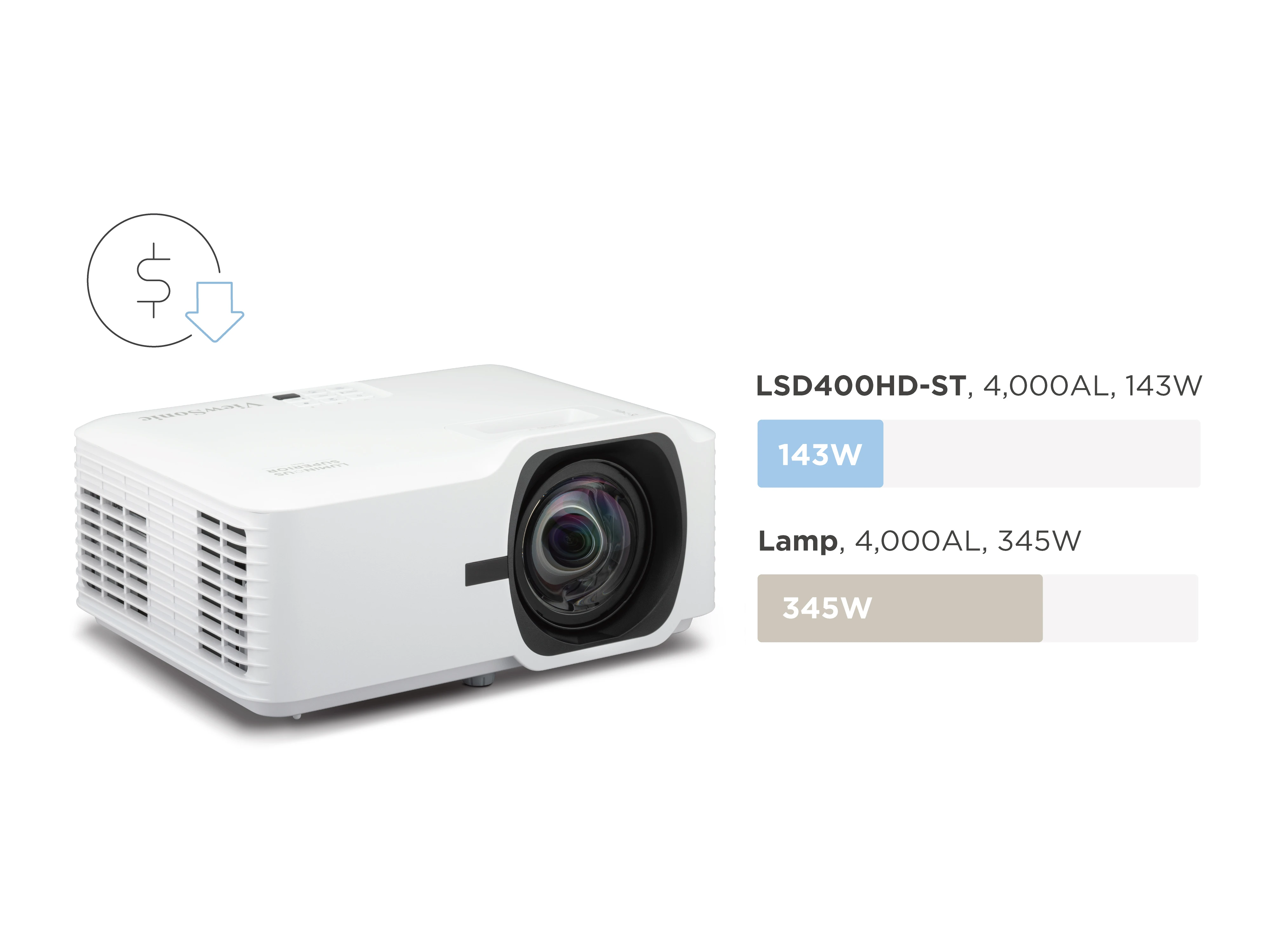

Save on Costs and Energy
With its advanced lamp-free light source, the LSD400HD-ST offers a highly energy-efficient and cost-saving display
solutionby consuming up to 59% less powerthan competing projectors.

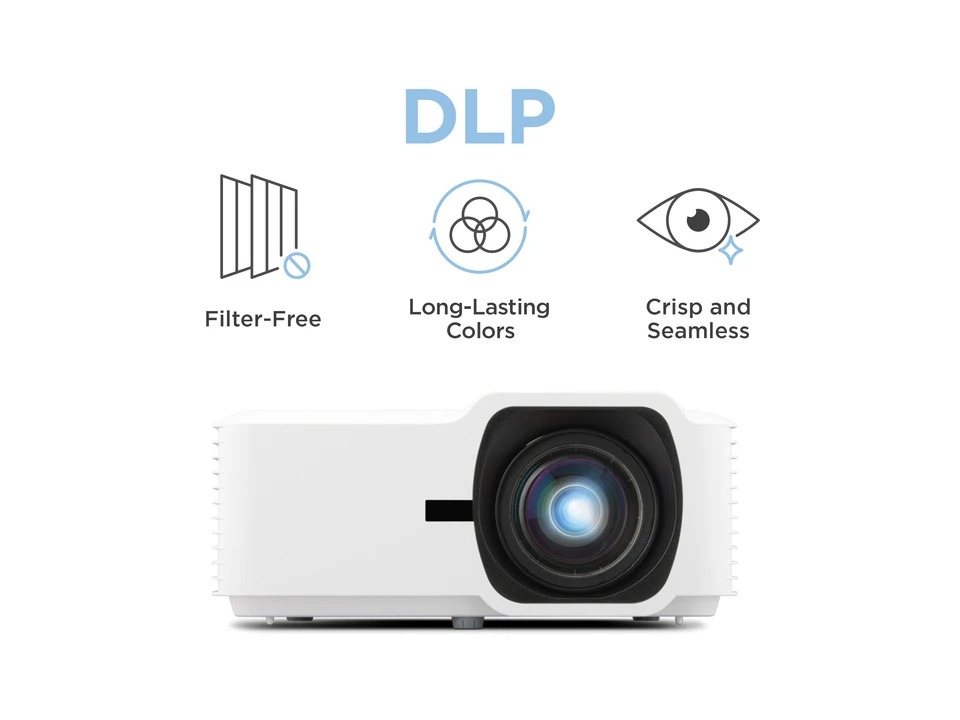

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LSD400HD-ST maintains consistent color performance over time, free from any yellowing
issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and
ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and
eliminating the noticeable screen-door effect.
Filter-free, Sealed Engine (IP6X)

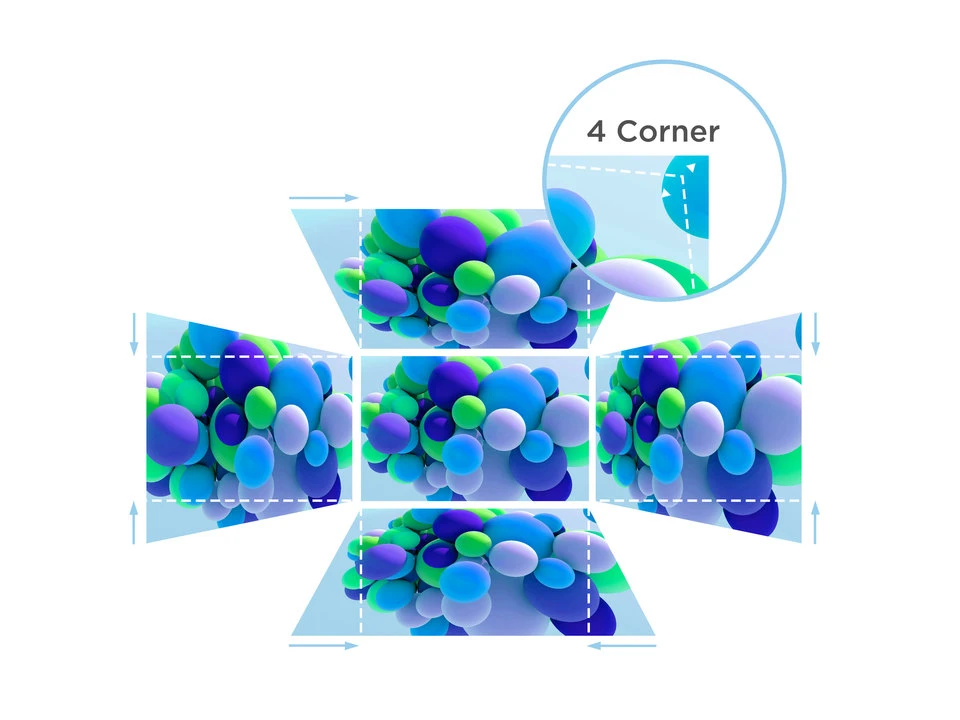

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted
images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment

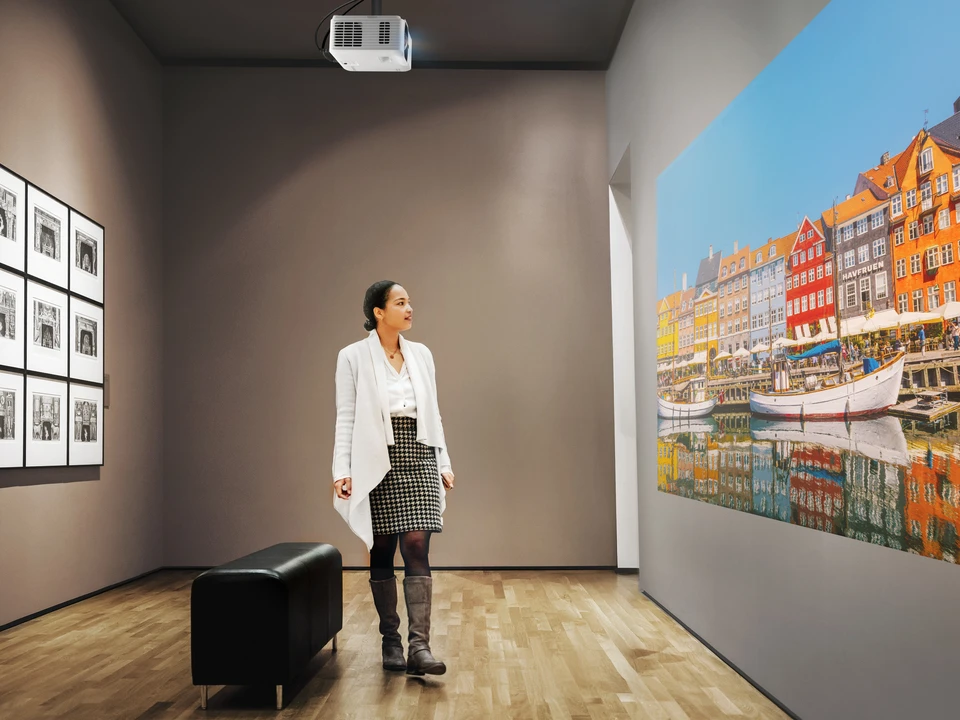

Versatile Creative Applications

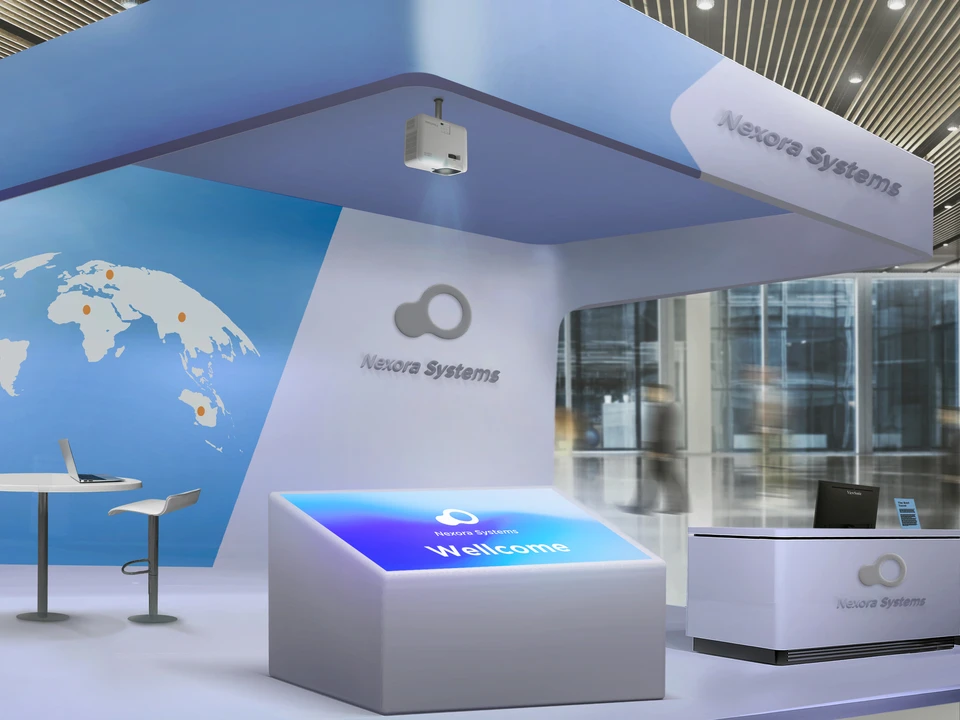

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode
further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode

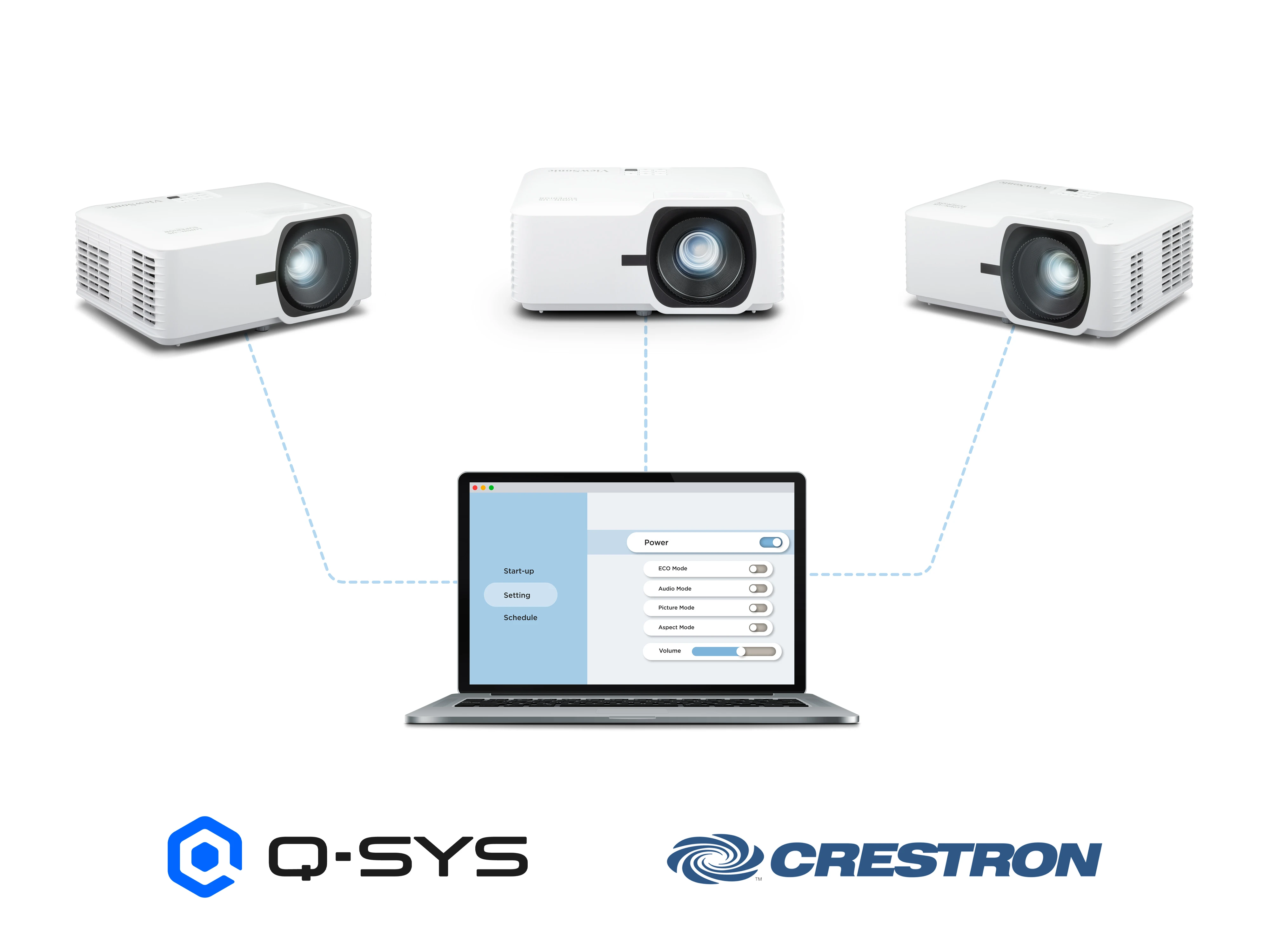

Centralized Control for Management Efficiency
The LSD400HD-ST is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems,
allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control

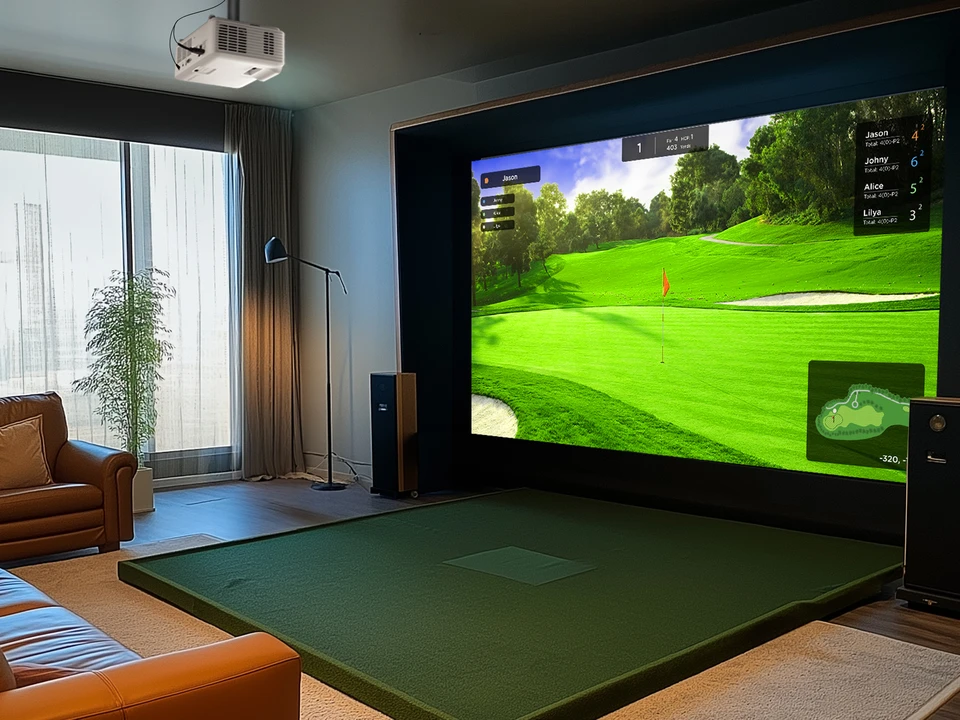

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances
colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism,
creating a golf experience that feels as close to reality as possible.

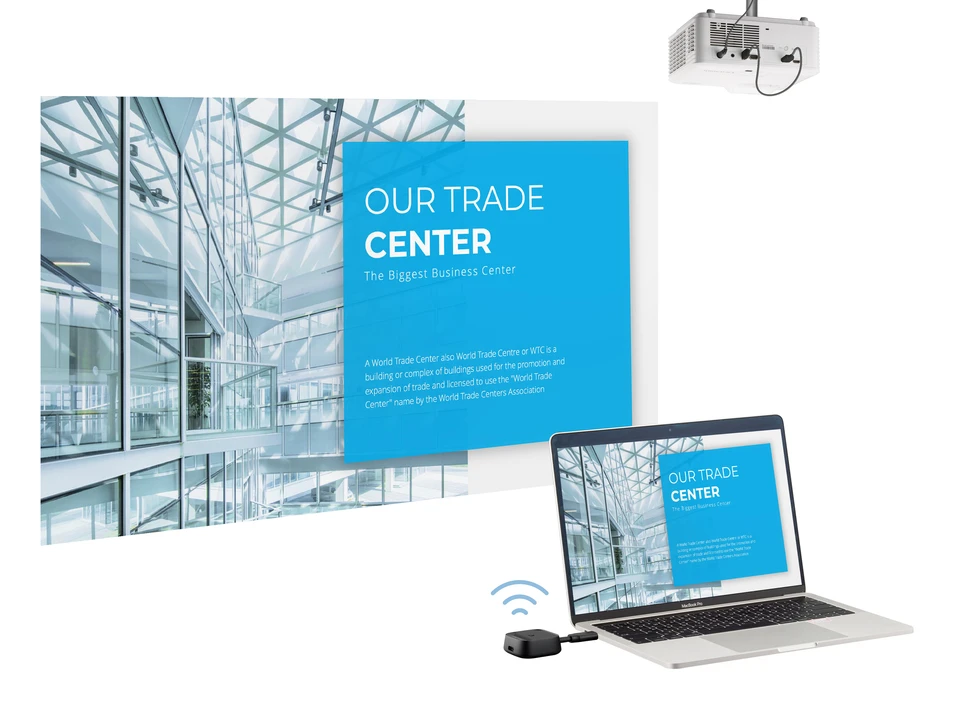

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The
projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power
charging without adapters. *ViewShare sold separately
ViewShare, USB-A Power Supply

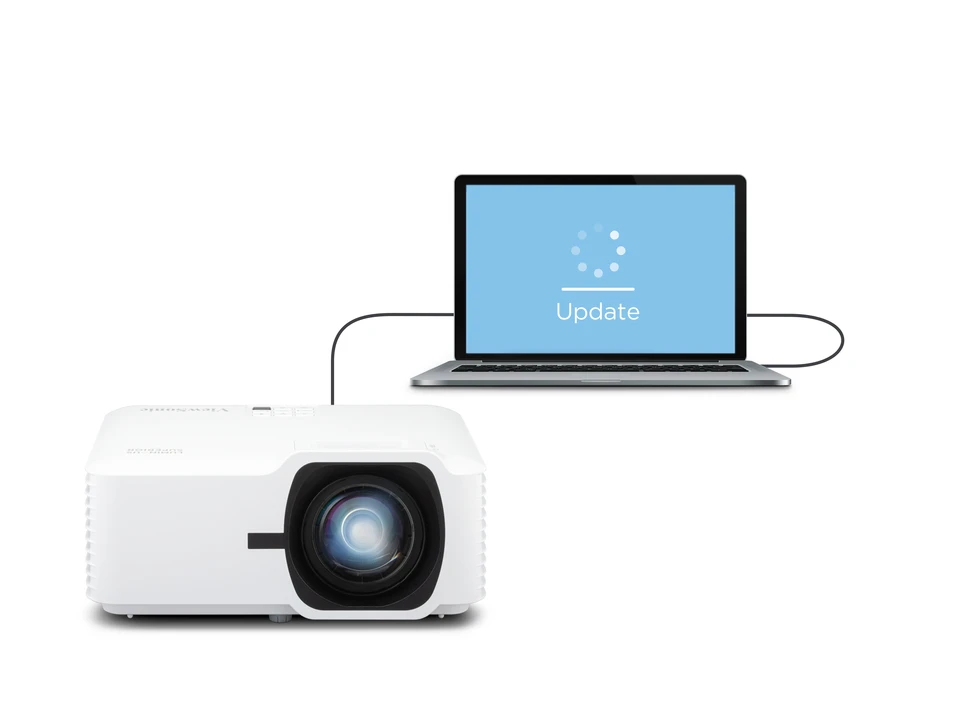

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This
efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more:
https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom
of the page when available.
Projector Software Update

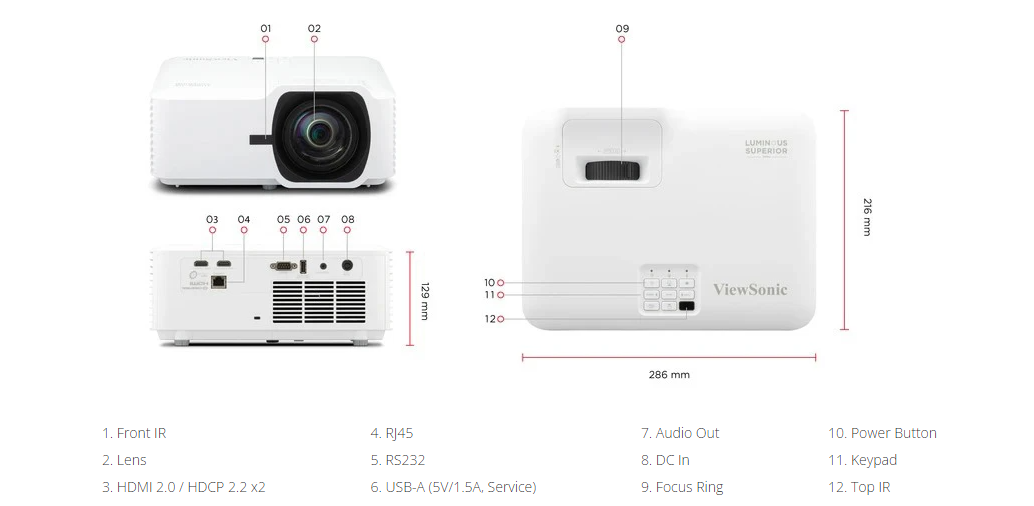

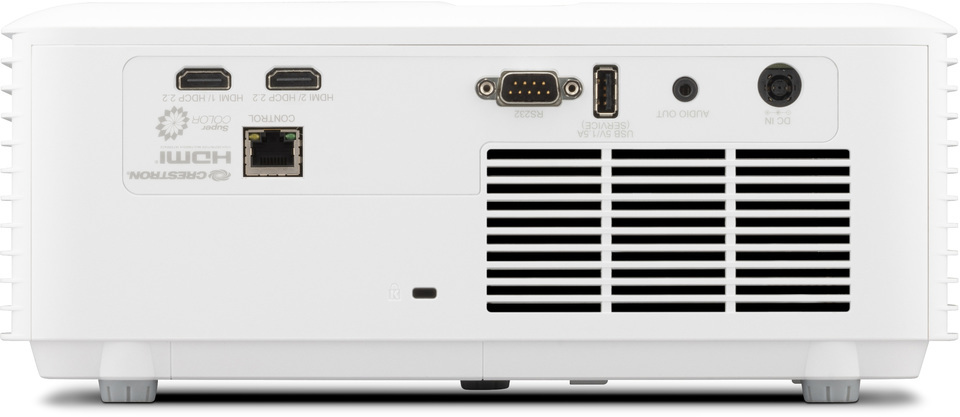

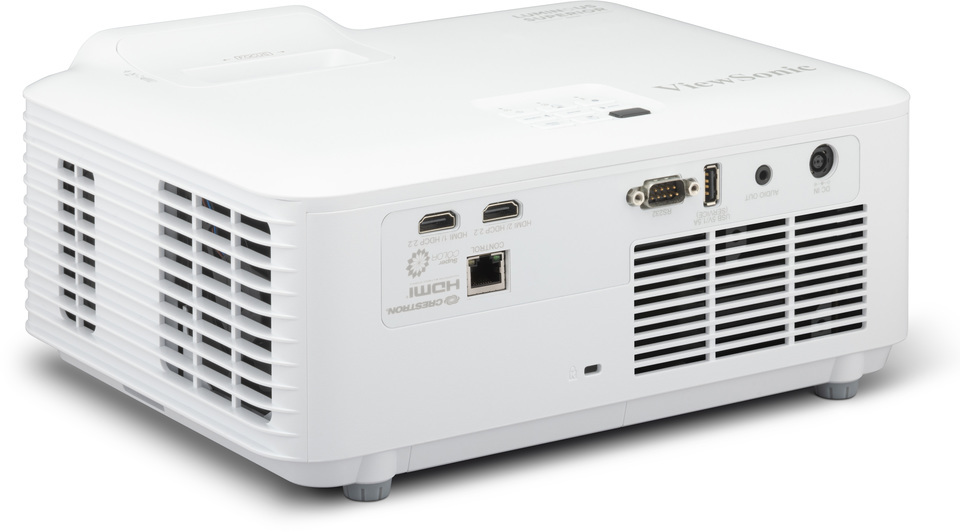

Dimensions & I/O Ports
SPECIFICATIONS
Specification
Projection System: 0.65"1080P
Native Resolution: 1920x1080
Brightness: 4000 (ANSI Lumens)
Brightness (Center Lumens): 4800
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.8, f=7.51mm
Projection Offset: 132%+/-10%
Throw Ratio: 0.5
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 40"-300"
Throw Distance: 0.44-3.29m
(100"@1.10m)
Keystone: H:+/-15° , V:+/-15°
Audible Noise (Normal): 32dB
Audible Noise (Eco): 27dB
Input Lag: 16.7ms
Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 24-120Hz

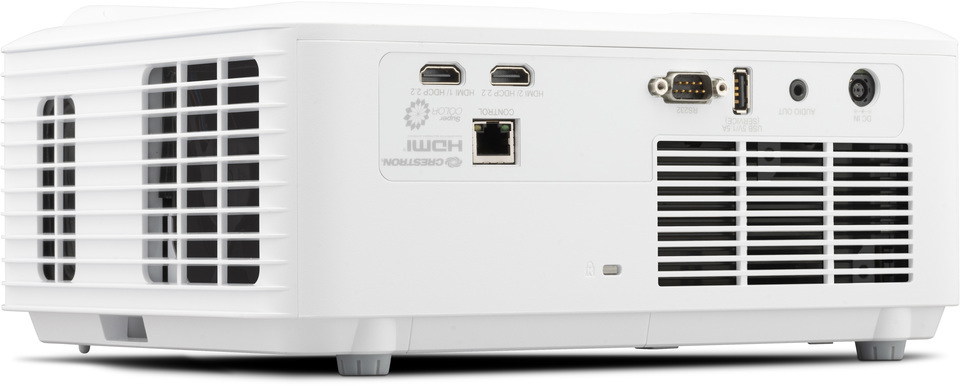

Input
HDMI: 2
(HDMI 2.0, HDCP 2.2)
Output
Audio-out (3.5mm): 1
Speaker: 15W
USB Type A (Power): 1 (5V/ 1.5A)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23A
Power Consumption: Normal: 143W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 3.10kg
Gross Weight: 4.6kg
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish,
Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish,
Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory
Power Cord: 1
Remote Control: 1
QSG: Yes
Lens Cover: Yes
Warranty Card: Yes (CN Only)
