Specification
Projection System: 3LCD (3x0.64" with MLA)
Native Resolution: 1920x1200
Brightness: 6500 (ANSI Lumens)
Brightness (Center Lumens): 7000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=1.5-2.08, f=17.2-27.7mm
Projection Offset: 0%+/-5%
Throw Ratio: 1.2-2.0
Optical Zoom: 1.6X
Digital Zoom: 1.0x-4.0x
Image Size: 30"-300"
Throw Distance: 0.78-12.99m
(100"@2.58m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: +60%, 0%
Lens Shift H. Range: +29%, -29%
Audible Noise (Normal): 36dB
Audible Noise (Eco) : 26dB
Input Lag: 60ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-100KHz
Vertical Scan Rate: 23-85Hz

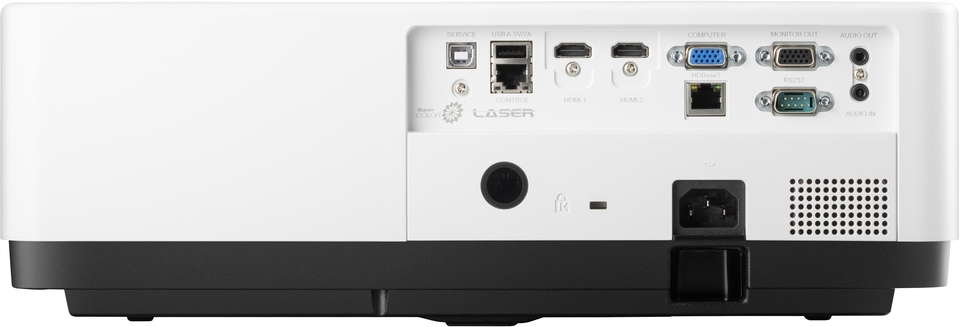

Input
Computer in (share with component): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
USB Type A: 1 (5V/2A)
HDBaseT: 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Type A (Power): 1
(USB2.0 - 5V/2A,
share with USB A Input)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 340W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 7.9kg
Gross Weight: 10.93kg

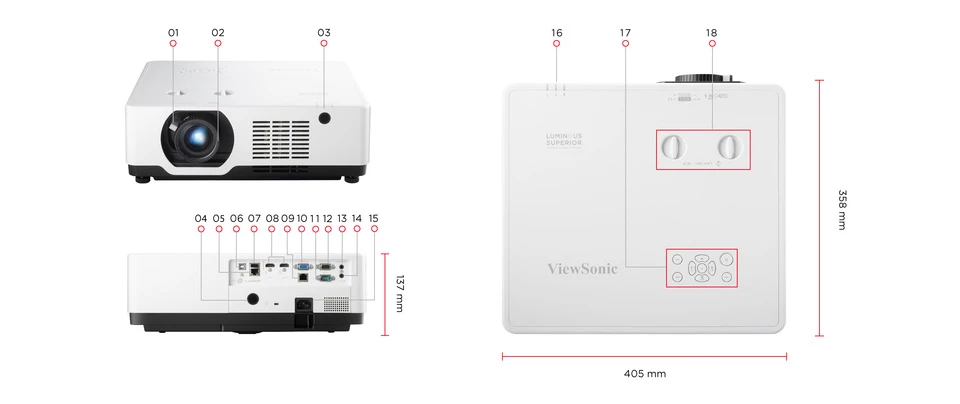

Dimensions (WxDxH) with Adjustment Foot: 405x358x137mm
Packing Dimensions: 510x498x260mm
OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian,Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
