OVERVIEW

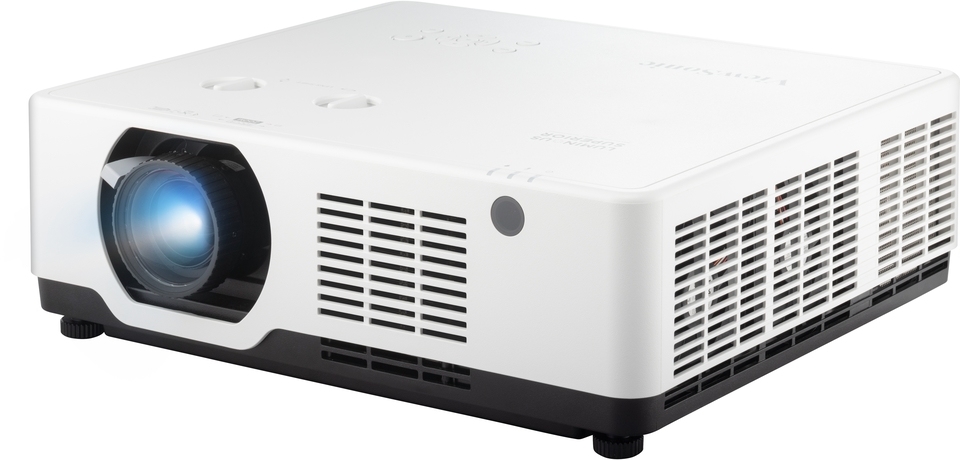

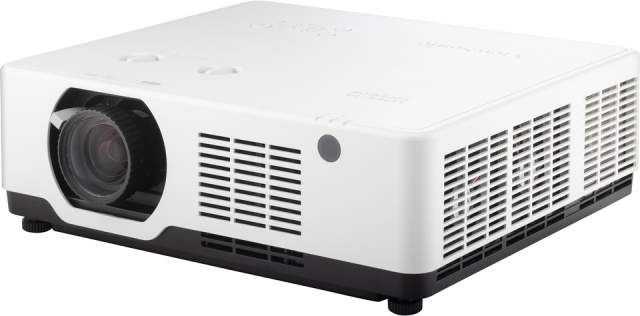

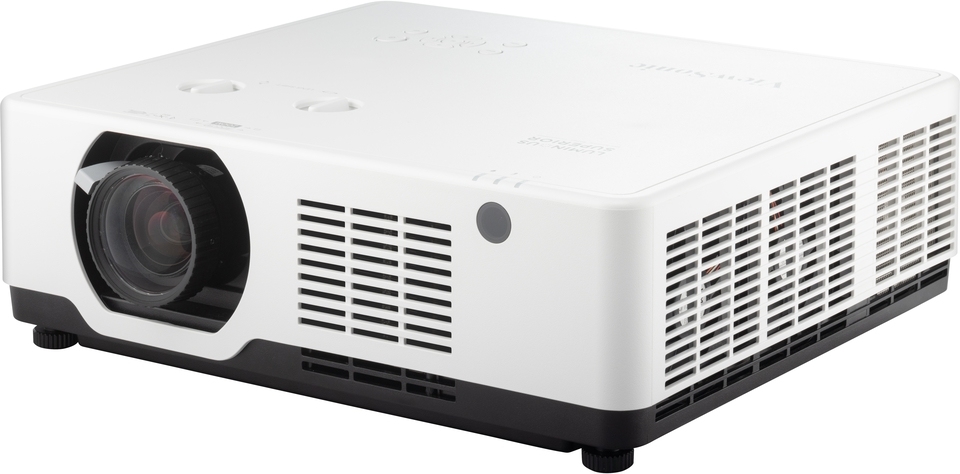

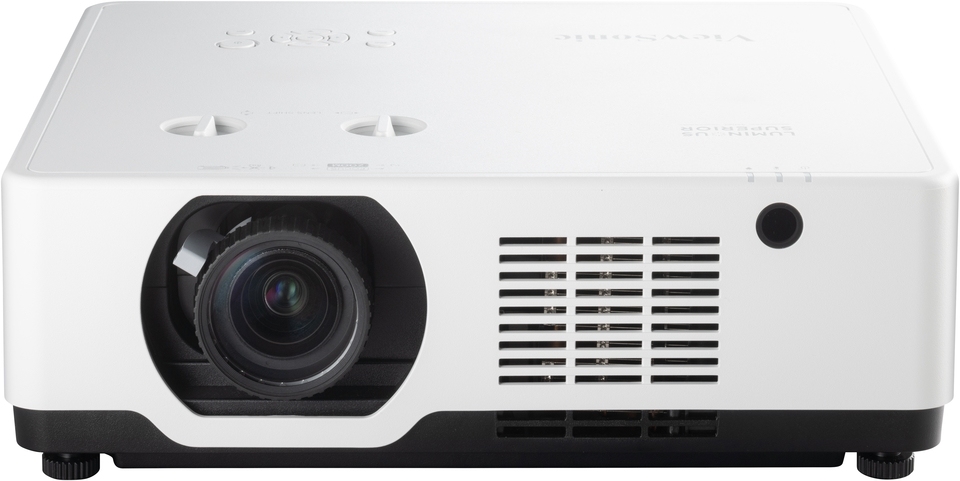

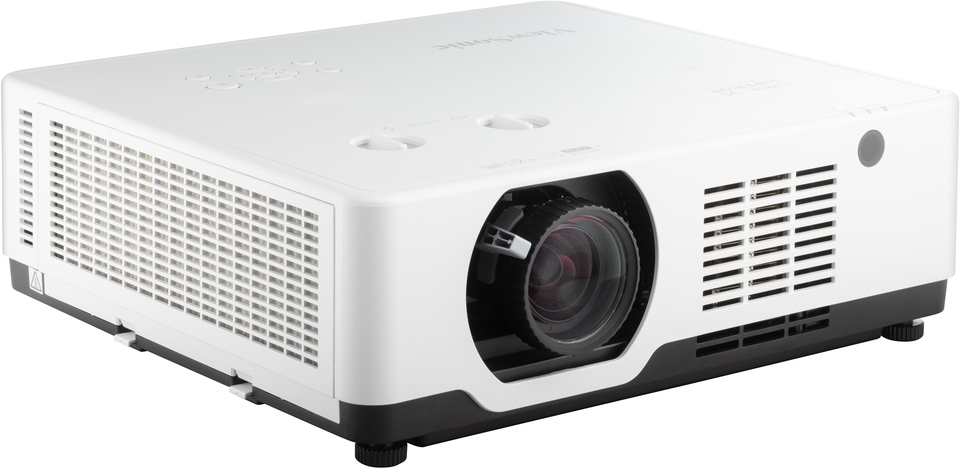

The LSC600-4K is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Equipped
with 4K resolution and HDR/HLG support, it delivers professional-quality presentations and stunning visuals. Utilizing 2nd
generation laser phosphor technology, this projector offers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can
project an ultra-large screen up to 300”. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams
Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V
keystone correction, and 360° projection capabilities, the LSC600-4K offers flexible setup possibilities. Additionally, its
comprehensive LAN control ensures seamless integration into existing device management networks.
Ultimate Viewing Experience with 4K HDR
Experience 4K crystal-clear details and dynamic visuals powered by HDR/HLG support. The projector features dual HDMI
2.0/HDCP 2.2 ports for original 4K quality content, bringing your presentations, creative works, and sports viewing to life.

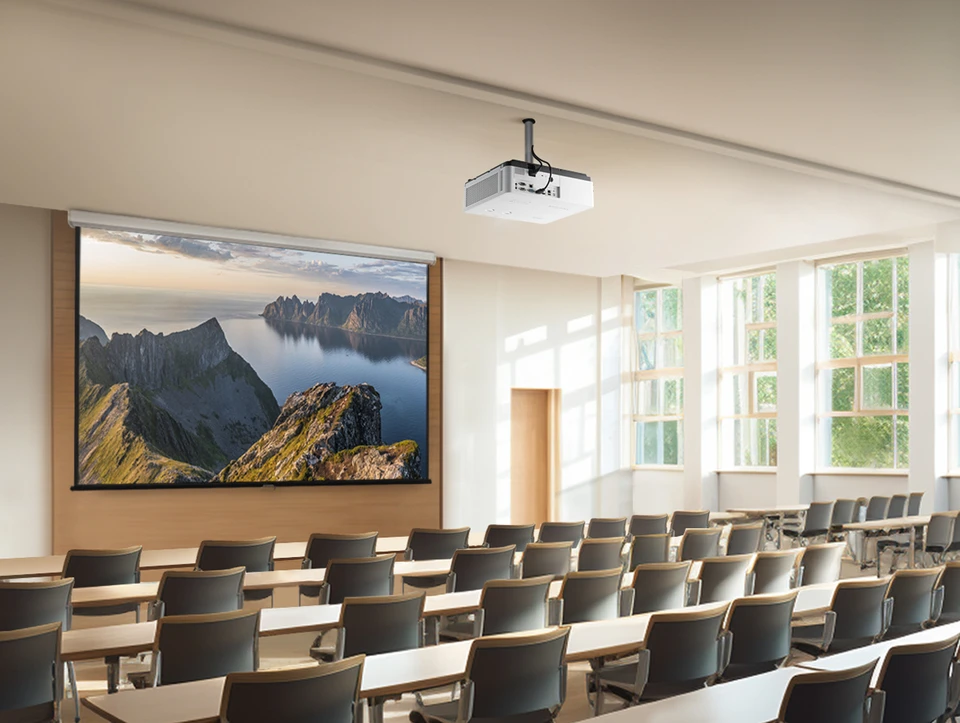

Bright Images for Large Venues
Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for
boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

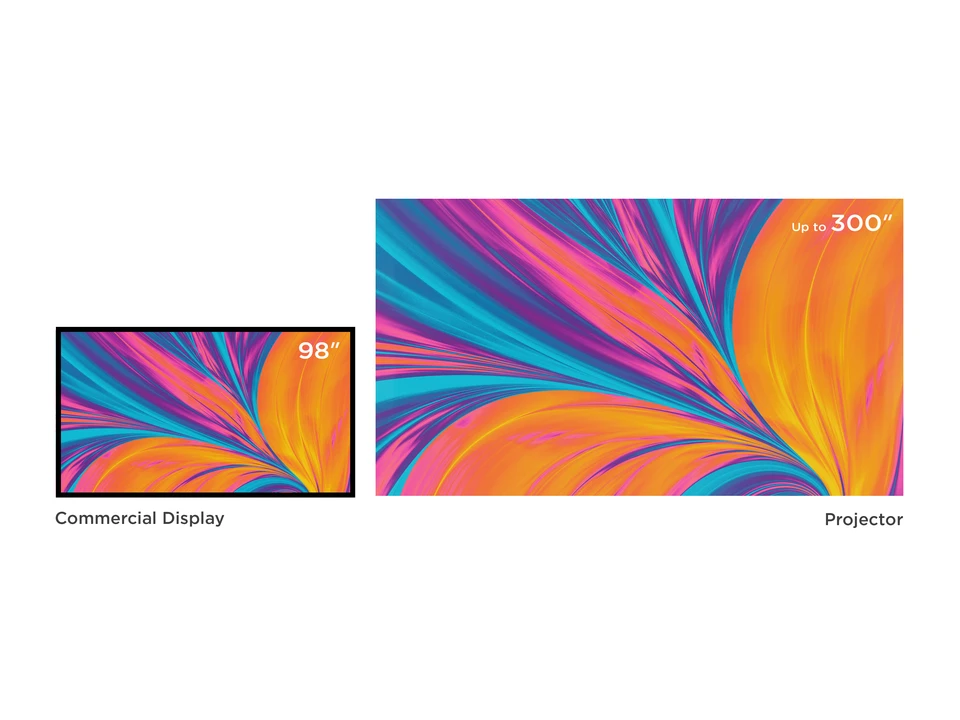

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of
commercial displays.

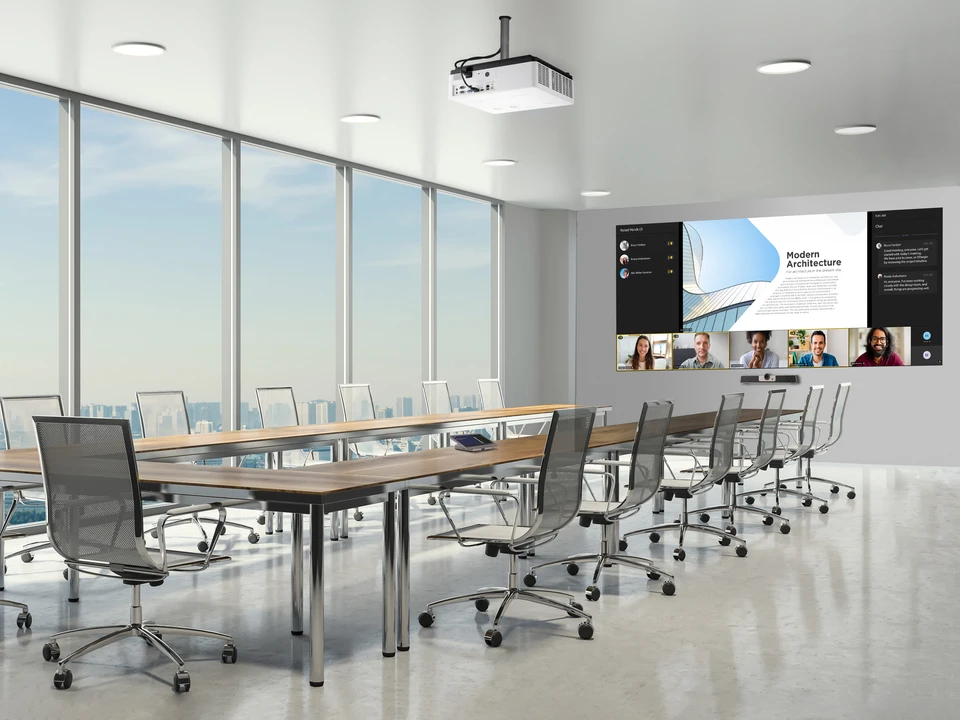

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format
enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant
video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this
projector allows image adjustments without relocation, ensuring it fits any environment.

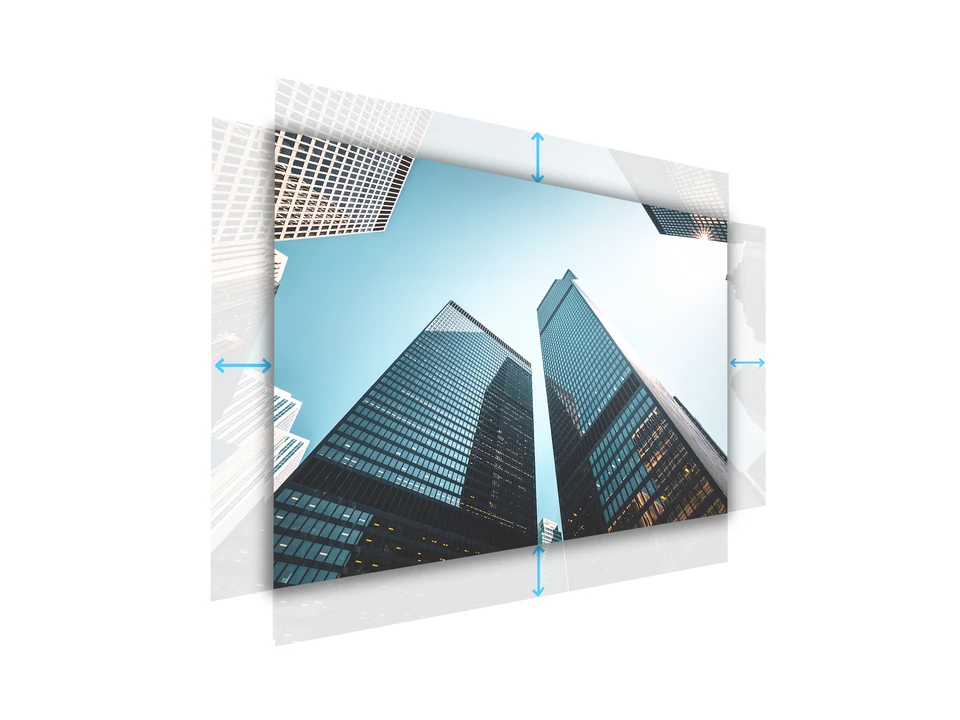

H/V Lens Shift, Keystone Correction, 1.6x Optical Zoom

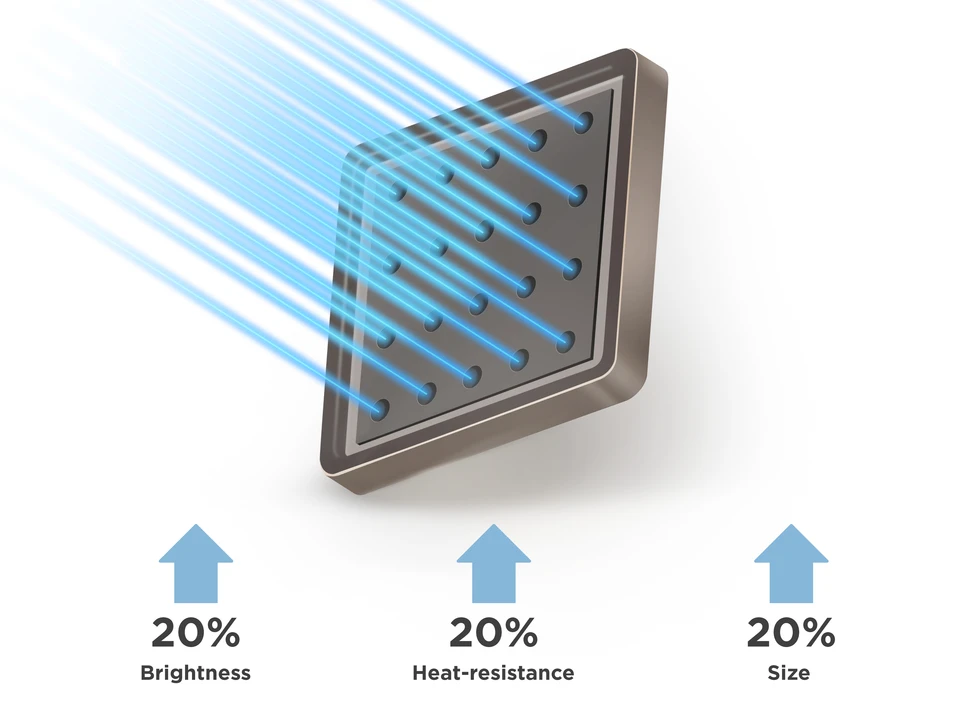

2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-
free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of
brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as
increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan

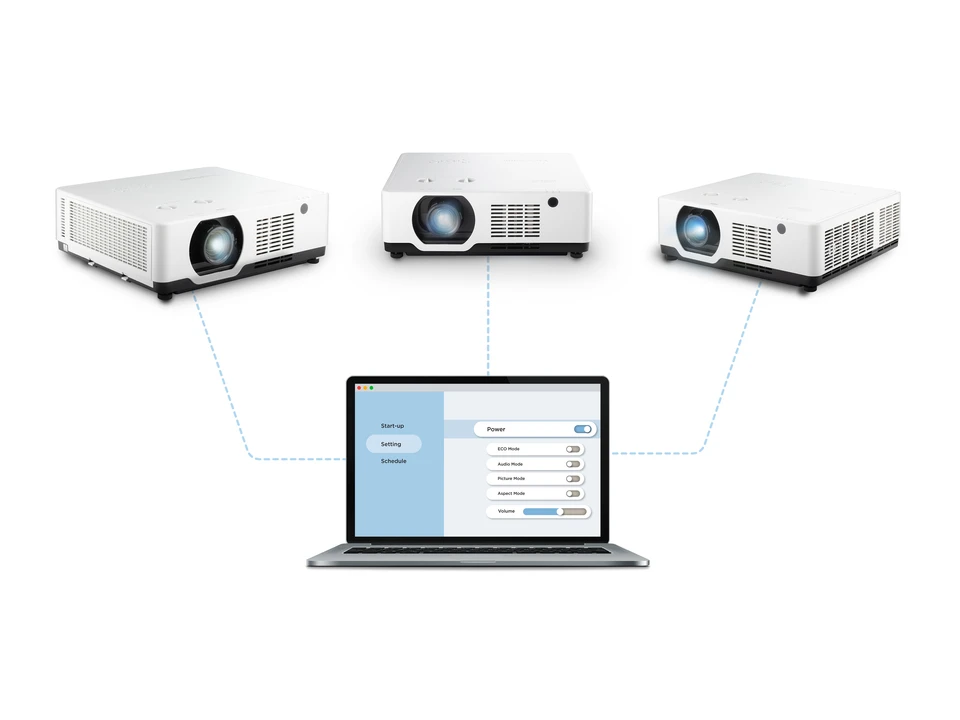

Centralized Control for Management Efficiency
The projector is compatible with PJ Link, ATEN, and Extron systems, allowing for centralized device management for better
operational efficiency.
Comprehensive LAN Control

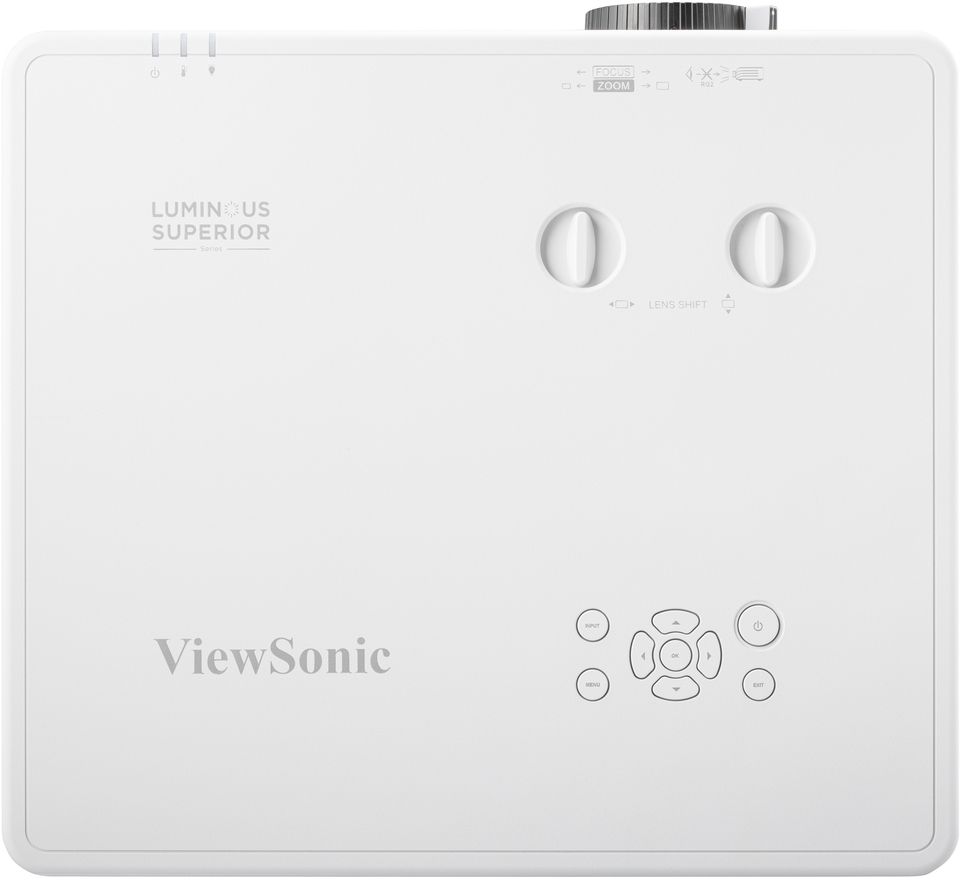

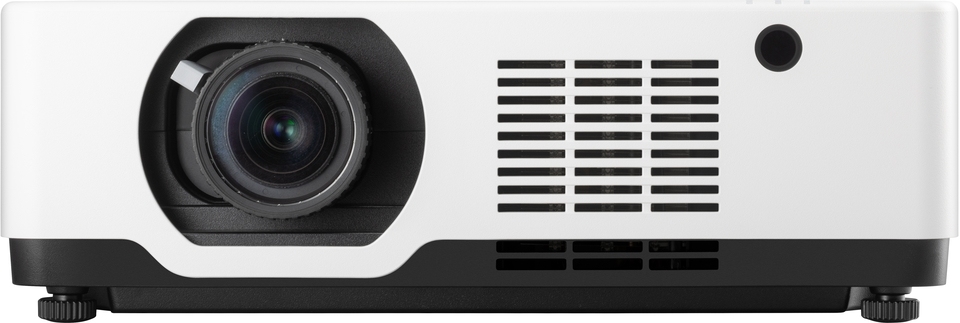

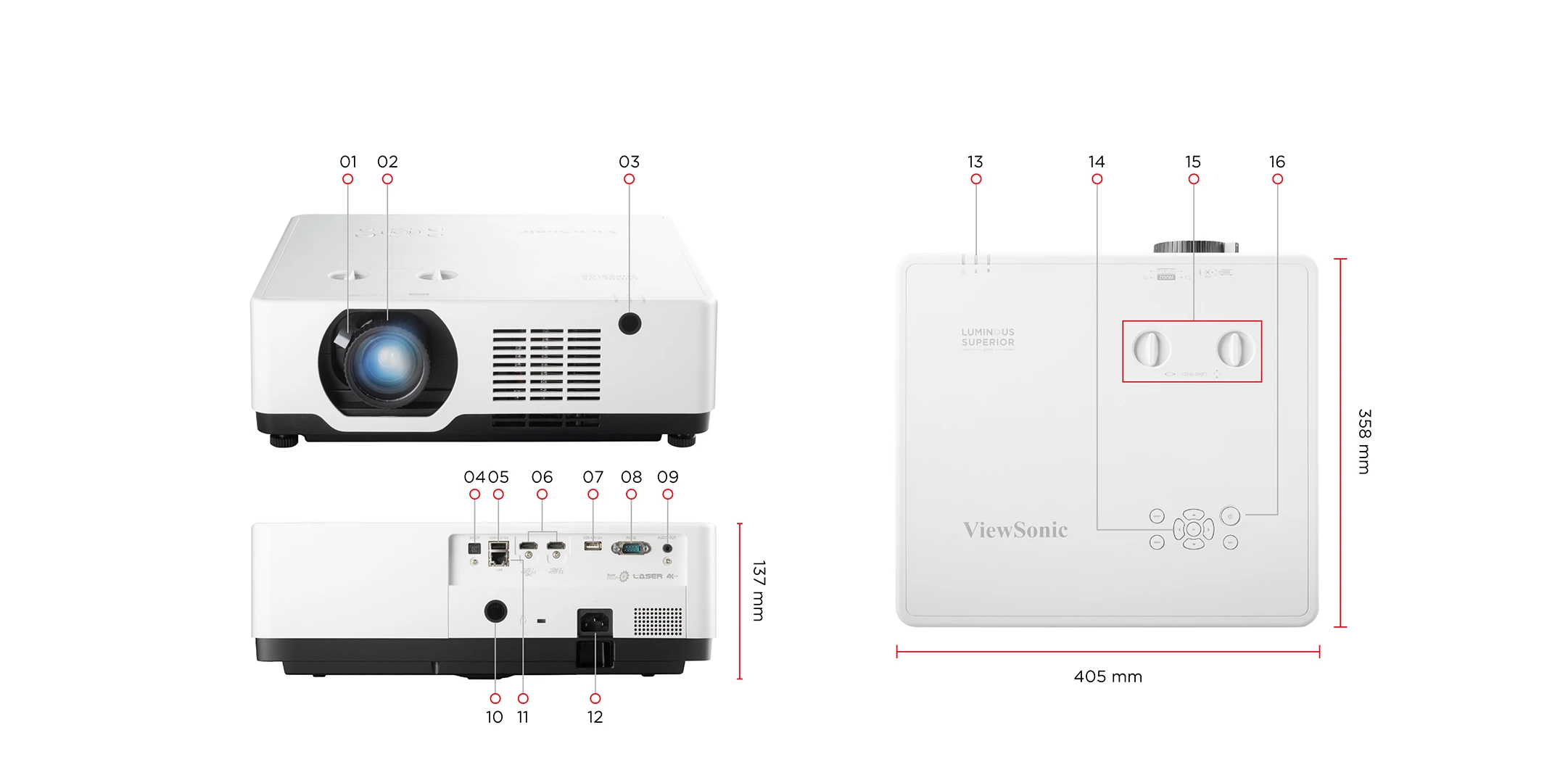

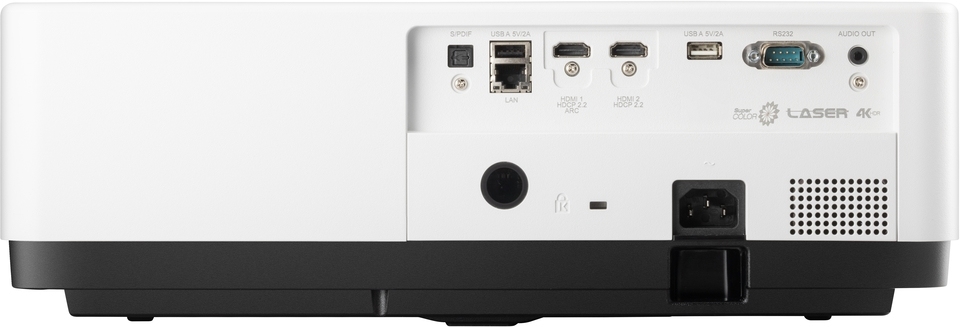

Dimensions & I/O Ports
1. Zoom Ring 4. S/PDIF 7. USB-A (5V/2A) 10. Rear IR 13. LED Indicator 16. Power Button
2. Focus Ring 5. USB-A (5V/2A) 8. RS232 11. RJ45 14. Keypad
3. Front IR 6. HDMI 2.0/HDCP 2.2 9. Audio Out 12. AC In 15. Lens Shift Control Knob x2
SPECIFICATIONS
Specification
Projection System: 3LCD (3x0.64" with MLA)
Native Resolution: WUXGA with 4K Enhancement
Brightness: 6000 (ANSI Lumens)
Brightness (Center Lumens): 6500
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=1.5-2.08, f=17.2-27.7mm
Projection Offset: 0%+/-5%
Throw Ratio: 1.2-2.0
Optical Zoom: 1.6X
Digital Zoom: 1.0x-2.0x
Image Size: 30"-300"
Throw Distance: 0.80-13.35m
(100"@2.66m)
Keystone: H:+/-25° , V:+/-30°
Lens Shift V. Range: +66%, 0%
Lens Shift H. Range: +29%, -29%
Audible Noise (Normal): 37dB
Audible Noise (Eco) : 26dB
Input Lag: 32ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 24-85Hz
Input
HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)
Audio-in (3.5mm): 1
USB Type A: 2 (5V/2A)
RJ45 Input (Internet): Yes
Output
Audio-out (3.5mm): 1
Audio-out (HDMI ARC): 1
(Share with HDMI Input)
S/PDIF: 1
Speaker: 16W
USB Type A (Power): 2
(USB2.0 - 5V/2A,
share with USB A Input)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
(share with RJ45 Internet)
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 315W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 7.9kg
Gross Weight: 10.10kg
Dimensions (WxDxH) with Adjustment Foot: 405x358x137mm
Packing Dimensions: 510x498x260mm
OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Vietnamese, Thai, total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
