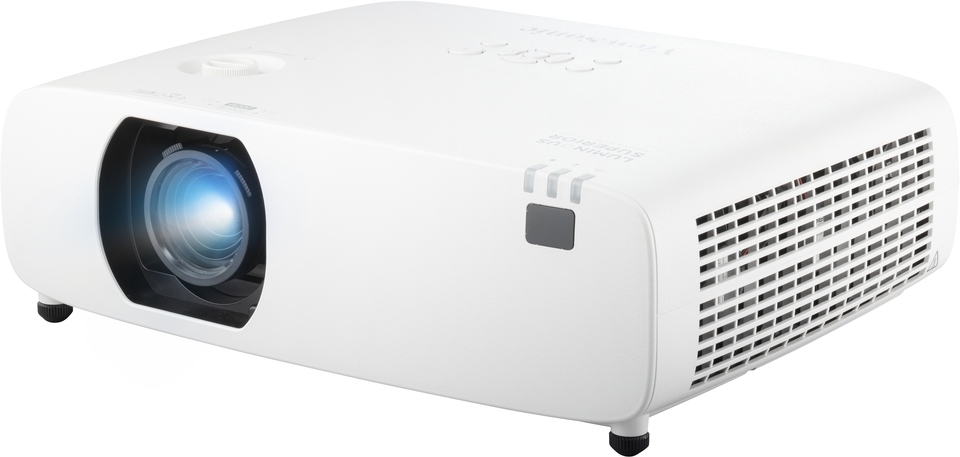

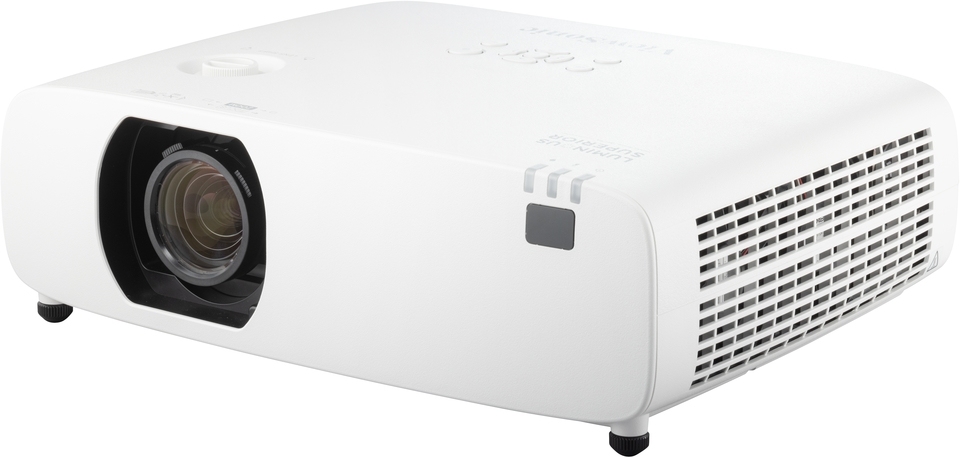

OVERVIEW
The LSC520WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing
3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and
can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is
optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens
shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC520WU offers flexible setup
possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management
networks.

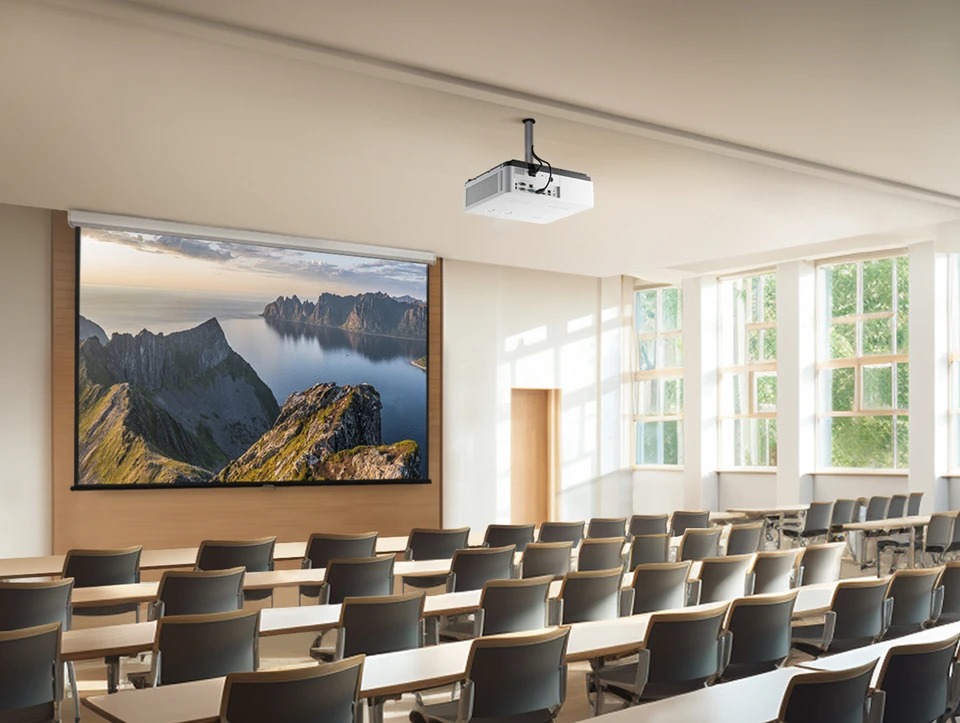

Bright Images for Large Venues
Delivering 5,200 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for
boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

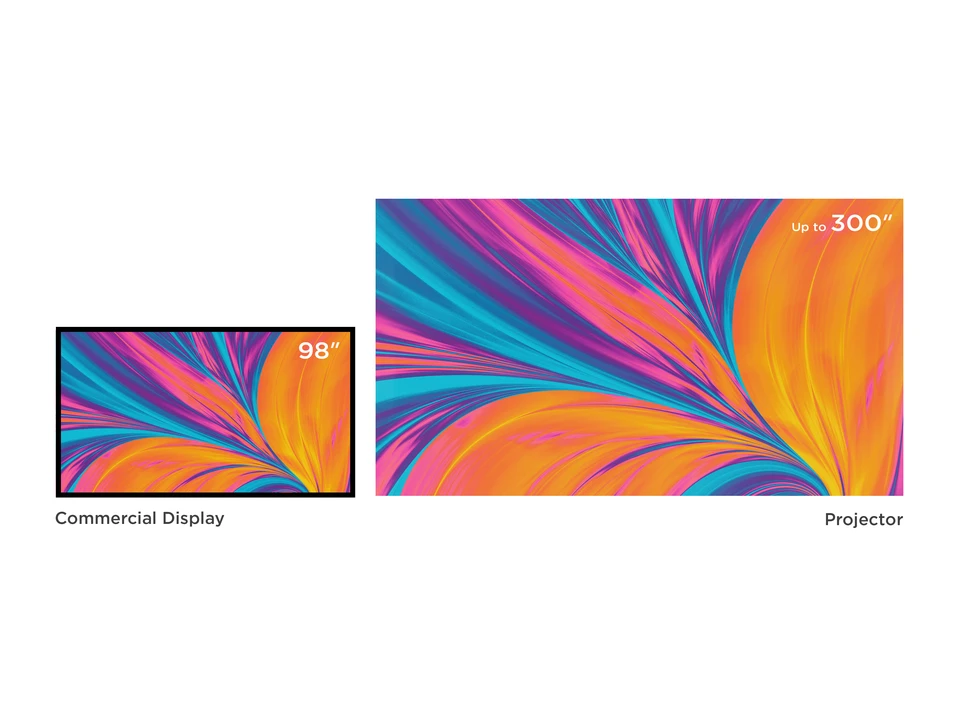

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of
commercial displays.

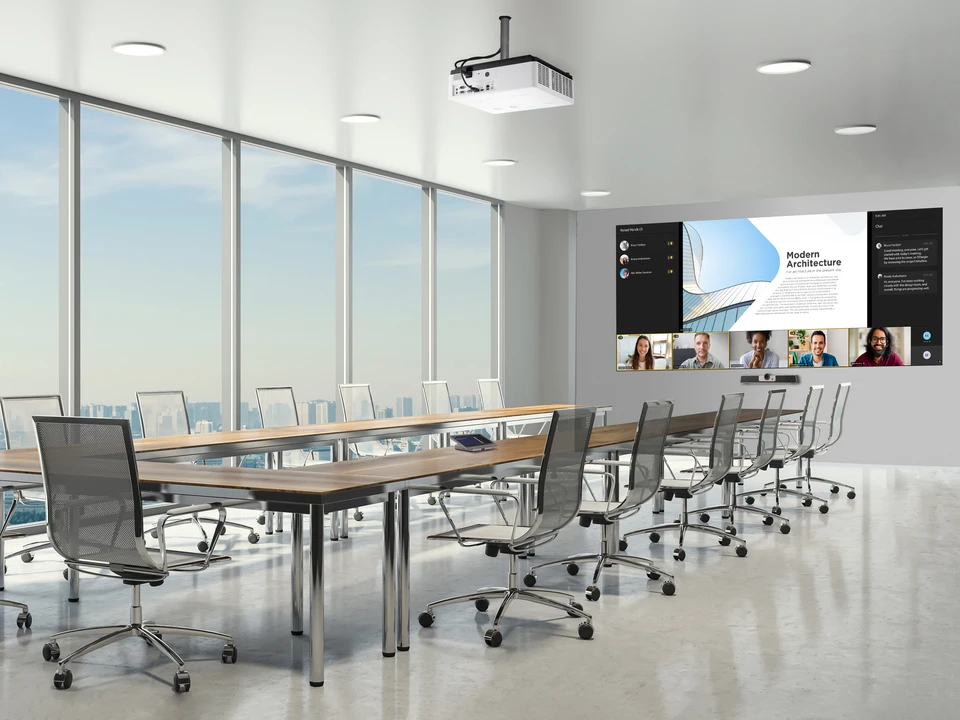

Next-Gen Meeting Experience with 21:9 Aspect
Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format
enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant
video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment

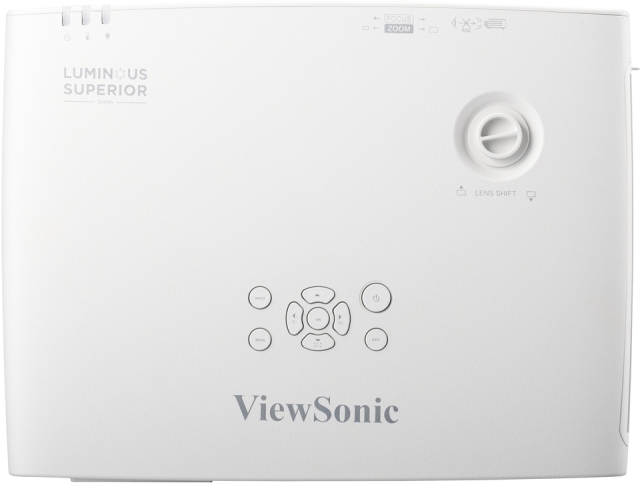

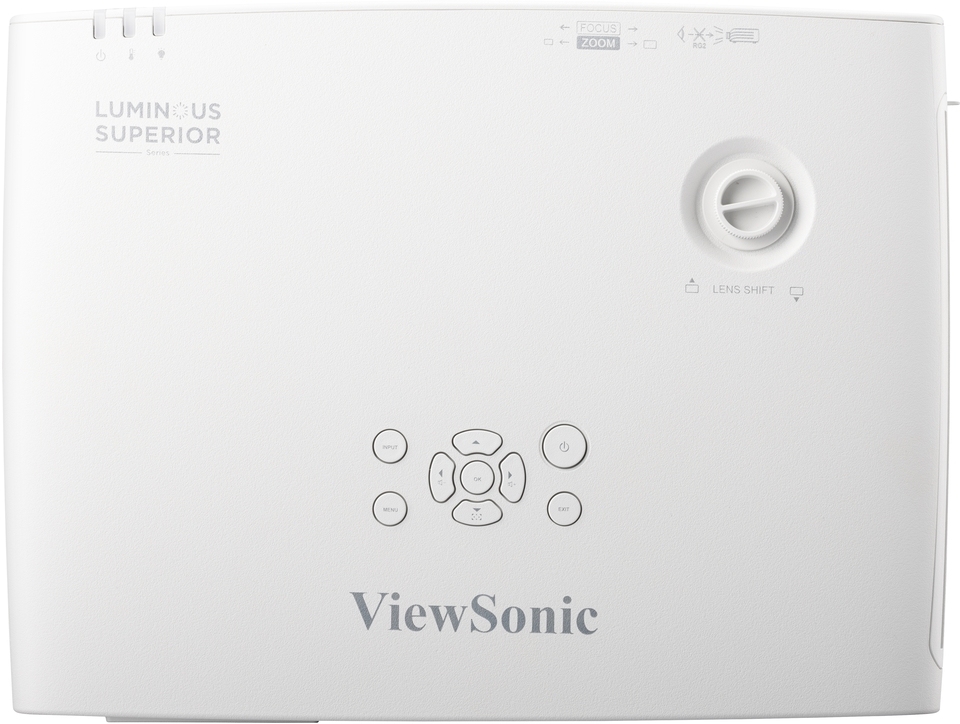

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this
projector allows image adjustments without relocation, ensuring it fits any environment.

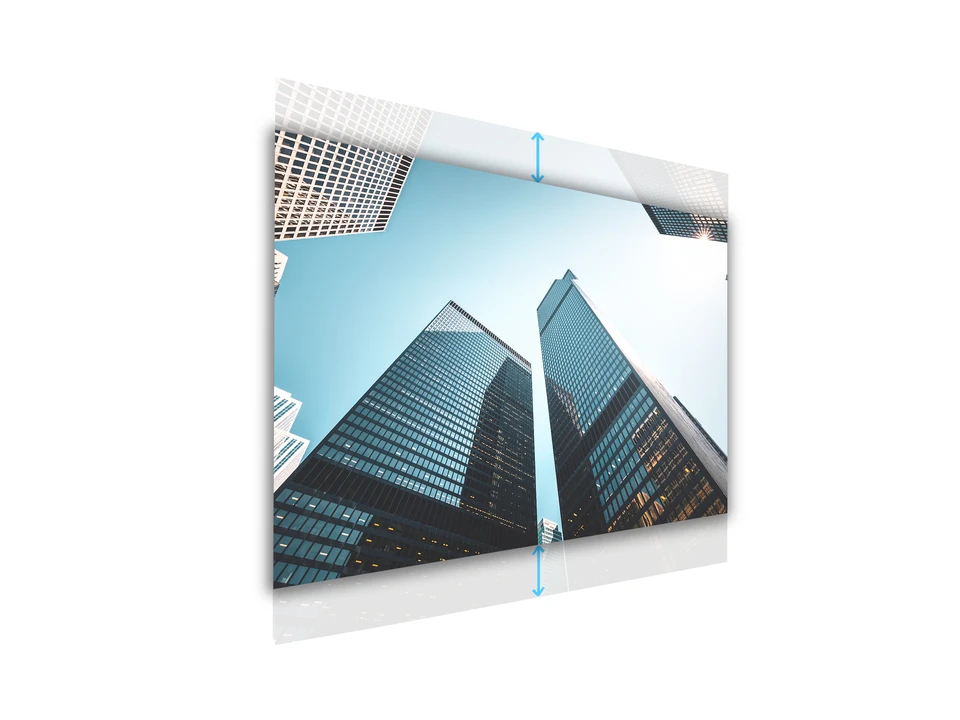

V Lens Shift, Keystone Correction, 1.6x Optical Zoom
Bright, Compact, Durable

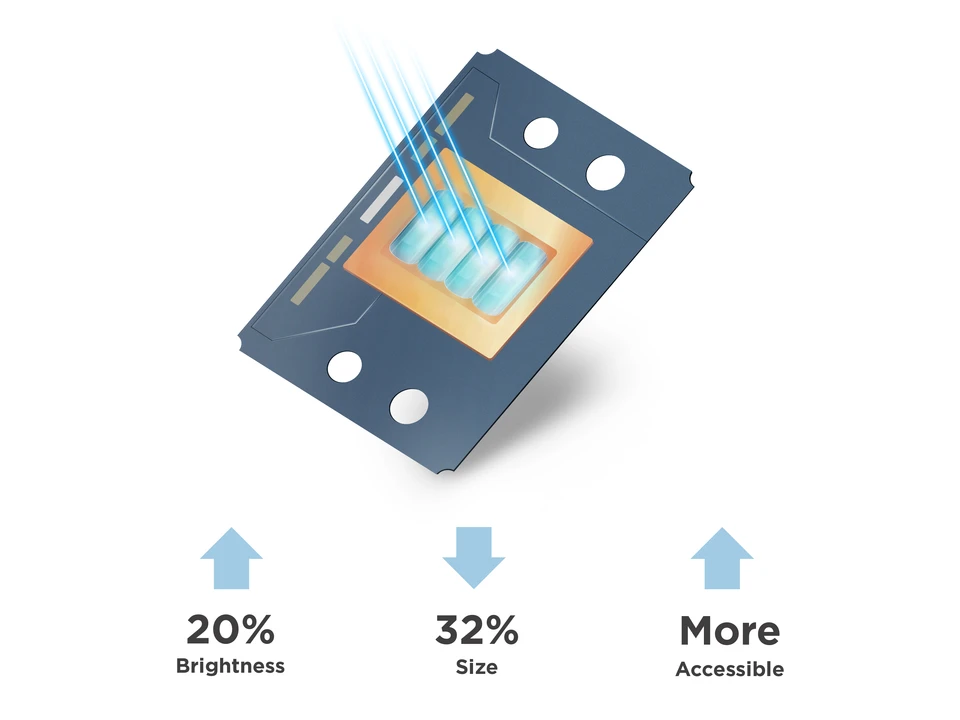

The projector incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better
luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light
source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality
even during extended periods of use.
3rd Generation Laser Phosphor Technology

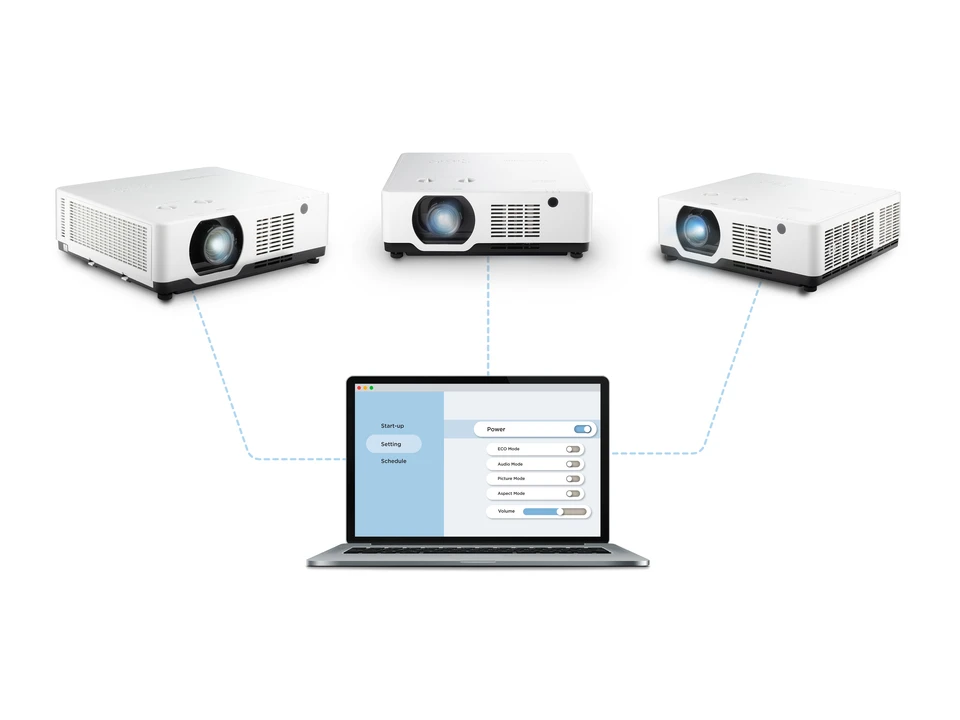

Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for
better operational efficiency.
Comprehensive LAN Control

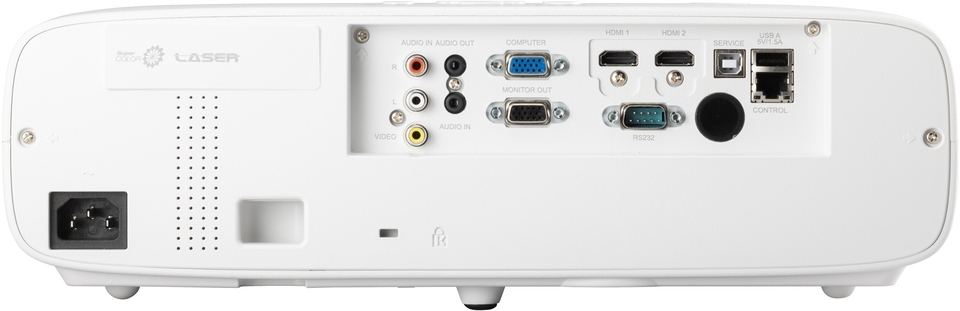

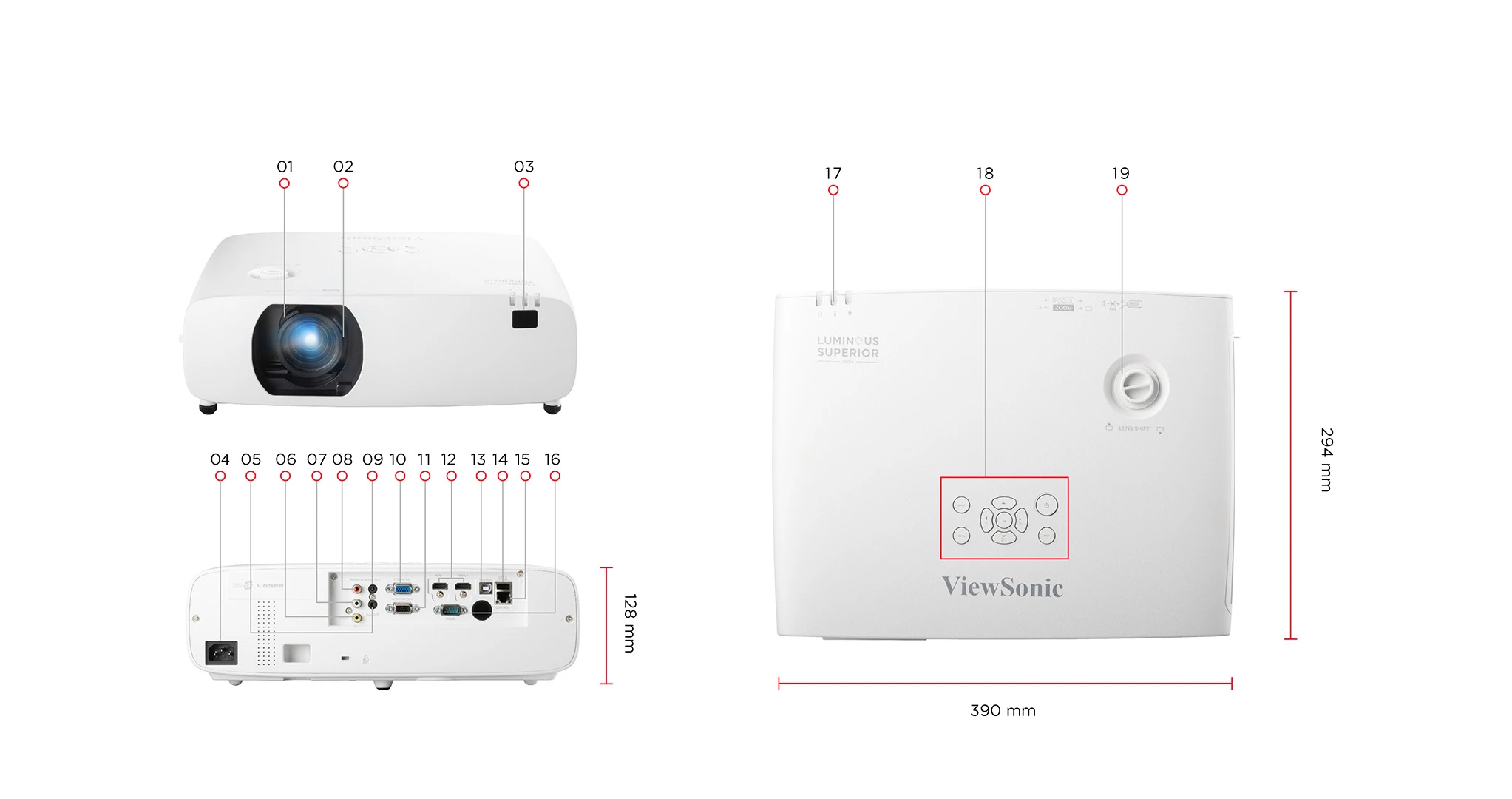

Dimension & I/O Ports
1. Zoom Ring 4. AC In 7. Audio In (L) 10. Computer 13. Service 16. RS232 19. Lens Shift Control Knob
2. Focus Ring 5. Audio In 8. Audio In (R) 11. Monitor Out 14. USB-A (5V/1.5A) 17. LED Indicator
3. Front IR 6. Video 9. Audio Out 12. HDMI x2 15. RJ45 18. Keypad
SPECIFICATIONS
Specification
Projection System: 3LCD (3x0.64" with MLA)
Native Resolution: 1920x1200
Brightness: 5200 (ANSI Lumens)
Brightness (Center Lumens): 6000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=1.58-2.02, f=15.3-24.6mm
Projection Offset: 0%+/-5%
Throw Ratio: 1.08-1.76
Optical Zoom: 1.6X
Digital Zoom: 1.0x-4.0x
Image Size: 30"-300"
Throw Distance: 0.70-11.37m
(100"@2.33m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: +45%, 0%
Audible Noise (Normal): 35dB
Audible Noise (Eco) : 26dB
Input Lag: 60ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@30Hz)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz
Horizontal Frequency: 15K-100KHz
Vertical Scan Rate: 23-85Hz
Input
Computer in (share with component): 1
Composite: 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
USB Type A: 1 (5V/1.5A)
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Type A (Power): 1
(USB2.0 - 5V/1.5A,
share with USB A Input)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 230W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 5.2kg
Gross Weight: 7.23kg
Dimensions (WxDxH) with Adjustment Foot: 390x294x128mm
Packing Dimensions: 492x443x239mm
OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian,Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
