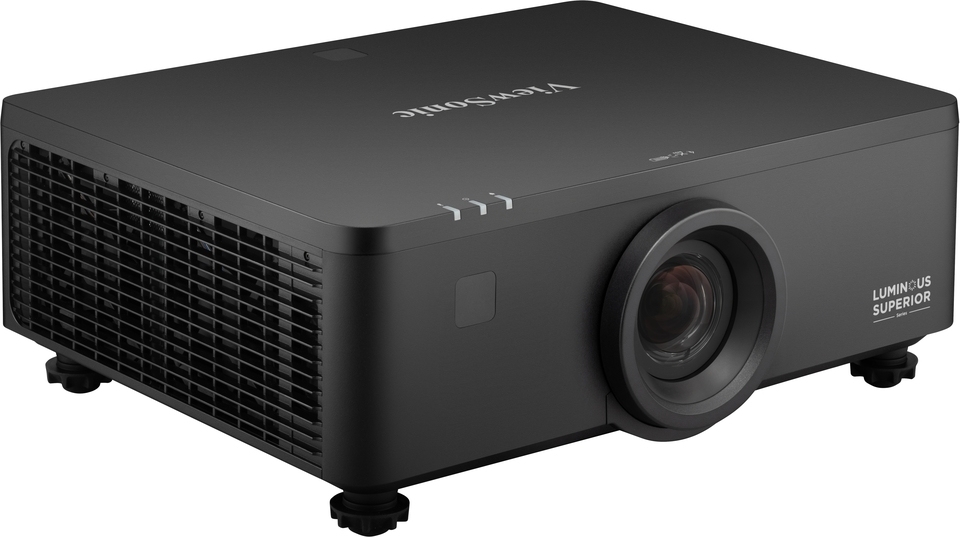

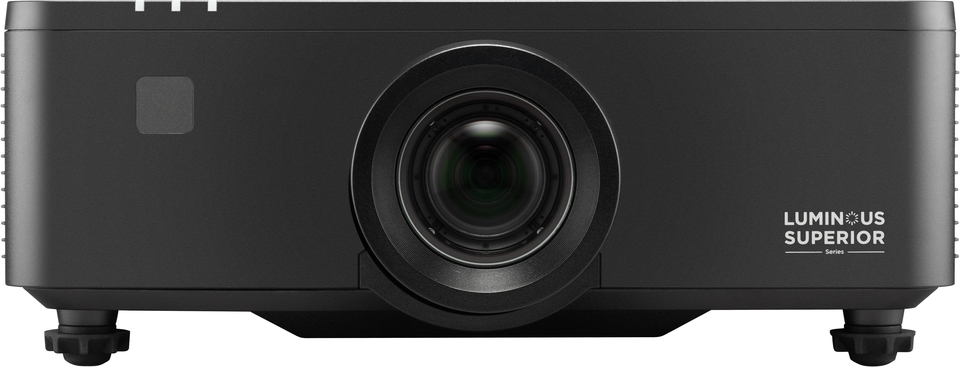

OVERVIEW
Introducing the LS951WU from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust
8,000 ANSI Lumens brightness and a high native contrast provided by a 0.67” DMD chip through DLP technology, it delivers
stunning visuals on screens up to 300 inches. With a 0.75-0.95 short throw, the LS951WU delivers a seamless image on a 100-
inch screen from only 1.6 meters away without shadows, enabling effortless edge blending to create immersive experiences.
Motorized focus, zoom, lens shift, and H/V keystone adjustment make setup a breeze, while portrait mode and 360°
projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into
existing device management networks. Employing advanced 2nd generation laser phosphor technology, the LS951WU boasts
a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.
Brilliant Visuals for Large Venues
With an impressive 8,000 ANSI Lumens, the LS951WU ensures crystal-clear visuals even in brightly lit environments. Its WUXGA
resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes

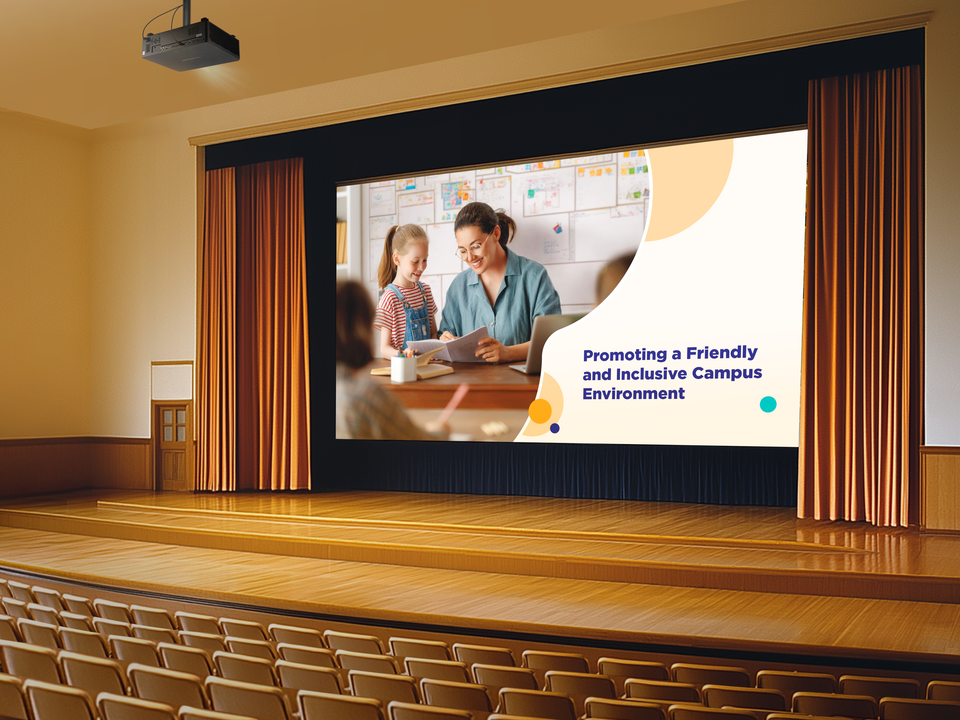

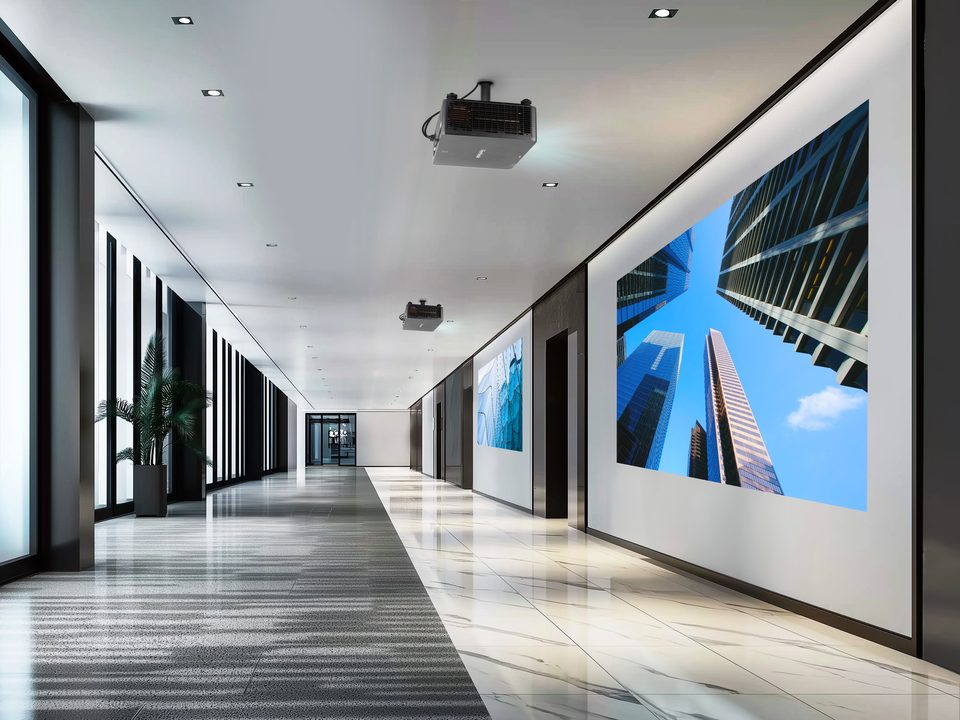

it the preferred choice for large venues such as auditoriums, assembly halls, receptions, and museums.
No Shadows, No Blinding Lights
Enjoy big-screen viewing without space constraints with the LS951WU, which features a 0.75-0.95 short throw ratio to project a
stunning 100” image from just 1.6 meters away. Perfect for auditoriums, exhibitions, and event spaces, this short throw technology
reduces shadows and glare, ensuring clear, unobstructed projections for an immersive visual experience.
Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LS951WU, boasting high contrast thanks to DLP technology and an advanced 0.67" DMD
chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
High Native Contrast Ratio

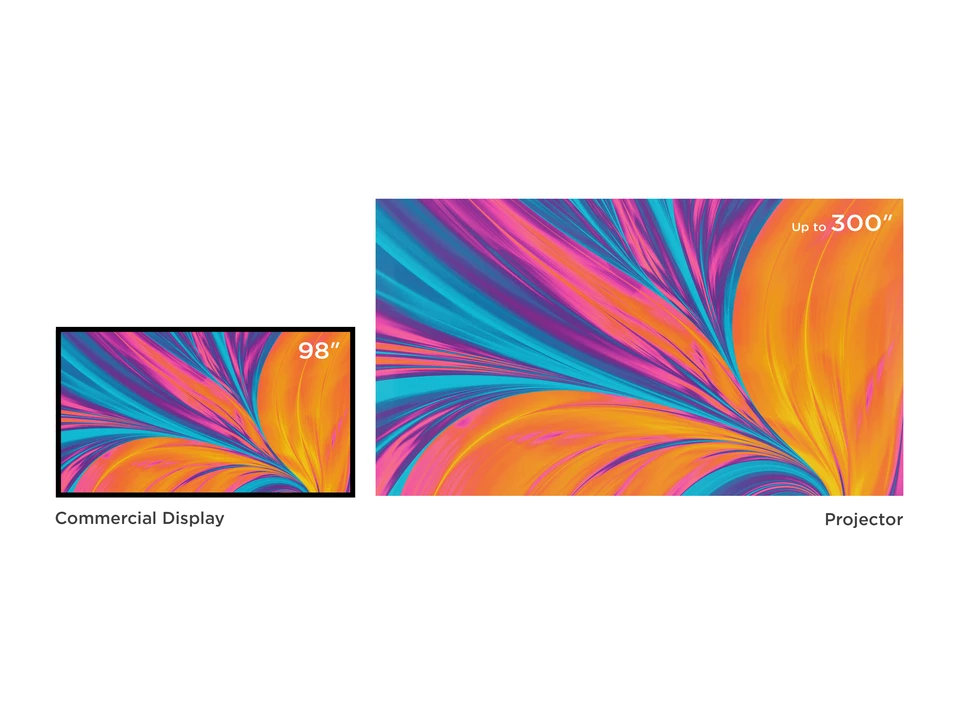

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of
commercial displays.

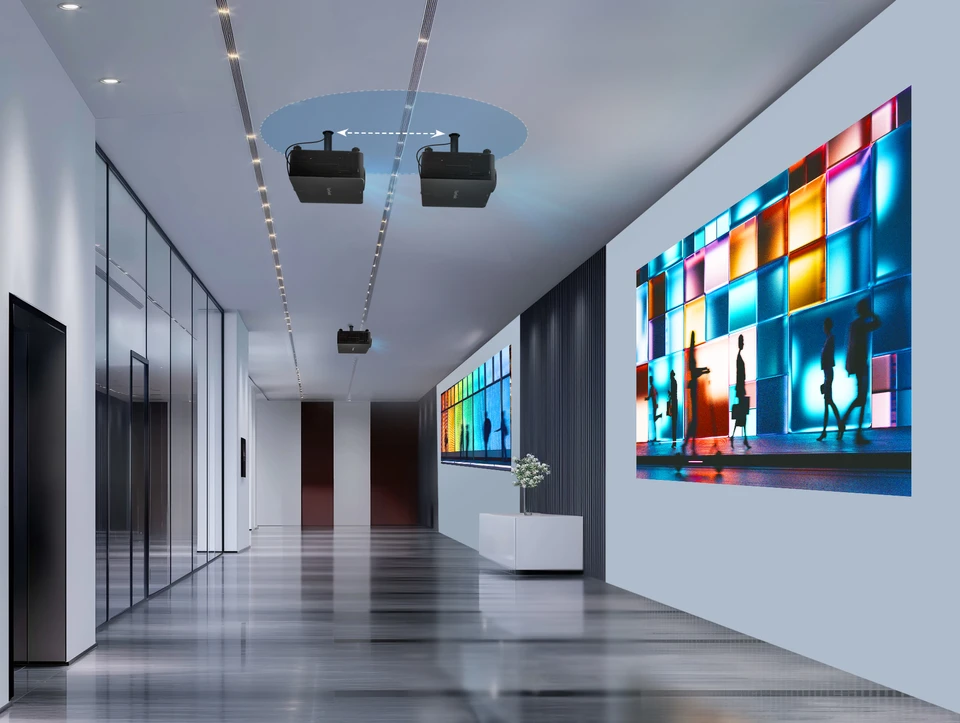

Enhanced Installation Flexibility
Equipped with a 1.26x optical zoom, the projector allows users to choose the ideal setup location within a range, achieving the
desired image size without altering the existing interior design. Conveniently fine-tune the zoom and focus using the remote
control, ensuring seamless operation without needing to access the ceiling-mounted projector.
Motorized 1.26x Optical Zoom & Focus

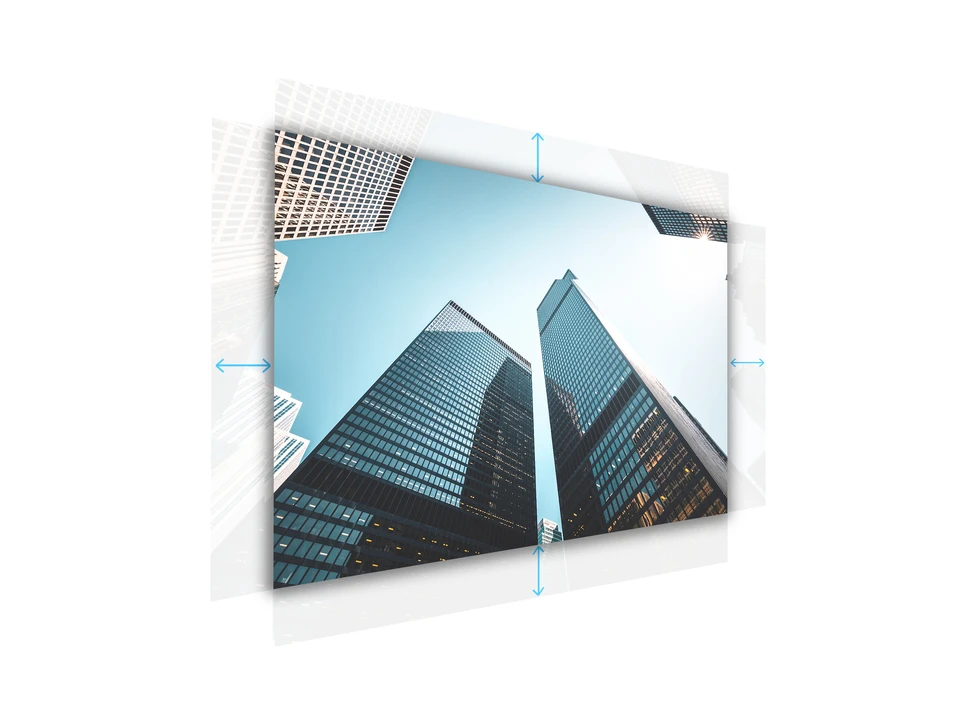

Convenient Placement Setup
The tool-free lens shift control knobs allow you to adjust the projection up, down, left, and right without moving the projector.
Additionally, you can also adjust the image position directly via the remote control from a distance. It provides flexible installation
options with a wide adjustable range (H: +/- 25%, V: +/- 55%) and minimal placement restrictions.

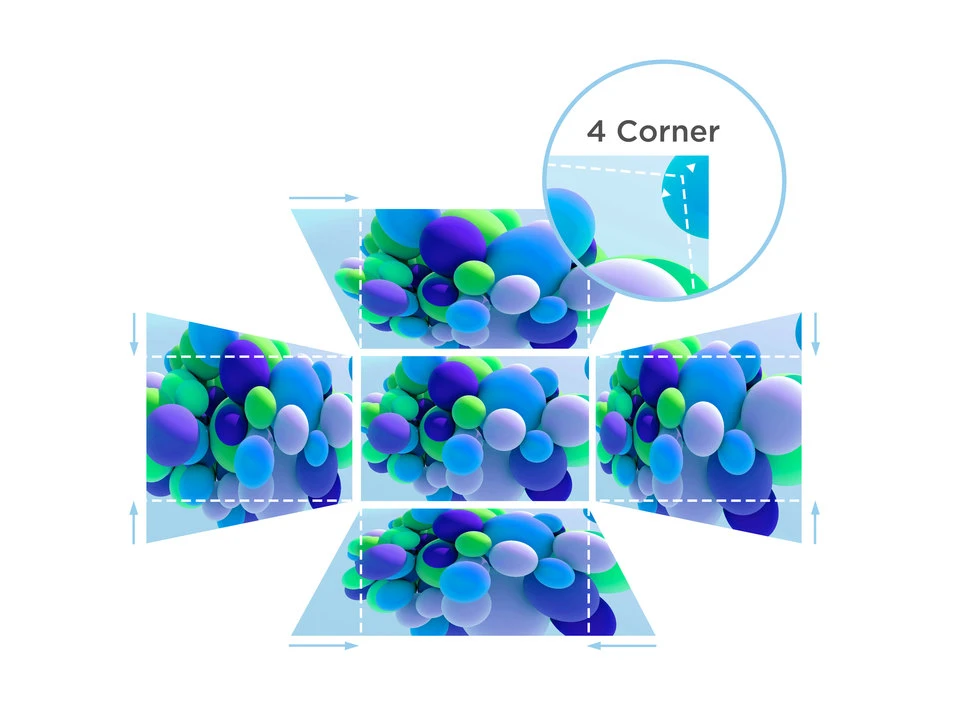

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction along with 4-corner adjustment features eliminate crooked or distorted images for a
perfectly proportioned picture every time.
H/V Keystone Correction, 4 Corner Adjustment

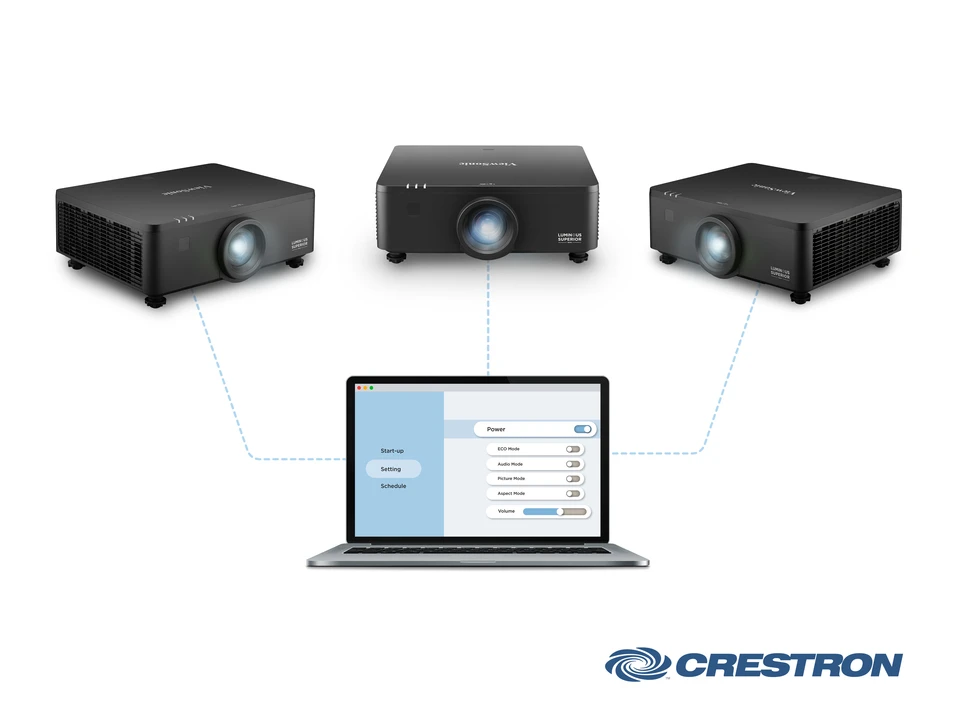

Centralized Control for Management Efficiency
The LS951WU is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management
for better operational efficiency.
Comprehensive LAN Control

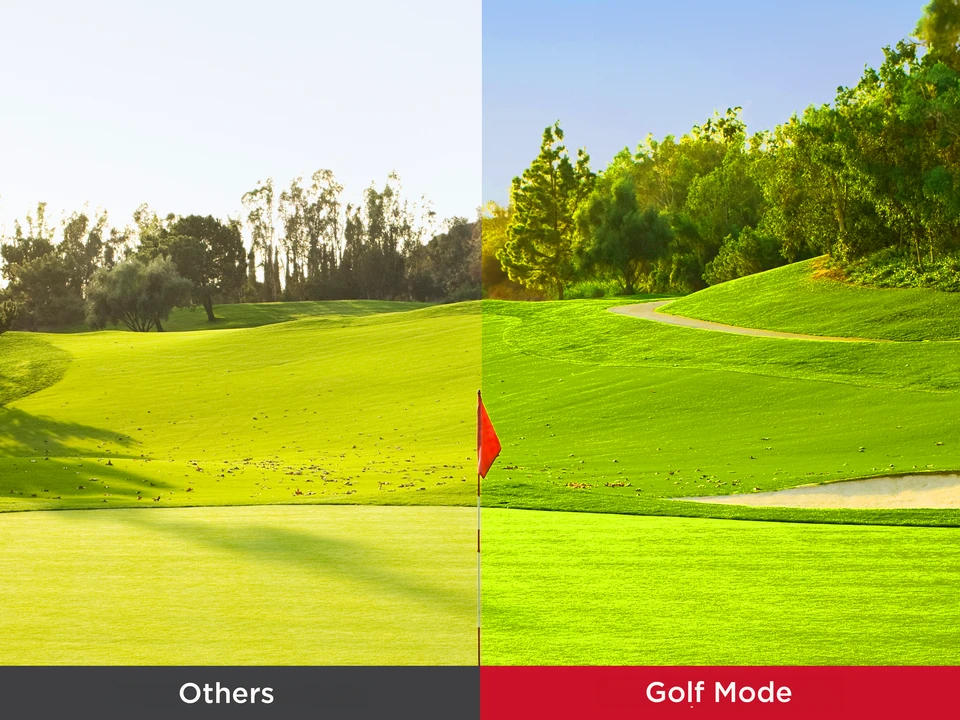

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors,
especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf
experience that feels as close to reality as possible.
*The color mode is named as Sports Mode for this model.

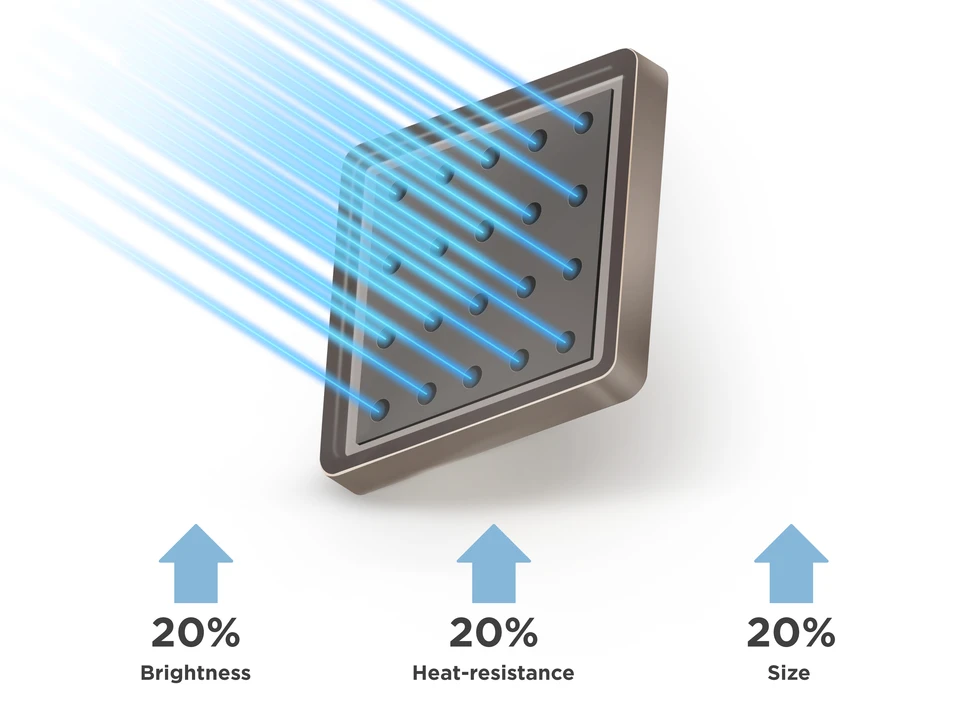

2nd Generation Laser Phosphor Technology
The LS951WU adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-
free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of
brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as
increased reliability with a more compact size for extended use in various scenarios.
Up to 30,000-hour Lifespan

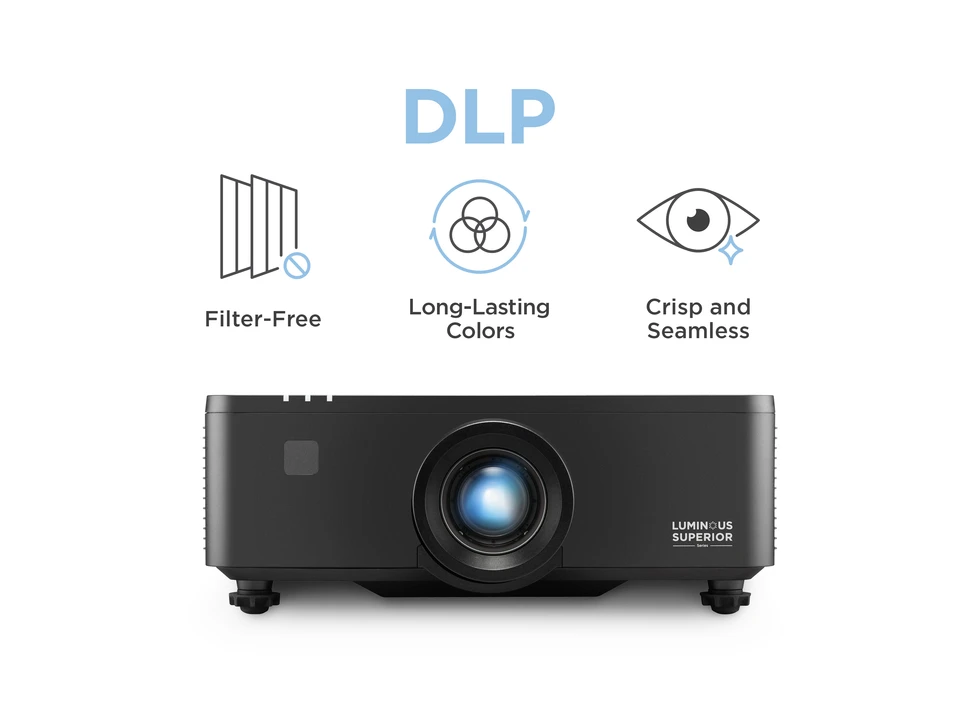

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LS951WU maintains consistent color performance over time, free from any yellowing issues. Featuring a
sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance.
Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door
effect.

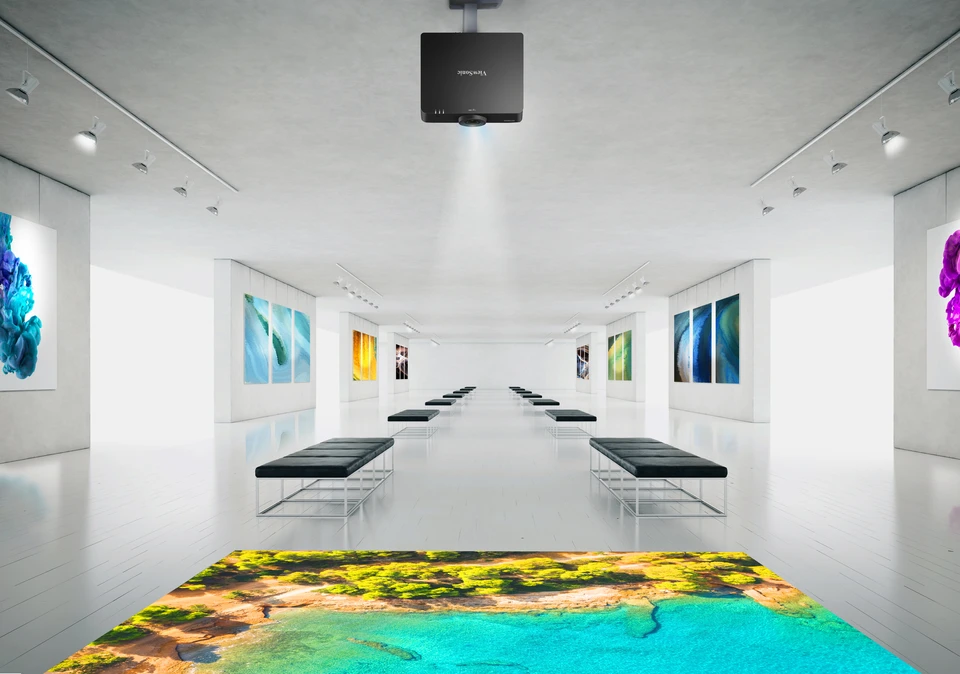

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further
expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Cost-Effective Long-Distance AV Signal Reception
With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (up
to 100m for 1080p) via a single Cat.5e/6 network cable and is compatible with any certified HDBaseT transmitter.

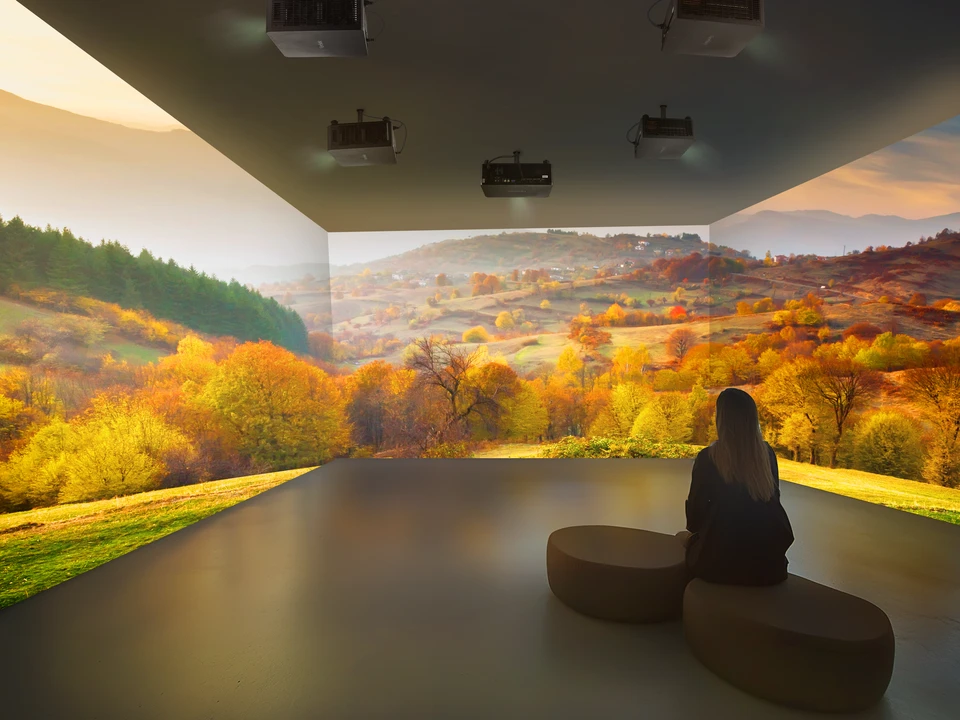

Seamless Edge-Blending
This projector features built-in software that automatically adjusts the brightness of overlapping image areas for smooth edge
blending, simplifying the process and reducing costs.
*Compatible multi-output graphics card with an overlap function is required.

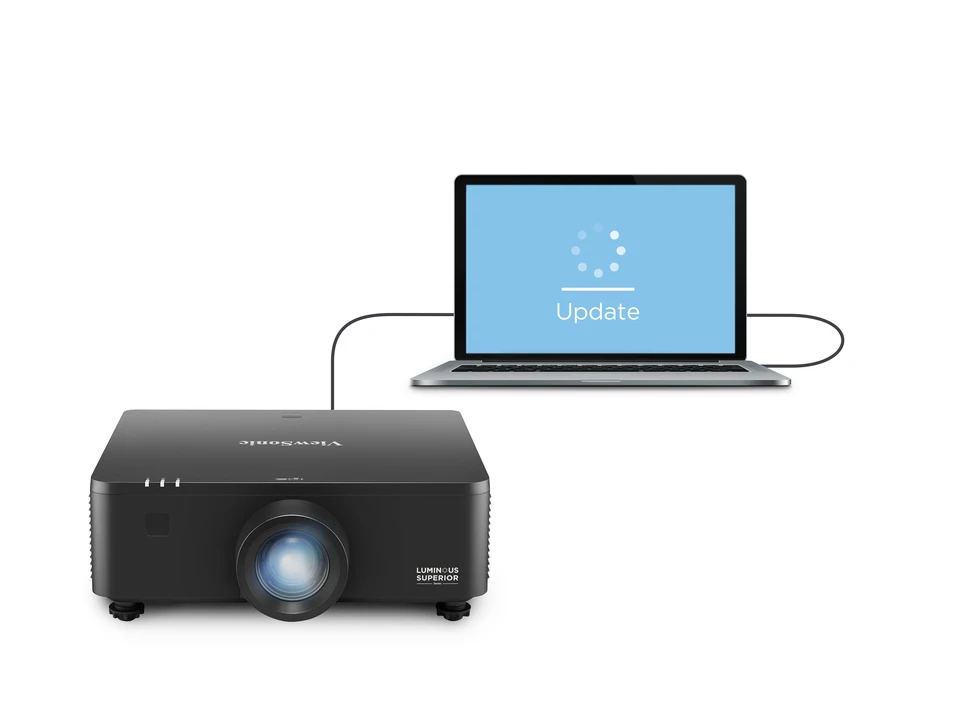

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via a LAN webpage. This efficient solution,
developed exclusively by ViewSonic, ensures optimal performance without the hassle.
*The latest projector software update can be found in the download section at the bottom of the page when available.

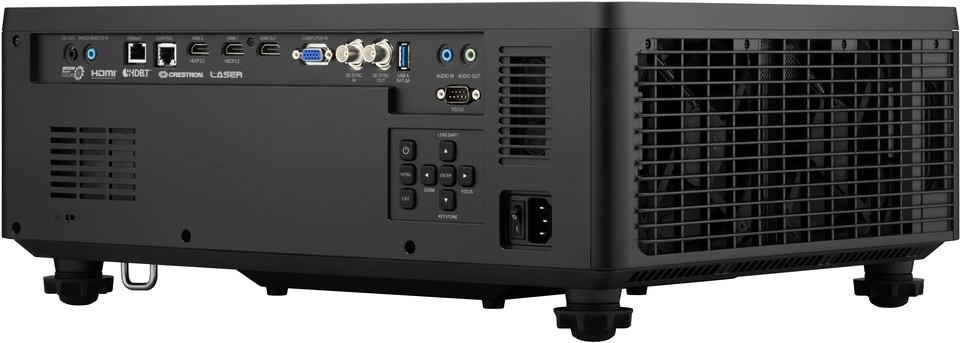

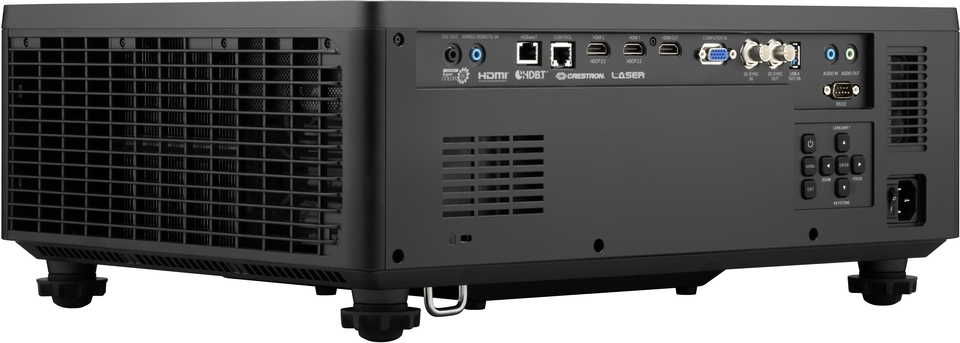

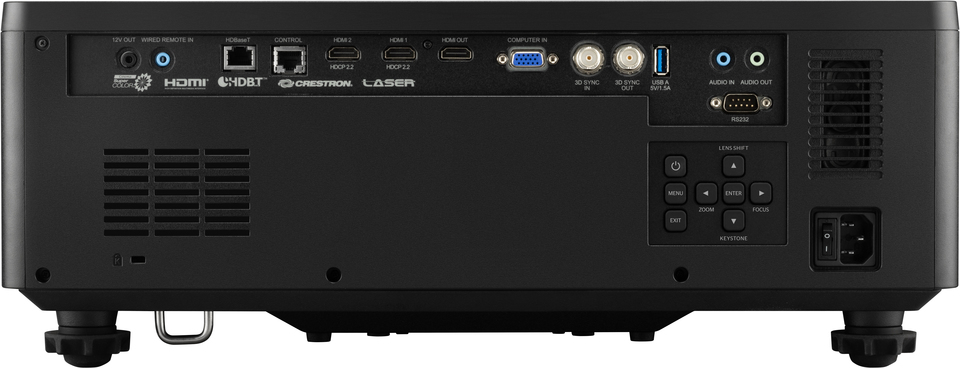

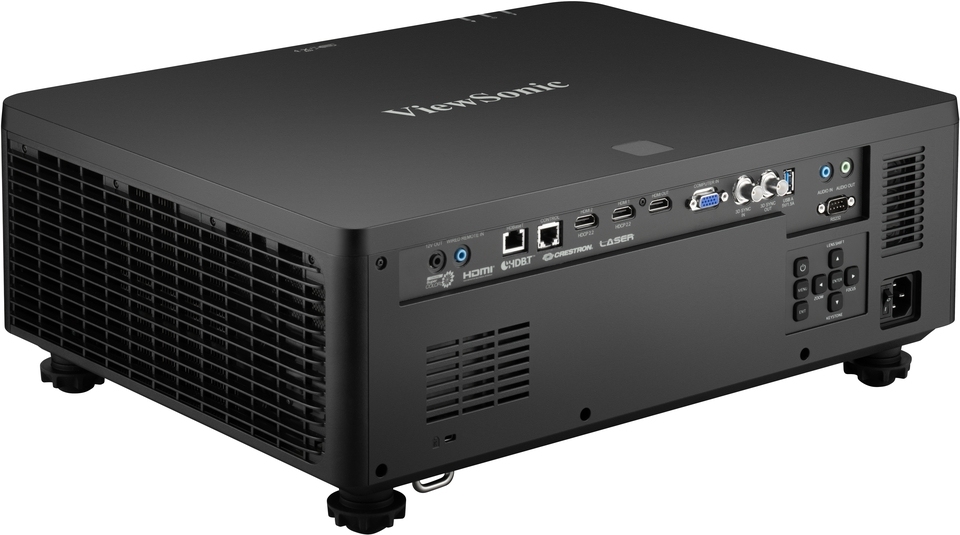

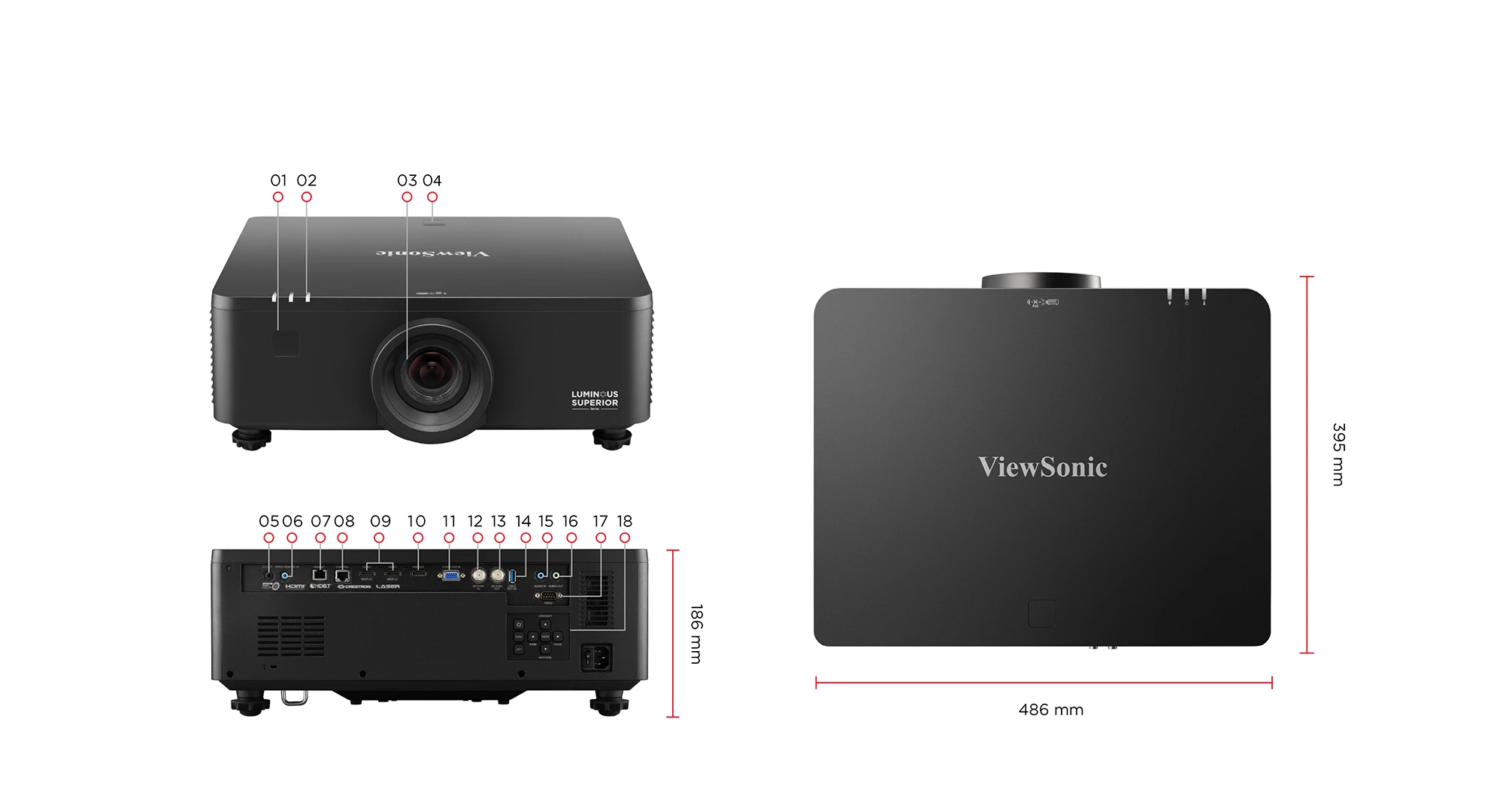

Dimensions & I/O Ports
1. Front IR 4. Top IR 7. HDBaseT 10. HDMI Out 13. 3D Sync Out 16. Audio Out
2. LED Indicator 5. 12V Trigger 8. RJ-45 11. Computer In 14. USB-A (5V/1.5A) 17. RS232
3. Lens 6. IR In 9. HDMI 2.0/ HDCP 2.2 x2 12. 3D Sync In 15. Audio In 18. Keypad
SPECIFICATIONS
Specification Projection System: 0.67" WUXGA
Native Resolution: 1920x1200
Brightness: 8000 (ANSI Lumens)
Brightness (Center Lumens): 8100
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000
Lens: F=2.3-2.53, f=11.11-14.06mm
Projection Offset: 0%±10%
Throw Ratio: 0.75-0.95
Optical Zoom: 1.26X
Digital Zoom: 0.5x-4.0x
Image Size: 50"- 300"
Throw Distance: 0.81-6.13m
(100"@1.61m)
Keystone: H:+/-30° , V:+/-15°
Lens Shift V. Range: +55%, -55%
Lens Shift H. Range: +25%, -25%
Audible Noise (Normal): 32dB
Audible Noise (Eco): 30dB
Input Lag: 19ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K- 135KHz
Vertical Scan Rate: 23- 120Hz
Input Computer in (share with component): 1
HDMI: 2
(HDMI 2.0/ HDCP 1.4/2.2)
Audio-in (3.5mm): 1
3D VESA (Sync): 1 (BNC)
HDBaseT: 1
IR In: 1
Output HDMI out: 1
Audio-out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/1.5A)
12V Trigger (3.5mm): 1
3D SYNC Out: 1
Control RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
Wired Remote Control - In: 1 (share with IR in)
Others Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 560W
Standby: <0.5W
Operating Temperature: 5~40℃
Carton: Brown
Net Weight: 13.0kg
Gross Weight: 17.6kg
Dimensions (WxDxH) with Adjustment Foot: 486X395X186mm
Packing Dimensions: 654x563x373mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Vietnamese, Greek, Hungarian, Danish, Norwegian. Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
