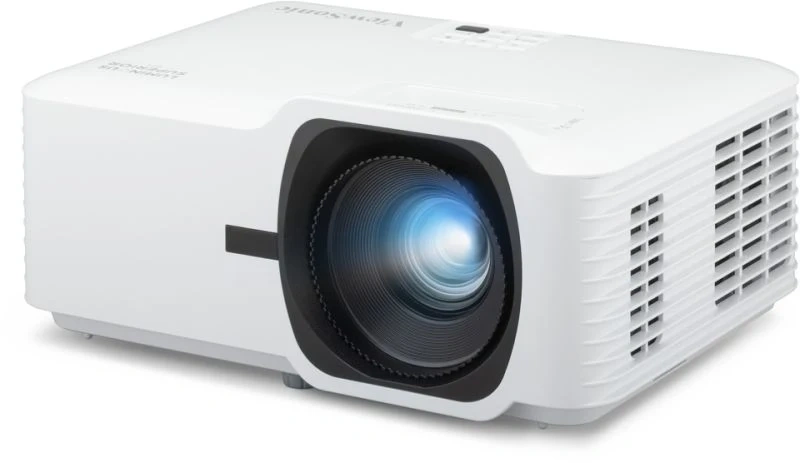

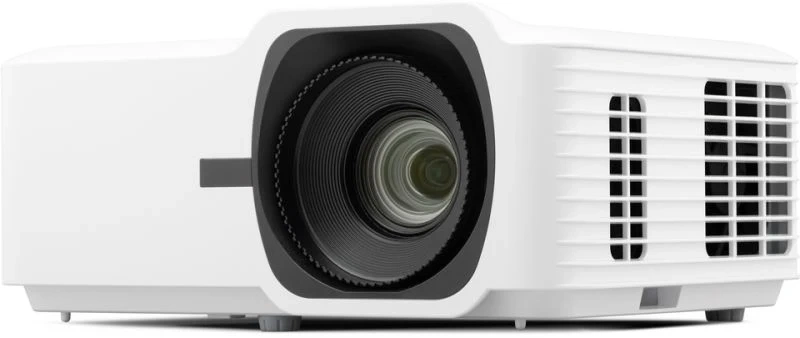

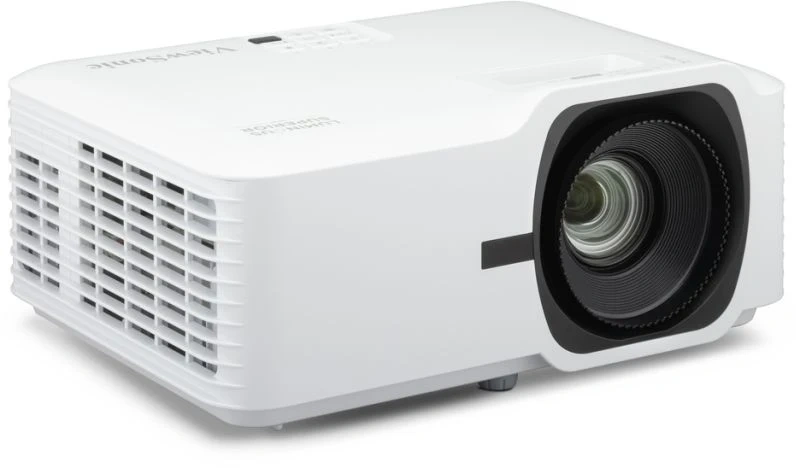

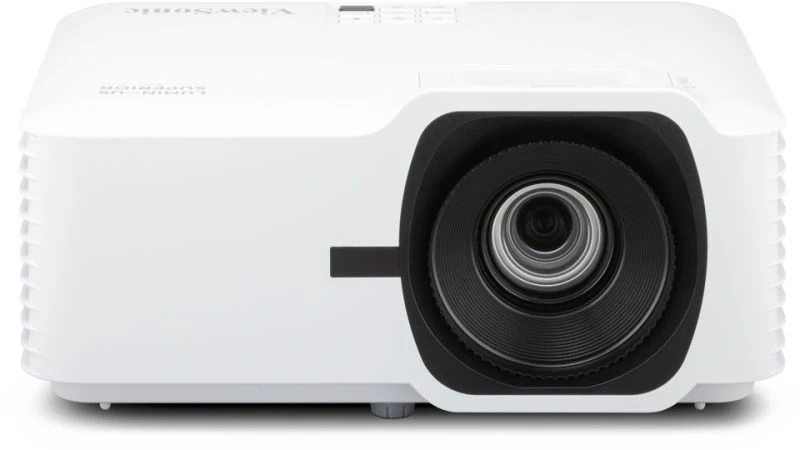

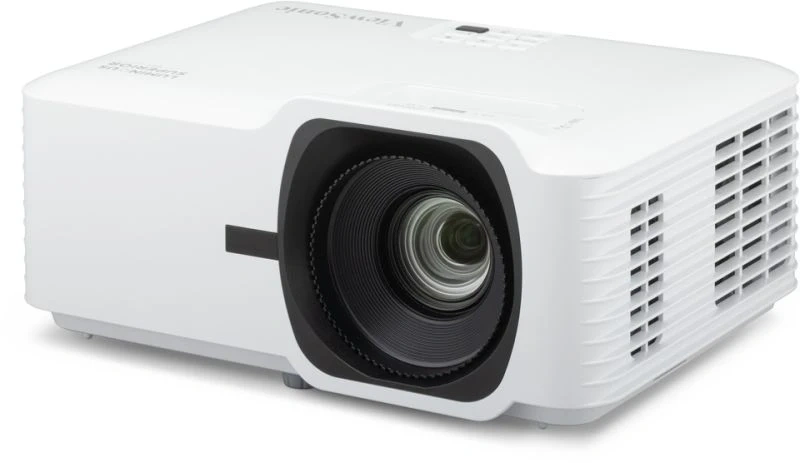

OVERVIEW
The LS630W is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and
educational environments. It delivers ultra-large projections up to 300” in WXGA resolution, leveraging high native contrast
from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, this projector provides
4,500 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness
and cost-efficiency by reducing power consumption. Equipped with a 1.3x optical zoom, H/V keystone correction, and 360°
projection, the LS630W supports flexible installation options. Comprehensive LAN control simplifies centralized management,

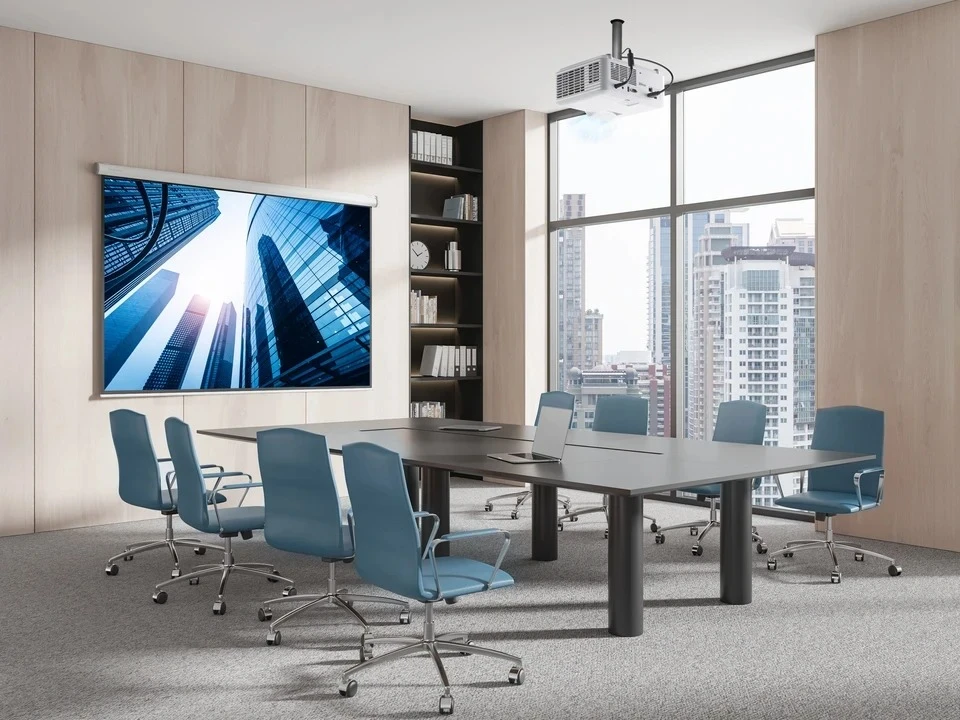

making it an excellent choice for boardrooms, lecture halls, and public spaces.
Bright, Compact, Durable

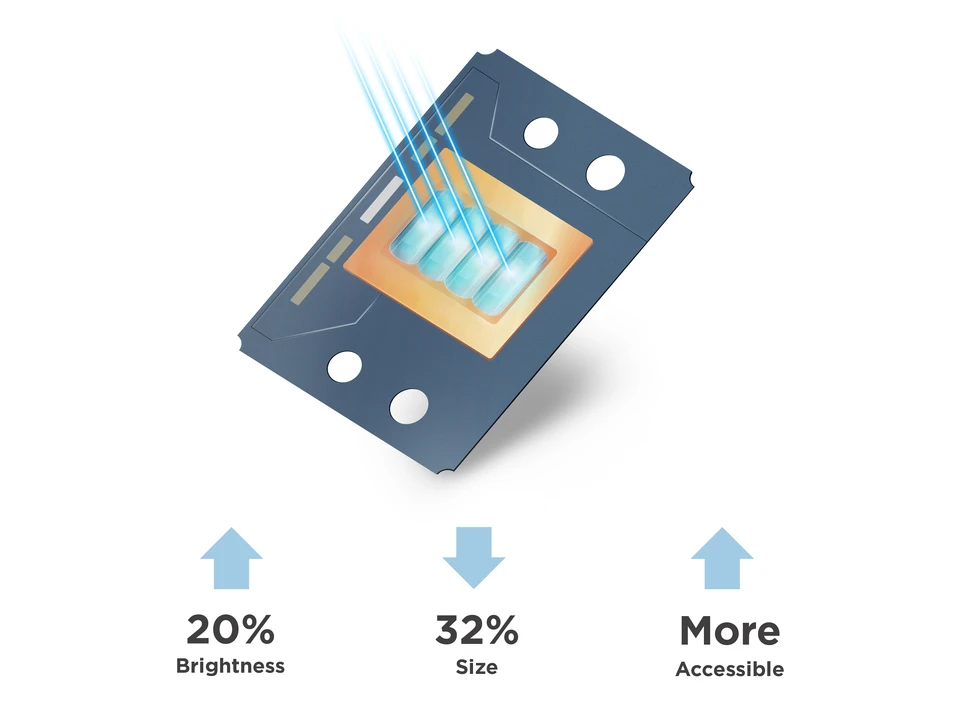

The LS630W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better
luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light
source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality
even during extended periods of use.
3rd Generation Laser Phosphor Technology

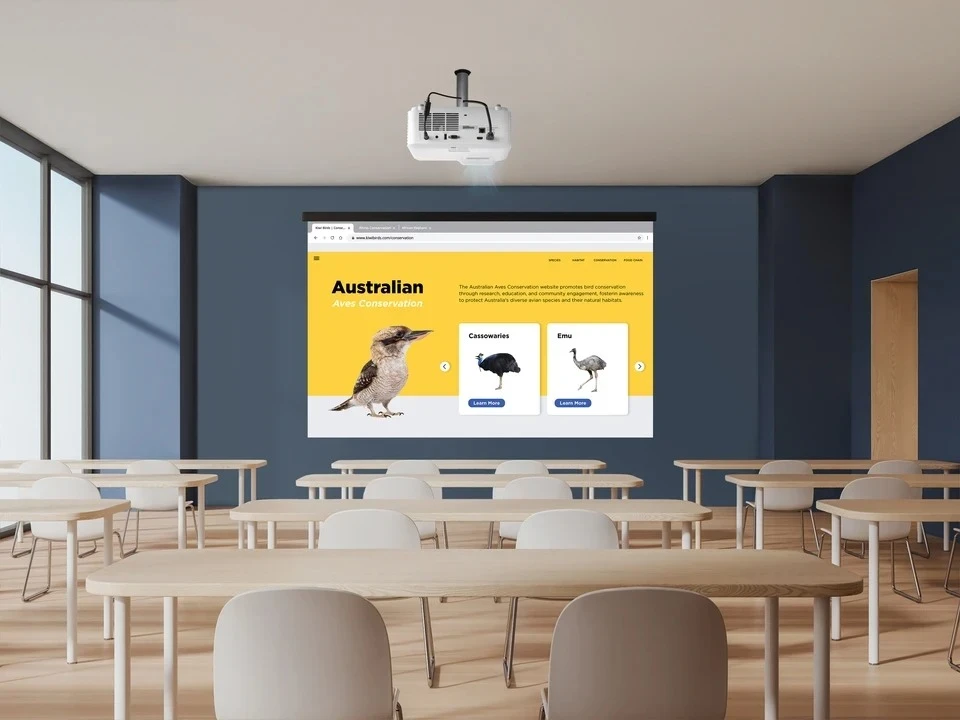

Clear Visuals for Business/Education Environments
Thanks to the latest laser technology, the LS630W achieves high brightness of 4,500 ANSI Lumens. With WXGA resolution, the
projector ensures bright and detailed images in dim or lit environments.
4,500 ANSI Lumens, WXGA
Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LS630W, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD
chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
0.65” DMD Chip, High Native Contrast Ratio

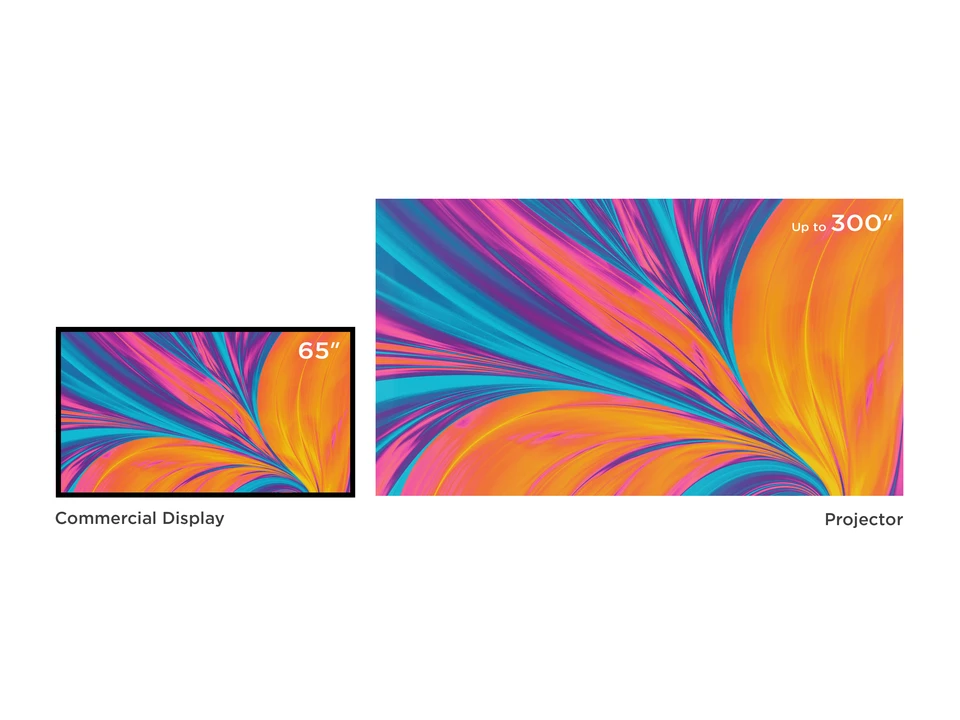

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of
commercial displays.

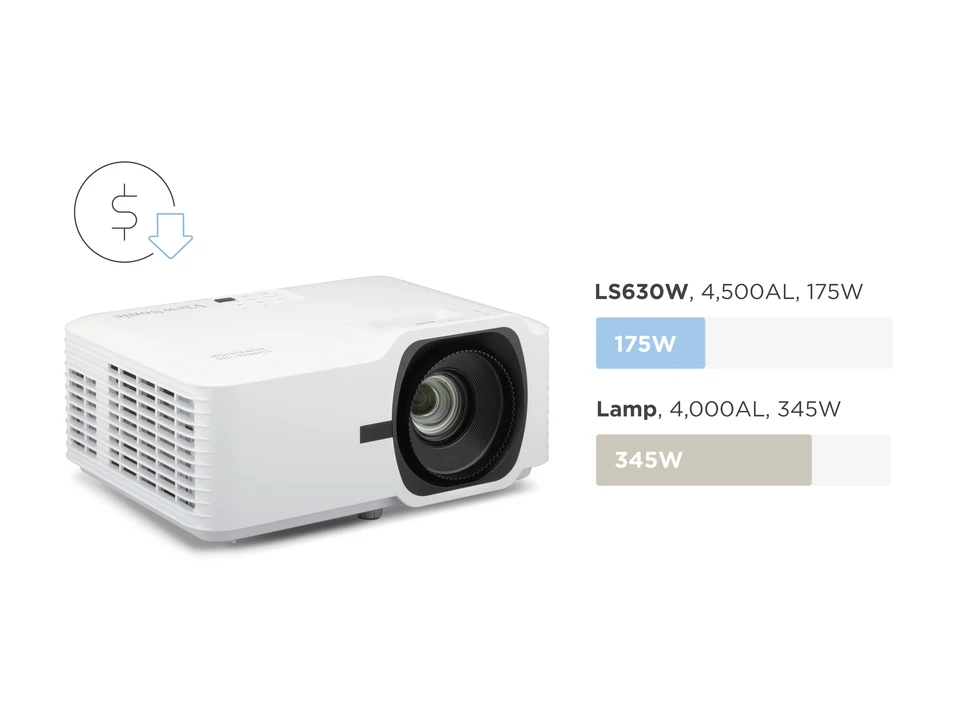

Save on Costs and Energy
With its advanced lamp-free light source, the LS630W offers a highly energy-efficient and cost-saving display solution by
consuming up to 49% less power than competing projectors.

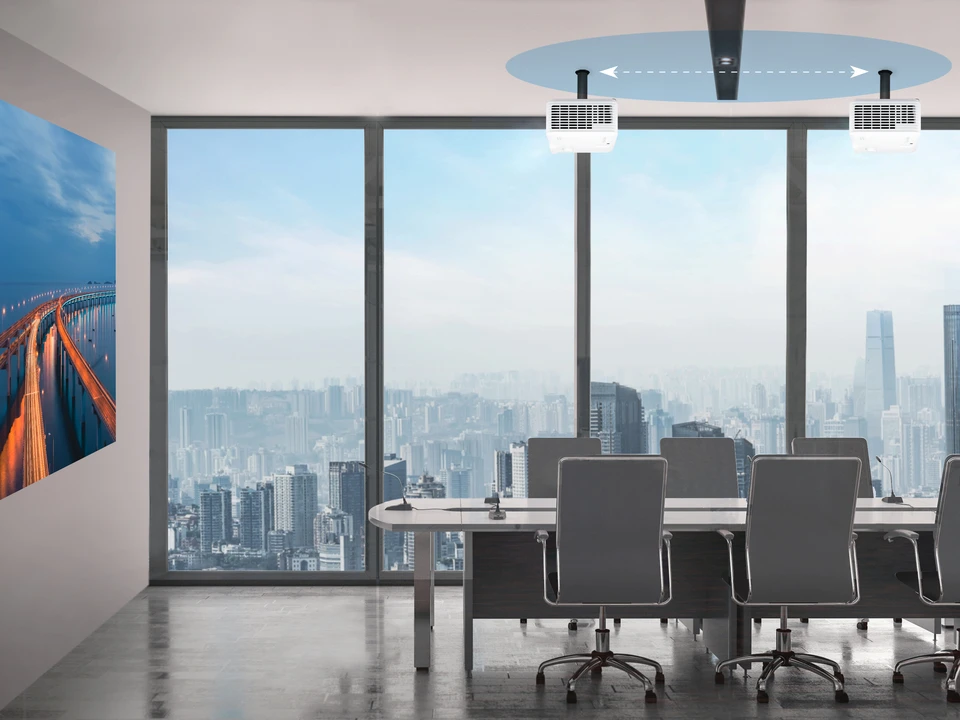

Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the
desired image size without needing to change the existing interior design.

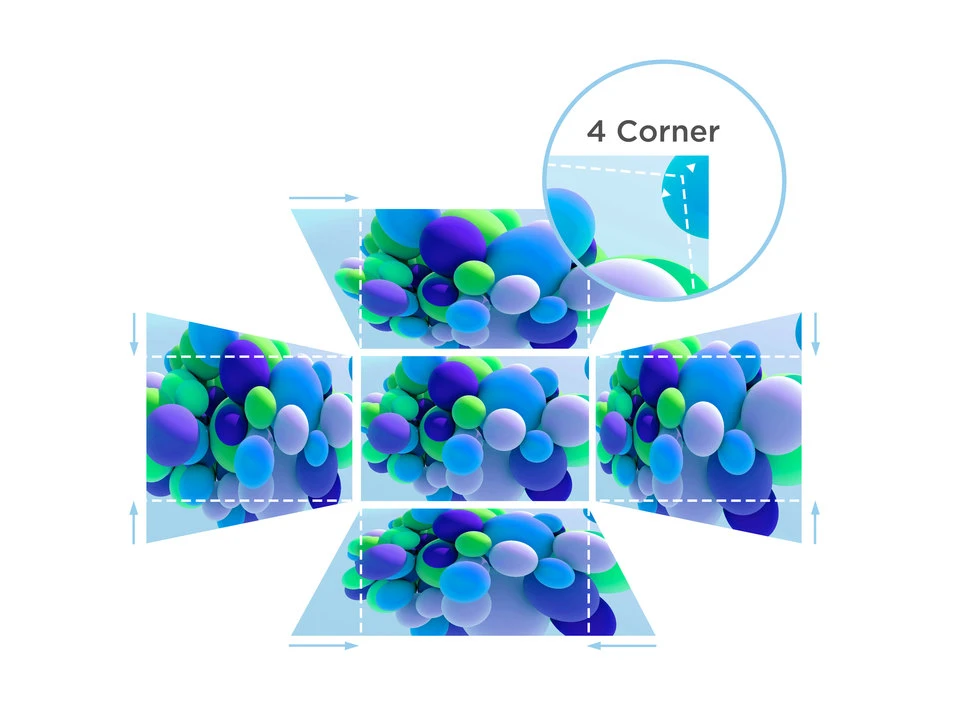

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a
perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment

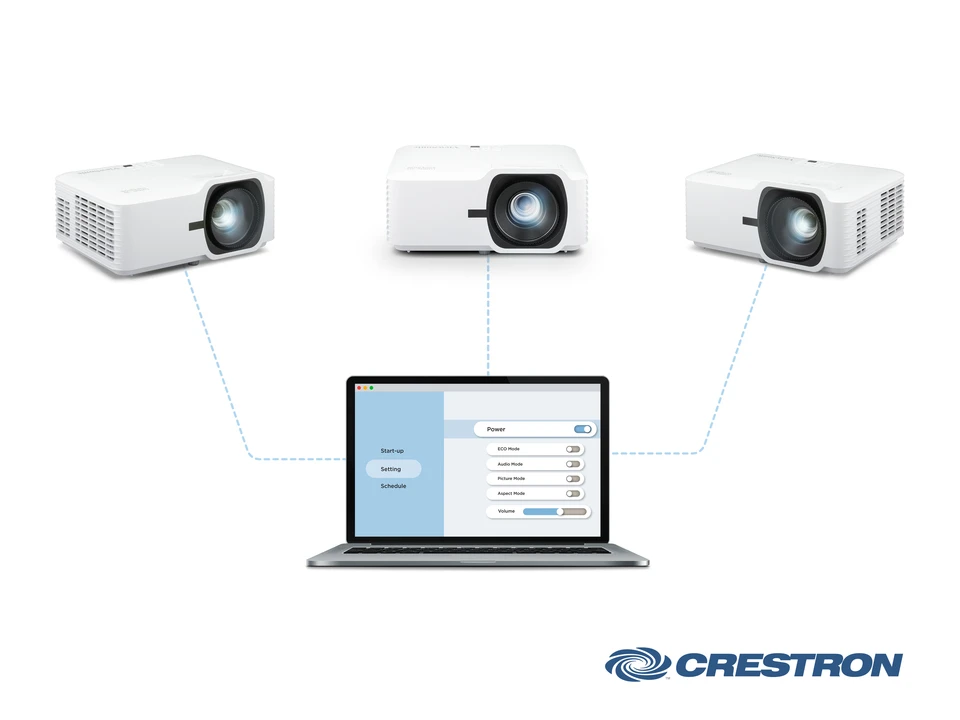

Centralized Control for Management Efficiency
The LS630W is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management
for better operational efficiency.
Comprehensive LAN Control
Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors,
especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf
experience that feels as close to reality as possible.

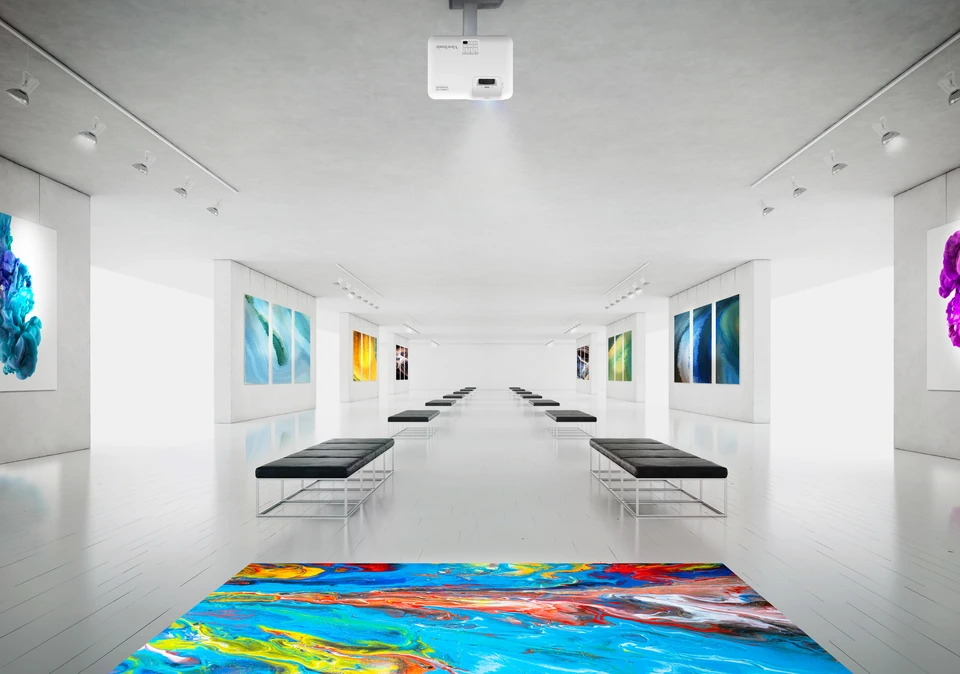

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further
expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LS630W maintains consistent color performance over time, free from any yellowing issues. Featuring a
sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance.
Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door
effect.

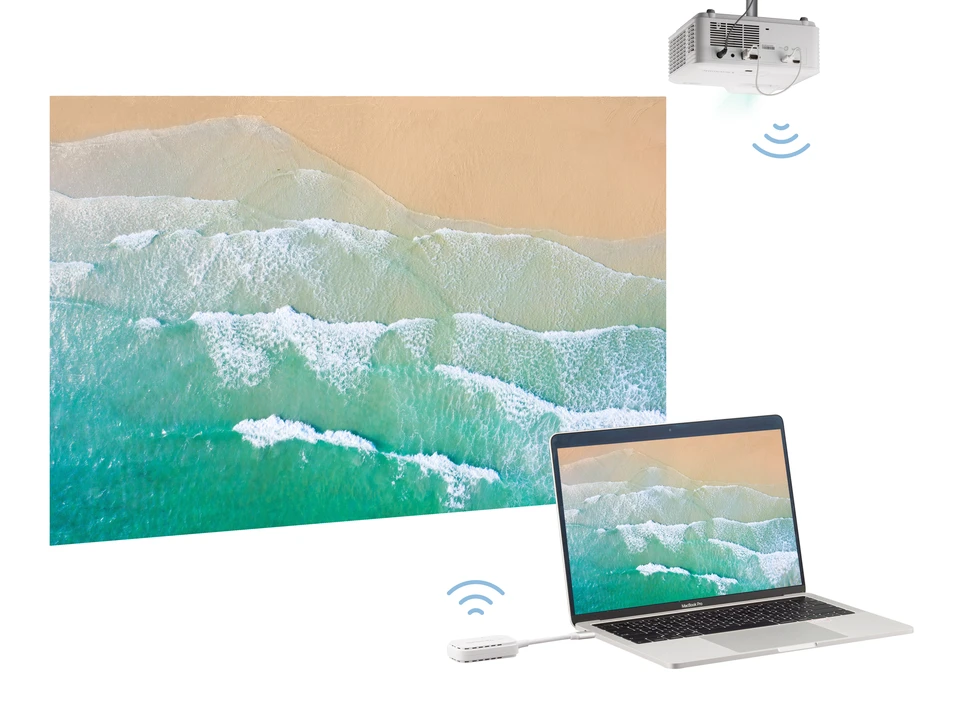

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's
built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without
adapters.

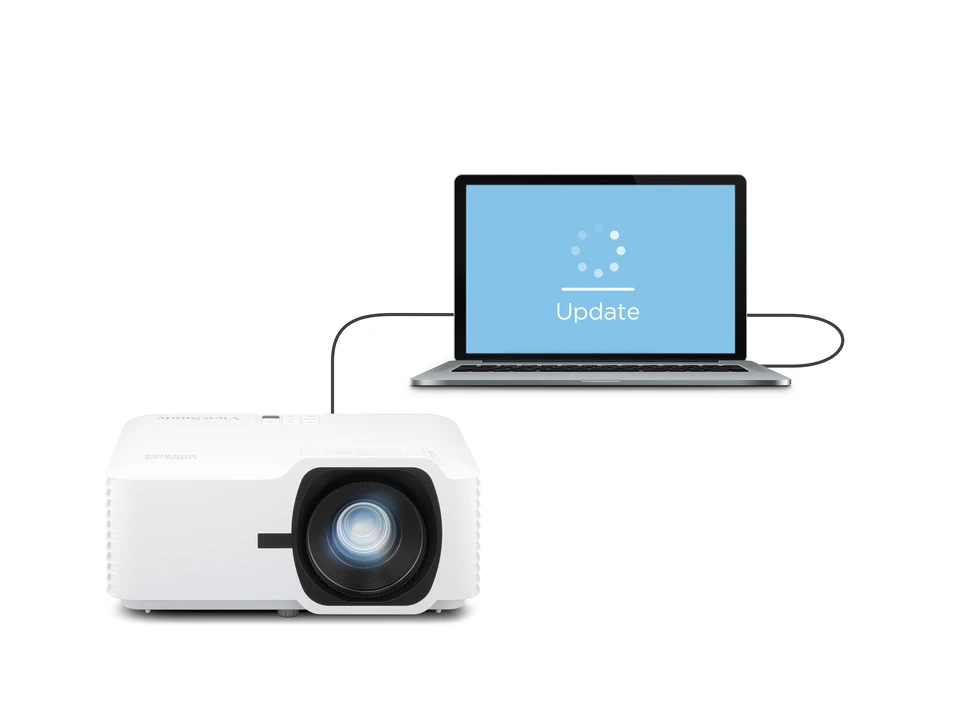

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient
solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.
*The latest projector software update can be found in the download section at the bottom of the page when available.

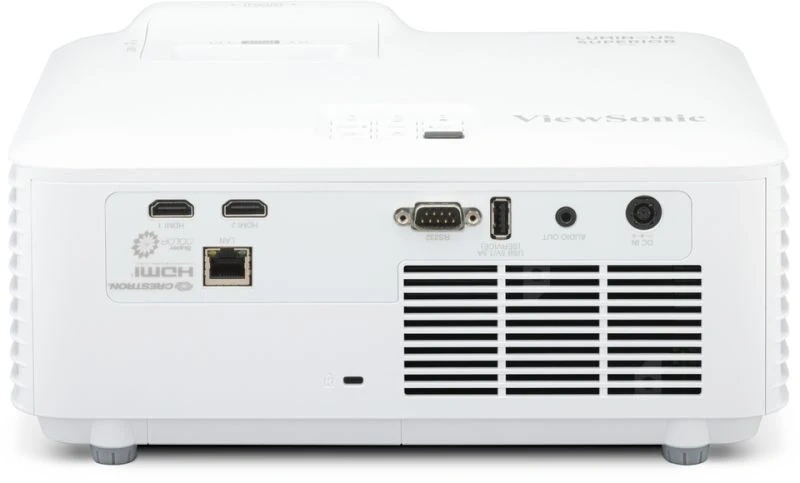

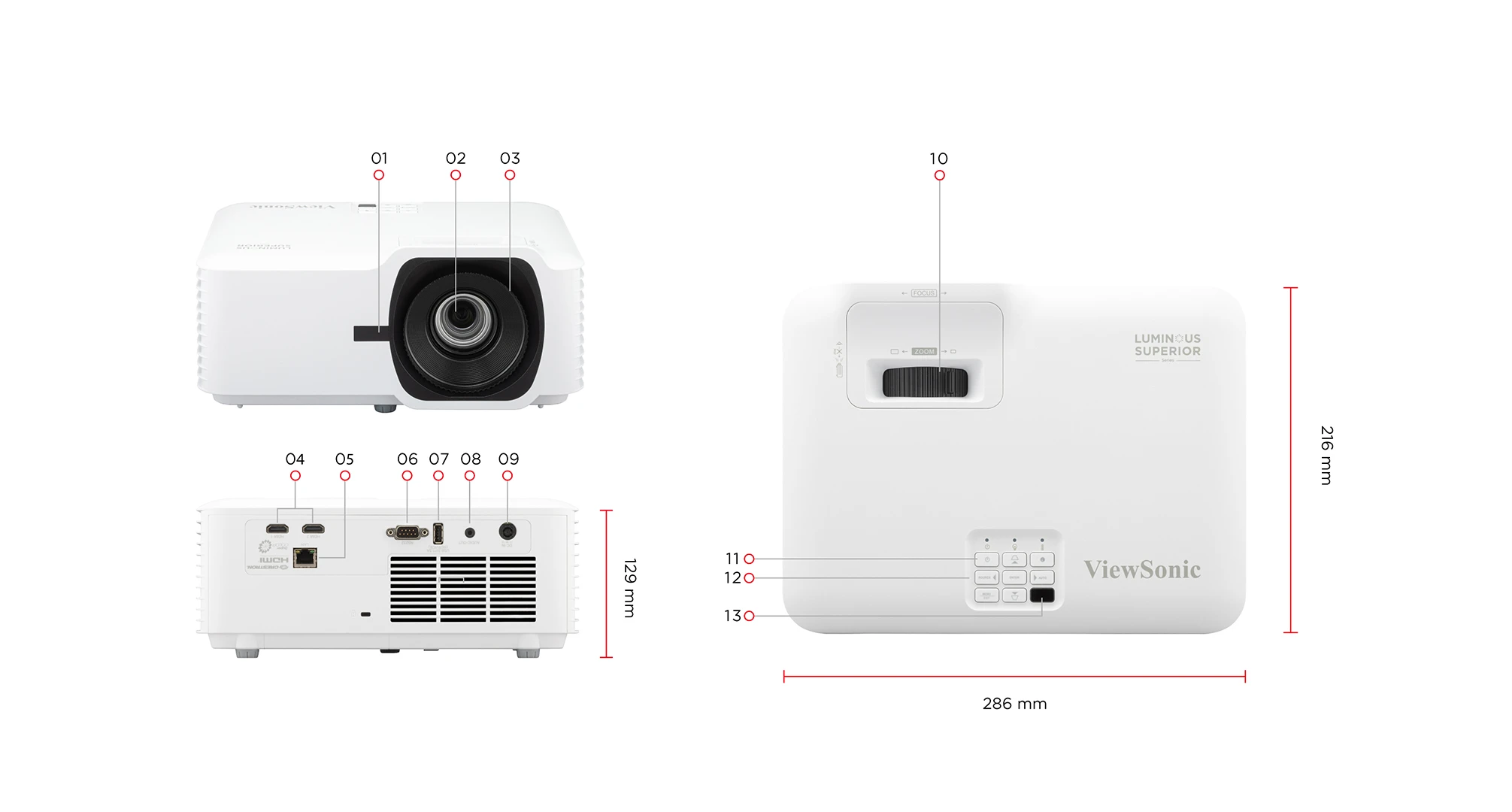

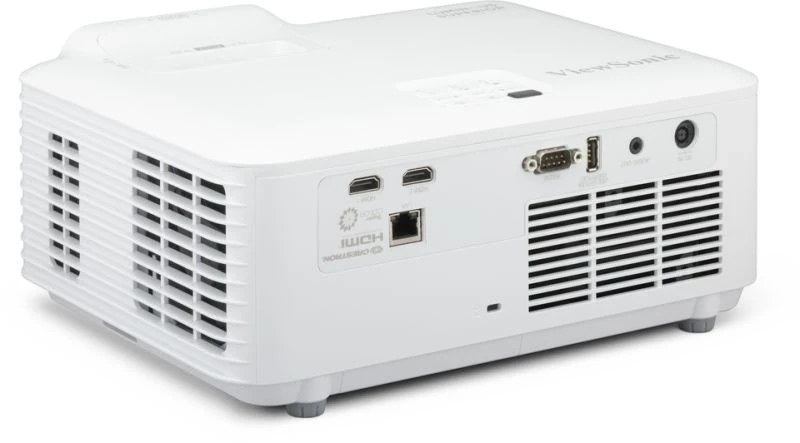

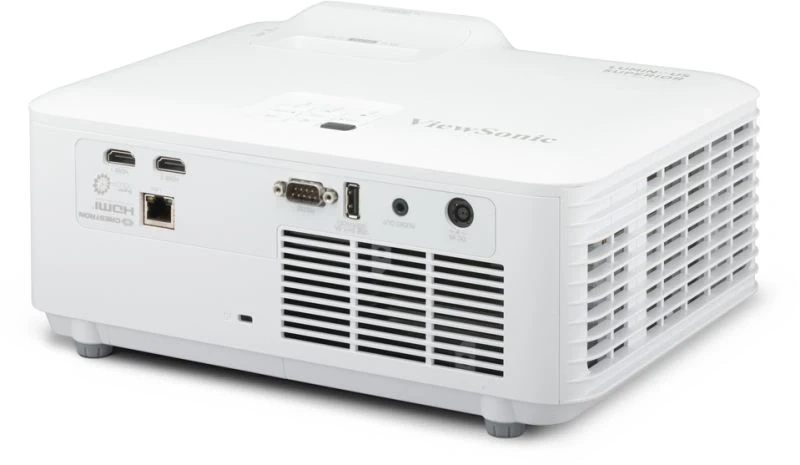

Dimensions & I/O Ports
1. Front IR 4. HDMI x 2 7. USB-A (5V/1.5A, Service) 10. Zoom Ring 13. Top IR
2. Lens 5. RJ45 8. Audio Out 11. Power Button
3. Focus Ring 6. RS232 9. DC In 12. Keypad
SPECIFICATIONS
Specification Projection System: 0.65" WXGA
Native Resolution: 1280x800
Brightness: 4500 (ANSI Lumens)
Brightness (Center Lumens): 5500
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.43-2.78, f=16.90-21.61mm
Projection Offset: 124%+/-10%
Throw Ratio: 1.18-1.54
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.77-9.98m
(100"@2.56m)
Keystone: H:+/-30° , V:+/-30°
Audible Noise (Normal): 32dB
Audible Noise (Eco) : 27dB
Input Lag: 25ms
Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
*RB-Reduced Blanking
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 24-120Hz
Input HDMI: 2
(HDMI 1.4, HDCP 1.4)
Output Audio-out (3.5mm): 1
Speaker: 15W
USB Type A (Power): 1 (5V/1.5A)
Control RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1
(share with USB A Output)
Others Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23A
Power Consumption: Normal: 175W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 3.10kg
Gross Weight: 4.60kg
Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory Power Cord: 1
Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN Only)
