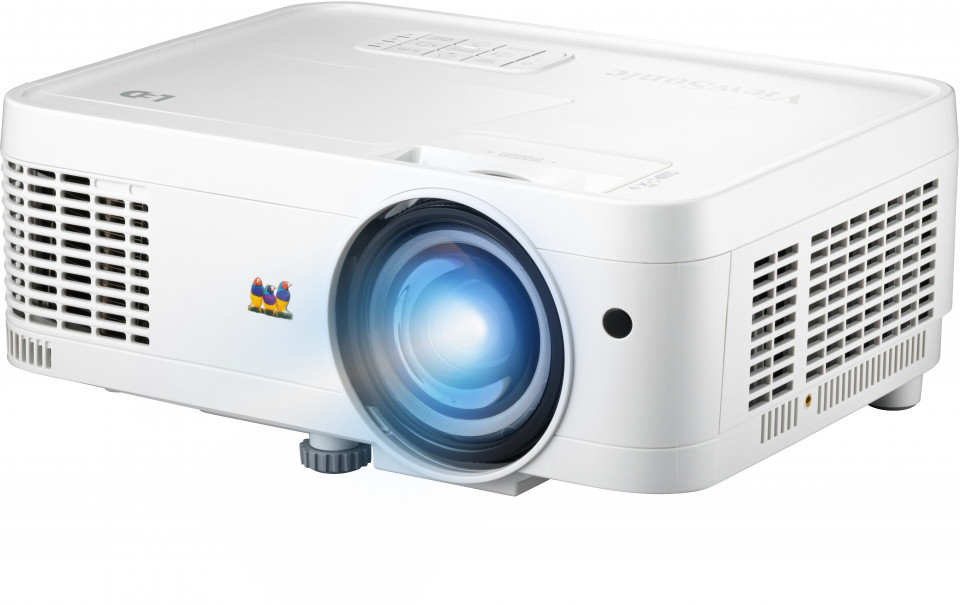

OVERVIEW

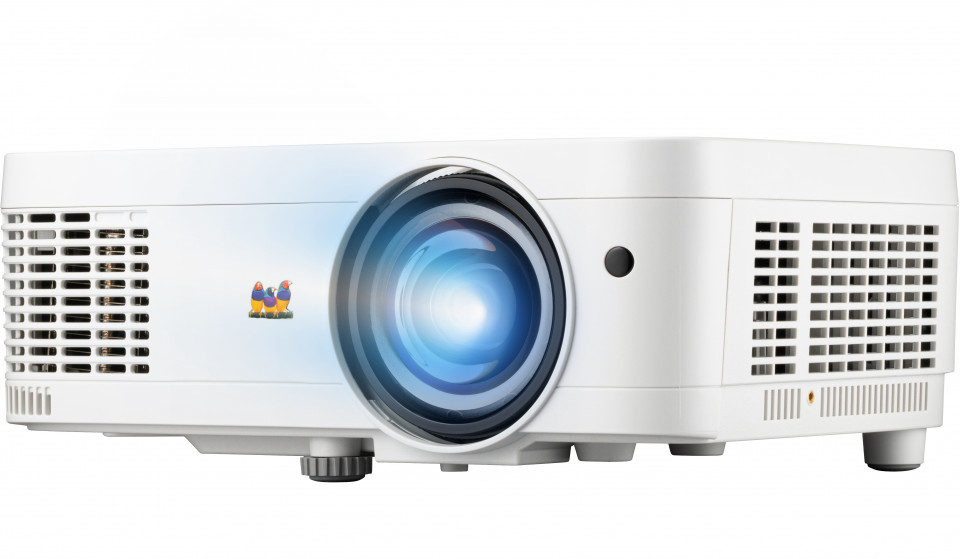

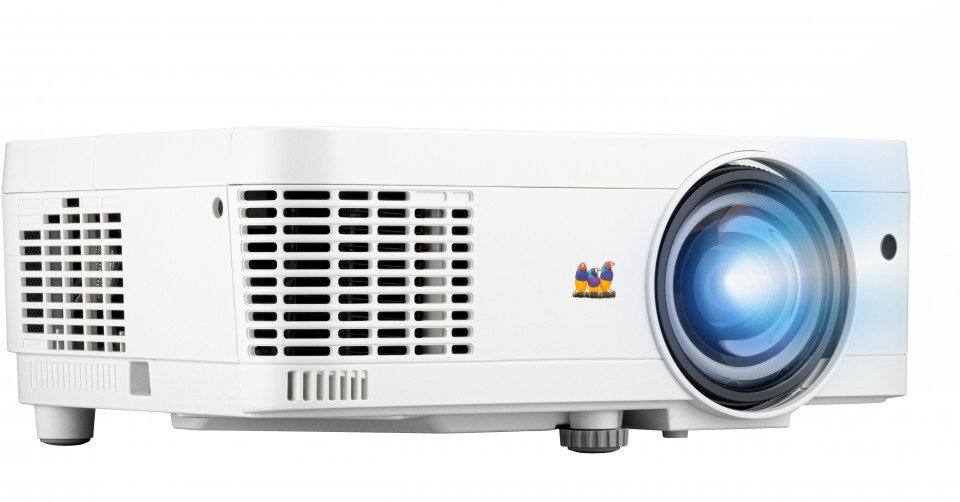

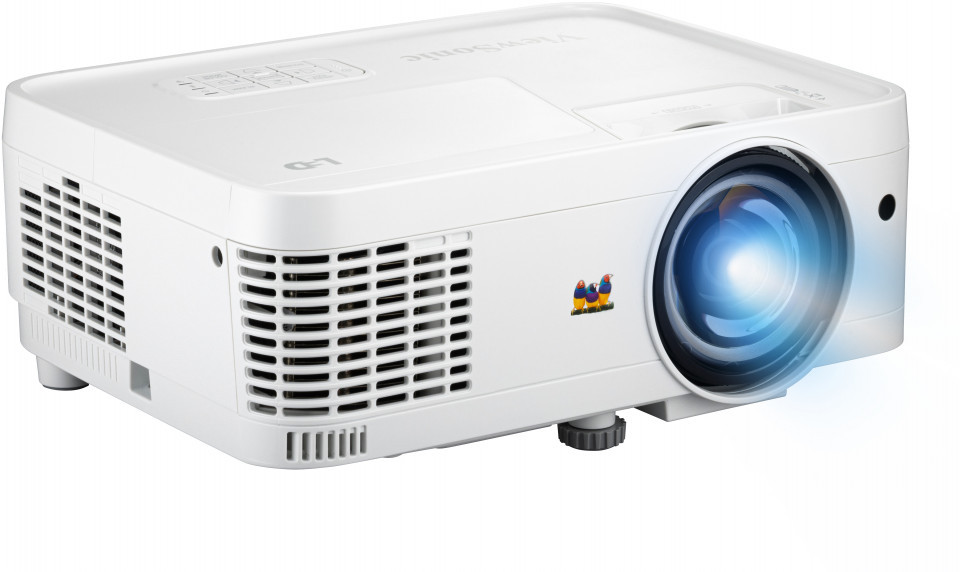

The LS560W is ViewSonic’s lamp-free high brightness WXGA short throw projector for business and education.
Adopting industry-leading 3rd generation LED technology, the LS560W delivers 3,000 ANSI Lumens while eliminating
the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of
ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a
wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The 0.49 short
throw lens provides a 100” screen from just 1.1m away, delivering exceptional space efficiency and freeing presenters
from blinding lights. The projector boasts incredible ease of use with instant power on/off, easy image correction with
H/V keystone and 4 corner adjustment, and 360° tilt angle projection for flexible applications. Moreover, its
comprehensive LAN control makes multiple device management a breeze and is compatible with Crestron, AMX,
Extron, PJ Link, ATEN, and ViewSonic’s vController.

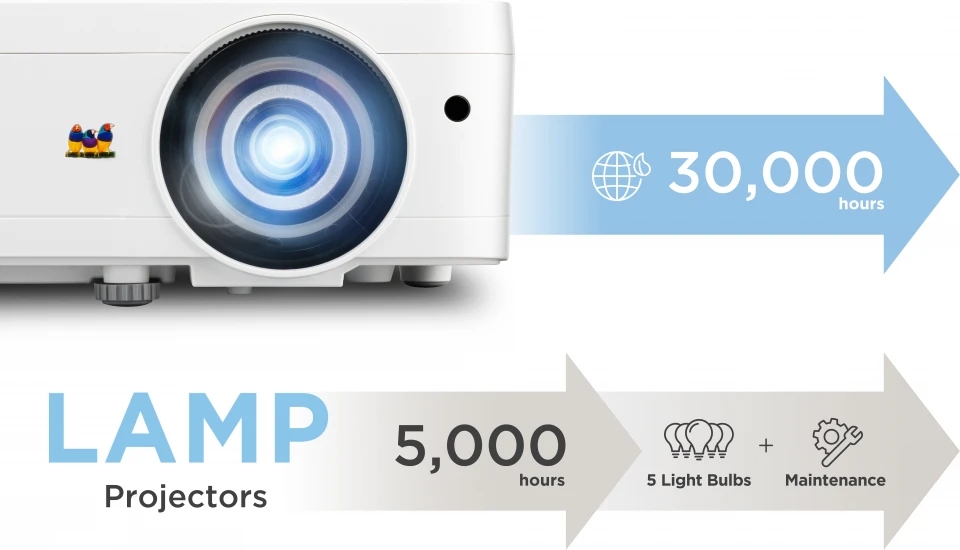

3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS560W frees users from frequent lamp replacement and toxic mercury.
Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and
money for maintenance, while providing a greener and more sustainable future.
Lamp-free, Mercury-free, Maintenance-free

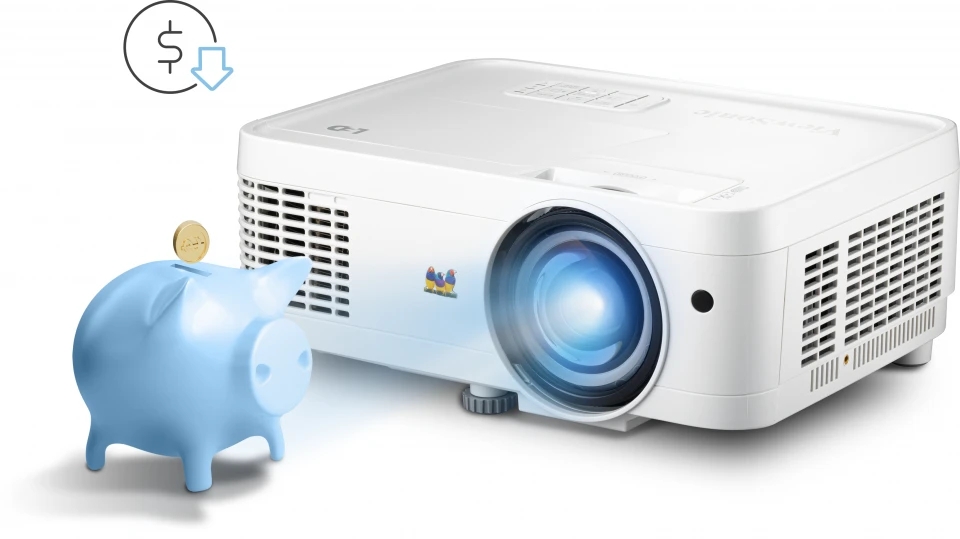

Saving More with the Advanced LED Technology
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost
efficient, consuming less energy than competing lamp-based projectors.

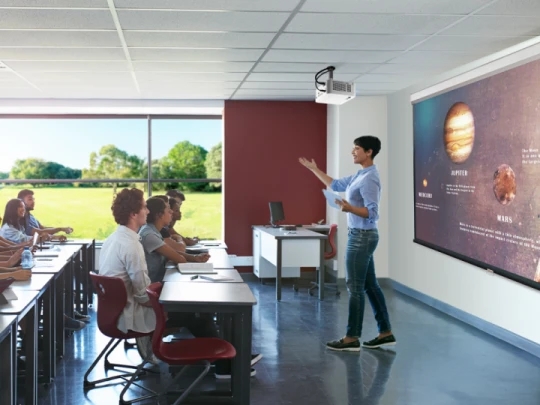

Enhanced Brightness for Business/Education
Environments
Thanks to the latest LED technology, the LS560W achieves a major brightness breakthrough to 3,000 ANSI Lumens. With
extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.
Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, elevating your
presentation with a true-to-life color experience.

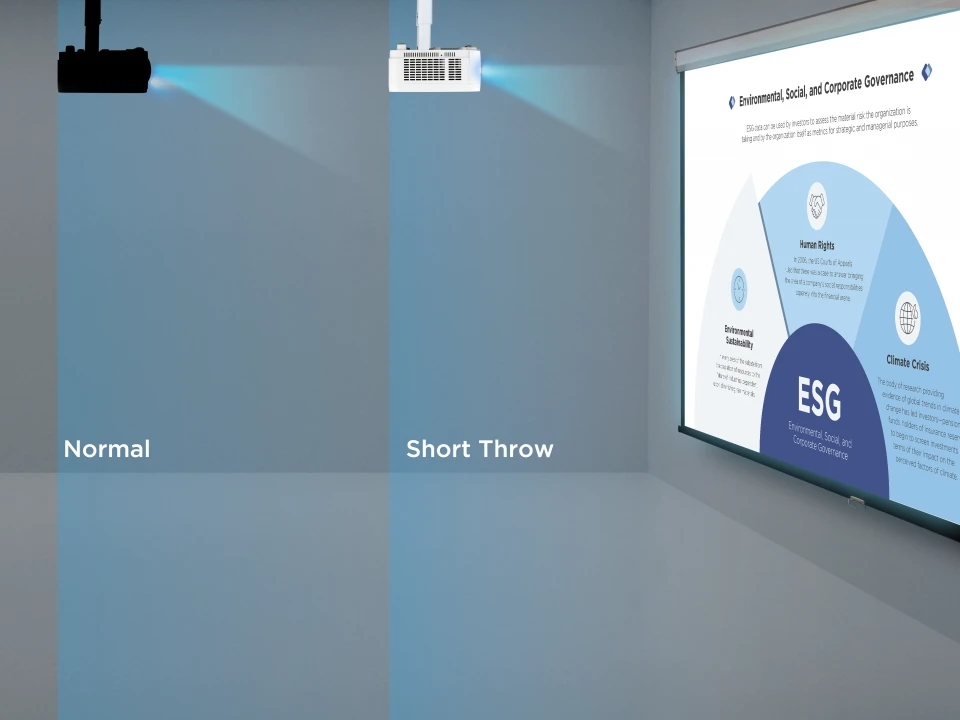

Big Screen Fits for Small Spaces
The LS560W's 0.49 short throw projection gives you 100” large screen from only 1.1m away when positioning the
projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

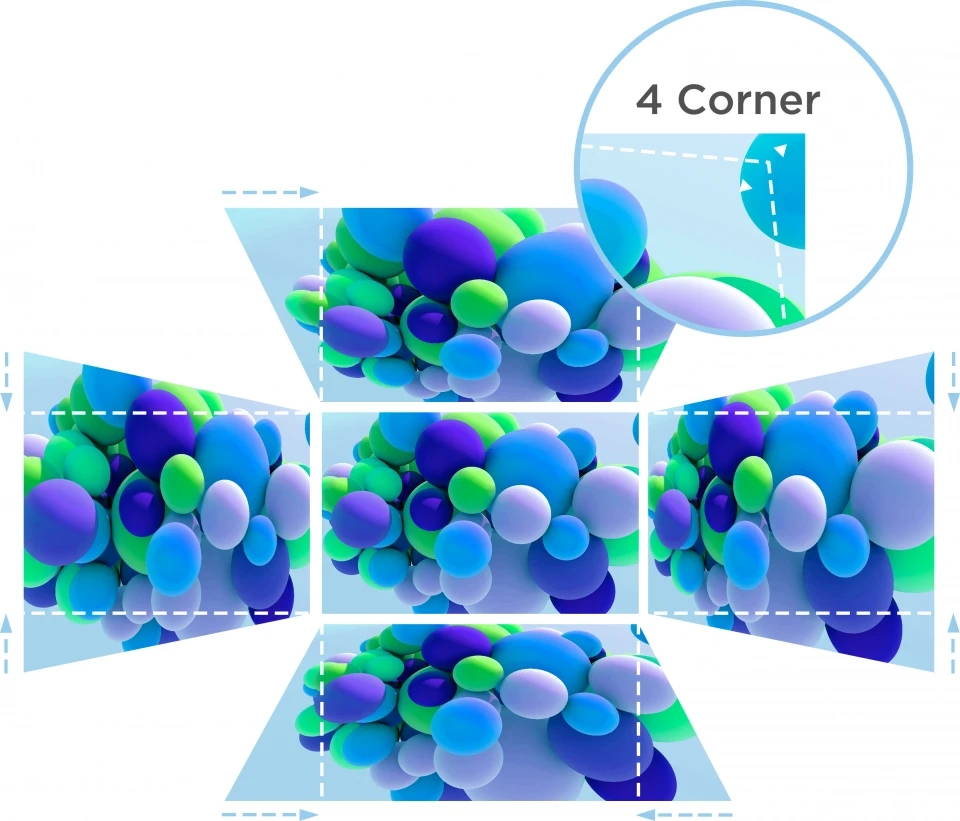

Effortless Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted
images for a perfectly proportioned picture every time.
H/V Keystone, 4 Corner Adjustment

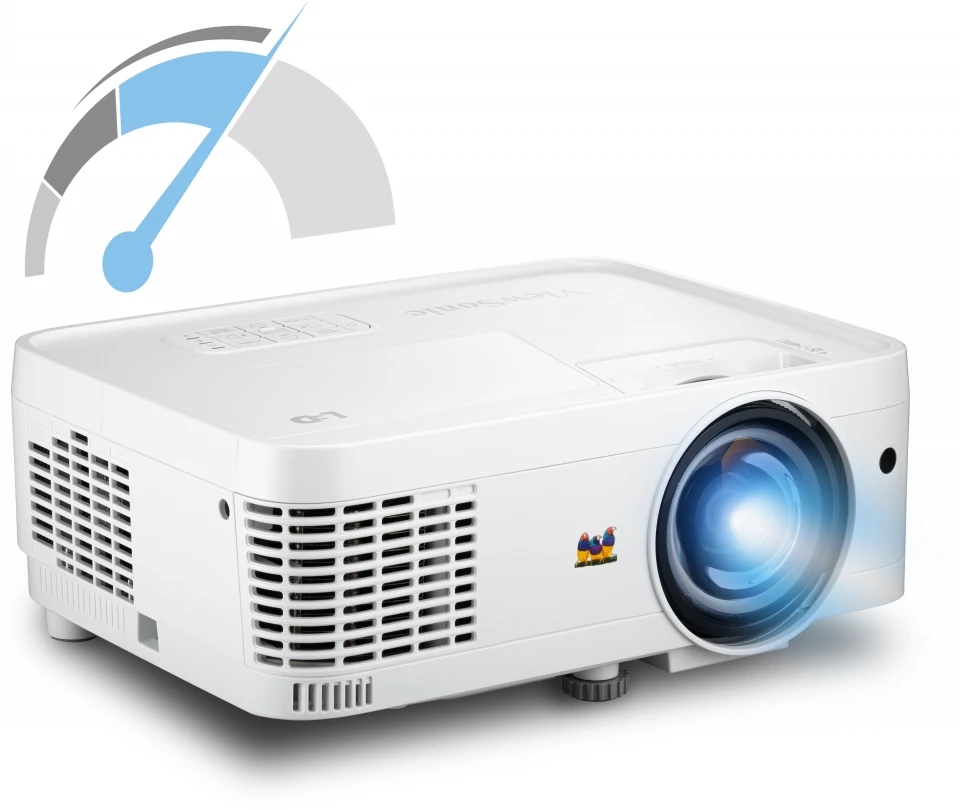

Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for
timely starts with no cooling period required.

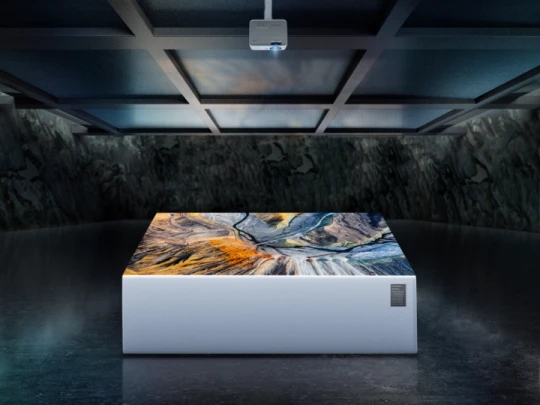

Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings,
walls, or floors.

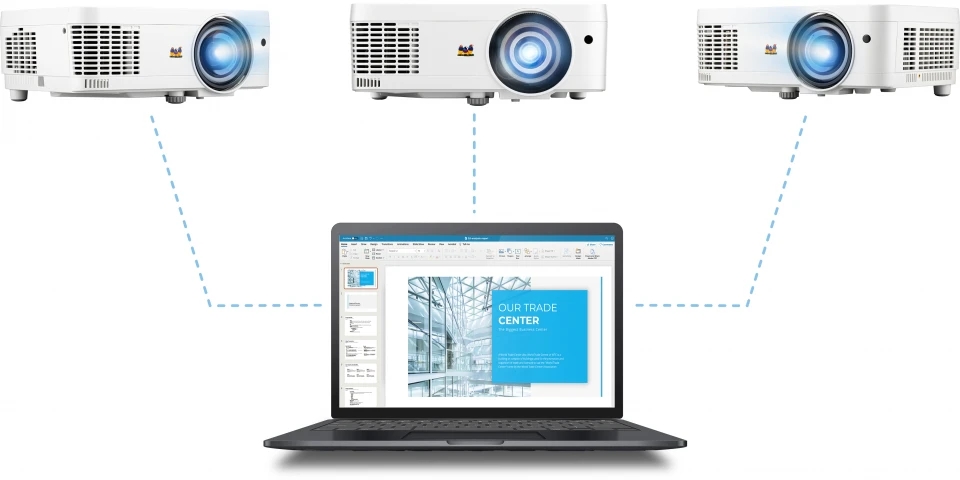

Centralized Control for Management Efficiency
The LS560W is compatible with Crestron, AMX, PJ Link, ATEN and Extron systems and comes equipped with ViewSonic
vController, an easy-to-use network management tool.
Comprehensive LAN Control

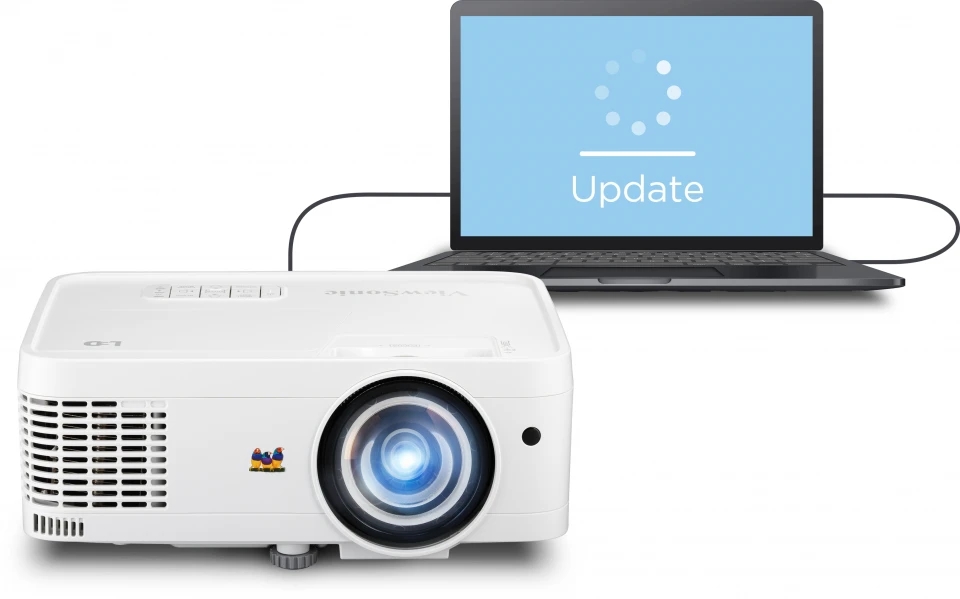

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your
laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.

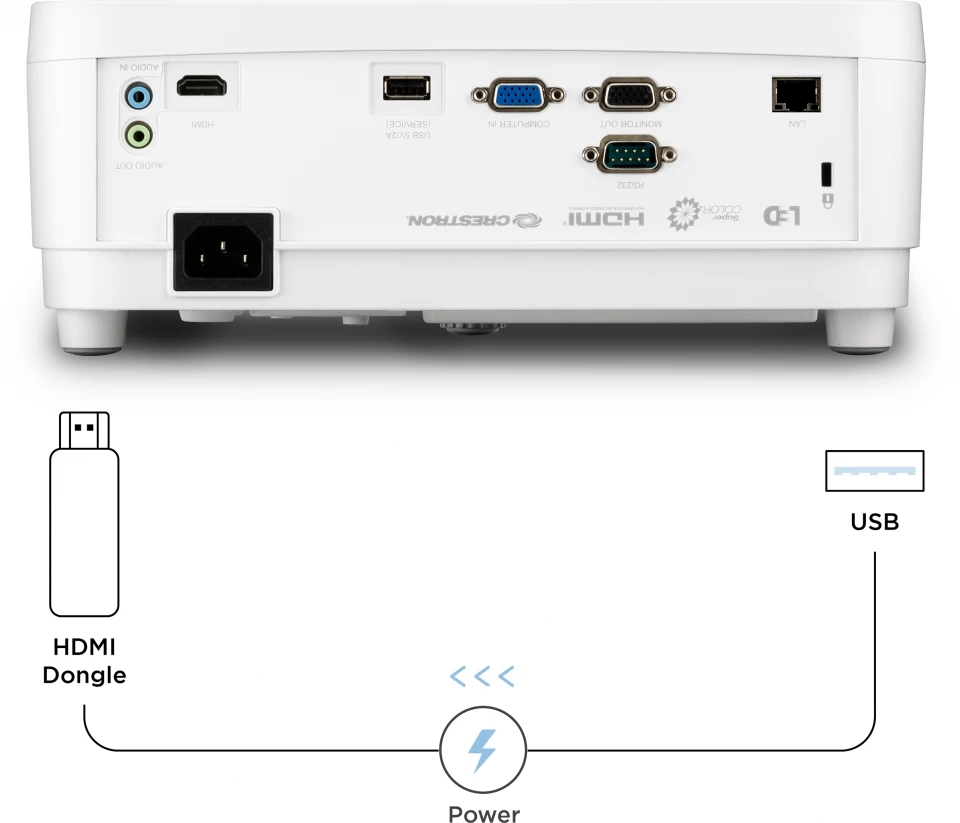

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate
power adapters when streaming multimedia content.
Non-stop 24/7 Operation
The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making
the projector ideal for applications that require continuous use.
Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust
from entering and affecting the thermal system.

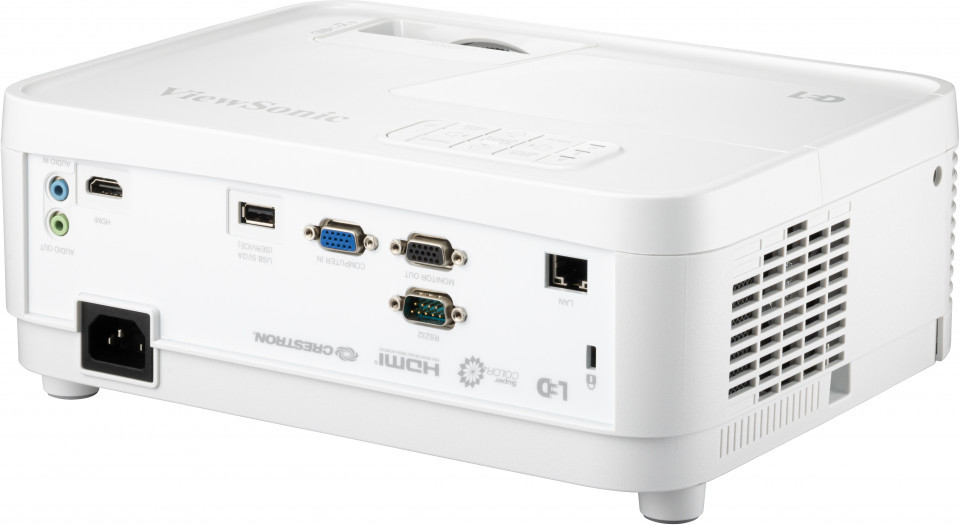

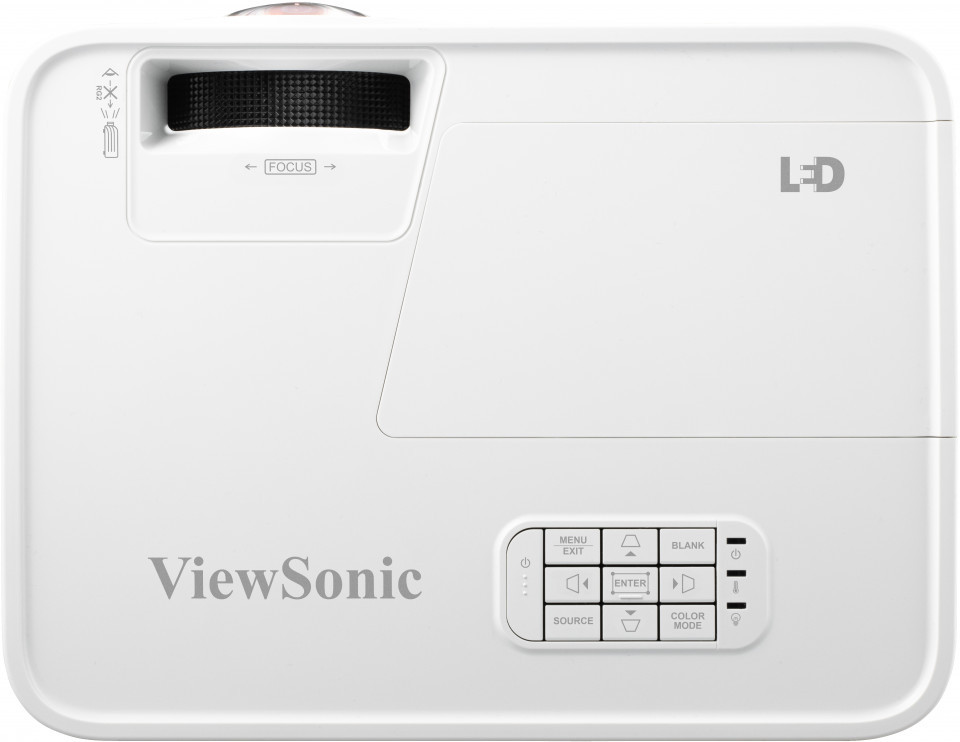

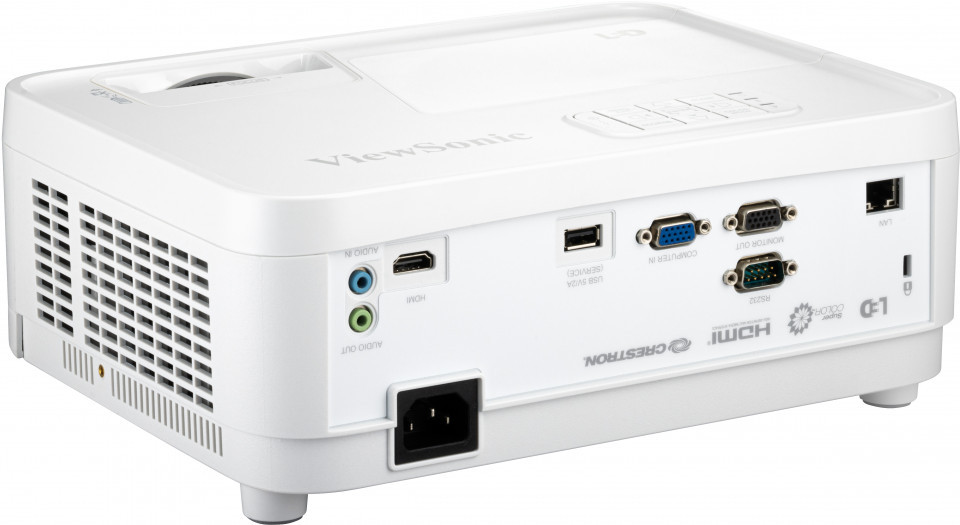

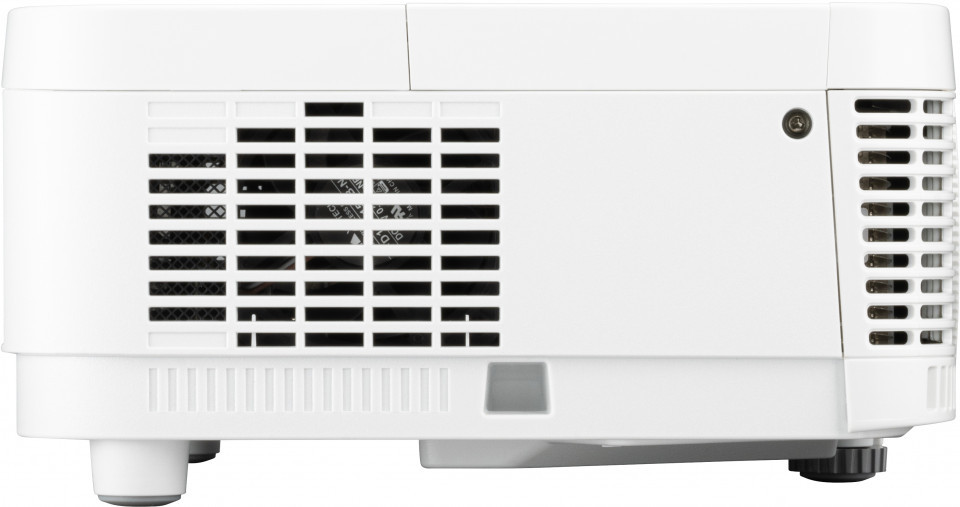

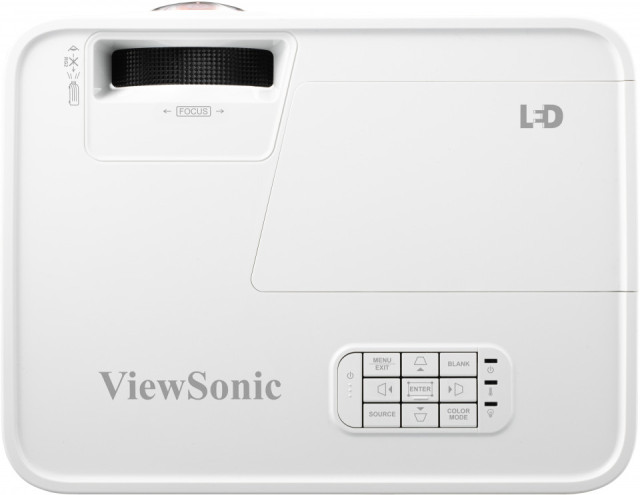

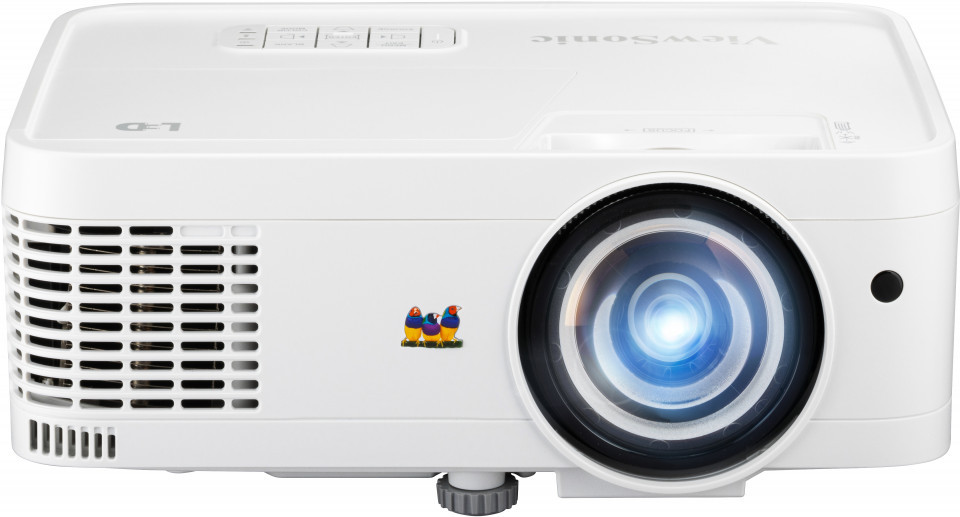

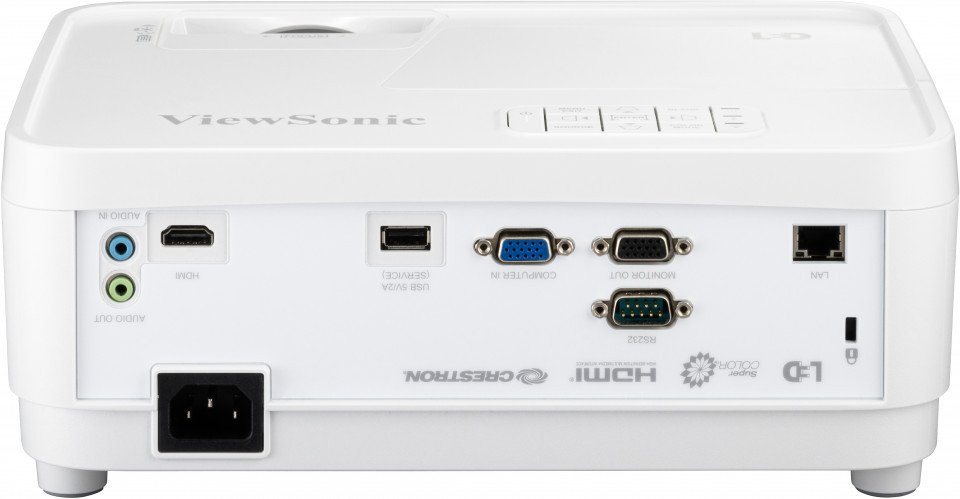

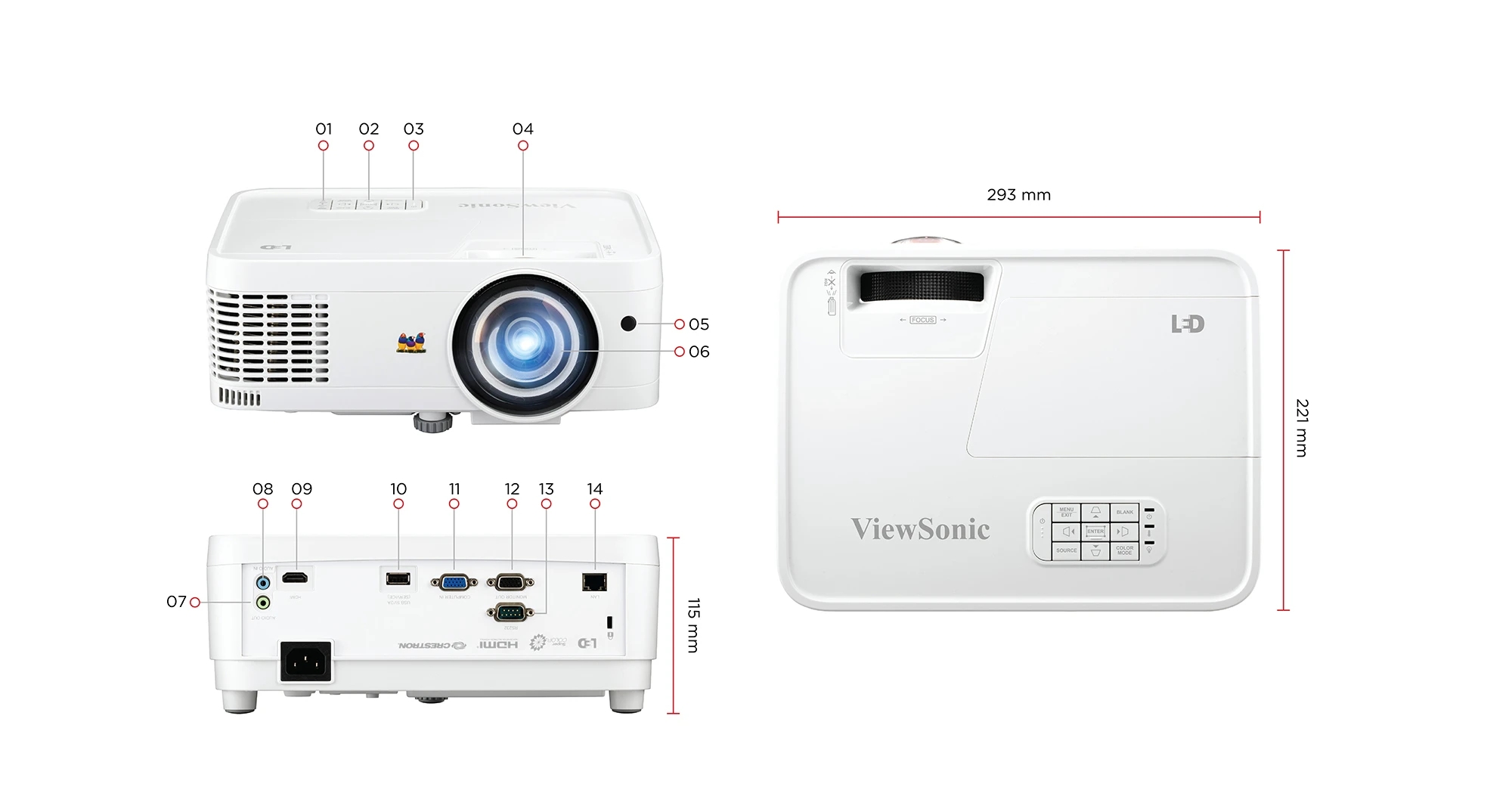

Dimension & I/O Ports
1. LED Indicator 4. Focus Ring 7. Audio Out 10. USB-A (5V/2A, Service) 13. RS232
2. Keypad 5. Front IR 8. Audio In 11. Computer In 14. RJ45 (LAN Control)
3. Power Button 6. Lens 9. HDMI 12. Monitor Out
SPECIFICATIONS
Specification
Projection System: 0.65'' WXGA
Native Resolution: 1280x800
Brightness: 3000 (ANSI Lumens) (ANSI Lumens)
Brightness (Center Lumens): 3500
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lens: F=2.6, f=6.9mm
Projection Offset: 110%+/-5%
Throw Ratio: 0.49
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 60"-300"
Throw Distance: 0.63-1.58m
(87"@0.92m)
Keystone: H:+/-40° , V:+/-40°
Audible Noise (Normal): 34dB
Audible Noise (Eco): 28dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Interactive Camera: Optional (vTouch-10s)
Input
Computer in (share with component): 1
HDMI: 1
(HDMI 1.4, HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 2W
USB Type A (Power): 1 (5V/2A)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 229W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.85kg
Gross Weight: 4.05kg
Dimensions (WxDxH) with Adjustment Foot: 293x221x115mm
Packing Dimensions: 365x300x188mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish,
Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish,
Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
