OVERVIEW
The LS500W is ViewSonic’s first lamp-free, 3,000 LED Lumens high brightness WXGA projector for business and education.
Adopting industry-leading 3rd generation LED technology, it frees users from frequent lamp replacement and toxic mercury
for a safer and greener environment, offering phenomenal lifespan of 30,000 hours, less power consumption and true-to-life
colours with 125% Rec.709. Give light to your presentations effortlessly with efficient instant power on/off and 360° tilt angle
projection for flexible setup in small-to-medium sized meeting rooms/classrooms.
Advanced 3rd Generation LED Technology
The latest 3rd generation LED technology eliminates toxic mercury and the cost and effort of frequent lamp replacement,
offering consistently impressive brightness for up to 30,000 hours.
Lamp Free, Mercury Free, Maintenance Free

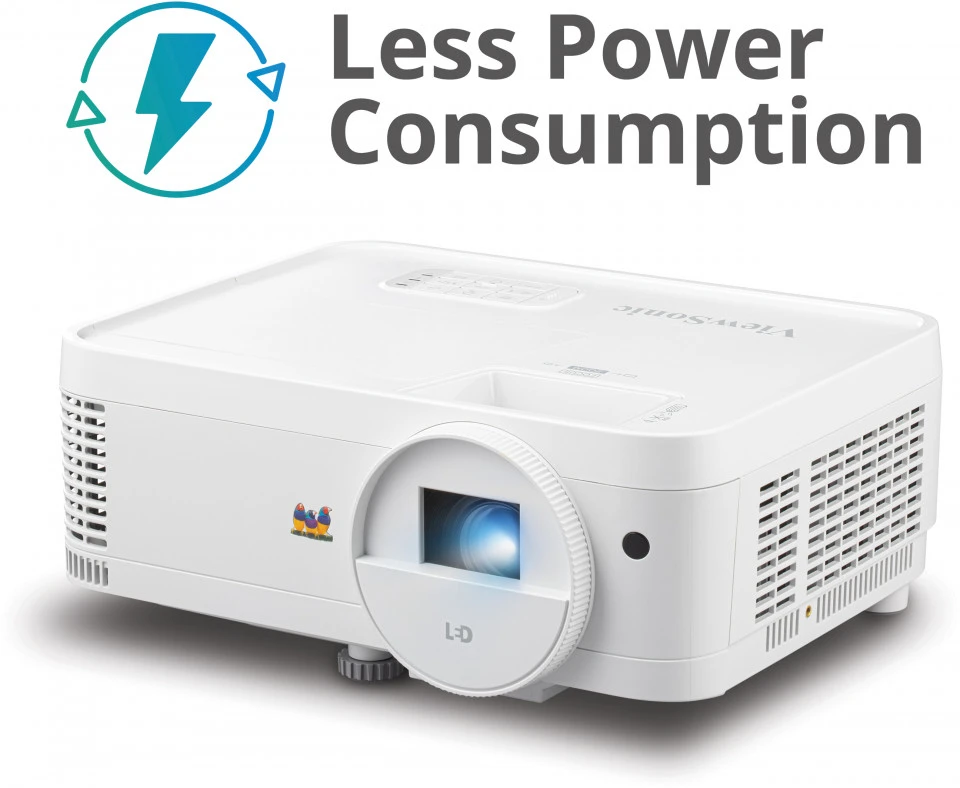

Higher Power Efficiency
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LS500W saves nearly 50% more energy than competing
lamp-based projectors.
Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely
starts with no cooling period required.

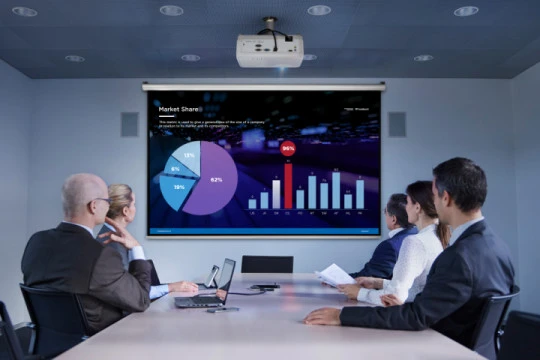

Enhanced Brightness for Business/Education
Environments
With the latest LED technology, the LS500W achieves a major brightness breakthrough to 3,000 LED Lumens, ensuring bright and
detailed images in dim or lit environments.
3,000 LED Lumens

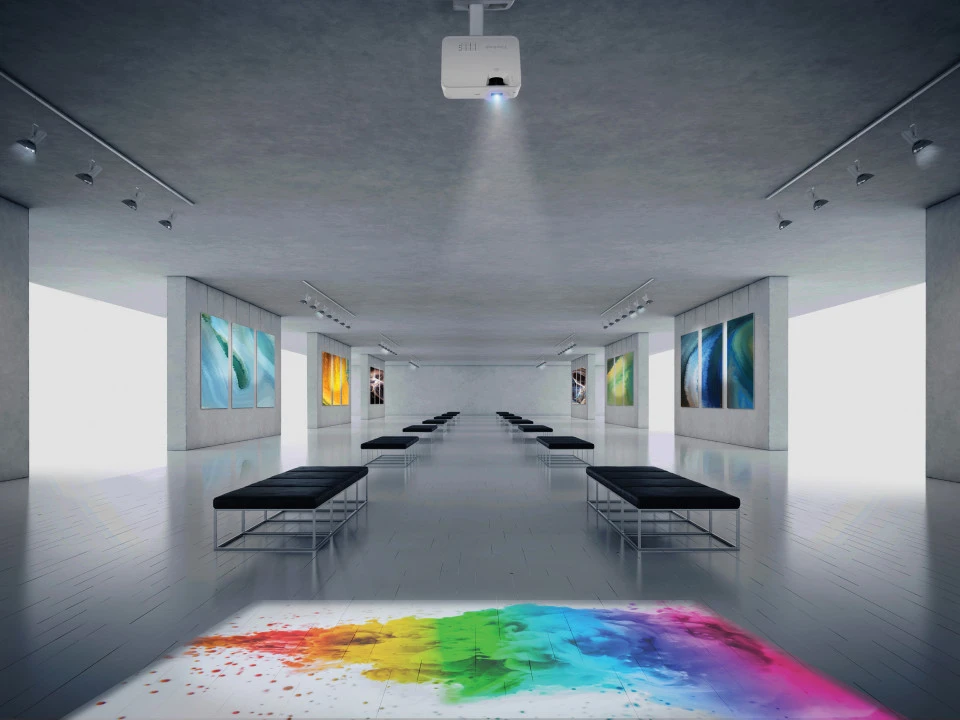

360° Projection for Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or
angled signage.

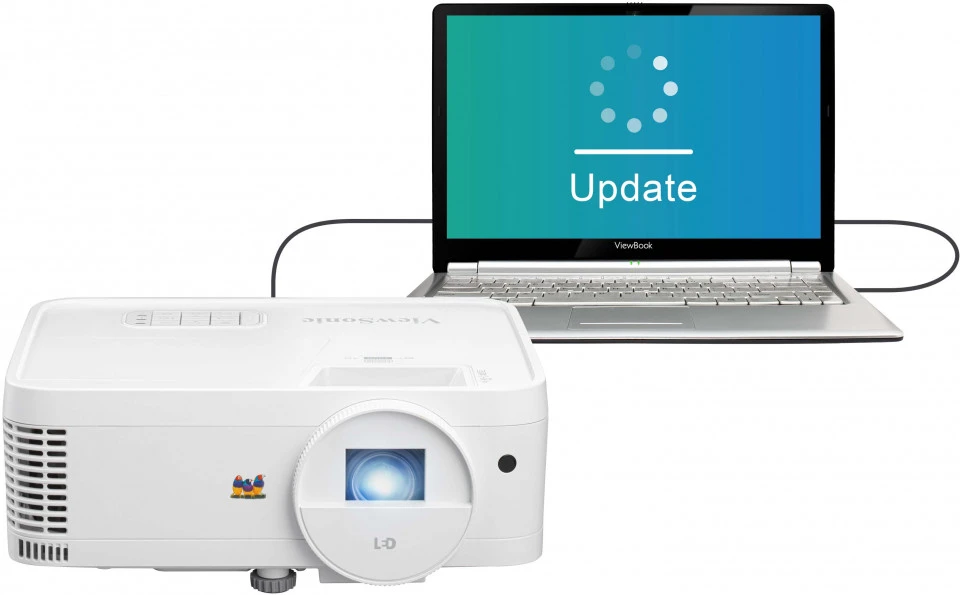

A Simpler Way to Update Projector Software
Skip trips to the service centre by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.

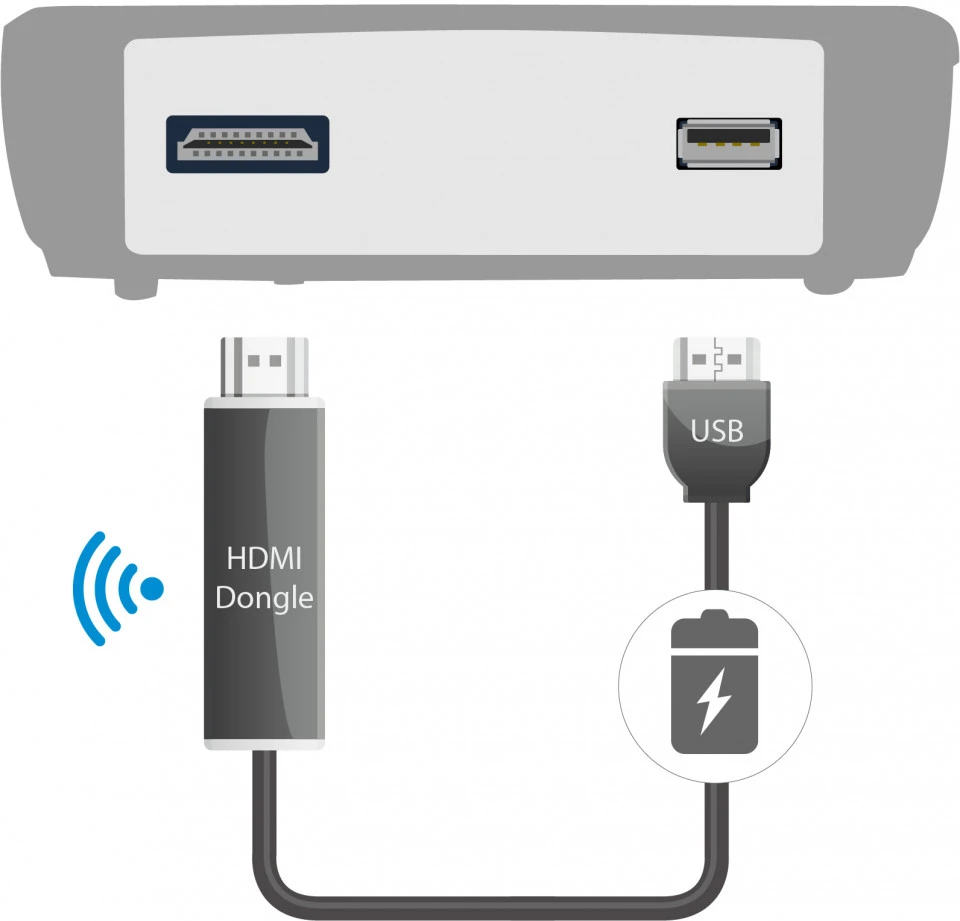

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power
adaptors when streaming multimedia content.

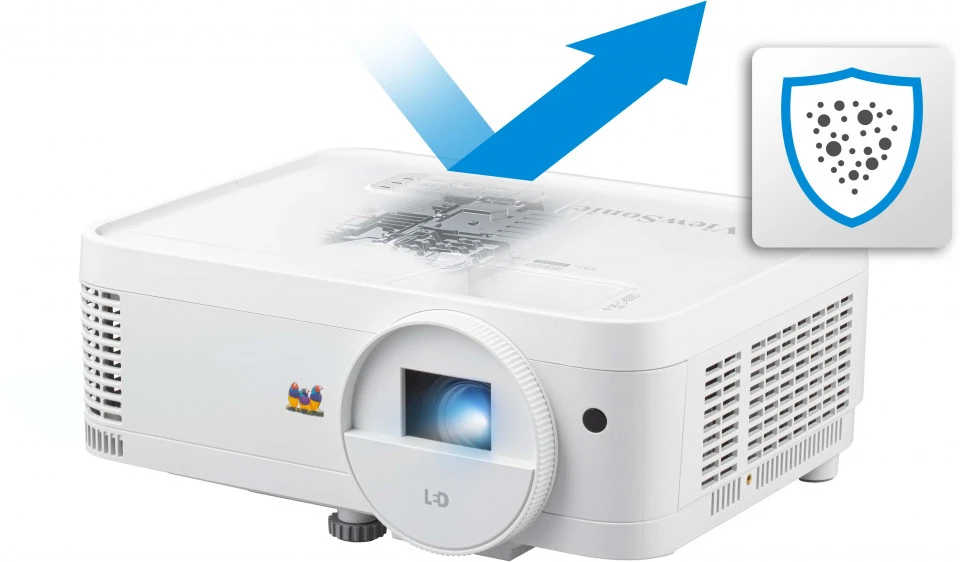

Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from
entering and affecting the thermal system.
Cinema SuperColor+™ Technology
Impress any audience with ViewSonic’s exclusive Cinema SuperColor+™ Technology, covering 125% Rec.709 wide colour gamut
for a rich, true-to-life colour experience.

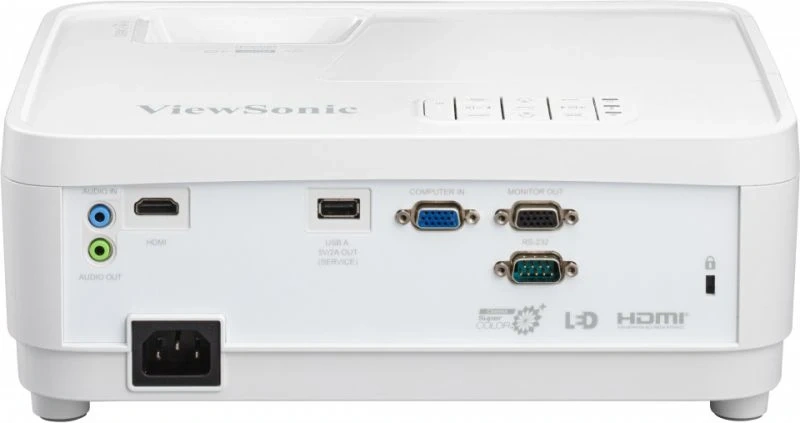

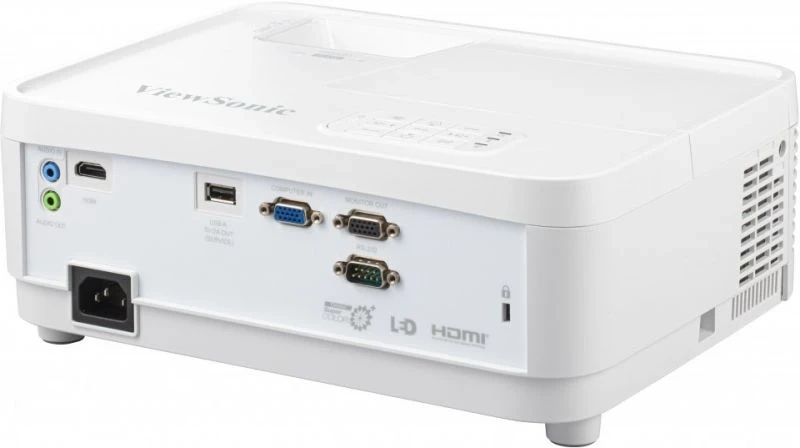

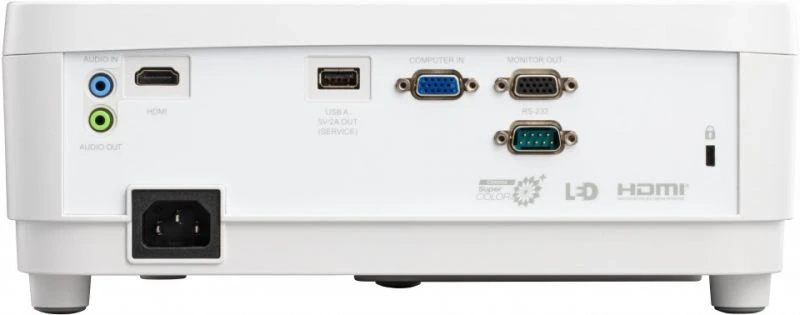

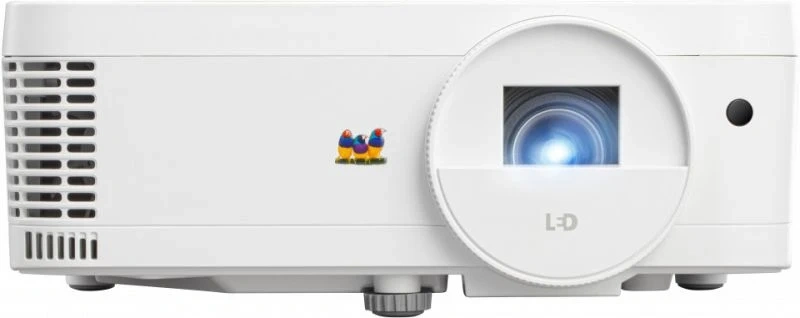

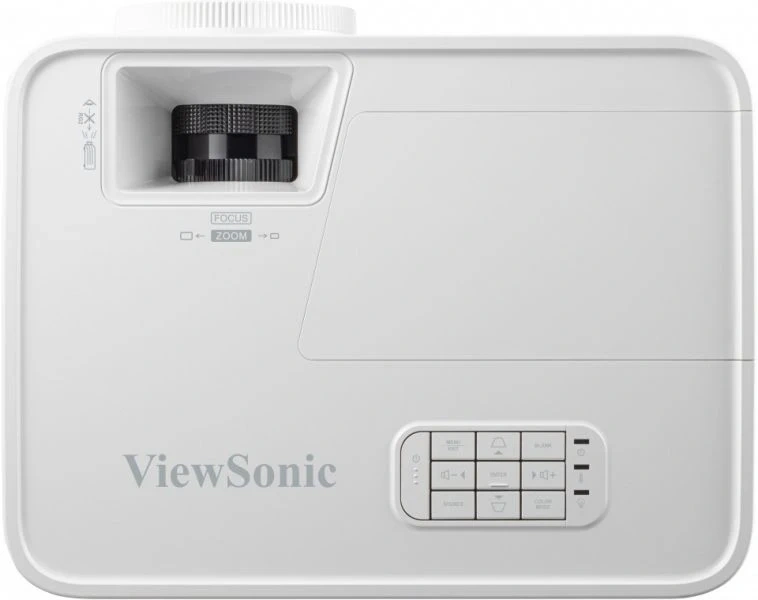

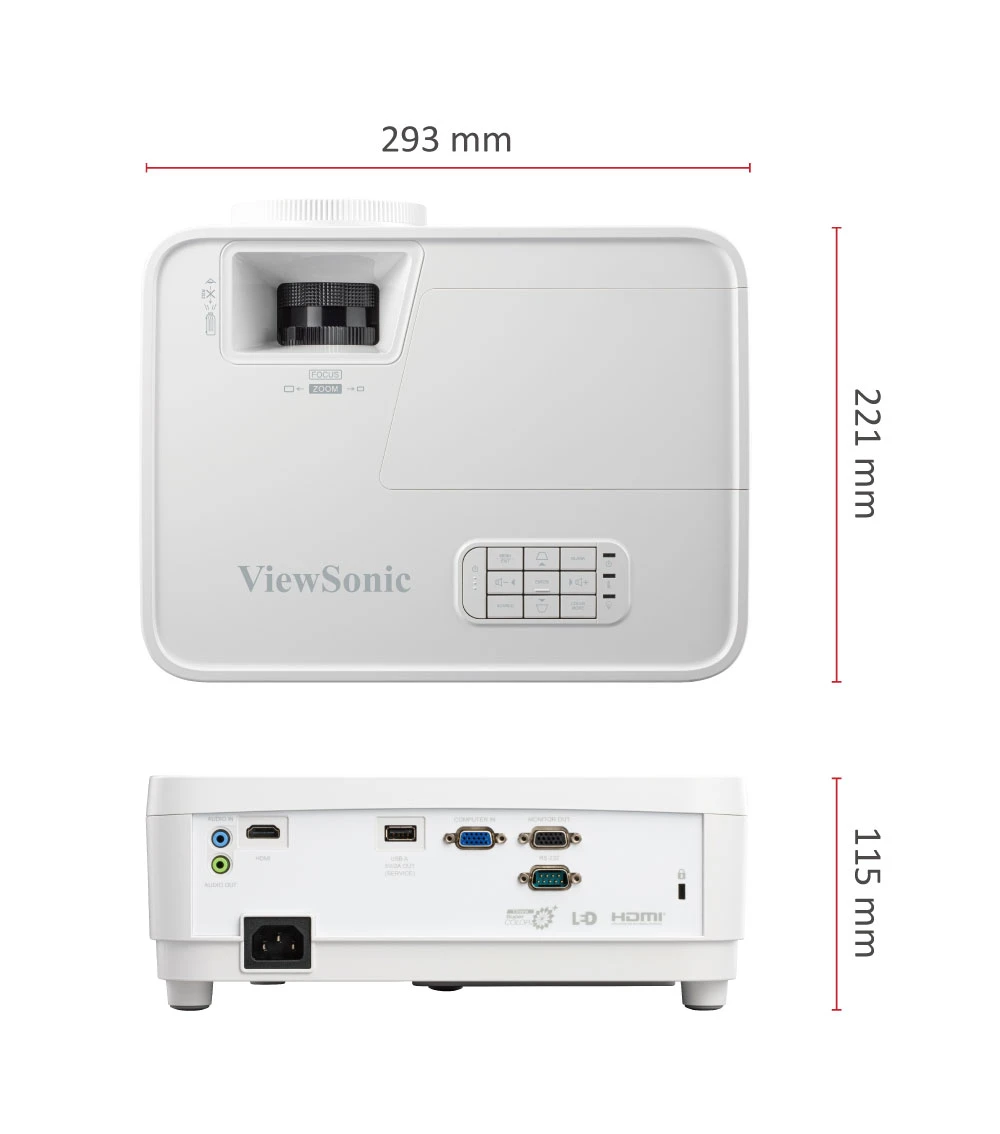

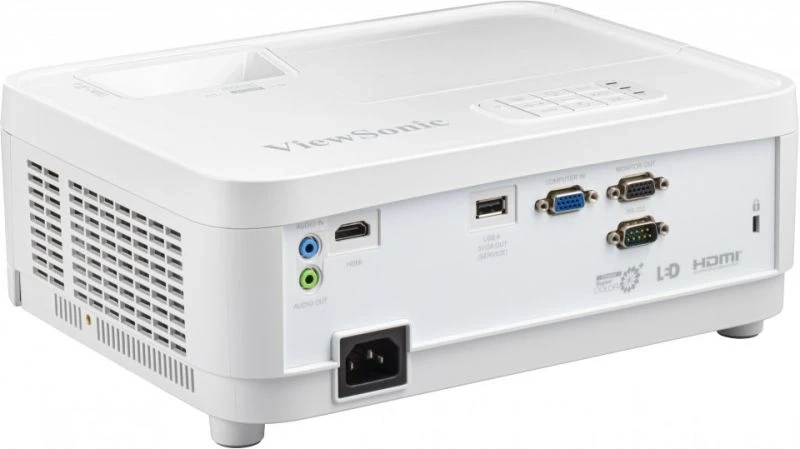

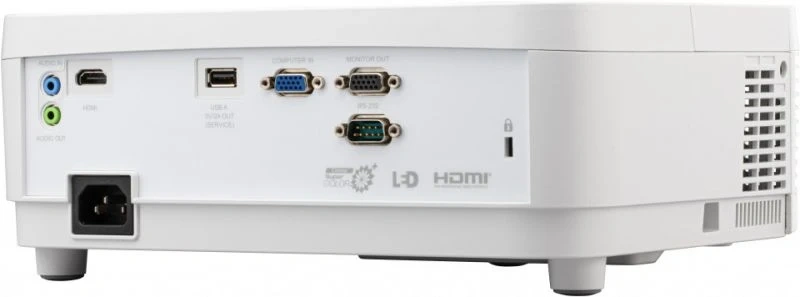

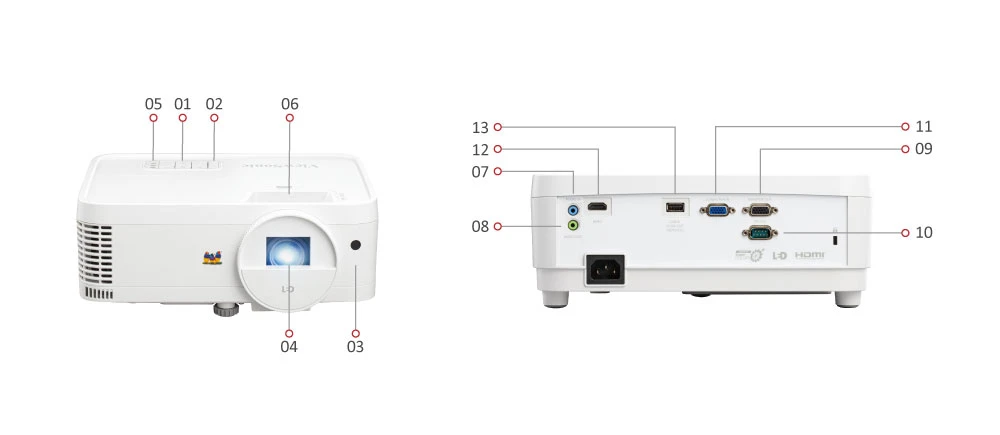

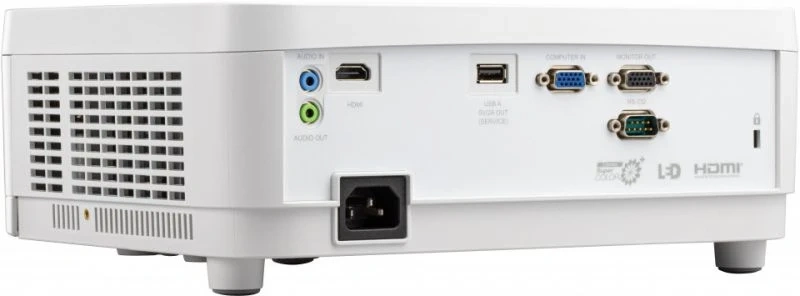

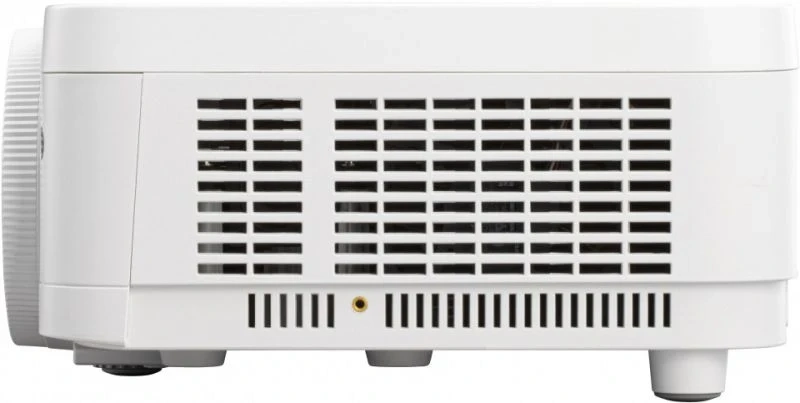

Dimensions & I/O Ports
1. Keypad 4. Lens 7. Audio In 10. RS-232 13. USB Type A
2. Power Button 5. LED Indicator 8. Audio Out 11. Computer In (5V/2A, Service)
3. Front IR 6. Zoom/Focus Ring 9. Monitor Out 12. HDMI
SPECIFICATIONS
Specification Projection System: 0.65'' WXGA
Native Resolution: 1280x800
Brightness: 3000 (LED Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lamp Watt: RGB LED
Lens: F=2.56-2.68, f=22-24.1mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.55-1.70
Optical Zoom: 1.1X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 1m-10.98m
(100"@3.34m)
Keystone: +/- 40° (V)
Audible Noise (Normal): 30dB
Audible Noise (Eco): 26dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input Computer in (share with component): 1
HDMI: 1
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 2W
USB Type A (Power): 1 (5V/2A)
Control RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 156W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.45kg
Gross Weight: 3.55kg
Dimensions (WxDxH) with Adjustment Foot: 293x221x115mm
Packing Dimensions: 365x300x188mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Standard Accessory Power Cord: 1
VGA Cable: 1
Remote Control: 1
QSG: Yes
