Two-way HD Video
Dual 1080P input; dual 1080P output.
Two-way HD Video
Dual 1080P input; dual 1080P output.
Super Decoding
1 × 4K@60fps, 2 x 1080P@30fps, 4x 720P@30fps, 9 x 360P.
Dual Screen Different Display
2x HDMI output supported, displays the main and secondary streams in full screen respectively.
High Performence CPU
4-core A73 + 2-core A53.
Super NPU
5 TOPS INT8 HashRate.
Multi-Protocal Convergence (Optional)
Self-developed H.323/SIP terminal software with super
interoperability, support install Tencent conference and
other third-party cloud video conference client, and realizes
the integration of the two.
|

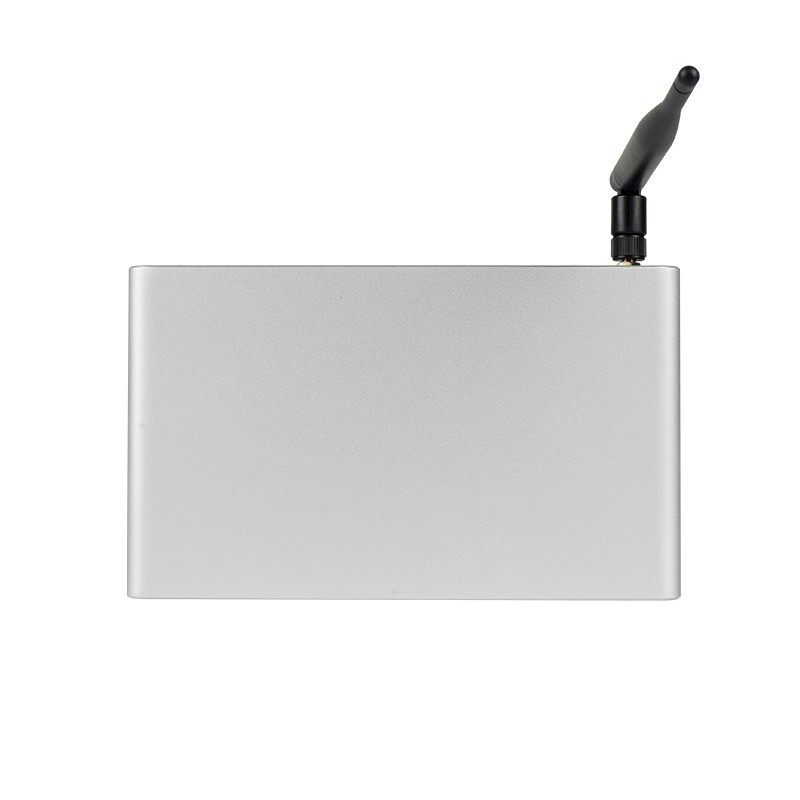

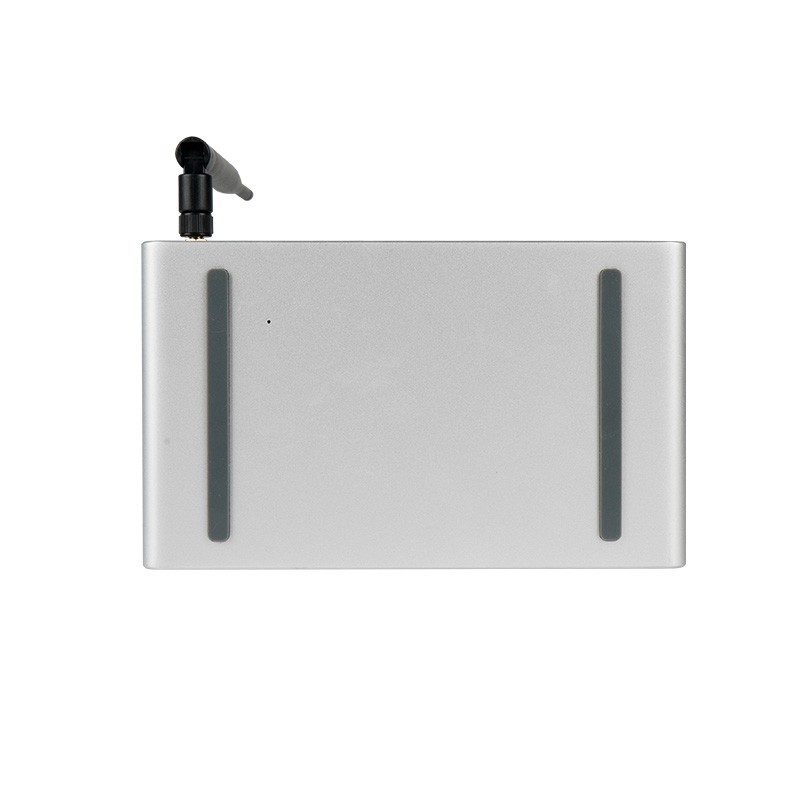

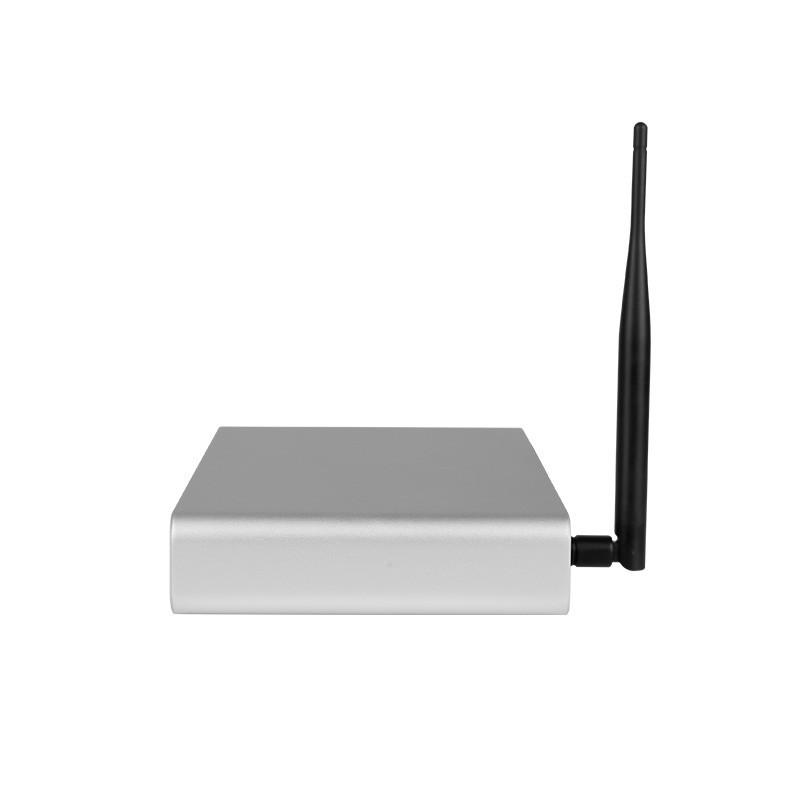

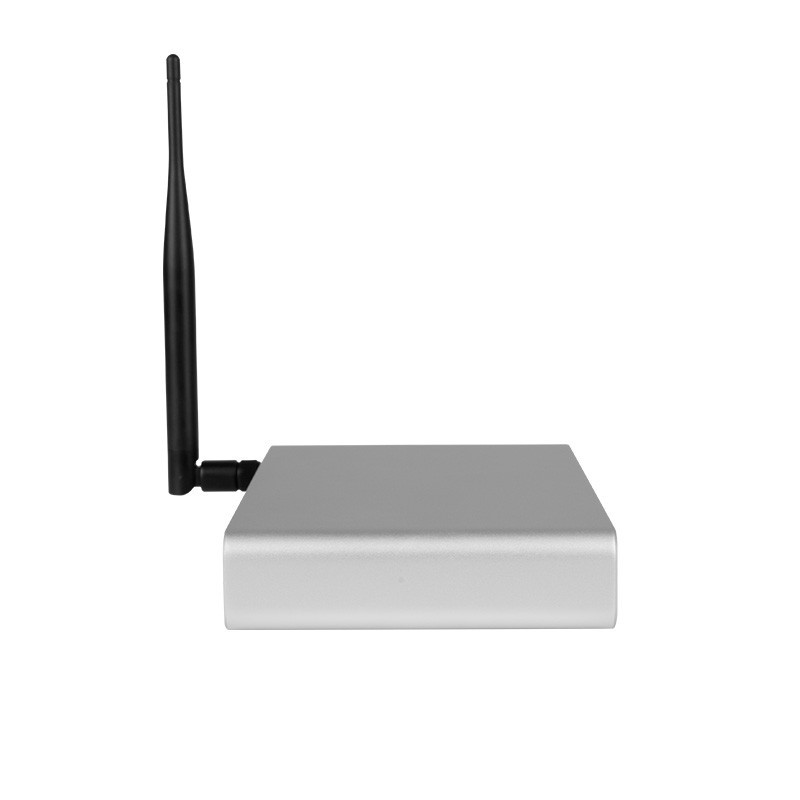

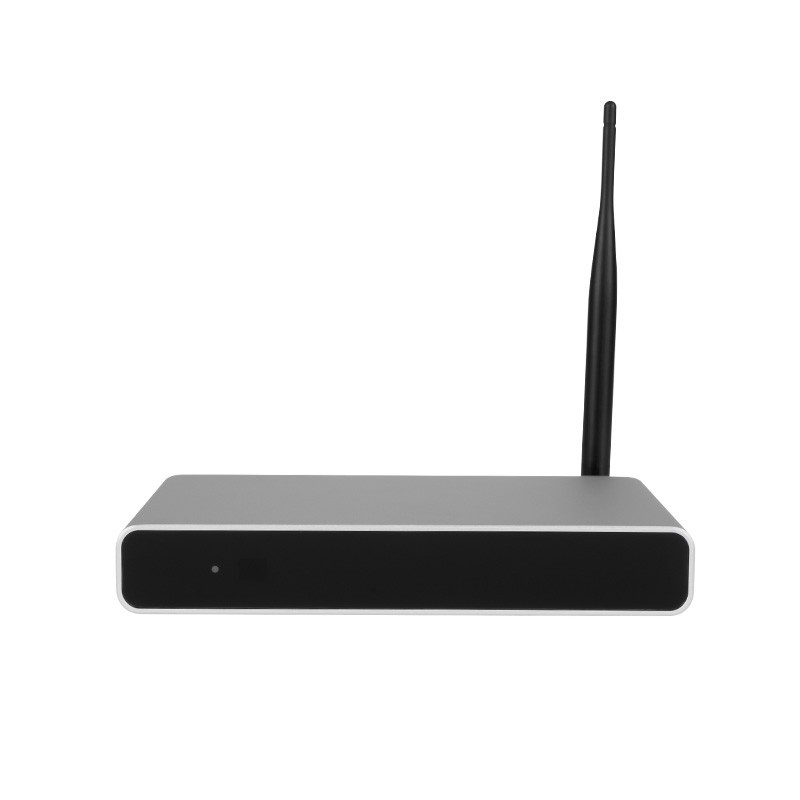

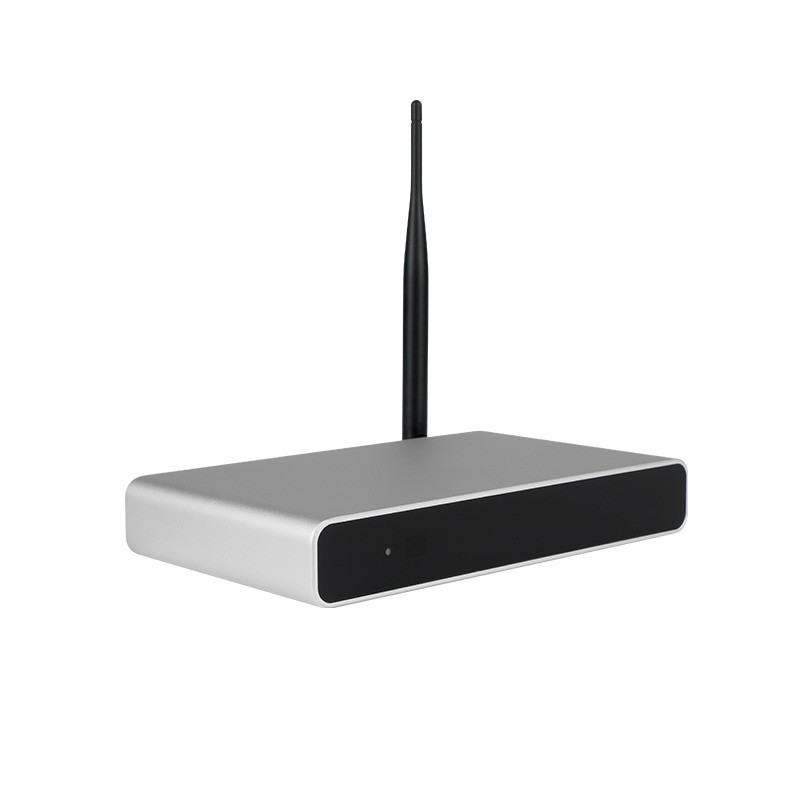

Model |
T632 |
|
Name |
Split Intelligent HD Video Conference Terminal |
|
System |
|
|
Operating System |
Android 9.0 |
|
CPU |
4x Cortex-A73@2.2GHz + 2x Cortex-A53@1.8GHz |
|
RAM |
2GB(4GB optional) |
|
ROM |
8GB EMMC (32GB optional) |
|
Video |
|
|
Input |
2×USB3.0 1 x HDMI IN, support HDMI 1.4, maximum resolution 1080P@30Hz. |
|
Output |
1x HDMI OUT1, support HDMI 2.1, support CEC, maximum resolution 1080 P@60Hz; 1 x HDMI OUT2, support HDMI 1.4, maximum resolution 1080P@60Hz. |
|
Encoding |
H.264/H.265 1 x1080P@60fps or 2x 1080P@30fps. |
|
Decoding |
VP9 Profile-2 up to 4Kx2K@60fps; H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps; AVS2-P2 Profile up to 4Kx2K@60fps; H.264 AVC HP@L5.1 up to 4Kx2K@30fps; H.264 MVC up to 1080P@60fps. |
|
Other Image Features |
Dual screen different display |
|
Audio |
|
|
Input |
1 x3.5mm linear input; 1x USB 2.0; 1x HDMI IN: 1x Bluetooth audio input (optional) |
|
Output |
1x 3.5mm linear output; 1x USB 2.0: 1× HOMI OUT: 1x Bluetooth audio output (optional) |
|
Features |
Automatic gain control (AGC); Automatic echo cancellation (AEC); Automatic noise suppression (ANS). |
|
General Specification |
|
|
Power Supply |
Operating Voltage: DC 12V; Power Consumption: 36W (max.). |
|
Environmental Requiremens |
Temperature: 0° C ~ 40° C (operating state), -40° C - 70° C (non-operating state); Relative Humidity: 10% ~ 80% (operating state), 0% - 95% (non-operating state). |
|
Certification and Standards |
CCC, RoHS, CE, Network Access License(optional with H.323/SIP feature). |
|

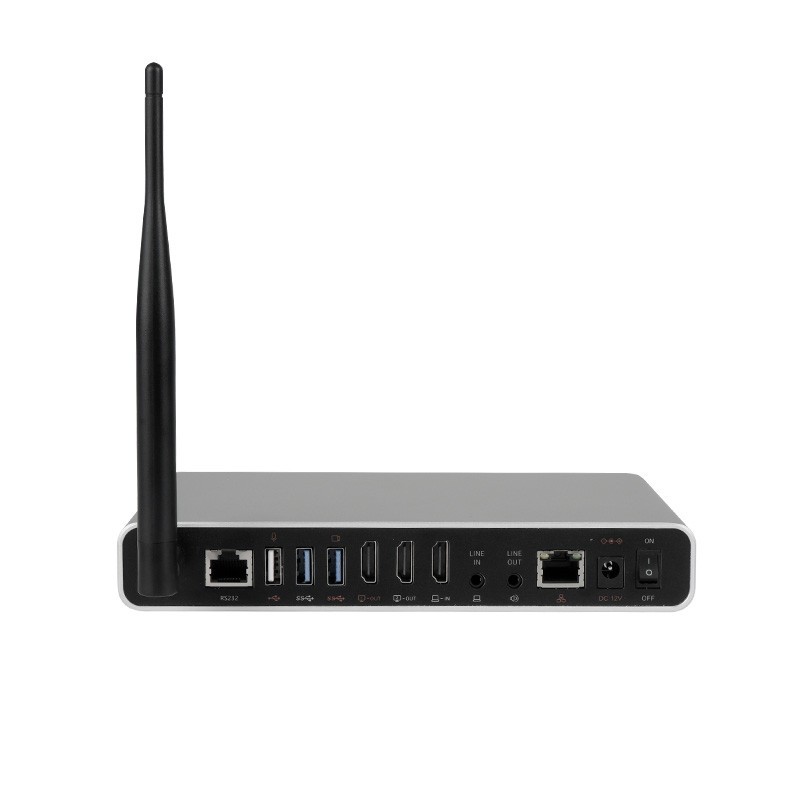

Interface |
|
|
Power Interface |
1 x DC 12V/2A Power Interface |
|
Camera Control Interface |
1 x RS232 |
|
USB Interface |
2x USB 3.0; |
|
TF Card Interface |
1x TF card interface, support 128G (max.) |
|
Network Interface |
1x RJ45: 10/100/1000 Base-T |
|
WiFi |
1x WiFi(dual 2.4G&5.8G), 802.11a/b/g/n/ac(optional) |
|
Bluetooth |
BT5.0 |
|
H.323/SIP(Optional) |
|
|
Multimedia Framework Protocol |
ITU-T H.323, IETF SIP. |
|
Video Codec Protocol |
H.263, H.263+, H.263++, H.264, H.264 HP, H.265. |
|
Audio Codec Protocol |
G.711, G.719, G.722, G.722.1* G.722.1C* AAC-LD, G.726, SILK, Opus. |
|
Double Stream Protocol |
ITU-T H.239, BFCP. |
|
Other Communication Protocols |
H.221, H.224, H.225, H.235. H.241. H.245. H.281. H.350, H.460. T.140, DTMF. |
|
Network Transmission Protocols |
TCP/IP, DHCP, SSH, HTTP, HTTPS with SSL/ TLS, RTP, RTCP, RFC3261 RFC3264, RFC2190, RFC3407, RFC2833 .RFC4585 (RTP/AVPF). SNTP ARP. |
|
Active Image Resolution |
• 1080P30fps, minimum bandwidth 768Kpbs; • 720P30, minimum bandwidth 384Kbps; • w448p/4SIF/4CIF 30fps, minimum bandwidth 256Kbps; •w288p/SIF/IF fps, minimum bandwidth 128Kbps. |
|
Data Content Resolution |
• Input: VGA (640x480), SVGA (800x600), XGA(1024x768), WXGA(1280x768), WXGA (1280x800), 1280x960, SXGA(1280x1024), 1360x768, 1366x768, 1440x900, 1600x900, 720P(1280x720), 1080P(1920x1080); • Codec: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080; • Output: 800x600, 1024x768, 1280x1024.1280x720. 1920x1080. |
|
Active Double Stream |
Dual 1080P/60 |
|
Built-in Multiple spot (optional) |
1 + 8 x1080P/30 supported; 1 +16 x 720P/30 supported. |
|
Other Image Feature |
Support PIP、POP display mode etc. Support terminal name, subtitle, banner etc. |
