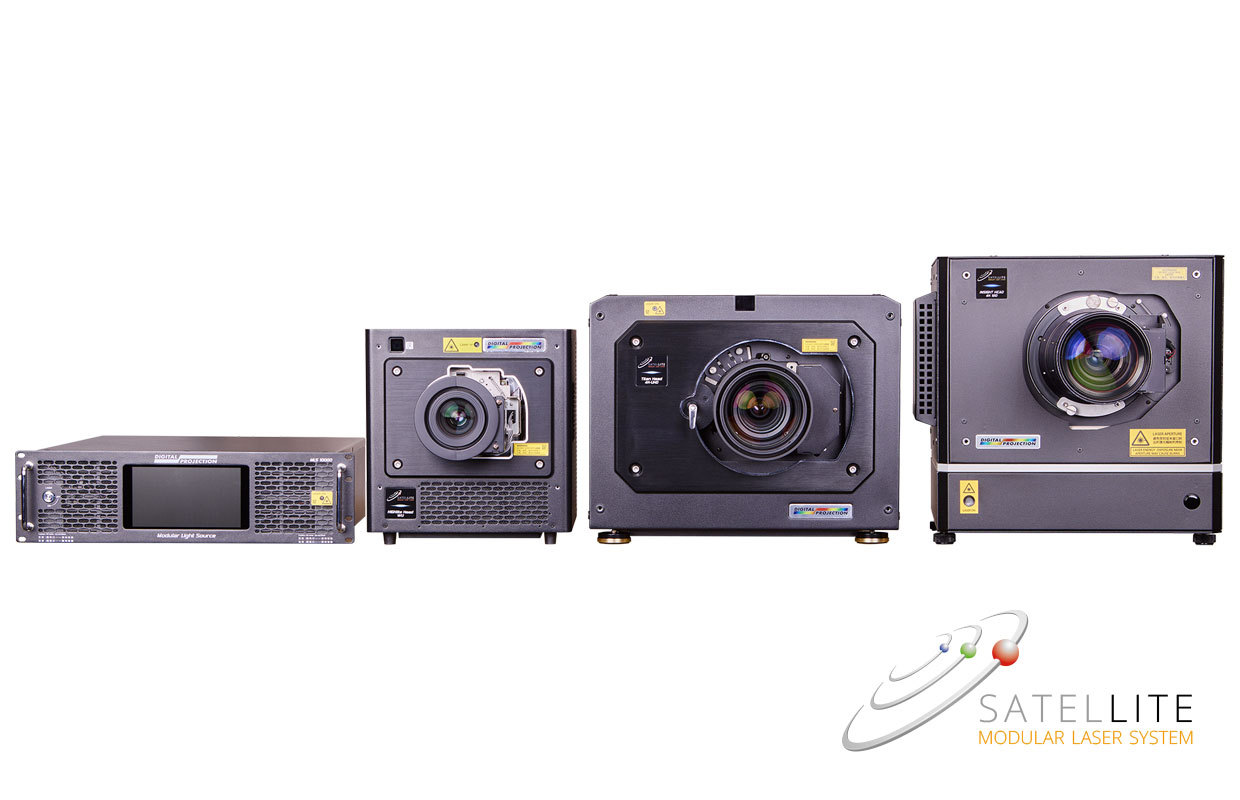

Satellite Modular Laser System (MLS) offers a small number of simple building blocks that allow users to address a wide range of applications,

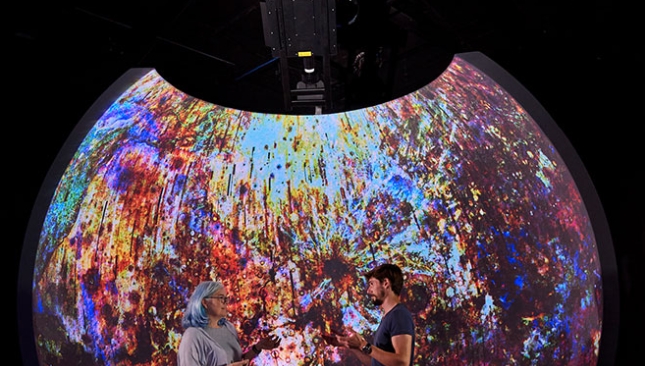

from single projector installs to complex, multi-channel domes, caves and simulators. Where RGB laser illumination used to be the preserve of only
very high-end applications, the Digital Projection Satellite MLS system will make this technology accessible to the wider AV market, at a cost-
effective price point.
The projector “Head” is fundamentally compact, quiet, light-weight and consumes very little power. This offers huge benefits at every stage of a
system design, from transportation and installation to serviceability and lifespan. By separating the projection “Head” from the light source and
linking the two by robust and flexible fibre-optic cables up to 100m long, we offer the installer many more options, particularly where space and
access are restricted. Compare the installation and rigging of “Heads” weighing in at between 19kg and 45kg, with that of more traditional
integrated projectors that can weigh as much as 150kg!

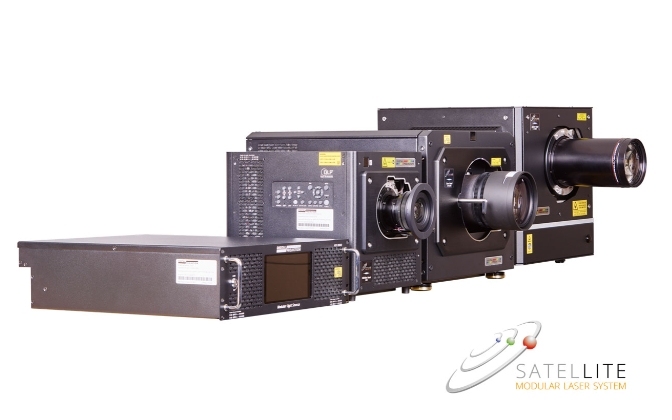

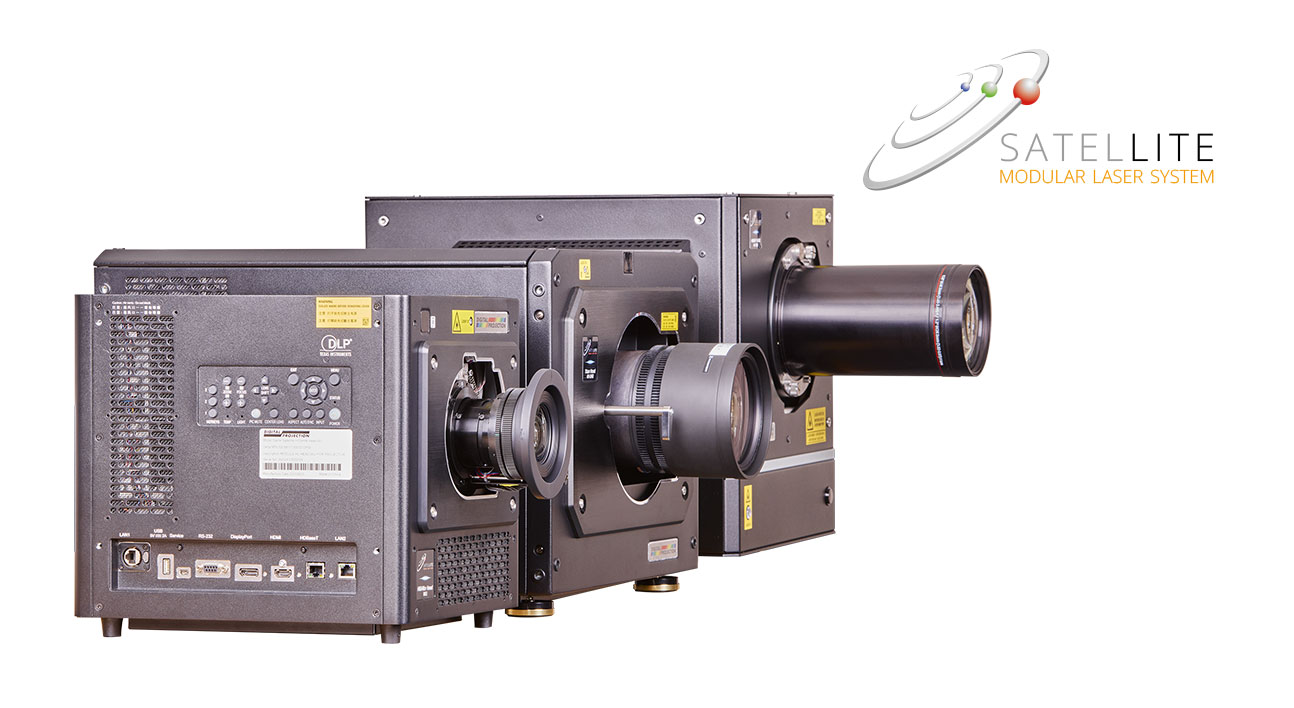

INSIGHT MLS |
TITAN MLS |
HIGHLite MLS |
|
|---|---|---|---|
| Resolution | Native 4K (4096×2160) | WUXGA & 4K-UHD | WUXGA & 4K-UHD |
| Light Output | Up to 40,000 ISO Lumens | Up to 30,000 ISO Lumens | Up to 20,000 ISO Lumens |
| Light Source | Modular Light Source (up to 4 modules) | Modular Light Source (up to 3 modules) | Modular Light Source (up to 2 modules) |
| Contrast | 2000:1 | 2000:1 | 2000:1 |
| Inputs | 2 x DisplayPort, 2 x HDMI | 1 x DisplayPort, 1 x HDMI, 1 x HDBaseT | 1 x DisplayPort, 1 x HDMI, 1 x HDBaseT |
| Weight | 40kg | 34.5kg | 19kg |
| Dimensions | H: 40 cm W: 43 cm L: 45 cm H: 15.75 in W: 16.9 in L: 17.7 in |
H: 35.5 cm W: 45 cm L: 49.4 cm H: 14 in W: 17.7 in L: 19.5 in |
H: 31.5 cm W: 29.9 cm L: 33.7 cm H: 12.4 in W: 11.77 in L: 13.3 in |
| Noise | 40dBA | 39dBA | 39dBA |
| Power Requirements | 100-240VAC 50/60Hz singleØ | 100-240VAC 50/60Hz singleØ | 100-240VAC 50/60Hz singleØ |
| Power Consumption | 250W | 220W | 130W |
| Lenses | 0.93:1 1.13-1.72:1 1.65-2.6:1 2.53-4.98:1 |
0.37:1 0.65-0.85:1 0.8-1.16:1 0.67:1 1.12:1 1.16-1.49:1 1.39-1.87:1 1.87-2.56:1 2.56-4.16:1 4.16-6.96:1 6.92-10.36:1 |
0.83 – 1.21 1.21 – 1.70:1 1.50 – 2.15 : 1 2.00 – 3.90 : 1 |
| Variants | 120Hz 4K 360Hz MultiView |
The most expansive colour gamut of any projection technology. colours
are more lifelike, pure, and vibrant, making the audience experience
more immersive

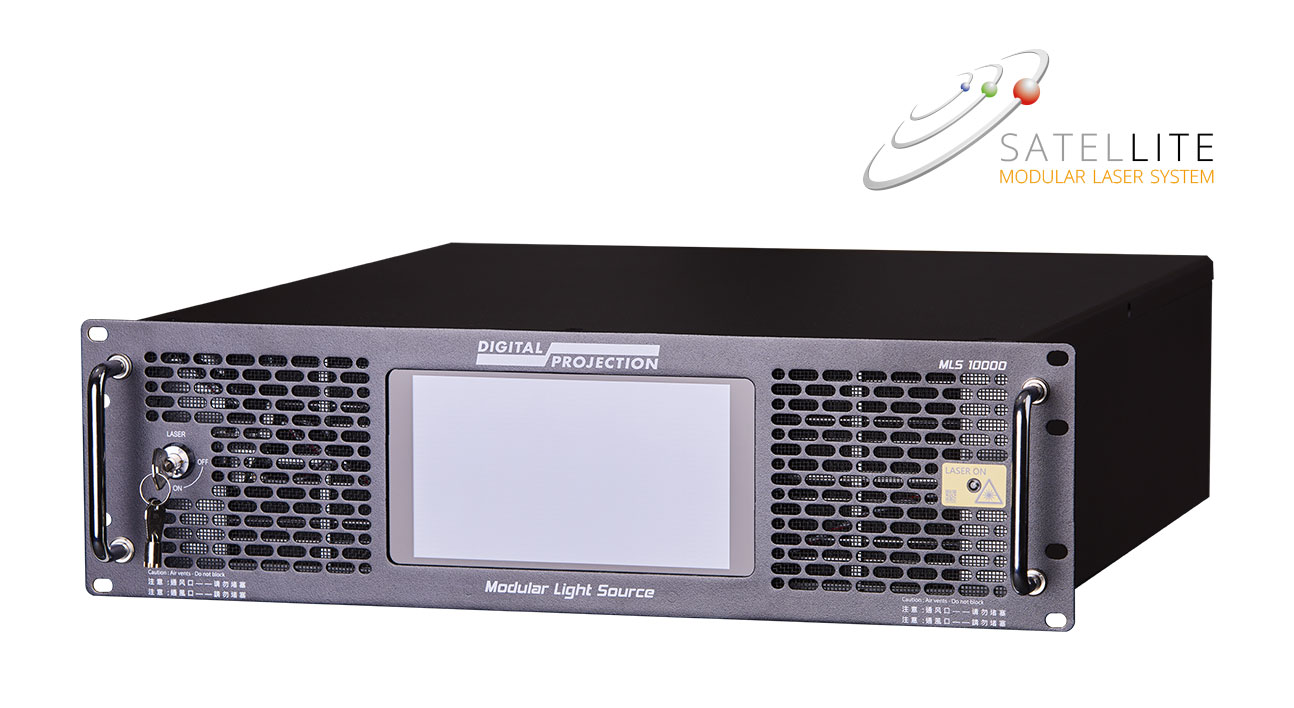

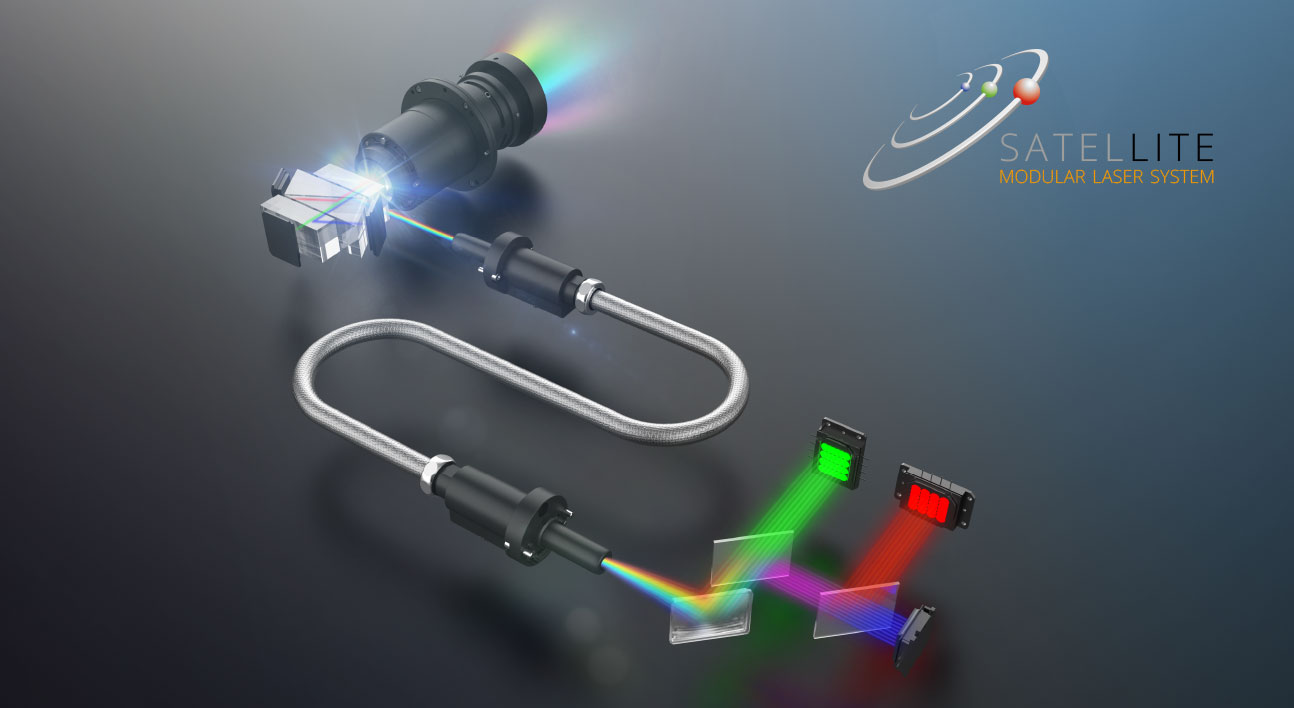

The Modular Light Source is a self-contained pure RGB Laser module
with no external chiller. Each module produces an impressive 10,000
lumens and has a built-in touch panel control to allow for quick and easy
set-up and operation. Weighing under 25Kg, this module will fit in any
standard rack module and is only 4U high.

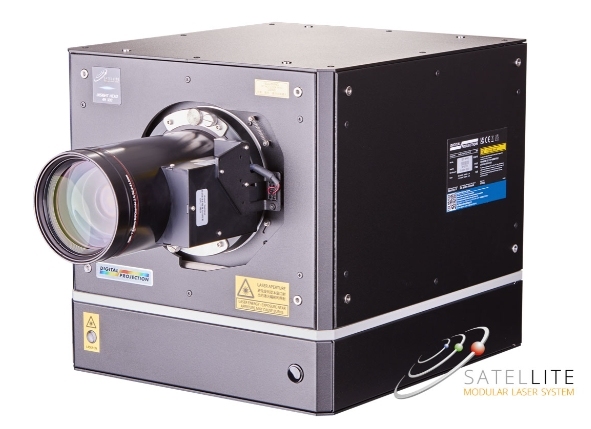

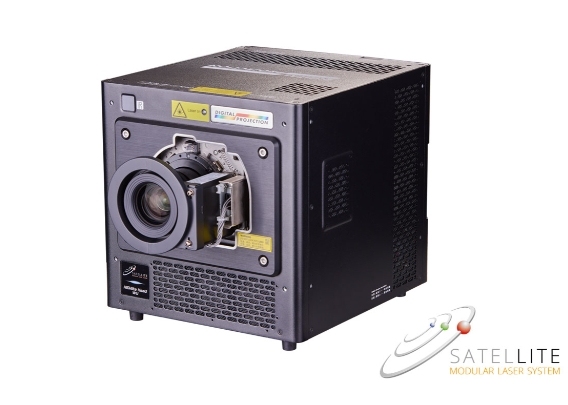

The projector “Head” is fundamentally compact, quiet, light-weight and
consumes very little power. This simplifies and improves every stage of a
system design, from transportation and installation to serviceability and
lifespan. By separating the projection “Head” from the light source and

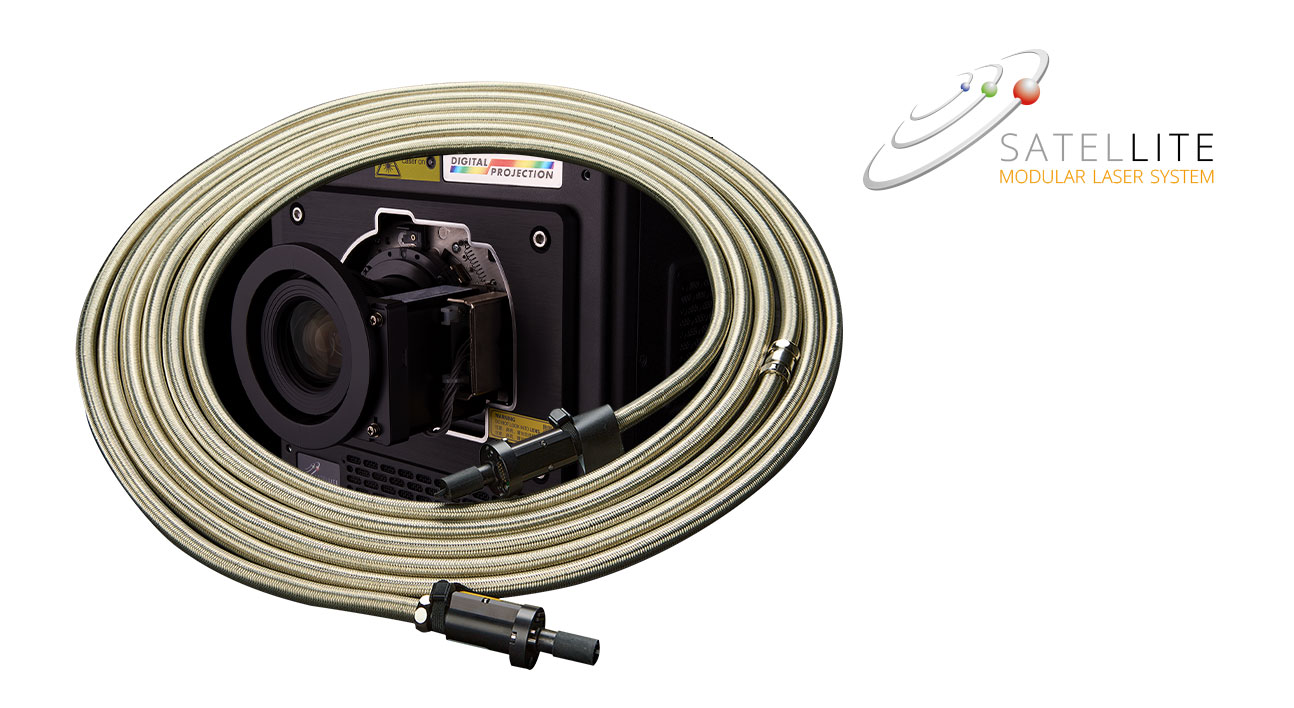

linking the two by robust and flexible fibre-optic cables up to 100m long,
we offer the installer true flexibility, particularly where space and access
are restricted.

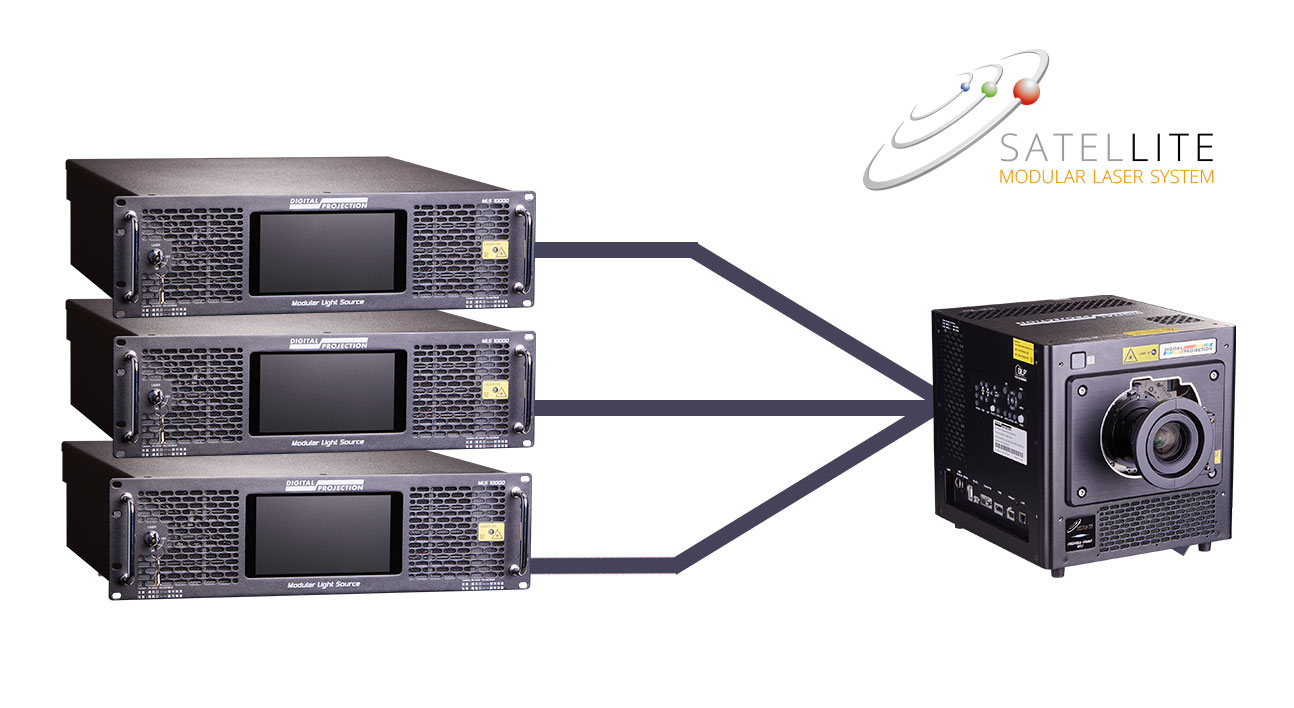

Feed one projection heads from multiple Modular Light Sources (MLS
10000).
In a many-to-one relationship, multiple 10,000 lumen Satellite Modular
Light Sources can be combined to feed a single, ultra-compact projection
"Head", resulting in a lumens-per-kilogram ratio that far surpasses
anything that precedes it. To achieve comparable luminance using a
conventional, integrated projector would mean finding space for a
product that weighs hundreds of kilos and requires a dedicated
projection room due to its physical dimensions – not to mention the
logistical and serviceability challenges created by such a product
Due to the proven reliability and long-term performance of our laser projectors, Digital Projection
provides a full 3 years / 20,000 hours warranty.
