Name: P Series Fixed Frame Screen
Brand: CAAVITS
Availability: InStock
Rating: 5 (1 reviews)

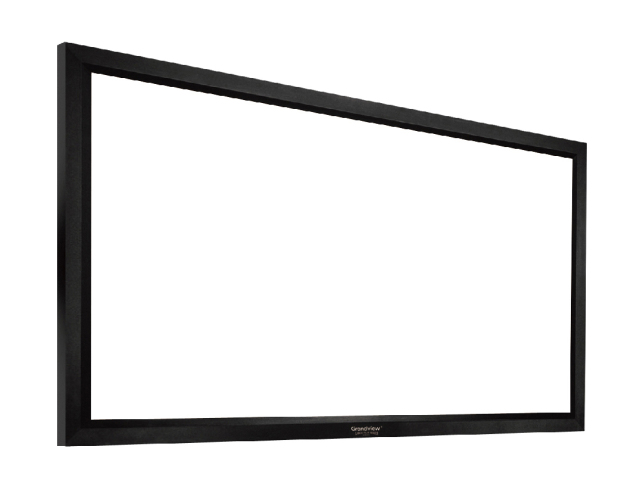

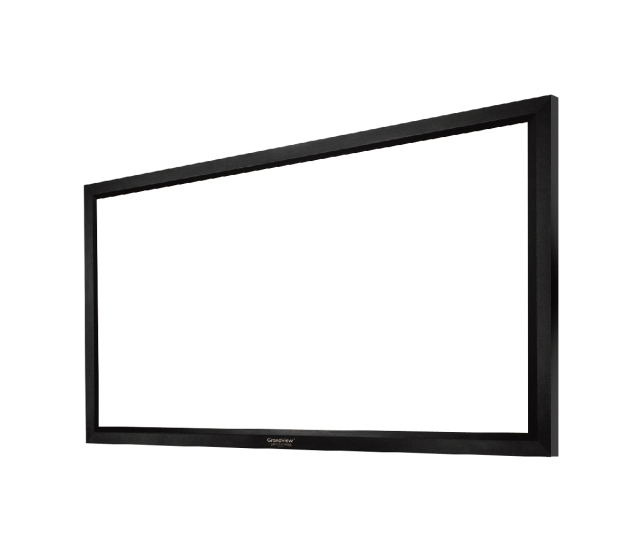

P Series Fixed Frame Screen

P Series Fixed-Frame Series is the enthusiast’s choice for a

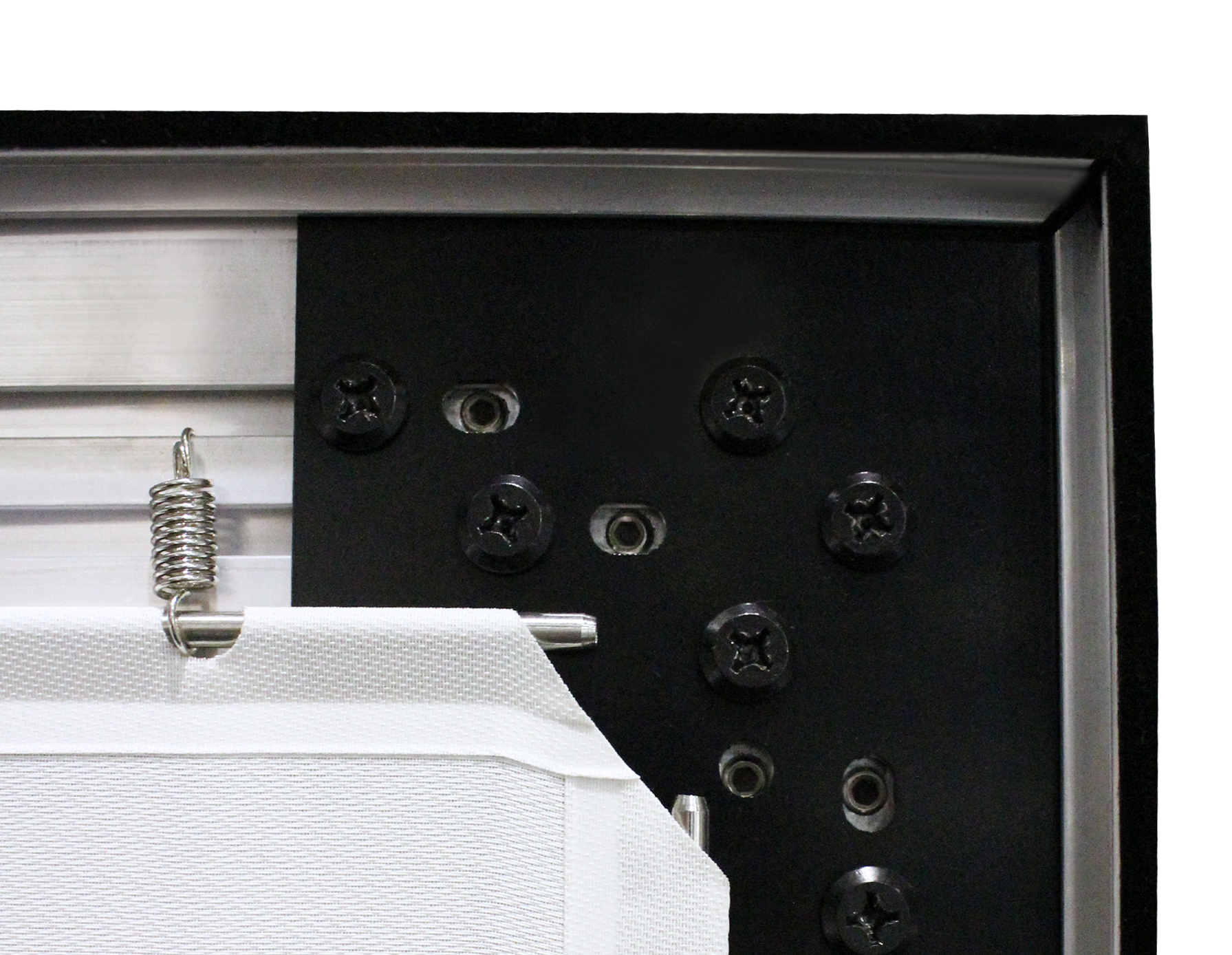

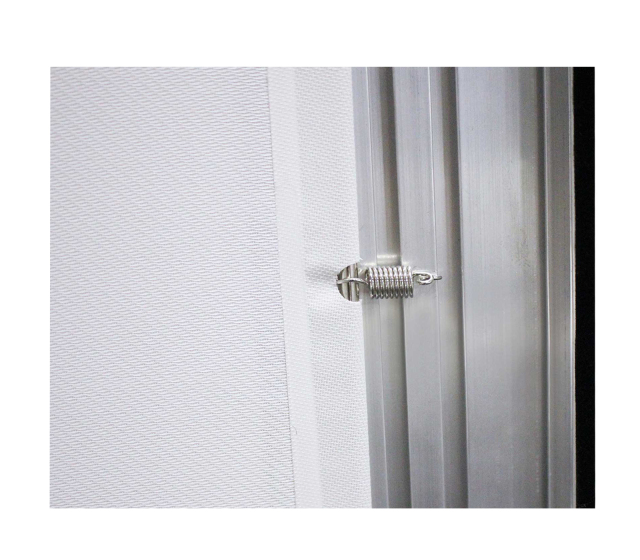

dedicated home theatre experience. It features a multi-point tensioning
system that ensures the surface is evenly tensioned for aperfectly flat
projecting surface. ISF certified 4K screens will bring the
big cinema experience right into your home.

• Sizes: 84" – 150"
• Installation Options: Wall Mount
• 80mm bezel

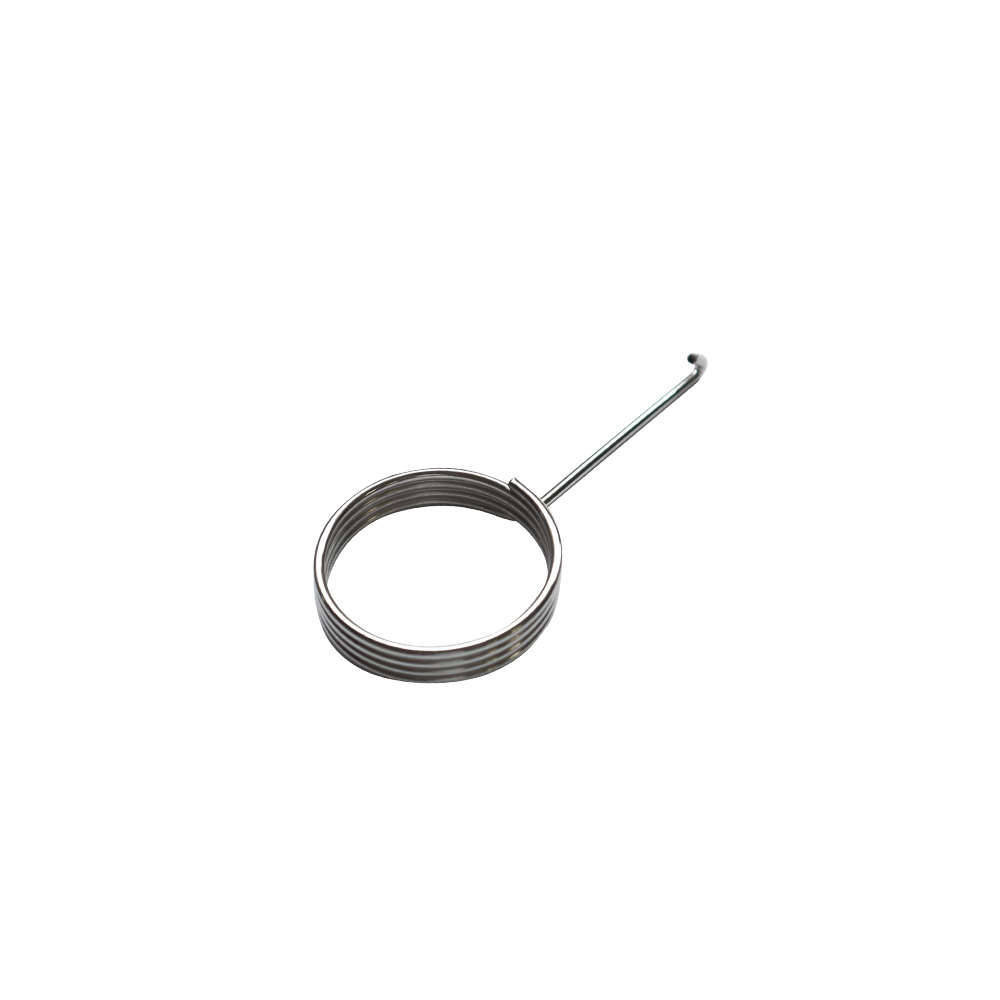

• Multi-Point Tension Design
• Aluminum Frame

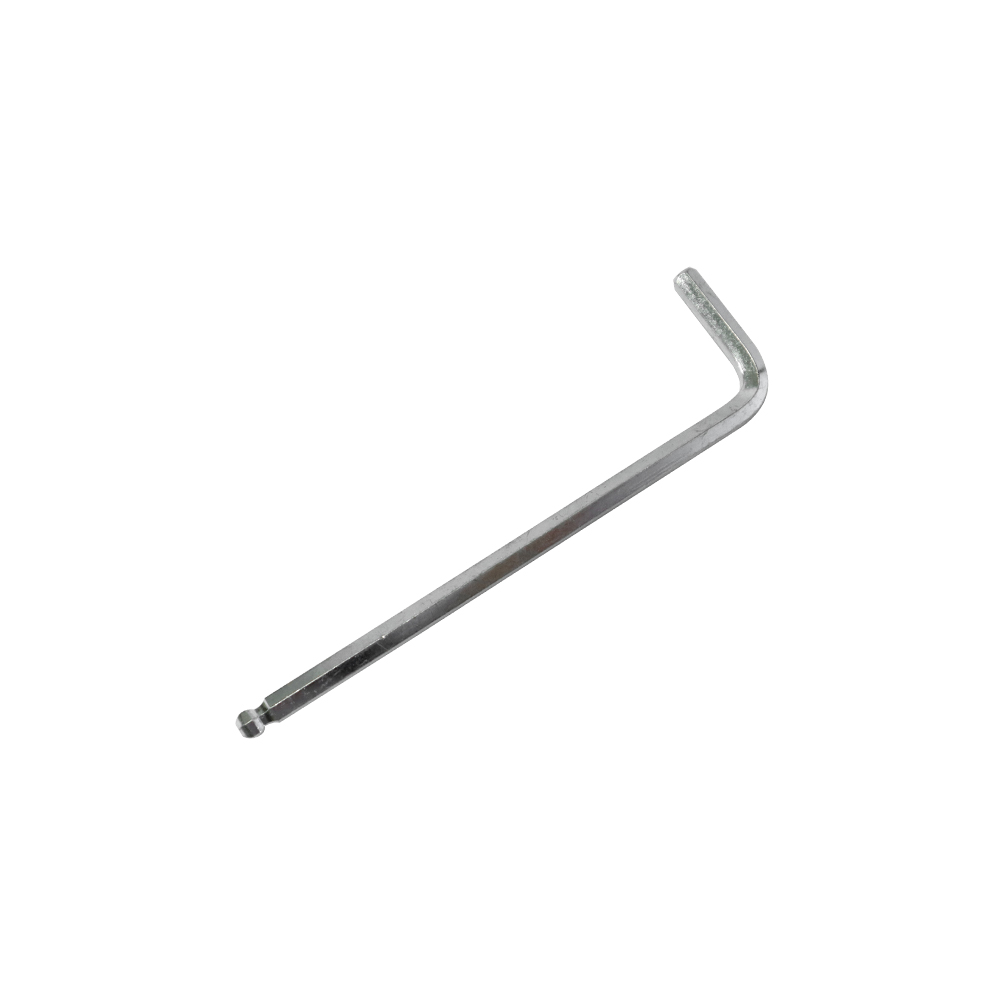

• Easy Installation
• Lightweight design

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	Diagonal Measurement	Viewing Area （W×H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	84"	1707 x 1280	1440	N/A	N/A	80	1867	N/A	N/A
	92"	1869 x 1402	1562	N/A	N/A	80	2029	N/A	N/A
	95"	1930 x 1448	1608	N/A	N/A	80	2090	N/A	N/A
	100"	2032 x 1524	1684	N/A	N/A	80	2192	N/A	N/A
	105"	2134 x 1600	1760	N/A	N/A	80	2294	N/A	N/A
	106"	2154 x 1615	1775	N/A	N/A	80	2314	N/A	N/A
	110"	2235 x 1676	1836	N/A	N/A	80	2395	N/A	N/A
	112"	2276 x 1707	1867	N/A	N/A	80	2436	N/A	N/A
	120"	2438 x 1829	1989	N/A	N/A	80	2598	N/A	N/A
	130"	2642 x 1981	2141	N/A	N/A	80	2802	N/A	N/A
	150"	3048 x 2286	2446	N/A	N/A	80	3208	N/A	N/A
16:9	84"	1859 x 1045	1205	N/A	N/A	80	2019	N/A	N/A
	92"	2037 x 1145	1305	N/A	N/A	80	2197	N/A	N/A
	95"	2103 x 1183	1343	N/A	N/A	80	2263	N/A	N/A
	100"	2214 x 1245	1405	N/A	N/A	80	2374	N/A	N/A
	105"	2324 x 1308	1468	N/A	N/A	80	2484	N/A	N/A
	106"	2346 x 1319	1479	N/A	N/A	80	2506	N/A	N/A
	110"	2435 x 1369	1529	N/A	N/A	80	2595	N/A	N/A
	112"	2479 x 1394	1554	N/A	N/A	80	2639	N/A	N/A
	120"	2656 x 1494	1654	N/A	N/A	80	2816	N/A	N/A
	130"	2878 x 1619	1779	N/A	N/A	80	3038	N/A	N/A
	133"	2944 x 1656	1816	N/A	N/A	80	3104	N/A	N/A
	145"	3210 x 1805	1965	N/A	N/A	80	3370	N/A	N/A
	150"	3320 x 1867	2027	N/A	N/A	80	3480	N/A	N/A
16:10	84"	1809 x 1131	1291	N/A	N/A	80	1969	N/A	N/A
	92"	1982 x 1239	1399	N/A	N/A	80	2142	N/A	N/A
	95"	2046 x 1279	1439	N/A	N/A	80	2206	N/A	N/A
	100"	2154 x 1346	1506	N/A	N/A	80	2314	N/A	N/A
	105"	2262 x 1414	1574	N/A	N/A	80	2422	N/A	N/A
	106"	2283 x 1427	1587	N/A	N/A	80	2443	N/A	N/A
	110"	2369 x 1481	1641	N/A	N/A	80	2529	N/A	N/A
	112"	2412 x 1508	1668	N/A	N/A	80	2572	N/A	N/A
	120"	2585 x 1615	1775	N/A	N/A	80	2745	N/A	N/A
	130"	2800 x 1750	1910	N/A	N/A	80	2960	N/A	N/A
	133"	2865 x 1790	1950	N/A	N/A	80	3025	N/A	N/A
	145"	3123 x 1952	2112	N/A	N/A	80	3283	N/A	N/A
	150"	3231 x 2019	2179	N/A	N/A	80	3391	N/A	N/A

Model	Diagonal Measurement	Viewing Area （W×H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	84"	1707 x 1280	1440	N/A	N/A	80	1867	N/A	N/A
	92"	1869 x 1402	1562	N/A	N/A	80	2029	N/A	N/A
	95"	1930 x 1448	1608	N/A	N/A	80	2090	N/A	N/A
	100"	2032 x 1524	1684	N/A	N/A	80	2192	N/A	N/A
	105"	2134 x 1600	1760	N/A	N/A	80	2294	N/A	N/A
	106"	2154 x 1615	1775	N/A	N/A	80	2314	N/A	N/A
	110"	2235 x 1676	1836	N/A	N/A	80	2395	N/A	N/A
	112"	2276 x 1707	1867	N/A	N/A	80	2436	N/A	N/A
	120"	2438 x 1829	1989	N/A	N/A	80	2598	N/A	N/A
	130"	2642 x 1981	2141	N/A	N/A	80	2802	N/A	N/A
	150"	3048 x 2286	2446	N/A	N/A	80	3208	N/A	N/A
16:9	84"	1859 x 1045	1205	N/A	N/A	80	2019	N/A	N/A
	92"	2037 x 1145	1305	N/A	N/A	80	2197	N/A	N/A
	95"	2103 x 1183	1343	N/A	N/A	80	2263	N/A	N/A
	100"	2214 x 1245	1405	N/A	N/A	80	2374	N/A	N/A
	105"	2324 x 1308	1468	N/A	N/A	80	2484	N/A	N/A
	106"	2346 x 1319	1479	N/A	N/A	80	2506	N/A	N/A
	110"	2435 x 1369	1529	N/A	N/A	80	2595	N/A	N/A
	112"	2479 x 1394	1554	N/A	N/A	80	2639	N/A	N/A
	120"	2656 x 1494	1654	N/A	N/A	80	2816	N/A	N/A
	130"	2878 x 1619	1779	N/A	N/A	80	3038	N/A	N/A
	133"	2944 x 1656	1816	N/A	N/A	80	3104	N/A	N/A
	145"	3210 x 1805	1965	N/A	N/A	80	3370	N/A	N/A
	150"	3166 x 1781	1941	N/A	N/A	80	3326	N/A	N/A
16:10	84"	1809 x 1131	1291	N/A	N/A	80	1969	N/A	N/A
	92"	1982 x 1239	1399	N/A	N/A	80	2142	N/A	N/A
	95"	2046 x 1279	1439	N/A	N/A	80	2206	N/A	N/A
	100"	2154 x 1346	1506	N/A	N/A	80	2314	N/A	N/A
	105"	2262 x 1414	1574	N/A	N/A	80	2422	N/A	N/A
	106"	2283 x 1427	1587	N/A	N/A	80	2443	N/A	N/A
	110"	2369 x 1481	1641	N/A	N/A	80	2529	N/A	N/A
	112"	2412 x 1508	1668	N/A	N/A	80	2572	N/A	N/A
	120"	2585 x 1615	1775	N/A	N/A	80	2745	N/A	N/A
	130"	2800 x 1750	1910	N/A	N/A	80	2960	N/A	N/A
	133"	2865 x 1790	1950	N/A	N/A	80	3025	N/A	N/A
	145"	3123 x 1952	2112	N/A	N/A	80	3283	N/A	N/A
	150"	3231 x 2019	2179	N/A	N/A	80	3391	N/A	N/A
