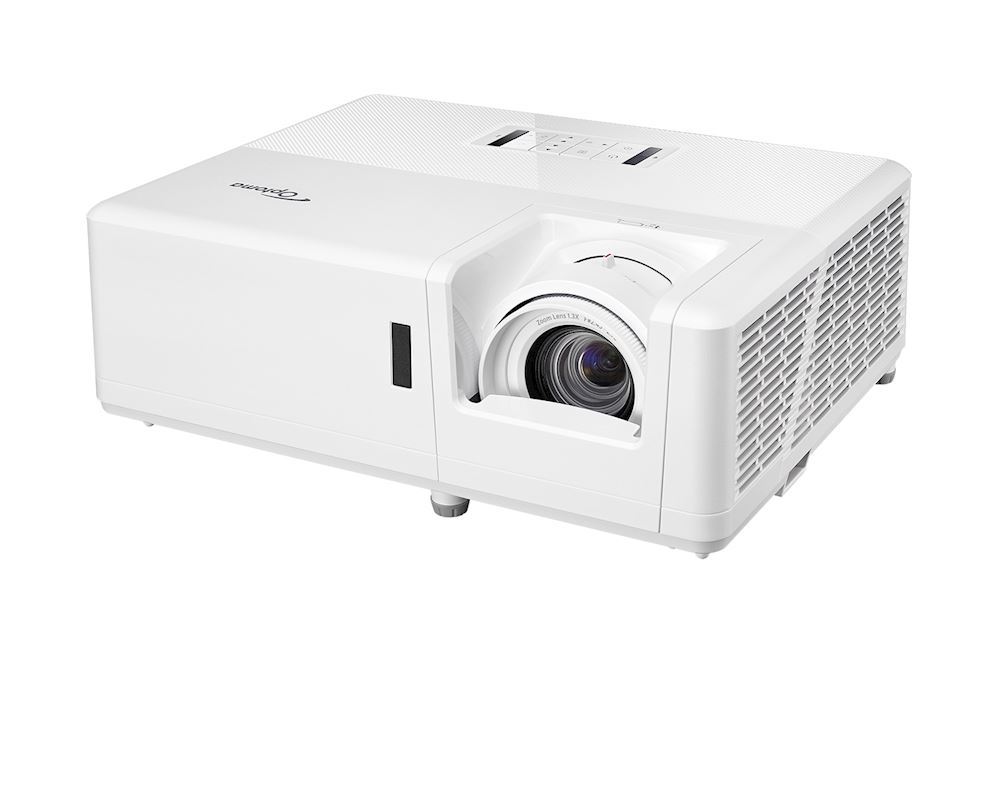

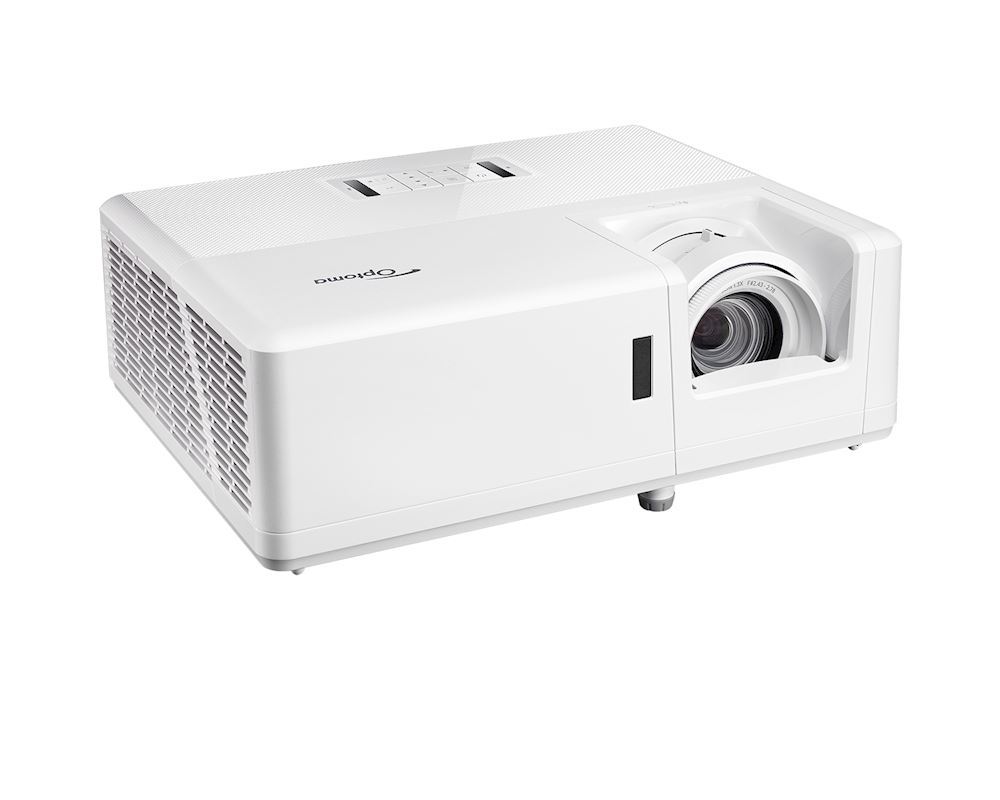

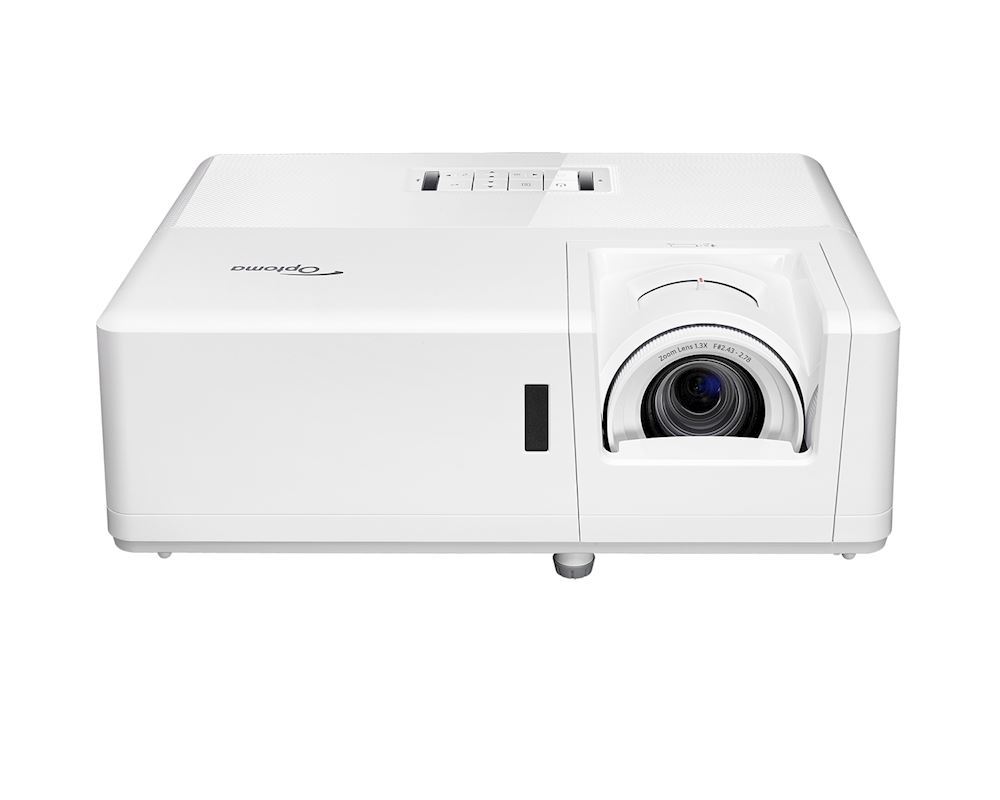

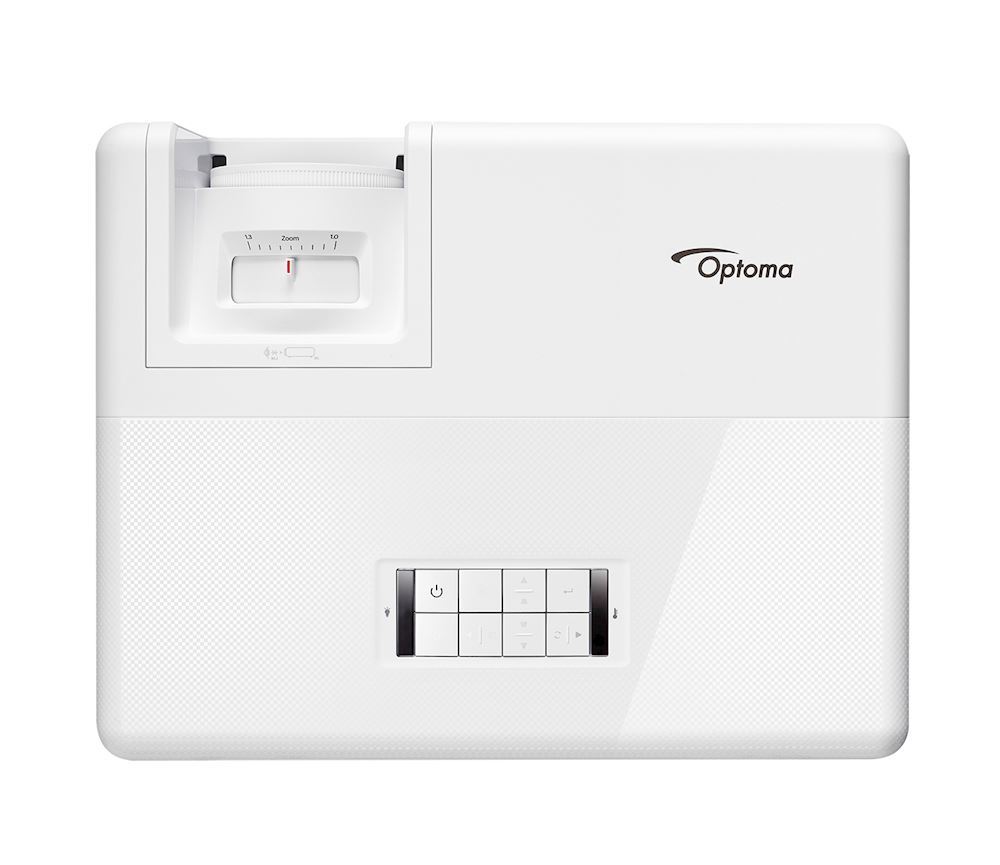

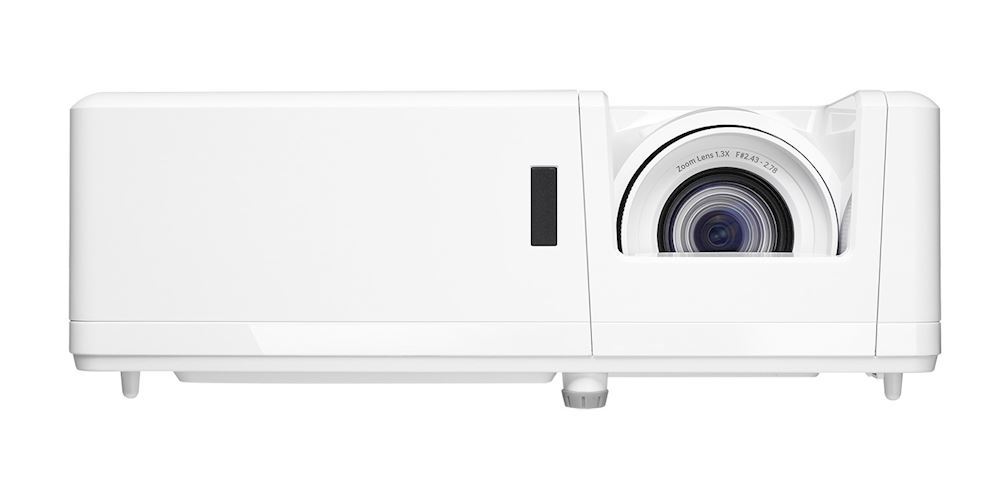

The ZW400 is a compact WXGA DuraCore IP6X laser projector. Designed for maintenance-free
continuous operation, it can be installed in virtually any orientation. Its small and lightweight
footprint, 1.3x zoom combined with 360-degree and portrait projection make it a breeze to install.
This feature-packed projector is 4K and HDR compatible, has a built-in speaker and its laser
technology delivers up to 30,000 hours maintenance-free laser light source. For ultimate
control, the projector comes with RJ45 connection allowing you to monitor and control your
network in multiple rooms.
Geared for medium-sized exhibition venues, events, tradeshows or meeting rooms, it maintains
excellent image quality as brightness and colour saturation is preserved for longer compared
to lamp systems.
Industry leading long lifetime is achieved using Optoma’s DuraCore
technology. Implementing advanced laser diode cooling techniques and
an innovative dust resistant design.
Independently tested and certified to IEC standard 60529 with an IP6X
dust resistance rating. Outstanding dust resistance combined with
exceptional brightness ensures industry leading durability; paramount for
24/7 maintenance free operation in challenging environments.
Capable of receiving and displaying HDR meta data, Optoma HDR
compatible projectors allow you to see far more detail and texture. Objects
look more solid and life-like and the extra detail creates a greater sense of
depth. It’s like looking through a window.
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP
projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear -
ideal for business and education applications.
Optoma projectors provide reliable color performance suitable for any
content and environment. From accurate sRGB colors for lifelike images to
vibrant punchy presentations. We have a display mode to specifically meet
your needs. Perfect for a range of graphic and video presentations.
Ideal for digital signage applications; you can rotate your projector 90
degrees to project a portrait image.
With 360° projection,* images can be displayed in any orientation, giving
you the freedom and versatility to install this projector in the desired
location.
*For more information please refer to the user manual
Featuring a wide range of options you can control and monitor the
projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232
commands making it simple and easy to manage using any control
system.
• AMX compatible Dynamic discovery protocol is incorporated into the
projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can
power on/off, monitor, manage and control up to 250 projectors at the
same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control
systems
PJLink protocol is incorporated into the projector allowing for easy
installation with PJLink compatible control systems.
This model is able to receive comands via telenet allowing for easy
installation with Telnet compatible control systems.
Optoma projectors can display true 3D content from almost any 3D
source, including 3D compatible graphics cards, 3D broadcasting and the
latest generation 3d media servers.
A powerful built-in speaker provides exceptional sound quality and an
easy setup without the need for costly external speakers.
Use the USB-A port to power an HDMI dongle, such as Google
Chromecast.
Stay in control of your presentation with AV mute. Direct your audience's
attention away from the screen by blanking the image when not needed.
There may be instances when the projector is left running when not in use.
To help save energy, the "auto power off" feature automatically turns off
the projector after a set period of time if it is not being used
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the
projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the
projector to cool down before turning it off.
Optoma projectors have been designed to operate 24 hours a day in
standard orientation. Perfect for applications where prolonged periods of
use is required. Subject to 24 hour terms and conditions.
24/7 Operation - standard lamp warranty applies. Projector warranty is
based on standard business usage hours. For optimum performance
Optoma recommends that your projector is turned off or placed in standby
mode for 30 minutes every 24 hours to prolonging the life of your lamp.
| Display technology |
DLP®
|
| Resolution |
WXGA (1280x800)
|
| Brightness |
4,000 lumens
|
| Contrast ratio |
300,000:1
|
| Native aspect ratio |
16:10
|
| Aspect ratio - compatible |
4:3,16:9
|
| Keystone correction - vertical |
+/-40°
|
| Has vertical auto keystone correction |
Yes
|
| Displayable colors (millions) |
1073.4
|
| Horizontal scan rate |
15.375 ~ 91.146 Khz
|
| Vertical scan rate |
50 ~ 85 Hz (120Hz for 3D)Hz
|
| Uniformity |
85%
|
| Screen size |
30" ~ 301" diagonal
|
| Light source type |
Laser
|
| LASER life |
30,000 hours
|
| Throw ratio |
1.18:1 ~ 1.54:1
|
| Projection distance |
39.37" - 303.15"
|
| Zoom |
1.3
|
| Zoom type |
Manual
|
| Focal length (mm) |
16.901mm~21.6076mm/0.665"~0.851"
|
| Native offset |
113%
|

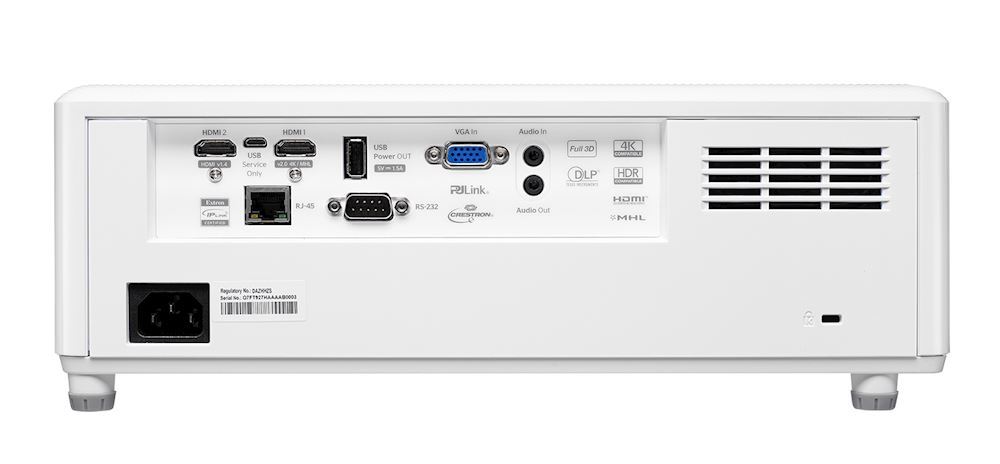

| Connections |
|
| Noise level (min) |
30dB
|
| Noise level (max) |
32dB
|
| PC compatibility |
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p,
720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| IP rating |
IP6X
|
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian,
Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 24/7 operation |
Yes
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| Remote control |
Data remote with laser and mouse function
|
| Speaker count |
1
|
| Watts per speaker |
10W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Optional wireless models |
UHDCast Pro
|
| LAN - control |
Yes
|
| Power supply |
100V ~ 240V, 50-60Hz
|
| Power consumption (standby) |
<0.5W
|
| Power consumption (min) |
157W
|
| Power consumption (max) |
211W
|
| Dimensions (W x D x H) |
13.27" x 10.43" x 4.82"
|
| Gross weight |
14.55 lbs
|
| Net weight |
9.4 lbs
|
