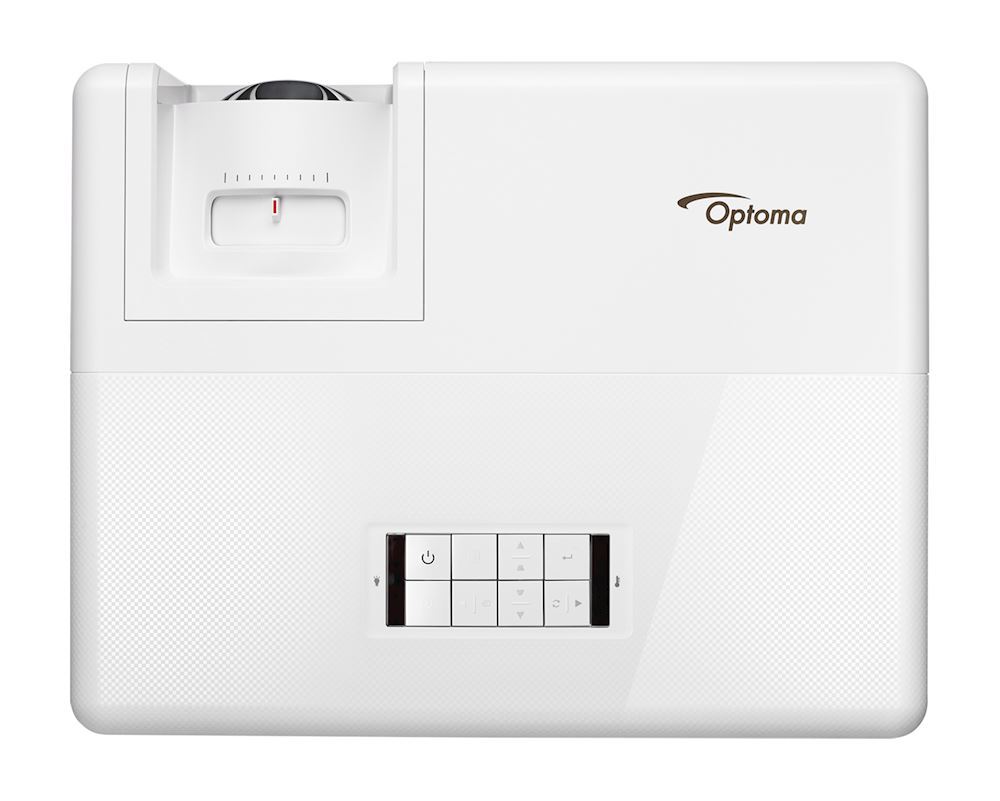

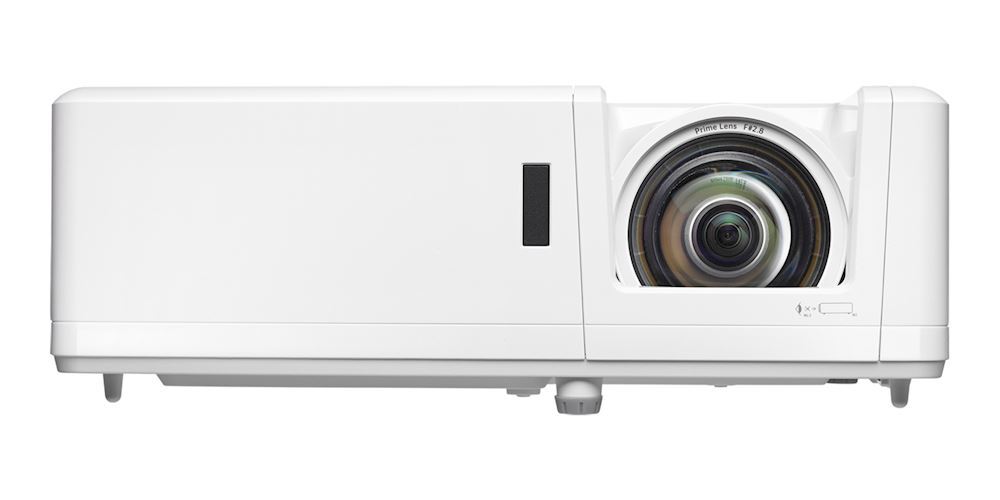

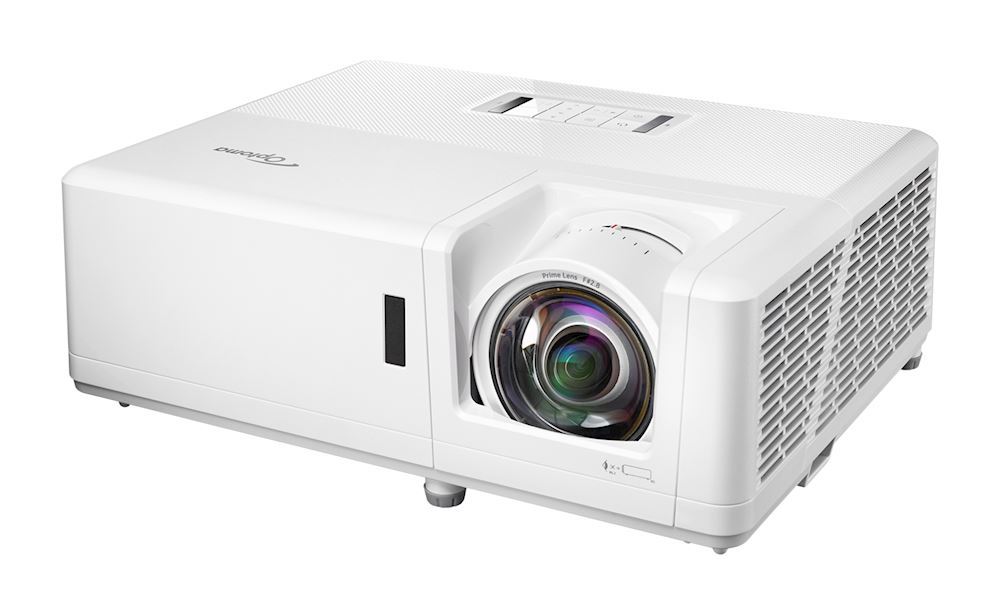

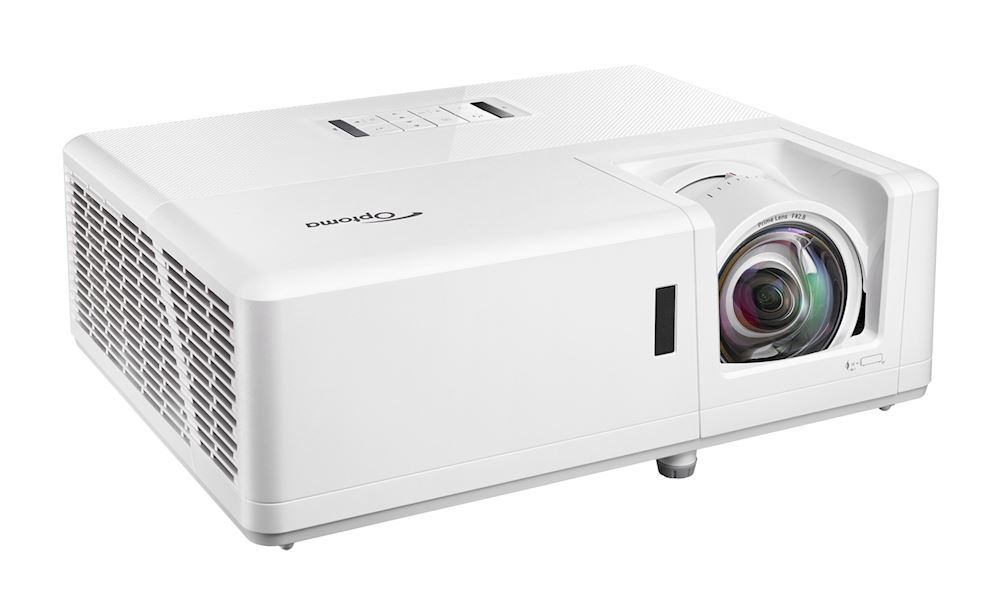

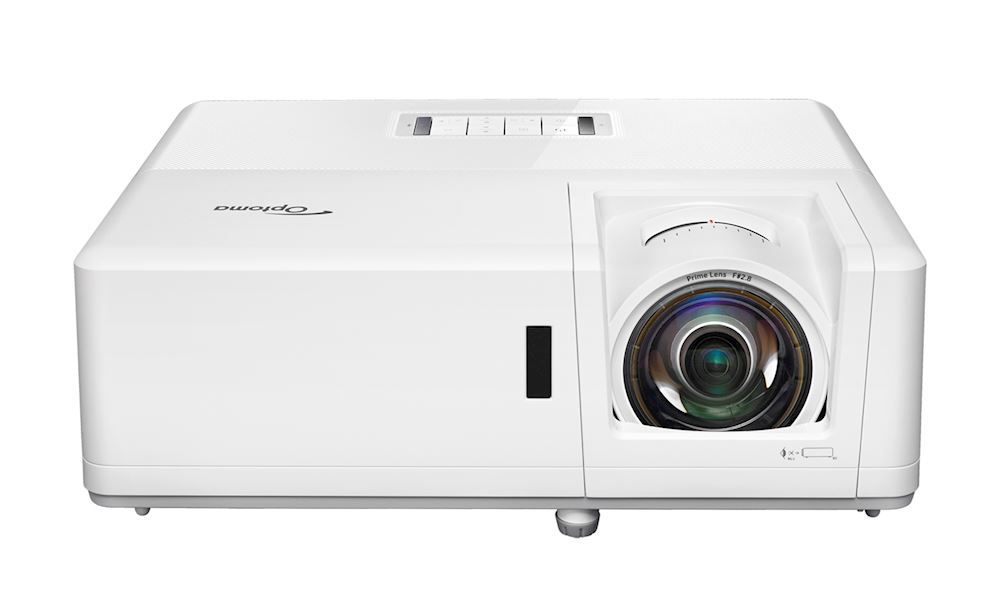

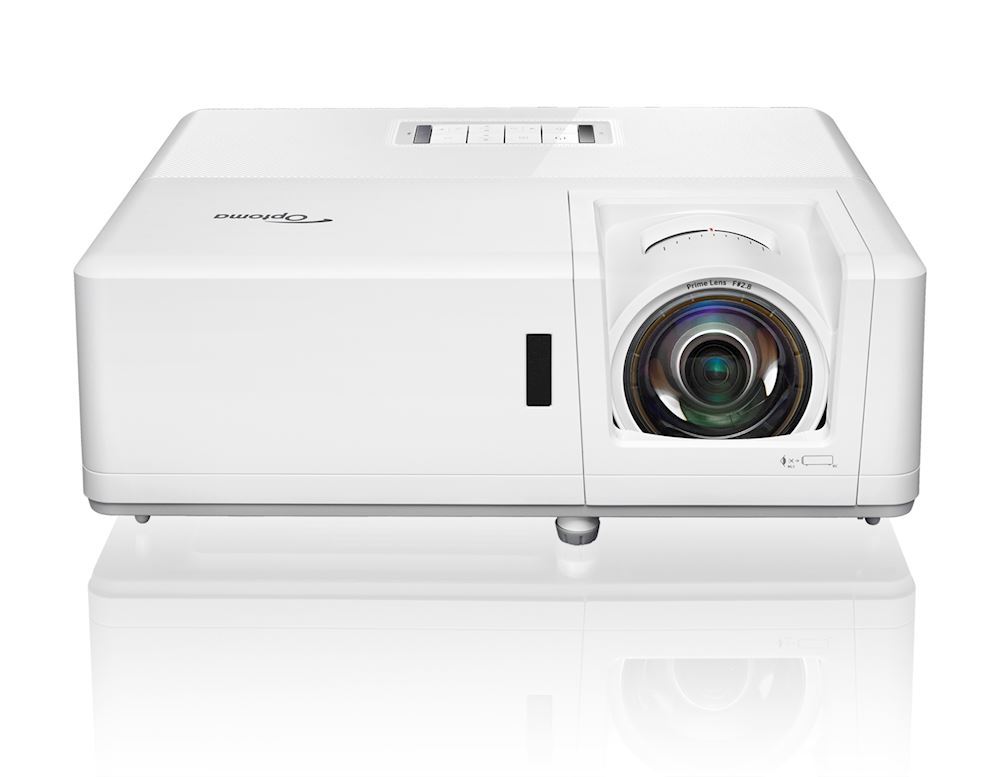

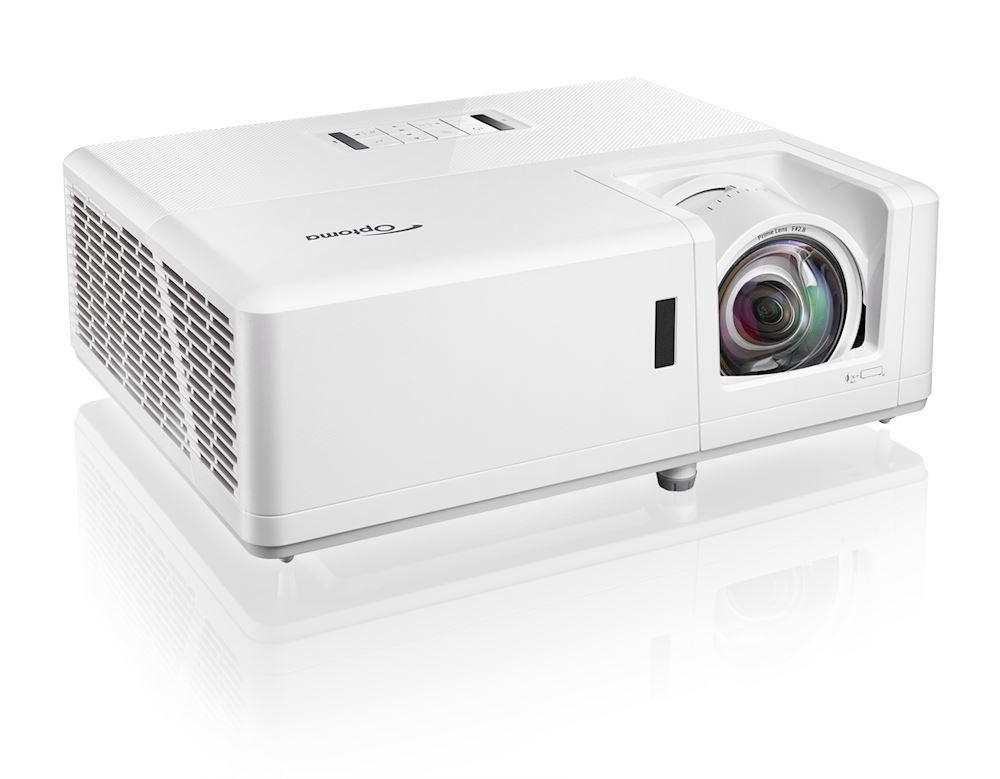

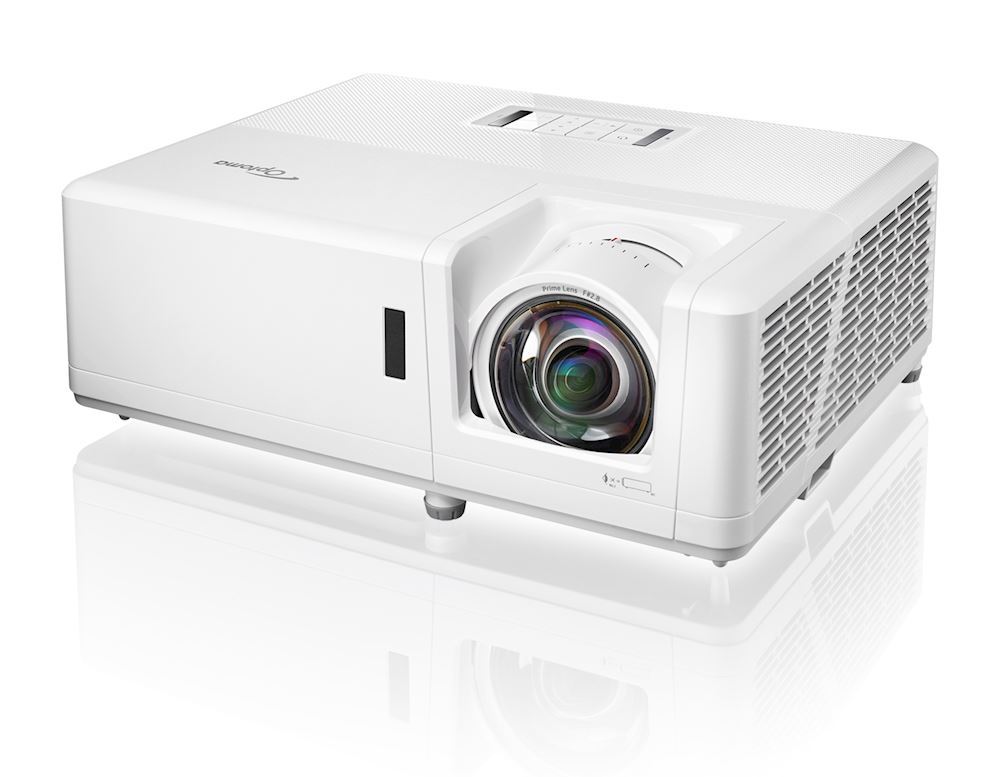

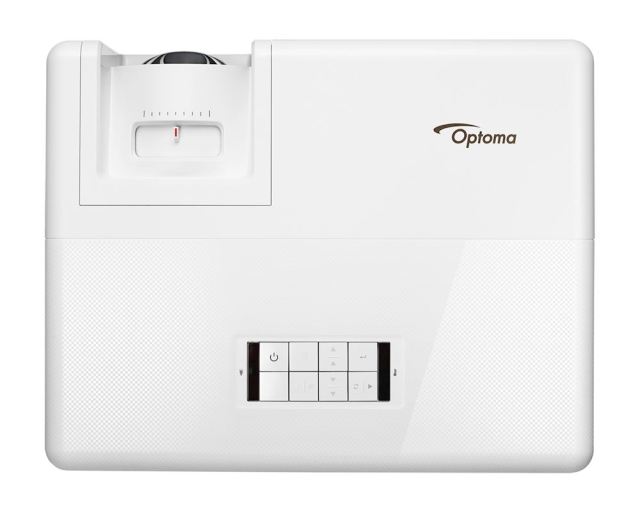

The ZH406STx is a compact short throw Full HD 1080p DuraCore laser projector. Designed
for virtually maintenance-free, continuous operation it can be installed in almost any
orientation.
Feature packed, this compact laser projector has built-in speakers, is 4K and HDR compatible,
and is low maintenance with extremely long-life laser technology.

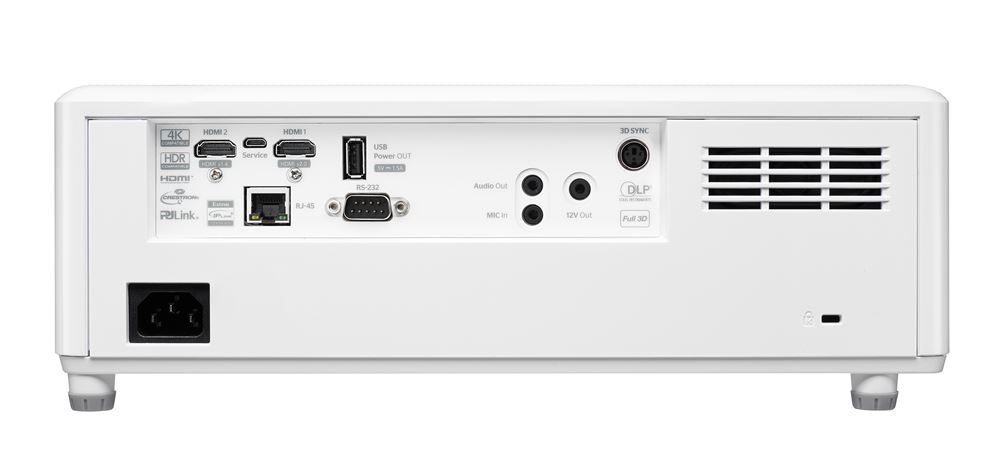

For ultimate control, the projector comes with RJ45 connection allowing you to monitor and
control your network in multiple rooms. Perfect for business, education and museums where
a clear, bright image is required.
With a short throw lens, you can project an impressive 100” image from just over a meter away. This allows you to
place the projector closer to the wall, reducing shadows so you can present with ease.
Industry leading long lifetime is achieved using Optoma’s DuraCore
technology. Implementing advanced laser diode cooling techniques and
an innovative dust resistant design.
Independently tested and certified to IEC standard 60529 with an IP6X
dust resistance rating. Outstanding dust resistance combined with
exceptional brightness ensures industry leading durability; paramount for
24/7 maintenance free operation in challenging environments.
1080p resolution gives you sharp and detailed images from HD content
without downscaling or compression; perfect for watching Blu-ray movies,
HD broadcasting and playing video games.
Capable of receiving and displaying HDR meta data, Optoma HDR
compatible projectors allow you to see far more detail and texture. Objects
look more solid and life-like and the extra detail creates a greater sense of
depth. It’s like looking through a window.
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP
projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear -
ideal for business and education applications.
Optoma projectors provide reliable color performance suitable for any
content and environment. From accurate sRGB colors for lifelike images to
vibrant punchy presentations. We have a display mode to specifically meet
your needs. Perfect for a range of graphic and video presentations.
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to
create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and
needs to be installed at an angle.
Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis,
or the desired projection surface is not perfectly flat.
*Auto keystone only adjusts the image in the vertical plane.
Ideal for digital signage applications; you can rotate your projector 90
degrees to project a portrait image.
With 360° projection,* images can be displayed in any orientation, giving
you the freedom and versatility to install this projector in the desired
location.
*For more information please refer to the user manual
Featuring a wide range of options you can control and monitor the
projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232
commands making it simple and easy to manage using any control
system.
• AMX compatible Dynamic discovery protocol is incorporated into the
projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can
power on/off, monitor, manage and control up to 250 projectors at the
same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control
systems
PJLink protocol is incorporated into the projector allowing for easy
installation with PJLink compatible control systems.
This model is able to receive comands via telenet allowing for easy
installation with Telnet compatible control systems.
Optoma projectors can display true 3D content from almost any 3D
source, including 3D compatible graphics cards, 3D broadcasting and the
latest generation 3d media servers.
Complete your home entertainment experience with the convenience of a
powerful built-in speaker for exceptional sound quality and an easy set up
without the need for costly external speakers.
Use the USB-A port to power an HDMI dongle, such as Google
Chromecast.
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.
There may be instances when the projector is left running when not in use.
To help save energy, the "auto power off" feature automatically turns off
the projector after a set period of time if it is not being used
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the
projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the
projector to cool down before turning it off.
Optoma projectors have been designed to operate 24 hours a day in
standard orientation. Perfect for applications where prolonged periods of
use is required. Subject to 24 hour terms and conditions.
24/7 Operation - standard lamp warranty applies. Projector warranty is
based on standard business usage hours. For optimum performance
Optoma recommends that your projector is turned off or placed in standby
mode for 30 minutes every 24 hours to prolonging the life of your lamp.
Have your projector in any color. Chose from any RAL color. Perfect for
bespoke installations. *Contact us for more information"
| Display technology |
DLP®
|
| Resolution |
1080p Full HD (1920x1080)
|
| Brightness |
4,200 lumens
|
| Contrast ratio |
300,000:1
|
| Native aspect ratio |
16:9
|
| Aspect ratio - compatible |
4:3
|
| Keystone correction - horizontal |
+/-15°
|
| Keystone correction - vertical |
+/-15°
|
| Has vertical auto keystone correction |
Yes
|
| Displayable colors (millions) |
1073.4
|
| Horizontal scan rate |
15.375 ~ 91.146 Khz
|
| Vertical scan rate |
50 ~ 120HzHz
|
| Uniformity |
80%
|
| Screen size |
36.4" ~ 300.5" diagonal
|
| Light source type |
Laser
|
| LASER life |
30,000 hours
|
| Throw ratio |
0.5:1
|
| Projection distance |
15.75" - 129.92"
|
| Zoom type |
Fixed
|
| Focal length (mm) |
7.51mm/0.296"
|
| Native offset |
115%
|
| Connections |
|
| Noise level (min) |
30dB
|
| Noise level (max) |
32dB
|
| PC compatibility |
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| IP rating |
IP6X
|
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| 24/7 operation |
Yes
|
| 360° operation |
Yes
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| Remote control |
Backlit ProAV remote
|
| Heat dissipation |
918BTU/hour
|
| Speaker count |
2
|
| Watts per speaker |
10W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Optional wireless models |
UHDCast Pro, QuickCast Bundle, QuickCast starter kit
|
| LAN - control |
Yes
|
| Power supply |
100 ~ 240V, 50 ~ 60Hz
|
| Power consumption (standby) |
<0.5W
|
| Power consumption (min) |
206W
|
| Power consumption (max) |
269W
|
| Dimensions (W x D x H) |
13.27" x 10.43" x 4.82"
|
| Gross weight |
13.71 lbs
|
| Net weight |
10.03 lbs
|
