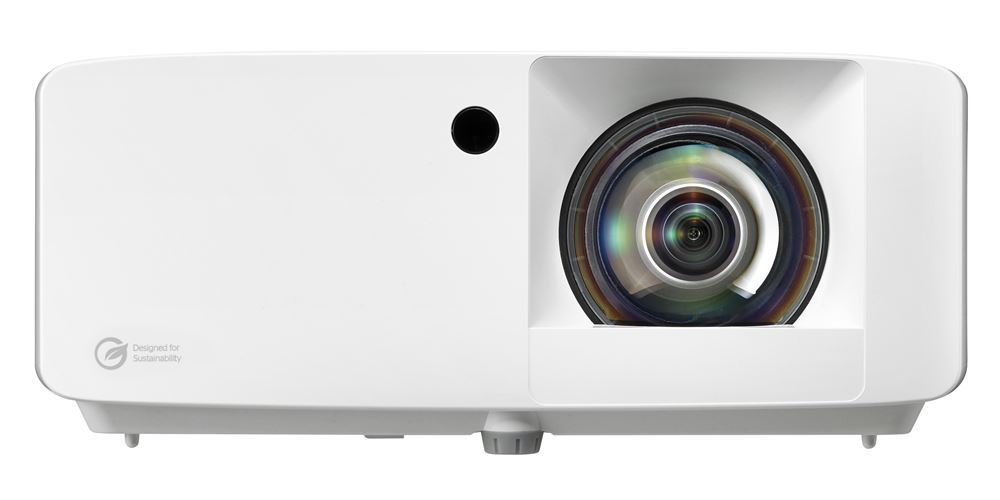

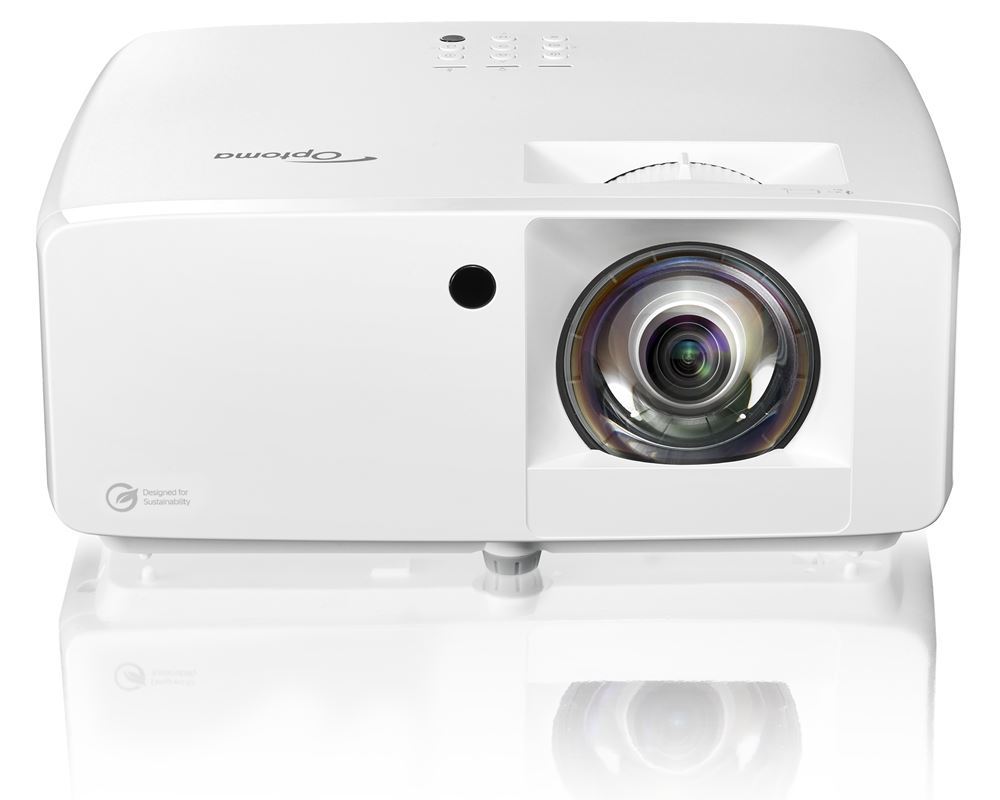

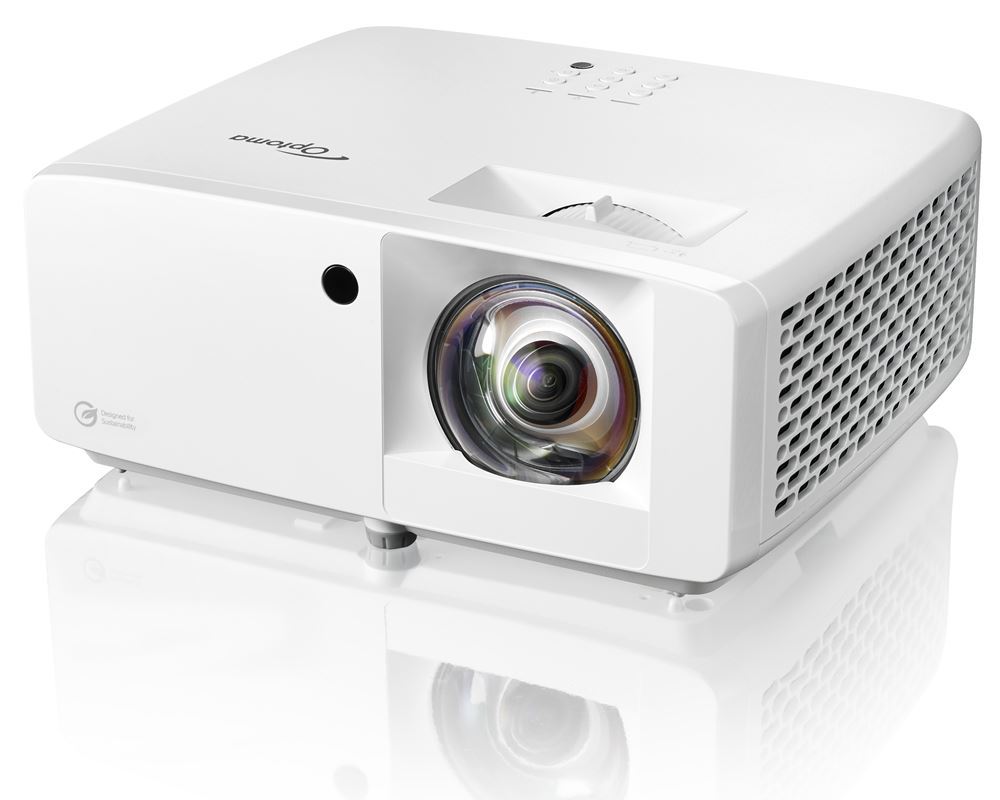

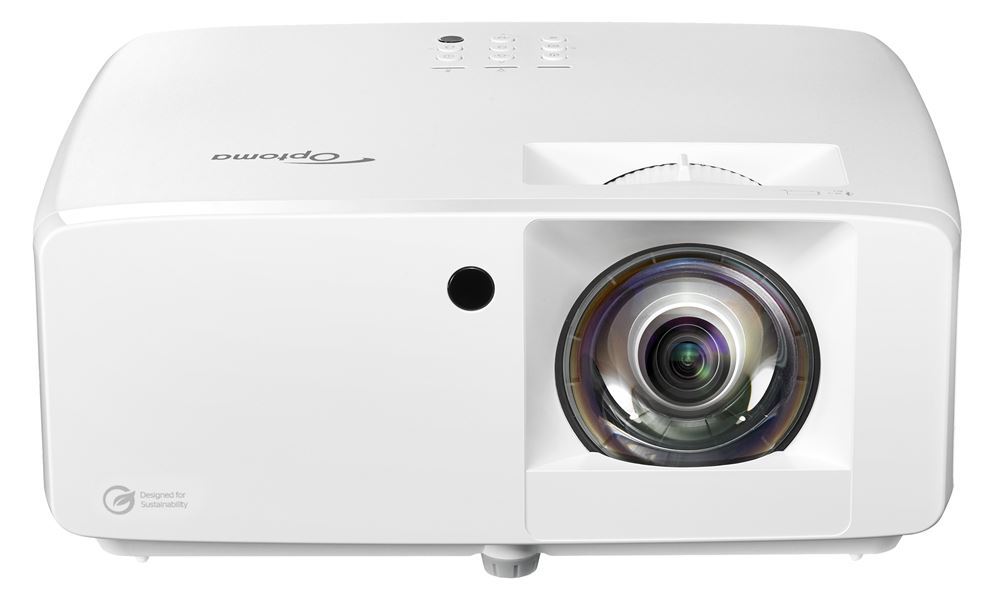

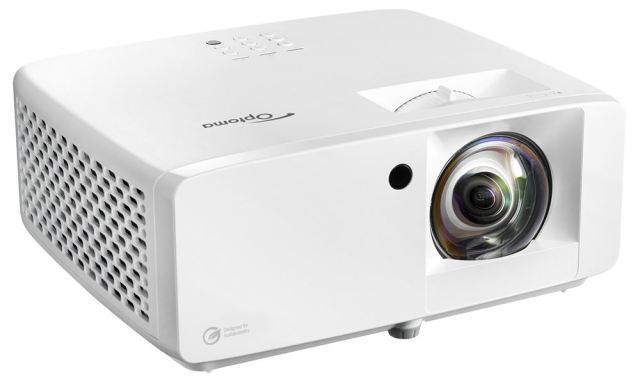

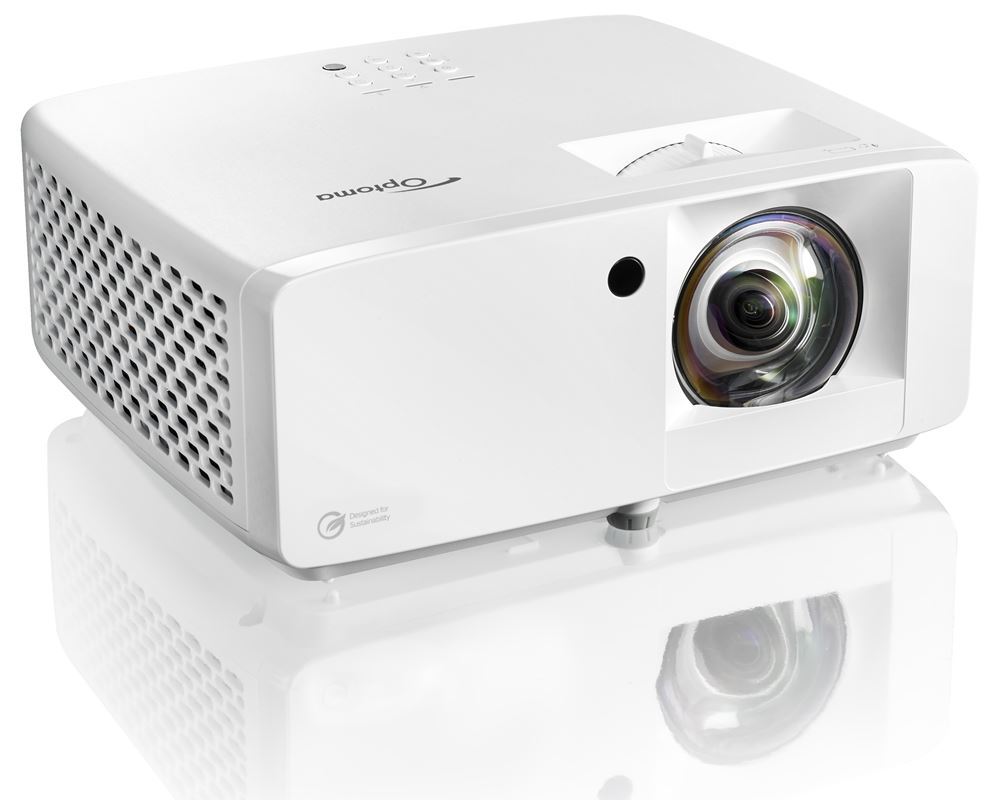

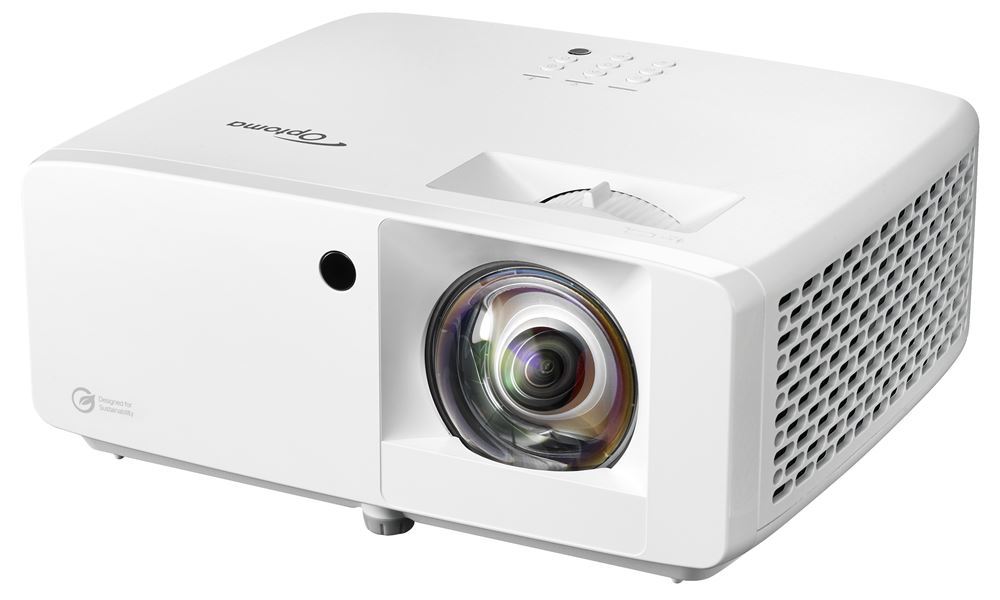

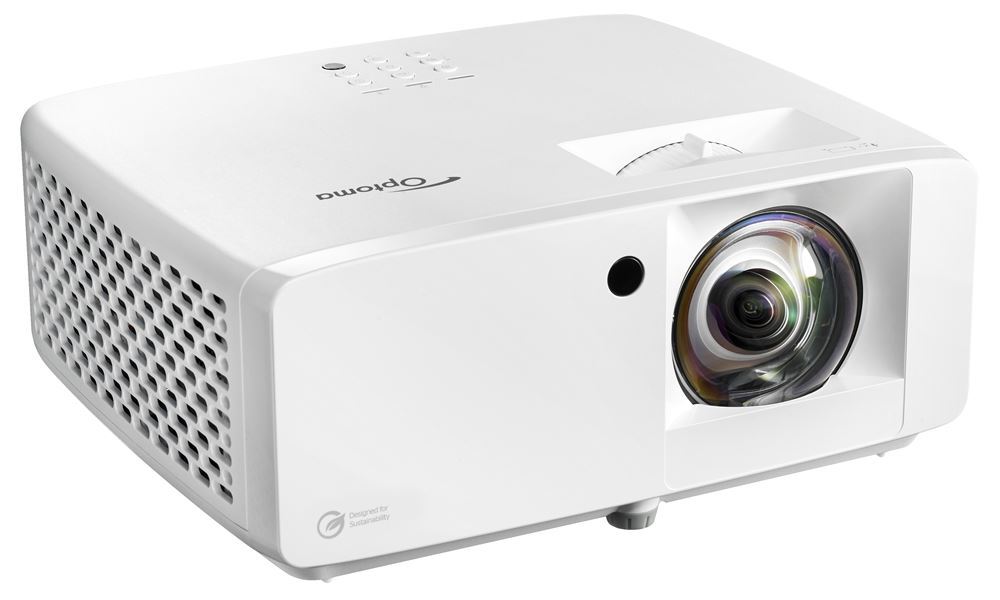

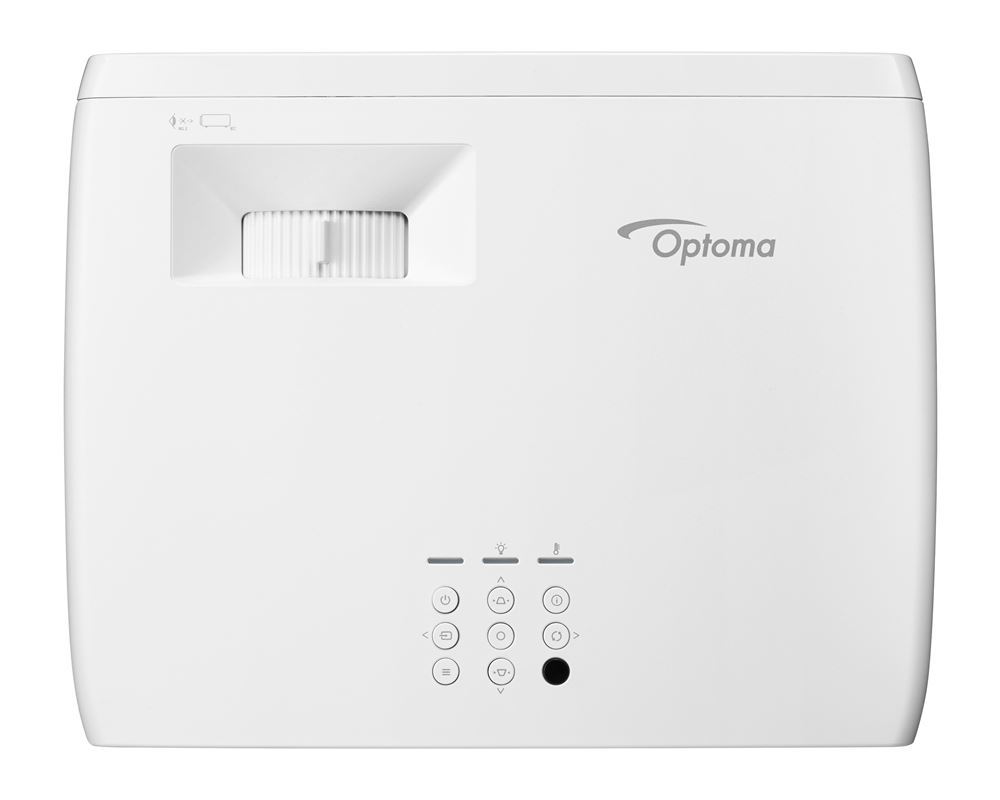

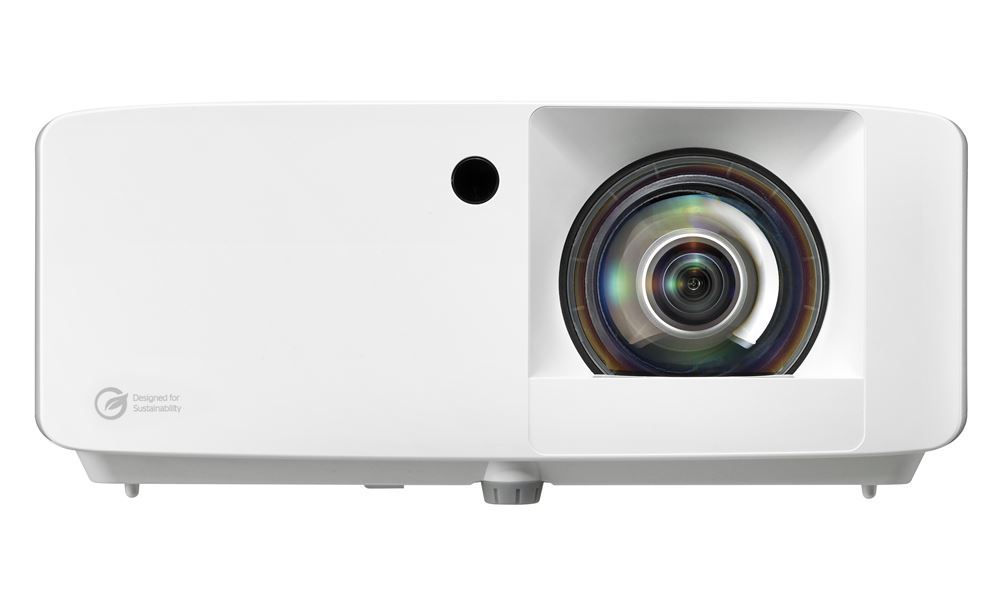

The ZH400ST is one of Optoma's most compact and hassle-free Full HD 1080p DuraCore laser
projectors to date. Designed for maintenance-free continuous operation, this 4000-lumen
projector delivers powerful image performance with flexible installation features and extensive
connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹
To support Optoma’s commitment to sustainability, the ZH400ST cuts power
consumption by up to 45% compared to Optoma’s lamp-based projectors.² Energy-
saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours
without the need for additional lamps, requires minimal maintenance, and is mercury-free,
further lowering its carbon footprint.
Installation and setup are simple with four corner adjustment and the added benefit of an
external power supply, offering more reliability, portability and energy efficiency.
Designed with the environment in mind, the eco-friendly chassis design is made with up
to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97%
recyclable materials.³ In addition, the compact product and packaging size of the Optoma
ZH430UST projector allows 2x more products carried per container, resulting in more
efficient logistics to help further reduce carbon emissions.¹
Geared for conference rooms, boardrooms, and other corporate spaces, the ZH430UST
features an ultra short throw lens meaning it can project a 100” image from less than 0.5m
away, avoiding shadows being cast across the screen from the presenter(s). For ultimate
convenience it comes with an RS232 connection for monitoring and controlling and a
built-in speaker.
We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.
Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design,
manufacturing, logistics, and usage, to packaging.
Reduces power consumption by up to 47% compared to lamp-based
solutions.
Compact products made with fewer materials to minimize logistical
environmental impact.
Packaging contains up to 97% recyclable materials.
Made from non-hazardous and recycled materials.
This versatile projector combines high brightness and vivid colors for vibrant, true-to-life visuals in any environment*.
Make a lasting impression with bigger and bolder presentations any time of day.
*With no direct sunlight or lights directed on screen.
Optoma laser projectors use high-quality lasers to create the projected
image. In many situations the perceived brightness from laser illumination
projectors can be twice that of an equivalent lamp-based model. They
also deliver increased efficiency to maintain consistent brightness,
superior color performance, instant on/off and an extraordinary life span of
up to 30,000 hours.
Industry leading long lifetime is achieved using Optoma’s DuraCore
technology. Implementing advanced laser diode cooling techniques and
an innovative dust resistant design.
With a short throw lens, you can project an impressive 100” image from just over a meter away. This allows you to
place the projector closer to the wall, reducing shadows so you can present with ease.
1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect
for watching Blu-ray movies, HD broadcasting and playing video games.
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector
allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater
sense of depth.
Give powerful presentations and educational lessons with stunning colors. Optoma projectors provide reliable color
performance suitable for any content and environment. From accurate sRGB colors for lifelike images to vibrant punchy
presentations. We have a display mode to meet your needs. Perfect for a wide range of graphic and video
presentations.
Peace of mind
Optoma Management Suite (OMS Local)™ encompasses all Optoma display solutions in a single location to serve as
an interface for simultaneously managing, monitoring and diagnosing issues across them all. Whether it's multiple
devices in a school, exhibition hall or office space, OMS local is perfect for keeping in control.
OMS™ Local also helps to alert users when a problem arises, and for an extra layer of readiness, institutions can also
use this platform to set alerts and broadcast emergency announcements.
Featuring a wide range of options you can control and monitor the
projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232
commands making it simple and easy to manage using any control
system.
• AMX compatible Dynamic discovery protocol is incorporated into the
projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can
power on/off, monitor, manage and control up to 250 projectors at the
same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control
systems
With 360° projection,* images can be displayed in any orientation, giving
you the freedom and versatility to install this projector in the desired
location.
*For more information please refer to the user manual
Optoma projectors can display true 3D content from almost any 3D
source, including 3D compatible graphics cards, 3D broadcasting and the
latest generation 3d media servers.
Optoma projectors have been designed to operate 24 hours a day in
standard orientation. Perfect for applications where prolonged periods of
use is required. Subject to 24 hour terms and conditions.
24/7 Operation - standard lamp warranty applies. Projector warranty is
based on standard business usage hours. For optimum performance
Optoma recommends that your projector is turned off or placed in standby
mode for 30 minutes every 24 hours to prolonging the life of your lamp.
There may be instances when the projector is left running when not in use.
To help save energy, the "auto power off" feature automatically turns off
the projector after a set period of time if it is not being used
Complete your home entertainment experience with the convenience of a
powerful built-in speaker for exceptional sound quality and an easy set up
without the need for costly external speakers.
Use the USB-A port to power an HDMI dongle, such as Google
Chromecast.
| Display technology |
DLP®
|
| Resolution |
1080p Full HD (1920x1080)
|
| Brightness |
4,000 lumens
|
| Contrast ratio |
300,000:1
|
| Contrast ratio - dynamic |
2,000,000:1
|
| Native aspect ratio |
16:9
|
| Aspect ratio - compatible |
4:3,16:9,16:10
|
| Keystone correction - horizontal |
+/-30°
|
| Keystone correction - vertical |
+/-30°
|
| Displayable colors (millions) |
1073.4
|
| Horizontal scan rate |
15 ~ 140Khz
|
| Vertical scan rate |
24 ~ 120Hz
|
| Uniformity |
75%
|
| Screen size |
36" ~ 292" diagonal
|
| Light source type |
Laser
|
| LASER life |
30,000 hours
|
| Throw ratio |
0.496:1
|
| Projection distance |
15.75" - 125.98"
|
| Zoom type |
Fixed
|
| Focal length (mm) |
7.51
|
| Native offset |
116%
|

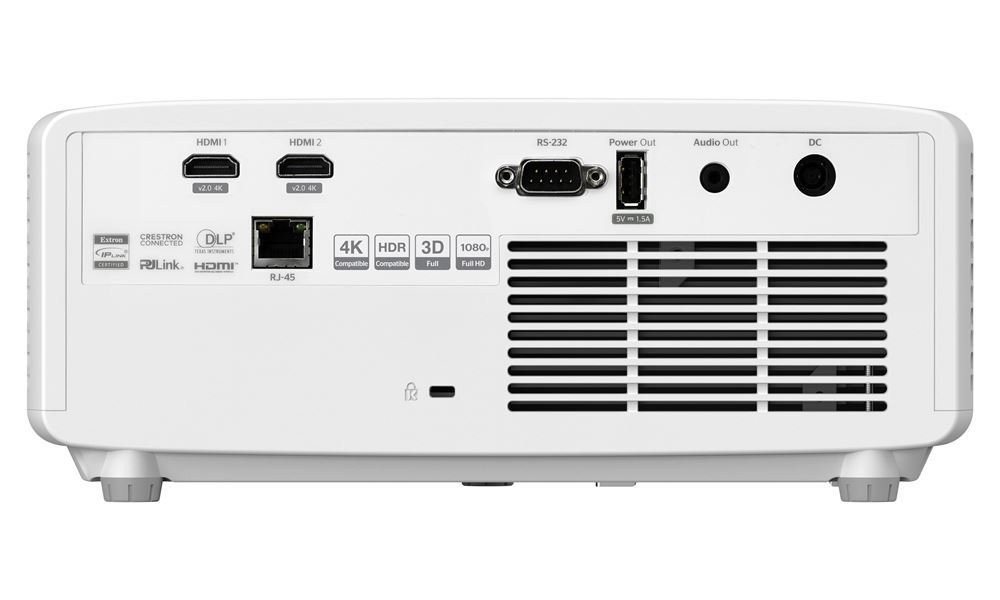

| Connections |
|
| Noise level (min) |
29dB
|
| Noise level (max) |
36dB
|
| PC compatibility |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| 3D compatibility |
Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)ver-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| IP rating |
IP6X
|
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| 24/7 operation |
Yes
|
| 360° operation |
Yes
|
| Operating conditions |
0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m
|
| Remote control |
Card style
|
| Speaker count |
1
|
| Watts per speaker |
15W
|
| In the box |
AC power cord
Remote control 1x CR2025 battery Basic user manual |
| Optional wireless models |
UHDCast Pro
|
| Power supply |
External power supply, 100V ~ 240V, 50-60Hz
|
| Power consumption (standby) |
<0.5W
|
| Power consumption (min) |
119W
|
| Power consumption (max) |
173W
|
| Dimensions (W x D x H) |
10.79" x 8.5" x 4.49"
|
| Gross weight |
9.26 lbs
|
| Net weight |
6.61 lbs
|
