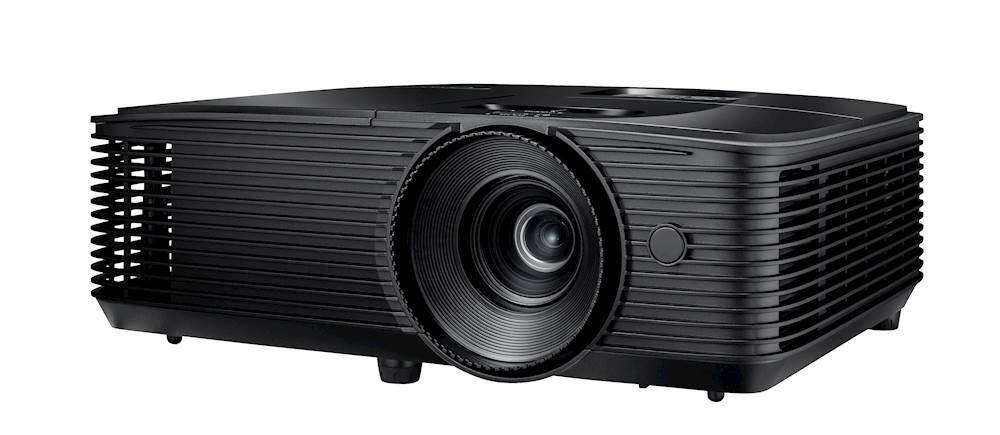

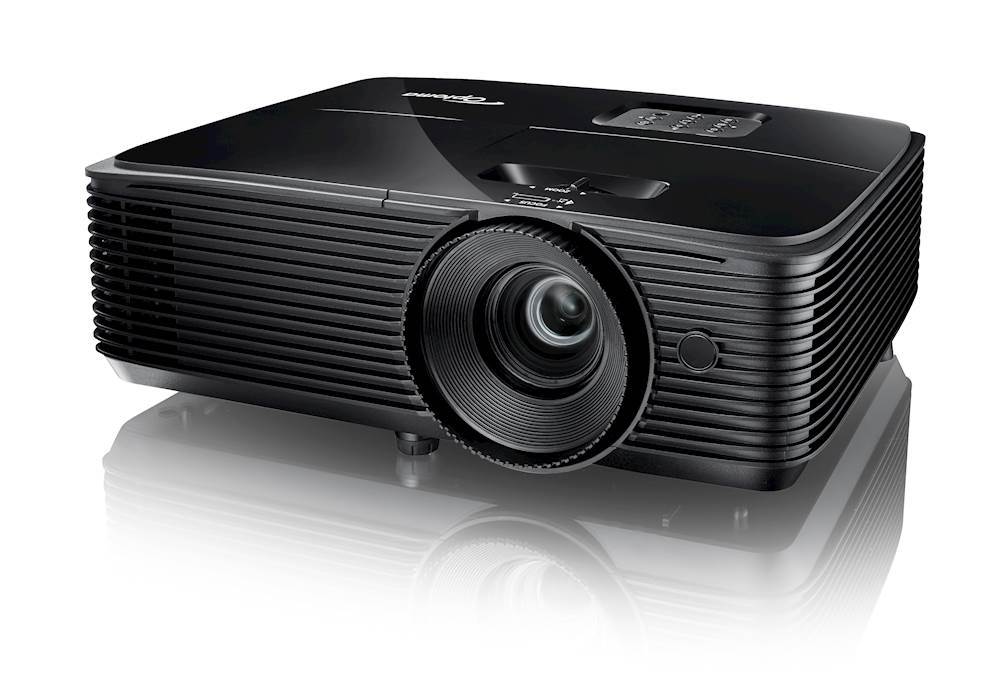

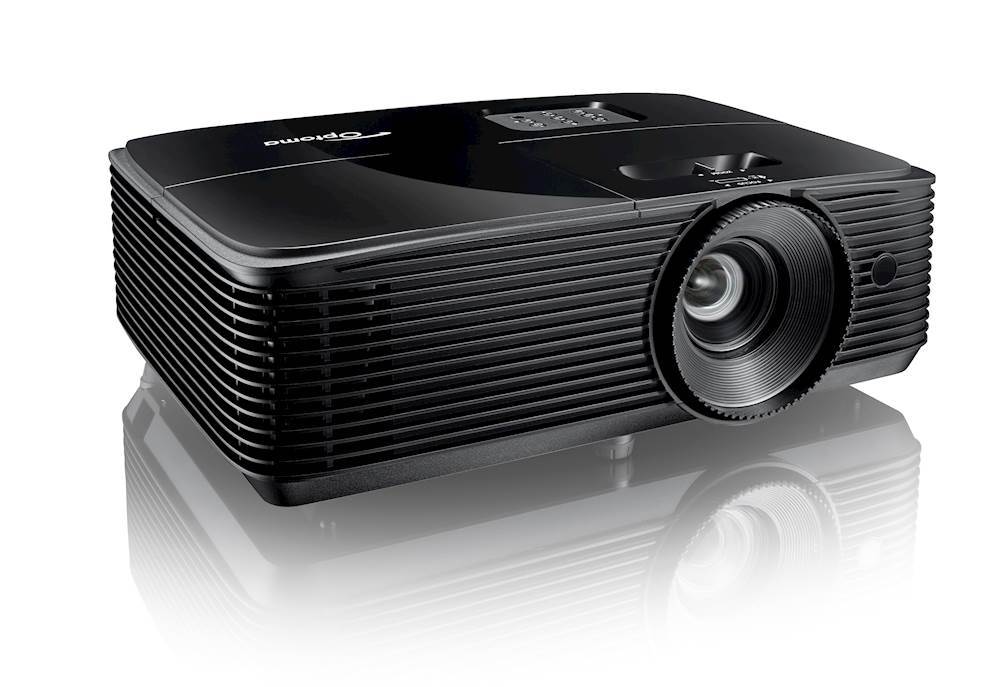

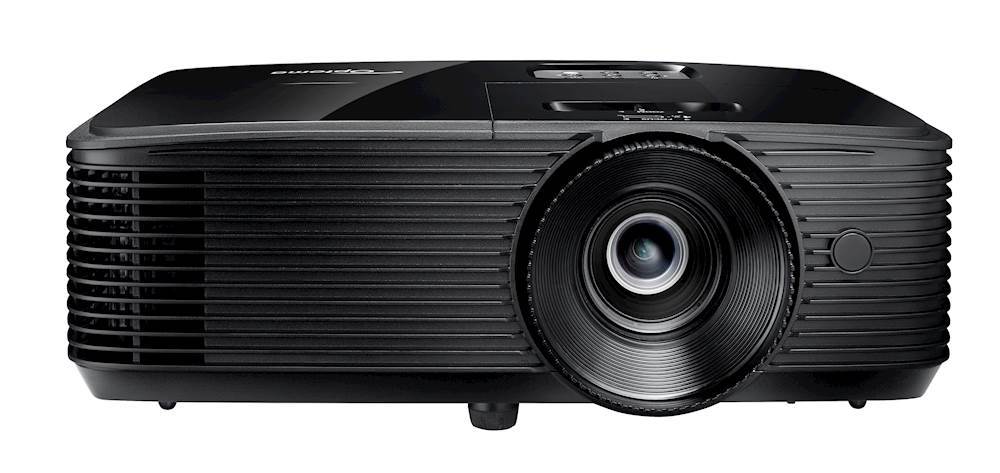

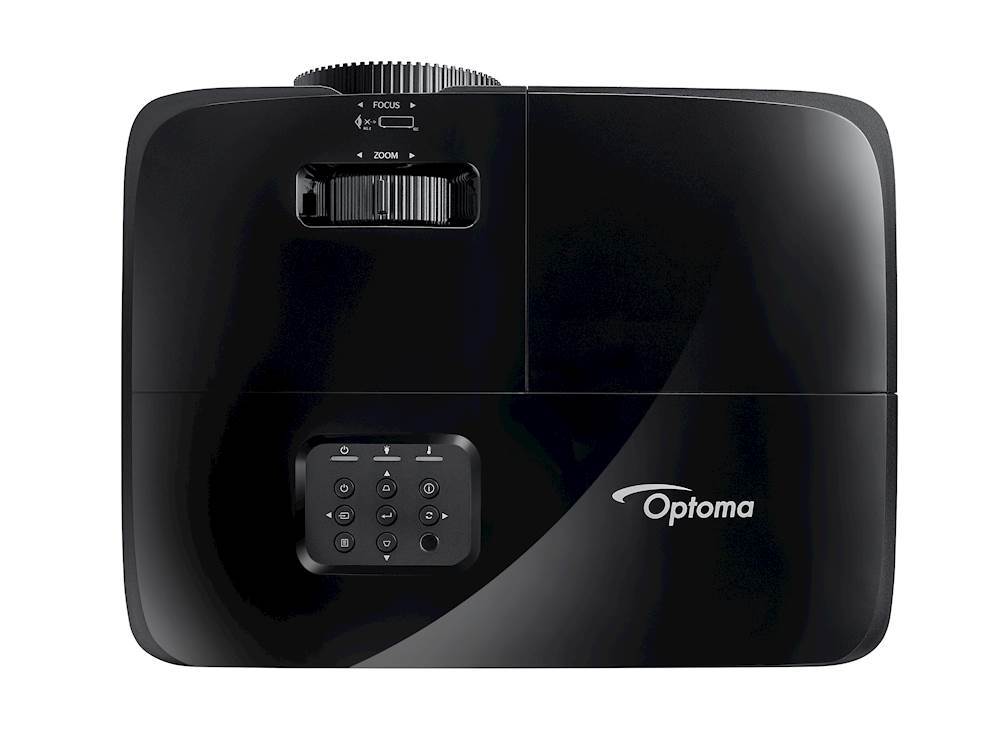

Project bright vibrant presentations effortlessly any time of day. Designed for meeting
rooms and classrooms, the S336 boasts amazing color, long lamp life and energy-saving
features to provide you with a low overall cost of ownership.

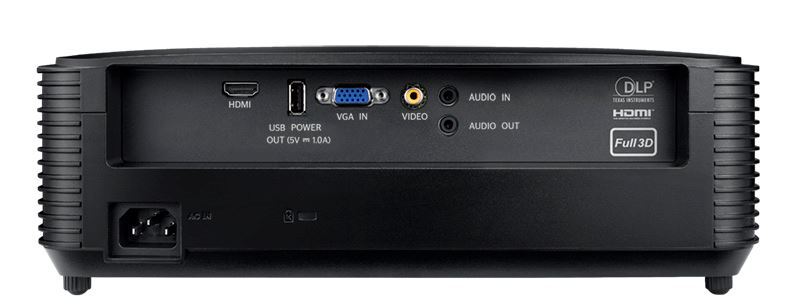

This projector is easy to connect to with multiple inputs, a built-in speaker and USB
power. Perfect for connecting HDMI dongles or a laptop, PC or Blu-ray player for clear
projected images with sound. This portable and lightweight projector can be installed or
taken on the move for off-site meetings with the optional carry bag (sold separately).
Optoma projectors provide reliable color performance suitable for any
content and environment. From accurate sRGB colors for lifelike images to
vibrant punchy presentations. We have a display mode to specifically meet
your needs. Perfect for a range of graphic and video presentations.
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP
projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear -
ideal for business and education applications.
Optoma projectors can display true 3D content from almost any 3D
source, including 3D compatible graphics cards, 3D broadcasting and the
latest generation 3d media servers.
A built-in speaker offers excellent audio support and an easy setup
without the need for costly external speakers
Eco+ technology brings together high contrast, improved lamp life and
energy saving features that are easy to use while reducing power
consumption.
Using the specially designed lamp modes, you can reduce power consumption by up to 70%. Each mode also has a
positive effect on the lamp life, while reducing maintenance and helping to save on both energy and running costs.
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.
Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by
blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further
prolonging the life of your lamp.
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the
projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the
projector to cool down before turning it off.
There may be instances when the projector is left running when not in use.
To help save energy, the "auto power off" feature automatically turns off
the projector after a set period of time if it is not being used
Optoma projectors have been designed to operate 24 hours a day in
standard orientation. Perfect for applications where prolonged periods of
use is required. Subject to 24 hour terms and conditions.
24/7 Operation - standard lamp warranty applies. Projector warranty is
based on standard business usage hours. For optimum performance
Optoma recommends that your projector is turned off or placed in standby
mode for 30 minutes every 24 hours to prolonging the life of your lamp.
| Display technology |
DLP®
|
| Resolution |
SVGA (800x600)
|
| Brightness |
4,000 lumens
|
| Contrast ratio |
25,000:1
|
| Native aspect ratio |
4:3
|
| Aspect ratio - compatible |
16:9
|
| Keystone correction - vertical |
+/-40°
|
| Horizontal scan rate |
15.38 ~ 91.15Khz
|
| Vertical scan rate |
50 ~ 85(120 for 3D)Hz
|
| Uniformity |
75%
|
| Screen size |
27.78" ~ 304.4" diagonal
|
| Light source type |
Lamp
|
| Lamp watts |
203
|
| Lamp life hours (up to) |
6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
|
| Throw ratio |
1.94:1 ~ 2.16:1
|
| Projection distance |
39.37" - 472.44"
|
| Zoom |
1.1
|
| Zoom type |
Manual
|
| Focal length (mm) |
21.85 mm~24mm/0.86"~0.945"
|
| Native offset |
115%
|
| Connections |
|
| Noise level (min) |
27dB
|
| Noise level (max) |
29dB
|
| PC compatibility |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| Remote control |
Card style
|
| Speaker count |
1
|
| Watts per speaker |
10W
|
| In the box |
AC power cord
Remote control Battery Basic user manual |
| Optional wireless models |
HDCast Pro, QuickCast Bundle, WHD200
|
| Power supply |
100 ~ 240V, 50 ~ 60Hz
|
| Power consumption (standby) |
0.5W
|
| Power consumption (min) |
187W
|
| Power consumption (max) |
225W
|
| Dimensions (W x D x H) |
12.44" x 9.61" x 4.25"
|
| Gross weight |
7.85 lbs
|
| Net weight |
6.66 lbs
|
