Omnidirectional Pickup
Features a high SNR microphone array design, achieving 360° omnidirectional audio pickup.
Intelligent Audio Algorithms
Incorporates built-in intelligent audio algorithms such as automatic noise reduction, echo cancellation, automatic gain, etc
PoE
Each microphone can be cascaded by Power over Ethernet (PoE).
Six Mic Cascaded
The M702 can cascade six microphones at the same time with a pickup range of a maximum area of 150㎡.
Blind Beamforming
The M702 achieves accurate positioning and adapts to the environment.

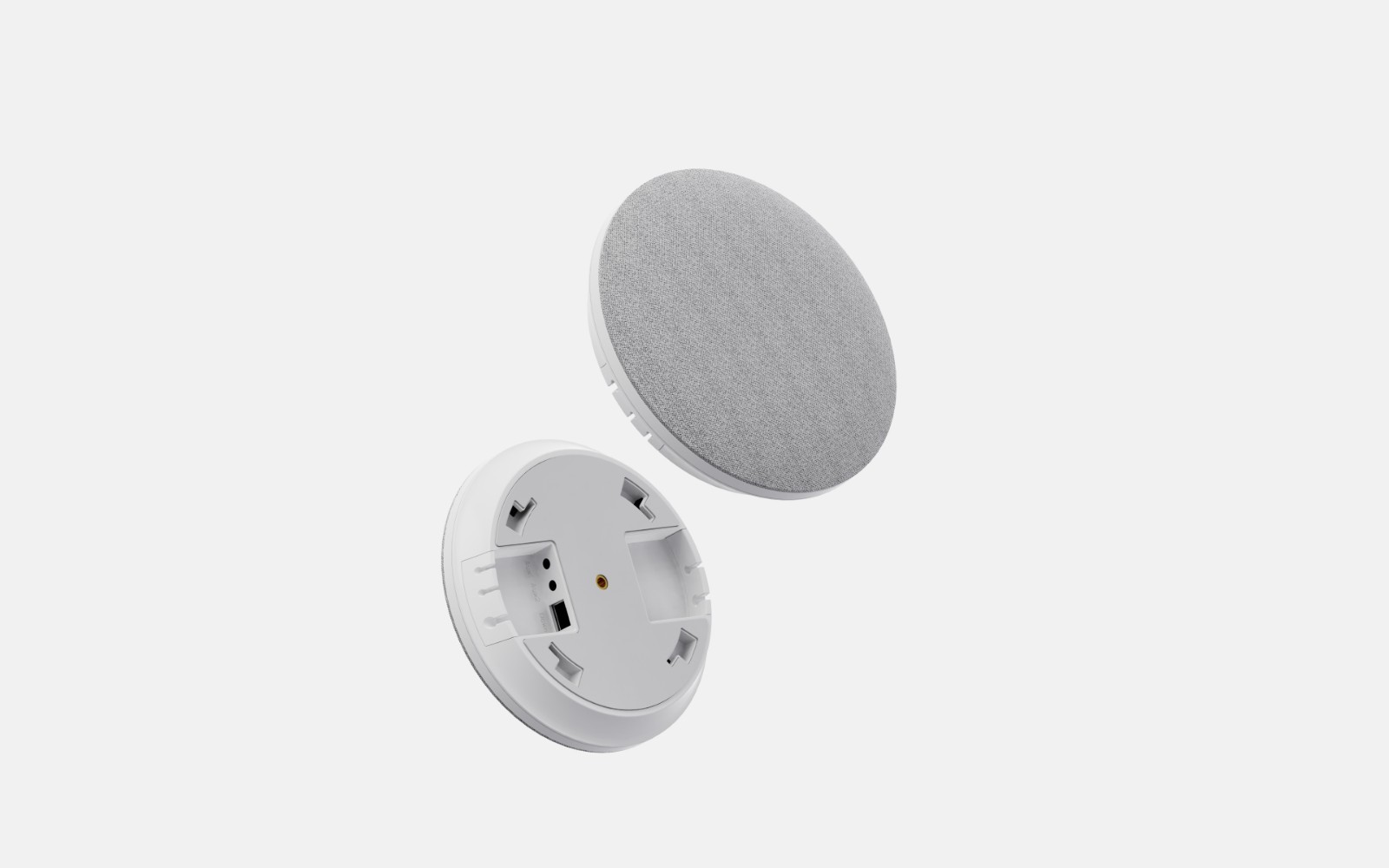

Flexible Installation
Support multiple installation methods such as desktop and lifting, flexible and fast deployment, and reduce operation and maintenance costs.
| M702 Parameters | |
| Model | M702 |
| Name | Cascading Omnidirectional Digital Array Microphone |
| Basic Parameters | |
| Microphone Type | Digital Array Microphone |
| Microphone Array | 6 omnidirectional microphones form a circular array for 360 degree omnidirectional pickup |
| Sensitivity | -38 dBFS |
| Signal Noise Ratio | 65 dB(A) |
| Frequency Response | 50Hz - 16kHz |
| Sampling Rate | 32K sampling, high-definition broadband audio |
| Pickup Distance | 3 meters sound pickup |
| Echo Cancellation | Support |
| Noise Suppression | Support |
| Gain Control | Support |
| Cascade Function | |
| Cascade Mode | PoE cable |
| Number of Cascades | 6 units |
| Hardware Interface | |
| Network Port | RJ45 upstream and downstream networking ports |
| USB Interface | USB audio interface (Type-C), UAC1.0 protocol, audio data communication, software upgrade and parameter configuration |
| Analog Audio | AUX1, AUX2 linear audio input and output |
| General Specifications | |
| Power Supply | PoE cascade 48V power supply, support IEEE 802.3 at standard / USB 5V 500mA (single unit) |
| Support System | Windows / Mac / Linux |
| Installation | Desktop flat, ceiling mounted |
| Dimension | Φ 170 mm * H 40 mm |
| Net Weight | 370 g |
