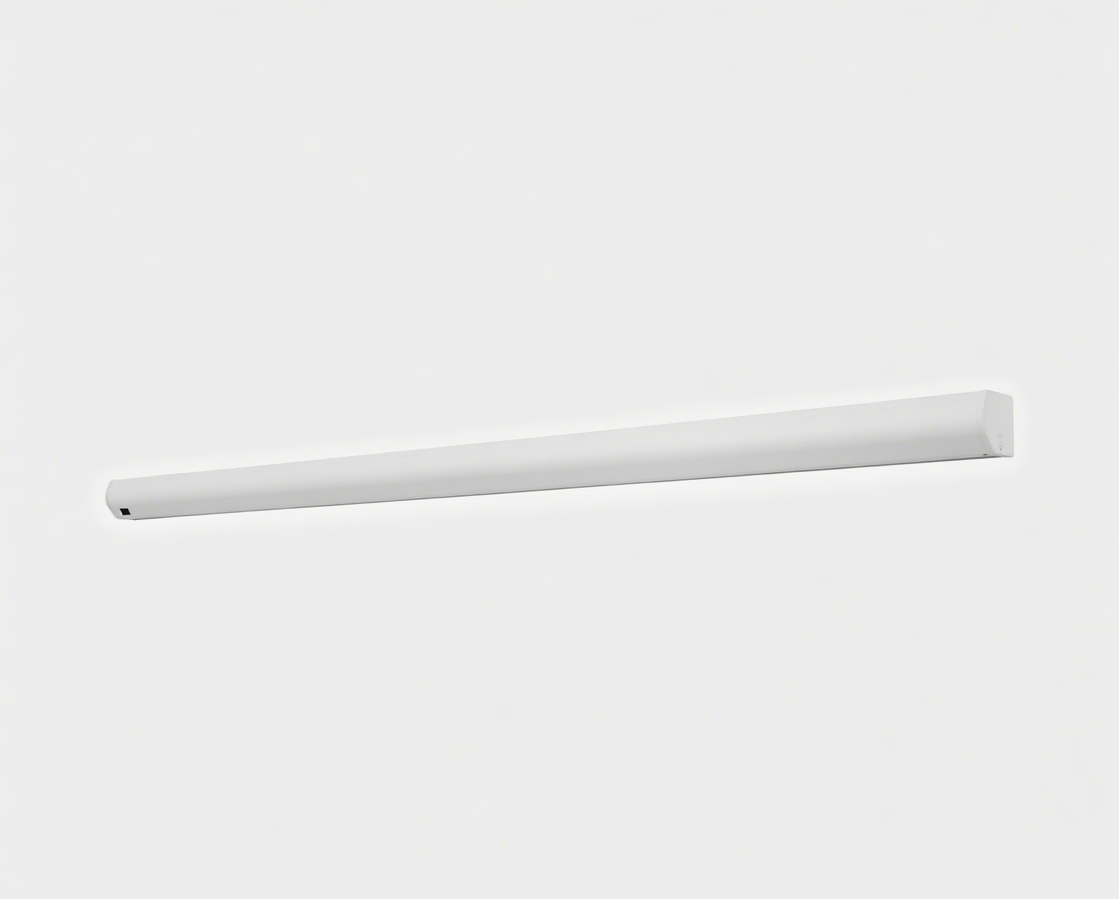

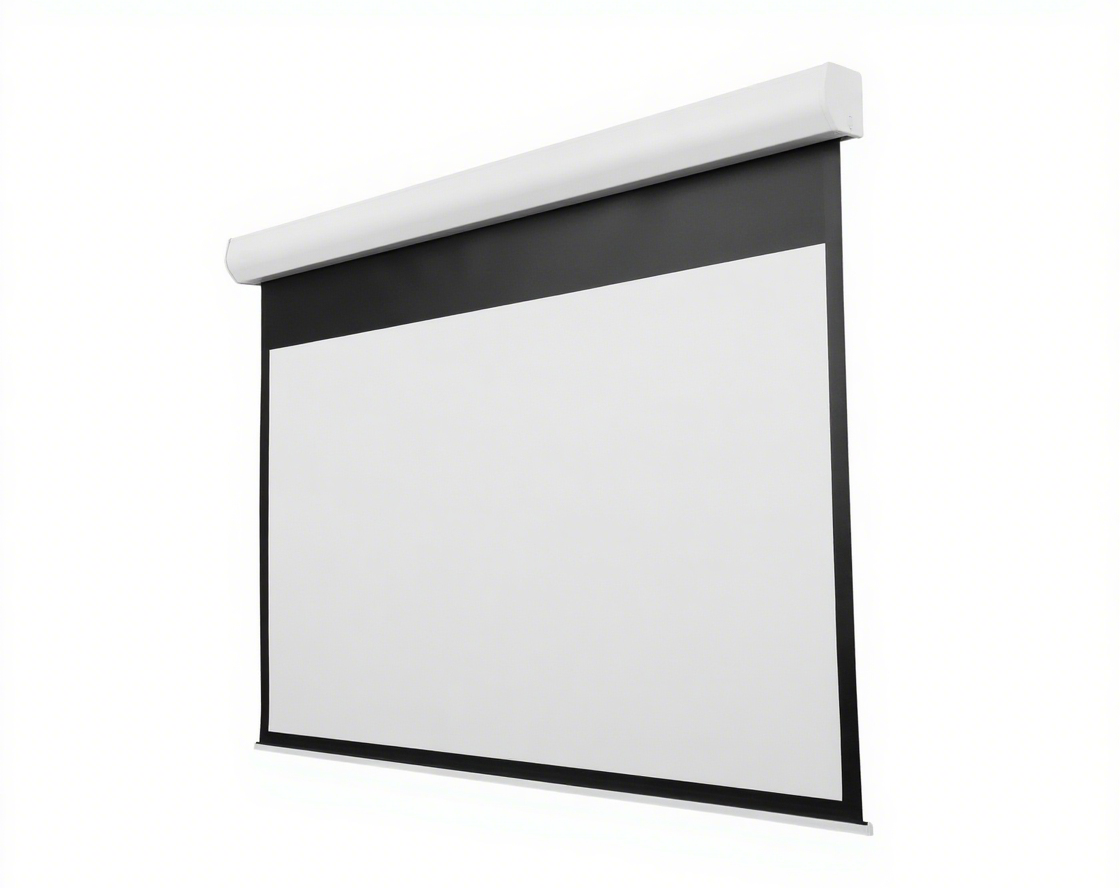

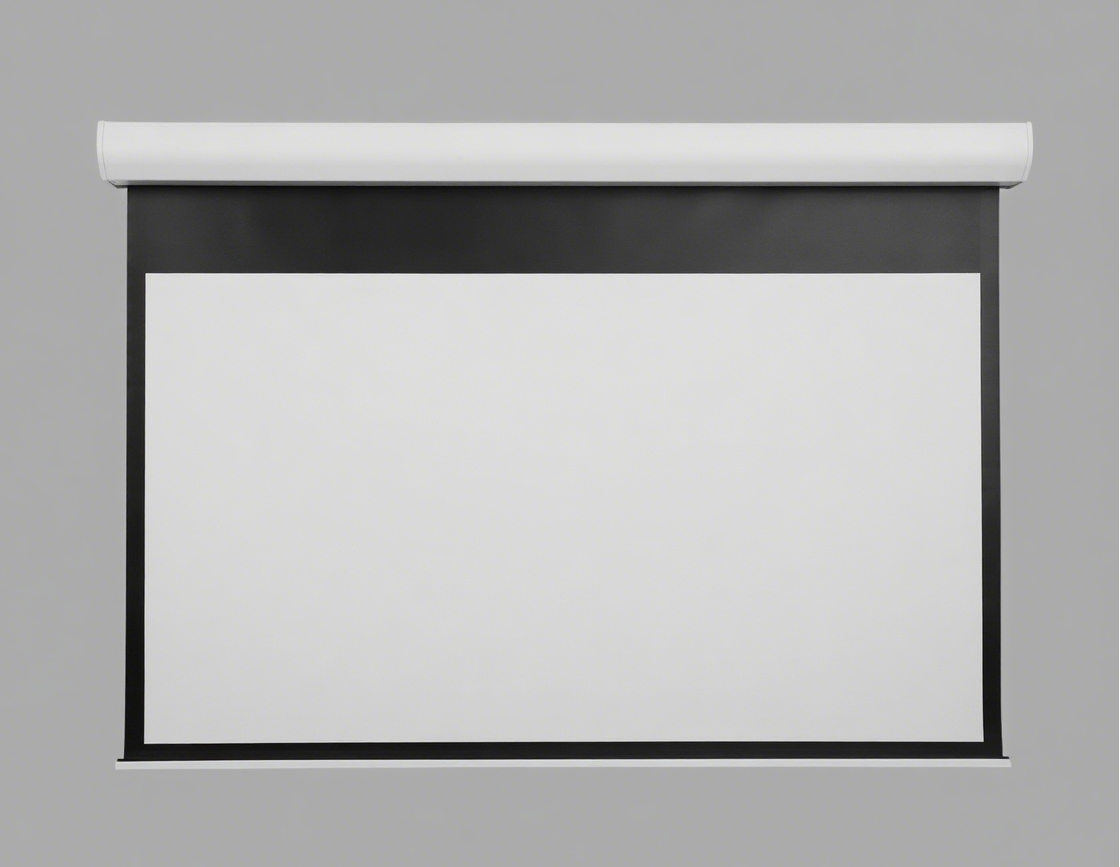

LGY Motorized Screen

The LGY Series is designed based on the benchmarks of the Cyber

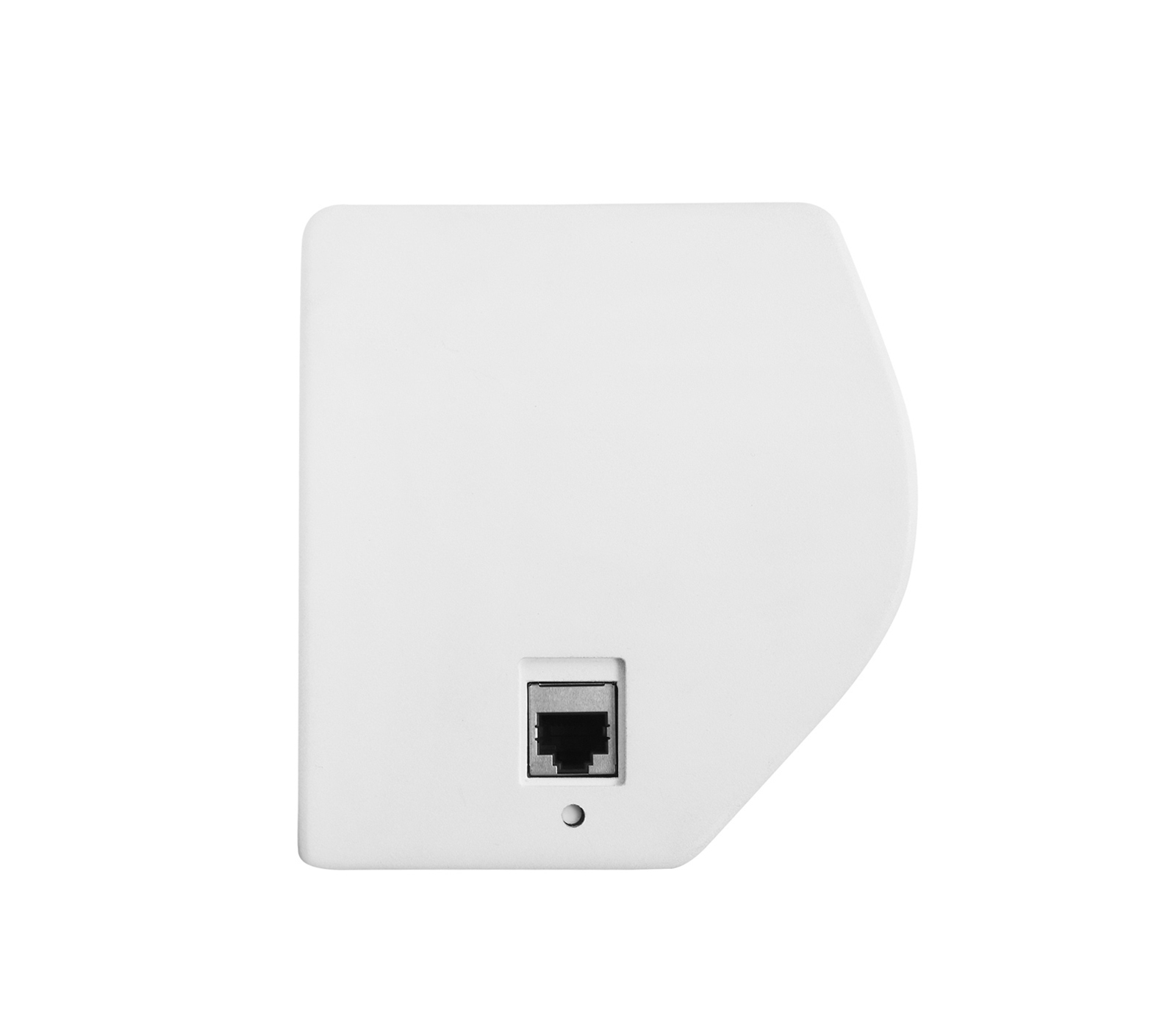

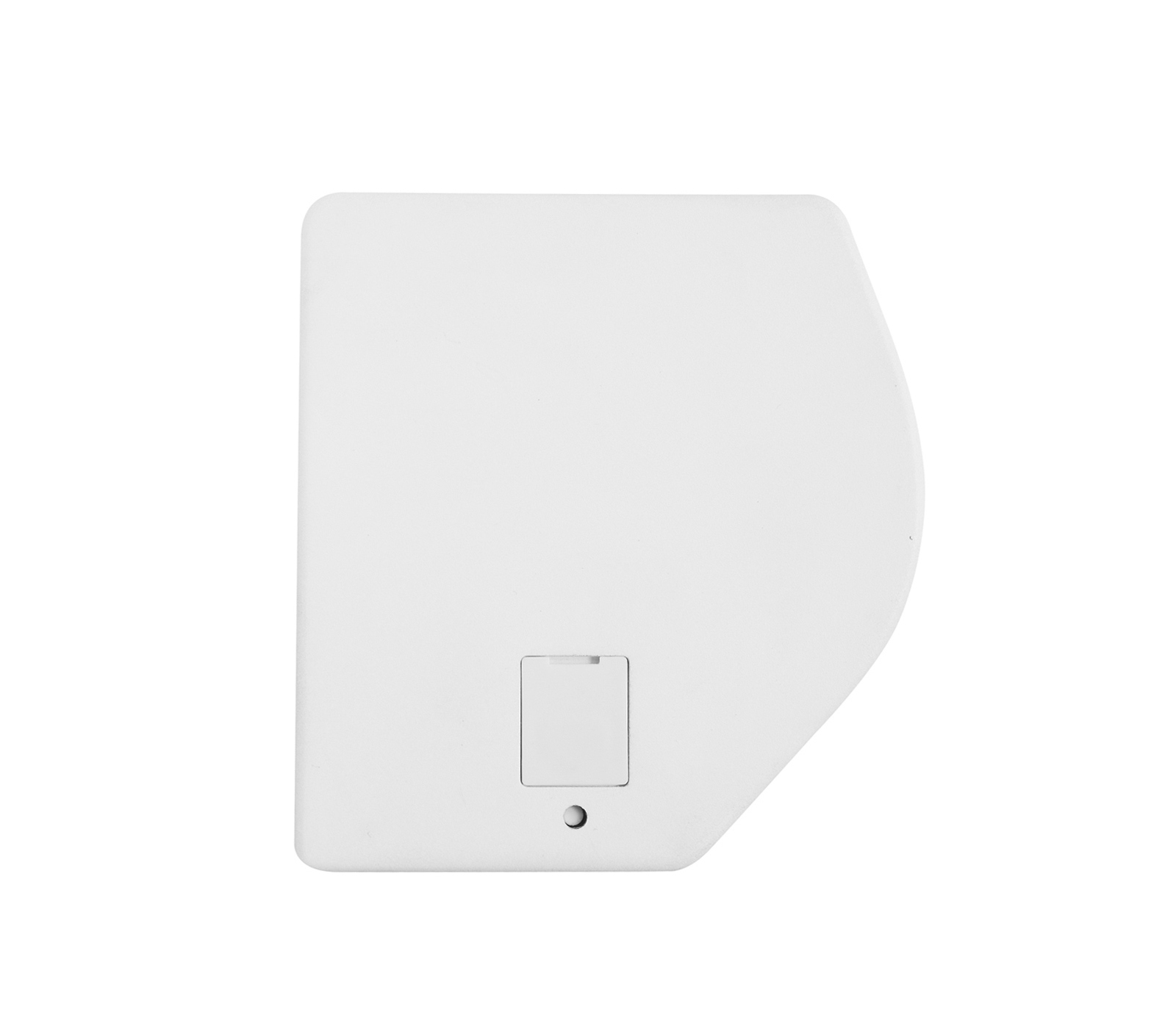

Series. New design elements include the screw-free endcap design, and
patented Spring-Sealed Mechanism that ensures a smooth and enclosed
finish.

• Sizes: 92” – 200” diagonal

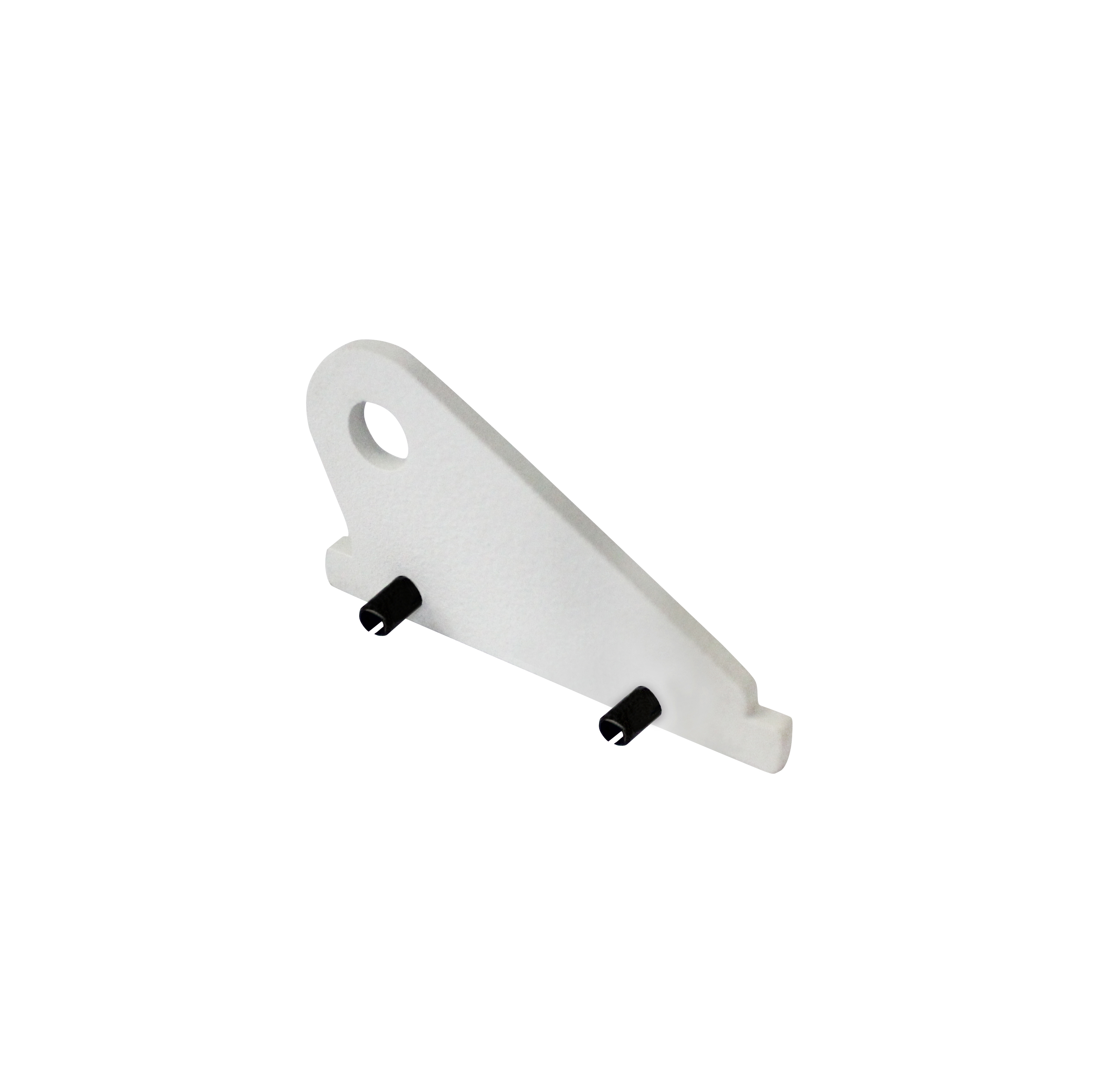

• Installation Options: Floating Wall Mount / Ceiling Mount / Suspended
Mount

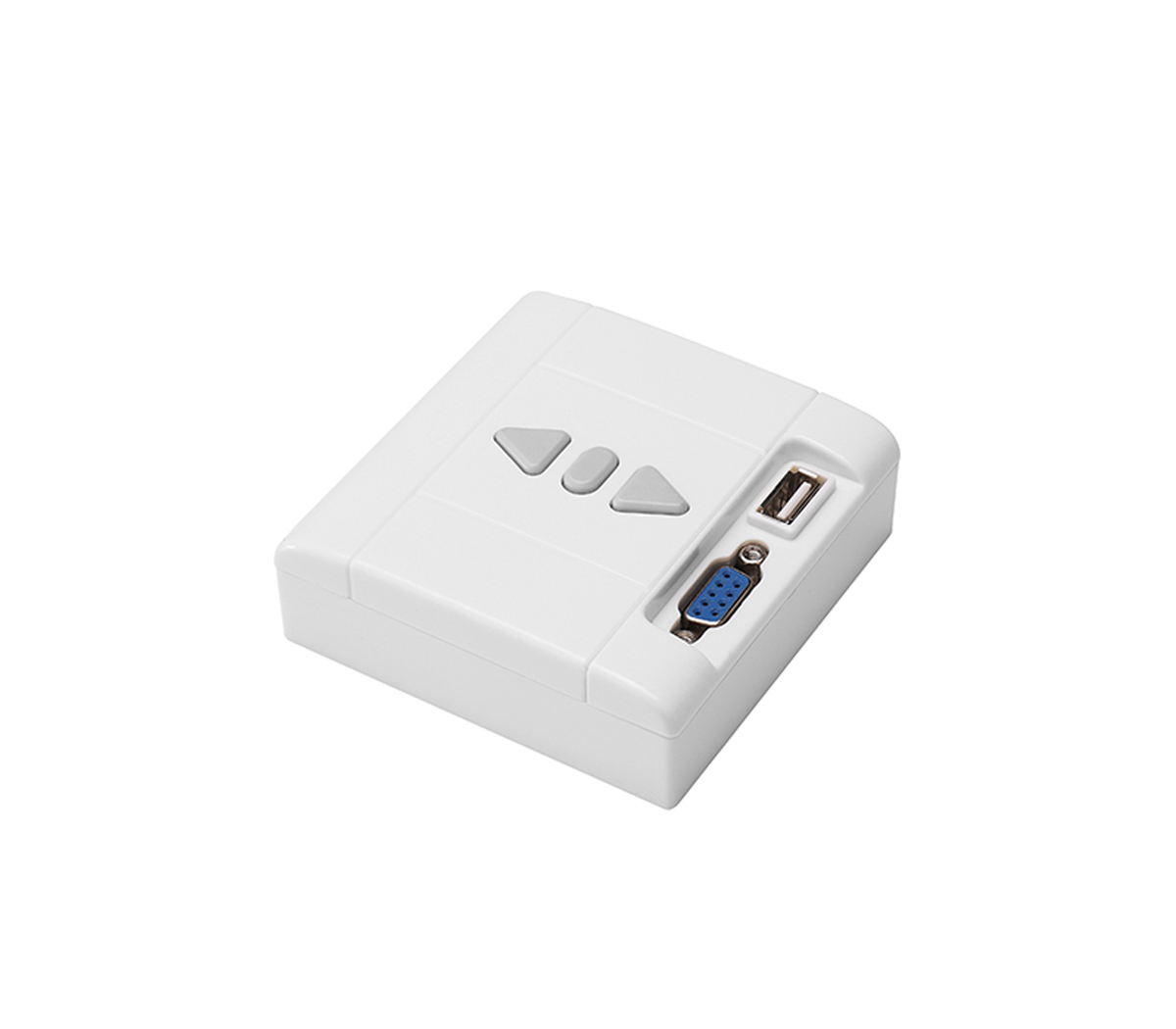

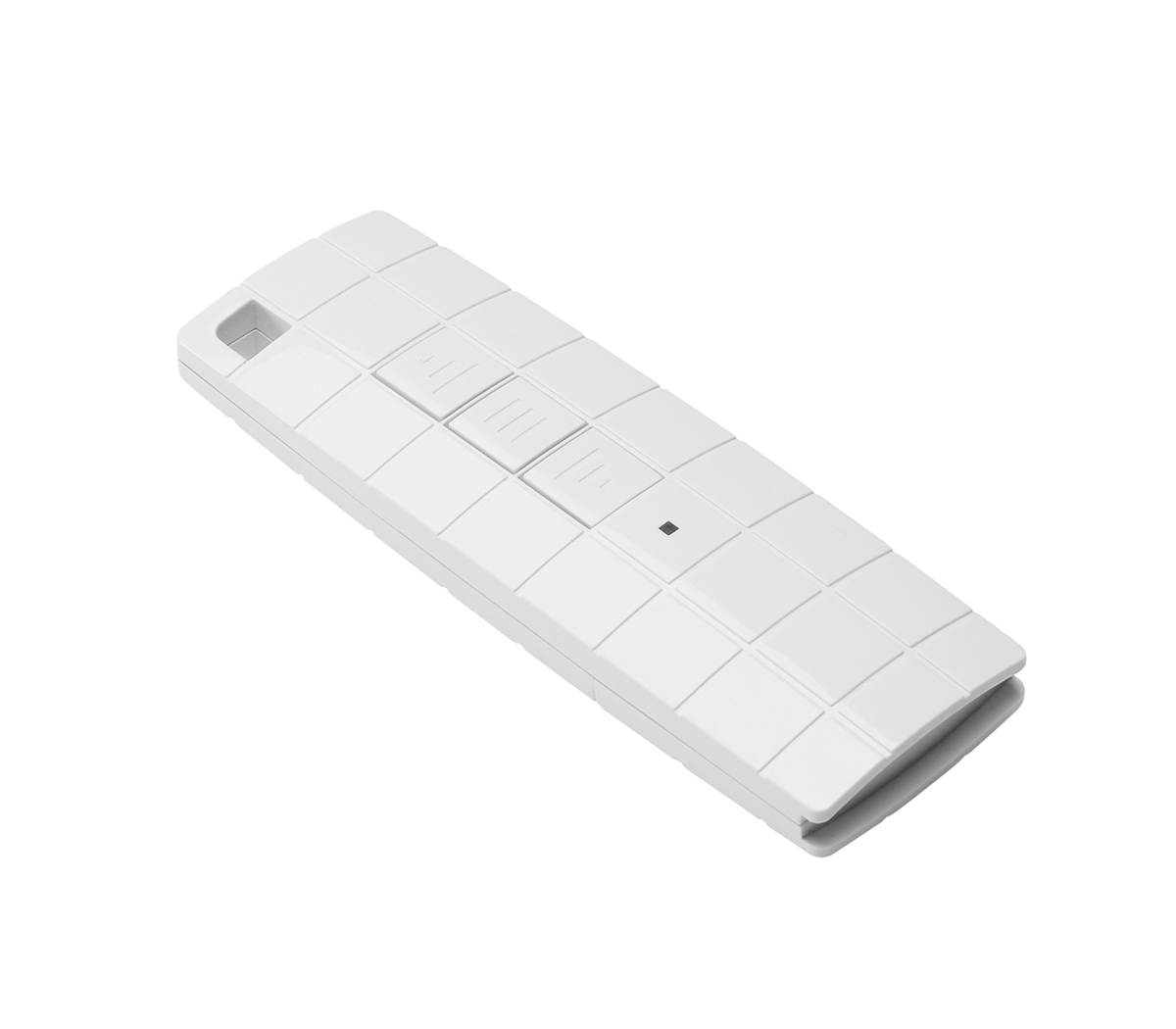

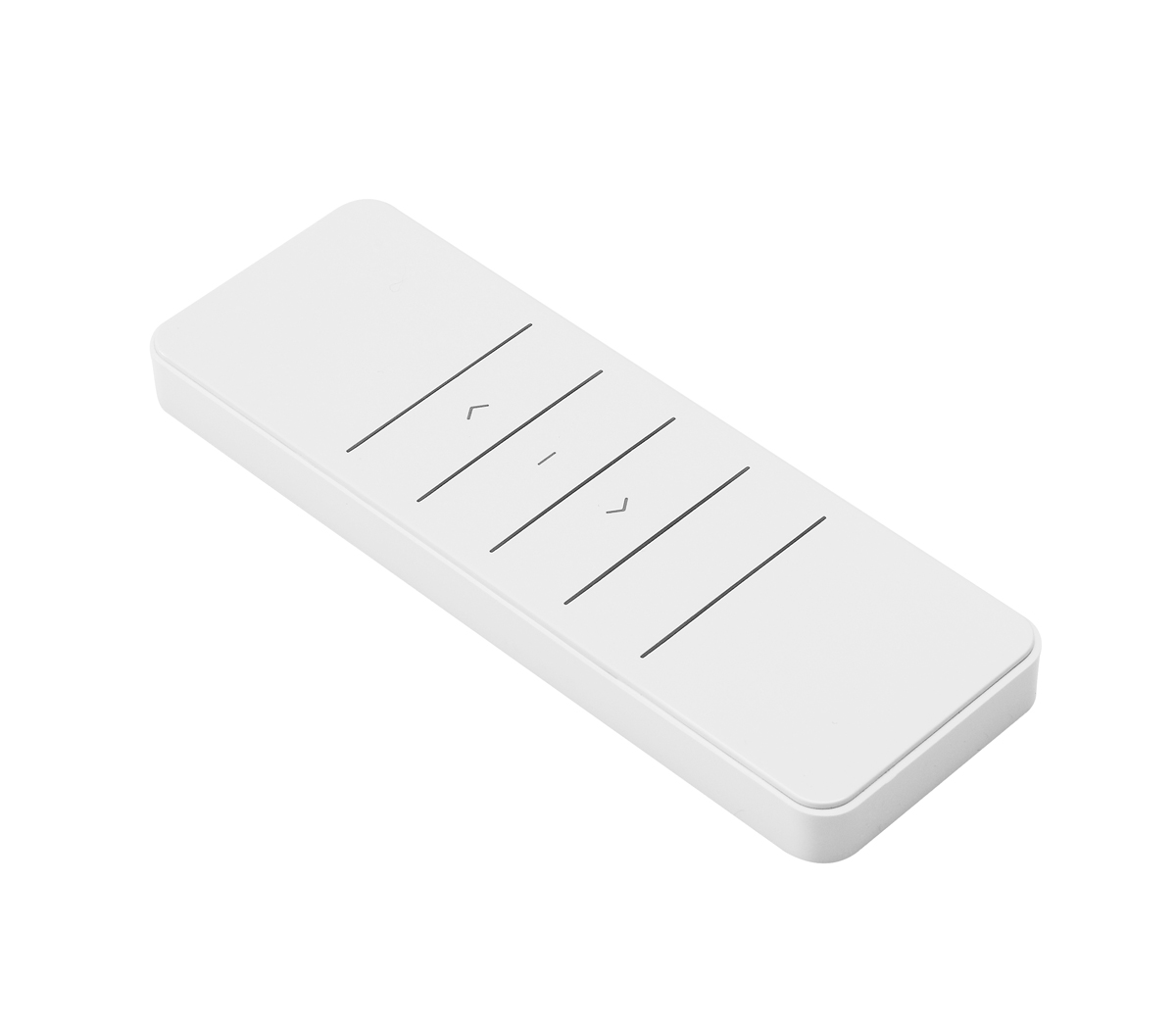

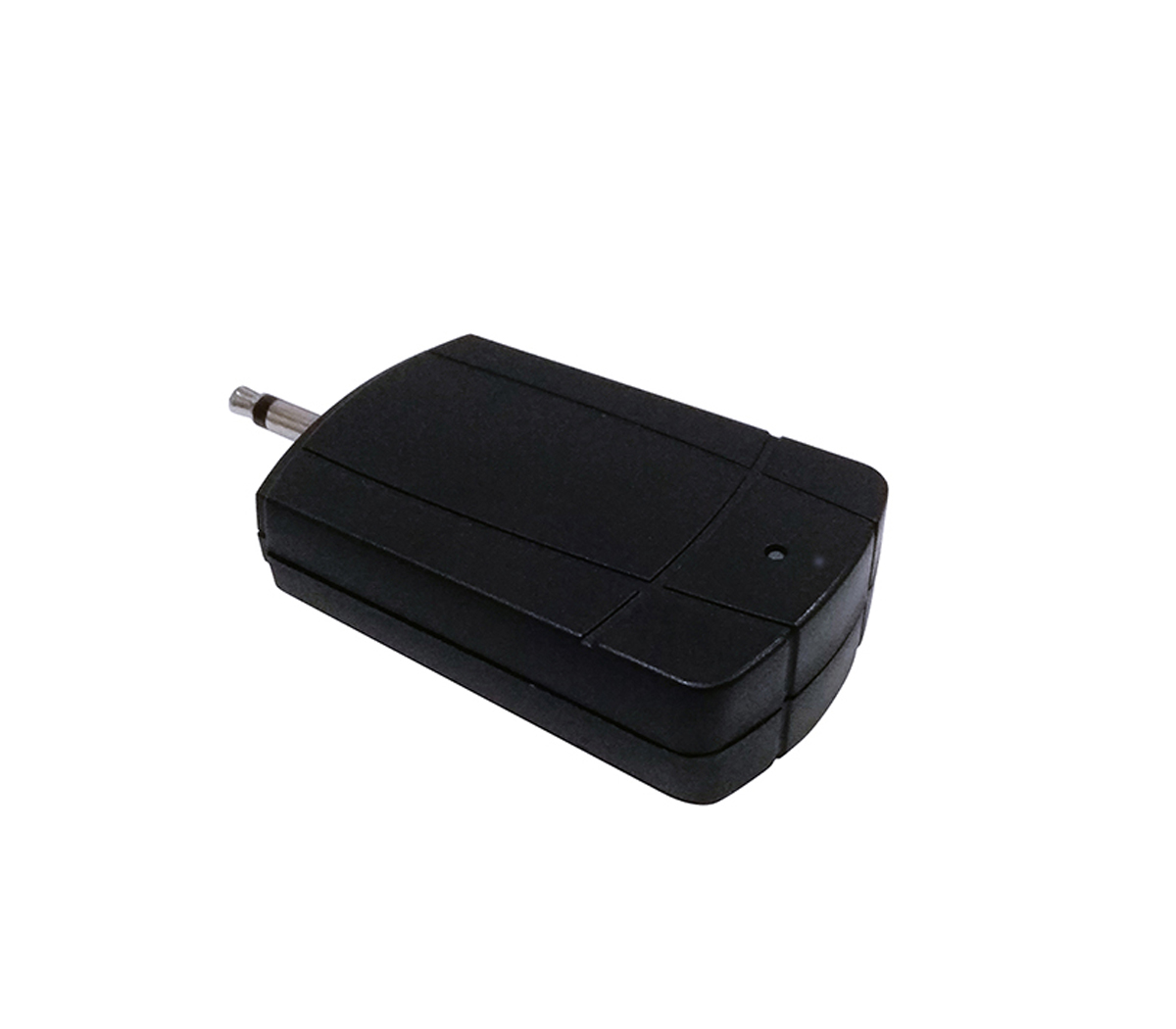

• Control Options: RF / IR Remote Control ; Dry Contact , IP Control
（LE-MP Model Only）; Central Control etc

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	Diagonal Measurement	Viewing Area （W×H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4：3	84"	1707 x 1280	1905	400	65	80	2050	123(B)	114(B)
	92"	1869 x 1402	2027	400	65	80	2212	123(B)	114(B)
	100"	2032 x1524	2149	400	65	80	2375	123(B)	114(B)
	120"	2438 x 1829	2454	400	65	80	2781	123(B)	114(B)
	145"	2944 x2208	2860	400	65	80	3287	150(A)	141(A)
	150"	3048 x2286	2938	400	65	80	3391	150(A)	141(A)
	165"	3320 x 2490	3142	400	65	80	3663	150(A)	141(A)
	180"	3658 x2743	3395	400	65	80	4001	150(A)	141(A)
16:9	80"	1770 x 995	1620	400	65	80	2113	123(B)	114(B)
	92"	2037 x 1146	1771	400	65	80	2375	123(B)	114(B)
	100"	2214 x1245	1870	400	65	80	2557	123(B)	114(B)
	106"	2346 x 1320	1945	400	65	80	2689	123(B)	114(B)
	110"	2435 x1370	1995	400	65	80	2781	123(B)	114(B)
	120"	2656 x1494	2119	400	65	80	2999	123(B)	114(B)
	133"	2944 x1656	2308	400	65	80	3287	150(A)	141(A)
	138"	3048 x 1715	2367	400	65	80	3391	150(A)	141(A)
	150"	3320 x 1867	2519	400	65	80	3663	150(A)	141(A)
	165"	3620 x 2036	2688	400	65	80	3963	150(A)	141(A)
	180"	3985 x2241	2893	400	65	80	4328	150(A)	141(A)
16:10	92"	1982 x1239	1864	400	65	80	2325	123(B)	114(B)
	100"	2154 x1346	1971	400	65	80	2497	123(B)	114(B)
	106"	2283 x1427	2052	400	65	80	2626	123(B)	114(B)
	110"	2369 x1481	2106	400	65	80	2712	123(B)	114(B)
	120"	2585 x 1615	2240	400	65	80	2928	123(B)	114(B)
	138"	2944 x1840	2492	400	65	80	3287	150(A)	141(A)
	142"	3048 x 1905	2557	400	65	80	3391	150(A)	141(A)
	150"	3231 x 2019	2671	400	65	80	3574	150(A)	141(A)
	168"	3620 x2263	2915	400	65	80	3963	150(A)	141(A)
	180"	3877 x2423	3075	400	65	80	4220	150(A)	141(A)
2.35:1	92"	2150 x 915	1740	600	65	80	2493	123(B)	114(B)
	100"	2337 x 995	1820	600	65	80	2689	123(B)	114(B)
	104"	2438 x 1037	1862	600	65	80	2781	123(B)	114(B)
	110"	2570 x1095	1920	600	65	80	2913	123(B)	114(B)
	120"	2804 x 1194	2019	600	65	80	3147	123(B)	114(B)
	130"	3038 x1293	2145	600	65	80	3381	150(A)	141(A)
	142"	3320 x1413	2265	600	65	80	3663	150(A)	141(A)

Model	Diagonal Measurement	Viewing Area （W×H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
16:9	92"	2037 x1146	1771	400	65	-	2248	123	114
	98"	2170 x1120	1745	400	65	-	2402	123	114
	100"	2214 x1245	1870	400	65	-	2435	123	114
	120"	2656 x1494	2119	400	65	-	2870	123	114
