Name: FTY Series Motorized Screen
Brand: CAAVITS
Availability: InStock
Rating: 5 (1 reviews)

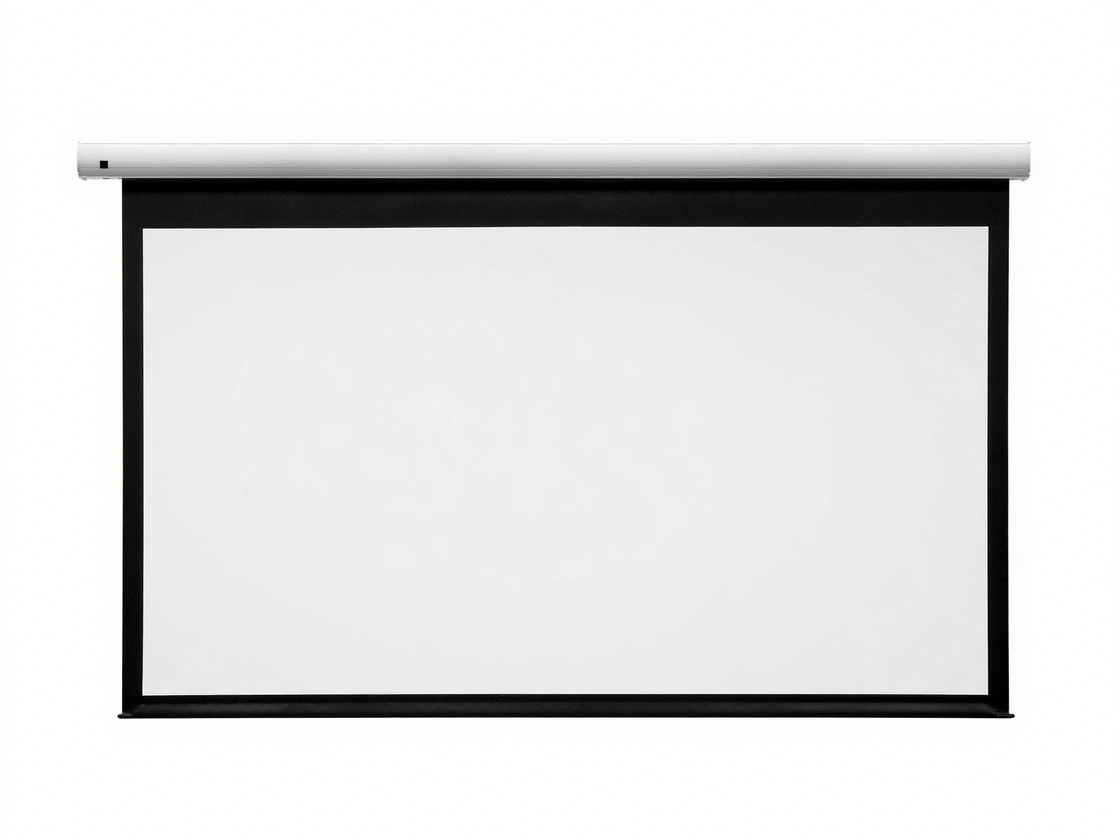

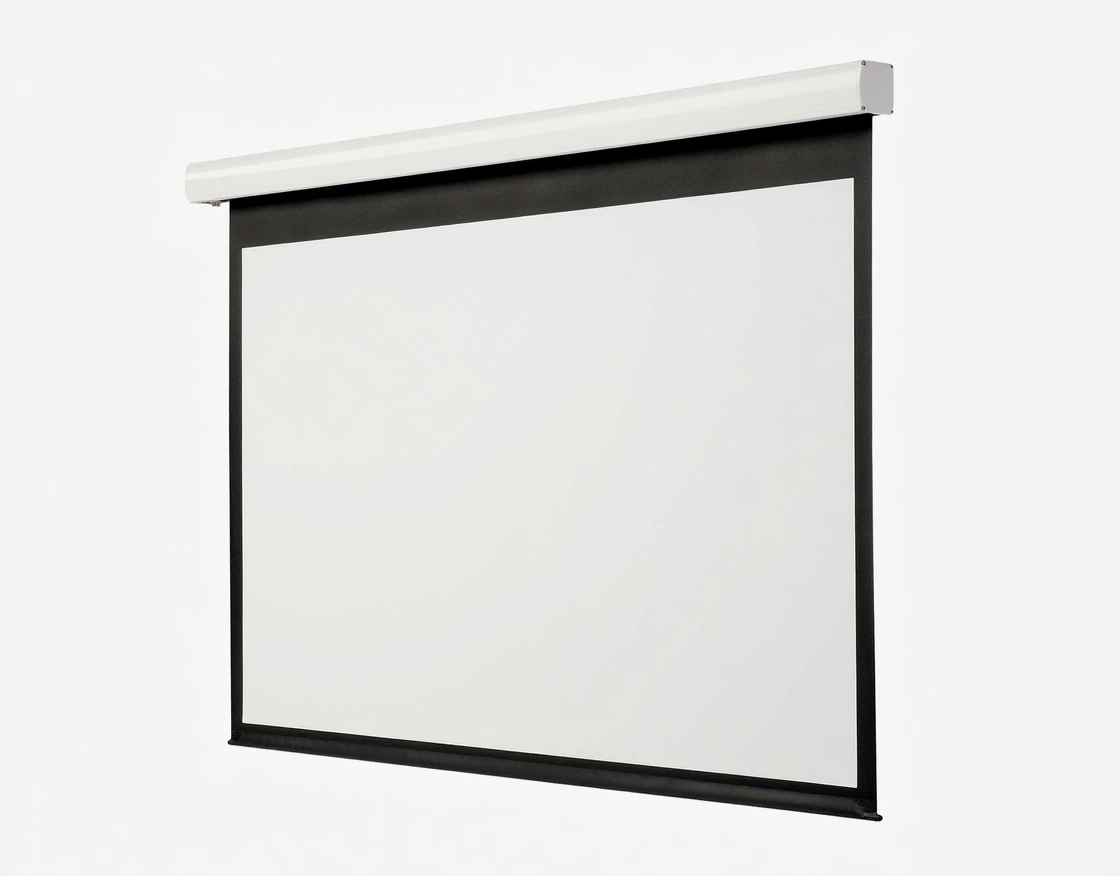

FTY Series Motorized Screen

The FTY Series is Cyber Series’ “little brother”, it is similar in
performance and options. The FTY Series offers the Floating L-
Bracket installation system and a patented Slow-Retract/Self-Lock
Mechanism (manual models only) to ensure the screen is
as functional as it is aesthetically pleasing. The FTY Series is available in
motorized, manual and tab-tension variants.

• Sizes: 92” ~ 150” diagonal
• Installation Options: Floating Wall Mount / Ceiling
Mount / Suspended Mount

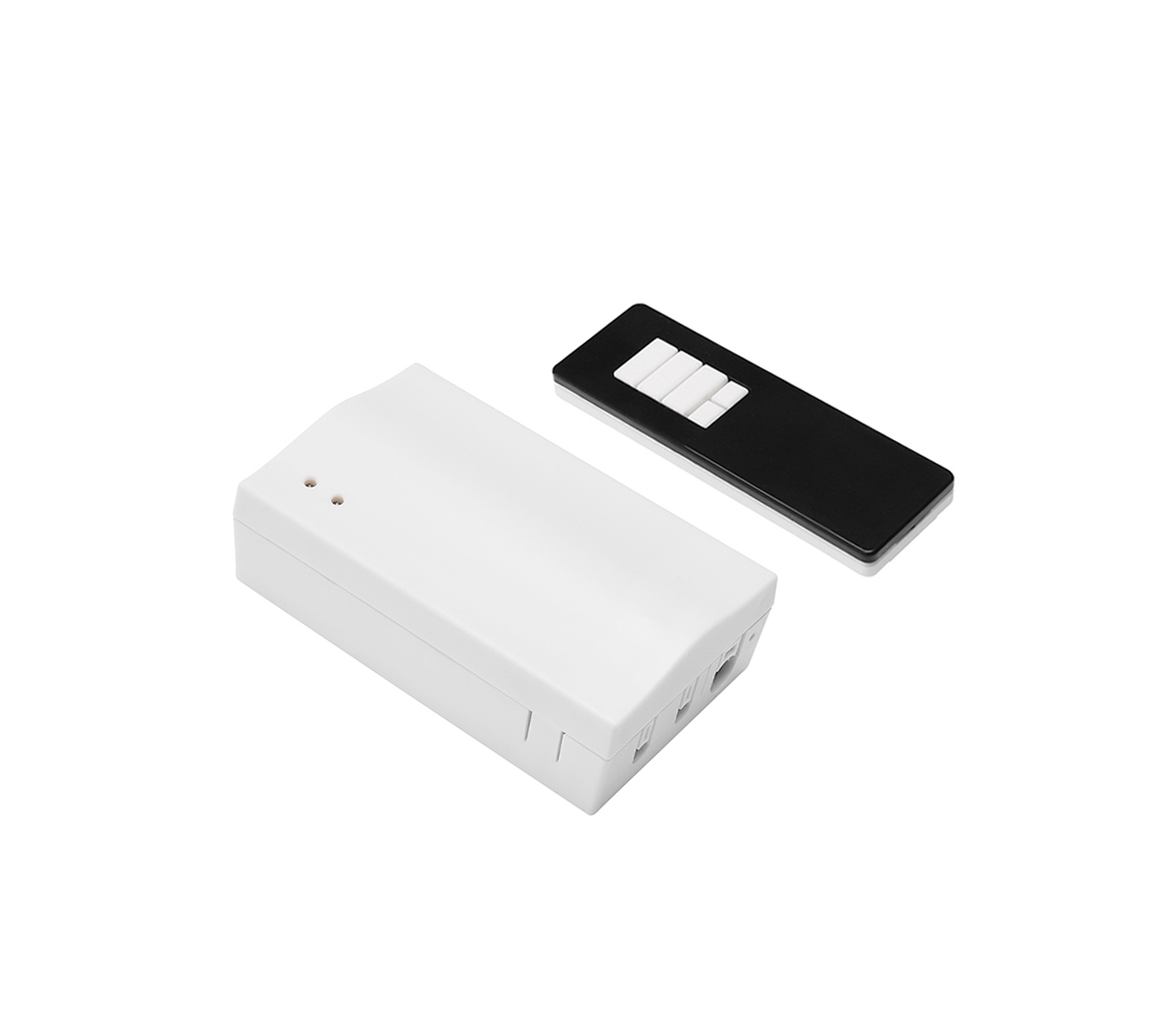

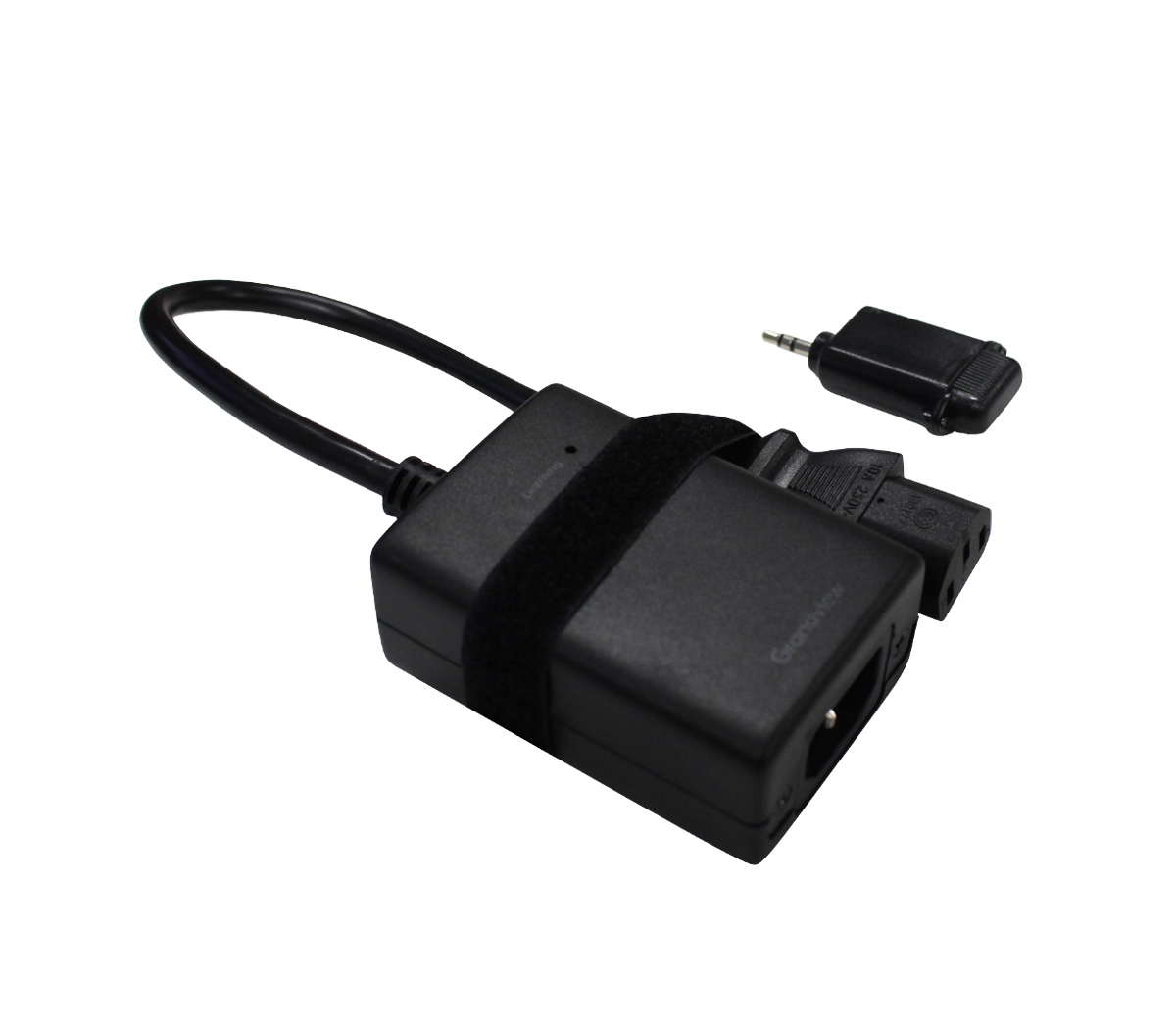

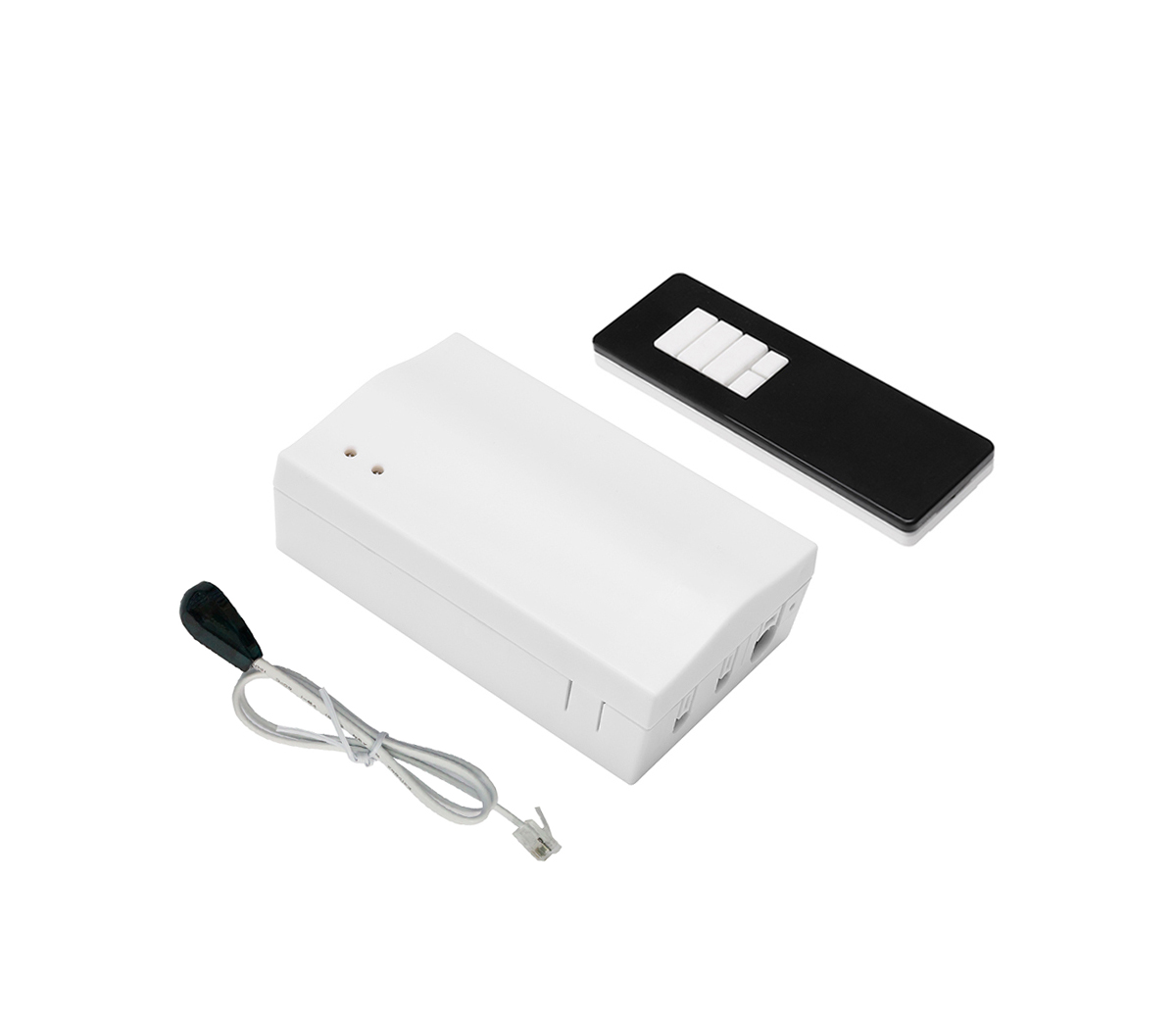

• Control Options: Inbuild IR Remote Control ;RS485 + Dry Contact
Control , 3-12 Voltage Trigger Control ; Central Control.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
1:1	84"	2030 x 2030	2275	80	55	50	2354	85	81

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
1:1	84"	2030 x 2030	2279	80	50	50	2278	96	91
1:1	96"	2340 x 2340	2589	80	50	47	2582	96	91

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	84"	1710 x 1280	1507	80	55	50	2034	85	81
	92"	1869 x 1402	1629	80	55	50	2193	85	81
	100"	2030 x1520	1747	80	55	50	2354	85	81
	112"	2276 x 1707	1934	80	55	50	2600	85	81
	120"	2400 x 1800	2027	80	55	50	2724	85	81

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	84"	1710 x 1280	1529	80	50	50	1958	96	91
	100"	2030 x1524	1773	80	50	50	2278	96	91
	120"	2400 x 1800	2049	80	50	50	2648	96	91
	130"	2656 x 1992	2277	80	80	50	2934	126	120
	138"	2804 x 2103	2388	80	80	50	3082	126	120
	145"	2944 x 2208	2493	80	80	50	3222	126	120
	150"	3048 x 2286	2571	80	80	50	3326	126	120

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
16:9	92"	2030 x 1145	1942	650	55	50	2354	85	81
	95"	2103 x 1182	1879	550	55	50	2427	85	81
	100"	2214 x 1245	1942	550	55	50	2538	85	81
	102"	2258 x 1269	1916	500	55	50	2582	85	81
	106"	2338 x 1320	1967	500	55	50	2658	85	81

FTY Series Motorized Screen

Description

Download
