Name: FC Series Tab-Tension Motorized Screen
Brand: CAAVITS
Availability: InStock
Rating: 5 (1 reviews)

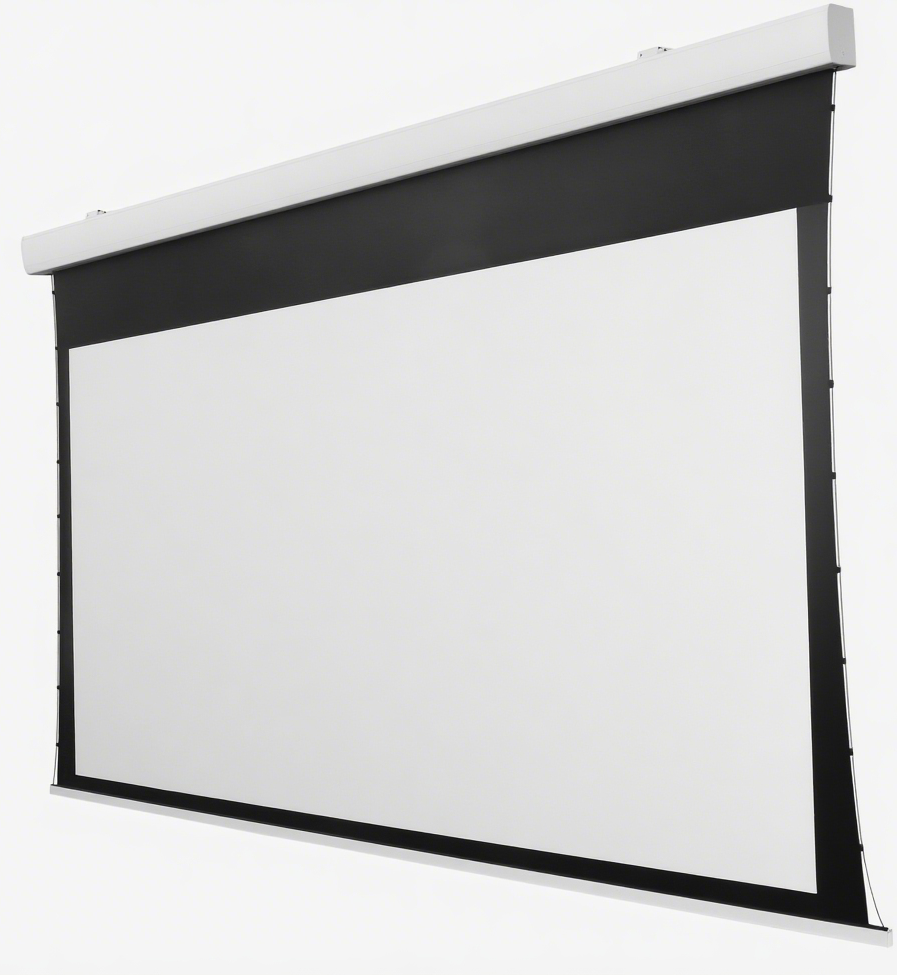

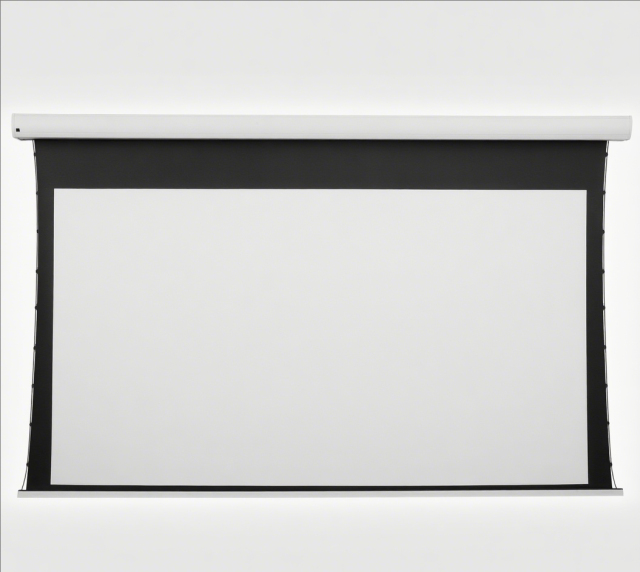

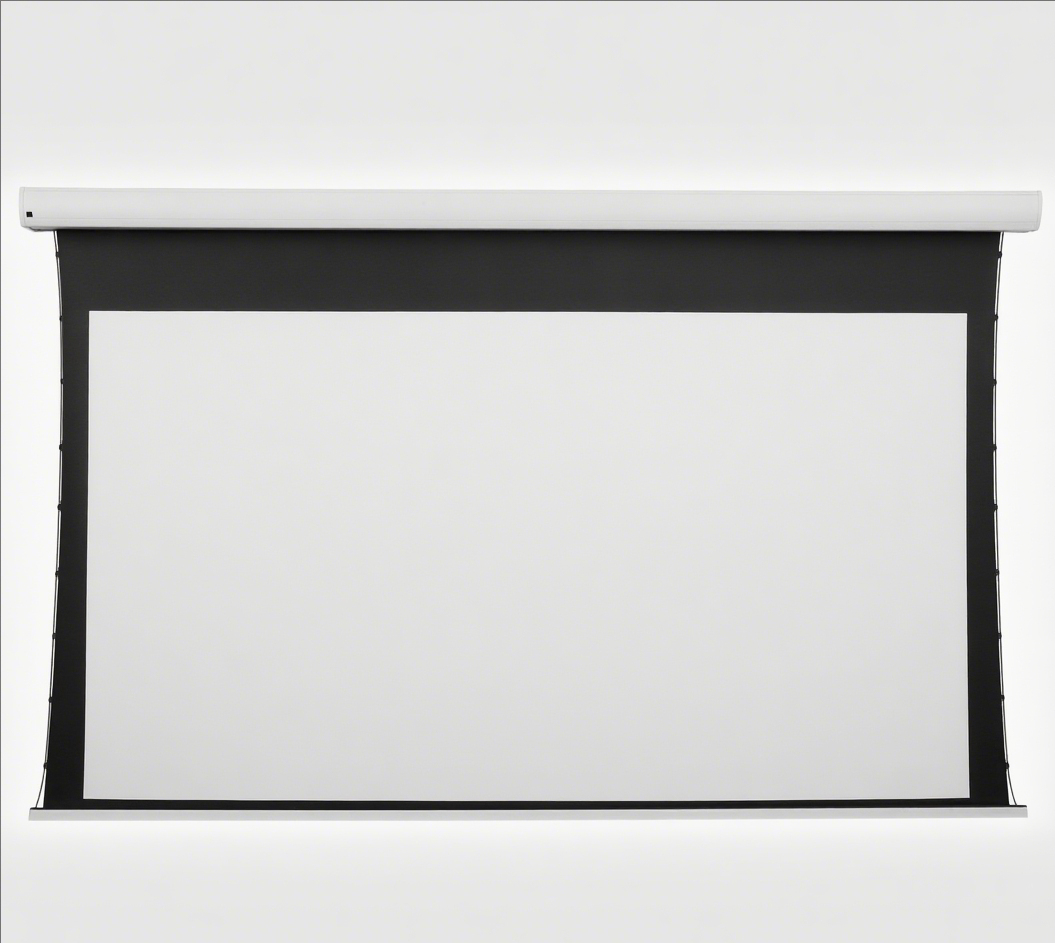

FC Series Tab-Tension Motorized Screen

The FC Series is designed based on the benchmarks of the FC
Series, which is similar in performance and options as the Cyb Series.

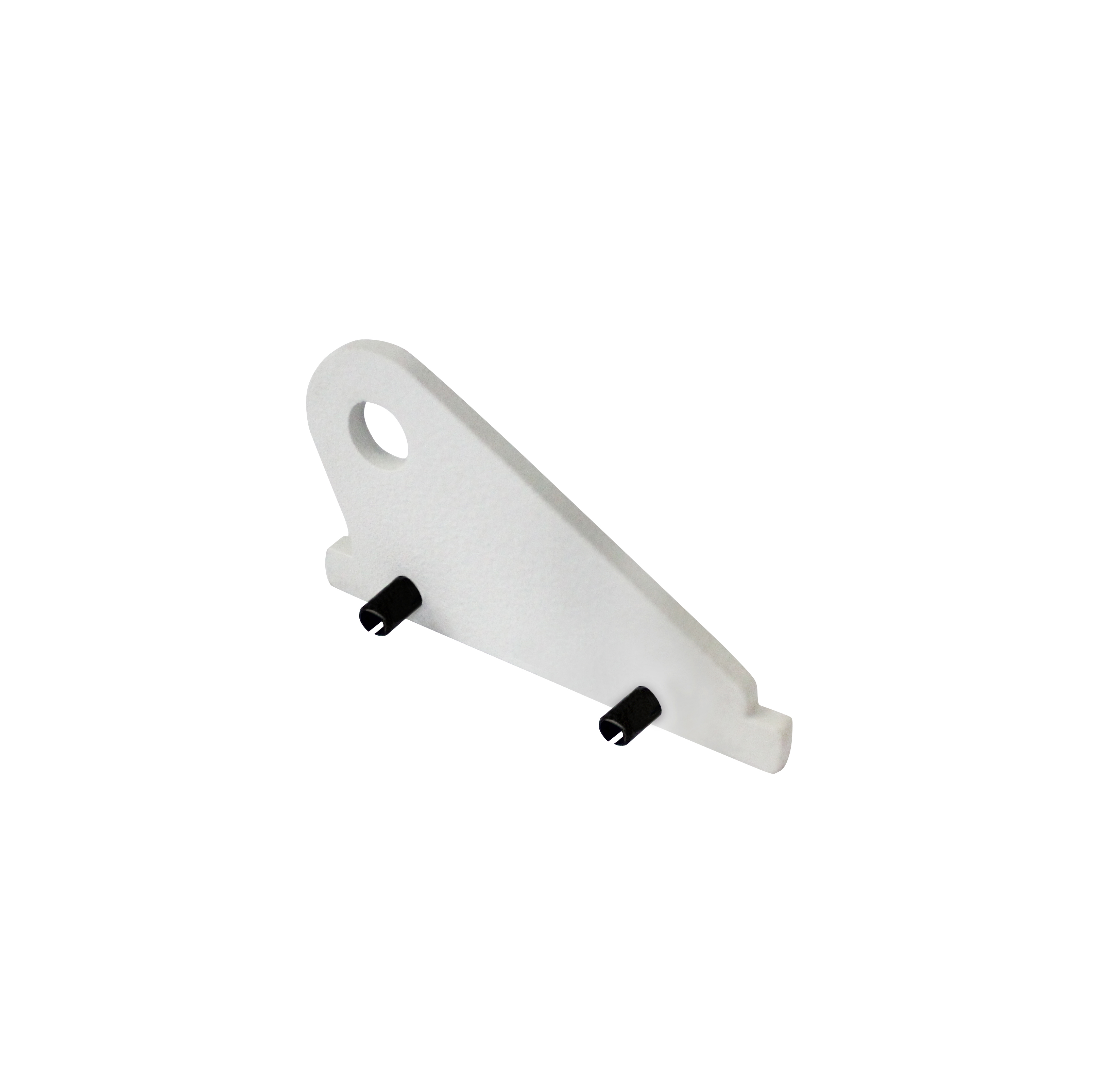

New design elements include the screw-free endcap design, and
patented Spring-Sealed Mechanism that ensures a smooth and enclosed
finish. The FC Series is designed to seamlessly integrate
with any type of decor.

• Sizes: Model A ( 120"-150" ) ; Model B ( 100"-120" )

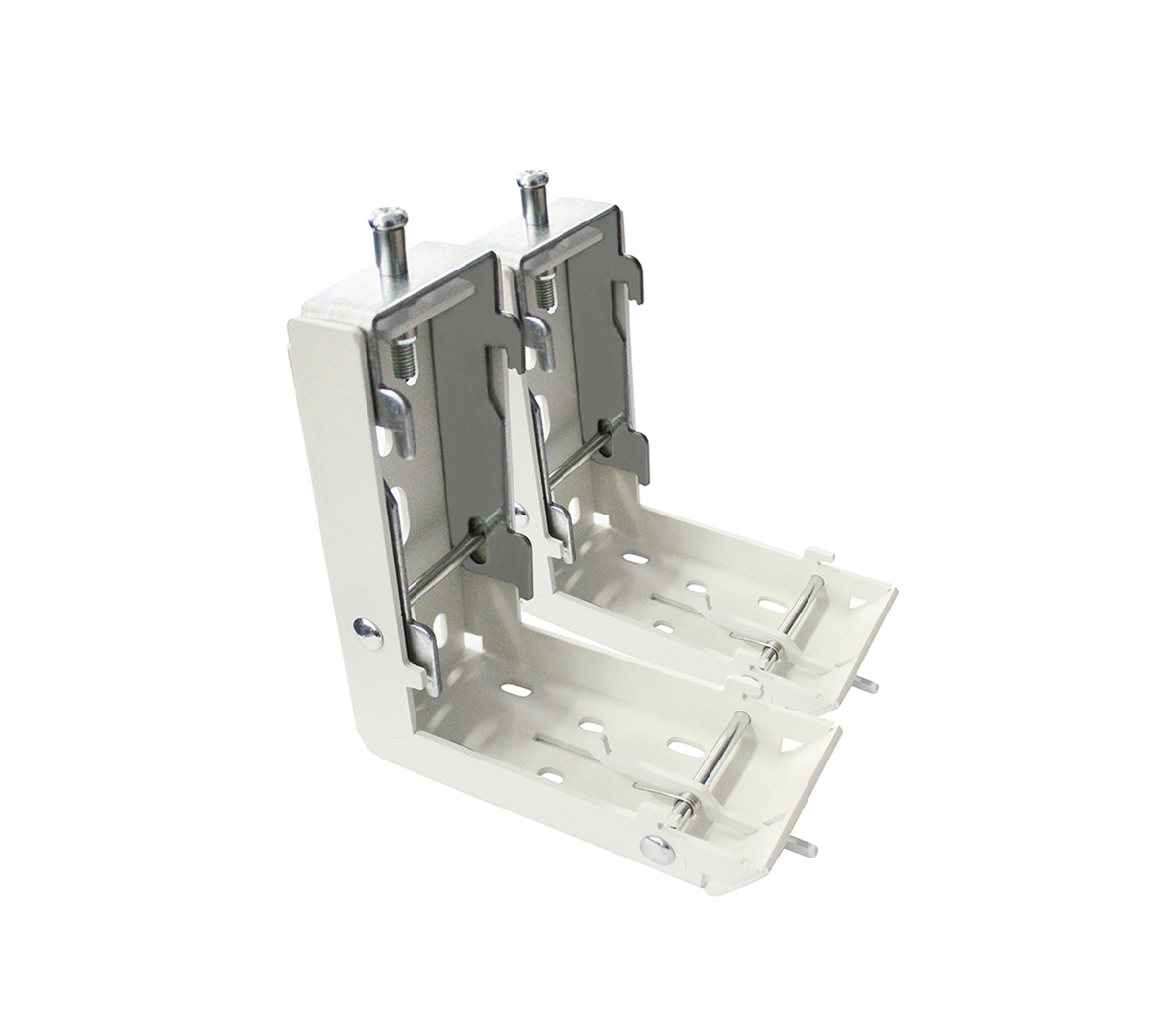

• Installation Options: Floating Wall Mount / Ceiling Mount /Suspended
Mount

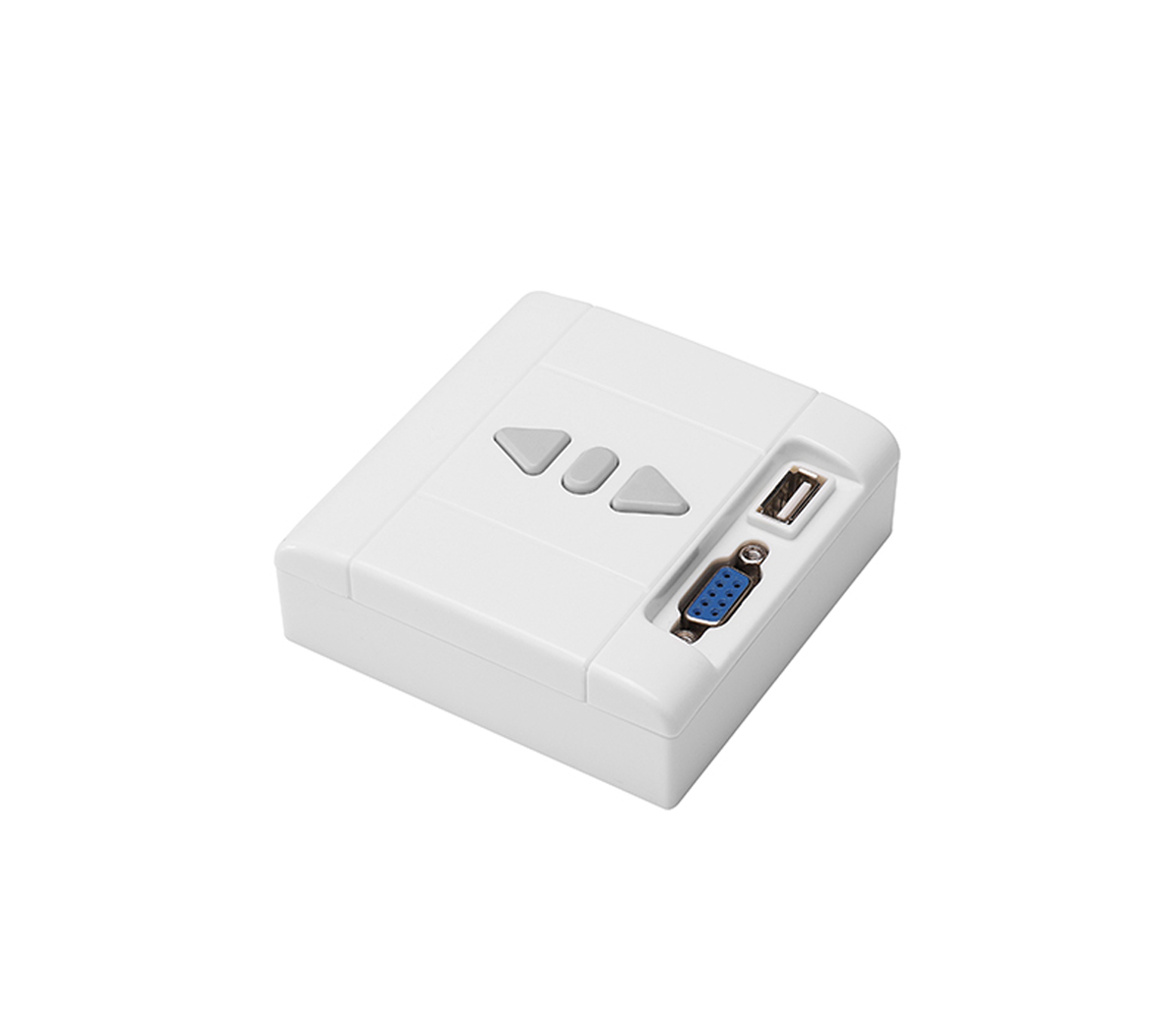

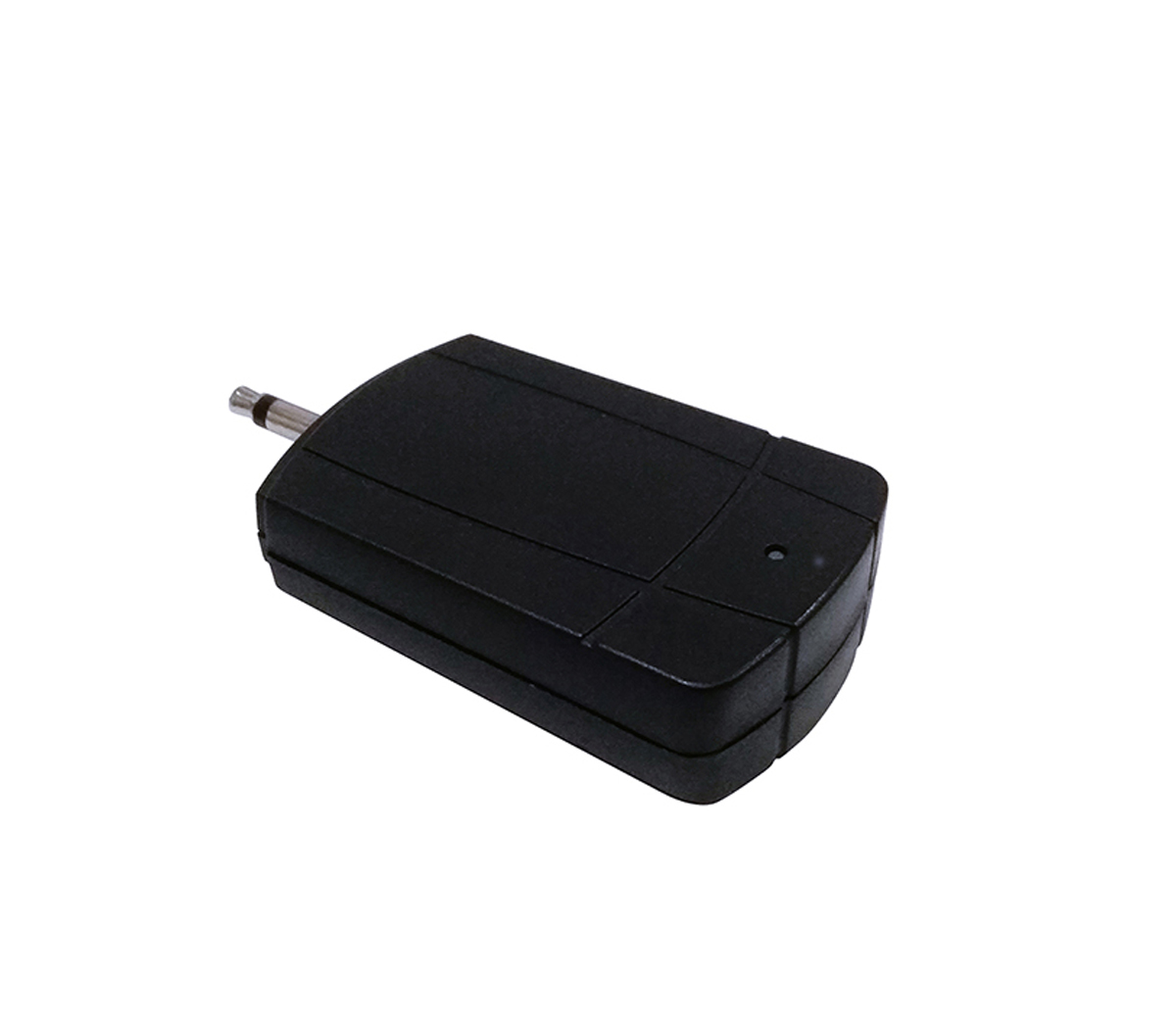

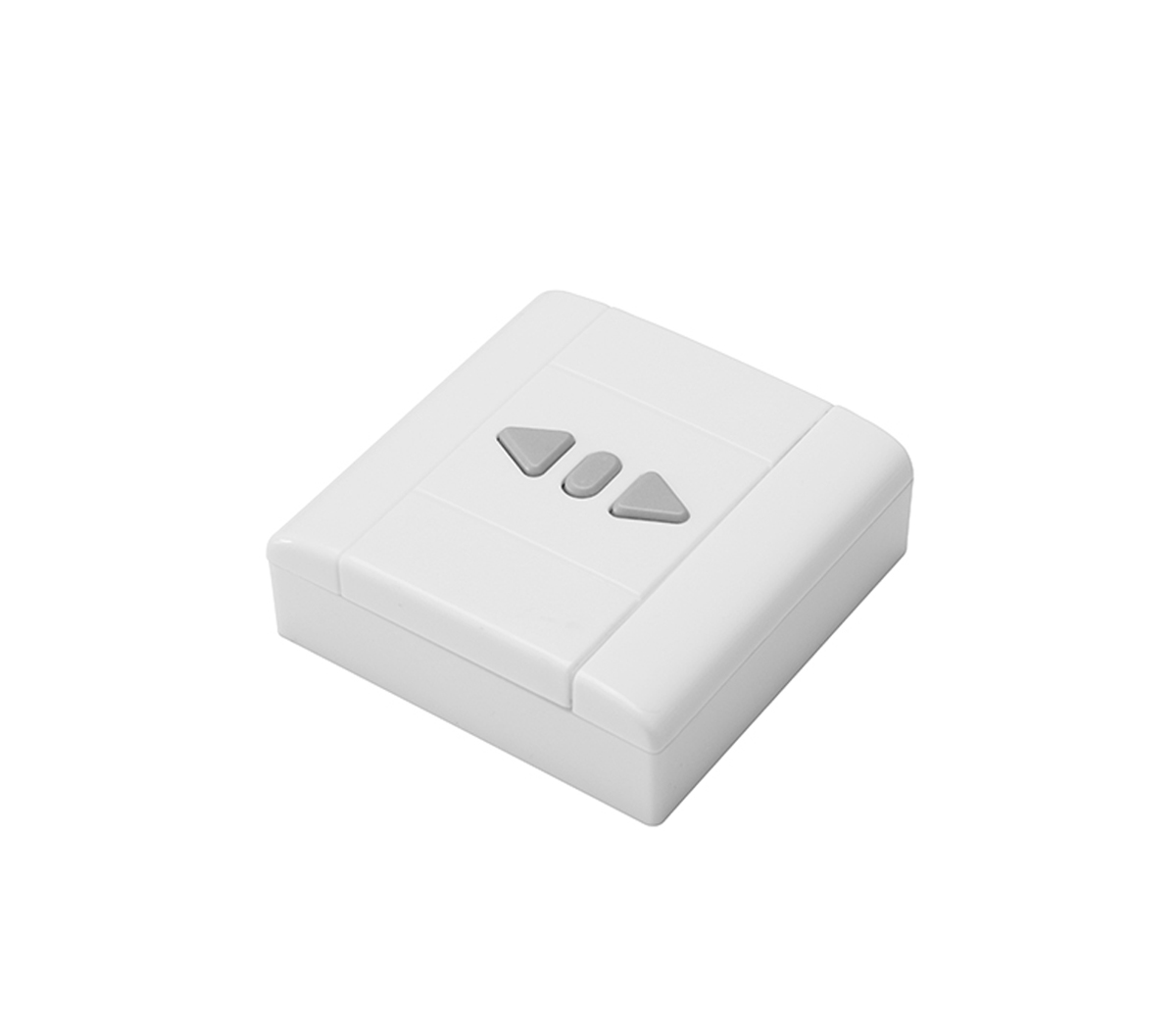

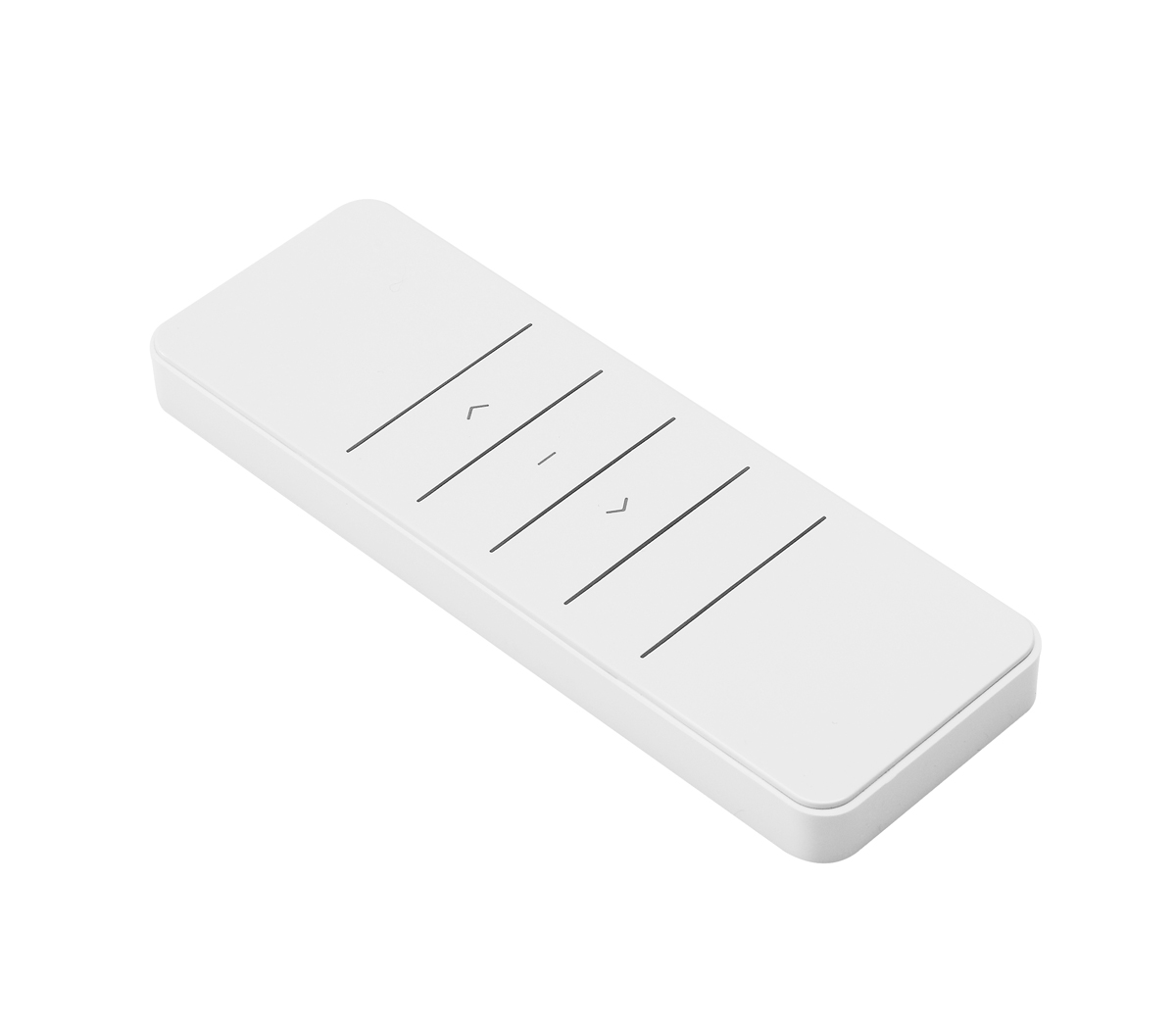

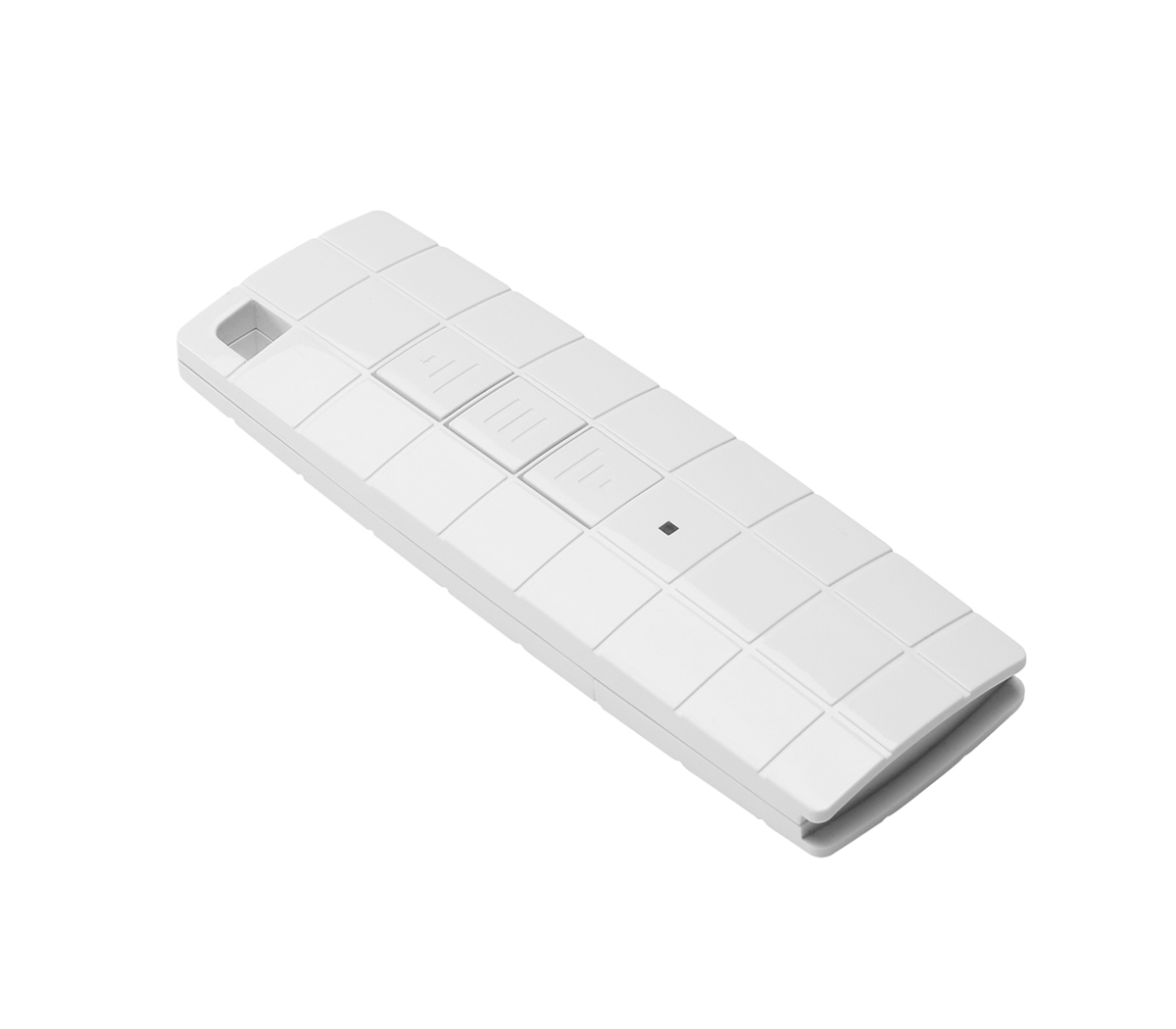

• Control Options: Inbuild RF or IR Remote Control ; RS485 ;
Dry Contact ; Central Control etc.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	92"	1869 x 1402	2012	400	65	80	2205	119	110
	100"	2030 x 1524	2134	400	65	80	2368	119	110
	120"	2438 x 1829	2439	400	65	80	2774	119	110
	145"	2944 x 2208	2848	400	65	80	3287	138	131
	150"	3048 x 2286	2926	400	65	80	3391	138	131
	165"	3320 x 2490	3130	400	65	80	3633	138	131
	180"	3658 x 2743	3383	400	65	80	4001	138	131

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
16:9	92"	2037 x 1146	1756	400	65	80	2368	119	110
	100"	2214 x 1245	1855	400	65	80	2550	119	110
	106"	2346 x 1320	1930	400	65	80	2682	119	110
	110"	2435 x 1370	1980	400	65	80	2774	119	110
	120"	2656 x 1494	2104	400	65	80	2992	119	110
	133"	2944 x 1656	2296	400	65	80	3287	138	131
	138"	3048 x 1715	2355	400	65	80	3391	138	131
	150"	3320 x 1867	2507	400	65	80	3663	138	131
	165"	3620 x 2036	2676	400	65	80	3963	138	131

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
16:10	92"	1982 x 1239	1849	400	65	80	2318	119	110
	100"	2154 x 1346	1956	400	65	80	2490	119	110
	106"	2283 x 1427	2037	400	65	80	2619	119	110
	110"	2369 x 1481	2091	400	65	80	2705	119	110
	120"	2585 x 1615	2225	400	65	80	2921	119	110
	138"	2944 x 1840	2480	400	65	80	3287	138	131
	142"	3048 x 1905	2545	400	65	80	3391	138	131
	150"	3231 x 2019	2659	400	65	80	3574	138	131
	168"	3620 x 2263	2903	400	65	80	3963	138	131
	180"	3877 x 2423	3063	400	65	80	4220	138	131

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
2.35:1	92"	2150 x 915	1725	600	65	80	2486	119	110
	100"	2337 x 995	1805	600	65	80	2682	119	110
	104"	2438 x 1037	1847	600	65	80	2774	119	110
	110"	2570 x 1095	1905	600	65	80	2906	119	110
	120"	2804 x 1194	2004	600	65	80	3140	119	110
	130"	3038 x 1293	2133	600	65	80	3381	138	131
	142"	3320 x 1413	2253	600	65	80	3663	138	131
