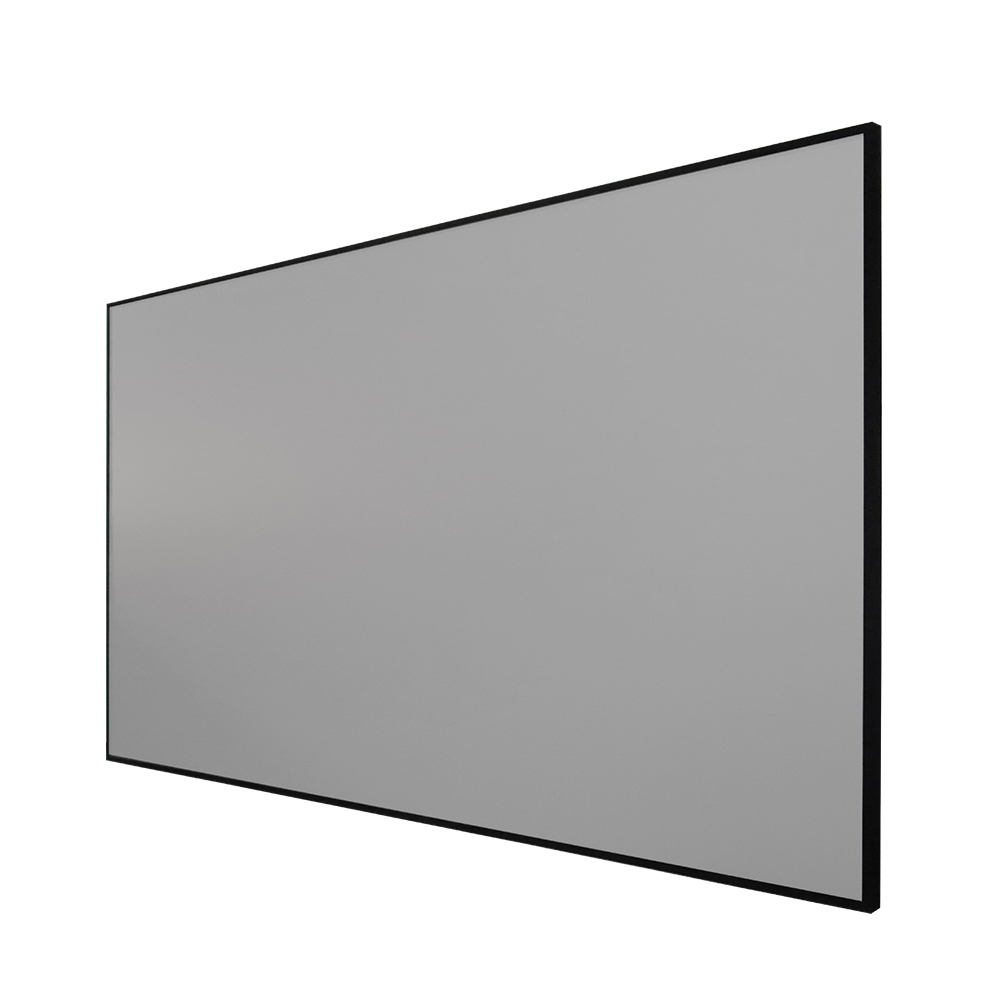

Edge-Lite Series - DY8
DY8
AW6
Specs
Without Decorative Frame
| Model | Diagonal Measurement | Viewing Area （W×H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
16:9 |
80" | 1785 x 1010 | 1021 | - | - | - | 1796 | N/A | N/A |
| 92" | 2051 x 1160 | 1171 | - | - | - | 2062 | N/A | N/A | |
| 100" | 2228 x 1259 | 1270 | - | - | - | 2239 | N/A | N/A | |
| 99.5" | 2220 x 1251 | 1262 | - | - | - | 2231 | N/A | N/A | |
| 119" | 2648 x 1495 | 1506 | - | - | - | 2659 | N/A | N/A | |
| 106" | 2361 x 1334 | 1345 | - | - | - | 2372 | N/A | N/A | |
| 110" | 2449 x 1384 | 1395 | - | - | - | 2460 | N/A | N/A | |
| 120" | 2671 x 1508 | 1519 | - | - | - | 2682 | N/A | N/A | |
| 130" | 2892 x 1633 | 1644 | - | - | - | 2903 | N/A | N/A | |
| 133" | 2958 x 1670 | 1681 | - | - | - | 2969 | N/A | N/A | |
| 145" | 3224 x 1820 | 1831 | - | - | - | 3235 | N/A | N/A | |
| 150" | 3335 x 1882 | 1893 | - | - | - | 3346 | N/A | N/A | |
| 180" | 3999 x 2255 | 2266 | - | - | - | 4010 | N/A | N/A | |
| 200" | 4442 x 2505 | 2516 | - | - | - | 4453 | N/A | N/A | |
| 220" | 4884 x 2754 | 2765 | - | - | - | 4895 | N/A | N/A | |
16:10 |
80" | 1737 x 1091 | 1102 | - | - | - | 1748 | N/A | N/A |
| 92" | 1996 x 1253 | 1264 | - | - | - | 2007 | N/A | N/A | |
| 100" | 2168 x 1360 | 1371 | - | - | - | 2179 | N/A | N/A | |
| 106" | 2297 x 1441 | 1452 | - | - | - | 2308 | N/A | N/A | |
| 110" | 2383 x 1495 | 1506 | - | - | - | 2394 | N/A | N/A | |
| 120" | 2599 x 1629 | 1640 | - | - | - | 2610 | N/A | N/A | |
| 133" | 2879 x 1804 | 1815 | - | - | - | 2890 | N/A | N/A | |
| 145" | 3137 x 1966 | 1977 | - | - | - | 3148 | N/A | N/A | |
| 150" | 3245 x 2033 | 2044 | - | - | - | 3256 | N/A | N/A | |
| 180" | 3891 x 2437 | 2448 | - | - | - | 3902 | N/A | N/A | |
| 200" | 4322 x 2706 | 2717 | - | - | - | 4333 | N/A | N/A | |
| 220" | 3753 x 2976 | 2987 | - | - | - | 3764 | N/A | N/A |
10mm
| Model | Diagonal Measurement | Viewing Area （W×H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
16:9 |
80" | 1781 x 1006 | 1026 | 10 | 10 | 10 | 1801 | N/A | N/A |
| 92" | 2047 x 1156 | 1176 | 10 | 10 | 10 | 2067 | N/A | N/A | |
| 100" | 2224 x 1255 | 1275 | 10 | 10 | 10 | 2244 | N/A | N/A | |
| 106" | 2357 x 1330 | 1350 | 10 | 10 | 10 | 2377 | N/A | N/A | |
| 110" | 2445 x 1380 | 1400 | 10 | 10 | 10 | 2465 | N/A | N/A | |
| 120" | 2667 x 1504 | 1524 | 10 | 10 | 10 | 2687 | N/A | N/A | |
| 130" | 2888 x 1629 | 1649 | 10 | 10 | 10 | 2908 | N/A | N/A | |
| 133" | 2954 x 1666 | 1686 | 10 | 10 | 10 | 2974 | N/A | N/A | |
| 145" | 3220 x 1816 | 1836 | 10 | 10 | 10 | 3240 | N/A | N/A | |
| 150" | 3331 x 1878 | 1898 | 10 | 10 | 10 | 3351 | N/A | N/A | |
| 180" | 3995 x 2251 | 2271 | 10 | 10 | 10 | 4015 | N/A | N/A | |
| 200" | 4438 x 2501 | 2521 | 10 | 10 | 10 | 4458 | N/A | N/A | |
| 220" | 4880 x 2750 | 2770 | 10 | 10 | 10 | 4900 | N/A | N/A | |
16:10 |
80" | 1733 x 1087 | 1107 | 10 | 10 | 10 | 1753 | N/A | N/A |
| 92" | 1992 x 1249 | 1269 | 10 | 10 | 10 | 2012 | N/A | N/A | |
| 100" | 2164 x 1356 | 1376 | 10 | 10 | 10 | 2184 | N/A | N/A | |
| 106" | 2293 x 1437 | 1457 | 10 | 10 | 10 | 2313 | N/A | N/A | |
| 110" | 2379 x 1491 | 1511 | 10 | 10 | 10 | 2399 | N/A | N/A | |
| 120" | 2595 x 1625 | 1645 | 10 | 10 | 10 | 2615 | N/A | N/A | |
| 133" | 2875 x 1800 | 1820 | 10 | 10 | 10 | 2895 | N/A | N/A | |
| 145" | 3133 x 1962 | 1982 | 10 | 10 | 10 | 3153 | N/A | N/A | |
| 150" | 3241 x 2029 | 2049 | 10 | 10 | 10 | 3261 | N/A | N/A | |
| 180" | 3887 x 2433 | 2453 | 10 | 10 | 10 | 3907 | N/A | N/A | |
| 200" | 4318 x 2702 | 2722 | 10 | 10 | 10 | 4338 | N/A | N/A | |
| 220" | 4749 x 2972 | 2992 | 10 | 10 | 10 | 4769 | N/A | N/A |
15mm
| Model | Diagonal Measurement | Viewing Area （W×H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
16:9 |
80" | 1771 x 996 | 1026 | 15 | 15 | 15 | 1801 | N/A | N/A |
| 92" | 2037 x 1146 | 1176 | 15 | 15 | 15 | 2067 | N/A | N/A | |
| 100" | 2214 x 1245 | 1275 | 15 | 15 | 15 | 2244 | N/A | N/A | |
| 106" | 2347 x 1320 | 1350 | 15 | 15 | 15 | 2377 | N/A | N/A | |
| 110" | 2435 x 1370 | 1400 | 15 | 15 | 15 | 2465 | N/A | N/A | |
| 120" | 2657 x 1494 | 1524 | 15 | 15 | 15 | 2687 | N/A | N/A | |
| 130" | 2878 x 1619 | 1649 | 15 | 15 | 15 | 2908 | N/A | N/A | |
| 133" | 2944 x 1656 | 1686 | 15 | 15 | 15 | 2974 | N/A | N/A | |
| 145" | 3210 x 1806 | 1836 | 15 | 15 | 15 | 3240 | N/A | N/A | |
| 150" | 3321 x 1868 | 1898 | 15 | 15 | 15 | 3351 | N/A | N/A | |
| 180" | 3985 x 2241 | 2271 | 15 | 15 | 15 | 4015 | N/A | N/A | |
| 200" | 4428 x 2491 | 2521 | 15 | 15 | 15 | 4458 | N/A | N/A | |
| 220" | 4870 x 2740 | 2770 | 15 | 15 | 15 | 4900 | N/A | N/A | |
16:10 |
80" | 1723 x 1077 | 1107 | 15 | 15 | 15 | 1753 | N/A | N/A |
| 92" | 1982 x 1239 | 1269 | 15 | 15 | 15 | 2012 | N/A | N/A | |
| 100" | 2154 x 1346 | 1376 | 15 | 15 | 15 | 2184 | N/A | N/A | |
| 106" | 2283 x 1427 | 1457 | 15 | 15 | 15 | 2313 | N/A | N/A | |
| 110" | 2369 x 1481 | 1511 | 15 | 15 | 15 | 2399 | N/A | N/A | |
| 120" | 2585 x 1615 | 1645 | 15 | 15 | 15 | 2615 | N/A | N/A | |
| 133" | 2865 x 1790 | 1820 | 15 | 15 | 15 | 2895 | N/A | N/A | |
| 145" | 3123 x 1952 | 1982 | 15 | 15 | 15 | 3153 | N/A | N/A | |
| 150" | 3231 x 2019 | 2049 | 15 | 15 | 15 | 3261 | N/A | N/A | |
| 180" | 3877 x 2423 | 2453 | 15 | 15 | 15 | 3907 | N/A | N/A | |
| 200" | 4308 x 2692 | 2722 | 15 | 15 | 15 | 4338 | N/A | N/A | |
| 220' | 4739 x 2962 | 2992 | 15 | 15 | 15 | 4769 | N/A | N/A |
