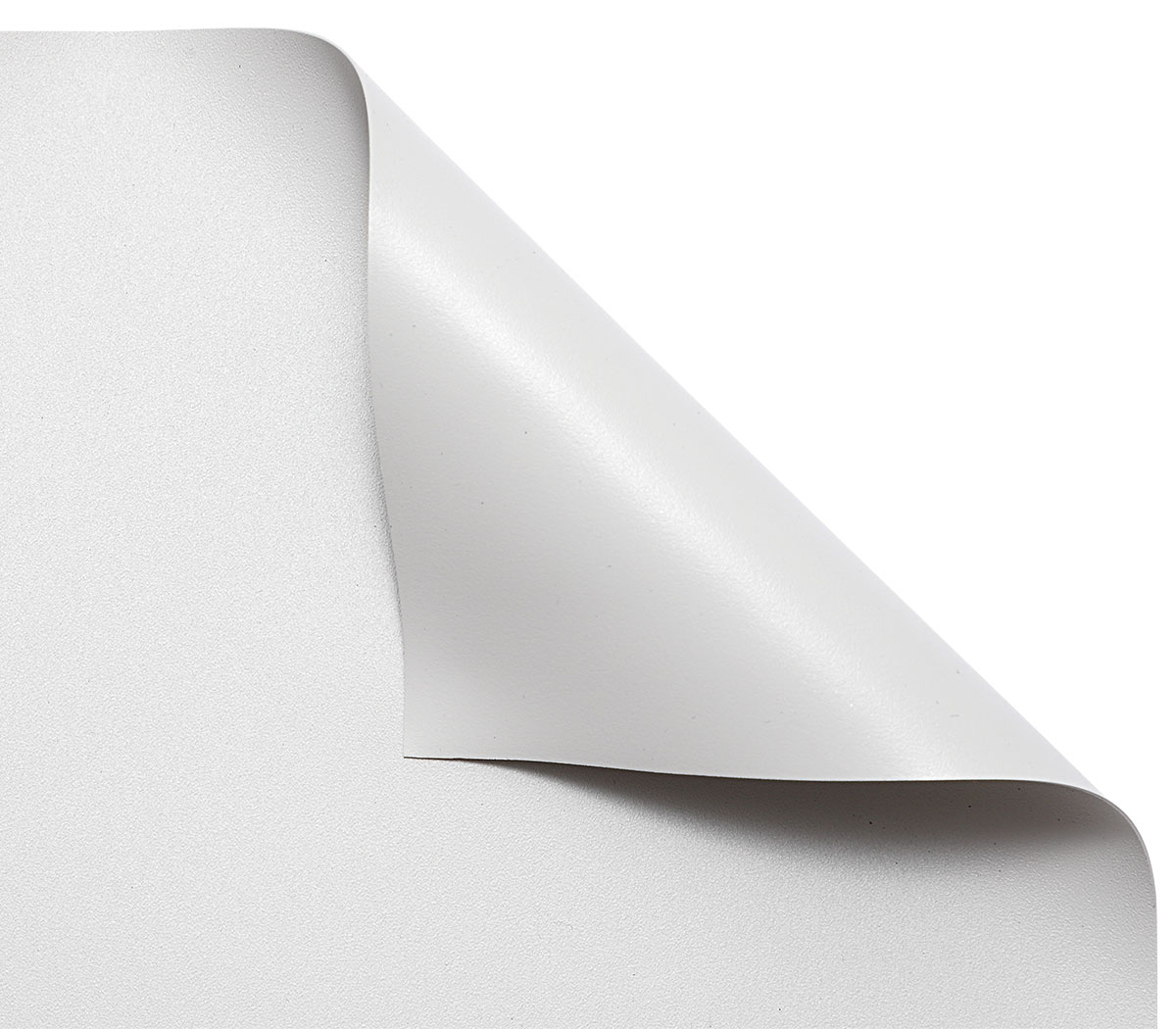

Fabrics

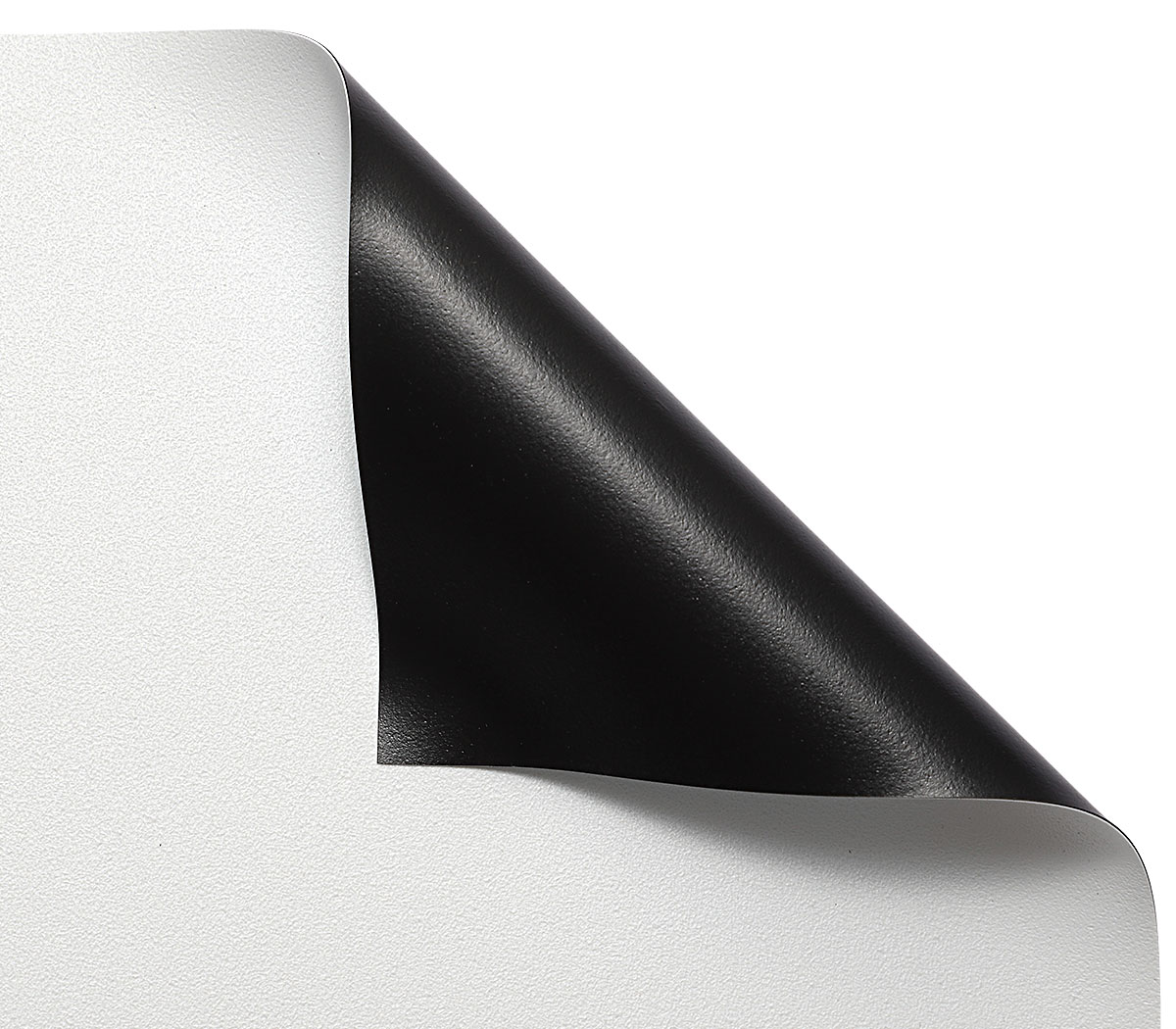

UHD130

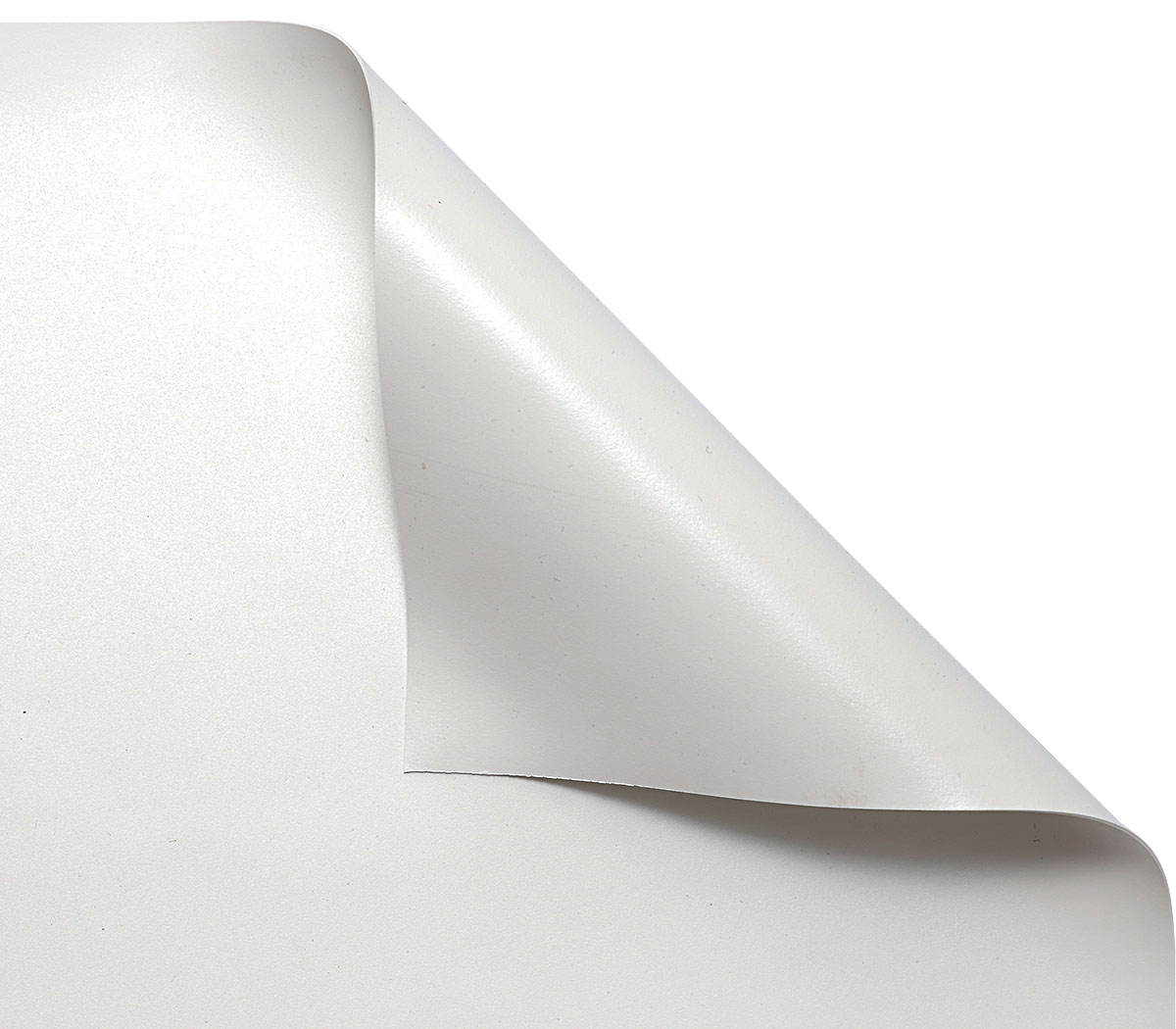

WW5

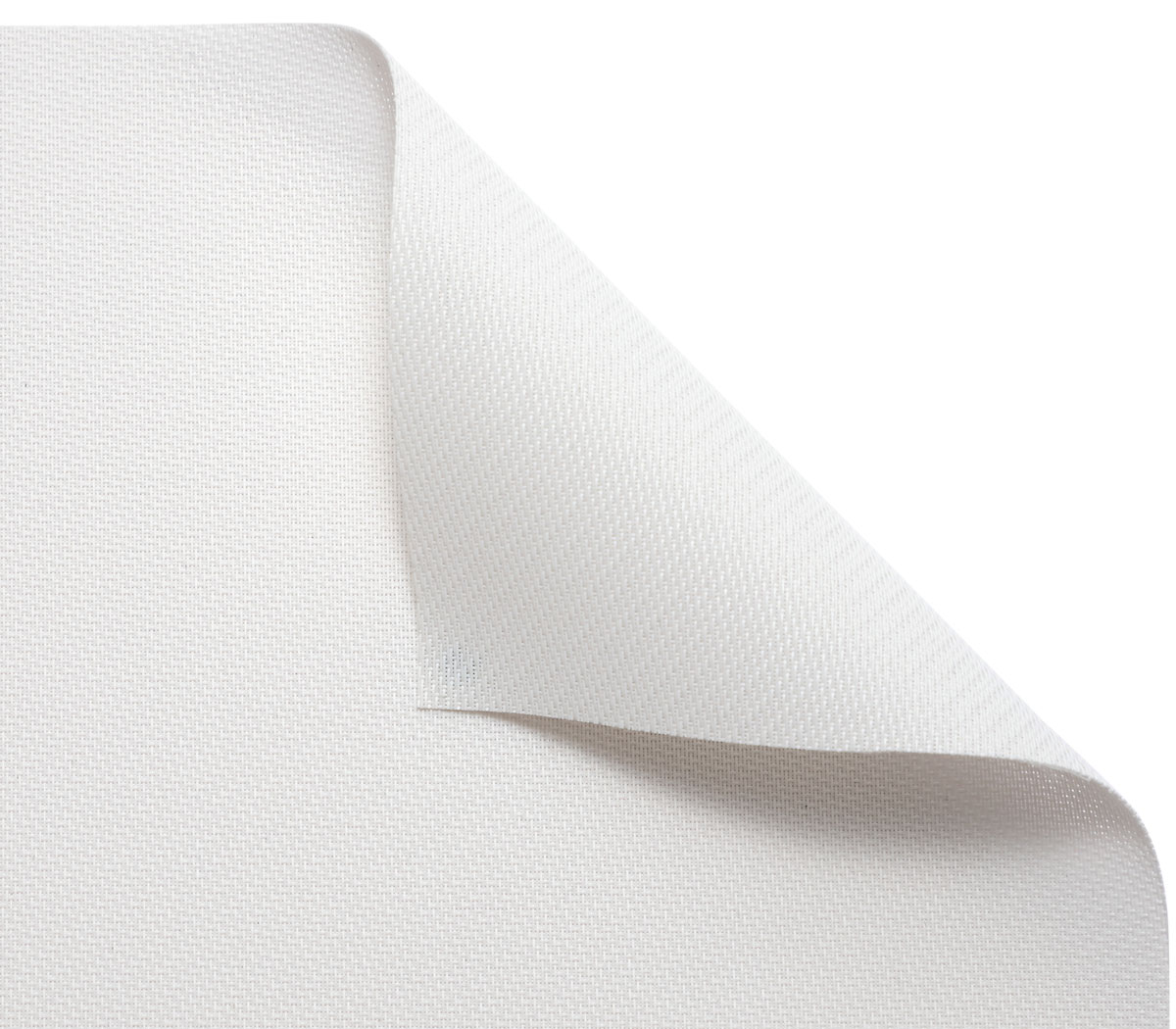

WB7

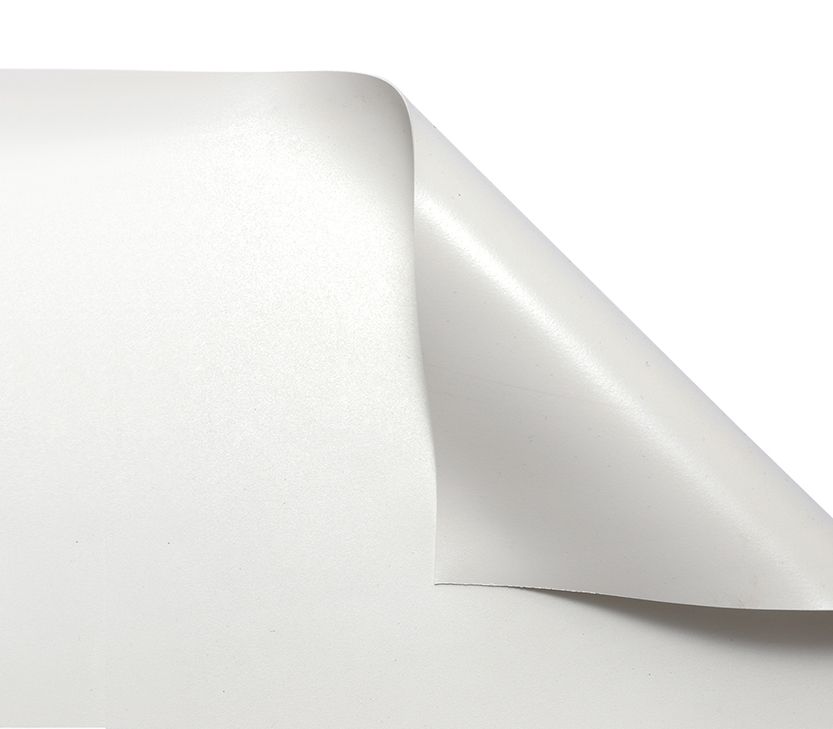

GG3
AW6
Specs

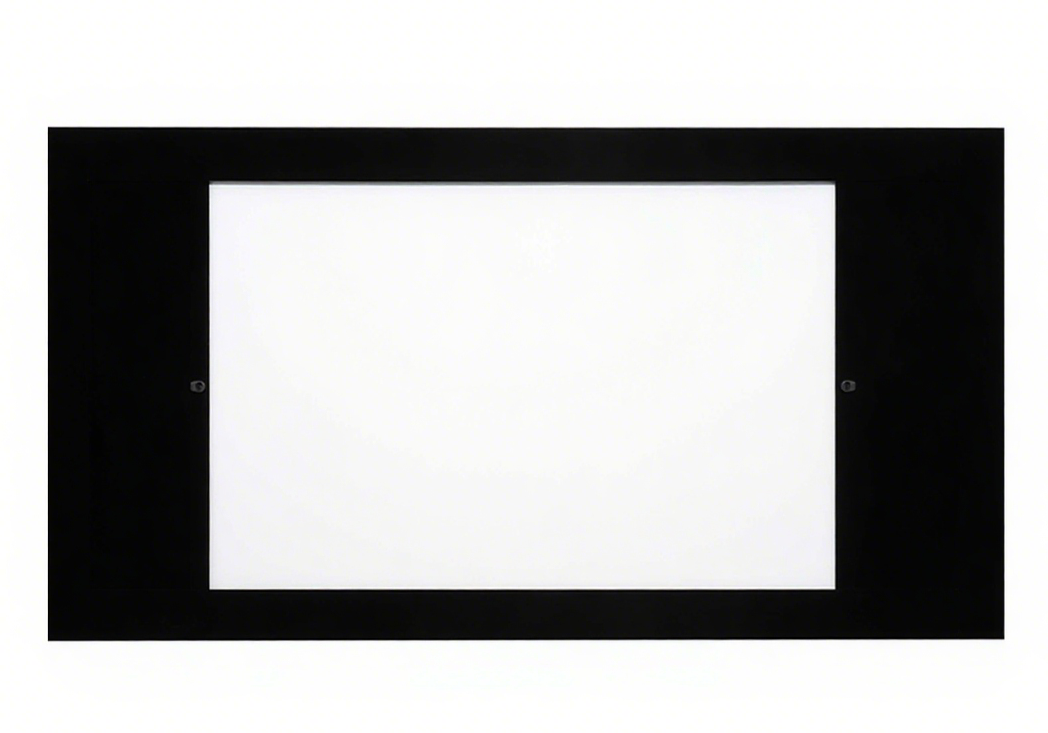

Horizontally Adjustable
Model 2.35:1
| Model | Diagonal Measurement | Viewing Area （W x H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
2.35:1 |
84" | 1963 x 836 | 1046 | N/A | N/A | 105 | 2263 | N/A | N/A |
| 92" | 2150 x 915 | 1125 | N/A | N/A | 105 | 2450 | N/A | N/A | |
| 100" | 2337 x 995 | 1205 | N/A | N/A | 105 | 2637 | N/A | N/A | |
| 106" | 2477 x 1054 | 1264 | N/A | N/A | 105 | 2777 | N/A | N/A | |
| 110" | 2570 x 1094 | 1304 | N/A | N/A | 105 | 2870 | N/A | N/A | |
| 120" | 2804 x 1194 | 1404 | N/A | N/A | 105 | 3104 | N/A | N/A | |
| 125" | 2921 x 1243 | 1453 | N/A | N/A | 105 | 3221 | N/A | N/A | |
| 130" | 3038 x 1293 | 1503 | N/A | N/A | 105 | 3338 | N/A | N/A | |
| 132" | 3085 x 1285 | 1495 | N/A | N/A | 105 | 3385 | N/A | N/A |

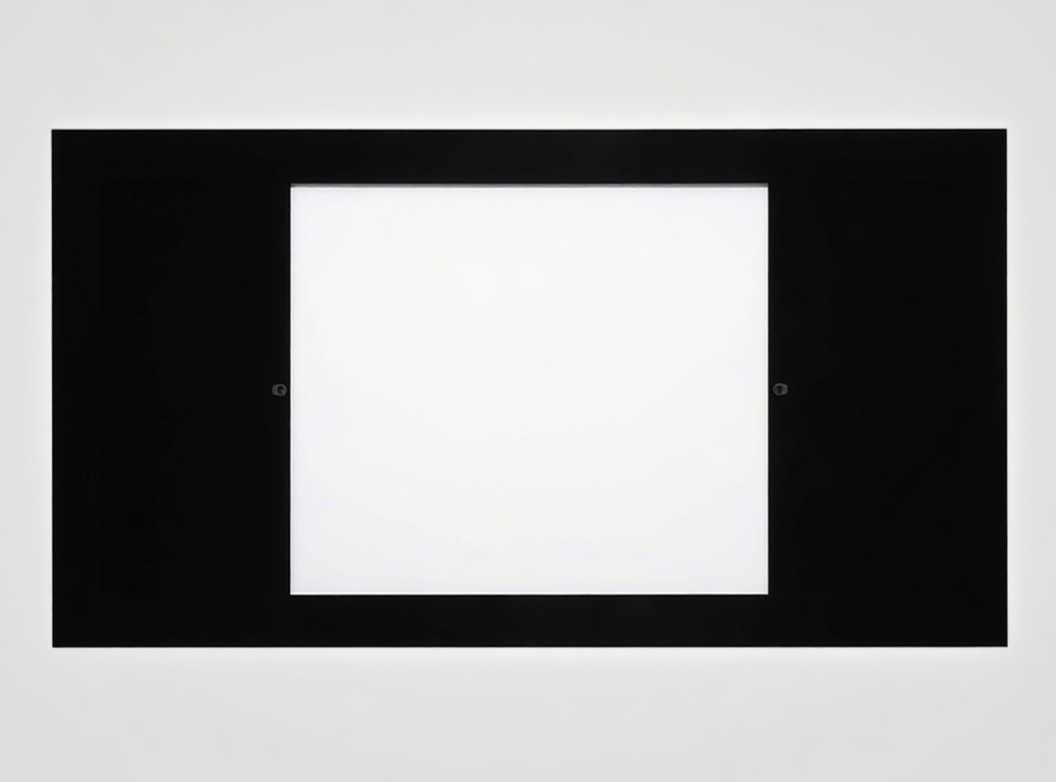

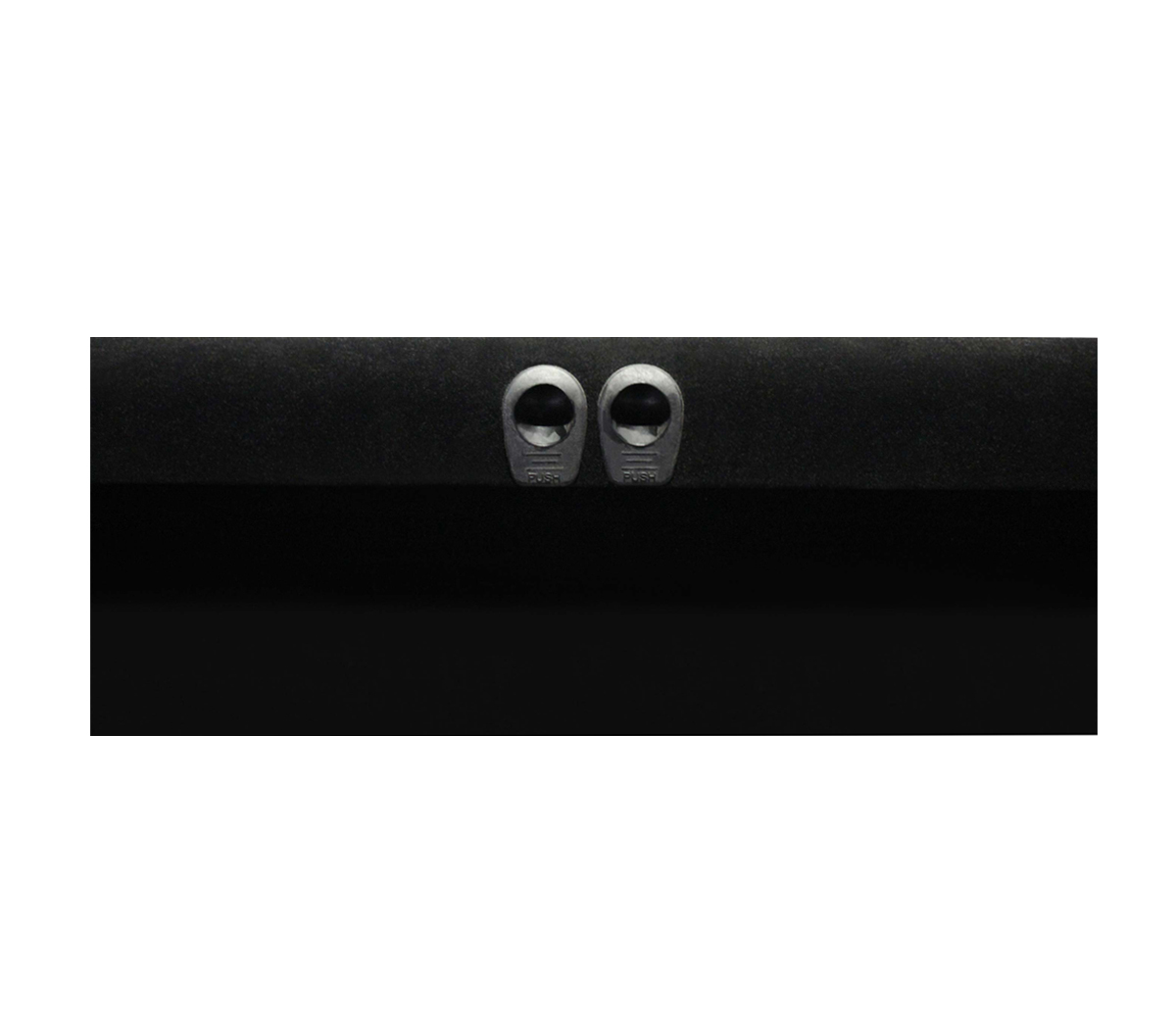

Vertically Adjustable
| Model | Diagonal Measurement | Viewing Area （W x H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
| 4:3 | 100" | 2032 x 1524 | 1824 | 150 | 150 | 105 | 2242 | N/A | N/A |
| 138" | 3055 x 1718 | 2018 | 150 | 150 | 105 | 3265 | N/A | N/A |

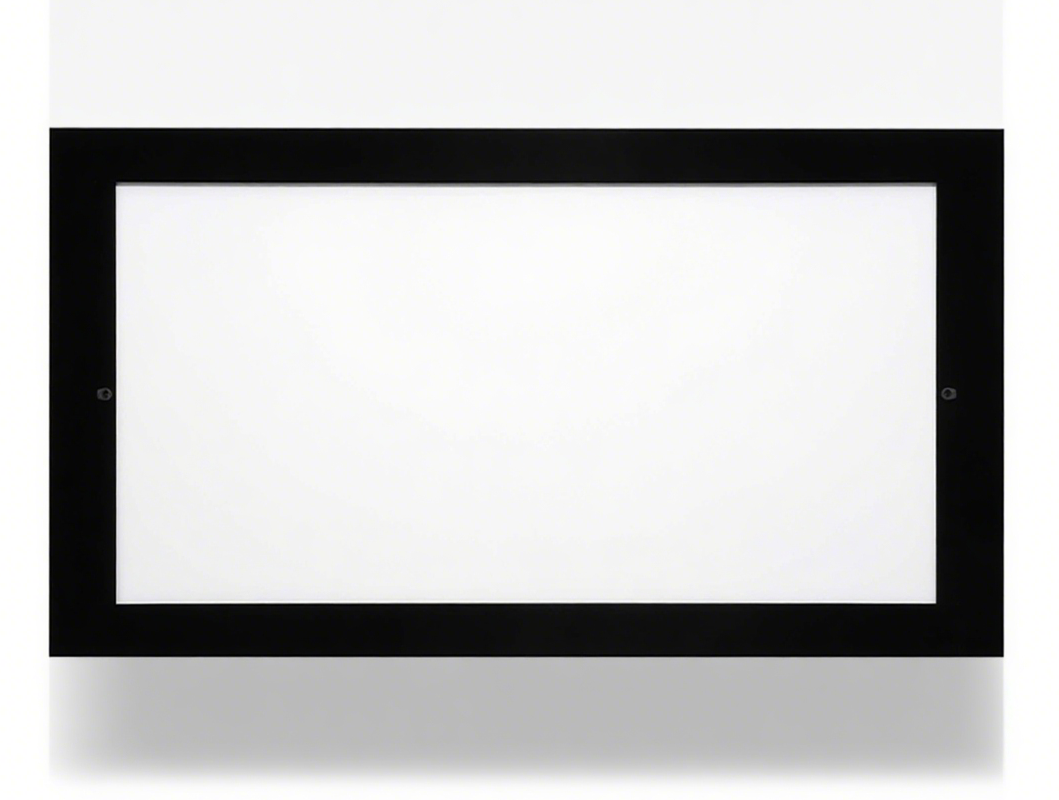

Model 16:9
| Model | Diagonal Measurement | Viewing Area （W x H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
| 16:9 | 80" | 1771 x 996 | 1296 | 150 | 150 | 105 | 1981 | N/A | N/A |
| 92" | 2037 x 1145 | 1445 | 150 | 150 | 105 | 2247 | N/A | N/A | |
| 100" | 2214 x 1245 | 1545 | 150 | 150 | 105 | 2424 | N/A | N/A | |
| 106" | 2346 x 1320 | 1620 | 150 | 150 | 105 | 2556 | N/A | N/A | |
| 120" | 2656 x 1494 | 1794 | 150 | 150 | 105 | 2866 | N/A | N/A |
