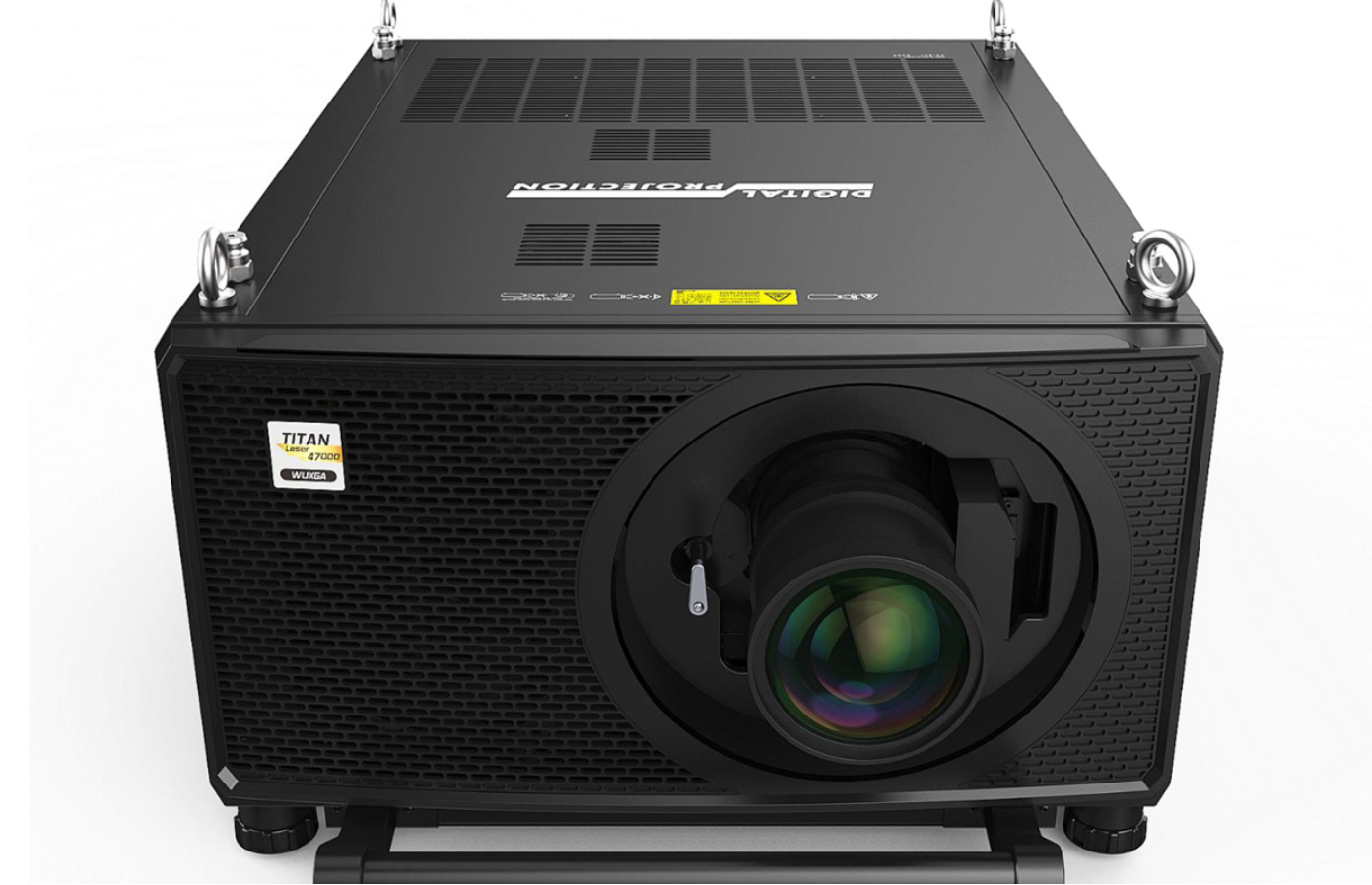

Digital Projection’s state-of-the-art TITAN Laser builds on its legacy
of innovation with this exceptional new model

Built into the new TITAN projector chassis’ are several leading-edge technologies that make it a choice imaging solution for
higher-end large venue applications, such as auditoria, performing arts centres, visitor attraction venues, houses of
worship, and rental and staging.

The new TITAN family is a huge leap forward over the popular current models, with many aspects completely reimagined and redesigned for
efficiency and size. The new model is 15% more efficient when measuring the lumens-per-watt output than the current TITAN and better
than the closest competitor, firmly putting down the TITAN’s green credentials alongside its already legendary status as a projection
powerhouse. Add to this the extended 40,000 hours illumination lifetime in ECO mode and the dust-proof, filterless design, the
TITAN is designed to run and run with minimal fuss in 24/7 environments.

The extra power and capability have also been engineered into a much more compact chassis, meaning it is 27% brighter, 13.3%
smaller, 7.4% lighter and 3dBA quieter than the current model. This regains the TITAN’s position as the
Smallest, Lightest, Brightest and Quietest projector in its class.

Core Technologies

Flexible Geometry Adjustment

Art-Net Support

Source Redundancy

Features such as source redundancy offers peace of mind
for those critical live events. When the main signal is lost,
the projector will switch to the backup source to
automatically

MultiAxis Orientation

For maximum flexibility, all TITAN Laser projectors can
be operated in both Portrait and Landscape mode,
pointing up and down and every angle in between

Constant Brightness

Internal light sensor keeps constant brightness output
when initially operated at lower power

24/7 Operation

Intelligent thermal design ensures stable 24 x 7
operation through efficient heat dissipation and
excellent thermal conductivity.

5 year / 20,000 hour warranty in EMEA

Due to the proven reliability and long-term performance of
our laser projectors, Digital Projection provides a full 5 years
/ 20,000 hours warranty.

Built-in Edge Blending

Superbly capable edge blending and multi-projector tiling is
provided by way of high bit depth processing that ensures a
seamless, contiguous image can be created from multiple
projectors.

Awards

TITAN Laser in action

Digital Projection displays visual
forte in Jhansi

A spectacular new sound-and-light show featuring eight Digital Projection
TITAN Laser 33000 4K-UHD projectors is immersing visitors in the story of
a national heroine at the historic Jhansi Fort in northern India.

Digital Projection Lets the Light Shine at
Lighthouse World Outreach Center

For many small and rural towns, it’s often the local churchthat serves not
only as a place of spiritual enrichment,but also provides fellowship and a
sense of communityto the residents. This is particularly the case in
Monroe,Georgia where Lighthouse World Outreach Center has been
passionately serving the community for nearly 30 years.

Colour System: Laser Phosphor with ColorBoost+Red Laser Display Type: 3 x 0.96" WUXGA DMD™ DMD Specification: Display capability up to 4K-UHD 8.3 megapixels on screen at 4K-UHD Fast transit pixels for smooth greyscale and improved contrast. Display capability up to 4K-UHD (3840x2160) Aspect Ratio: 16:9 Fill Factor N/A as Smooth Picture DMD Key Features: Video & Graphics Processing HDMI 2.0 compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats. DisplayPort 1.2 with HDCP 2.2 compliance. 10-bit colour processing (30-bits per pixel). Support for 1080p 24Hz native display. Support for 4K 4096 x 2160 resolution. HDR support Input source automatically detected. Input redundancy mode with auto switching. Dual Pipe Processing: Two sources in parallel for Left and Right eyes. Syncronisation of active 3D glasses or polarising switcher. DICOM simulation mode. Sealed light engine General Features Constant Brightness control Multi Projector brightness and colour control. Compatible with selected 3rd party lenses via lens converter Selectable EDID Custom Start-up Logo Smear Reduction (fast frame) (2D Only) Electronic PIC MUTE with selectable fade in/out timers On board 4 -line LCD display for at a glance status Geometry Correction Vertical & Horizontal Keystone correction. Four Corner adjustment. Rotation. Pin/Barrel. Wall Corner adjustment. Centre Shift (Horizontal and Vertical linearity adjustment). Custom Warp. Upload of maps for warp, blend, uniformity and masking. Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled. Digital Zoom. Blanking control for custom input window sizing. Edge Blending Blending control available for all sides with width control. Correction for non-active pixels at the edge of the display. Electronic Black Level Compensation. Upload of Blend Maps including Blend, Uniformity, Masking, Pixel by Pixel HDBaseT® Interface Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable Allows projector to be placed up to 100m from source with low cost cabling Supports up to 4K 4096 x 2160@60Hz 4:2:0 or 4K 4096 x 2160@30Hz 4:2:2 Includes Ethernet 100BaseT and RS232/IR control. Colour Processing Four colour modes available Powerful seven point colour correction for accurate colour matching with presets. Easy colour temperature selection Manual seven point colour adjustment Traditional lifts and gains Projector Controller Software Intuitive user interface for network control Simultaneous control of user-defined groups of projectors At-a-glance monitoring of projector status Projector Automation Real-time clock provides daily on/off automation E-mail alerts for system status Installation 4 x eye bolts fitted for easy rigging. 4 x top stacking mounts and mount securing pins supplied as standard accessories. Source Compatibility 2D Graphics standards up to 4K-UHD 3840x2160 resolution at 60Hz via HDMI 2.0b, HDBaseT (4:2:0), DisplayPort inputs 3D Graphics standards up to dual-pipe WUXGA 60Hz for input (120Hz output) via HDMI 2.0 and Display Port inputs 12G-SDI is SMPTE 259M, 292M, 424M and ST-2082 compliant. WUXGA mode 2D sources up to WUXGA 60Hz and 4K-UHD 60Hz can be displayed scaled to fit WUXGA 3D sources up to WUXGA 60Hz Input -120Hz output can be displayed scaled to fit WUXGA 4K-UHD mode 2D sources up to 4K (4096 x 2160) will be displayed scaled to fit 4K-UHD Auto Mode Sources greater than WUXGA will be displayed scaled to fit 4K-UHD Inputs/Outputs Video & Computer Type Connector Qty DisplayPort 1.2a (2D) HDMI 2.0b 12G-SDI in 12G-SDI out HDBaseT/LAN DisplayPort HDMI BNC BNC RJ45 2 2 1 1 1 . Communication & Control Type Connector Qty 3D SYNC IN 3D Sync Out LAN RS-232 Wired Remote 12V Trigger 3D Sync IR Out USB 5V 2A BNC BNC RJ45 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack BNC Type A 1 1 1 1 1 1 1 1 3D Formats Supported Sequential / 1080P/WUXGA @100Hz Sequential / 1080P/WUXGA @120Hz Dual-Pipe / 101080P/WUXGA80p @ 50Hz per eye Dual-Pipe / 1080P/WUXGA @ 60Hz per eye Also supports mandatory formats including side by side, top/bottom and frame packing HDTV Formats Supported 1080p (23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz). 1080i (50Hz, 59.94Hz, 60Hz). 720p (50Hz, 59.94Hz, 60Hz). 4K-UHD (23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 60Hz). Computer Compatibility 2D 4K-UHD up to 60Hz 3D Supported Formats will be displayed up to WUXGA Bandwidth 18Gb/s (600MHz clock rate) on HDMI Remote Control Addressable IR remote Control, Wireless and wired. On-Board keypad Automation Control LAN RS-232 Alert E-Mails from Projector Served webpage OSD functions for full Projector Control via web browser LAN Control-Crestron Roomview™ LAN Control-Crestron eControl LAN Control-PJ Link compatible LAN Control-AMX SSDP LAN to RS232 (RS232 by Telnet) Concurrence Control for RS232/LAN DMX Art-Net control Scheduled On and Off times Colour Temperature 3200K to 9300K Operation illumination Type Laser Light Source Typical illumination Life 20,000 Hours (Normal Mode) 40,000 Hours (ECO Mode) Lenses Lens Part No. Optimised Focus Range* Lens Shift (Frame) 0.37:1 (Right Angled) 120-510 1.6m - 4.9m Vert: 0.65 (U) 0.65 (D) frame, Hor: 0.31 (L) 0.31 (R) frame 0.65-0.85:1 (Right Angled) 120-511 2.8m - 8.4m Vert: 0.62 (U) 0.62 (D) frame, Hor: 0.25 (L) 0.25 (R) frame 0.8-1.16:1 (Includes support bracket) 120-827 1.7m - 11m Vert: 0.51 (U) 0.51 (D) frame, Hor: 0.20 (L) 0.20 (R) frame 1.16 - 1.49:1 zoom HB 109-236 3m - 15m Vert: 0.50 (U) 0.408 (D) frame, Hor: 0.2 (L) 0.2 (R) frame 1.39 - 1.87:1 zoom HB 105-610 4m - 24m Vert: 0.65 (U) 0.65 (D) frame, Hor: 0.28 (L) 0.28 (R) frame 1.87 - 2.56:1 zoom HB 105-611 4m - 24m Vert: 0.65 (U) 0.65 (D) frame, Hor: 0.28 (L) 0.28 (R) frame 2.56 - 4.16:1 zoom HB 105-612 9.1m - 45m Vert: 0.65 (U) 0.65 (D) frame, Hor: 0.28 (L) 0.28 (R) frame 4.16 - 6.96:1 zoom HB 105-613 12m - 80m Vert: 0.65 (U) 0.65 (D) frame, Hor: 0.28 (L) 0.28 (R) frame 6.92 - 10.36:1 zoom HB 109-235 12m - 80m Vert: 0.65 (U) 0.45 (D) frame, Hor: 0.28 (L) 0.28 (R) frame * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%, Lens Mount Motorised Shift, Zoom and Focus. Intelligent Lens Memory with 10 user-definable pre-set positions for zoom lenses. Mechanical Mounting Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet Orientation Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes Power Requirements 110V~130Vac/ 50~60Hz 180V~240Vac/ 50~60Hz single phase * Note that in 120V operation, the projector will be at ~25% brightness Power Consumption 230V Typical: 3650W , Maximum 4000W Thermal Dissipation Max 14160.38 BTU/hr @ 200VAC Max 3685 BTU/hr @ 110VAC Fan Noise Max 54 dBA Eco Typ : 53 dBA (TBC) Operating/Storage Temperature: Operating: Full Power 0°C ~ 35°C (32°F ~95°F), ECO upto 40°C (104°F) Storage: -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity Operating: 10% ~ 90% non-condensing Storage: 10% ~ 90% non-condensing Weight 88 (without lens) kg / 194 (without lens) lbs Dimensions L: 840mm, W: 650mm, H: 381mm (Excl handles) L: 33.1in, W: 25.6in, H: 15in (Excl handles) * See drawings for full details Safety & EMC Regulations TBC
