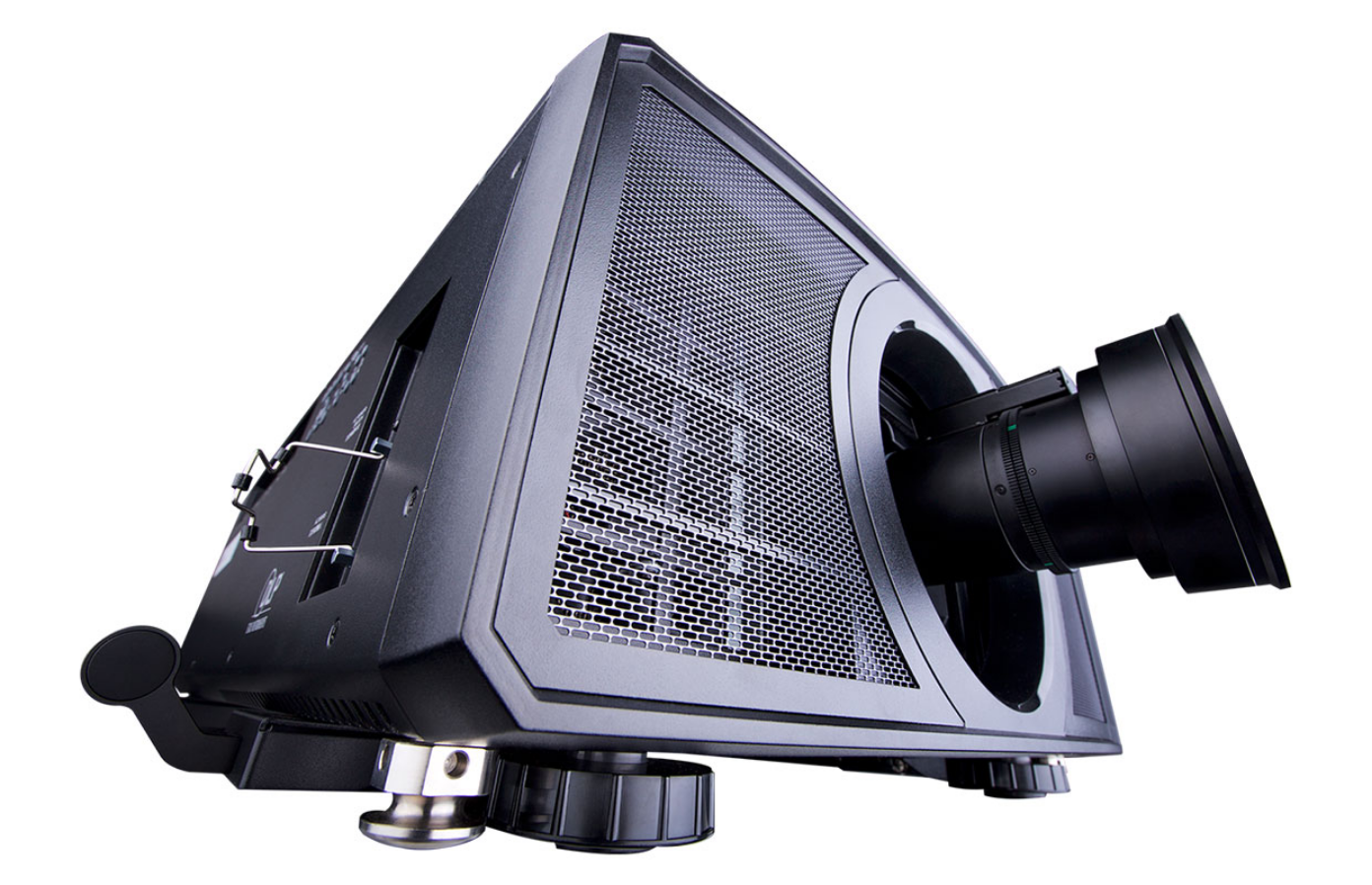

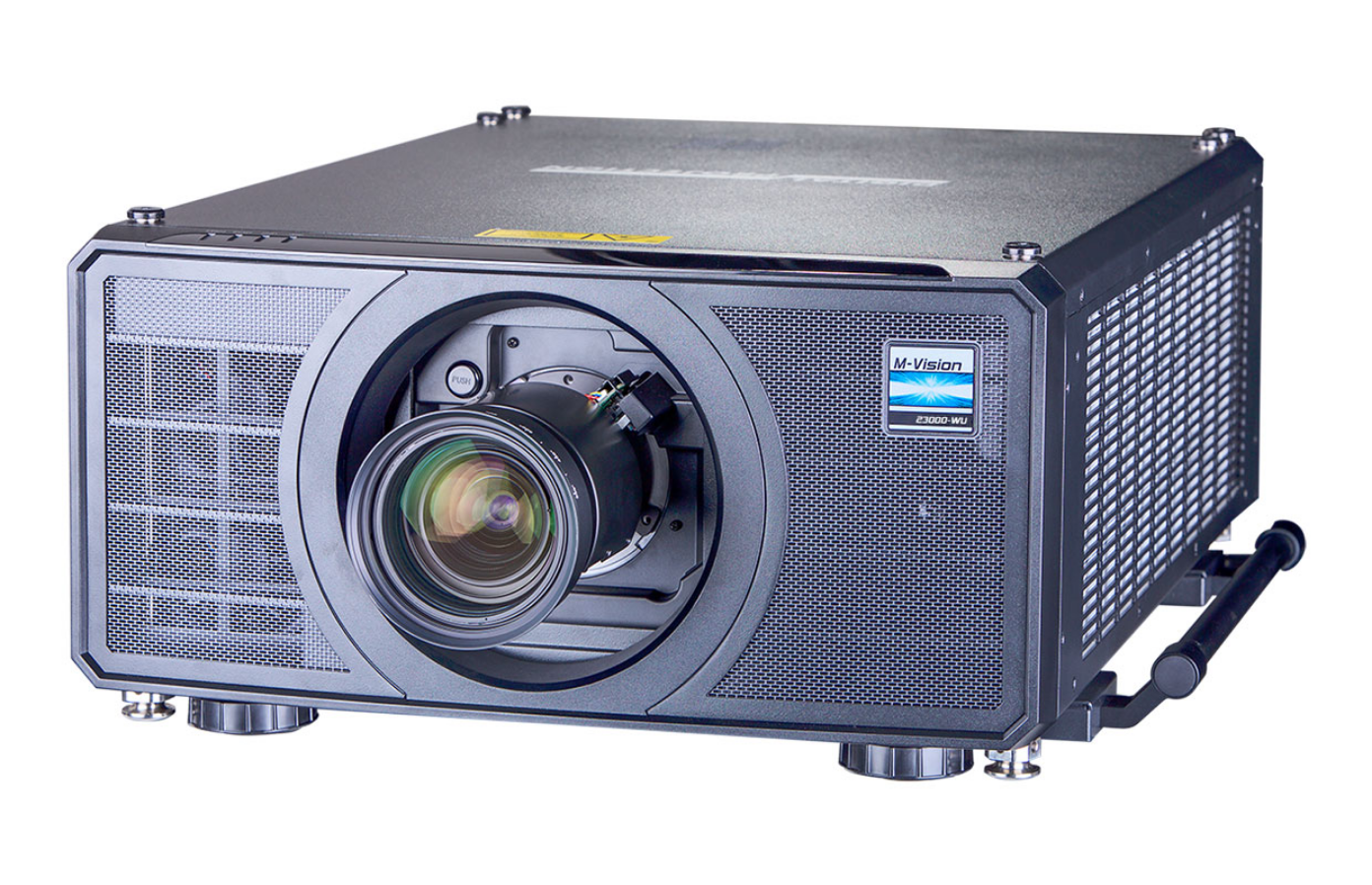

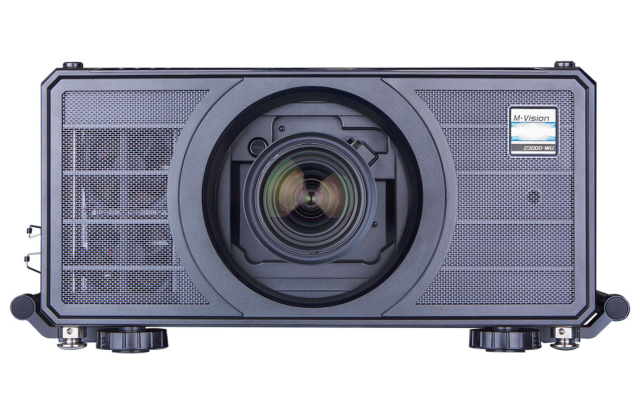

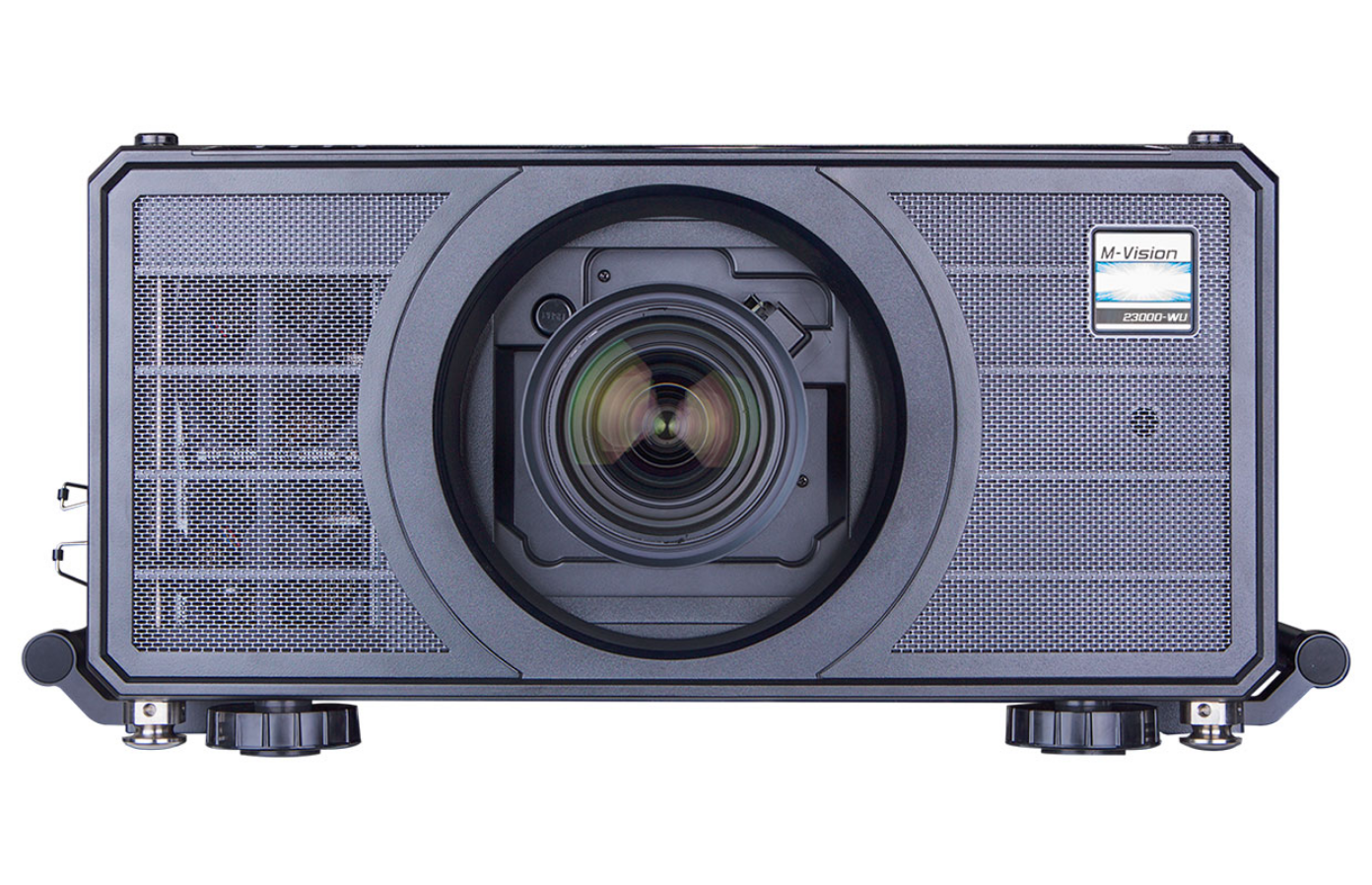

The Digital Projection M-Vision 23000 WU boasts an unprecedented 23,000 lumens output and 10,000:1 contrast ratio, to
bring budget-sensitive applications a large-screen imaging solution and near 3-Chip performance at a 1-Chip price point.
The new lamp-free, laser-phosphor projector is charged with ColorBoost + Red Laser technology to provide the most realistic and saturated colours at previously unreachable luminance levels. Venues needing
powerful, yet budget-conscious, large-format imagery without sacrificing colour accuracy, as well as those contending with ambient light, will directly benefit from the M-Vision 23000’s market
leading light output, contrast ratio and colourimetry. Its DisplayPort accepts frame rates up to 60 Hz and HDMI 1.4b for Side by Side, Frame Packing & Top Bottom 3D formats.
Motorised shift, zoom and focus across the whole lens range offer extra flexibility and ease of setup.
The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output
and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is
liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and
allows unrestricted airflow.
The 0.96” DarkChip DMD, teamed with blue and red lasers and a four-segment colour wheel produce unrivalled image quality
and brightness in the single chip projector market.
Core Technologies

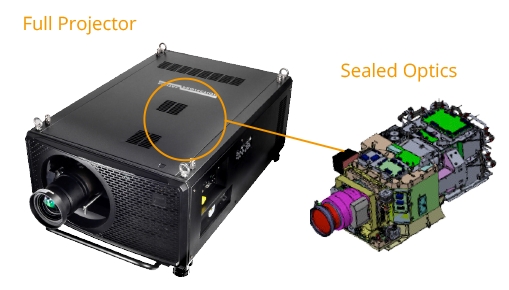

IP60 Sealed Optics
The M-Vision Series projectors have sealed optics and use liquid cooling with radiators to remove energy to the outside environment. The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and color performance will not be degraded due to the ingress of dust.

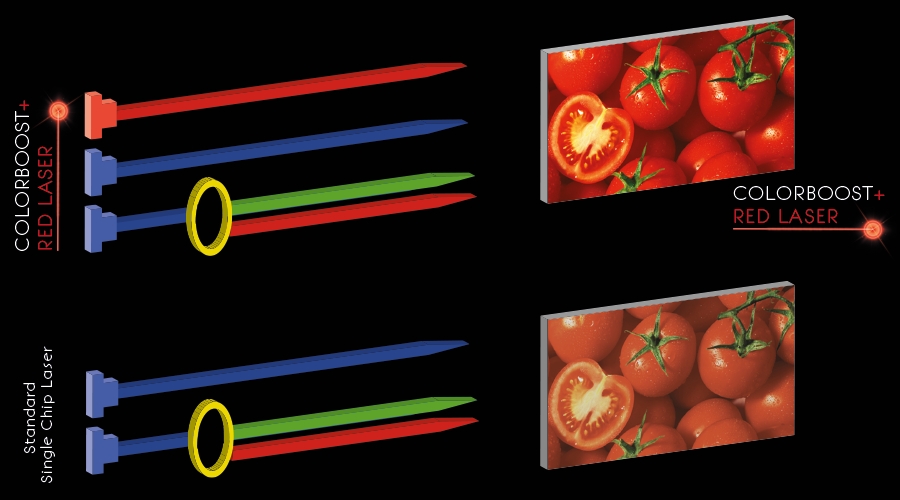

ColorBoost+ Red Laser Technology
The M-Vision 23000 WU built-in Colorboost+ Red Laser technology brings the most realistic and saturated colors to this 1-Chip DLP Projector. Intelligent processing brings the color performance ever closer to that of a 3-Chip DLP projector
TAA Compliant
Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions. Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant*. We are confident that this will provide more choices and options for those wanting the very best in projection technology.
SmartStack System The intuitive stacking mechanisms means that M-Vision 23000 projectors can be lock-stacked without any additional rigging frames or expense.
Projector Controller
Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for set up and configuration – all from a single network enabled PC.
MultiAxis Orientation
For maximum flexibility, the M-Vision 23000 can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between
3 Year Warranty
Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.
TAA Compliant
Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions. Toward that end, we are pleased to announce that most of our award- winning laser projectors are now TAA compliant. We are confident that this will provide more choices and options for those wanting the very best in projection technology.
M-Vision projectors in action

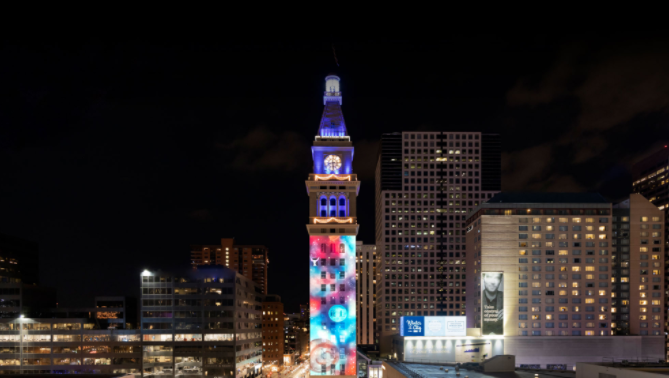

Digital Projection & Display Devices Transform Iconic Denver Clocktower with Art
The Daniels & Fisher Tower stands 325 feet tall in the center of the Theatre District, in the middle of the 16th Street Mall, just between lower and upper downtown. Complete with a plaza, this foot-traffic heavy location is a prime spot for Denver and the perfect spot for a projection mapping solution.

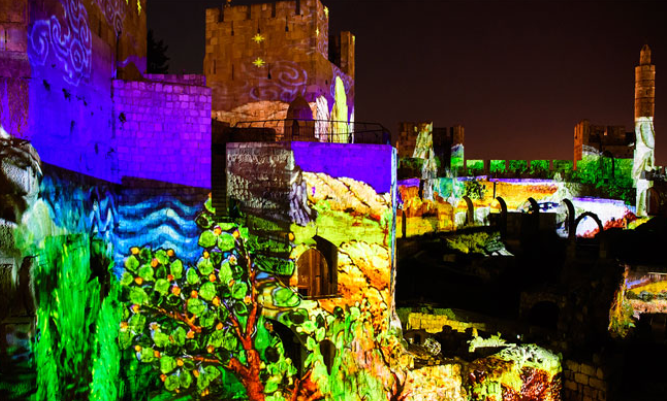

Projection Mapping at the Tower of David Museum in Jerusalem
The Tower of David – one of Jerusalem’s most significant historical sites – is home to a magnificent museum dedicated to the city’s history. A symbol of the city in the heart of the ancient Citadel, the Tower of David was a royal palace for thousands of years before it became a setting for exhibitions, works of art, concerts and performances visited by 400,000 people each year.
Correction for non-active pixels at the edge of the display.
Picture in Picture
Two sources can be displayed either one within the other (PIP) , or side by side, with the original aspect ratios maintained.
HDBaseT® Interface
Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
Allows the projector to be placed up to 100m from source with low cost cabling.
Colour Processing
Powerful seven-point colour correction for accurate colour matching.
Projector Controller Software
Intuitive user interface for network control.
Simultaneous control of user-defined groups of projectors.
At-a-glance monitoring of projector status.
Projector Automation
Real-time clock provides daily on/off automation.
Installation
Integrated stacking mount pins.
Eye bolts included for easy rigging.
IP6X sealed optics
Source Compatibility
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant. HDMI including Deep Color™ processing. Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI or DisplayPort.
Inputs/Outputs
Video & Computer
Type
Connector
Qty
DisplayPort 1.1a HDMI 1.4b 3G-SDI in 3G-SDI out HDBaseT
DisplayPort HDMI BNC BNC LAN RJ45
2 2 1 1 1
.
Communication & Control
Type
Connector
Qty
3D Sync Out 3D Sync In LAN RS232 Wired Remote 12V Trigger
NOTE: The HDBaseT and LAN ports are not shared.
BNC BNC RJ45 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack
1 1 1 1 1 2
3D Formats Supported
Frame Packing Dual Pipe Frame Sequential Side By Side (half) Top and Bottom
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
Lens Mount
Motorised shift, zoom and focus, with programmable shift
