21,000 Lumens Maintenance-Free Lumens with ColorBoost + Red Laser

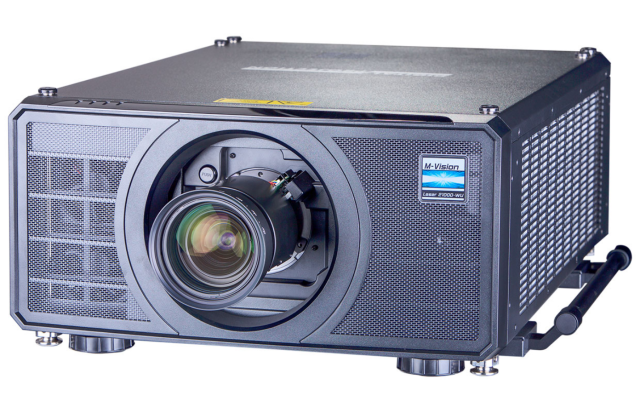

The M-Vision Laser 21000 WU II is a new breed of Single Chip DLP Laser projectors from Digital Projection. This lamp-free, laser-phosphor projector utilises new Colorboost+Red Laser technology to bring you the most realistic and saturated colours at previously unimaginable luminance levels. Such power and accuracy, combined with all-new intelligent processing brings the overall performance ever closer to that of a 3-Chip DLP projector – at a much more affordable price.
Boasting an unprecedented 21,000 lumens output and a 10,000:1 contrast ratio, the new M-Vision Laser 21000 II brings budget-sensitive applications a large -screen imaging solution and near 3-Chip performance at a 1-Chip price point.
The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.
Venues contending with ambient light, as well as applications needing a powerful yet budget-conscious large-format imagery solution without sacrificing on colour accuracy will directly benefit from the M-Vision 21000 WU II class leading light output, contrast ratio and colourimetry. Perfectly suited to all applications where high brightness is required, no feature has been overlooked. DisplayPort accepts frame rates up to 60 Hz and HDMI 1.4b for Side by Side, Frame Packing & Top Bottom 3D formats. Motorised shift, zoom and focus across the whole lens range offers superb flexibility and ease of setup. This projector is not a class leader – it is in a class of its own.
Core Technologies
Nexus
Our Next Generation Electronics Platform
Our Next-generation electronics platform has been designed to deliver the most advanced image processing to all projectors. Whichever of our projectors you use, you will be totally familiar with its operation, OSD menu structure and functionality, all of which is seamlessly integrated into our free, Projector Control II software.
IP60 Sealed Optics
The M-Vision Series projectors have sealed optics and use liquid cooling with radiators to remove energy to the outside environment. The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and color performance will not be degraded due to the ingress of dust.
ColorBoost+ Red Laser Technology
The M-Vision Laser 21000’s built-in Colorboost+ Red Laser technology brings the most realistic and saturated colors to this 1-Chip DLP Projector. Intelligent processing brings the color performance ever closer to that of a 3-Chip DLP projector
SmartStack System The intuitive stacking mechanisms means that M-Vision 21000 projectors can be lock-stacked without any additional rigging frames or expense.
Projector Controller
Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for set up and configuration – all from a single network enabled PC.
MultiAxis Orientation

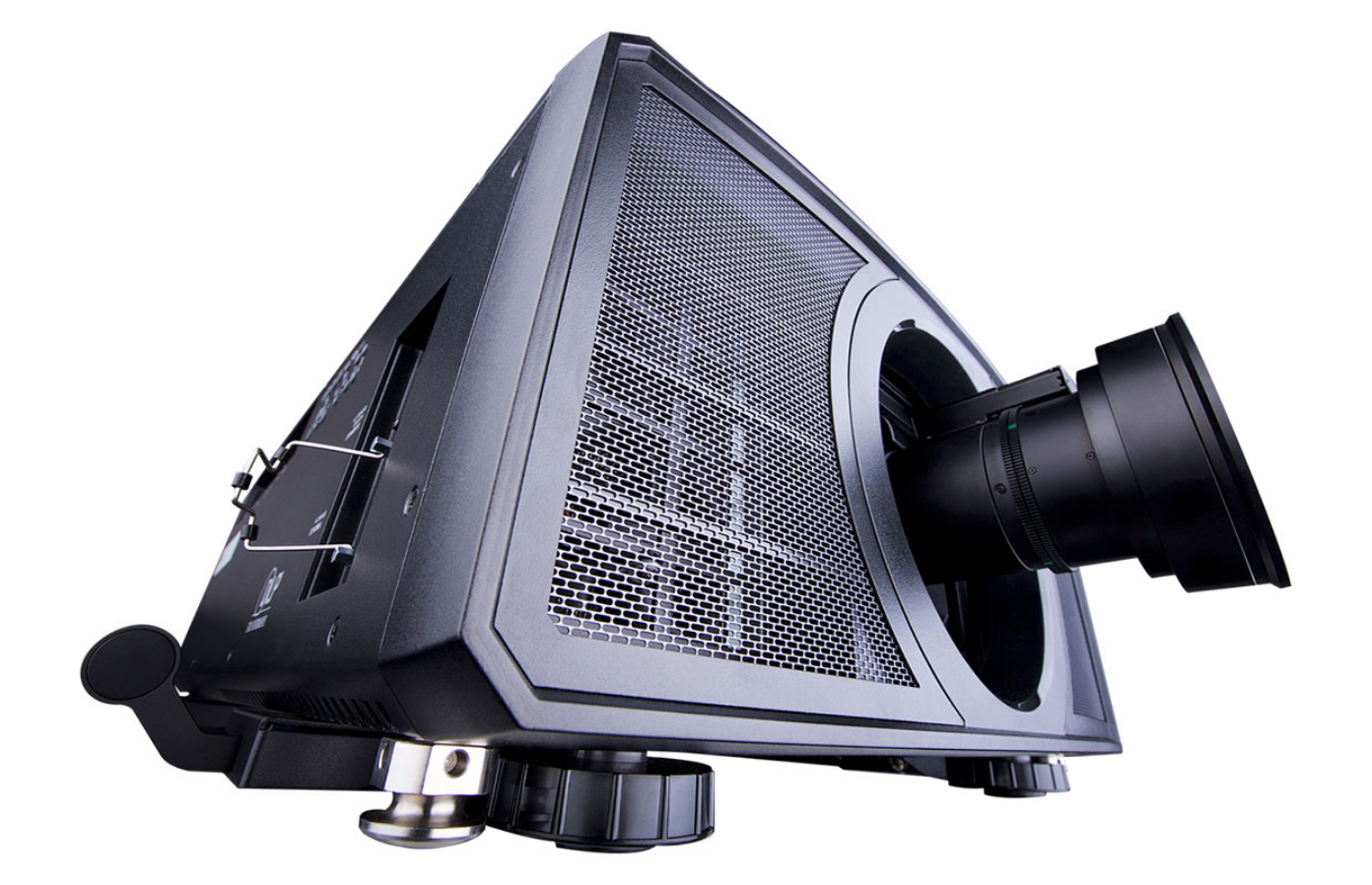

For maximum flexibility, the M-Vision 21000 can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between
3 Year Warranty
Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.
TAA Compliant
Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions. Toward that end, we are pleased to announce that most of our award- winning laser projectors are now TAA compliant. We are confident that this will provide more choices and options for those wanting the very best in projection technology.
M-Vision projectors in action
Digital Projection & Display Devices Transform Iconic Denver Clocktower with Art
The Daniels & Fisher Tower stands 325 feet tall in the center of the Theatre District, in the middle of the 16th Street Mall, just between lower and upper downtown. Complete with a plaza, this foot-traffic heavy location is a prime spot for Denver and the perfect spot for a projection mapping solution.
Projection Mapping at the Tower of David Museum in Jerusalem
The Tower of David – one of Jerusalem’s most significant historical sites – is home to a magnificent museum dedicated to the city’s history. A symbol of the city in the heart of the ancient Citadel, the Tower of David was a royal palace for thousands of years before it became a setting for exhibitions, works of art, concerts and performances visited by 400,000 people each year.
Correction for non-active pixels at the edge of the display.
HDBaseT® Interface
Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
Allows the projector to be placed up to 100m from source with low cost cabling.
HDBaseT® Includes Ethernet 100BaseT and RS232/IR control.
Colour Processing
Powerful seven-point colour correction for accurate colour matching.
Projector Controller Software
Intuitive user interface for network control.
Simultaneous control of user-defined groups of projectors.
At-a-glance monitoring of projector status.
Projector Automation
Real-time clock provides daily on/off automation.
Installation
4 x eye bolts included for easy rigging.
4 x top stacking mounts and mount securing pins
IP6X sealed optics.
Source Compatibility
12G-SDI single link - SMPTE 292M (HD), SMPTE 424M (3G), SMPTE 2081 (6G), SMPTE 2082 (12G).
Inputs/Outputs
Video & Computer
Type
Connector
Qty
DisplayPort 1.2 HDMI 2.0 HDBaseT 12G-SDI In 12G-SDI Out (loopthrough)
DisplayPort HDMI RJ45 BNC BNC
2 2 1 1 1
.
Communication & Control
Type
Connector
Qty
3D Sync In 3D Sync Out 3D Sync IR Ethernet / Art-Net HDBaseT/Ethernet/RS232/IR Serial In RS-232C Wired Remote In Wired Remote Out 12V Trigger USB Power out 5V/2A
BNC BNC BNC EtherCON RJ45 RJ45 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack USB Type A
1 1 1 1 1 1 1 1 1 1
3D Formats Supported
Frame Packing Dual Pipe Frame Sequential Side By Side (half) Top and Bottom
Compatible with polarised 3D glasses
HDTV Formats Supported
EDTV (480p, 576p,) HDTV (720p, 1080i, 1080p, UHD, DCI 4K), Display Support for 4K-UHD 3840 x 2160 60HZ and up to 4096 x2160 60Hz.
Computer Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, WUXGA, Support for WQXGA
Bandwidth
18Gb/s (600MHz clock rate) on HDMI
Remote Control
Addressable IR Remote Control, wireless and wired On-Board keypad
Automation Control
LAN RS-232 Alert E-Mails from Projector Served webpage OSD functions for full Projector Control via web browser LAN Control-Crestron Roomview™ LAN Control-Crestron eControl LAN Control-PJ Link compatible LAN Control-AMX SSDP LAN to RS232 (RS232 by Telnet) Concurrence Control for RS232/LAN DMX Art-Net control Scheduled On and Off times
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
Lens Mount
Motorised Shift, Zoom and Focus. Intelligent Lens Memory with 10 user-definable pre-set positions.
Operating: 0 to 40 °C (32 to 104 °F) Operating: 33 - 35 °C (91.4 - 95 °F) Projector automatically set to 90% laser power mode Operating: 35 - 40 °C (95 - 104 °F) Projector automatically set to eco mode Storage: -20 to 60 °C (-4 to 140 °F)
Operating Humidity
90% (with maximum temperature of 35 °C) non-condensing
Weight
47.2 kg / 104.1 lbs
Dimensions
Projector Dimensions (Including handles and feet) L: 768.4mm x W: 598.8mm x H: 302.75mm L: 30.25 inch x W: 23.57 inch x H: 11.92 inch Projector Dimensions (Excluding handles) L: 669.4mm x W: 598.8mm x H: 302.75mm L: 26.35 inch x W: 23.57 inch x H: 11.92 inch Carton Dimensions 944mm x W: 758mm x H: 516mm L: 37.17 inch x W: 29.84 inch x H: 20.31 inch
Safety & EMC Regulations
CB report, cTUVus, CE (European Economic Area), UKCA (United Kingdom), CCC (China), FCC Class A (USA), FDA, KC (Korea), BSMI (Taiwan), RCM (Australia), BS IEC EN 60825-1:2014 Class 1 Laser Product, BS IEC EN 62471-5:2015 RG3, IEC 62471-5: Ed. 1.0 RG2 (for REF version employing RG2 lenses), GB 7247.1-2012
