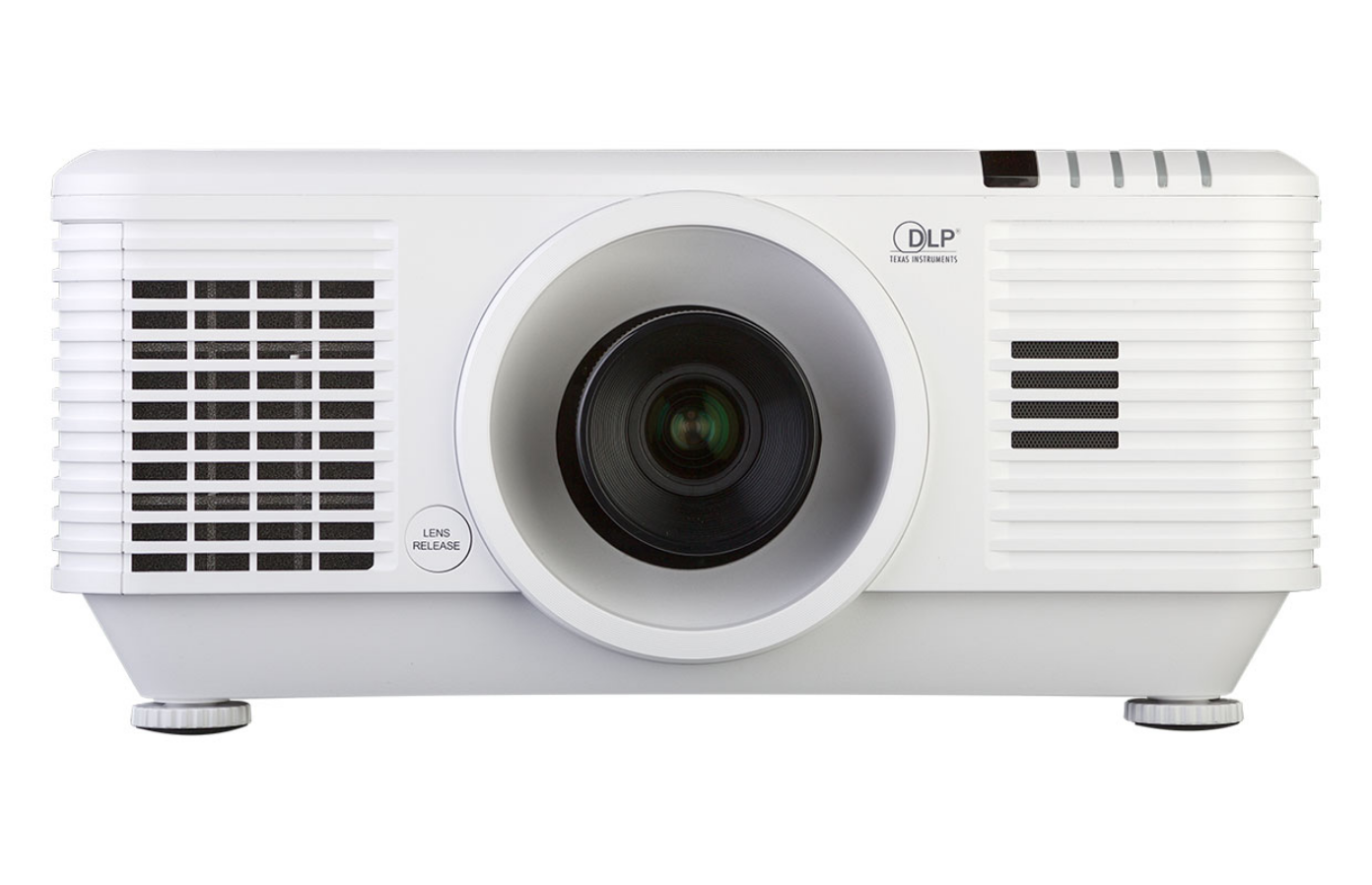

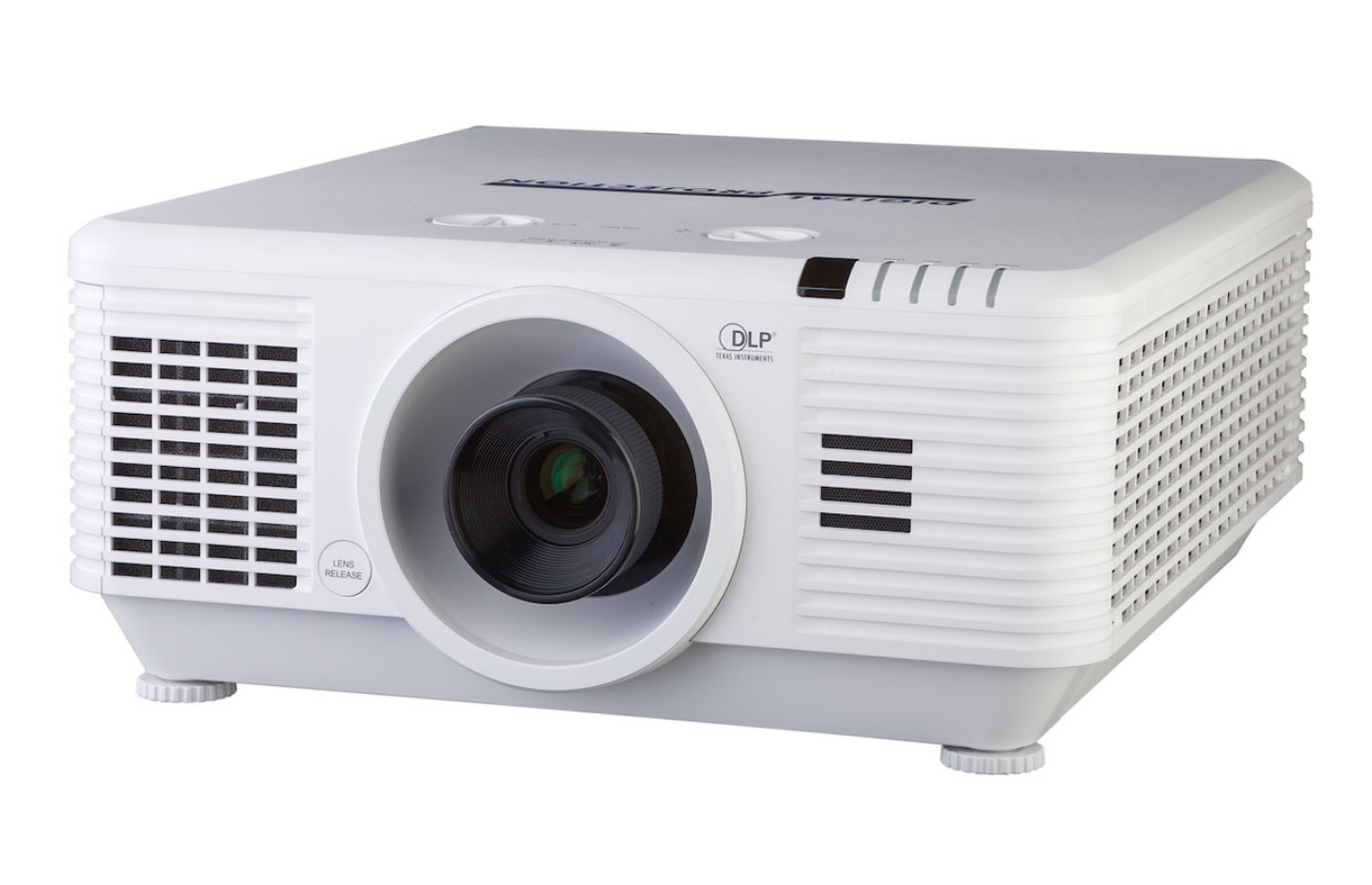

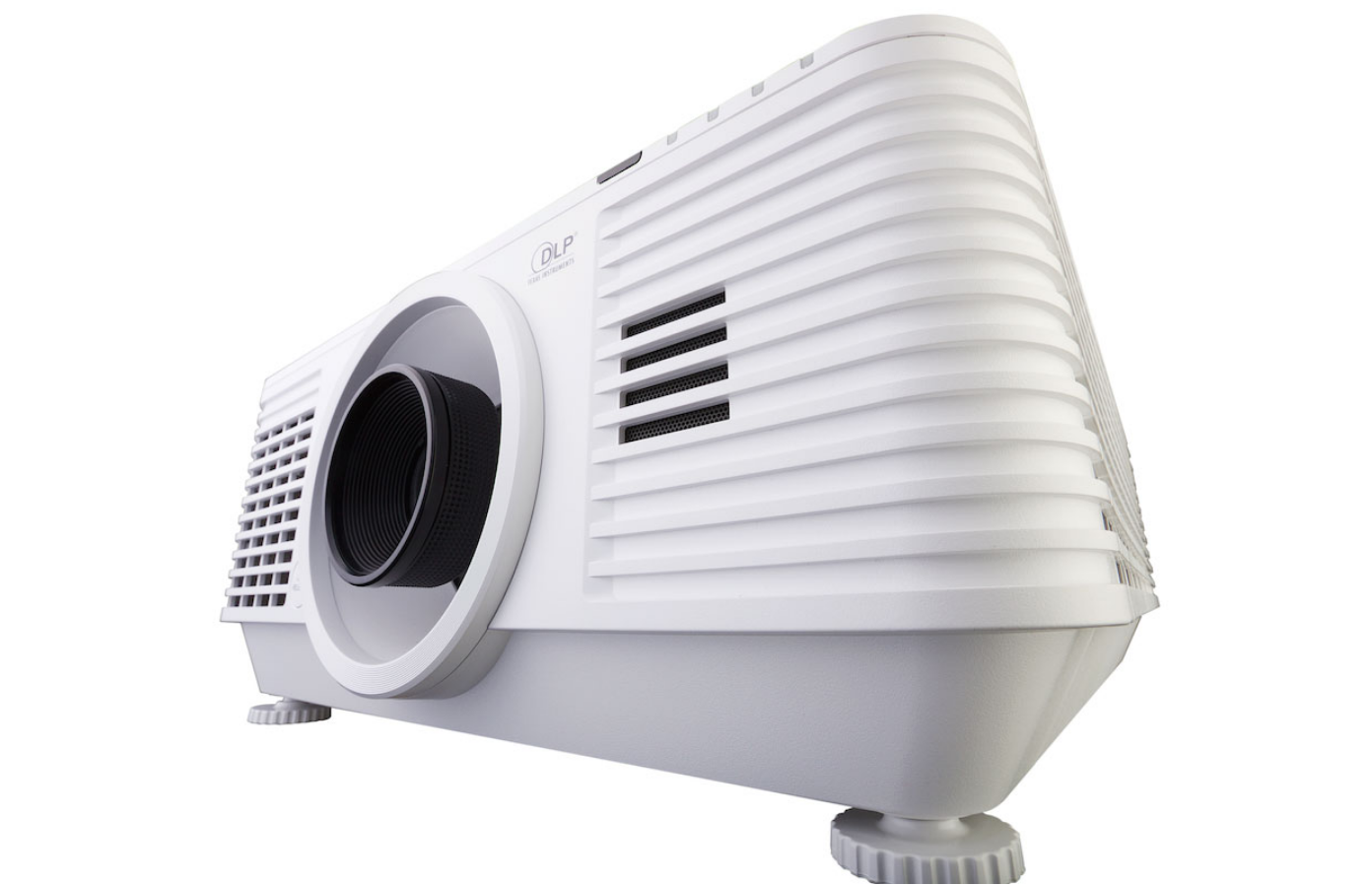

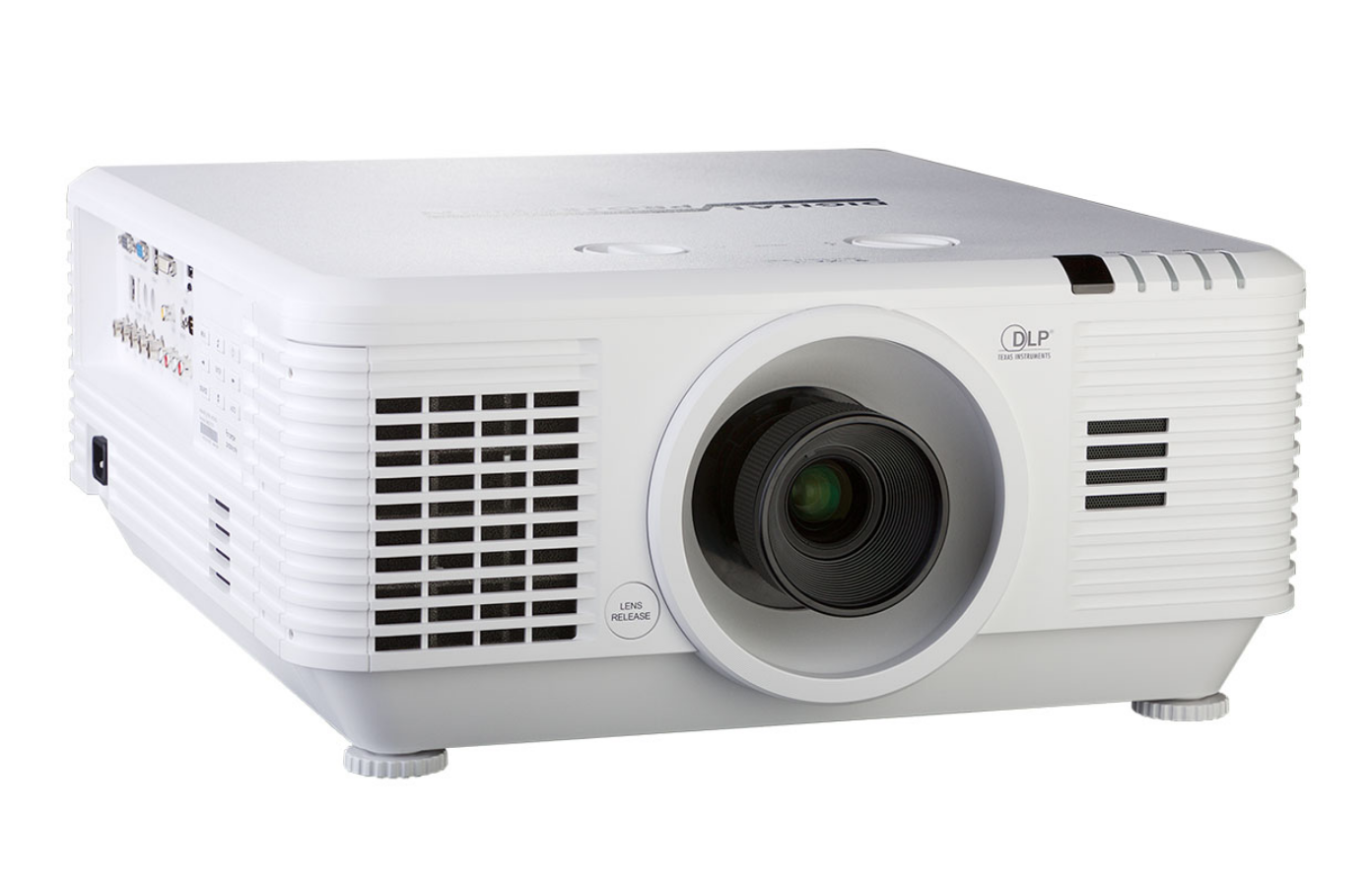

Powerful, Cost Effective Single Chip Laser Projector

This solid state E-Vision Laser 6500 II is a 6,500 ANSI Lumen projector, with a WUXGA resolution and an improved contrast ratio
of up to 20,000:1. Like all other lamp-free projectors from Digital Projection, the E-Vision Laser 6500 also offers 20,000 hours of
stable illumination and its compact chassis make it the ideal projector for applications where space is limited.

The projector also benefits from the ability to be mounted in portrait, landscape and almost any angle in-between. This projector
produces bright, stable and colour-accurate imagery with remarkably low lifetime costs of ownership. All Digital Projection’s
lamp-free projectors have been developed with a ‘Fit and Forget’ directive, delivering stunning visual entertainment with
minimal maintenance throughout the lifetime of the display.

Core Technologies

MultiAxis Orientation

For maximum flexibility, the E-Vision 6500 II can be
operated in both Portrait and Landscape mode, pointing
up and down and every angle in between

3D Laser Projector

Frame Packing
Side By Side (half)
Top and Bottom











Geometry Correction

Cornerstone and Keystone correction built in







3 Year Warranty

Due to the proven reliability and long-
term performance of our precision
displays, Digital Projection provides a full 3
years of parts and labor coverage for
projectors employed in standard use
applications.

E-Vision projectors in action

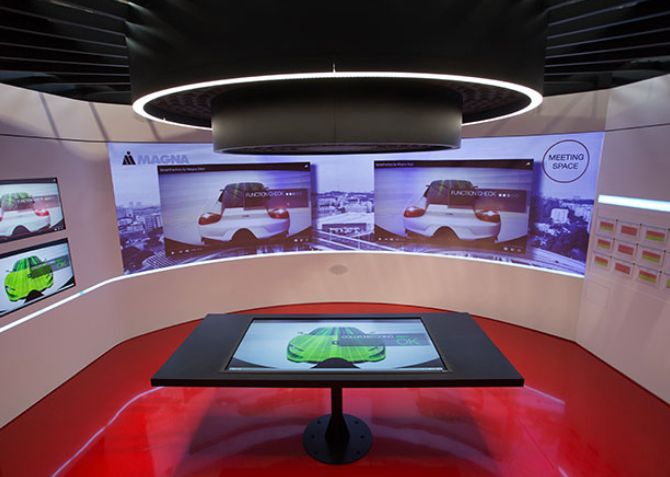

Digital Projection E-Vision Laser Helps Drive
Magna Steyr’s First-of-its-kind Industry
Production Transformation

With an annual production capacity of over 200,000 vehicles as of 2018,
Magna Steyr is the largest contract manufacturer for automobiles
worldwide. The Austrian automotive company has helped major car
manufacturers such as Mercedes-Benz, BMW, Aston Martin, Audi and
Land Rover develop some of their most iconic cars. Recognising the
importance of maintaining pole position in such a fast-moving industry,
Magna Steyr has recently invested in its continuing success by
undergoing an Industry 4.0 digitalised production process
transformation.

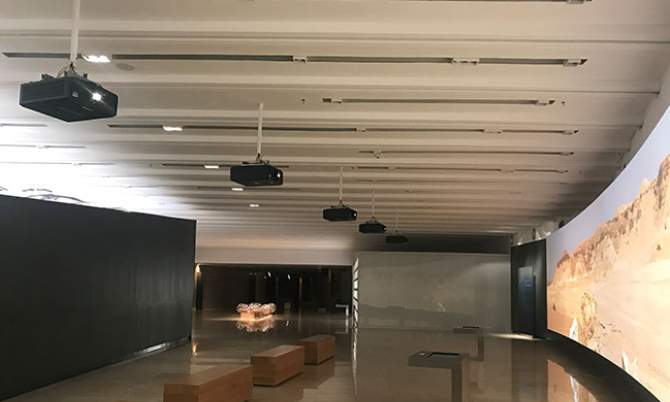

Digital Projection chosen for Kuwait Habitat
Museum

E-Vision Laser 6500 II WUXGA

6,500 Lumens | Contrast Ratio: 20,000:1 (dynamic)

Colour System:	Laser Phosphor / 4 Segment (RGBY) Colourwheel / 2x120Hz
Display Type:	1 x 0.67" DarkChip™ DMD™
DMD Specification:	1920 x 1200 pixels native display. Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:	16x10
Fill Factor
Key Features:	Video & Graphics Processing HDMI 1.4 for Side by Side, Frame Packing & Top Bottom 3D Formats. Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources (example 144Hz display). Synchronisation of active glasses. 24p and 1080p native display. Sealed light engine DICOM Simulation Mode. Geometry Correction Cornerstone, Vertical & Horizontal Keystone. HDBaseT® Interface Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable. Allows projector to be placed up to 100m from source with low cost cabling. Projector Control via HDBaseT.
Source Compatibility	HDMI including Deep Color™ processing. Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DVI-D, HDBaseT or VGA Component Video (SD and HD) via RGBHV.
Inputs/Outputs	Video & Computer Type Connector Qty HDMI 1.4b DVI-D VGA / Analog RGB Component Video HDBaseT Video Out: VGA Audio In: Stereo Audio In: Stereo Audio Out: Stereo HDMI DVI 15-pin D-Sub 5 x BNC RJ45 15-pin D-Sub RCA 3.5mm Jack RCA 2 1 1 5 1 1 2 1 2 . Communication & Control Type Connector Qty 3D Sync Out 3D Sync In LAN Serial In (RS232) Serial Out (RS232) Wired Remote In Wired Remote Out 12V Trigger USB (power only) USB (Service) Mini DIN Mini DIN RJ45 9-pin D-Sub 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack USB Type A USB Type B 1 1 1 1 1 1 1 1 1 1
3D Formats Supported	Frame Packing Side By Side (half) Top and Bottom
HDTV Formats Supported	1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz, 60Hz), 720p (50, 60Hz)
Computer Compatibility	Up to 1920 x 1200
Bandwidth	165 MHz on analog RGB 165 Megapixels per second on HDMI
Remote Control	IR remote control, wireless and wired. On-Board keypad
Automation Control	Crestron RoomView® Connected PJLink - AMX SSDP LAN RS232 - AMX SSDP
Colour Temperature
Operation
illumination Type	Laser Light Source
Typical illumination Life	20,000 hours
Lenses	Lens Part No. Optimised Focus Range* Lens Shift (Frame) 0.77: 1 fixed 114-785 0.4m - 3.1m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame 0.77 - 1.1: 1 zoom (special order - call for info) 119-001 0.67m - 12.1m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame 1.1 - 1.3: 1 zoom 116-207 1m - 9m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame 1.25-1.6 zoom (special order - call for info) 119-430 1.356m - 8.078m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame 1.54 - 1.93: 1 zoom 114-783 0.95m - 11.9m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame 1.93 - 2.91: 1 zoom 114-784 1.2m - 29.8m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame 3.0 - 5.0: 1 zoom 116-208 3m - 20m Vert: 0.55 (U) 0.15 (D) frame, Hor: 0.05 (L) 0.05 (R) frame * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
Lens Mount	Manual shift, zoom & focus.
Mechanical Mounting	Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet
Orientation	Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes
Power Requirements	100-240VAC 50/60Hz single phase
Power Consumption	650
Thermal Dissipation	2218
Fan Noise	Max 37 dBA Typical 35dBA
Operating/Storage Temperature Operating:	Operating: 0 to 40C (32 to 104F) Storage: -20 to 60C (-4 to 140F)
Operating Humidity	10 to 85% non-condensing
Weight	25 kg / 55.1 lbs
Dimensions	L: 52.5 cm W: 47 cm H: 22.05 cm L: 20.66 in W: 18.5 in H: 8.68 in
Safety & EMC Regulations	CE, BIS, FCC Class A, UL, CCC, CB, RoHS
