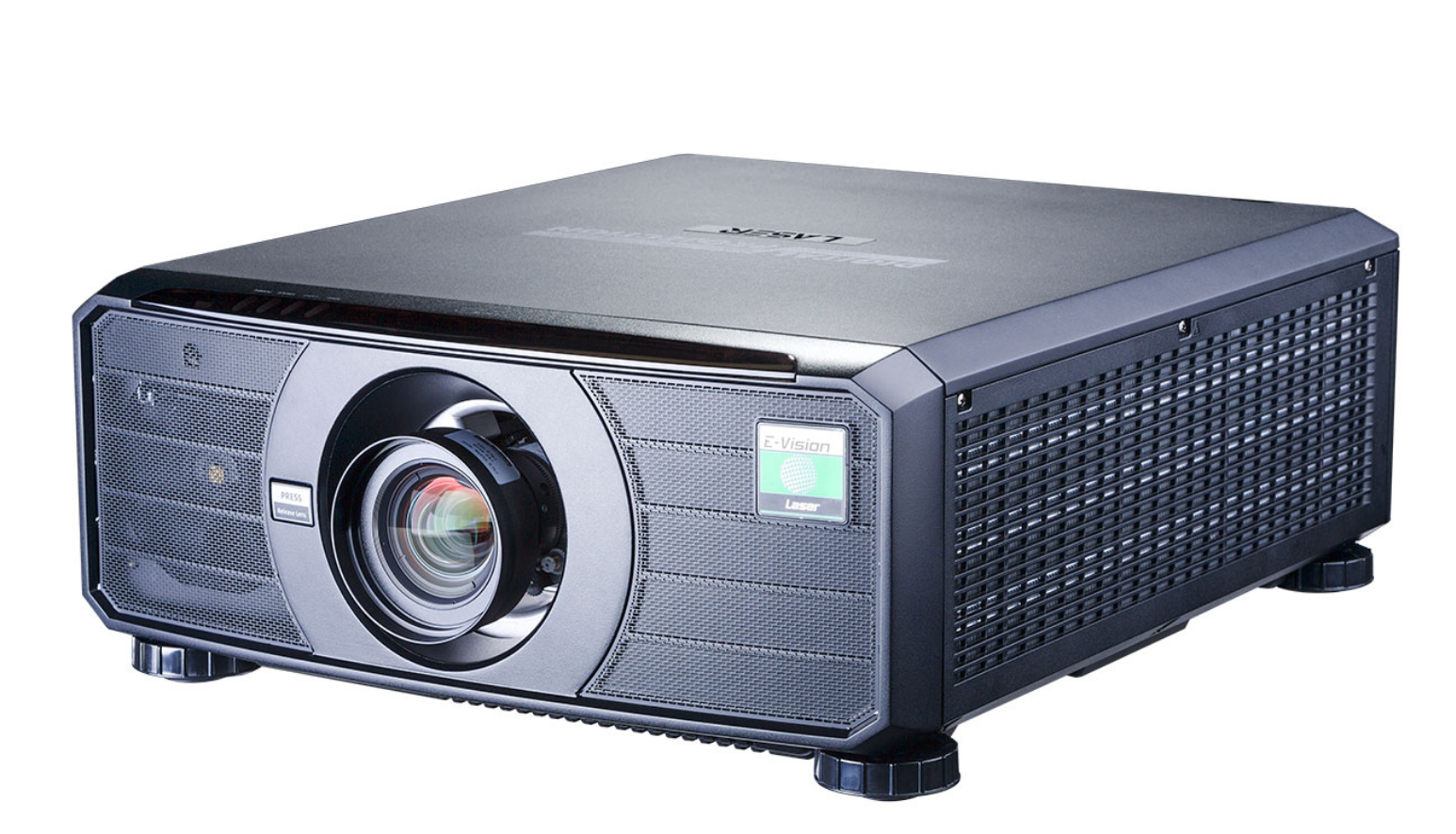

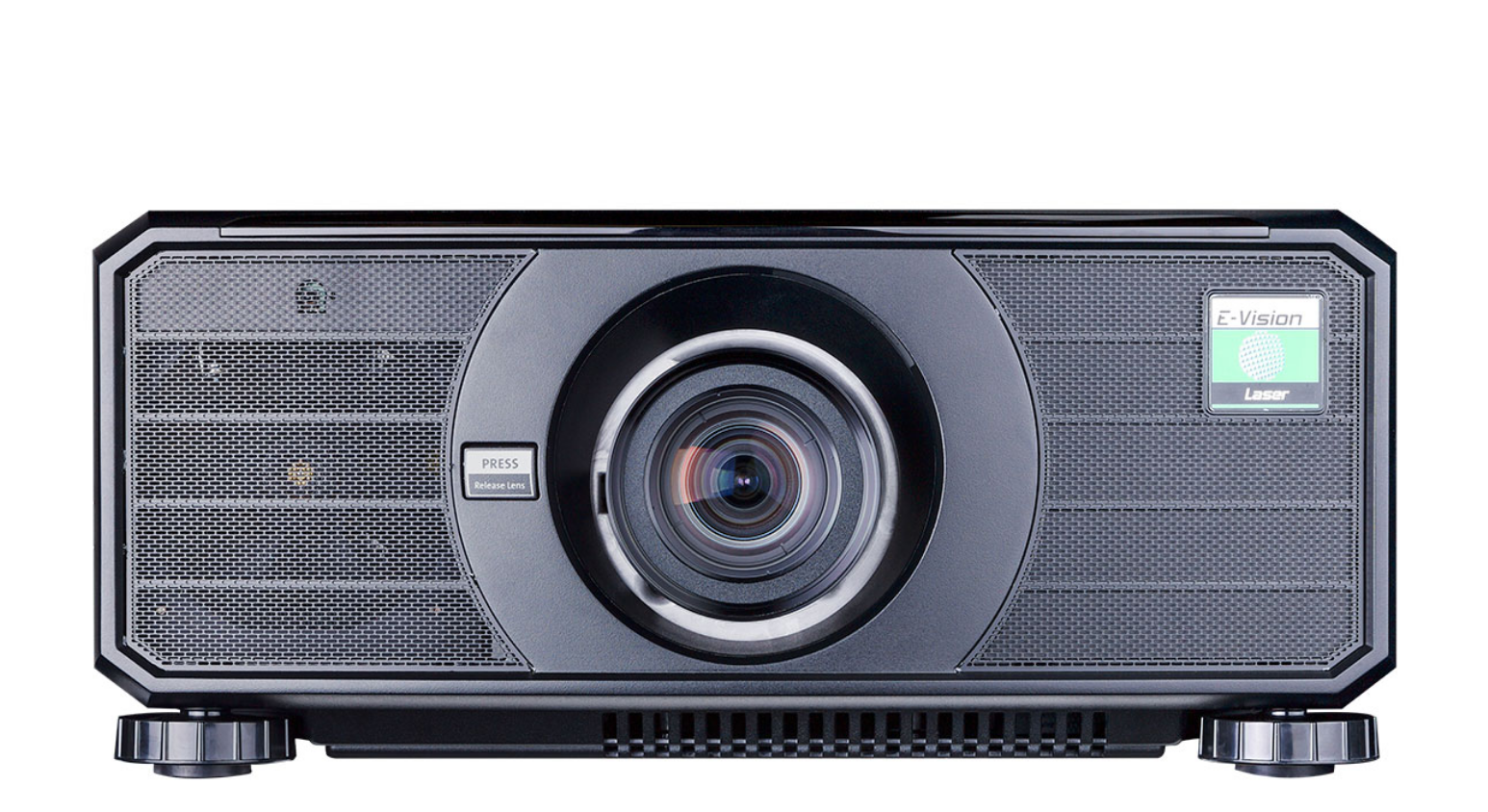

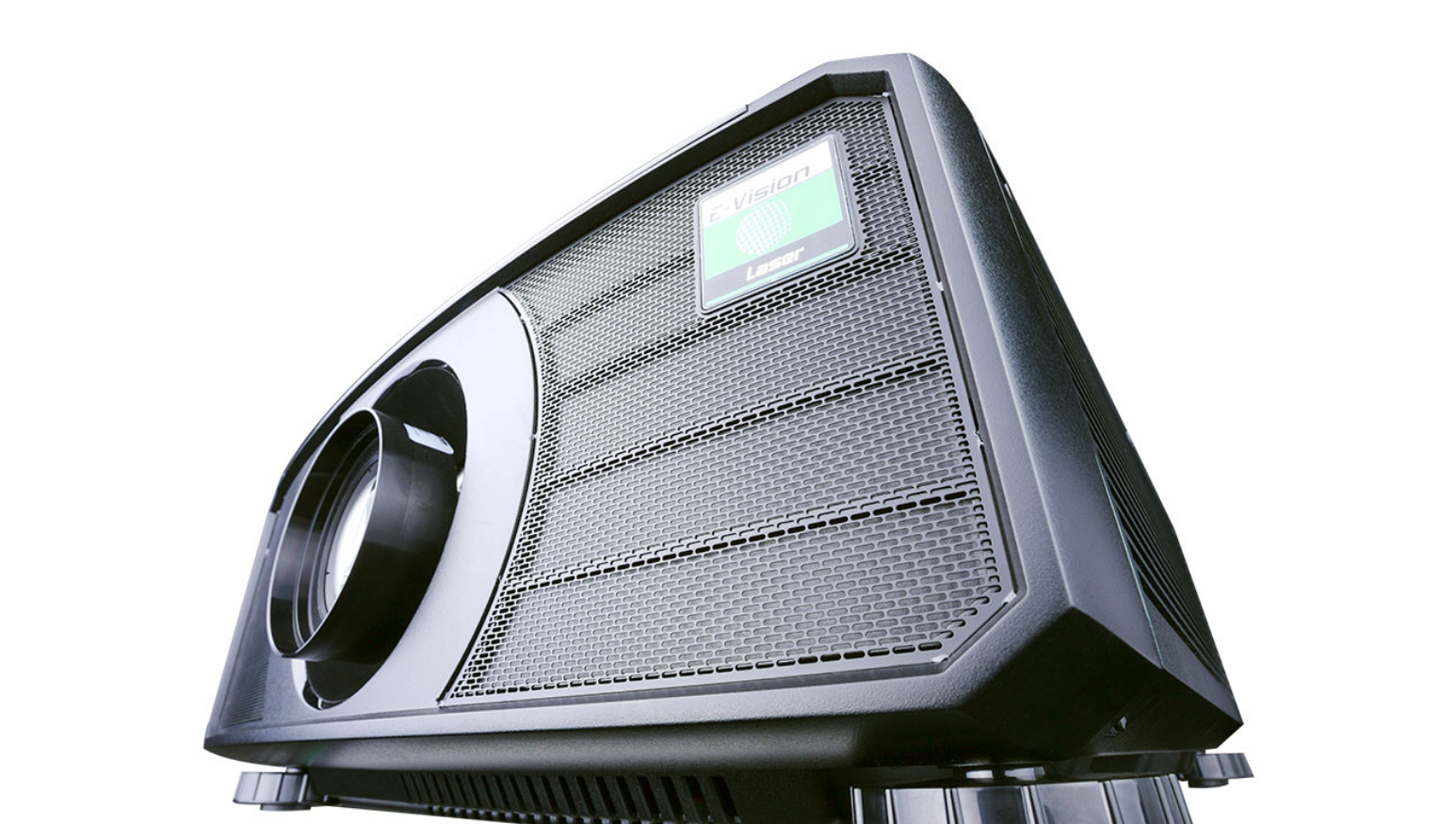

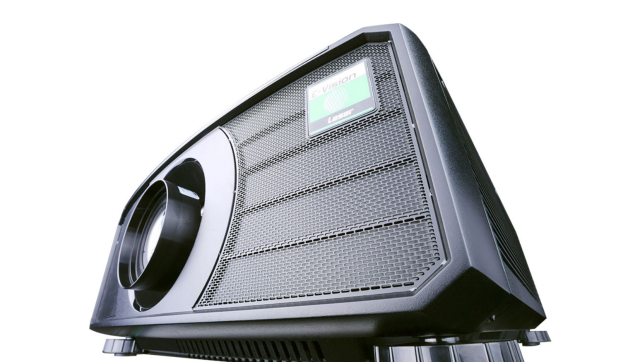

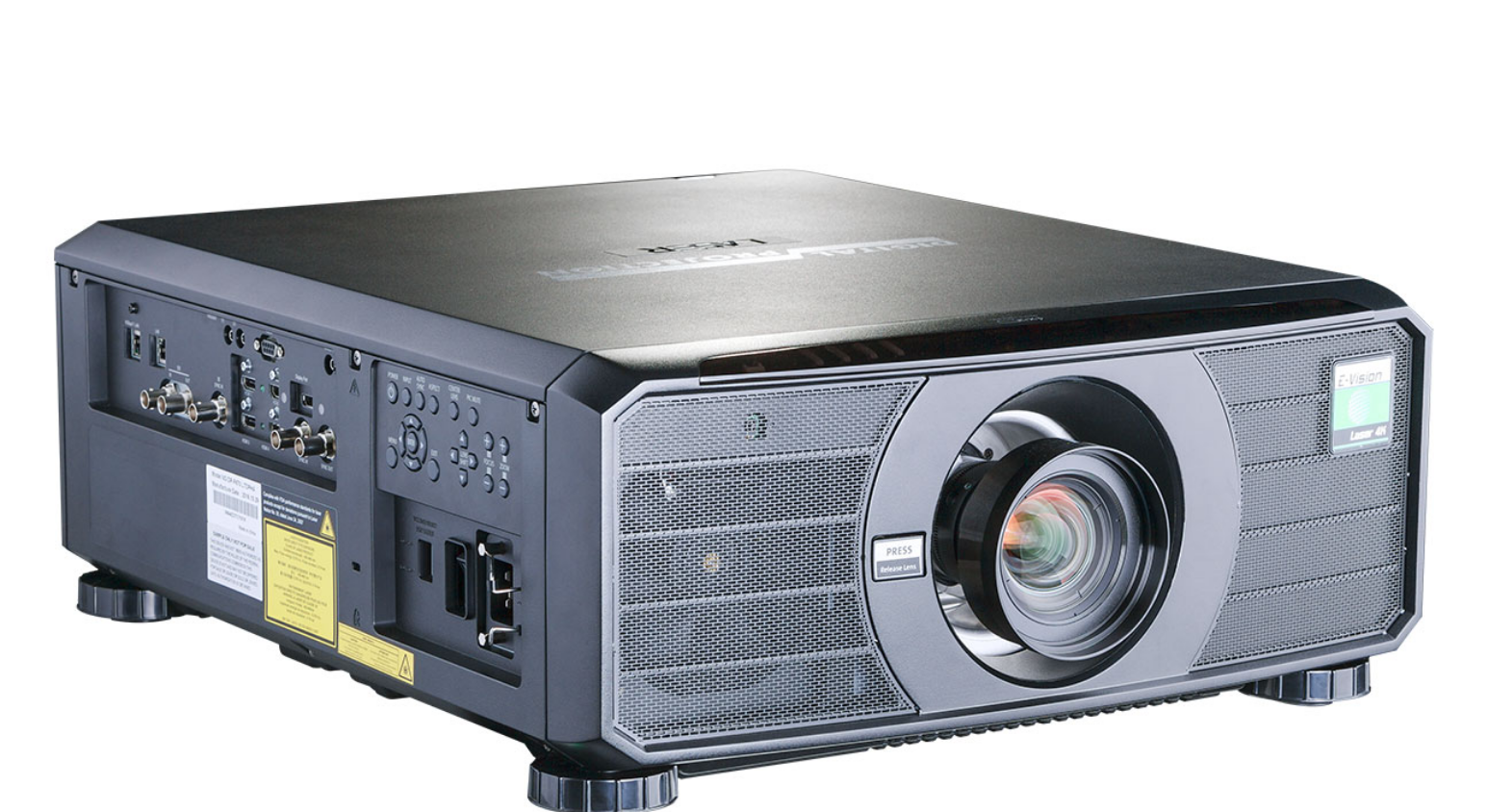

E-Vision Laser 13000 WU – Bright just got brighter

Core Technologies

Projector Controller

Ideal for use in large installations or where
projectors are in multiple locations in a
building, the software can dramatically
reduce the time required for set up and
configuration – all from a single network
enabled PC.









MultiAxis Orientation

For maximum flexibility, the E-Vision Laser
13000 can be operated in both Portrait
and Landscape mode, pointing up and
down and every angle in between







Edge Blending

Superbly capable edge blending and
multi-projector tiling is provided by way of
high bit depth processing that ensures a
seamless, contiguous image can be
created from multiple projectors.








3D Laser Projector

Frame Packing
Dual Pipe
Side By Side (half)
Top and Bottom












3 Year Warranty

Due to the proven reliability and long-
term performance of our laser projectors,
Digital Projection provides a full 3 years /
20,000 hours warranty.







TAA Compliant

Digital Projection is always pushing to
innovate and improve the quality of our
remarkable visual solutions.  Toward that
end, we are pleased to announce that
most of our award-winning laser
projectors are now TAA compliant.  We
are confident that this will provide more
choices and options for those wanting the
very best in projection technology.

Key Specifications:

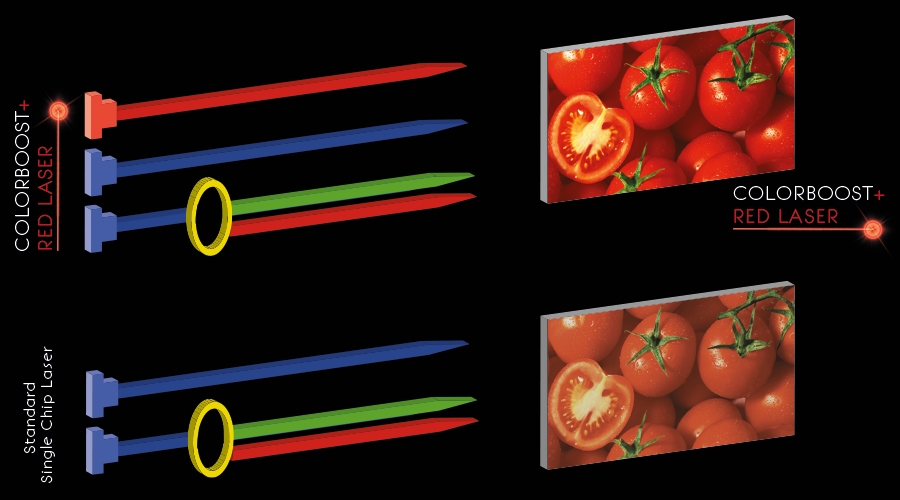

Colour System: Blue and Red Lasers with Phosphor wheel and 3-segment colour wheel Display Type: 1 x 0.67" DarkChip™ DMD™ DMD Specification: 1920 x 1200 pixels native display. Fast transit pixels for smooth greyscale and improved contrast. Aspect Ratio: 16x10 Fill Factor Key Features: Red Laser Assist Uses blue and red laser diodes for increased colour fidelity and highly accurate colurs Video & Graphics Processing HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & Top Bottom 3D formats. Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources Dual Pipe Processing: Two sources in parallel for Left and Right eyes. Synchronisation of active glasses. 3GSDI with loop-through. 24p and 1080p native display. DICOM simulation mode. Geometry Correction Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation. Blanking control for custom input window sizing. Scaling for fixed aspect ratio screens. Edge Blending For independent edge and blend width adjustment. Picture in Picture Two sources can be displayed either one within the other (PIP), or side by side, with original aspect ratios maintained. HDBaseT® Interface Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable. Allows the projector to be placed up to 100m from the source with low cost cabling. Colour Processing Powerful seven point colour correction for accurate colour matching. Projector Controller Software Intuitive user interface for network control Simultaneous control of user-defined groups of projectors At-a-glance monitoring of projector status Projector Automation Real-time clock provides daily on/off automation. Projector Maintenance Features Sealed optics. Long life 20,000 hour illumination. Source Compatibility 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant. HDMI including Deep Color™ processing. Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DisplayPort or VGA. Component Video (SD and HD) via RGBHV. Inputs/Outputs Video & Computer Type Connector Qty DVI-D 1.0 DisplayPort 1.1a HDMI 1.4b 3G-SDI in 3G-SDI out VGA / Analog RGB VGA Monitor out Component Video HDBaseT (see LAN) DVI DisplayPort HDMI BNC BNC 15-pin D-Sub 15-pin D-Sub 5 x BNC LAN RJ45 1 1 2 1 1 1 1 1 1 . Communication & Control Type Connector Qty 3D Sync Out 3D Sync In LAN RS232 Wired Remote 12V Trigger NOTE: The LAN port is shared with HDBase-T. BNC BNC RJ45 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack 1 1 1 1 1 2 3D Formats Supported Frame Packing Dual Pipe Frame Sequential Side By Side (half) Top and Bottom HDTV Formats Supported 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz, 60Hz), 720p (50, 60Hz) Computer Compatibility Up to 1920 x 1200 Bandwidth 165 MHz on analog RGB 165 Megapixels per second on HDMI Remote Control Addressable IR remote control, wireless and wired. On-Board keypad. Automation Control Crestron RoomView® Connected PJLink Class 1 LAN RS-232 AMX (Device Discovery) Served web page Colour Temperature 3200 to 9300K Operation illumination Type Blue and Red Laser Light Source Typical illumination Life 20,000 hours Lenses Lens Part No. Optimised Focus Range* Lens Shift (Frame) 0.38 :1 fixed 117-341 0.68m - 2.44m Depends on image size, see Installation Guide. 0.75 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 0.76 :1 fixed 112-499 0.81m - 5.08m none 1.25 - 1.79 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 1.73 - 2.27 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 2.22 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 3.58 - 5.38 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 5.31 - 8.26 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%, Lens Mount Motorised and programmable shift, zoom and focus. Intelligent Lens Memory with 10 user-definable preset positions (except UST lens). Mechanical Mounting Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet Orientation Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes Power Requirements 200-240VAC 50/60Hz single phase 7.8A 100-130VAC 50/60Hz single phase 11.5A Note: that in 100-130VAC operation, the projector will be at 70% brightness Power Consumption Typical 1470W @ 240VAC in Normal mode Typical 1220W @ 240VAC in ECO mode Typical 1510W @ 240VAC in High Altitude mode Typical 1060W @ 110VAC in Normal mode Typical 1050W @ 110VAC in ECO mode Typical 1110W @ 110VAC in High Altitude mode Thermal Dissipation Typical 5016 BTU/Hour @ 240VAC in Normal mode Typical 4163 BTU/Hour @ 240VAC in ECO mode Typical 5152 BTU/Hour @ 240VAC in High Altitude mode Typical 3617 BTU/Hour @ 110VAC in Normal mode Typical 3583 BTU/Hour @ 110VAC in ECO mode Typical 3787 BTU/Hour @ 110VAC in High Altitude mode Fan Noise Normal mode: 48 dBA Max, 46 dBA Typical Eco mode: 44 dBA Max, 42 dBA Typical High Altitude Normal mode: 59 dBA Max, 57 dBA Typical High Altitude Eco Mode: 59 dBA Max, 57 dBA Typical Operating/Storage Temperature Operating: Operating: 0 to 35C (32 to 95F) Operating: 35 to 40C (95 to 104F) w/ reduced light output Storage: -20 to 60C (-4 to 140F) Operating Humidity 10 to 90% relative, non-condensing Weight 31 kg / 68.3 lbs Dimensions L: 59.83 cm x W: 50 cm x H: 21.85 cm L: 23.55 in x W: 19.68 in x H: 8.60 in Safety & EMC Regulations UL / cUL, BIS, CB, CCC, KC, FCC (Part 15) Class A, FDA (Accession Number),CE, RoHS 2, IEC EN 60825-1-2014 Class 3R Laser Product, IEC EN 60825-1-2007 Class 1 Laser Product IEC EN 62471-5-2015 Risk Group 3
