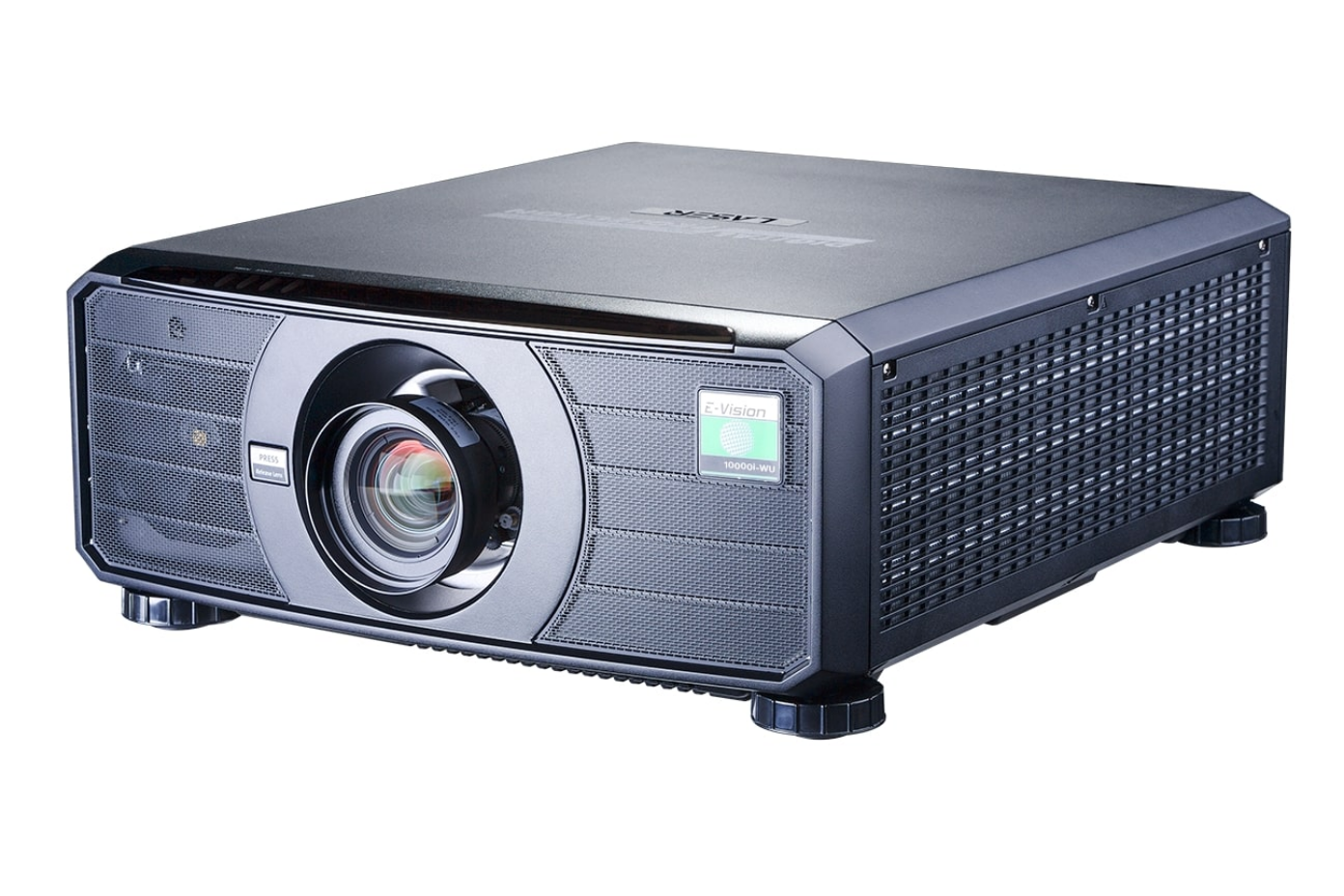

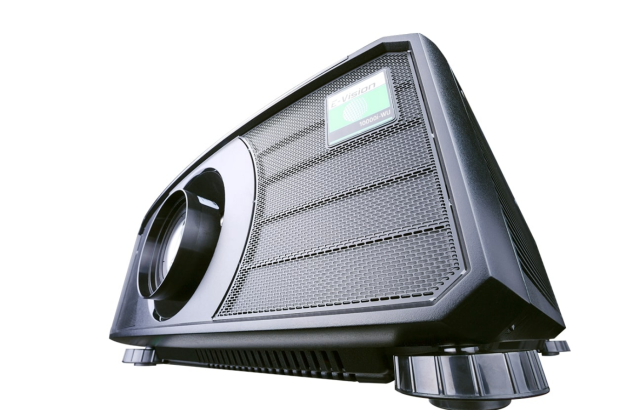

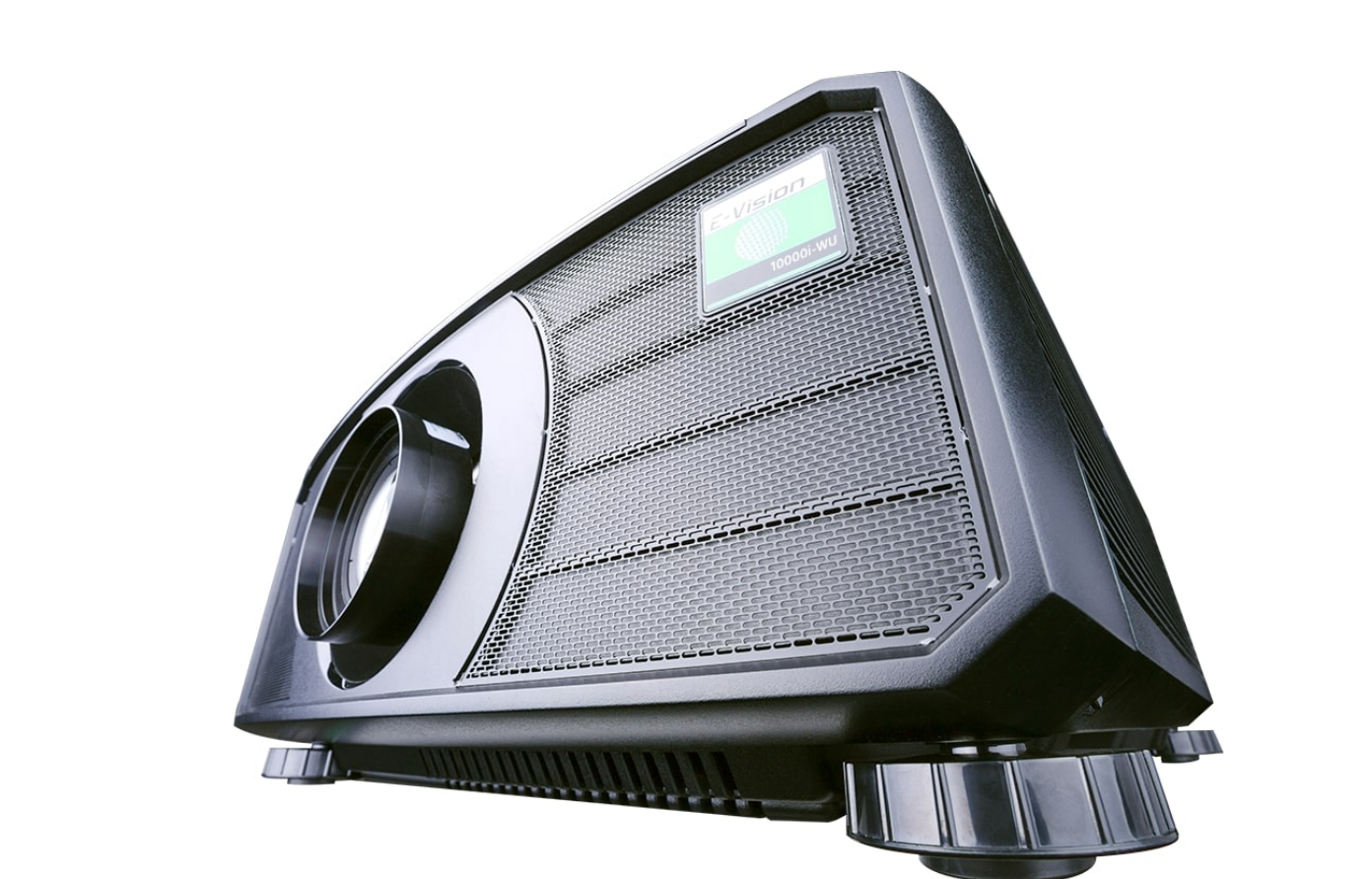

The E-Vision 8000i laser projector delivers a stunning 8,000 lumens from a stable solid-state light source, capable of producing over 20,000 hours
of illumination. This single chip projector was developed with ‘Fit and Forget’ directive, ensuring it needs only minimal maintenance throughout
the lifetime of the display.

Like it’s big-brother, the E-Vision 8000i, it features a wide range of impressive upgrades to its electronics platform, providing you with a
consistent experience across all the range. With advanced features such as Brightness Sync, Source Redundancy and a 4 Segment RGBY 2 x
7200rpm (120Hz) color wheel, it produces images that were previously unachievable in this single chip range.

Core Technologies

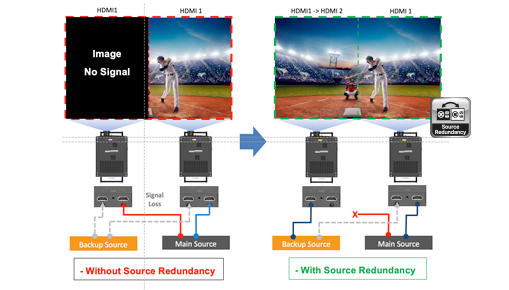

Source Redundancy

Features such as source redundancy in the E-Vision 16000i offers peace of
mind for those critical live events. When the main signal is lost, the projector
will switch to the backup source to automatically

MultiAxis Orientation

For maximum flexibility, all E-Vision 8000i Laser projector can
be operated in both Portrait and Landscape mode, pointing up and
down and every angle in between

Constant Brightness

The E-Vision 8000i has an Internal light sensor which
keeps constant brightness output when initially operated
at lower power

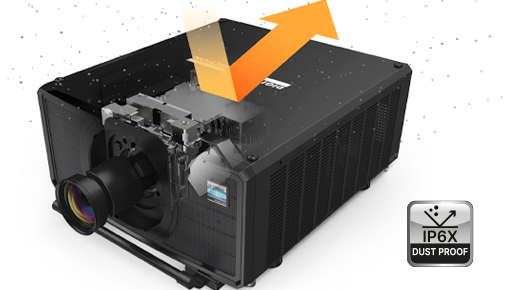

24/7 Operation

Intelligent thermal design ensures stable 24 x 7
operation through efficient heat dissipation and
excellent thermal conductivity.

5 year / 20,000 hour warranty in EMEA

Due to the proven reliability and long-term performance of
our laser projectors, Digital Projection provides a full 5 years
/ 20,000 hours warranty.

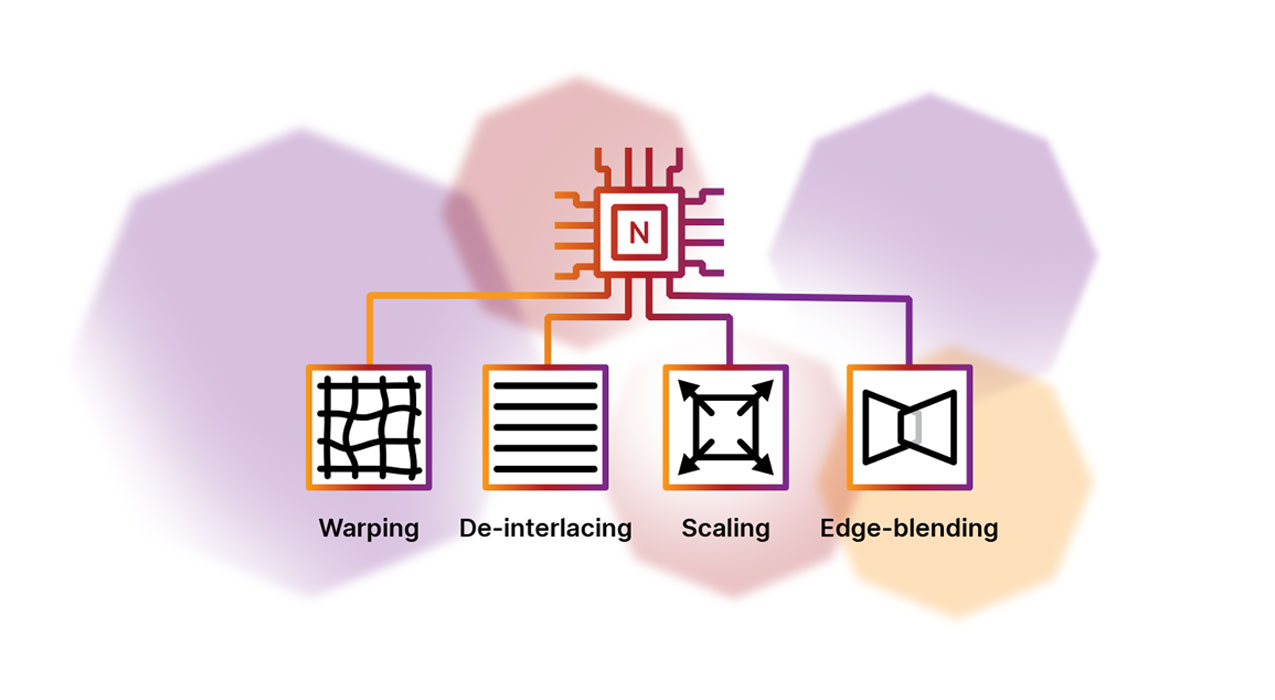

Built-in Edge Blending

Superbly capable edge blending and multi-projector tiling is
provided by way of high bit depth processing that ensures a
seamless, contiguous image can be created from multiple
projectors.

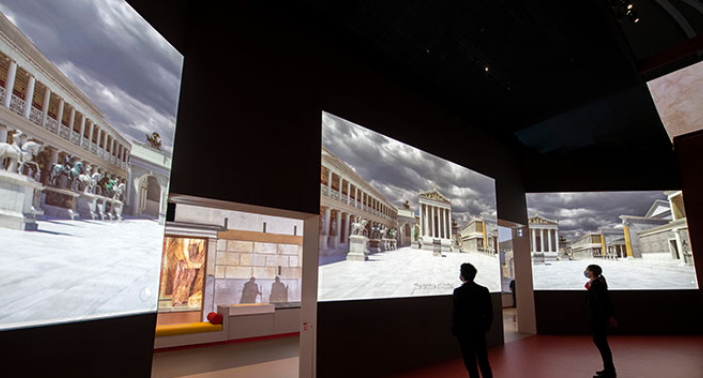

Digital Projection Brings Pompeii to Life in Paris


Created in collaboration with the Pompeii Archaeological Park and
Gedeon Programmes, the Réunion des Musées Nationaux – Grand
Palais’ Pompeii exhibition has been created to present the historical city before,
during and after the dramatic eruption of Mount Vesuvius.

E-Vision 8000i WU (Preliminary)




Colour System:	Laser Phosphor
Display Type:	1 x 0.67" DarkChip™ DMD™
DMD Specification:	1920 x 1200 pixels native display. Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:	16x10
Fill Factor

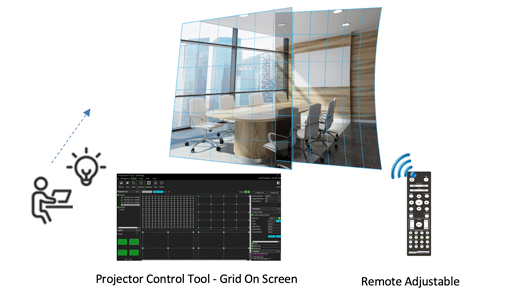

Key Features:	Video & Graphics Processing HDMI 2.0 DisplayPort 1.2 Side by Side, Frame Packing, Frame Sequential, TopBottom and Dual Pipe 3D Formats. Syncronisation of active glasses or polarising switcher. DICOM simulation mode (For non-diagnostic or training) HDR support 2D Smear reduction Geometry Correction Vertical & Horizontal Keystone correction Four Corner adjustment Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled Digital Zoom HDBaseT Interface Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable. Allows the projector to be placed up to 100m from the source with low cost cabling. HDBaseT® Includes Ethernet 100BaseT and RS232/IR control. Colour Processing Phosphor wheel: 2 x 7200rpm (120Hz) Colour wheel: 4 Segment RGBY 2 x 7200rpm (120Hz) 10-bit colour processing (30-bits per pixel) 1,073,741,824 colours Powerful seven point colour correction for accurate colour matching.
Source Compatibility	Graphics standards: Up to WUXGA 1920 x 1200 - 120Hz RB
Inputs/Outputs	Video & Computer Type Connector Qty HDMI 2.0 (HDCP compatible) DisplayPort 1.2 HDBaseT 3G-SDI in 3G-SDI out HDMI DisplayPort 8P8C "RJ45" BNC BNC 2 2 1 1 1 . Communication & Control Type Connector Qty 3D Sync In 3D Sync Out (loop through) 3D Sync Out for IR LAN / Art-Net HDBaseT/Ethernet/RS232/IR Serial In RS-232C Serial Out RS-232C Wired Remote In Wired Remote Out 12V Trigger 12V 350mA USB Power out 5V/2A BNC BNC BNC EtherCON RJ45 RJ45 9-pin D-Sub 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack USB Type A 1 1 1 1 1 1 1 1 1 1 1
3D Formats Supported	Frame Packing Dual Pipe Frame Sequential Side By Side (half) Top and Bottom
HDTV Formats Supported	SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L) Display Support for 2K 2048 x 1080 up to 60Hz and 4K-UHD 3840 x 2160 up to 60Hz
Computer Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
Bandwidth
Remote Control	Infrared Remote Control Unit

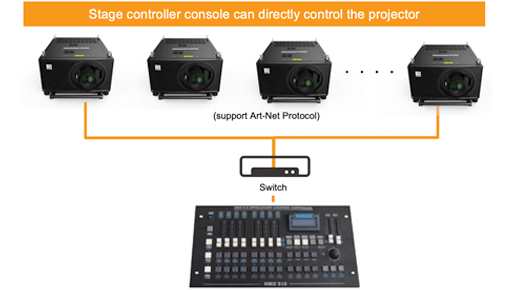

Automation Control	LAN - Webpage control TCP/UDP control RS-232 Alert Mail for Projector LAN Control-Crestron® Connected LAN Control-PJ Link Class 1 compatible LAN Control-AMX® Device Discovery Art-Net (DMX) control
Colour Temperature	User selectable (3200K/ 5400K / 6500K / 7500K / 9300K / Native )
Operation
illumination Type	Laser Phosphor
Typical illumination Life	20,000 hours
Lenses	Lens Part No. Optimised Focus Range* Lens Shift (Frame) 0.31 - 0.33 :1 UST zoom (90° Type) 124-318 TBD Vert: 0.5 (U) 0.5 (D) frame, Hor: None (L) None (R) frame 0.55 - 0.75 :1 zoom 124-319 2.03m - 7.62m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame 0.74 - 1.08 :1 zoom 124-320 1.52m - 10.16m (mech 1.27m - 12.7m) Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame 1.05 - 1.41 :1 zoom 124-321 1.52m - 12.7m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.2 (L) 0.2 (R) frame 1.4 - 2.11 :1 zoom 124-322 1.52m - 12.7m (mech 1.27m - 15.24m) Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.2 (L) 0.2 (R) frame 2.1 - 4.0 :1 zoom 124-323 1.52m - 12.7m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.2 (L) 0.2 (R) frame 3.0 - 4.52 :1 zoom 112-503 TBD Vert: 0.45 (U) 0.45 (D) frame, Hor: 0.2 (L) 0.2 (R) frame 4.46 - 6.94 :1 zoom 112-504 TBD Vert: 0.45 (U) 0.45 (D) frame, Hor: 0.2 (L) 0.2 (R) frame * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

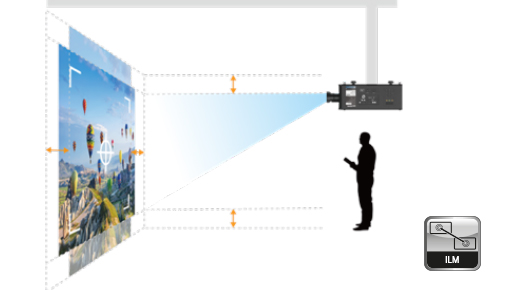

Lens Mount	Motorised and programmable shift, zoom and focus. Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).
Mechanical Mounting	Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet Ceiling Mount compatible chassis with 6 off M4*0.7 mounting holes available, Maximum screw length 16mm
Orientation	Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes
Power Requirements	100-240VAC 50/60Hz single phase 6.8A
Power Consumption	442W @ 240VAC (100% Normal mode) 473W @ 100VAC (100% Normal mode) Standby: <0.5W (Network Off), <2W (Network On)
Thermal Dissipation	1507 BTU/Hour @ 240VAC (100% Normal mode) 1613 BTU/Hour @ 100VAC (100% Normal mode)
Fan Noise	34 dBA typical
Operating/Storage Temperature Operating:	Operating: 0 to 40 °C (32 to 104 °F) Force ECO over 35°C (95°°F)
Operating Humidity	20%-90% non-condensing
Weight	27.5 kg / 60.6 lbs
Dimensions	L: 598mm x W: 500mm x H:218mm L: 23.54 inch x W: 19.68 inch x H: 8.58 inch
Safety & EMC Regulations	CB report, cTUVus, CE (European Economic Area), UKCA (United Kingdom), CCC (China), CECP (China Energy Conservation Program), China RoHS, FCC Class A (USA), FDA 21 CFR part 1040 (Except with respect to those characteristics authorised by Variance Number 2021-V-0192,, KC (Korea), BSMI (Taiwan), RCM (Australia), IEC 60825-1 Ed3 :2014 - Class 1 Laser Product, IEC EN 62471-5:2015 - Risk Group 2 & 3 (Lens dependent)
