Versatile and compact with flexible fixed lens

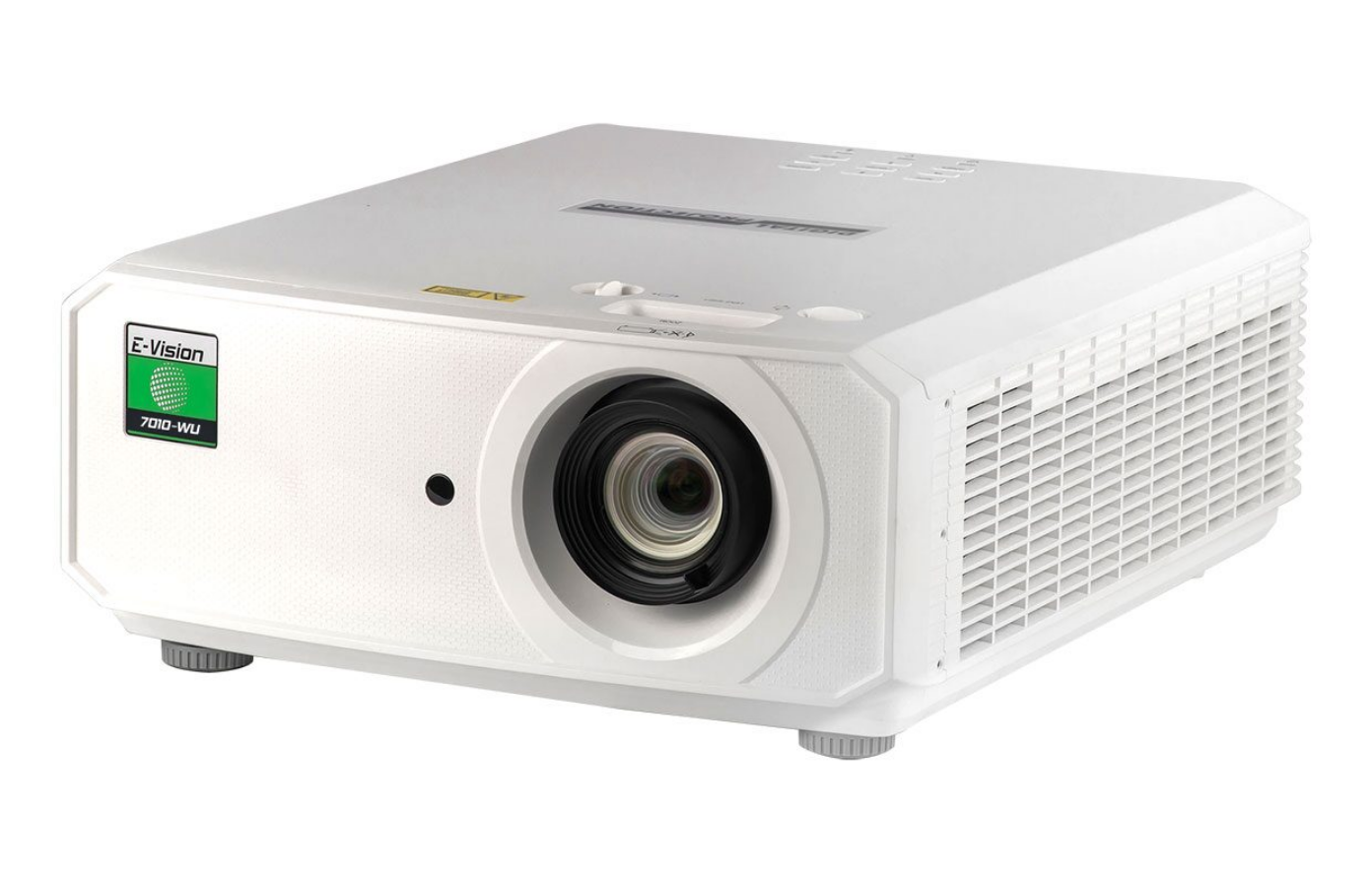

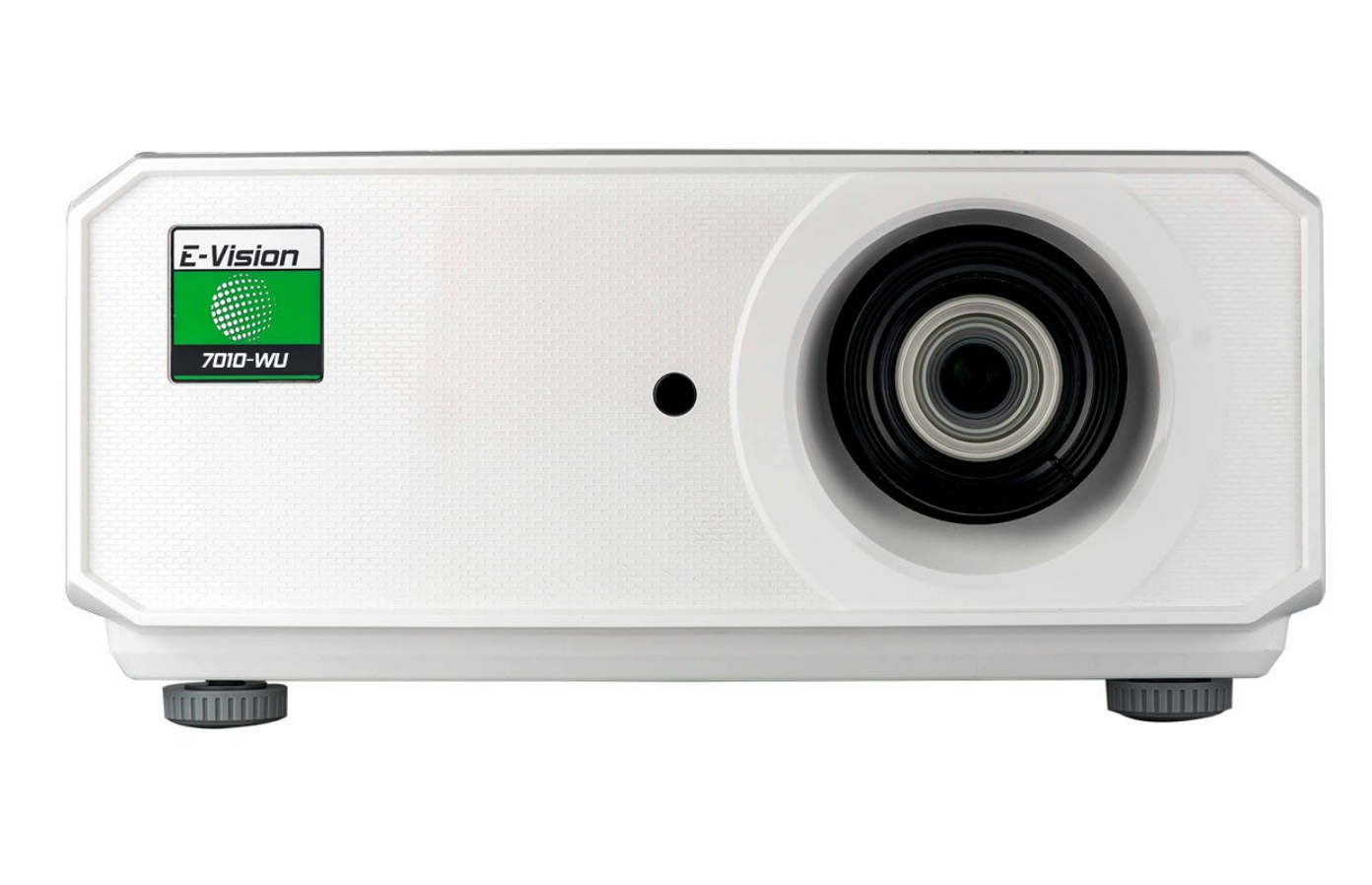

The E-Vision 7010-WU is a compact and powerful single-chip DLP projector, engineered with the same dependable technology found in all of Digital Projection’s large screen display projectors.
Featuring our proven solid-state laser illumination technology, the E-Vision 7010-WU offers20,000-hours of stable and near maintenance free imaging performance.

The E-Vision 7010-WU is suited for applications requiring a bright and dependable solution while meeting prudent budgetary requirements. Being laser illuminated,
there are never any lamps to replace, so long-term cost of ownership is near zero. Further, brightness maintenance is long and predictable, assuring system
operation is never interrupted. Adding to the powerful benefits of laser illumination, Digital Projection’s MultiAxis capability allows the E-Vision 7010-WU
to be oriented in nearly any position for installation flexibility and application creativity.

To assure simplicity, the E-Vision 7010-WU0 includes a standard zoom lens and a multitude of connectivity options. The
E-Vision 7010-WU serves as a flexible imaging tool for large screen applications requiring a bright, dependable & quiet
solution from a compact, low-cost package.

Core Technologies

MultiAxis Orientation

For maximum flexibility, the E-Vision 7010-
WU can be operated in both Portrait and
Landscape mode, pointing up and down
and every angle in between

3D Laser Projector

Frame Packing
Frame Sequential
Side By Side (half)
Top and Bottom







Geometry Correction

The E-Vision 7010-WU has built in Vertical
keystone correction which allows the
correction of the image when the
projector is mounted at an angle.







3 Year Warranty

Due to the proven reliability and long-
term performance of our precision
displays, Digital Projection provides a full 3
years of parts and labor coverage for
projectors employed in standard use
applications.

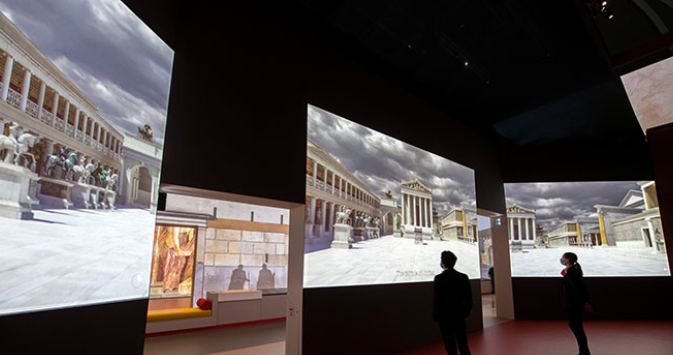

E-Vision projectors in action

Digital Projection Brings Japanese
Bygone Era Back to life

Danny Rose Studio, the collective behind the current “Spirit of Japan” art
exhibition at the Kadokawa Culture Museum, has deployed more than 30
Digital Projection E-Vision Laser 10K projectors to illuminate the floors,
ceilings and walls of this spectacular venue.

MPM Chooses Digital Projection for
Innovative CAVE

Colour System:	Laser Phosphor
Display Type:	1 x 0.67" DarkChip™ DMD™
DMD Specification:	1920 x 1200 pixels native resolution. Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:	16x10
Fill Factor
Key Features:	Video & Graphics Processing HDMI 1.4a mandatory compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats. Syncronisation of active glasses or polarising switcher. DICOM simulation mode (For non-diagnostic or training) Geometry Correction Vertical & Horizontal Keystone correction Four Corner adjustment Selectable aspect ratios: Fill, 4:3, 16:9, Letter Box, Native, 2.35:1 Digital Zoom +10 / -10 HDBaseT Interface Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable. Allows the projector to be placed up to 100m from the source with low cost cabling. HDBaseT Includes Audio, Ethernet 100BaseT and RS232/IR control. Colour Processing Phosphor wheel: 3 Segment GBY 2 x 7200rpm Colour wheel: 4 Segment RGBW 2 x 7200rpm 10-bit colour processing (30-bits per pixel) Powerful seven point colour correction for accurate colour matching. Source Compatibility Graphics standards up to 1920 x 1200 resolution at 60Hz
Inputs/Outputs	Video & Computer Type Connector Qty HDMI 1.4a HDBaseT-(LAN/HDBaseT) VGA / Analog RGB VGA Monitor out Composite Video Microphone In Audio L/R In Audio L/R In Audio L/R Out HDMI 8P8C "RJ45" D-Sub D-Sub RCA 3.5mm Jack 3.5mm Jack 1xRCA pair 3.5mm Jack 3 1 1 1 1 1 1 1 1 . Communication & Control Type Connector Qty 3D Sync Out LAN HDBaseT with Ethernet \ RS232 \IR control Serial RS-232C (In/Out) Service USB USB Power out 5V/1.5A 3-pin DIN 8P8C "RJ45" 8P8C "RJ45" 9-pin D-Sub USB Type B USB Type A 1 1 1 1 1 1
3D Formats Supported	Frame Packing Frame Sequential Side By Side (half) Top and Bottom
HDTV Formats Supported	SDTV (480i, 576i) EDTV (480p, 576p) HDTV (720p, 1080i, 1080p) NTSC (M, 3.58/4.43 MHz) PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
Computer Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
Bandwidth
Remote Control	IR remote control
Automation Control	LAN RS-232 Alert Mail for Projector LAN Control-Crestron® Roomview™-Connected LAN Control-Crestron® eControl LAN control - Extron® LAN Control-PJ Link compatible LAN Control-AMX® SSDP LAN to RS232 (RS232 by Telnet) Concurrence Control for RS232/LAN PJ Link (Class 1)
Colour Temperature	Warm / Normal / Cold
Operation
illumination Type	Laser Light Source
Typical illumination Life	20,000 hours
Lenses	Lens Part No. Optimised Focus Range* Lens Shift (Frame) 1.15 - 1.9:1 (fixed) N/A 1.5m - 5m (Optical range) 1.5m - 8m (Mechanical range) Vert: Fixed Offset 0.65 (U) frame with small variable vertical and horizontal shift * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
Lens Mount	Manual focus and zoom
Mechanical Mounting	Front/Rear Table Front/Rear Ceiling 2 x adjustable front feet for 10° of tilt (43mm) Ceiling Mount compatible chassis with 7 off M4 mounting holes available, Kensington® Security Slot
Orientation	Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes
Power Requirements	100-240VAC 50/60Hz single phase 5.3A
Power Consumption	515W @ 230VAC (100% Normal mode) Maximum 530W @ 100VAC (100% Normal mode) Maximum
Thermal Dissipation	1757 BTU/Hour @ 230VAC (100% Normal mode) 1808 BTU/Hour @ 100VAC (100% Normal mode)
Fan Noise	39 dBA Typical (100% Normal Mode) 37dBA (80% ECO Mode)
Operating/Storage Temperature Operating:	Operating: 0° to 40°C (32F to 104F) Storage: -20° to 60°C (-4F to 140F)
Operating Humidity	10 to 85% non-condensing
Weight	12 kg / 26.45 lbs
Dimensions	L: 44.6 cm W: 36.0 cm H: 16.7 cm L: 17.54 in W: 14.17 in H: 6.57 in
Safety & EMC Regulations	UL / cUL (USA/Canada), CB, CCC (China), FCC Class B (USA), FDA, CE (European Economic Area), RCM (Australia), Others TBD
