The Ideal Projector for Simple 4K Displays!

The NEW E-Vision 4000 4K-UHD is the perfect combination of high quality imaging and affordability for smaller displays
in a wide variety of spaces. With 3,300 lumens, this 4K projector delivers superb imaging complete with sharp visuals
and beautiful colors. Key to this new model is the spectacular 500,000:1 Advanced Black Contrast feature which
produces stunningly crisp content in low-light environments.

The solid-state E-Vision model is a perfect fit for both residential spaces, and smaller screens that require 4K clarity.
The E-Vision 4000 4K-UHD also offers 20,000 hours of stable illumination and its compact chassis make it the ideal
projector for applications where space is limited. Remarkably quiet, this lightweight, yet powerful projector is able to
be mounted in portrait, landscape and almost any angle in-between, with low lifetime cost of ownership.

Applications

High definition applications, offering superb imaging for smaller screens dedicated to entertainment.

Examples:

Residential Entertainment
Boardrooms and meeting rooms
Education

Core Technologies

MultiAxis Orientation

For maximum flexibility, the E-Vision 4000
4K-UHD can be operated in both Portrait
and Landscape mode, pointing up and
down and every angle in between

3D Laser Projector

Frame Packing
Side By Side (half)
Top and Bottom









Geometry Correction

The E-Vision Laser 5900 has built in
Vertical keystone correction which allows
the correction of the image when the
projector is mounted at an angle






3 Year Warranty

Due to the proven reliability and long-
term performance of our precision
displays, Digital Projection provides a full 3
years of parts and labor coverage for
projectors employed in standard use
applications.

E-Vision projectors in action

Digital Projection Brings Japanese
Bygone Era Back to life

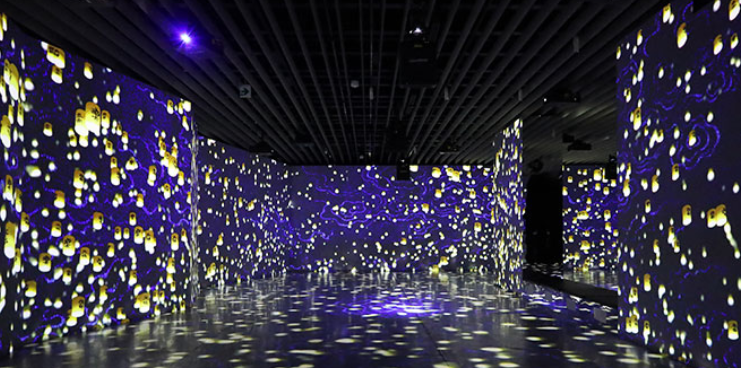

Danny Rose Studio, the collective behind the current “Spirit of Japan” art
exhibition at the Kadokawa Culture Museum, has deployed more than 30
Digital Projection E-Vision Laser 10K projectors to illuminate the floors,
ceilings and walls of this spectacular venue.

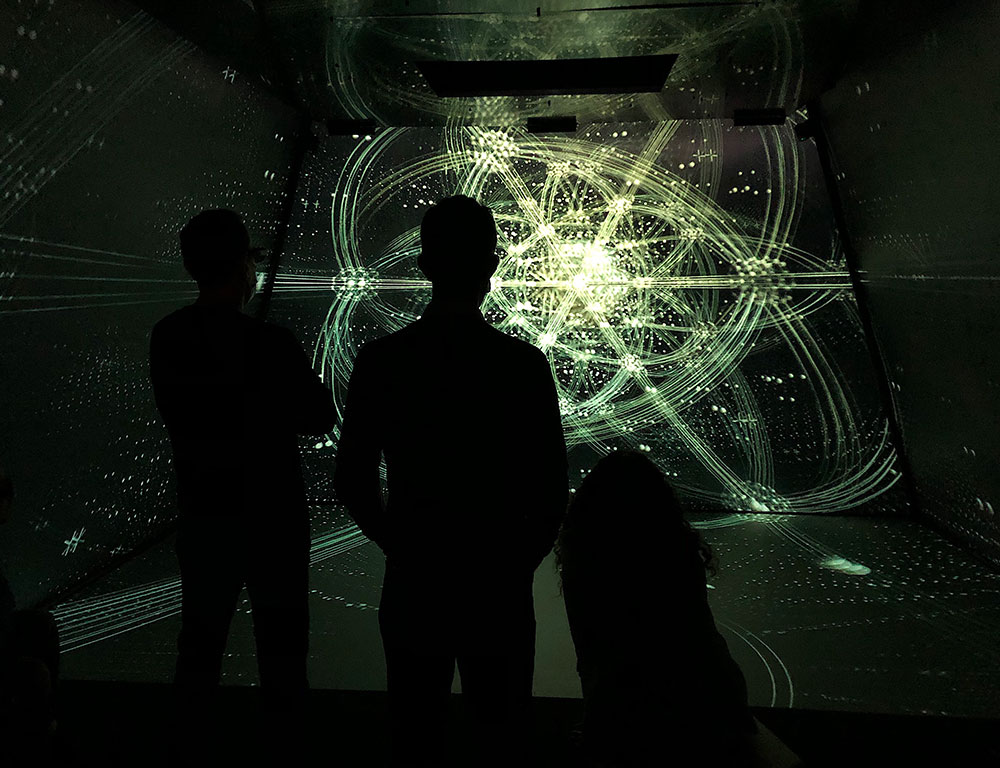

MPM Chooses Digital Projection for
Innovative CAVE

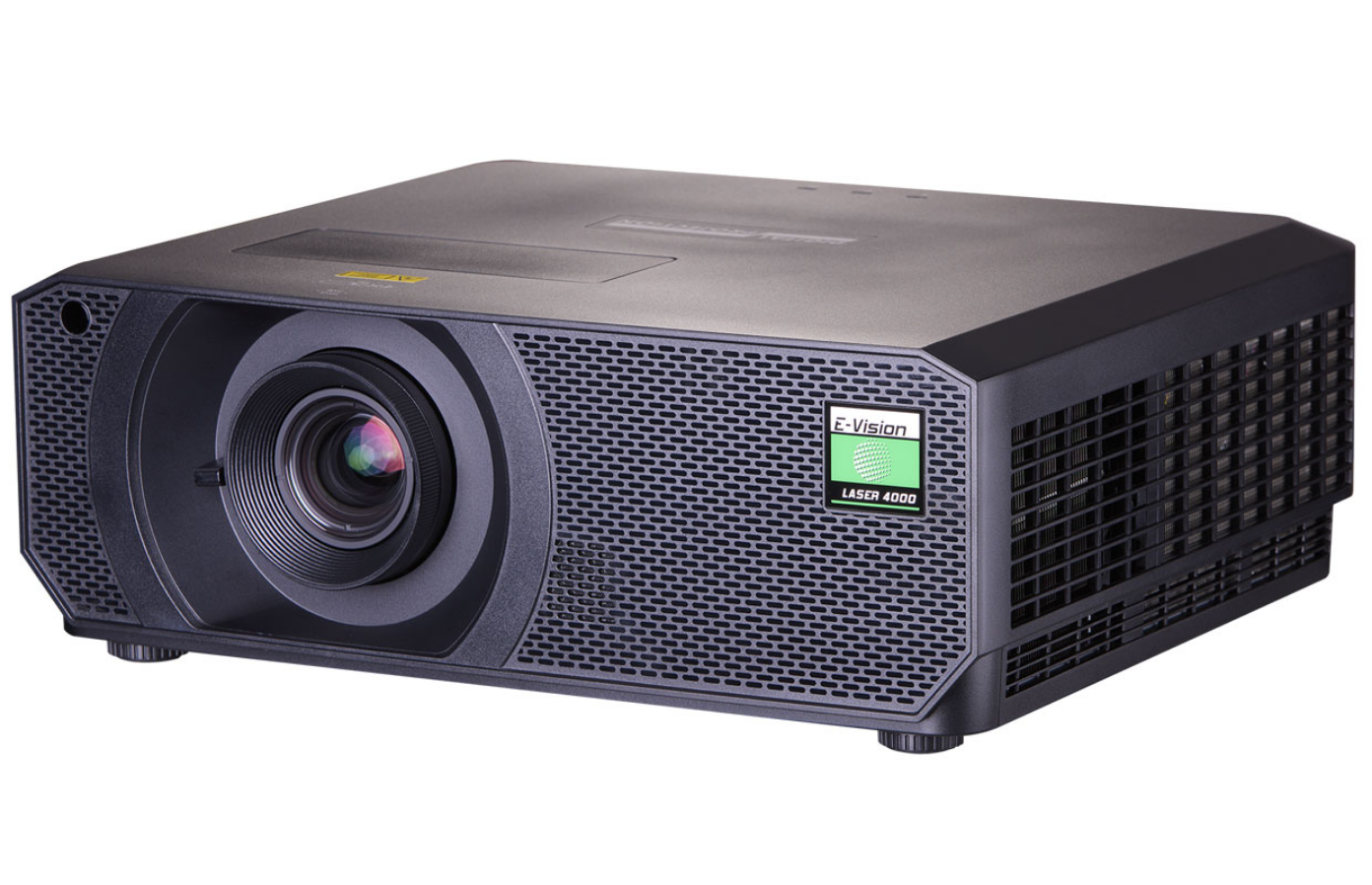

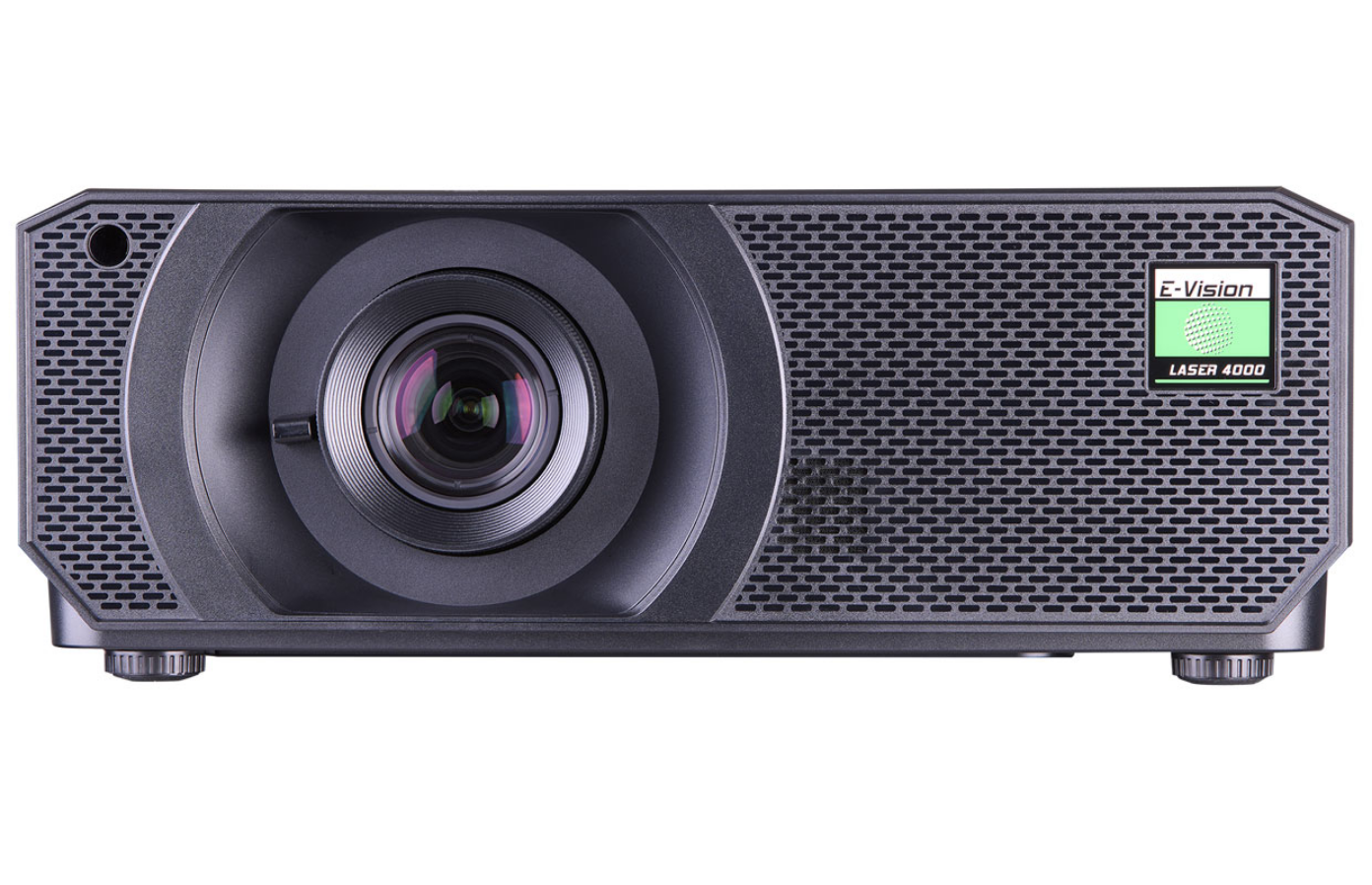

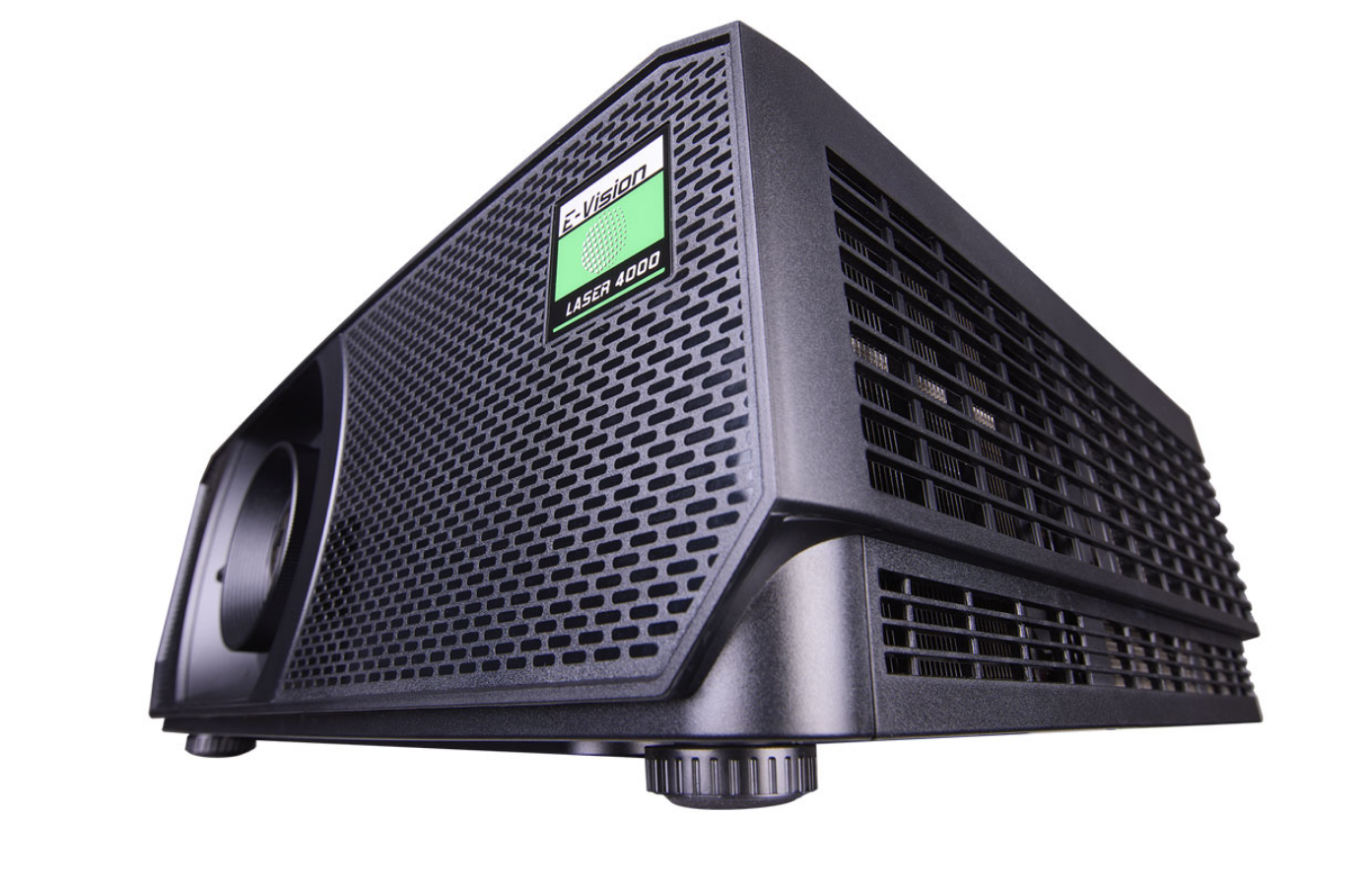

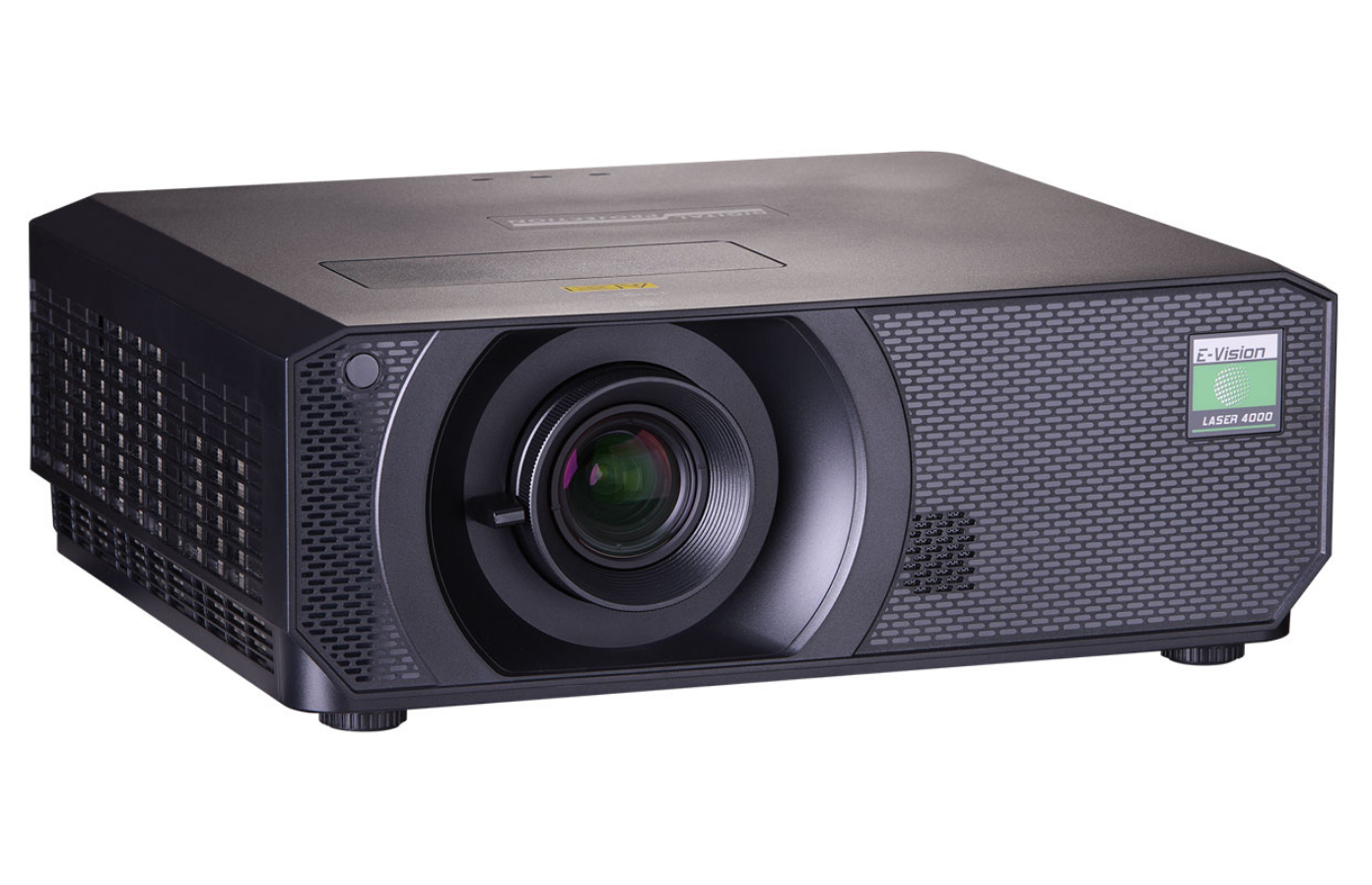

E-Vision 4000 4K-UHD

3,300 ANSI / 3,800 ISO Lumens | Contrast Ratio: 500,000:1 Advanced Black. 1,300:1 native

Colour System:	Laser Phosphor
Display Type:	1 x 0.47" DarkChip 3™ DMD™
DMD Specification:	3840 x 2160
Aspect Ratio:	16x9
Fill Factor
Key Features:	Video & Graphics Processing 2 x HDMI with HDCP 3D support for Side by Side, Frame Packing and Top and Bottom formats HDR processing MEMC for enhanced motion performance Synchronisation of active 3D glasses DICOM simulation mode Geometry Correction Vertical Keystone correction adjustment Selectable 16:9, 4:3, Letterbox and Full Screen aspect ratios Digital Zoom +10 ~ -10 HDBaseT® Interface Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable Allows the projector to be placed up to 100m from the source with low cost cabling HDBaseT® includes audio, Ethernet 100BaseT and RS232/IR control Colour Processing 6 Segment (WGYWGY) Phosphor wheel 8 Segment (BGYRBGYR) Colour wheel 10-bit colour display (30 bits per pixel : 1,073,441,824 colours) Powerful seven point colour correction for accurate colour matching
Source Compatibility	Graphics standards up to 1920 x 1200 resolution at 60Hz. Input support for 4K-UHD, 3840 x 2160 and 4096 x 2160 at 60 Hz.
Inputs/Outputs	Video & Computer Type Connector Qty HDMI 2.1 VGA / Analog RGB HDBaseT USB Type A / (5V/2A) NOTE: The USB is to power external interfaces. Audio: Audio IN L+R Audio OUT (variable) Speaker HDMI 15-pin D-Sub RJ45 USB Type A 3.5 mm jack 3.5 mm jack 10W speaker 2 1 1 1 1 1 1 . Communication & Control Type Connector Qty LAN RS-232C USB (for Service) 3D Sync Out 12V Trigger NOTE: The HDBaseT and LAN ports are seperate. RJ45 9-pin D-sub Mini B VESA 3-PIN mini DIN 3.5mm jack 1 1 1 1 1
3D Formats Supported	Frame Packing Side By Side (half) Top and Bottom
HDTV Formats Supported	1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz) 1080i (50Hz, 60Hz) 720p (50Hz, 60Hz)
Computer Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz
Bandwidth
Remote Control	IR remote control, 2 x IR receivers
Automation Control	LAN control - Crestron RoomView® Connected LAN control - Crestron eControl LAN control - Extron LAN control to RS232 by Telnet HDBaseT communication Projector status email alerts PJ Link (Class1)
Colour Temperature	Warm / Normal / Cold
Operation
illumination Type	Laser Light Source
Typical illumination Life	20,000 hours
Lenses	Lens Part No. Optimised Focus Range* Lens Shift (Frame) 1.13 - 1.7:1 N/A 1.6m - 8m Vert: 0.60 (U) 0.60 (D) frame, Hor: 0.20 (L) 0.20 (R) frame * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
Lens Mount	Manual vertical and horizontal shift, with manual focus and zoom
Mechanical Mounting	Front/Rear Front/Rear Ceiling Two adjustable front feet Ceiling Mount compatible chassis with 4 off M4 mounting holes
Orientation	Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes
Power Requirements	100-240VAC 50/60Hz single phase
Power Consumption	Normal Mode (100%): 538W@240VAC, 570W@100VAC
Thermal Dissipation	Normal Mode (typical): 1945 BTU/Hour @ 100VAC 1836 BTU/Hour @ 240VAC
Fan Noise	Normal Mode (Typical): 35 dBA / Max: 37 dBA
Operating/Storage Temperature Operating:	Operating: 0° to 40°C (32°F to 104°F) Storage: -10° to 60°C (14°F to 140°F)
Operating Humidity	10% to 85% non-condensing
Weight	12 kg / 26.45 lbs
Dimensions	L: 405 mm W: 480 mm H: 180 mm L: 15.94 in W: 18.89 in H: 7.08 in
Safety & EMC Regulations	UL/cUL, CB, CCC, FCC Class B, FDA, CE, UKCA, BSMI IEC 60825-1:2007 3R IEC 60825-1:2014 Class 1 IEC EN 62471-5 Risk Group 2 GB 7247.1-2012 RCM
