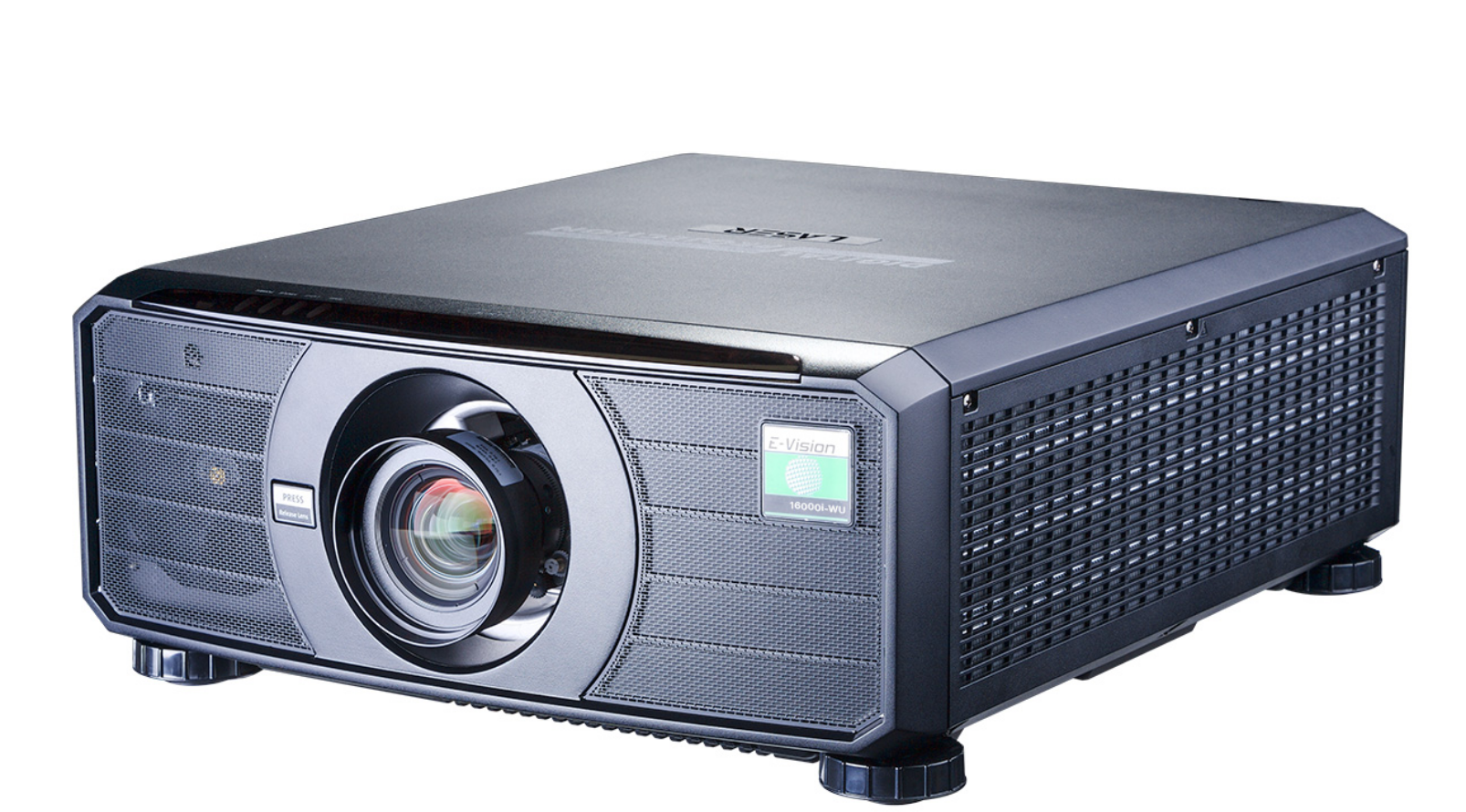

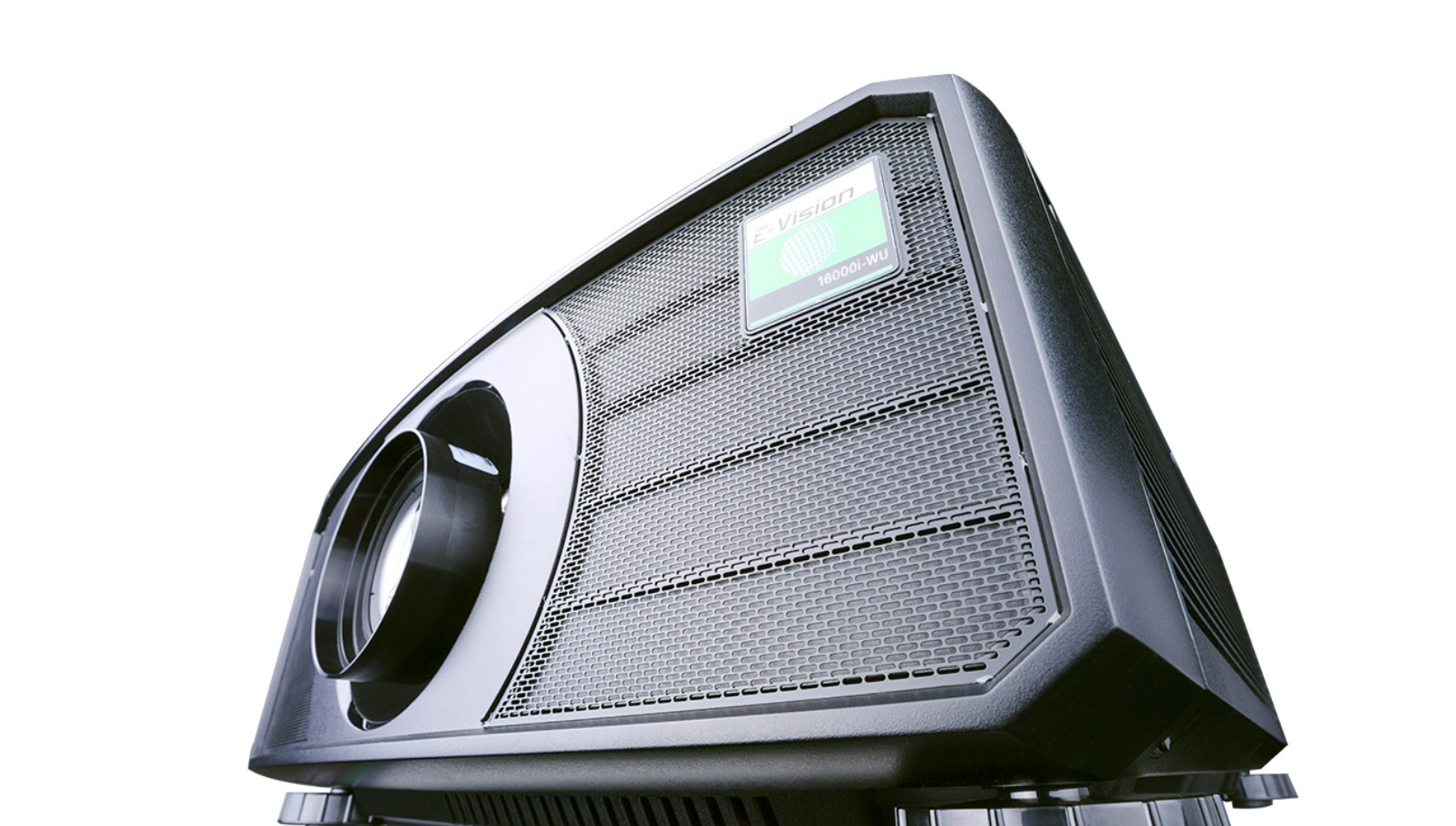

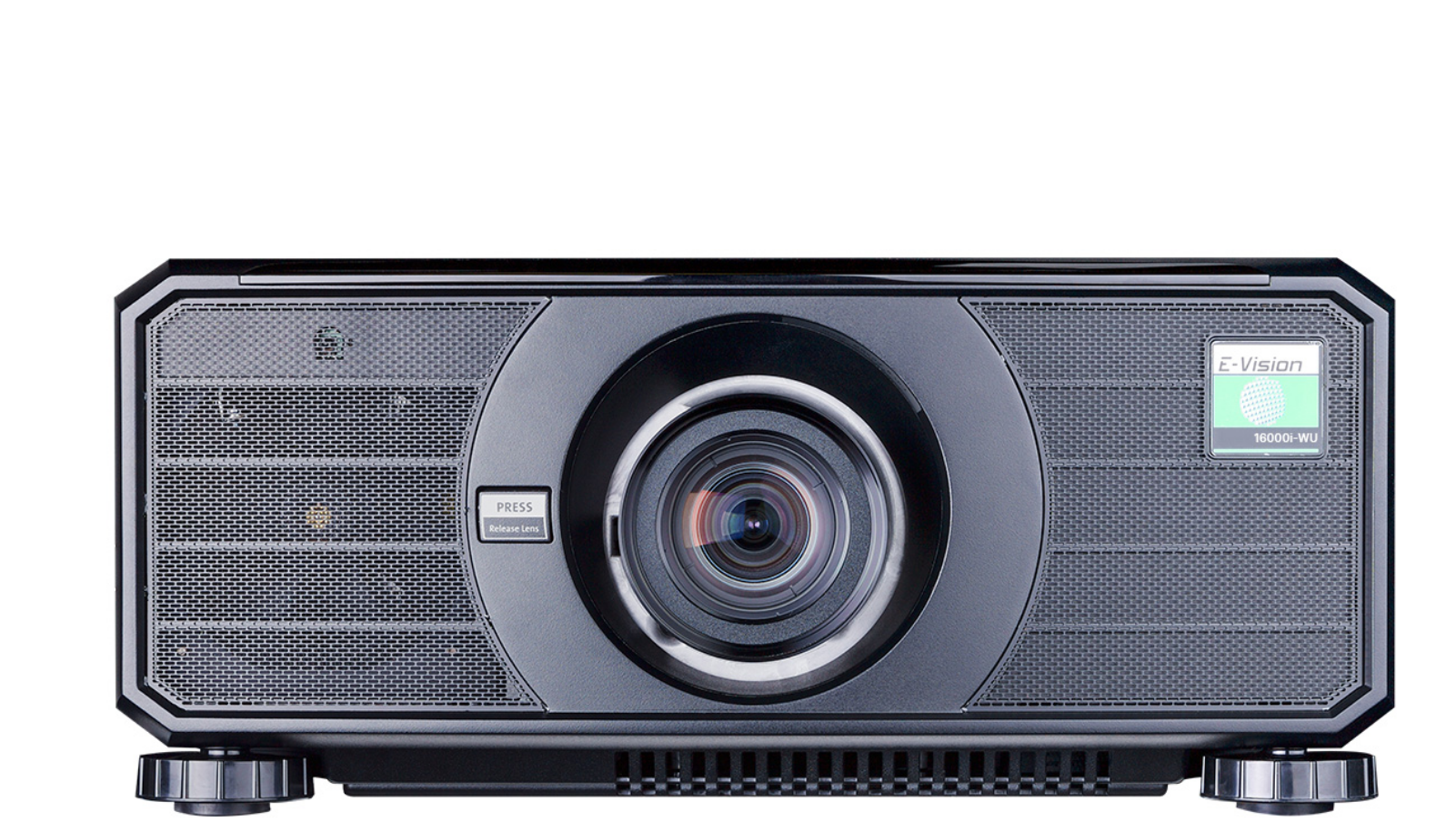

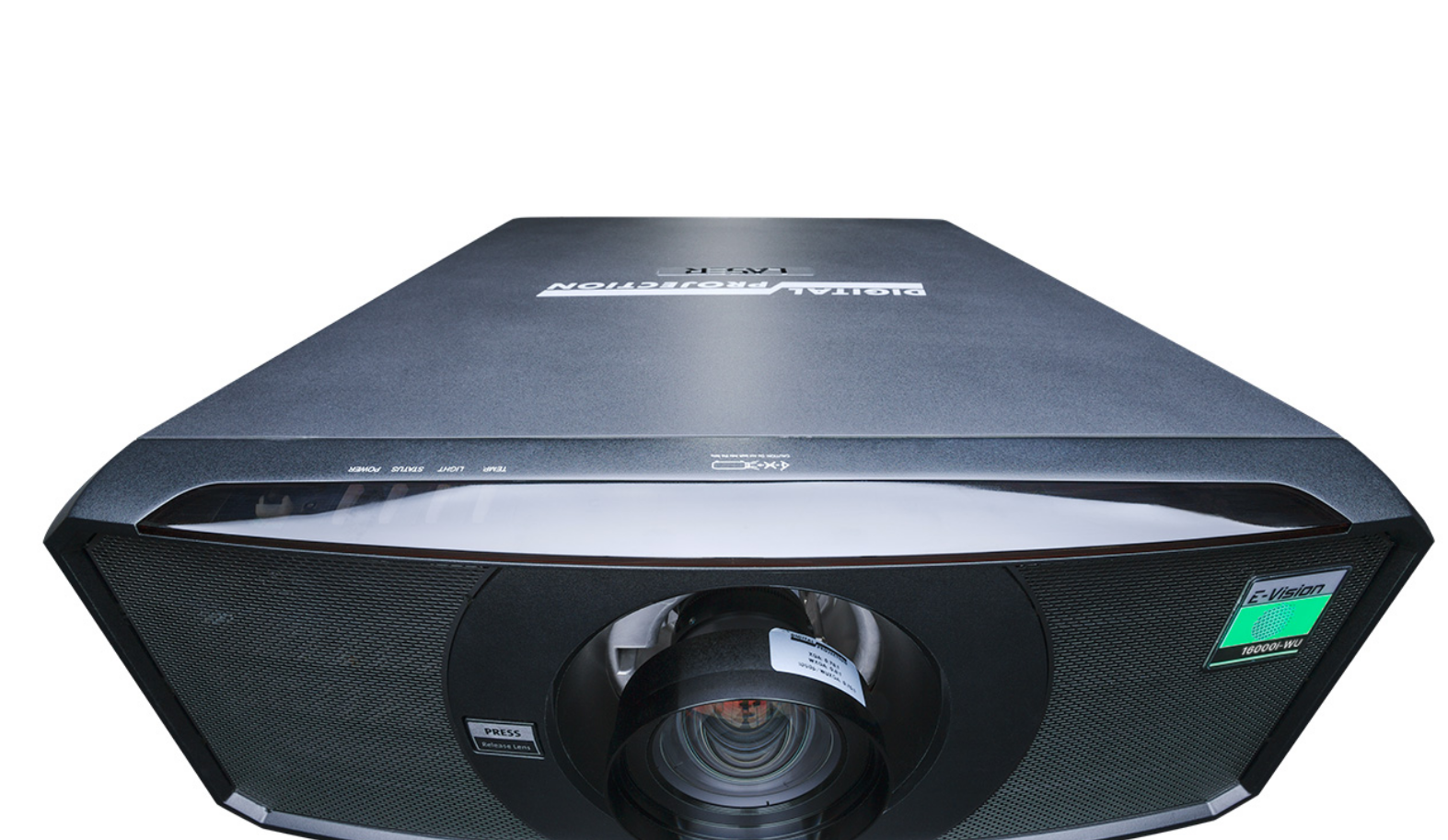

The new E-Vision 10000i shares the same advanced capabilities usually reserved for high-end 3-Chip products
Another leap forward in projection technology – the new E-Vision 10000i RGB – an RGB illuminated 1-Chip projector.
The single-chip E-Vision eliminates the artifacts and color separation commonly associated with projectors utilizing
a conventional color wheel, while achieving 4K+ resolution, 10,000 lumens, HDR without brightness decay, REC 2020
color space, and a dynamic contrast ratio of 10,000:1
The new 0.8” DMD gave us the opportunity to harness all the improvements to advance the thing that you have told
us matters the most in 1-Chip DLP® projectors – colour! Amongst other improvements, the DMD has been optimized
for the colour red which means when coupled with our RGB Laser technology, you get colours, and in particular reds,
that were previously unachievable on a 1-Chip DLP® projector
The E-Vision 15000i 4K+ utilizes Texas Instruments Incorporated (TI) all new
0.8” HEP DMD, which brings a host of exciting features to elevate your
viewing experience.
Completely redesigned, the new 0.8” HEP DMD has an increased tilt angle
which gives better efficiency and can be used to increase brightness and
contrast.
Our Next-generation electronics platform has been designed to deliver
the most advanced image processing to all projectors. Whichever of our
projectors you use, you will be totally familiar with its operation, OSD
menu structure and functionality, all of which is seamlessly integrated
into our free, Projector Control II software.
The optical system, from the laser light source up to the lens is
completely sealed is IP6x rated. This ensures that light output and colour
performance will not be degraded due to the ingress of dust. Additionally,
this projector is completely filterless as the system is liquid cooled and
uses a radiator heat exchanger, minimising maintenance as no
replacement or cleaning of filters is necessary and allows unrestricted
airflow.
Highlighting innovative imaging technologies, focusing on advanced
laser projection systems that deliver outstanding visual performance
for professional and entertainment uses.
Source redundancy offers peace of mind for those critical live events.
When the main signal is lost, the projector will switch to the backup
source to automatically
Intuitive adjustment which can be adjusted via PC tool or Remote
Controller with a grid on-screen which is synchronized with PC tool
Stage controller with Art-Net can directly control the projector (power
on/off/brightness adjustment) by network without the need for any DMX
to-Net Converter
Intelligent Lens Position Memory which can quickly reset the lens position
defined by the user including focus, zoom and lens shift
10,000 ISO / 9,000 ANSI Lumens | Contrast Ratio: 10,000:1 (Dynamic Black)
| Colour System: | Direct RGB Laser (no phosphor or color wheels) | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Display Type: | 1 x 0.8" HEP DMD™ (High Efficency Pixel) | ||||||||||||||||||||||||||||||||||||
| DMD Specification: | 1920 x 1200 pixels native display. (3840 x 2400 via 4-way pixel shift technology) Fast transit pixels for smooth greyscale and improved contrast. |
||||||||||||||||||||||||||||||||||||
| Aspect Ratio: | 16x10 | ||||||||||||||||||||||||||||||||||||
| Fill Factor | 87% | ||||||||||||||||||||||||||||||||||||
| Key Features: |
RGB illumination
|
||||||||||||||||||||||||||||||||||||
| Source Compatibility | 12G-SDI, Supports a high data transfer rate of up to 12 gigabits per second (Gbps), enabling the transmission of uncompressed 4K UHD (Ultra High Definition) video signals with a single connector Graphics standards up to WUXGA 1920 x 1200 - 120Hz RB, Up to WQXGA 2560 x 1600 60Hz RB (DisplayPort) Video standards including HDTV 1080p - 60Hz and 4K-UHD (3840 x 2160) 60Hz Support for up colour gamut up to P3 |
||||||||||||||||||||||||||||||||||||
| Inputs/Outputs |
|
||||||||||||||||||||||||||||||||||||
| 3D Formats Supported | Off Auto Side by Side Top and Bottom Dual Pipe Frame Sequential |
||||||||||||||||||||||||||||||||||||
| HDTV Formats Supported | EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), 4K-UHD (3840 x 2160), DCI 4K (4096 x 2160) | ||||||||||||||||||||||||||||||||||||
| Computer Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA | ||||||||||||||||||||||||||||||||||||
| Bandwidth | |||||||||||||||||||||||||||||||||||||
| Remote Control | Infrared/Wired Remote Control Unit | ||||||||||||||||||||||||||||||||||||
| Automation Control | LAN - Webpage control TCP/UDP control RS-232 Alert Mail for Projector LAN Control-Crestron® Connected LAN Control-PJ Link Class 1 compatible LAN Control-AMX® Device Discovery Art-Net (DMX) control |
||||||||||||||||||||||||||||||||||||
| Colour Temperature | User selectable (3200K/ 5400K / 6500K / 7500K / 9300K / Native ) | ||||||||||||||||||||||||||||||||||||
| Operation |  |
||||||||||||||||||||||||||||||||||||
| illumination Type | RGB Laser | ||||||||||||||||||||||||||||||||||||
| Typical illumination Life | 20,000 hours | ||||||||||||||||||||||||||||||||||||
| Lenses |
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%, |
||||||||||||||||||||||||||||||||||||
| Lens Mount | Centred lens for installation flexability Motorised and programmable shift, zoom and focus. Intelligent Lens Memory with 10 user-definable preset positions (except UST lens). |
||||||||||||||||||||||||||||||||||||
| Mechanical Mounting | Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet Ceiling Mount compatible chassis with 6 off M4*0.7 mounting holes available, Maximum screw length 16mm |
||||||||||||||||||||||||||||||||||||
| Orientation | Table Top or Inverted: Yes Pointing Up: Yes Pointing Down: Yes Roll (Portrait): Yes |
||||||||||||||||||||||||||||||||||||
| Power Requirements | 100-240VAC 50/60Hz single phase | ||||||||||||||||||||||||||||||||||||
| Power Consumption | 800W | ||||||||||||||||||||||||||||||||||||
| Thermal Dissipation | TBD | ||||||||||||||||||||||||||||||||||||
| Fan Noise | Normal mode: 36 dBA typical Silence Mode: Max 33 dBA | ||||||||||||||||||||||||||||||||||||
| Operating/Storage Temperature Operating: | Operating: 0 to 40 °C (32 to 104 °F) Force ECO over 35°C (95°°F) |
||||||||||||||||||||||||||||||||||||
| Operating Humidity | 90% (with maximum temperature of 35°C (95°F) | ||||||||||||||||||||||||||||||||||||
| Weight | 29.4 kg / 64.8 lbs | ||||||||||||||||||||||||||||||||||||
| Dimensions | L: 598mm x W: 500mm x H:218mm L: 23.54 inch x W: 19.68 inch x H: 8.58 inch |
||||||||||||||||||||||||||||||||||||
| Safety & EMC Regulations | TBD | ||||||||||||||||||||||||||||||||||||
