Name: D Series Motorized Screen
Brand: CAAVITS
Availability: InStock
Rating: 5 (1 reviews)

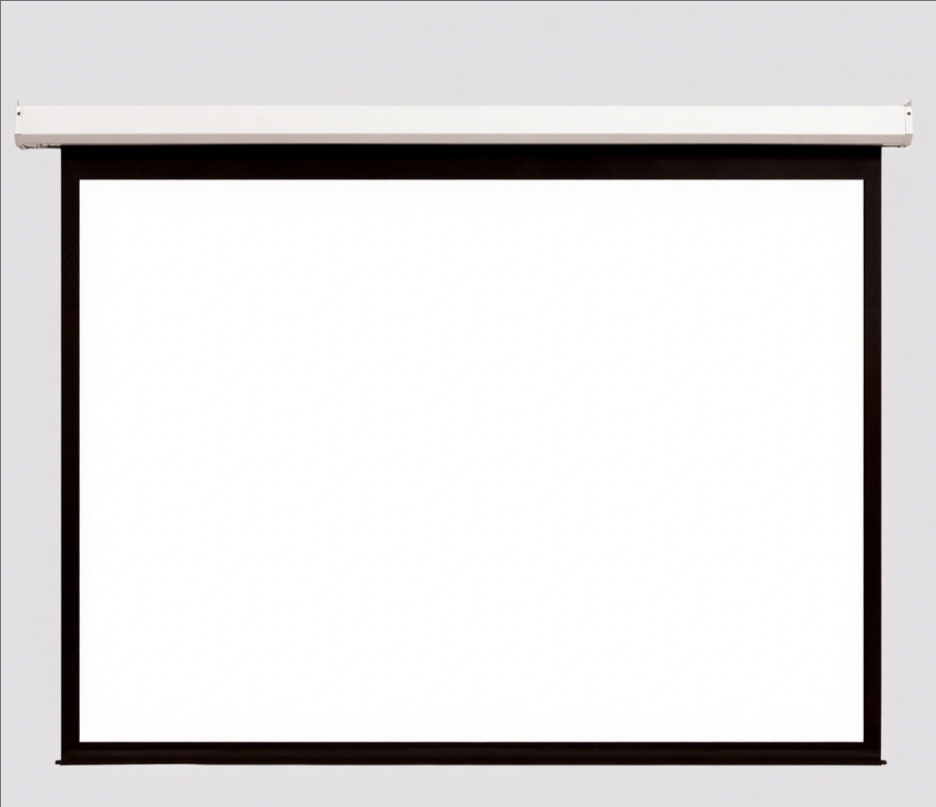

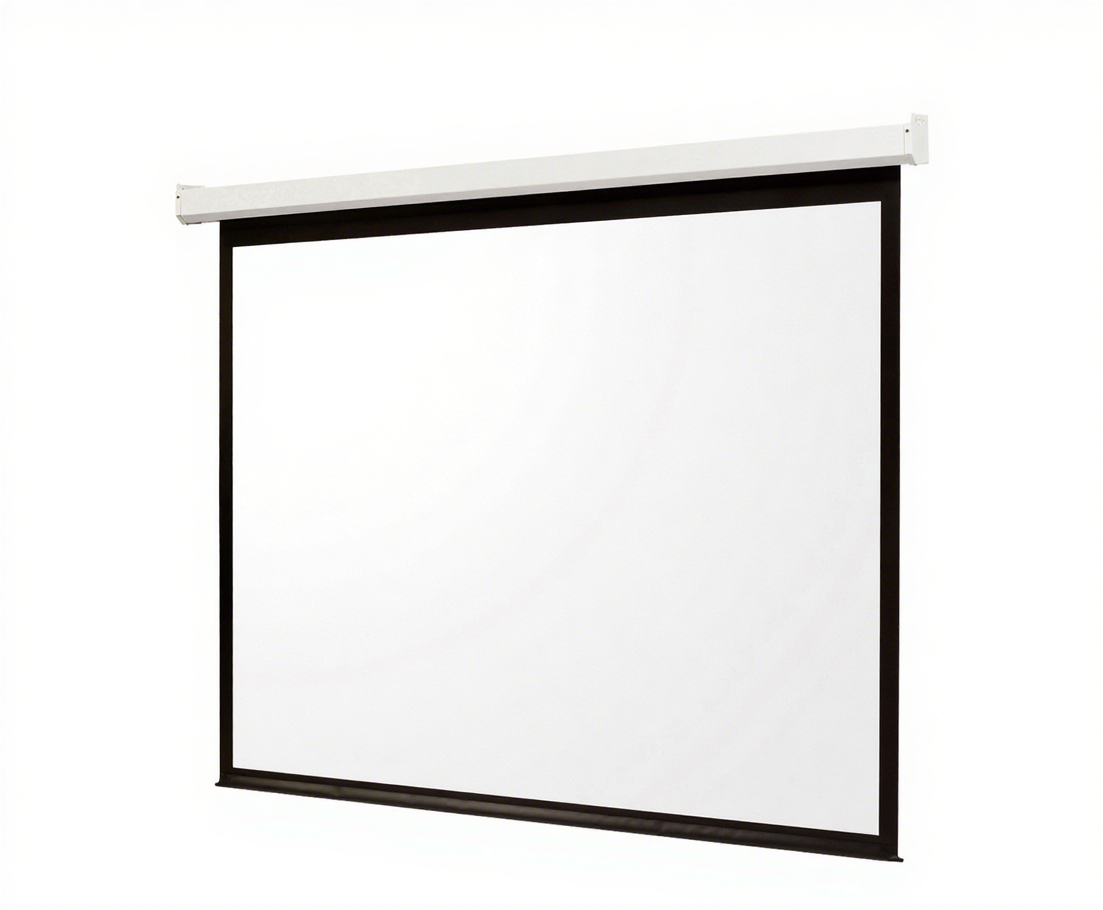

D Series Motorized Screen

The D Series screen is the perfect balance of practicability and
integrated control functions all in a economical package. The screen's

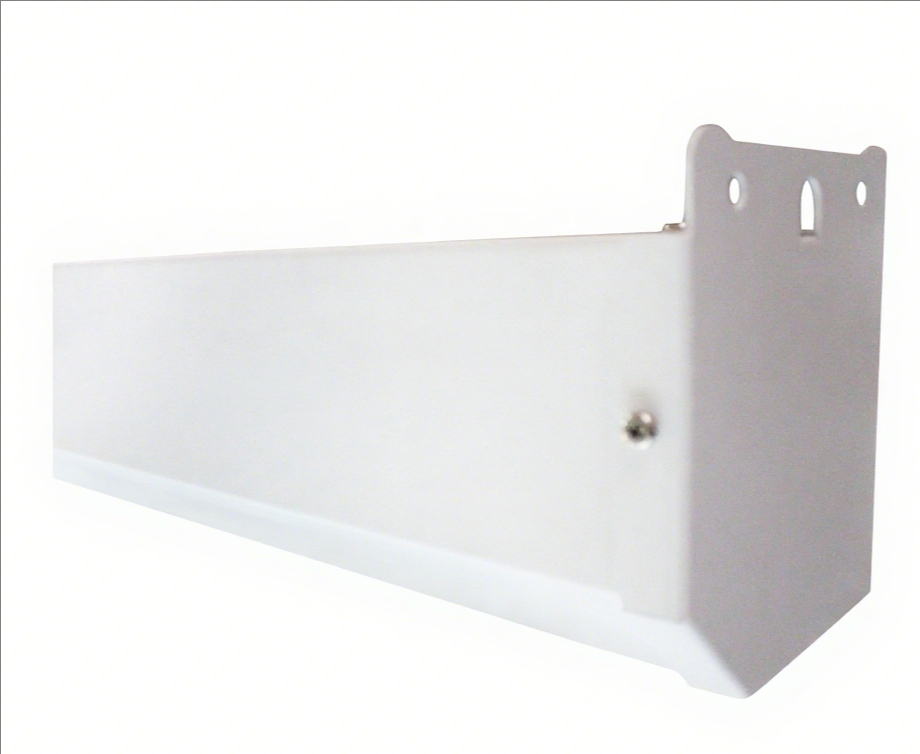

simple but durable design features a sprayed metal coating, quiet

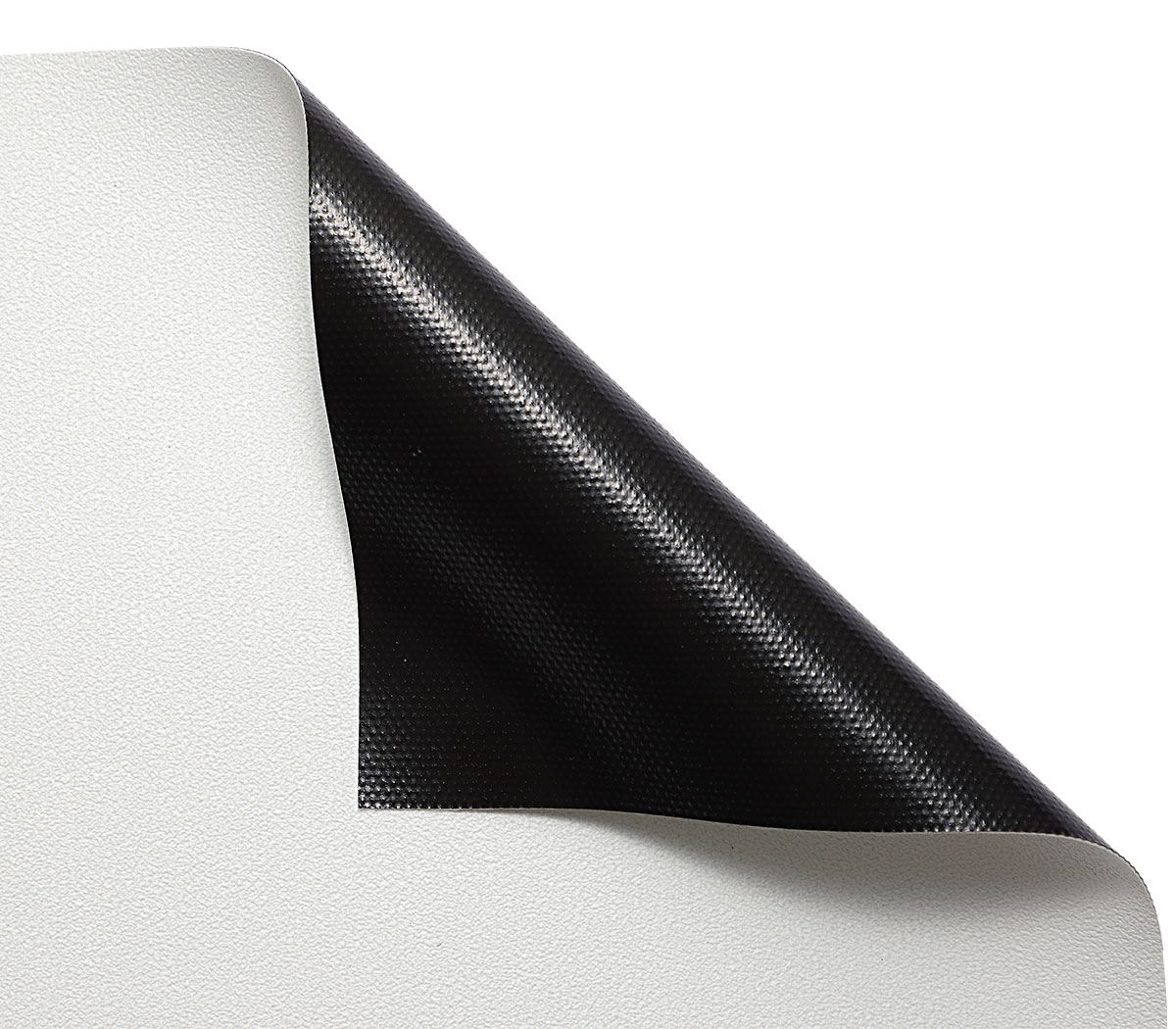

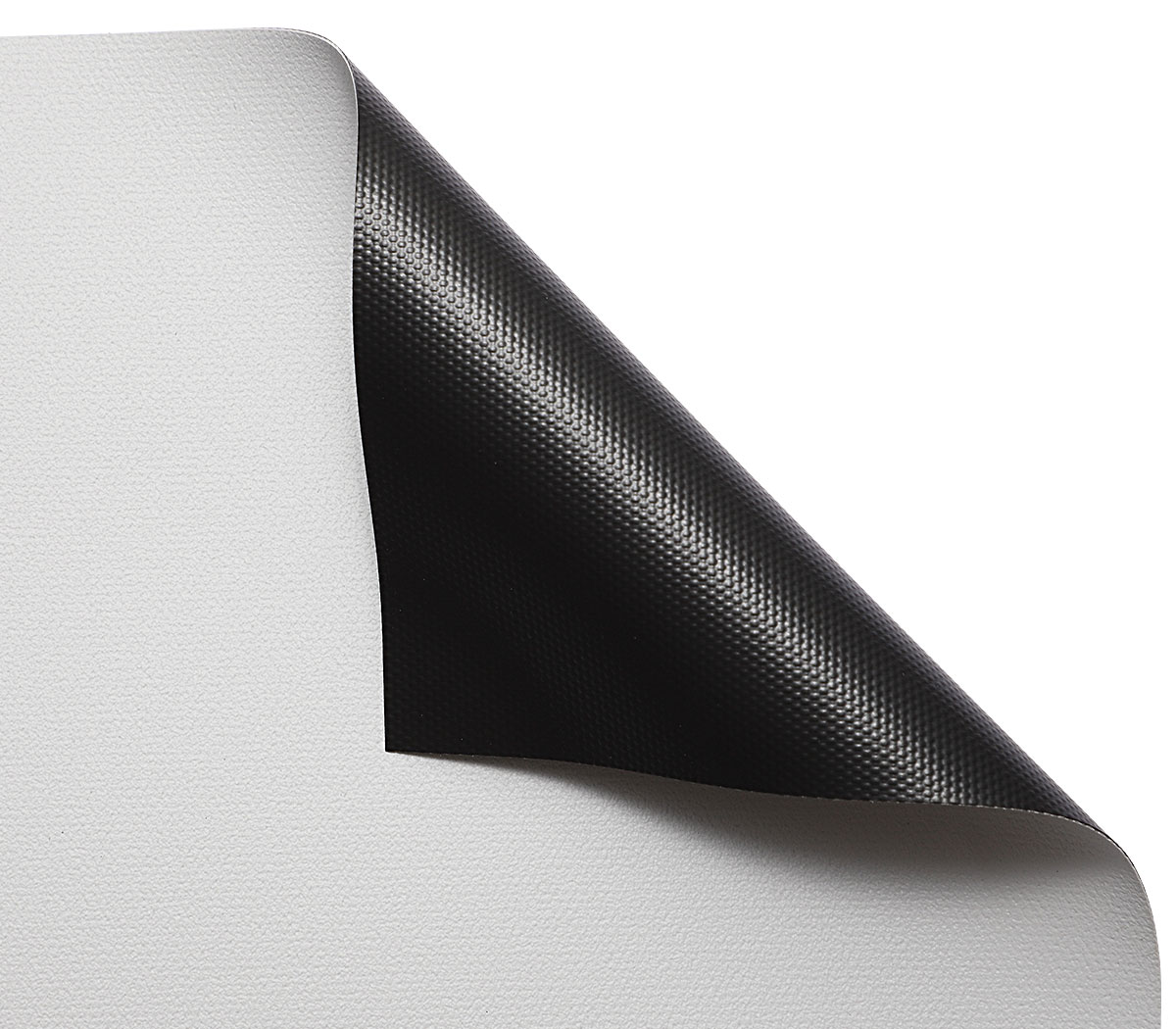

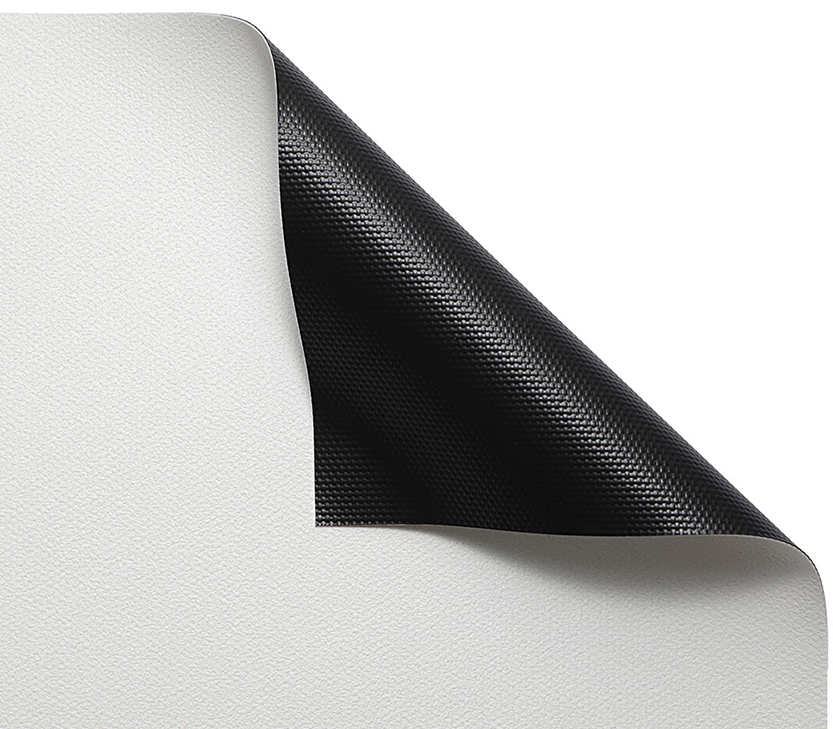

tubular motor and multi-control and fabric options. It's the ideal cost-
effective choice for a simple install environments.
• Sizes: 92” – 200” diagonal

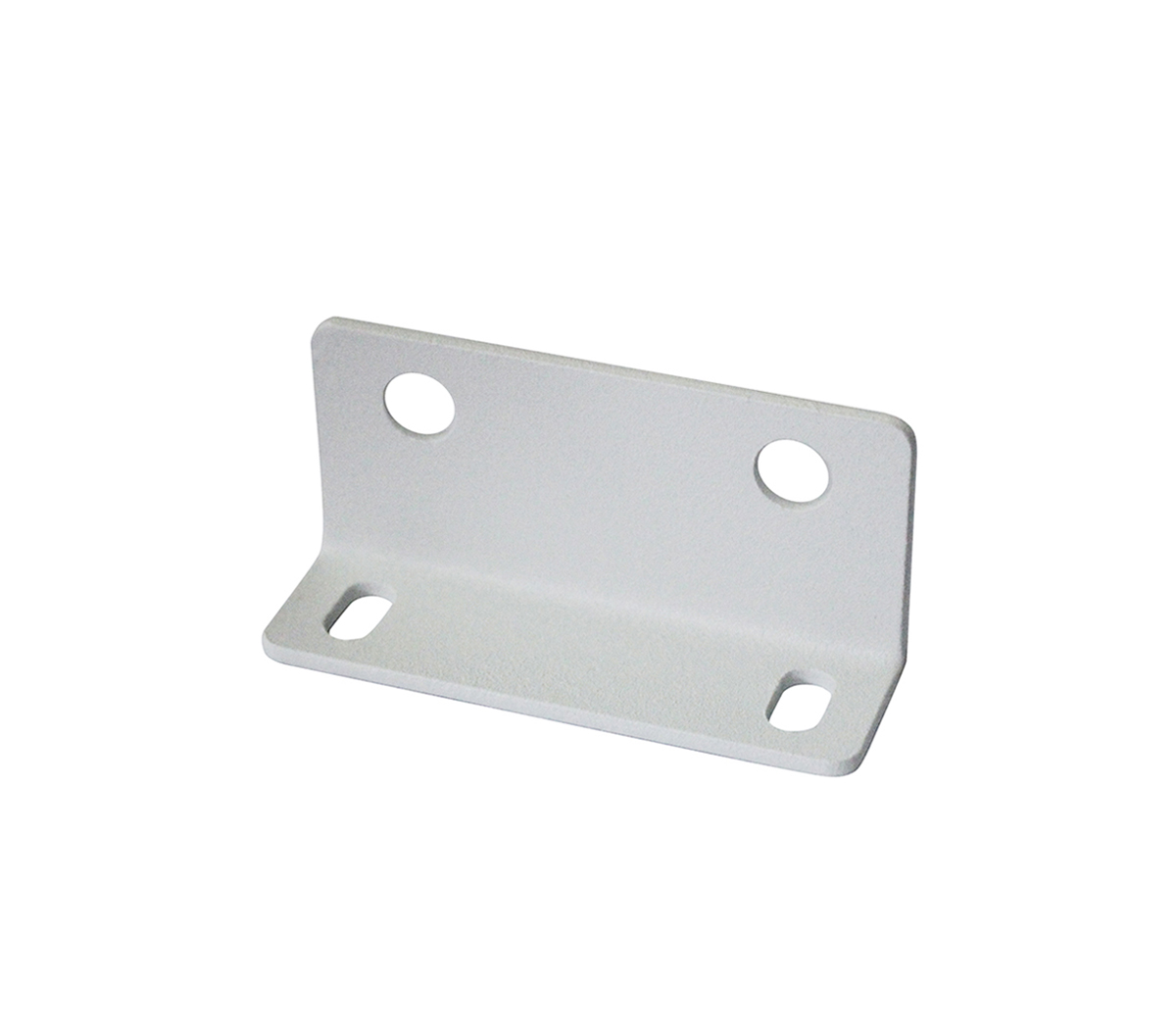

• Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount

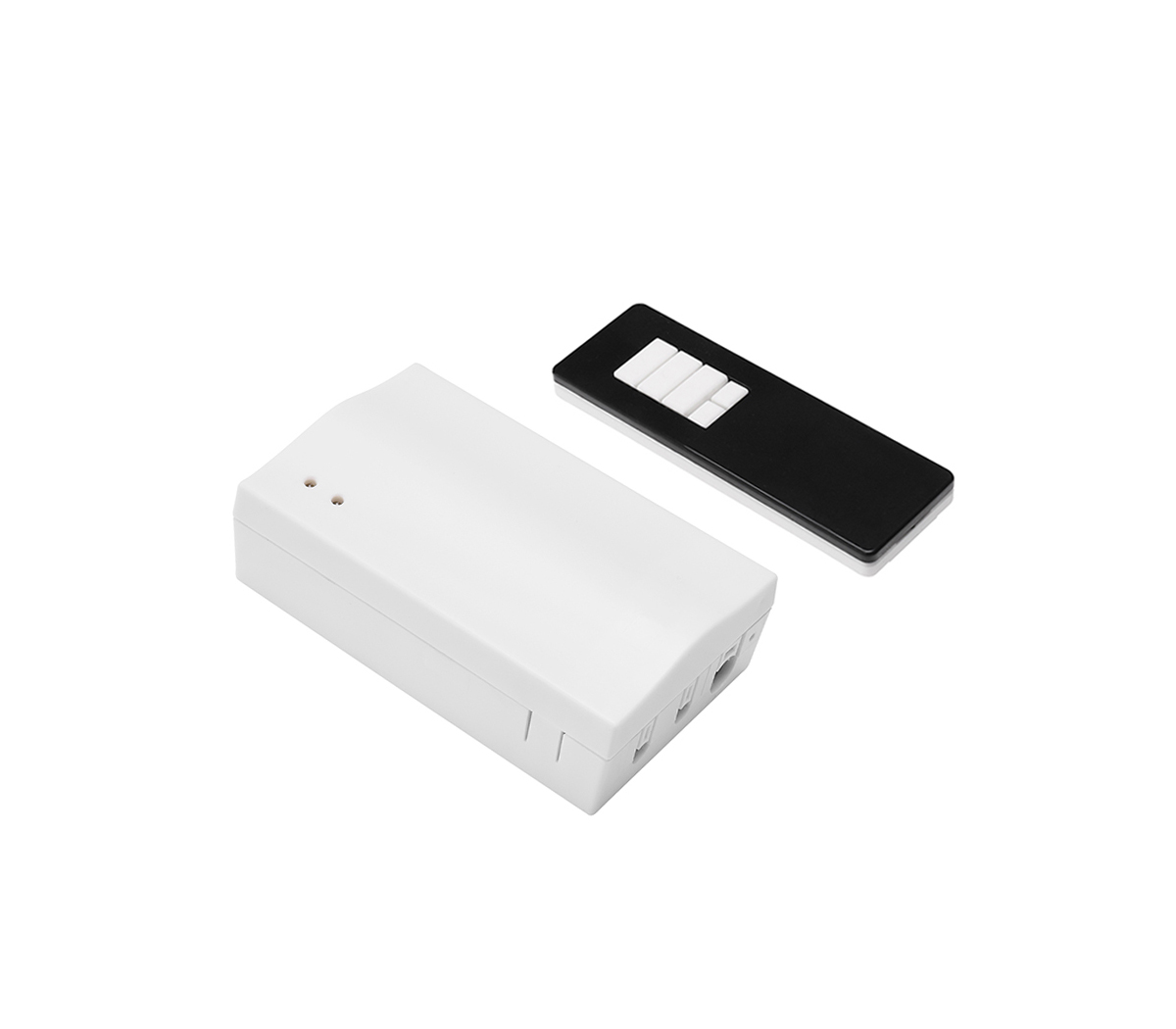

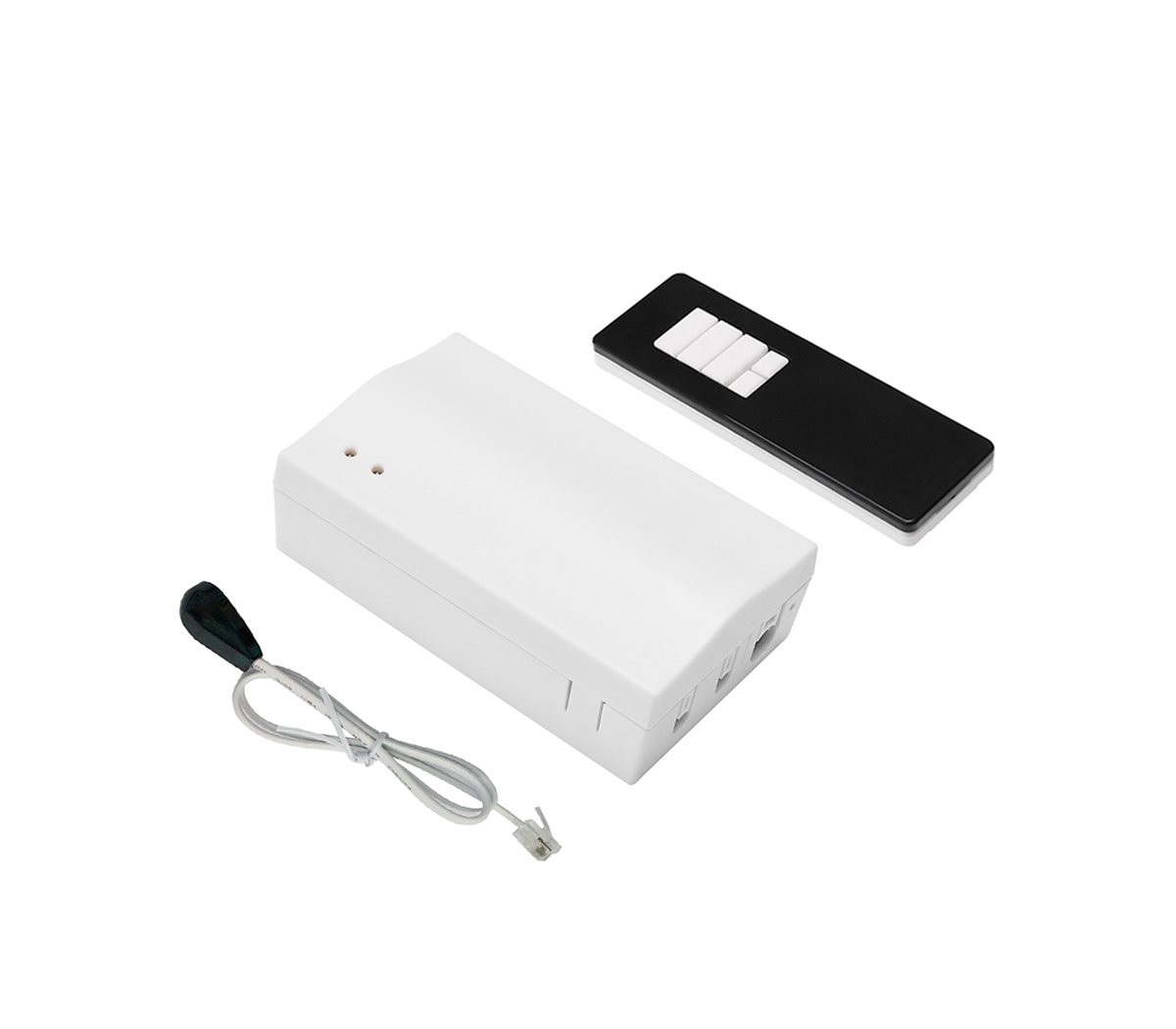

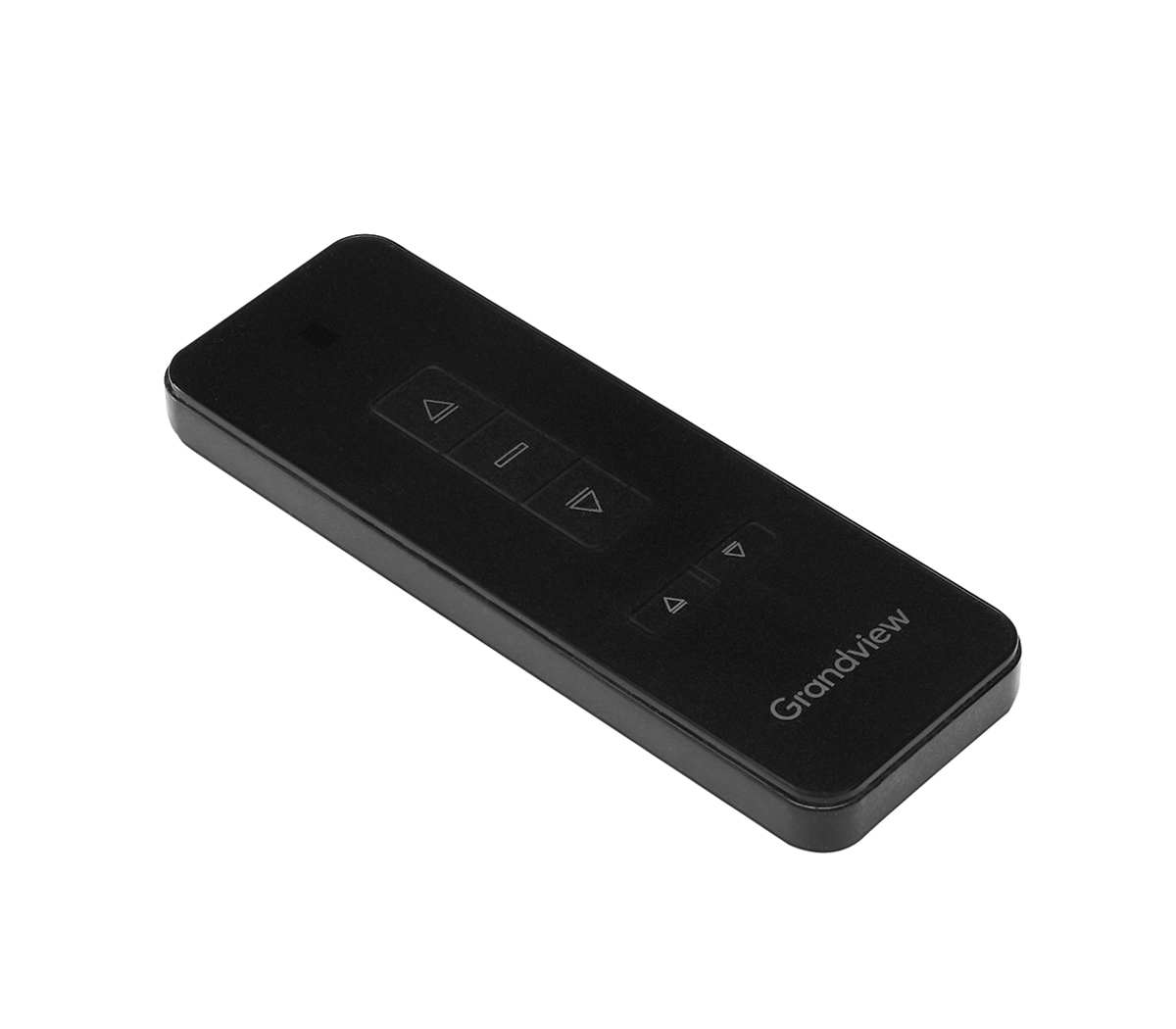

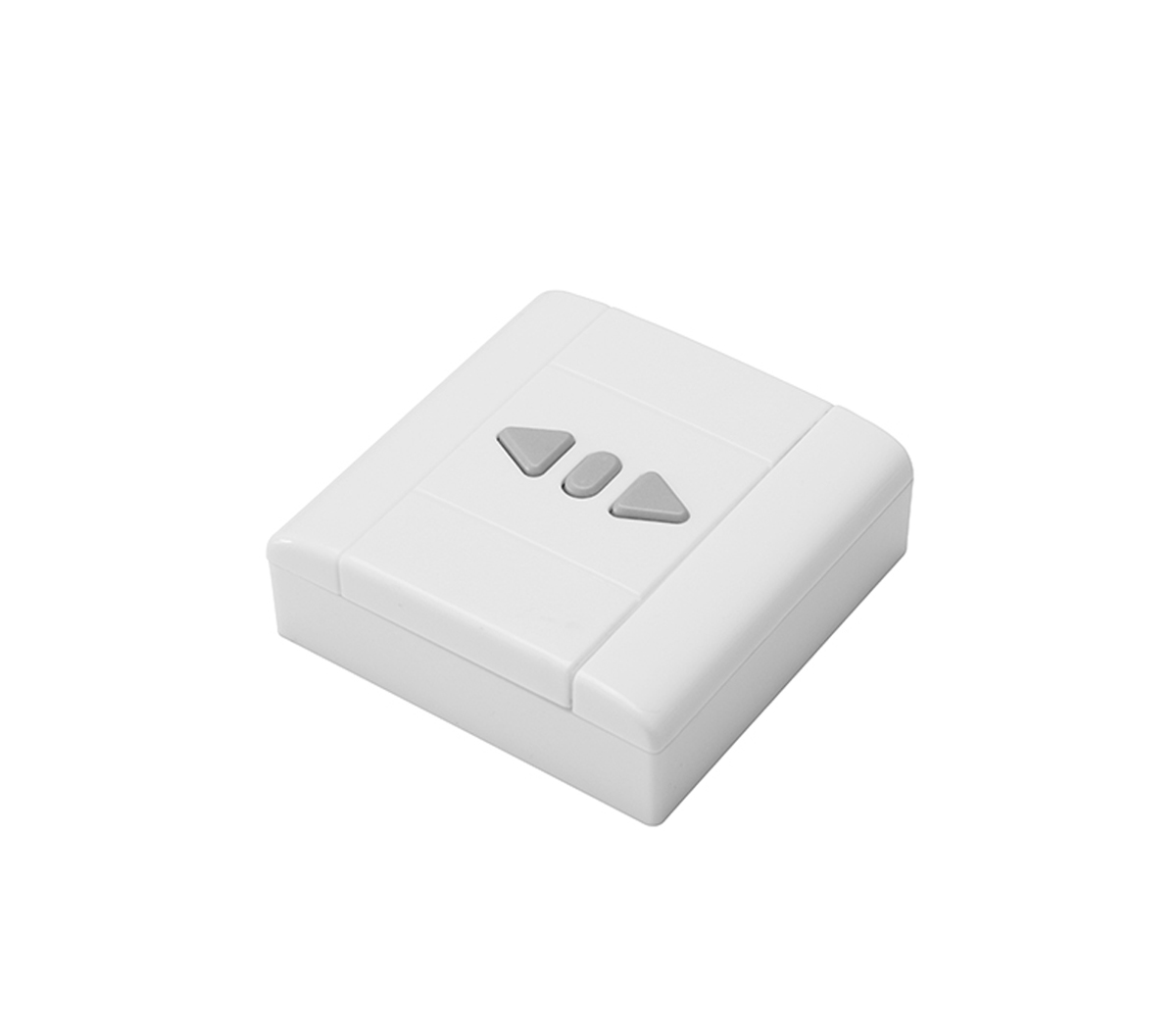

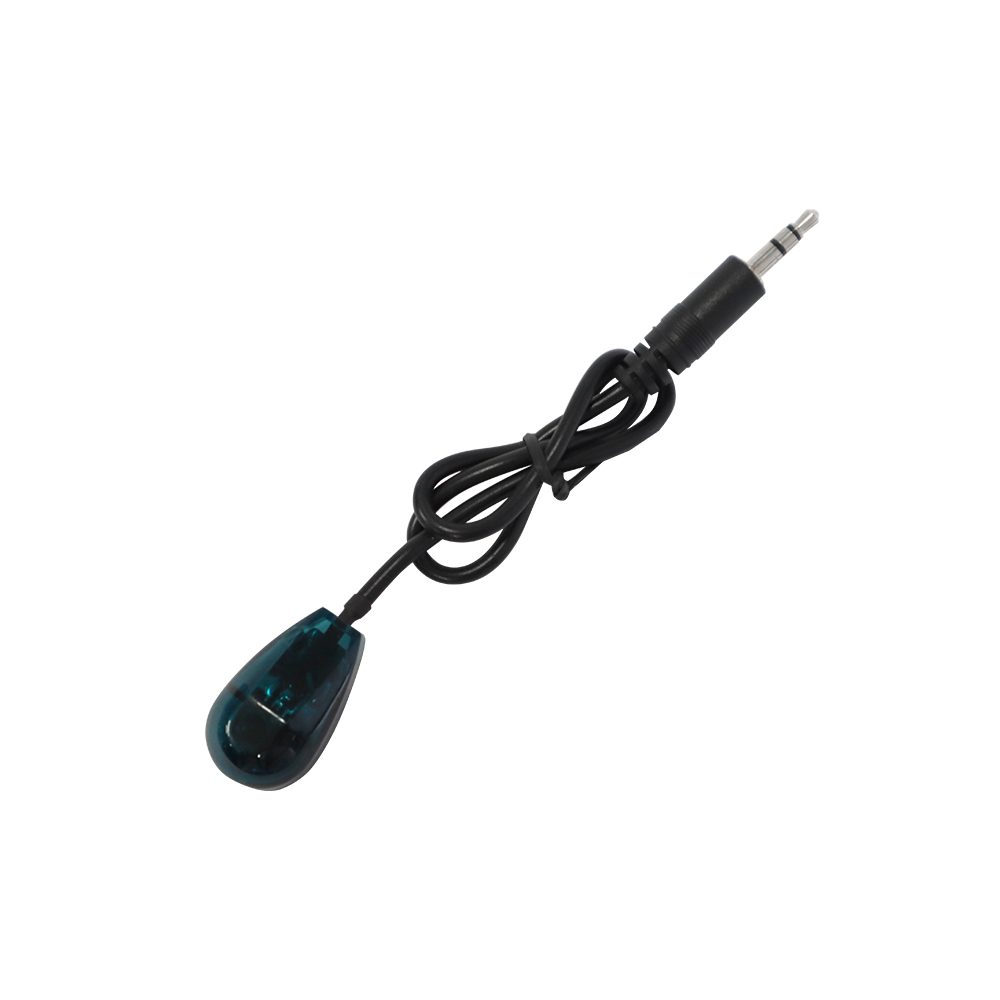

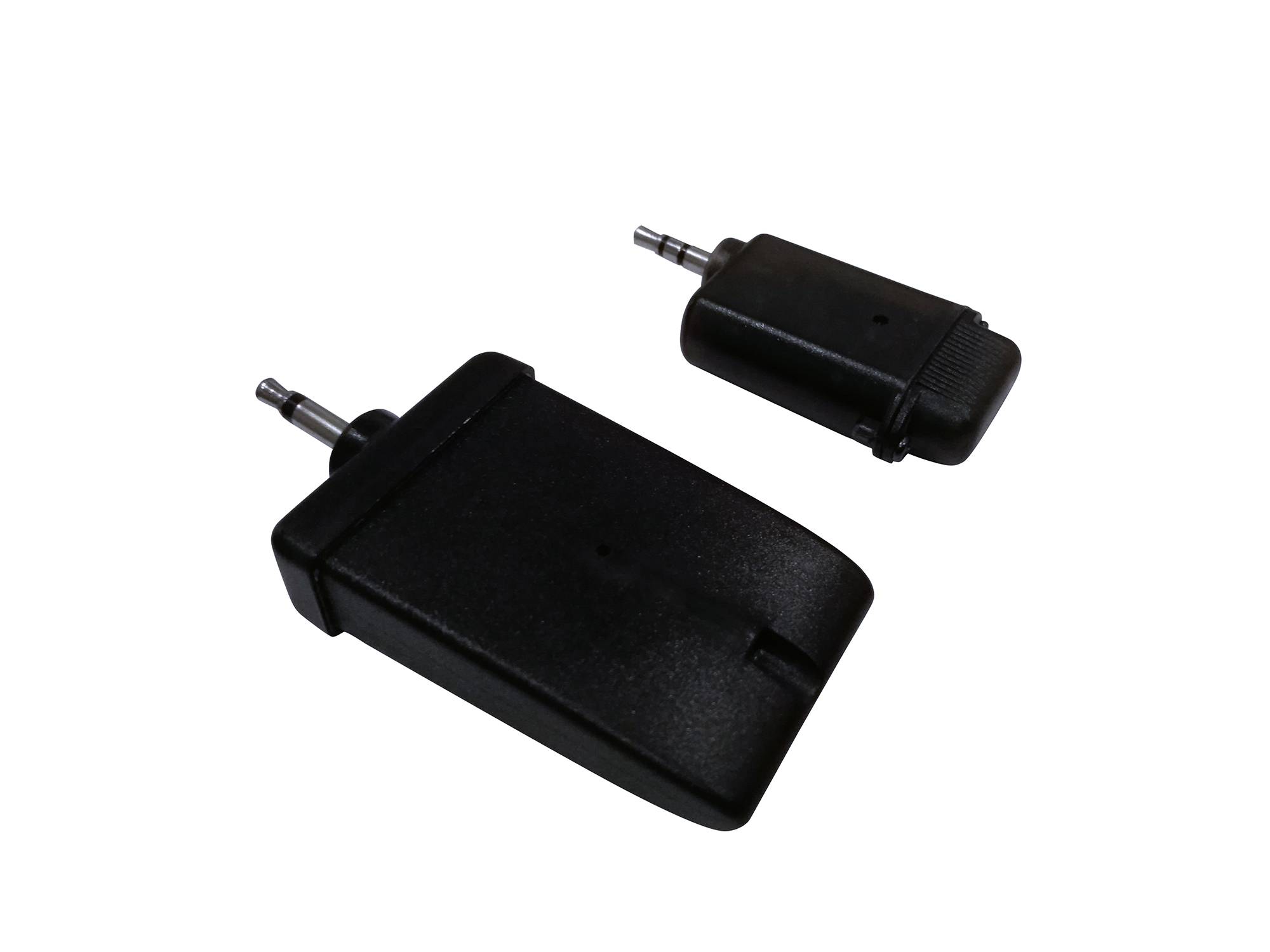

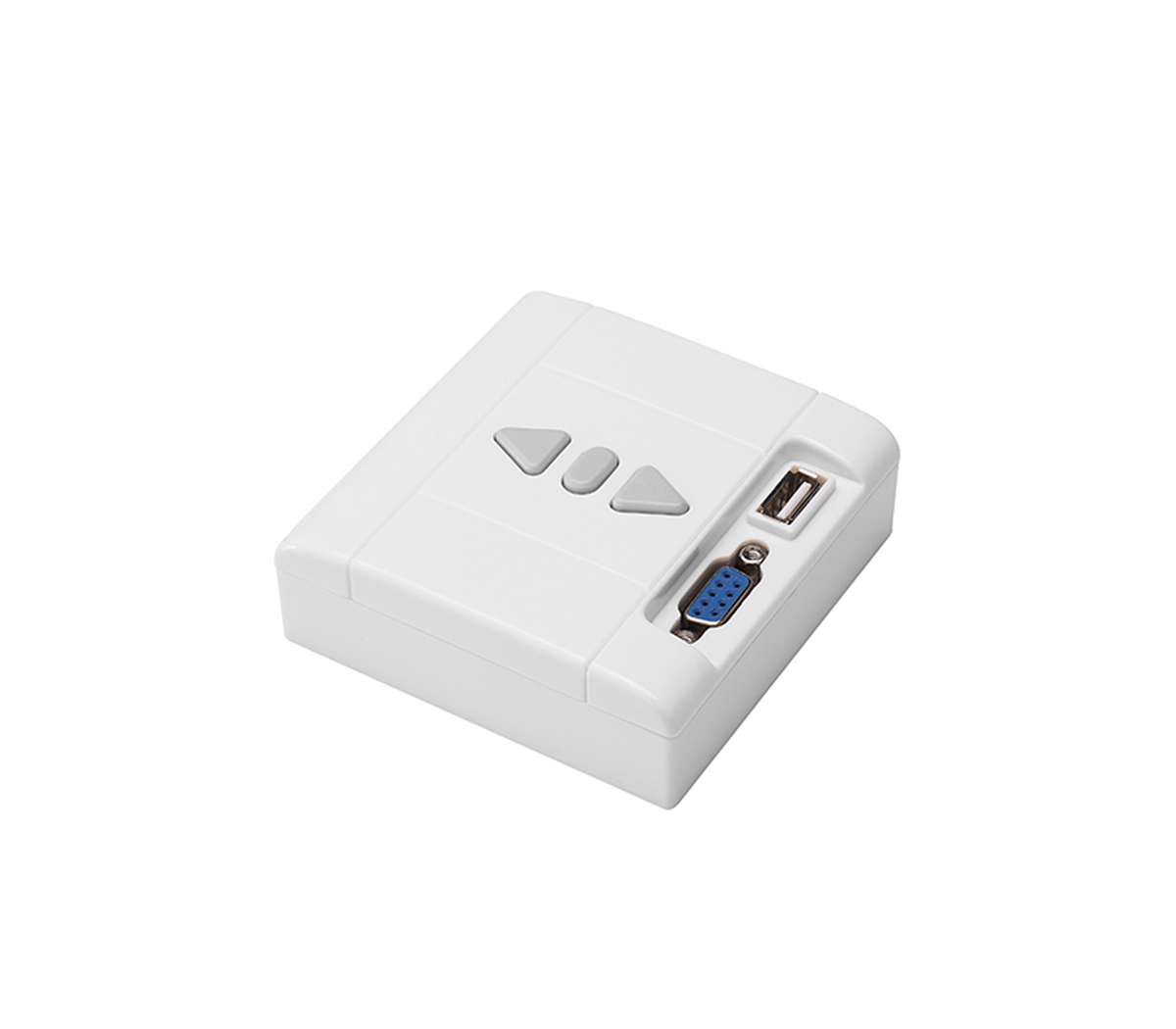

• Control Options:Inbuild IR Remote Control ;RS485 + Dry Contact Control ,

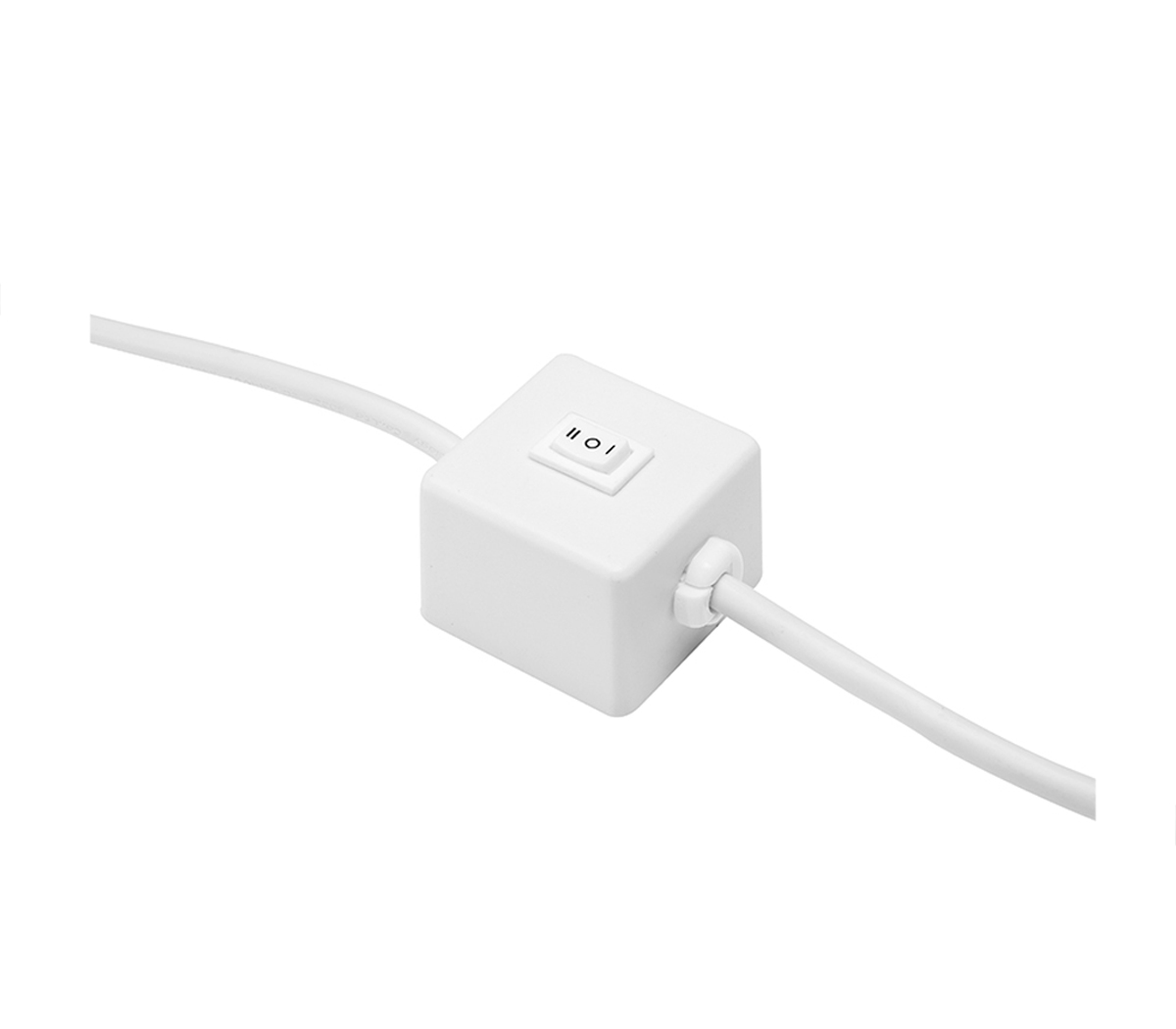

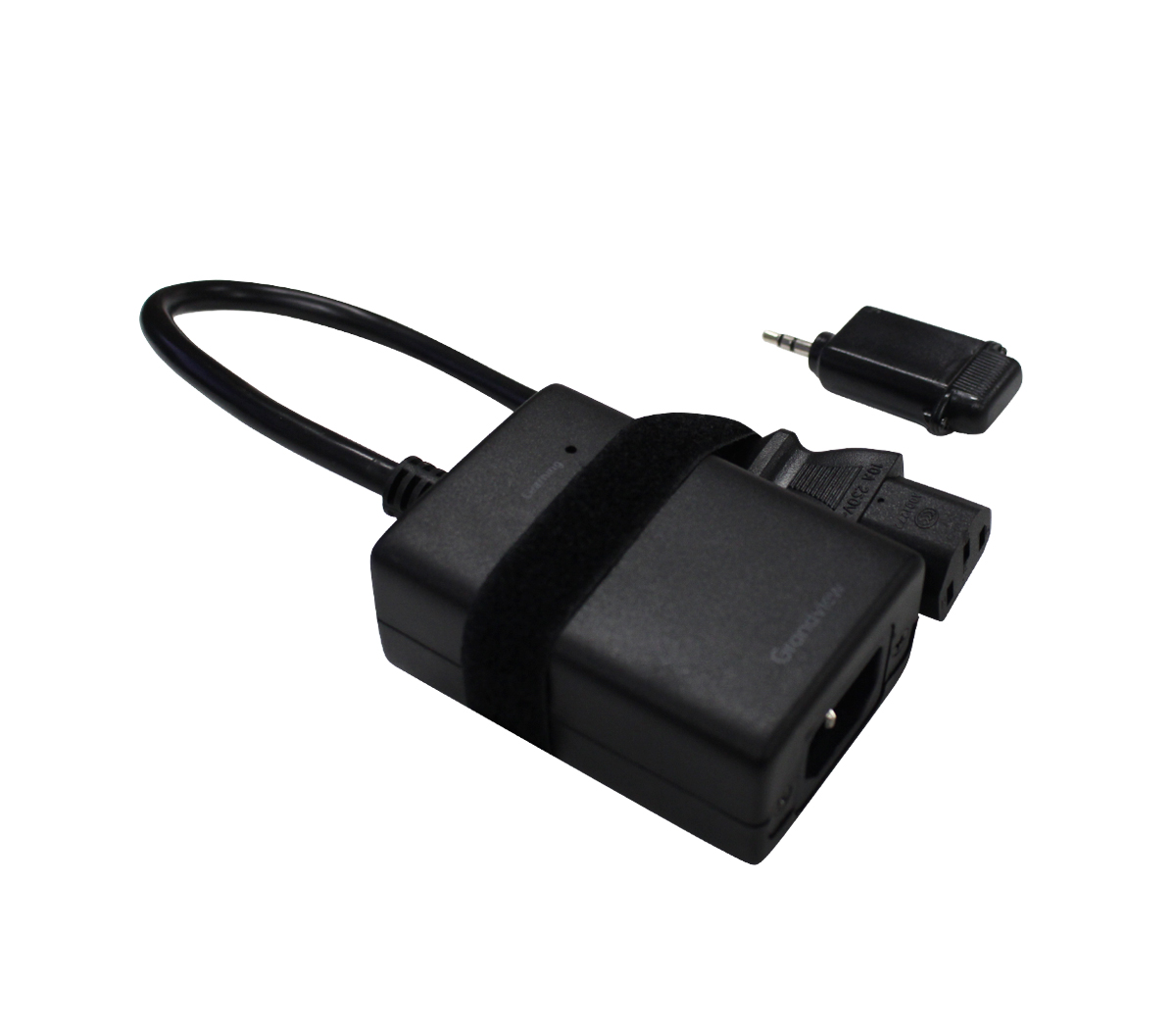

3-12Voltage Trigger Control ; Central Control ; (Available for Integrated Type DI-MI only)

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
1:1	80"	2030 x 2030	2278	80	55	50	2221	101	75
1:1	92"	2340 x 2340	2588	80	55	47	2525	101	75

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
1:1	84"	2030 x 2030	2300	80	55	50	2275	123	92
1:1	92"	2340 x 2340	2610	80	55	47	2561	123	92

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	84"	1710 x 1280	1528	80	55	40	1881	101	75
	92"	1860 x 1395	1643	80	55	40	2031	101	75
	100"	2030 x 1520	1768	80	55	50	2221	101	75
	120"	2340 x 1755	2003	80	55	47	2525	101	75

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	84"	1710 x 1280	1550	80	55	50	1953	123	92
	92"	1869 x 1402	1672	80	55	50	2096	123	92
	100"	2030 x 1520	1790	80	55	50	2257	123	92
	120"	2340 x 1755	2025	80	55	47	2561	123	92

Model	Diagonal Measurement	Viewing Area （W x H）mm	Product Height （A）mm	Black Drop （B3）mm	Lower Border （B2）mm	Left/Right （B1）mm	Product Length （L）	Endcap Height （Hc）mm	Endcap Width （Wc）
4:3	120"	2340 x 1755	2064	80	80	50	2605	154	123
	130"	2656 x1992	2301	80	80	50	2921	154	123
	138"	2804 x 2103	2412	80	80	50	3069	154	123
	145"	2944 x 2208	2517	80	80	50	3209	154	123
	150"	3048 x 2286	2595	80	80	50	3313	154	123
	165"	3320 x 2490	2799	80	80	80	3650	154	123
	180"	3620 x 2715	3024	80	80	80	3950	154	123
	200"	4020 x 3015	3324	80	80	80	4350	154	123

D Series Motorized Screen

Description

Download
