| Model | Diagonal Measurement | Viewing Area （W×H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |

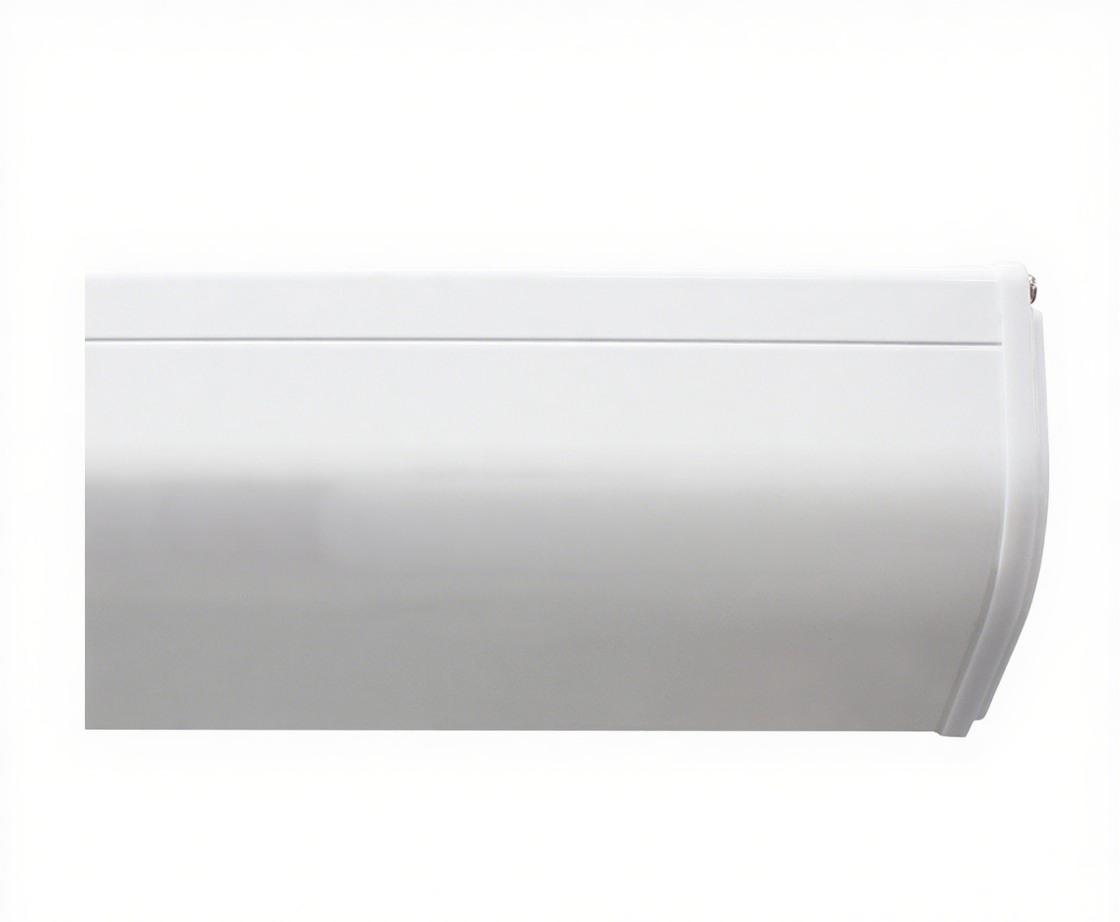

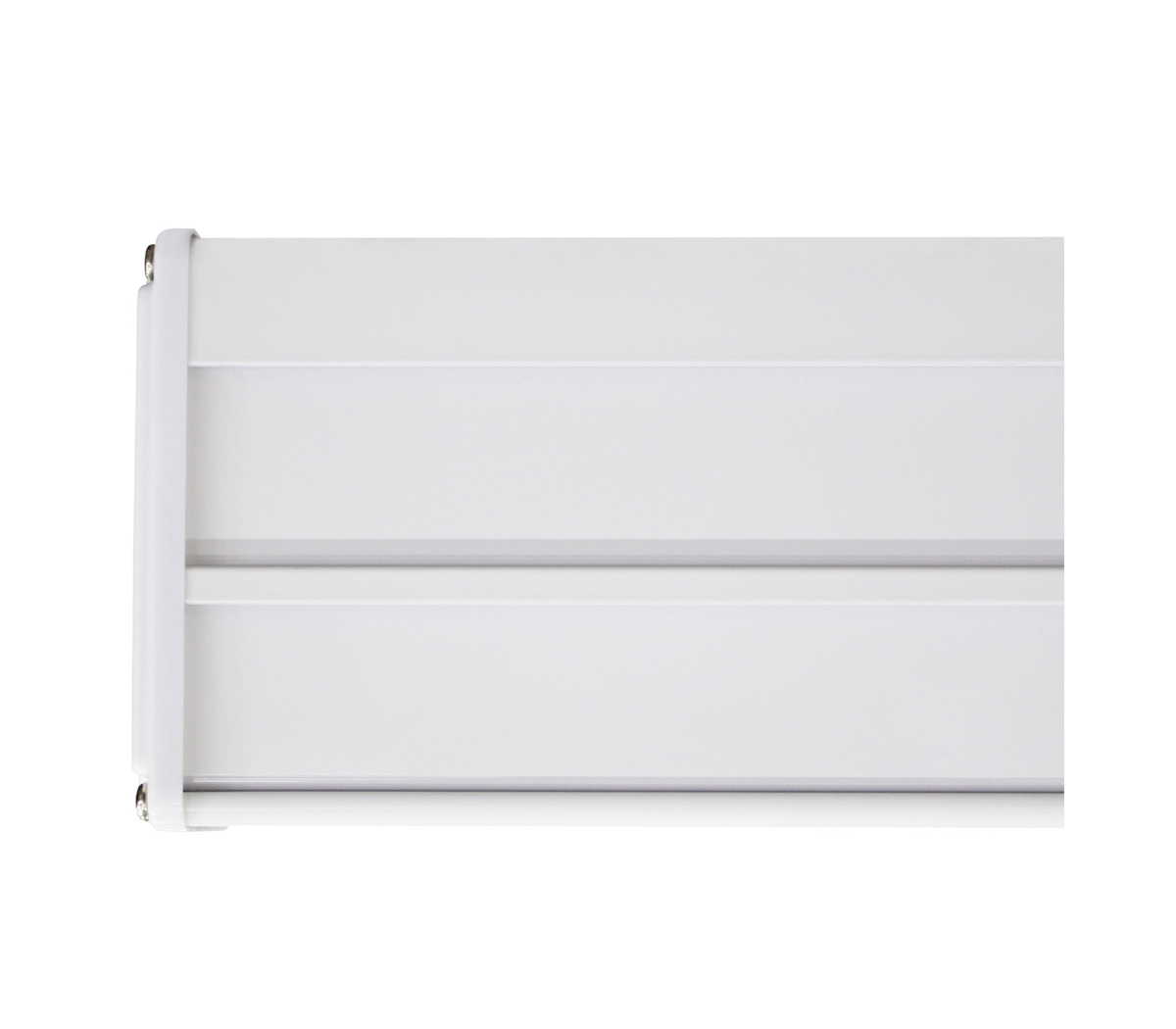

Endcap Height （Hc）mm |
Endcap Width （Wc） |
| 1:1 | 84" | 2030 x 2030 | 2269 | 80 | 40 | 50 | 2204 | 87 | 81 |
| 96" | 2340 x 2340 | 2595 | 80 | 40 | 47 | 2508 | 103 | 92 | |
| 4:3 | 84" | 1710 x1280 | 1514 | 80 | 35 | 40 | 1864 | 87 | 81 |
| 100" | 2030 x1520 | 1759 | 80 | 40 | 50 | 2204 | 87 | 81 | |
| 120" | 2340 x1755 | 2010 | 80 | 40 | 47 | 2508 | 103 | 92 | |
| 133" | 2703 x2027 | 2282 | 80 | 40 | 50 | 2877 | 103 | 92 | |
| 16:9 | 92" | 2030 x1145 | 1809 | 500 | 45 | 50 | 2204 | 87 | 81 |
| 100" | 2214 x1245 | 1904 | 500 | 40 | 50 | 2388 | 87 | 81 | |
| 106" | 2340x1320 | 1979 | 500 | 40 | 47 | 2508 | 87 | 81 | |
| 120" | 2656 x1494 | 2069 | 400 | 40 | 50 | 2830 | 103 | 92 |
