Full HD Cinema Enjoyment
for Bright Rooms
Treat your eyes to the brilliance of Full HD 1080p visuals, with amazing
detail clarity and sharpness for exceptional home cinematic experiences in
well-lit environments.
Big Benefits of Short Throw
Requiring minimal distance to project big-screen images in tight spaces, short throw projection also frees up useable floor space without casting shadows onto the screen.
Overpowered Gaming Visuals
Low Input Lag Performance
Ultra-fast 16.7ms* low input lag conveys your
sights, hearings, and thoughts into actions with
zero delay. (*Input lag is 16.7ms:1080p@60Hz,
33.4ms: 1080p@60Hz)

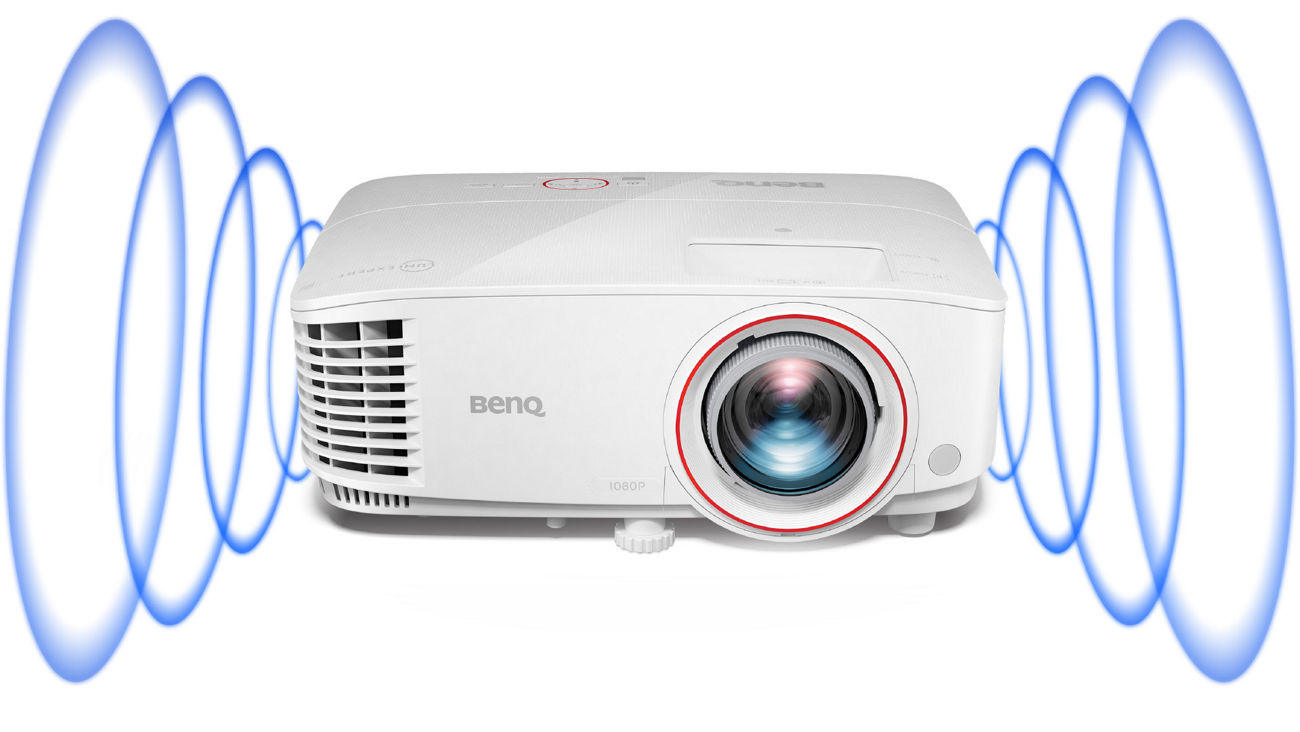

Indulge in Immersive Sound
The 5W speaker upgraded with a wider frequency range for deep bass and soaring highs, BenQ audio-enhancing technology also provides exclusive EQ algorithms for pure
clarity and sensual sound quality.
Cinema Mode Game Mode Music Mode Sports Mode
Flexible Installation
Auto Vertical Keystone
Auto vertical keystone self-adjusts for squared
images, letting you easily project aligned images
from various angles.
Projection Distance
1.1x zoom maximizes available space with a range
of throw distances for big-screen entertainment
without the hassle of complicated installation.
Universal Connectivity
Specifications
Display
Brightness (ANSI lumens)
3000
Resolution
1080P (1920x1080)
Native Aspect Ratio
16:9
Contrast Ratio (FOFO)
10,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 4000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs
Throw Ratio
0.69~0.83
Zoom Ratio
1.2x
Lens
F/#=2.6~2.78, f=10.2~12.24
Projection Offset (Full-Height)
102.5%
Keystone Adjustment
1D, Vertical ± 40 degrees
Rec. 709 Coverage
92%
Picture Modes
3D, Bright, Cinema, Game, Sport, User 1, User 2, Vivid TV
Input Lag
16.7 ms (1080P 60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz

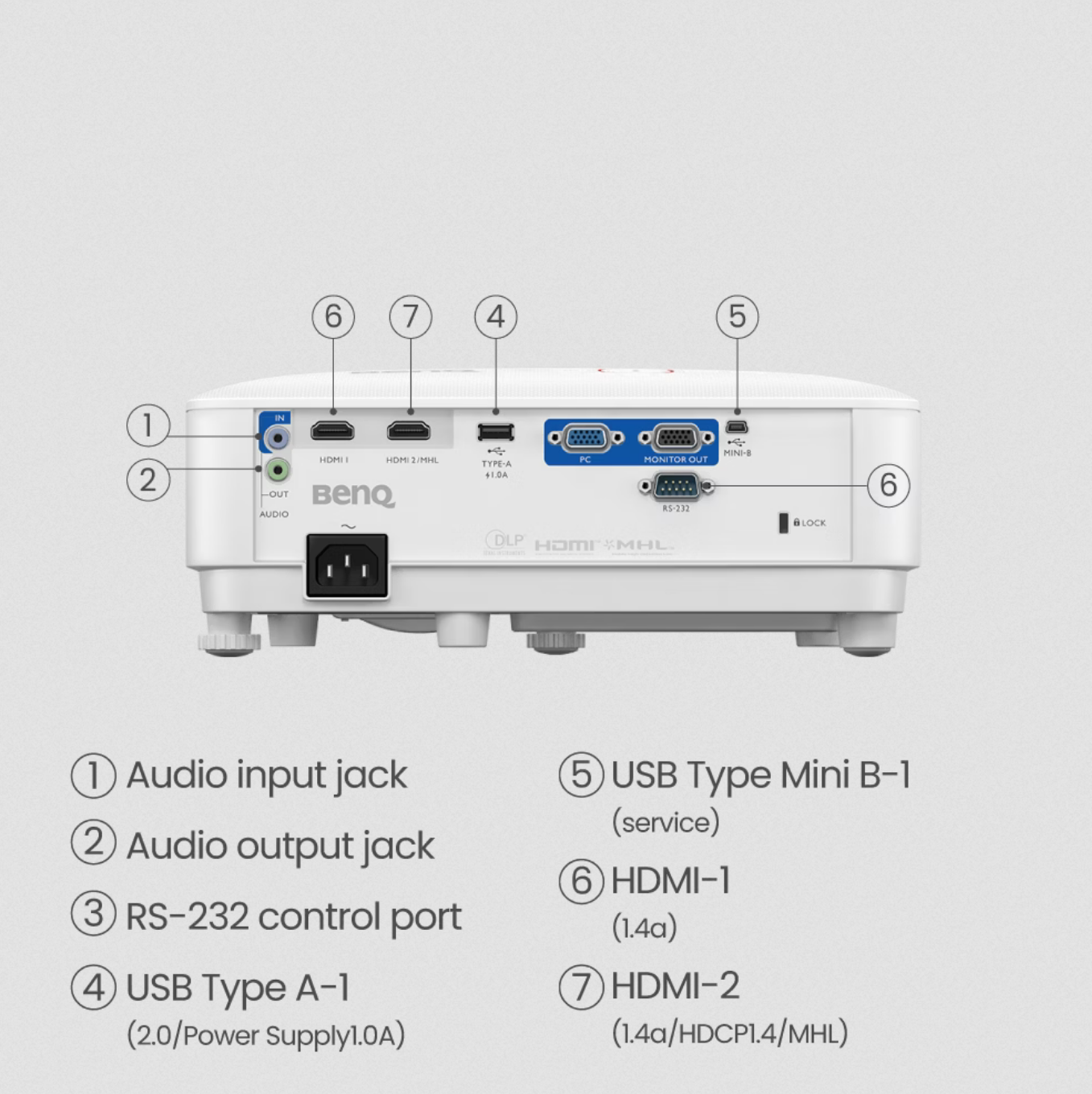

PC in (D-sub 15pin)
(x1)
Monitor out (D-sub 15pin)
(x1)
HDMI in
(x2), HDMI-1 (1.4a), HDMI-2 (1.4a/HDCP1.4/MHL)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.0A)
USB Type Mini B
(x1), USB Type Mini B-1(service)
RS232 in (DB-9pin)
(x1)
Speaker
(x1), 5W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
320W
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
33/29

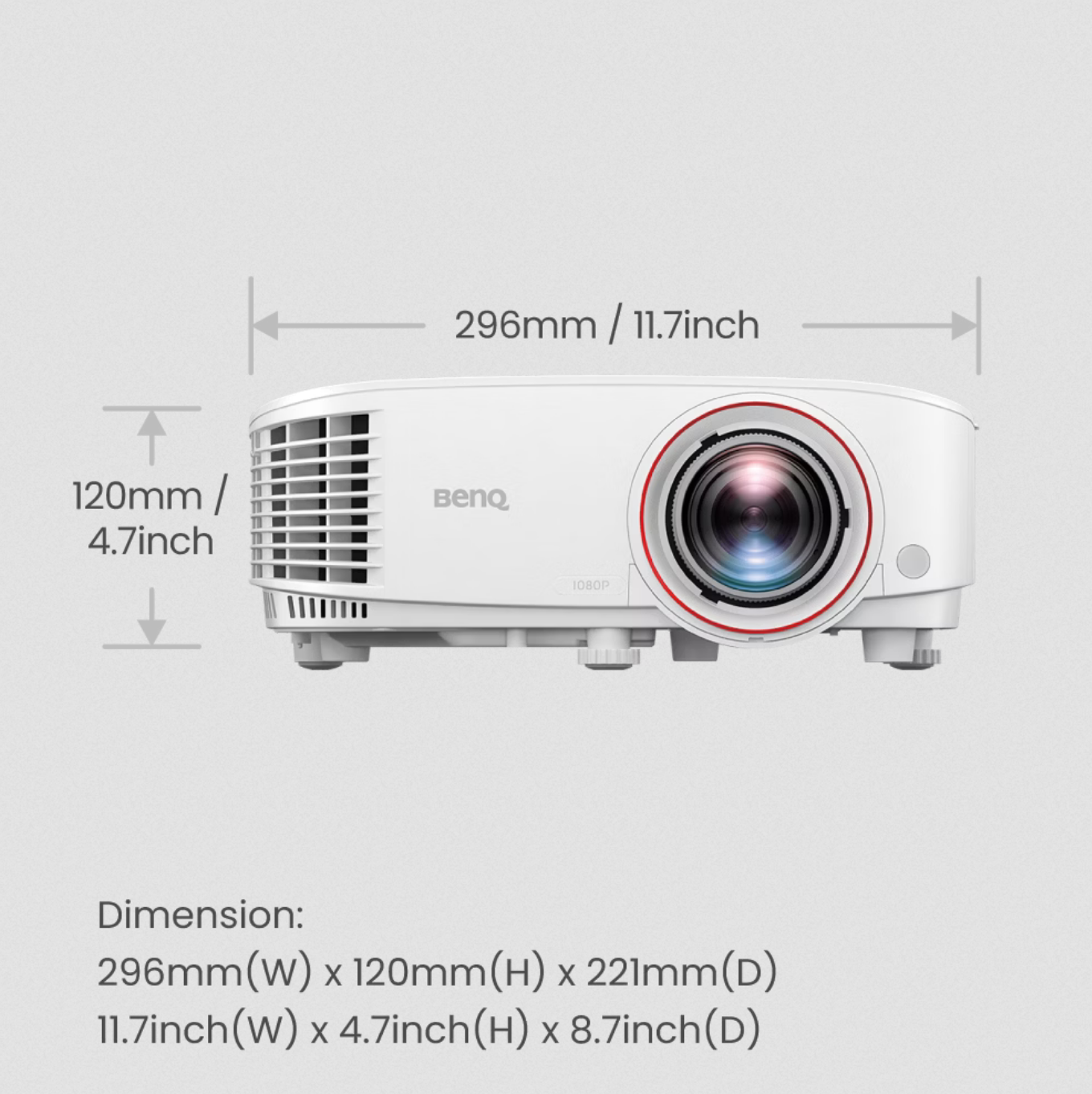

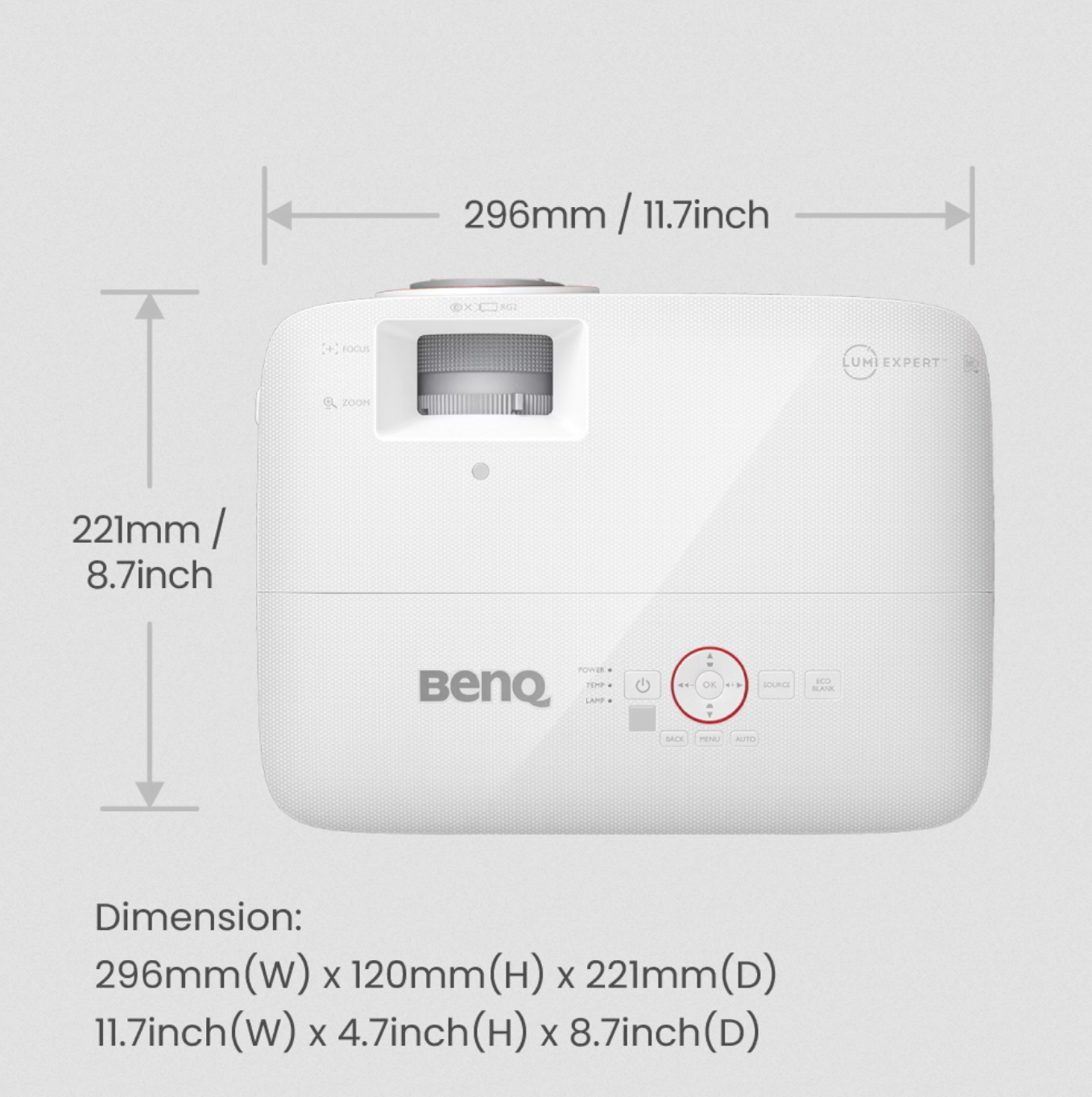

Dimensions (WxHxD) (mm)
296 x 120 x 224
Net Weight (kg)
2.7
