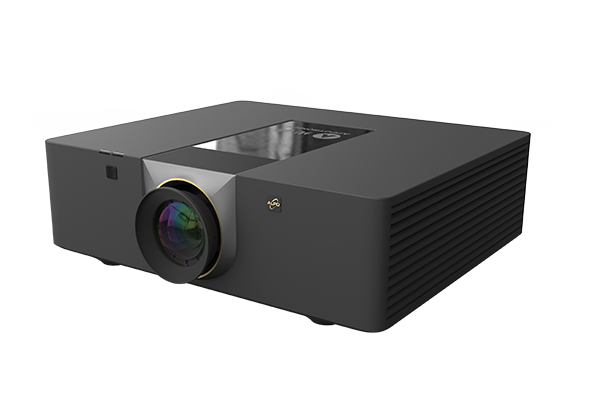

A high-definition laser projector that combines professional performance with advanced laser technology. At its core is the proprietary ALPD® laser phosphor display technology, delivering high brightness of up to 6,500 lumens and a wide Rec.709 color gamut. This ensures sharp, vivid, and color-accurate images even in well-lit environments.
Featuring a fully sealed optical engine that effectively resists dust and a long-life laser light source rated for up to 20,000 hours, the projector significantly reduces maintenance needs while ensuring stable and reliable operation. With full HD resolution and flexible four-corner keystone correction, installation is quick and versatile.
Whether for business meetings, education and training, exhibitions, or immersive installations, the AL-MK650A delivers consistent, high-quality large-screen performance.
Unprecedented Image Quality
The M Pro Series is equipped with Appotronics’ signature ALPD light engine, at a brightness range of 6500 - 7500 lumens.
Premium Visual Fidelity
Combined with advanced MEMC motion compensation and AIPQ image enhancement, M Pro Series offers premium visual fidelity at very low latency.
Revolutionize Projection with Streamlined Workflow
It is fully integrated in Appotronics ecosystem, which includes APOS operating system and APCS
control platform to enable user to control the projectors easily both on site and remotely.
Higher Flexibility in Installations
Installation Flexibility
The M Pro Series gives you more flexibility in projector location and orientation as it can run in any orientation.
Cinema Level Reliability
High Reliability
| Display Technology | DLP™ x 1, DLP™ Projection System |
| Panel Size | 0.47′′DMD |
| Resolution | 3840×2160 |
| Brightness Output | 6,500lm(Center) |
| Light Source Type | ALPD5.0 Laser Light Source |
| Life Source Lifetime | 20,000h |
| Contrast | ≥100,000:1 |
| Uniformity | 95% |
| Display Gamut | REC.709 |
| Optional Lenses | 0.5:1(manual)，0.7-0.9:1，1.0-1.6:1，1.54-2.48:1 |
| Screen Size | 80″ 〜 300’’ |
| Geometric Correction | Vertical & Horizontal Adjustment: V: ±35°，H:±35° 4-Point Keystone Correction, Curved Surface Correction (9 Ponits), Multi-Point Correction |
| Optical Axis Shift | Vertical: ±100%, Horizontal: ±40%, Powered |
| I/O Video Connection | HDMI in ×2;HDMI out ×1;USB-A×2(Supports 5V/2A); |
| I/O Audio Connection | S/PDIF×1 |
| I/O Control Connection | LAN(RJ45)×1;RS232(DB9)×1;3D SYNC×2(in/out);3D IR OUT×1;USB-B×1 |
| Power Supply | 100~240VAC 50/60Hz |
| Power Consumption | Standard 550W; Stand-by <0.5W |
| Orientation | 360° |
| Noise | 36dB(Normal Mode) |
| Structure Measurements | 460mm×388mm×138mm |
| Structure Weight | 12.5kg(Lens not included) |
| Structure Temperature | 0°C~40°C(35°C~40°C ECO Mode) |
| Structure Humidity | 10%~85%(No Condensation) |
