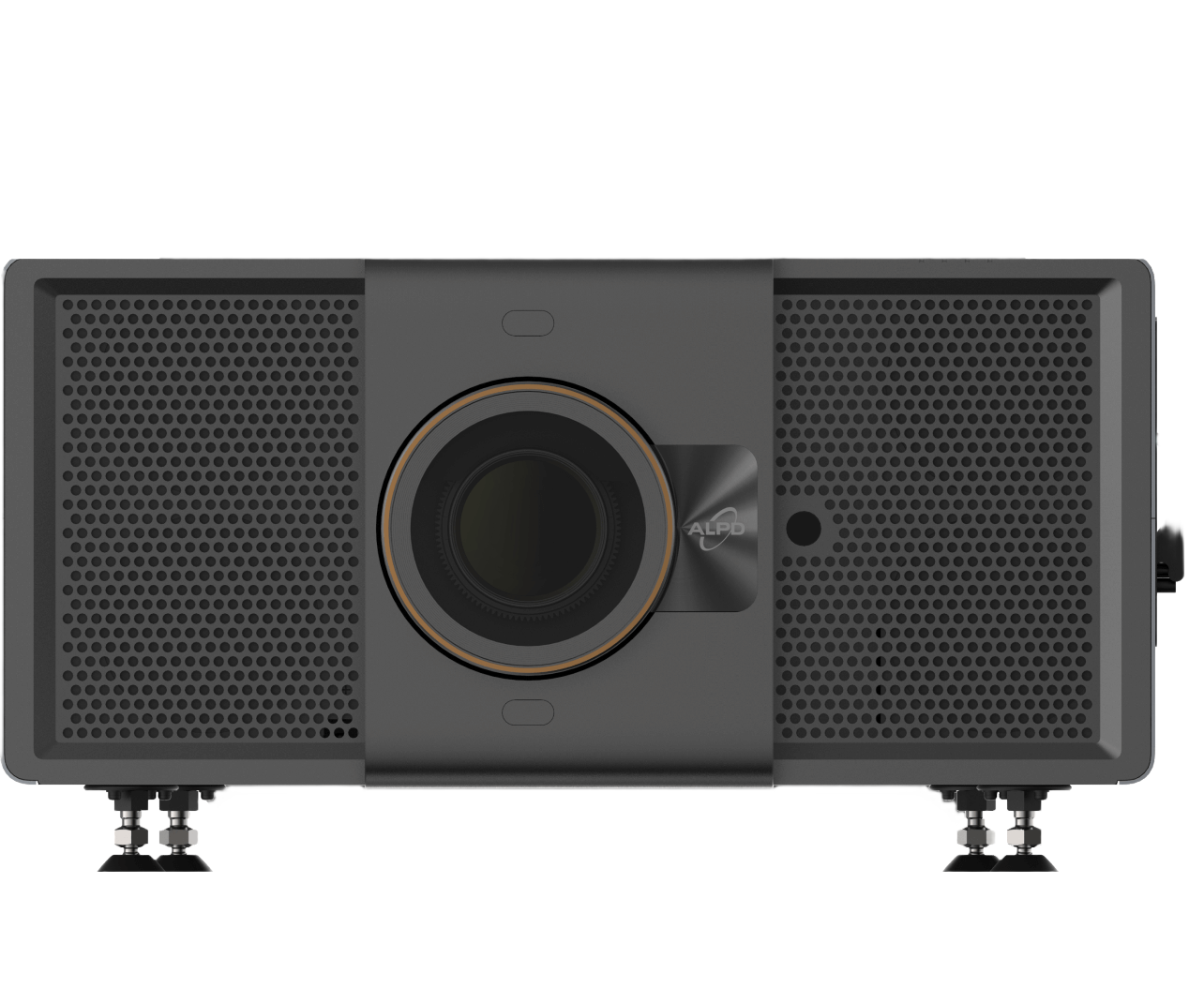

T Series Large Venue Projectors
The Most Compact 30Klm Projector Available
By adpoting the ALPD® laser technology, the T series is the most compact
projectors above 30Klm now available in the market.
| Brightness |
26 000 lm |
Brightness |
22 000 lm |
Brightness |
26 000 lm |
| Size |

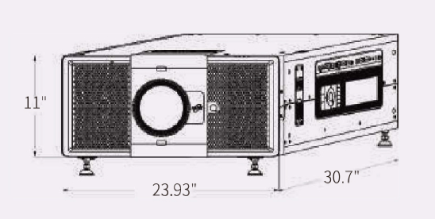

23,93″ x 11″ x 30,7″ |
Size |

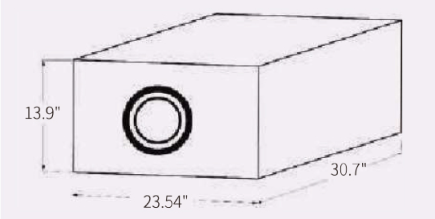

23,54″ x 13,9″ x 30,7″ |

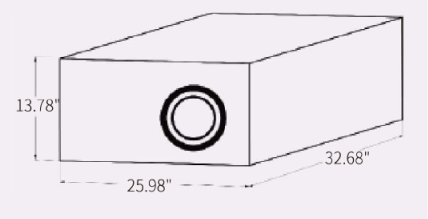

Size |
25,98″ x 13,78″ x 32,68″ |
Applications
Technical Specifications
Display Technology DLP™x3, DLP™ Projection System
Resolution 1,920 × 1,200
Brightness Output 34,000 lm
Light Source Type ALPD® (Laser type: Class1)
Life Source Lifetime 20,000h
Contrast 100,000 : 1
Uniformity 90%
Display Gamut REC.709
Edge Blending Horitonal & Vertical EdgeBlending
Optional Lenses 0.89-1.29:1 1.28-1.81:1 1.6-2.29:1 2.13-4.16:1 3.66-5.94:1 4.5-8.2:1
Screen Size 70″ ~ 1000″
Keystone Vertical & horizontal ±20°
Refresh Rate WUXGA 120 fps; 4K decode, 4K 60 fps
Band Width 600MHz
Optical Axis Shift Vertical: ±90%, Horizontal: ±40%, powered
I/O HDMI x 1 / DVI-D x 1 / HDBaseT x 1 / VGA x 1 / DisplayPort x 1 / SDI x 2 / RS-232 (IN & OUT) × 2 / Remote
(IN & OUT) × 2 / USB × 1 / RJ-45 × 1 / 3D SYNC (IN & OUT) × 2 / IR 3D out × 1
Power Supply 100-240V AC, 50/60Hz
Power Consumption Standard: 2800W Stand by: <0.5W
Structure Measurements 30″ x 24″ x 11″
Structure Weight 154 lbs
Noise 49dB
Working
Environment Temperature 32°F~104°F
Working
Environment Humidity 20%〜80% (no condensation)
1. Based on ISO21118 standard.
2. Dynamic Contrast
3. Not including protruding parts.
4. Including standard lens. Average value.
5. Operation temperature will be set to 32°F〜95°F when working under High Altitude Mode. Output
of projector will be reduced to 50% if ambient temperature exceeds 95°F.
6. The output of the projector will have decreased by approximately 50% around this time. Data from
accelerated lab simulations. Actual time may vary according to the operating modes, environment
and other user behaviors.
