Vivid Color, High Resolution
Outstanding System Performance
Easy to Install
High Reliability| Display Technology | DLP™ x 1, DLP™ Projection System |
| Panel Size | 0.48″ DMD |
| Resolution | 1,920×1,200 WUXGA |
| Brightness Output | 6,200 Im |
| Light Source Type | ALPD® Laser (Laser type: Class 1) |
| Life Source Lifetime | 20,000h (Standard Mode) |
| Contrast | 100,000 : 1 |
| Uniformity | 90% |
| Display Gamut | REC.709 |
| Standard Lens | 1.0-1.6:1 |
| Optional Lenses | 0.7-0.9:1, 1.52-2.45:1 |
| Screen Size | 80″ 〜 300’’ |
| Geometric Correction | Keystone: V: ±35°, H: ±35°, 4-Corner Keystone |
| Optical Axis Shift | Vertical: ±80%, Horizontal: ±40%, Powered |

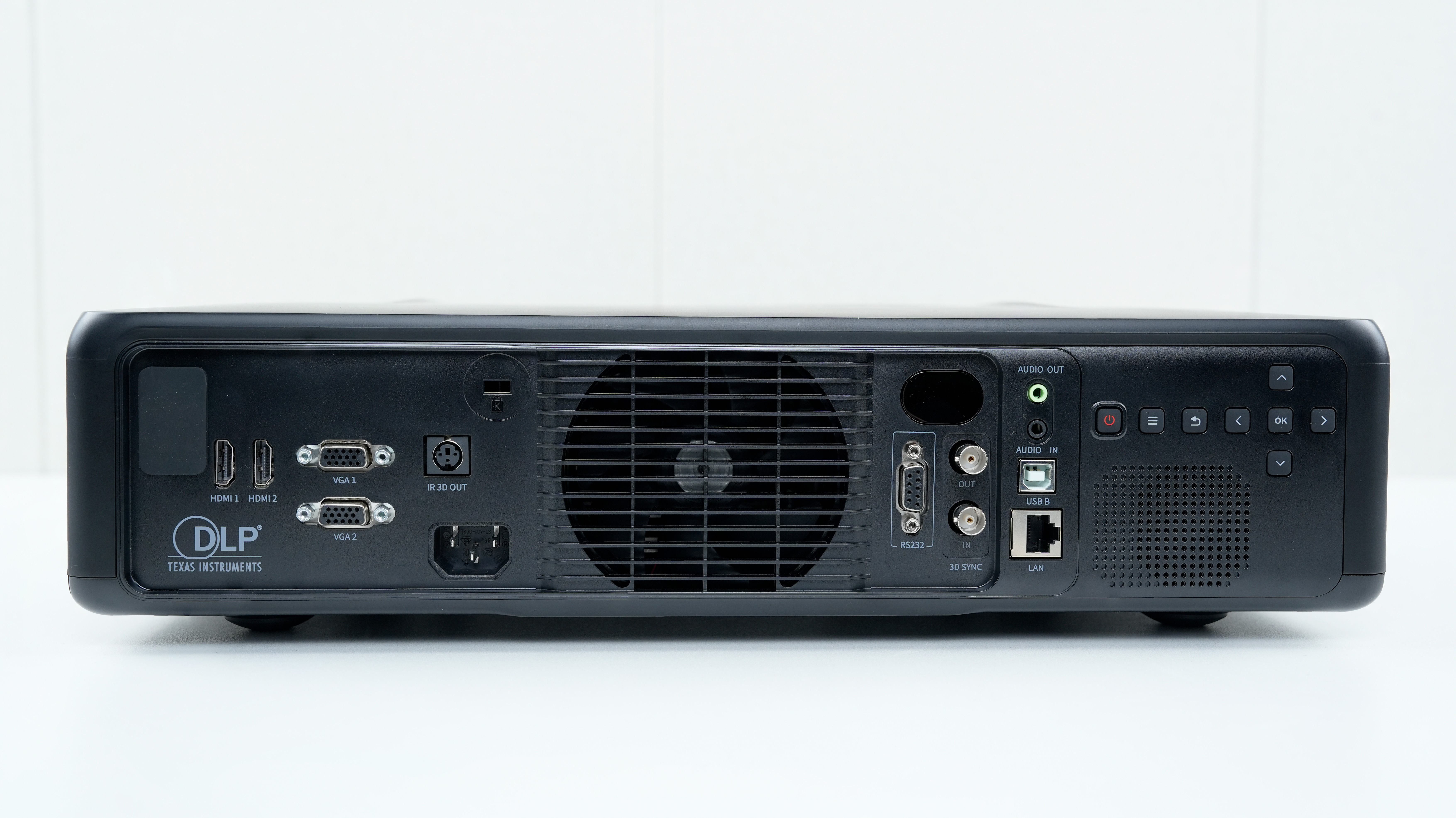

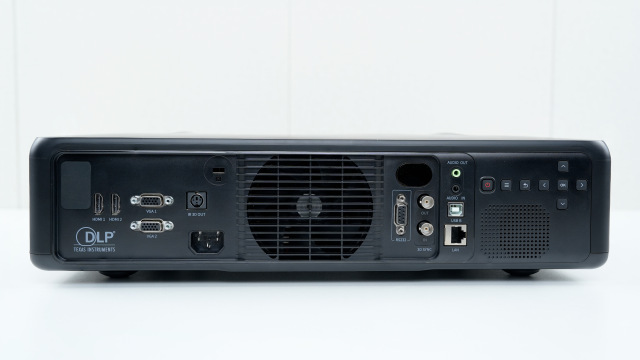

| I/O Video Connection | HDMIx2, VGAx2 |
| I/O Audio Connection | Audio In x 1 , Audio Out x 1 |
| I/O Control Connection | LAN(RJ45); RS232(DB9)x1; 3D IR OUTx1; USB-Bx1 |
| Power Supply | 100-240V AC, 50/60Hz |
| Power Consumption | Standard < 500W; Stand-by <0.5W |
| Orientation | 360° |
| Noise | 36db (Standard) |
| Structure Measurements | 17.2″ x 13.1″ x 4.25″ |
| Structure Weight | <19.4 lbs |
| Structure Temperature | 32°F〜104°F (95°F〜104°F Eco Mode) |
| Structure Humidity | 20%〜80% (no condensation) |
