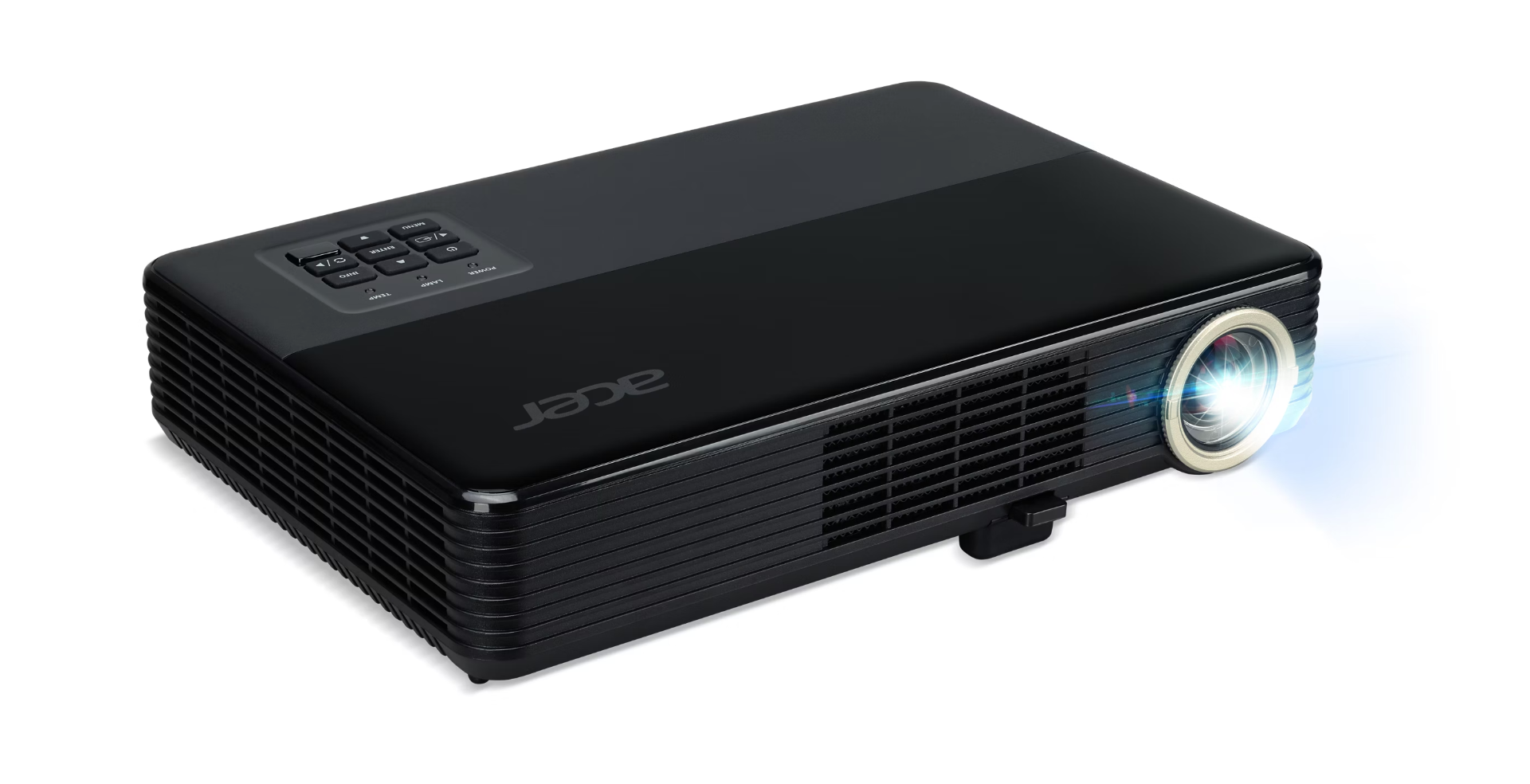

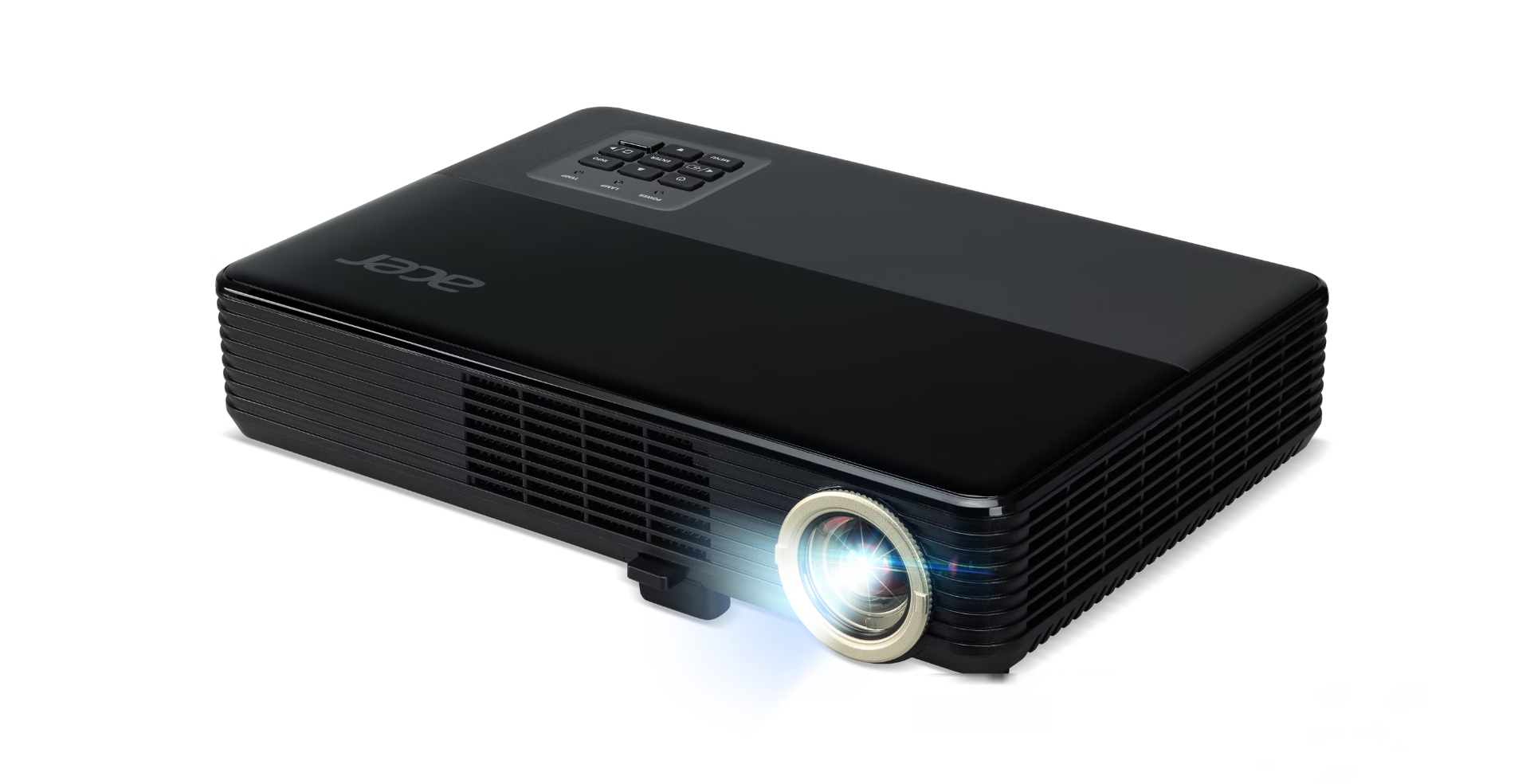

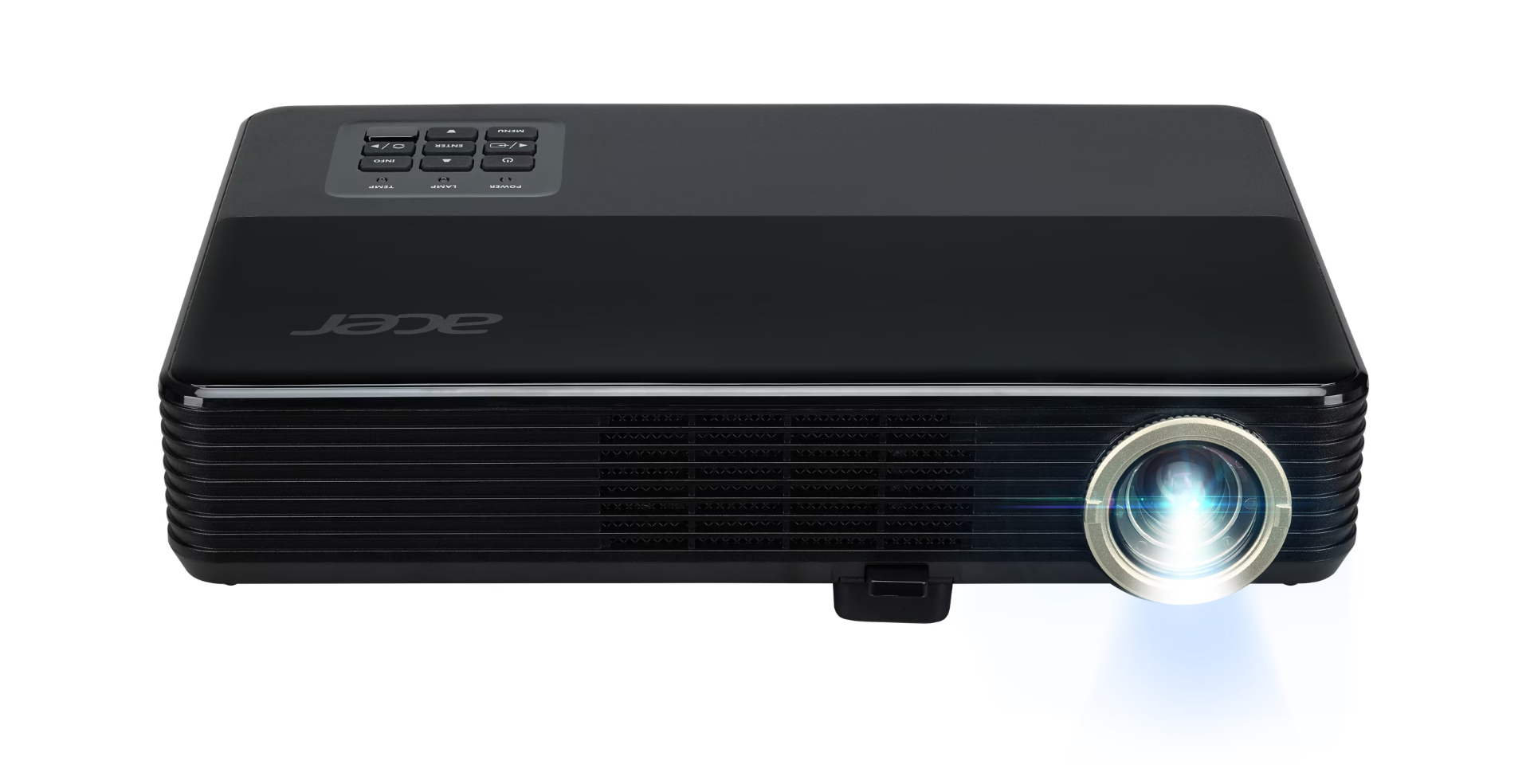

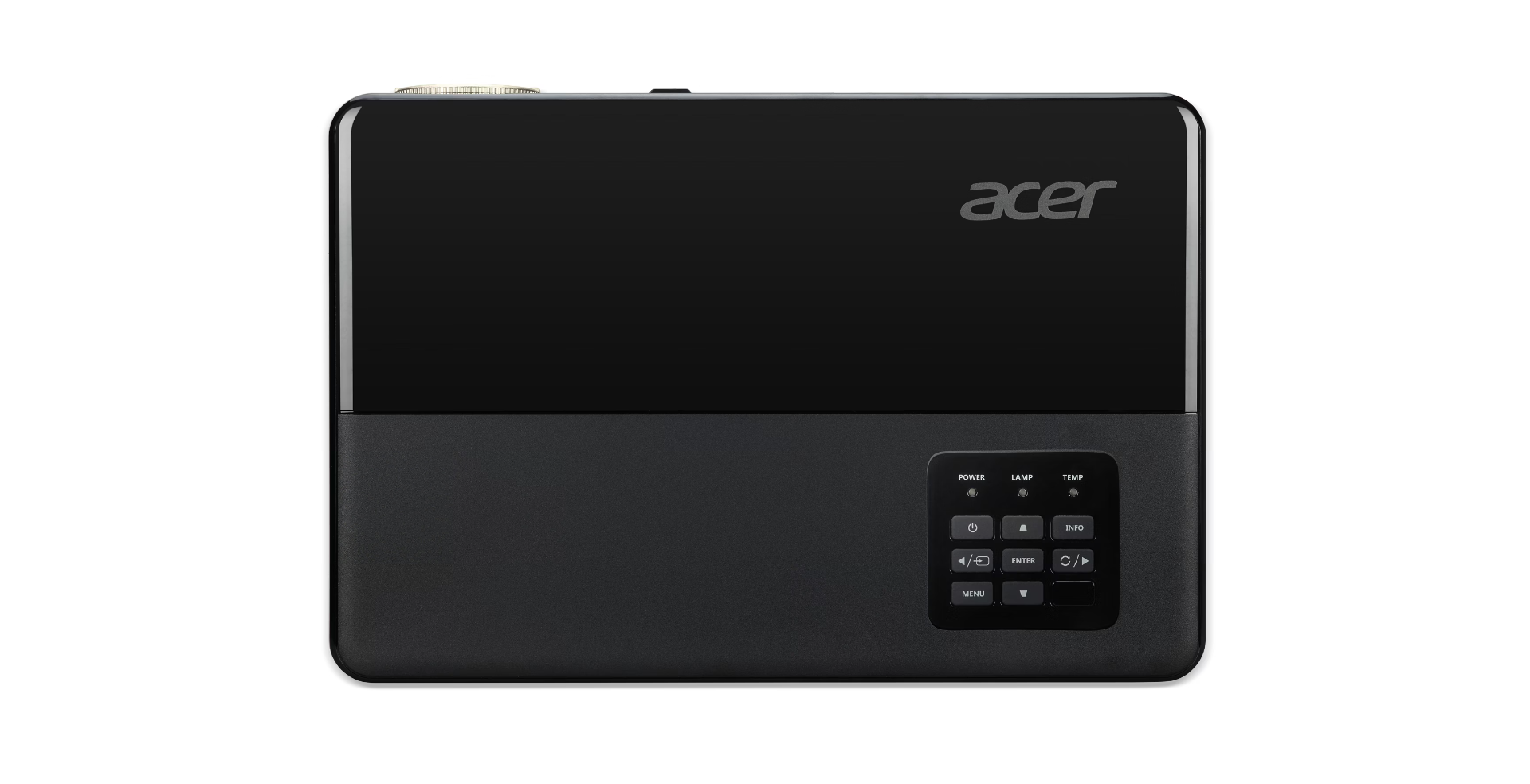

Model: XD1520i
Part: MR.JU811.001
Share your ideas wherever you go with Acer Portable LED Projectors.
Discuss concepts, show videos on big screens and motivate others while

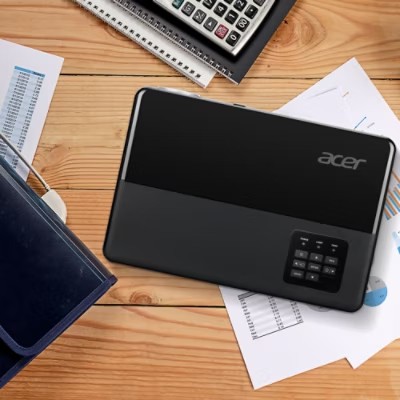

you’re on the road -- without needing a computer. With models as slim as
1" (24.5 mm), the world of self-expression now fits in your pocket.
A 100” image of pure beauty in 1080p Full HD looks so Share ideas wherever you go with this compact, ultra- Enjoy a 1.2–1.4x wider NTSC color gamut and greater
real, you’ll swear you’re looking out the window. portable projector. Discuss concepts, play videos and bulb durability than traditional lamps with LED lighting.
motivate others while you’re on the road.
See crystal-clear, vibrant images from a distance in Easily mirror and display movies or teaching material
daylight or medium to large rooms with up to 4,000 LED Enjoy long-lasting and consistent brightness with an from your smartphone, tablet or Windows 10 laptop
lumens (1,600 ANSI lumens) of brightness. LED light source, which has 5x less brightness decay with app-free, cable-free Miracast technology[1][2][3].
than a lamp-based model.
Easily share photos and documents from your personal Images appear brighter and more vibrant thanks to the Use this projector as often as you like and for as long as
USB drive with PC-free projection. exceptional color saturation provided by the LED you like; with a 30,000-hour lifetime[4], you won't be
source, known as the Helmholtz-Kohlrausch effect. needing a replacement any time soon.
Light Source LED
Projection System DLP™
Light Source Life 20000 hours (Standard), 30000 hours (ECO)
Light Source LED
Brightness 1600 ANSI Lumens (Standard), 1120 lm (ECO)
Light Source Life 20000 hours (Standard), 30000 hours (ECO)
Aspect Ratio 16:9 (Native)
Native Resolution 1920 x 1080
Maximum Resolution 1920 x 1200
Brightness 1600 ANSI Lumens (Standard), 1120 lm (ECO)
Aspect Ratio 16:9 (Native)
Contrast Ratio 1,000,000:1
Image Size 30" (76.2 cm) ~ 7.62 m (300")
Keystone Correction +/- 40° (Vertical, Manual & Auto)
Throw Ratio 1907.5 mm@2000 mm
Zoom Ratio 1x
Digital Zoom 2x
Lens f = 12.60 mm, Manual Focus
Projection Mode Front, Rear, Ceiling, Rear Ceiling
Display Colour 1.07 Billion Colors (30-bit)
1.07 Billion Colors (30-bit)Vertical Sync Rate 24 ~ 120 Hz
Horizontal Sync Rate 15 to 100 kHz

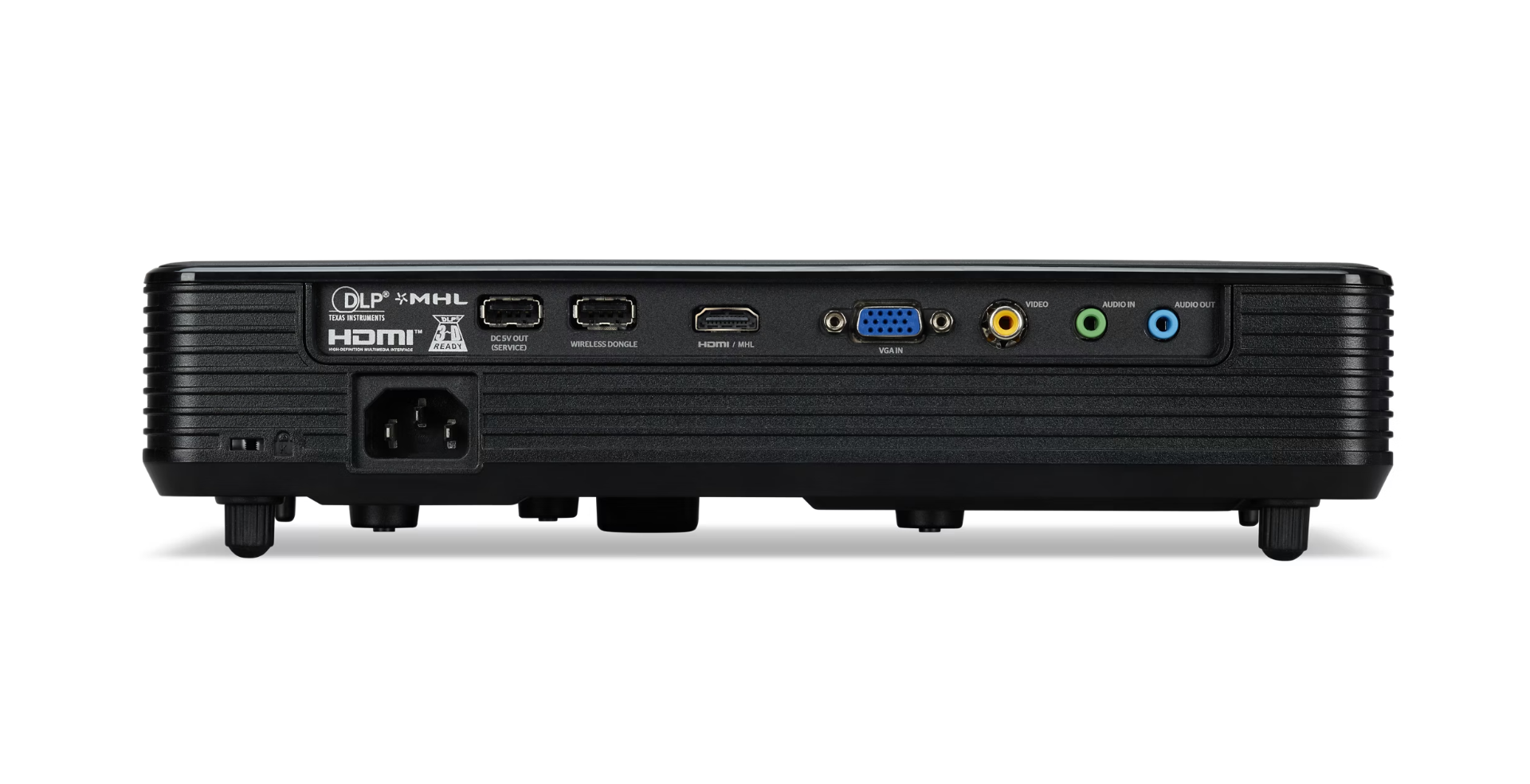

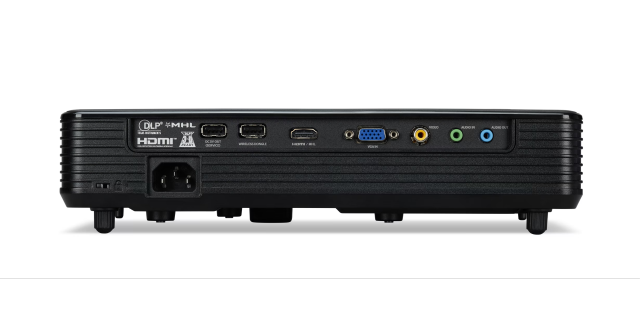

VGA In x1, D-sub
Video x1, RCA
Audio In x1, 3.5mm mini jack
Audio Out x1, 3.5mm mini jack
S/PDIF
Speaker x1, 3 W Speaker
x1, 3 W SpeakerWireless Projection EZCast, Miracast Wi-Fi
Security Kensington Lock
Power Supply 100 V AC ~ 240 V AC
Input Voltage
120 V ACOperating Power Consumption 177 W
Standby Power Consumption 500 mW
Fan Noise 32 dB Approximate Standard Mode
26 dB Approximate Economy ModeOperating Temperature 0°C to 40°C
Operating Humidity 80%
Security Kensington Lock
Weight (Approximate) 2.20 kg
Form Factor Ceiling Mountable
Height 68.7 mm
Width 297 mm
Depth 200 mm
[1]Specifications vary depending on model and/or region.
[2]Optional accessory (dongle) is required for wireless projection.
[3]Additional device must support Miracast technology.
[4]The actual operating life span of a projector lamp will vary according to model and/or region, operating conditions and usage patterns.
