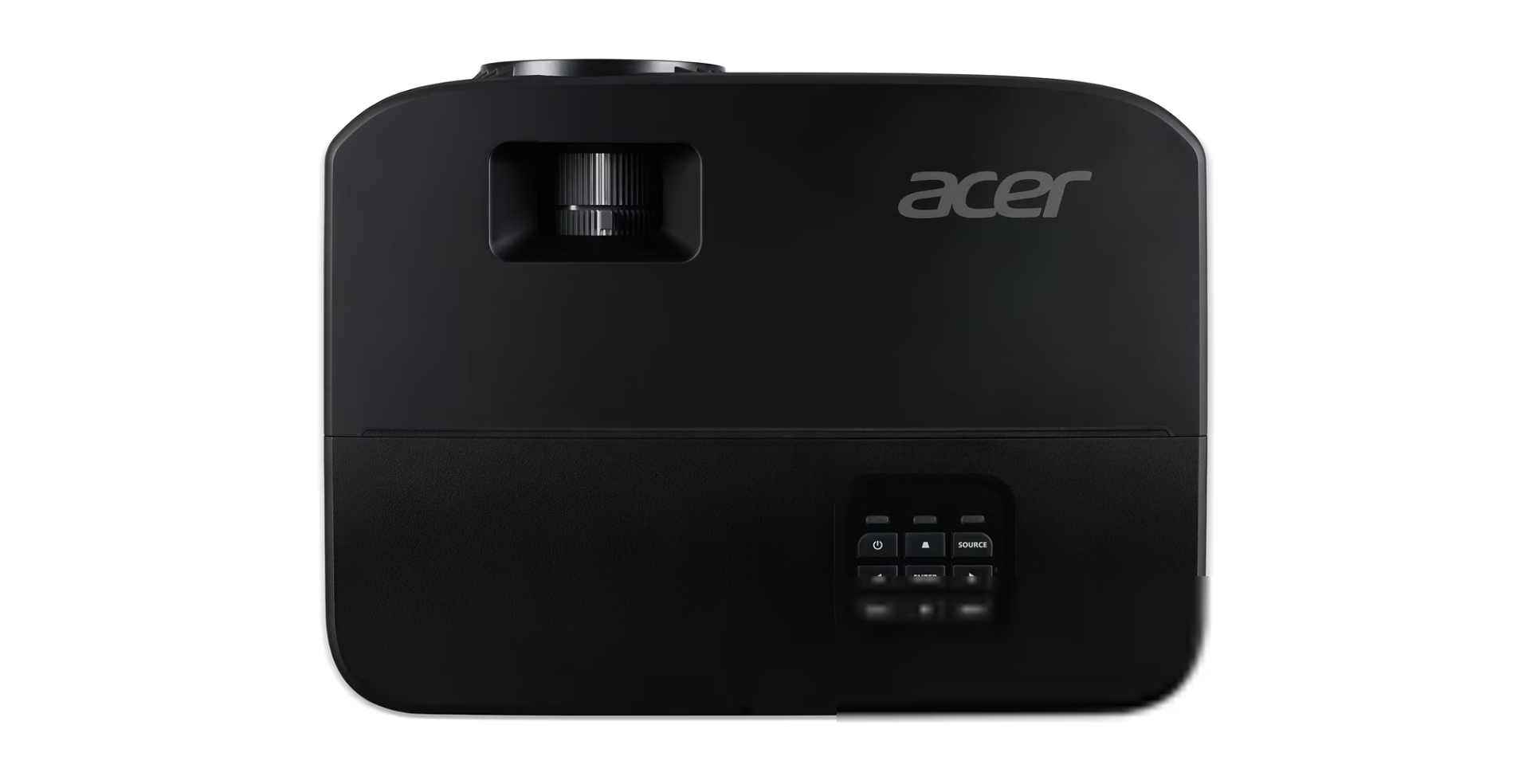

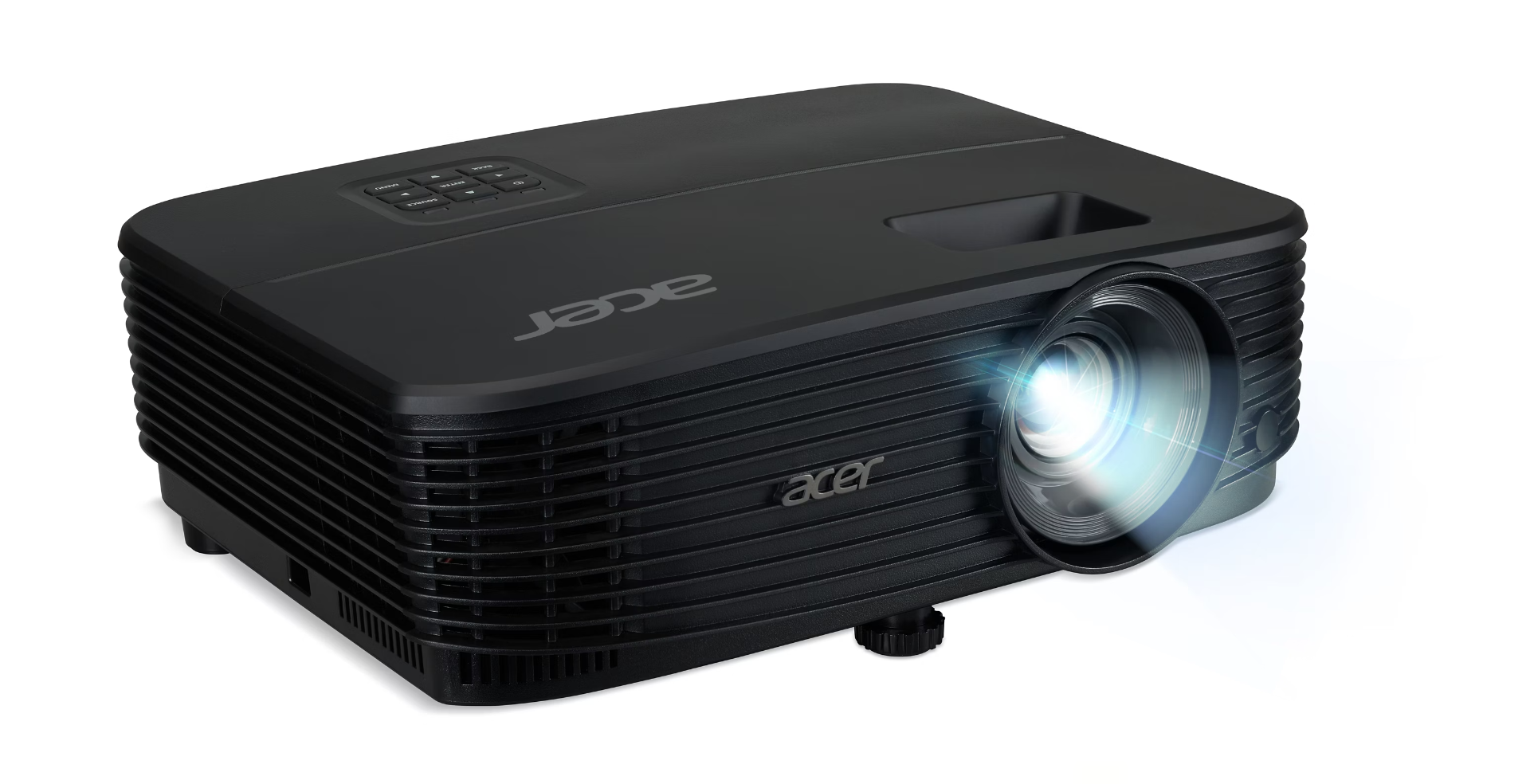

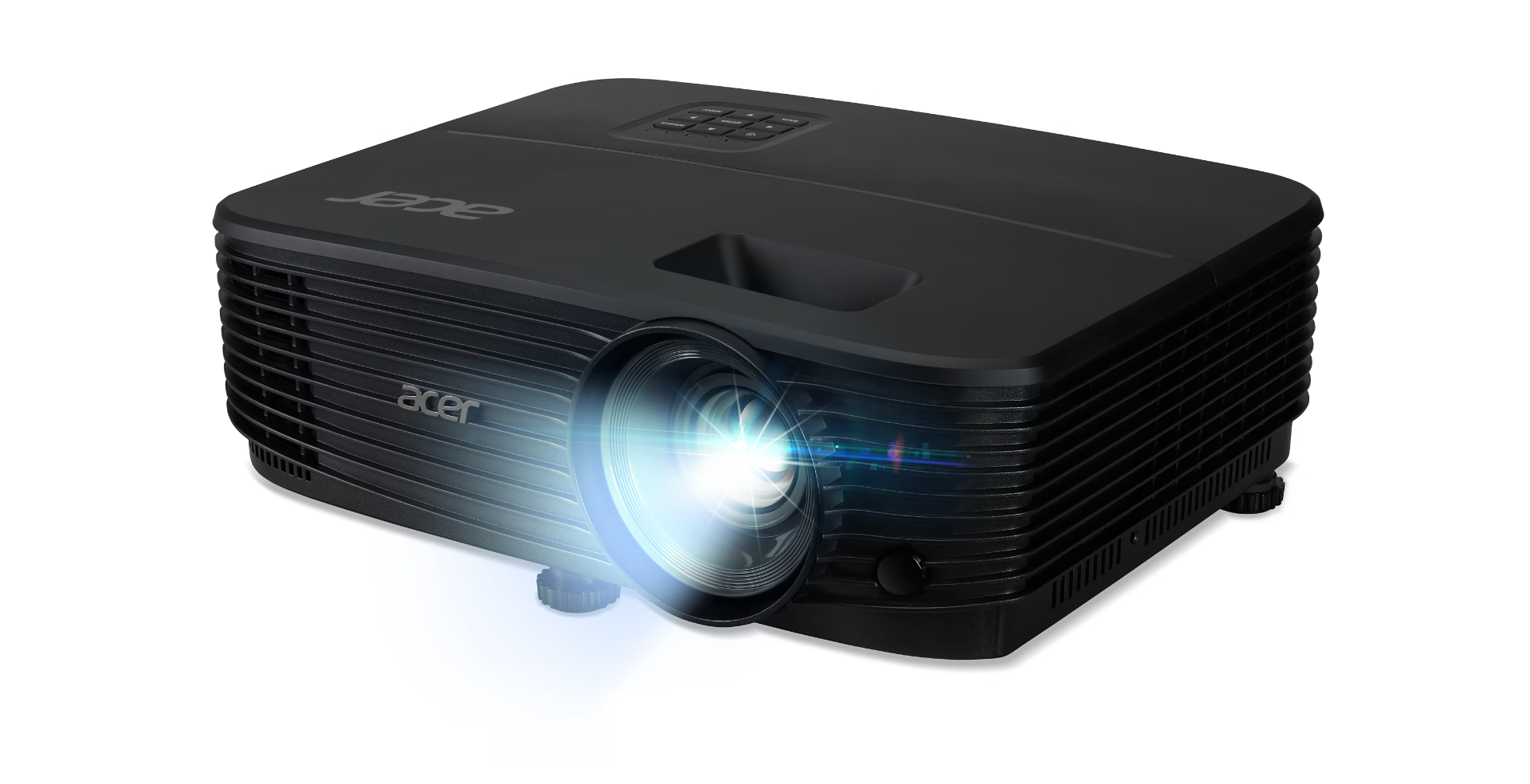

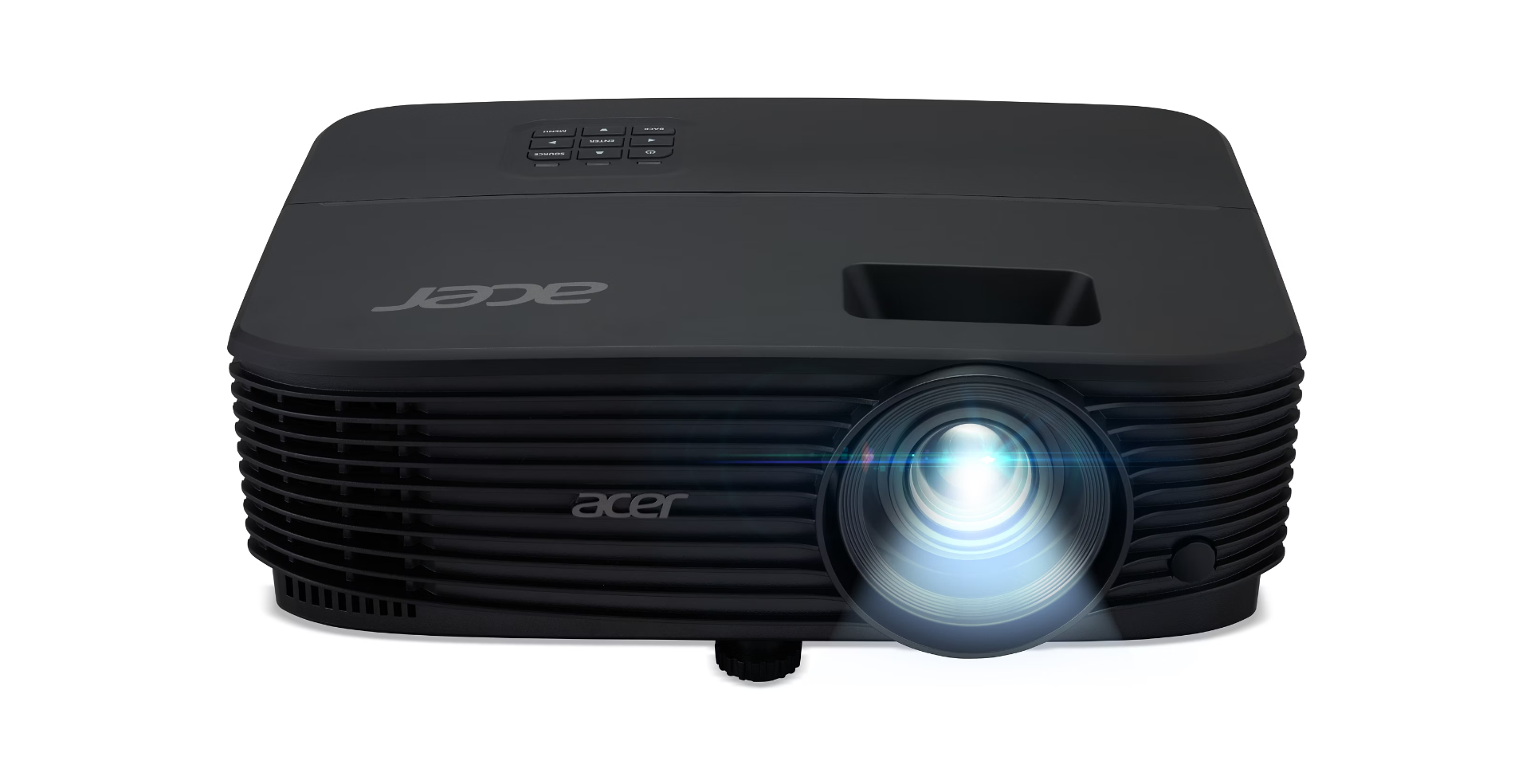

Model: X1223HP
Part: MR.JSB11.001
Acer Essential series projectors are best value projectors ideal for everyday use, at work or home. Make your presentations more compelling and entertainment more exciting with high brightness, high contrast and DLP® 3D Ready, while adhering to your bottom line.
See crystal-clear, vibrant images from a distance in Flat is out, 3D is in. Images on the screen seem to jump Even at long distances, this projector delivers a sharp
daylight or medium to large rooms with up to 4,000 into your living room with HDMI 3D display support[1][2]. and crisp image quality with its 1024x768 XGA
lumens of brightness. resolution.

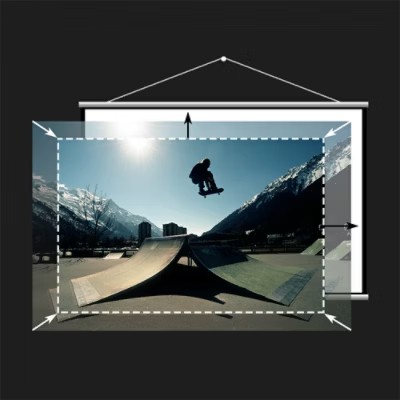

Acer LumiSense™ adjusts the image brightness and Protect your eyes from unnecessary strain by utilizing Project with precision and avoid setup problems. Using
color saturation based on the content you're viewing. Acer BlueLightShield™ technology. Image Shift and digital zoom, you can shift the image
precisely to fit your screen without having to alter the
existing mounting location.
Light Source 210 W UHP
Projection System DLP™
Light Source Life 5000 hours (Standard), 10000 hours (ECO)
Light Source 210 W UHP
Brightness 4000 ANSI Lumens (Standard), 3200 lm (ECO)
Light Source Life 5000 hours (Standard), 10000 hours (ECO)
Aspect Ratio 4:3 (Native), 16:9 (Supported)
Native Resolution 1024 x 768
Maximum Resolution 1920 x 1200
Brightness 4000 ANSI Lumens (Standard), 3200 lm (ECO)
Aspect Ratio 4:3 (Native), 16:9 (Supported)
Contrast Ratio 20,000:1
Image Size 23" (58.4 cm) ~ 7.62 m (300")
Throw Ratio 1.96 to 2.15 (1270 mm@2000 mm)
Zoom Ratio 1.1x
Digital Zoom 2x
Lens F = f/2.56~f/2.68, f = 22 mm~24.10 mm, Manual Zoom, Manual Focus
Projection Mode Front, Rear, Ceiling, Rear Ceiling
Display Colour 1.07 Billion Colors (30-bit)
1.07 Billion Colors (30-bit)Vertical Sync Rate 24 ~ 120 Hz
Horizontal Sync Rate 15 to 100 kHz

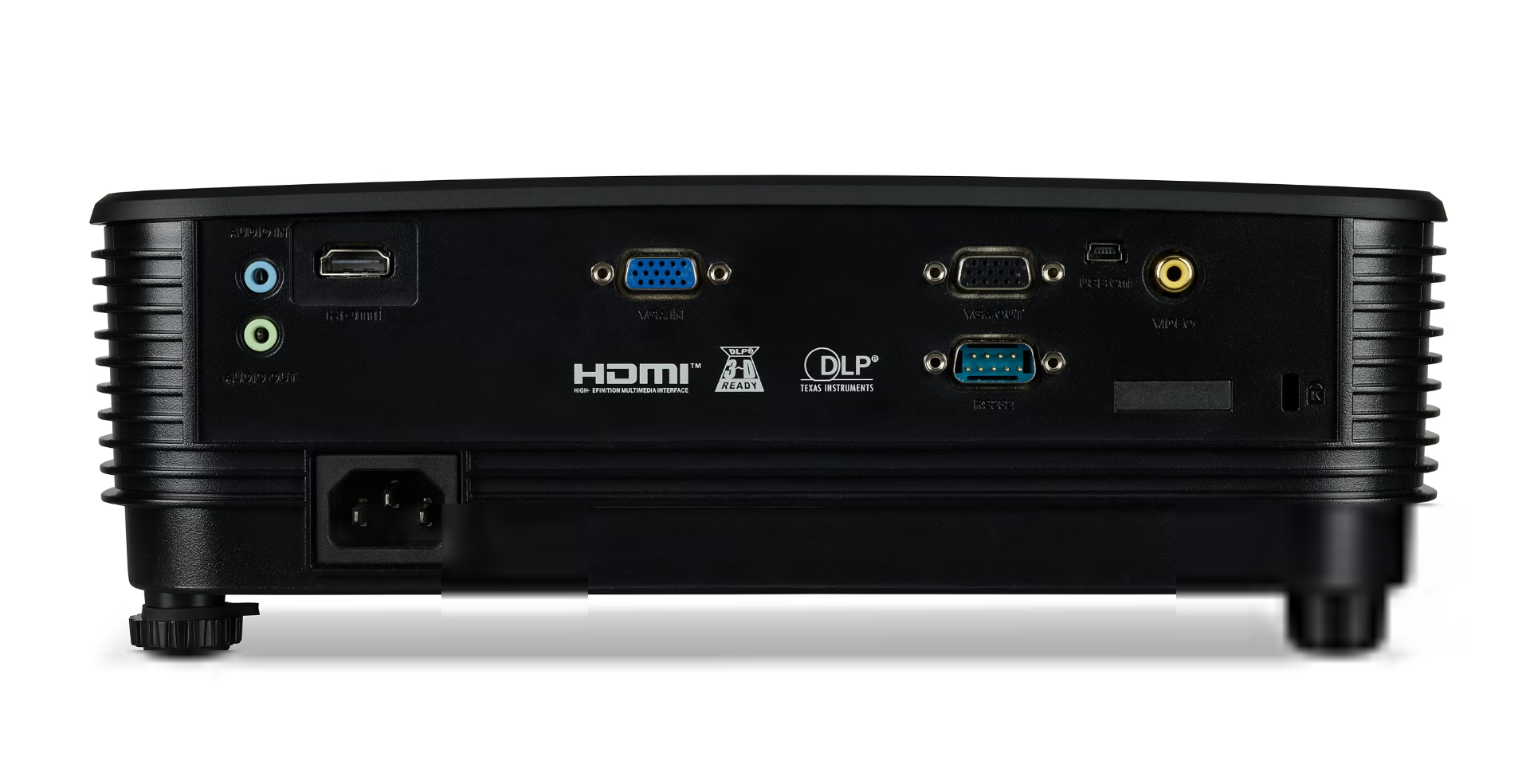

VGA In x1, D-sub
VGA Out x1, D-sub
Video x1, RCA
Audio In x1, 3.5mm mini jack
Audio Out x1, 3.5mm mini jack
S/PDIF
Speaker x1, 3 W Speaker
x1, 3 W SpeakerNoise Level 26 dB
Power Supply 100 V AC ~ 240 V AC
Input Voltage 120 V AC
230 V ACOperating Power Consumption 260 W
Fan Noise 31 dB Approximate Standard Mode
27 dB Approximate Economy ModeOperating Temperature 0°C to 40°C
Operating Humidity 90%
Weight (Approximate) 2.40 kg
Form Factor Ceiling Mountable
Height 105.1 mm
Width 299.5 mm
Depth 220 mm
[1]Optional 3D glasses are required.
[2]Supports up to 1080p resolution.
[3]Specifications vary depending on model and/or region.
[4]Optional accessory (dongle) is required for wireless projection.
[5]Additional apps may be required to access wireless projection features.
