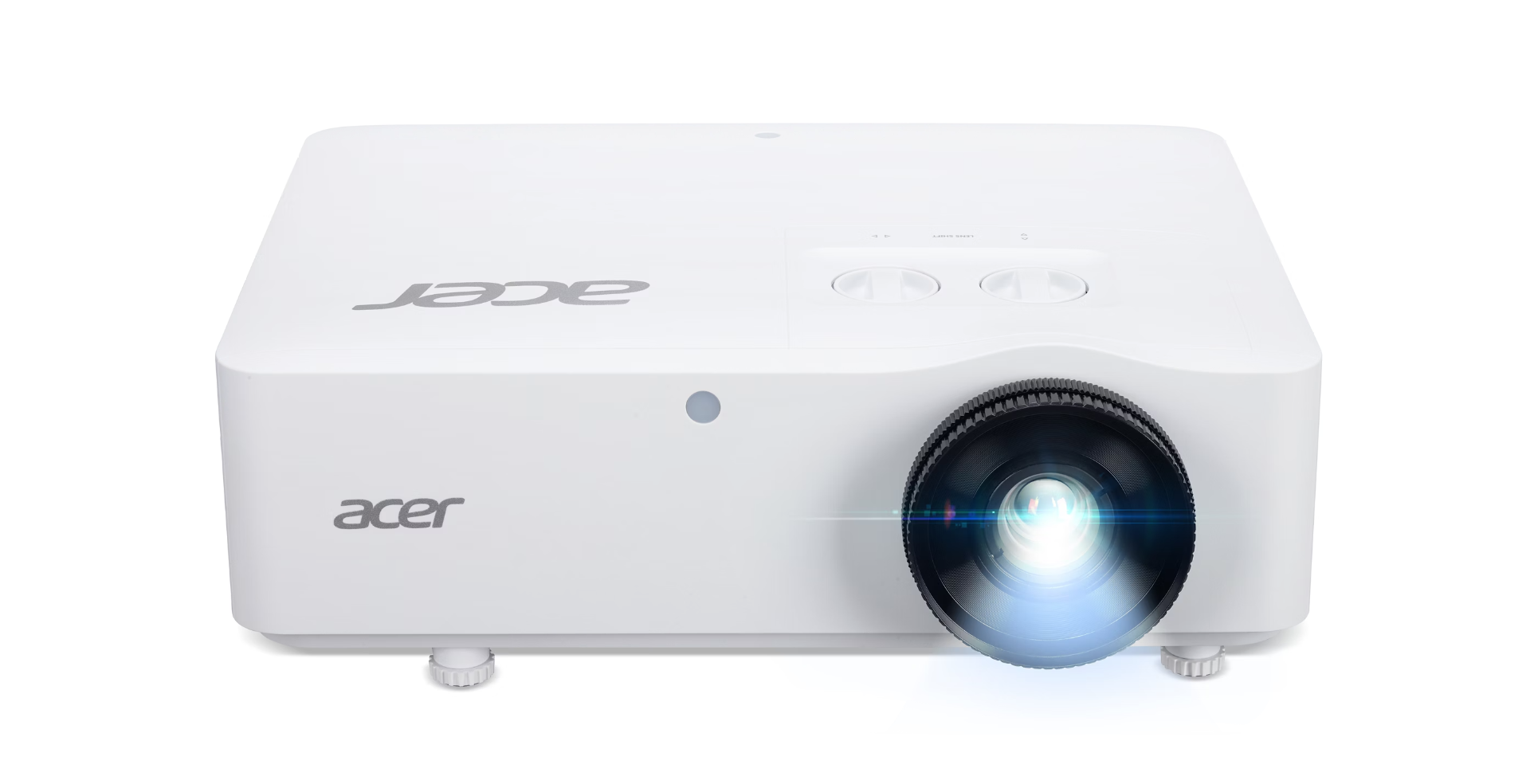

Model: PL7610T
Part: MR.JTC11.001
With projection this crisp and bright, even your most complex concepts will
be grasped easily by associates, clients or students. The high resolution and
brilliant color of Acer’s Large-Venue Series projectors will let the power of
your ideas shine through, and their top-notch technologies will keep you in
complete control.
See crystal-clear, vibrant images from a distance in Use this projector as often as you like and for as long as Top-of-the-line image quality in breathtakingly crisp
lecture halls, auditoriums or any large venues with up you like; with a 30,000-hour lifetime[2], you won't be 1920x1200 WUXGA resolution.
to 6,000 lumens of brightness. needing a replacement any time soon.
Rotate this projector 360 degrees in any direction and Enjoy an easy projection option by simply connecting Get greater flexibility and project in a variety of spaces
still get accurate images in spaces where a little more your projector to your WiFi router and accessing it via with Portrait Mode[3], which allows the projector to be
flexibility is required. the LAN. installed with one side facing down.
This projector handles continuous day in, day out use - The IP6X rating guarantees first-class dust resistance Eliminate cable clutter with HDBaseT™[1], the global
ideal for public displays and exhibitions. and ensures your device delivers reliable performance standard for transmitting UHD video, audio, Ethernet
in all challenging environments. and more through a single cable.
Light Source Laser
Projection System DLP™
Light Source Life 20000 hours (Standard), 30000 hours (ECO)
Light Source Laser
Brightness 6000 ANSI Lumens (Standard), 4800 lm (ECO)
Light Source Life 20000 hours (Standard), 30000 hours (ECO)
Aspect Ratio 16:10 (Native), 4:3 (Supported), 16:9 (Supported)
Native Resolution 1920 x 1200
Maximum Resolution 3840 x 2160
Brightness 6000 ANSI Lumens (Standard), 4800 lm (ECO)
Aspect Ratio 16:10 (Native), 4:3 (Supported), 16:9 (Supported)
Contrast Ratio 2,000,000:1
Image Size 21" (53.3 cm) ~ 7.62 m (300")
Keystone Correction 4-corner Correction Vertical +/- 30° (Vertical, Manual & Auto), 4-corner Correction Horizontal +/- 30° (Horizontal, Manual)
Throw Ratio 1.36 to 2.18 (1727.2 mm@2000 mm)
Zoom Ratio 1.6x
Digital Zoom 2x
Lens f = 14.30 mm~22.90 mm, Manual Zoom, Manual Focus
Projection Mode Front, Rear, Ceiling, Rear Ceiling
Display Colour 1.07 Billion Colors (30-bit)
1.07 Billion Colors (30-bit)Vertical Sync Rate 24 ~ 120 Hz
Horizontal Sync Rate 15 to 100 kHz

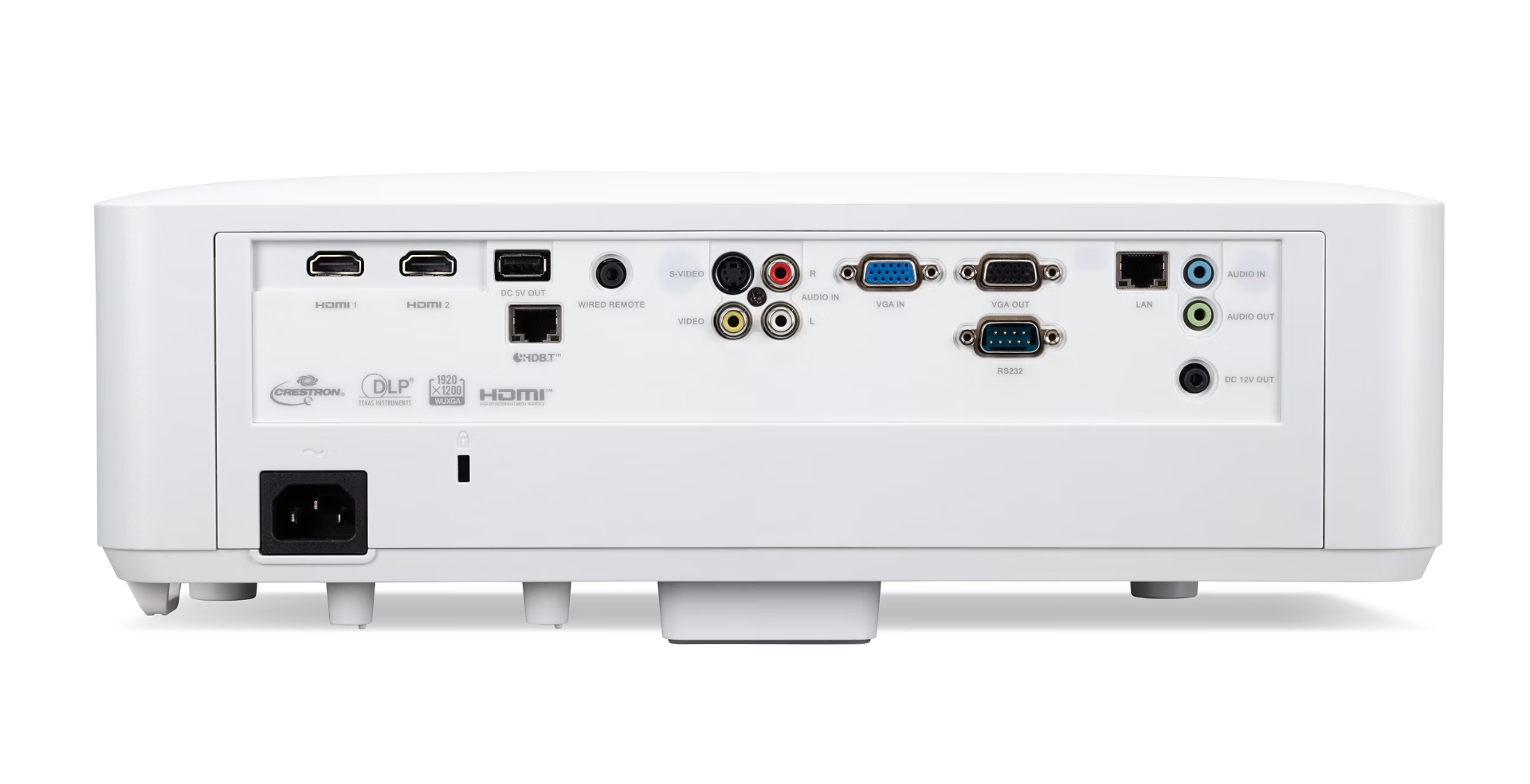

VGA In x1, D-sub
VGA Out x1, D-sub
Video x1, RCA
S-Video x1, Mini DIN
HDBaseT x1, RJ45
Audio In x1, 3.5mm mini jack
Audio Out x1, 3.5mm mini jack
S/PDIF
Speaker x2, 10 W Speaker
x2, 10 W SpeakerLan Ctrl x1, RJ45
Lan Ctrl Protocols Crestron
Power Supply 100 V AC ~ 240 V AC
Input Voltage 120 V AC
230 V ACOperating Power Consumption 450 W
Standby Power Consumption 500 mW
Fan Noise 35 dB Approximate Standard Mode
28 dB Approximate Economy ModeOperating Temperature 0°C to 40°C
Operating Humidity 80%
Weight (Approximate) 6.60 kg
Form Factor Ceiling Mountable
Height 144 mm
Width 405 mm
Depth 305 mm
[1]Specifications vary depending on model and/or region.
[2]The actual operating life span of a projector lamp will vary according to model and/or region, operating conditions and usage patterns.
[3]Content needs to be changed in advance for 360 degree projection and portrait mode.
[4]Projector operation varies depending on product configuration, power settings and usage, among other factors.
