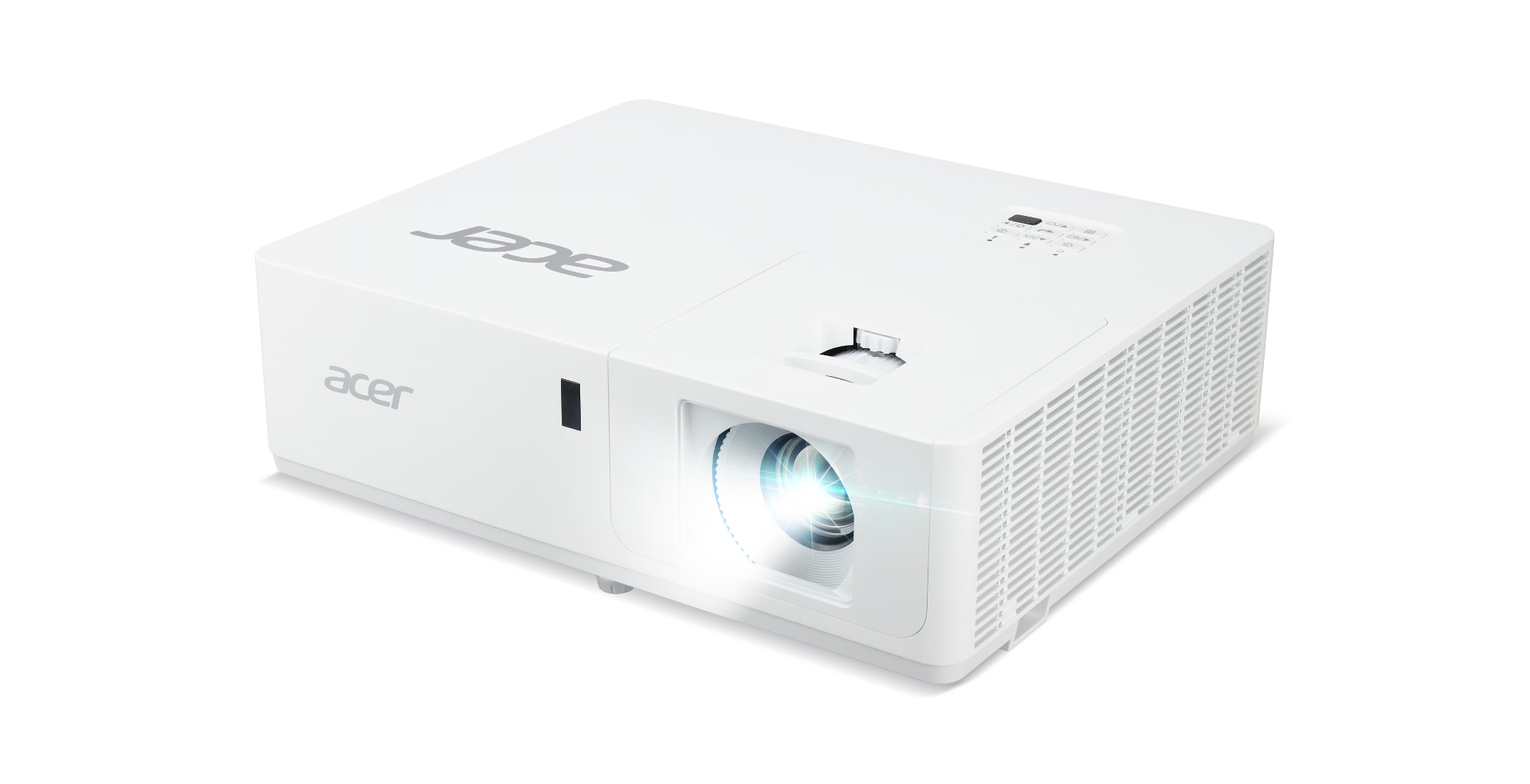

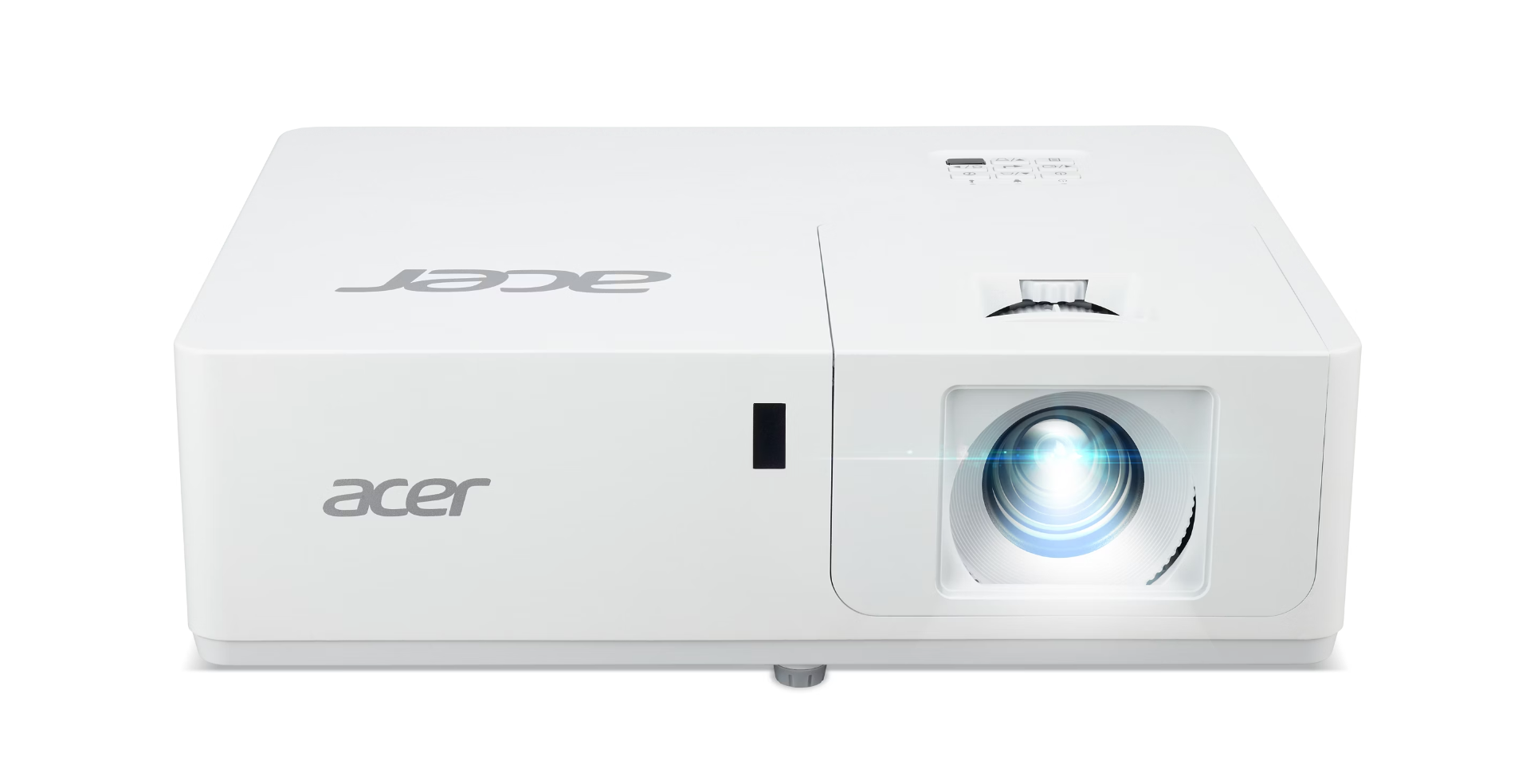

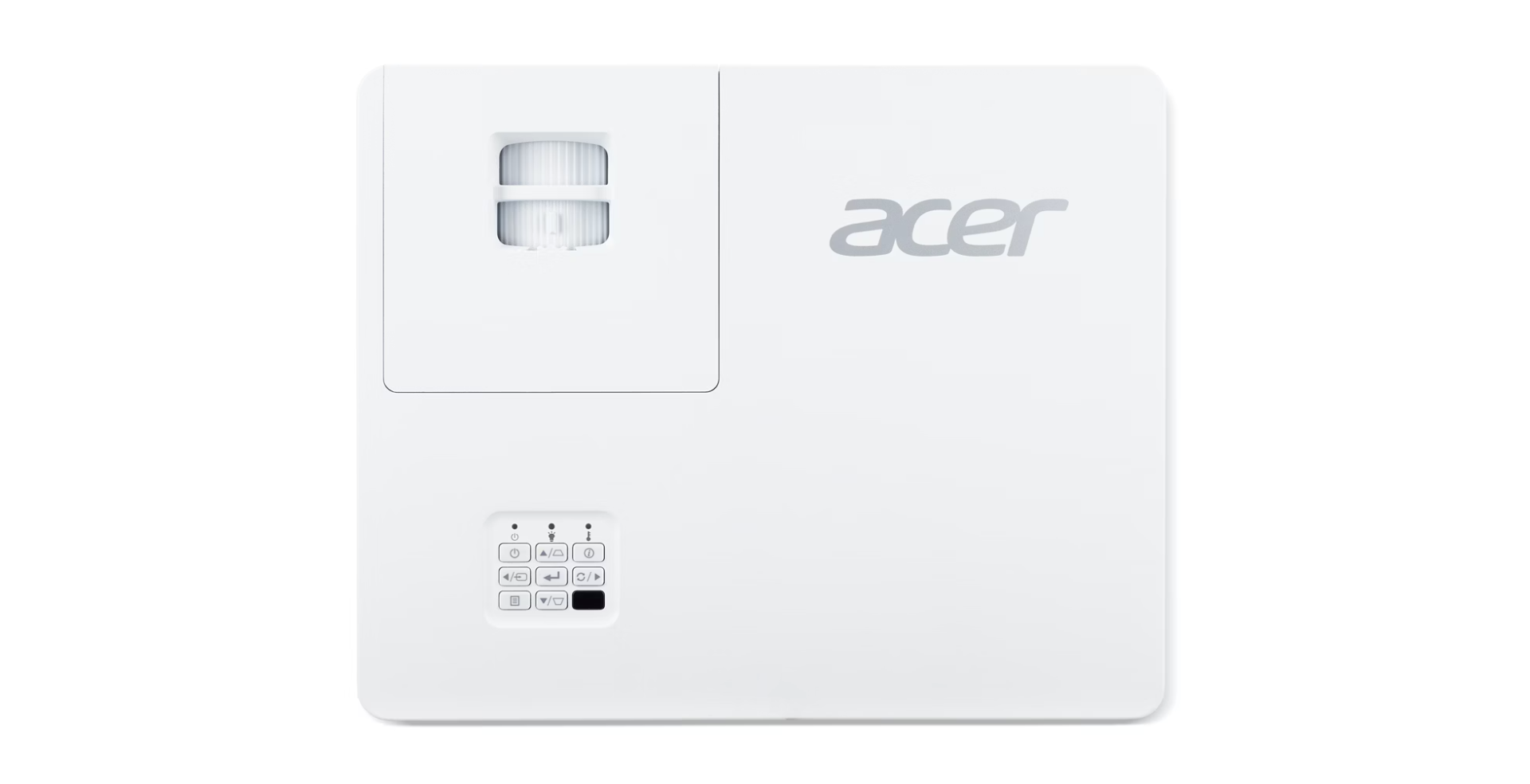

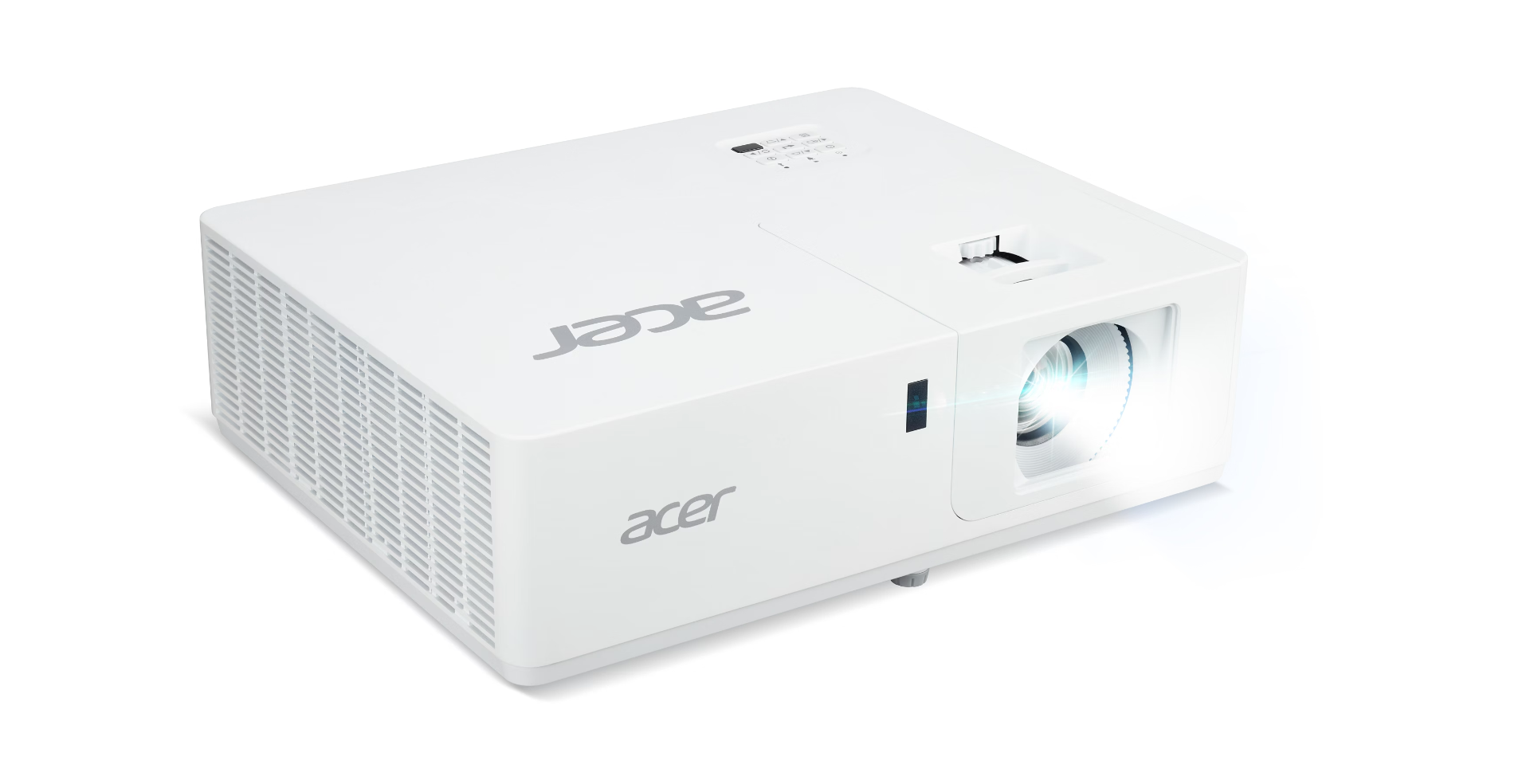

Model: PL6510
Part: MR.JR511.001
With projection this crisp and bright, even your most complex concepts will be grasped easily by associates, clients or students. The high resolution and brilliant color of Acer’s Large-Venue Series projectors will let the power of your ideas shine through, and their top-notch technologies will keep you in complete control.
A 100” image of pure beauty in 1080p Full HD looks so See crystal-clear, vibrant images from a distance in Enjoy life-like colors and never worry about lamp burn-
real, you’ll swear you’re looking out the window. lecture halls, auditoriums or any large venues with up out or disposal with the innovative laser diode, using
to 5,500 lumens of brightness. 30% less power at the same brightness.

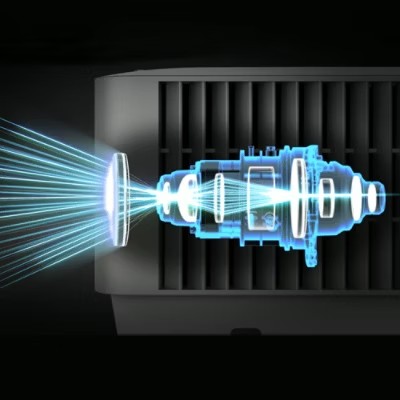

Enjoy long-lasting brightness with a laser light source, Use this projector as often as you like and for as long as This projector handles continuous day in, day out use -
providing consistent performance for up to 8 times you like; with a 30,000-hour lifetime[2], you won't be ideal for public displays and exhibitions.
longer than lamp-based models. needing a replacement any time soon.
Rotate this projector 360 degrees in any direction and Never miss out on fabulous new content as this Get greater flexibility and project in a variety of spaces
still get accurate images in spaces where a little more projector takes a 4K HDR Rec. 2020 signal and correctly with Portrait Mode[4], which allows the projector to be
flexibility is required. transfers it into its native resolution. installed with one side facing down.
Light Source Laser
Projection System DLP™
Light Source Life 20000 hours (Standard), 30000 hours (ECO)
Light Source Laser
Brightness 5500 ANSI Lumens (Standard), 4400 lm (ECO)
Light Source Life 20000 hours (Standard), 30000 hours (ECO)
Aspect Ratio 16:9 (Native), 4:3 (Supported)
Native Resolution 1920 x 1080
Maximum Resolution 1920 x 1200
Brightness 5500 ANSI Lumens (Standard), 4400 lm (ECO)
Aspect Ratio 16:9 (Native), 4:3 (Supported)
Contrast Ratio 2,000,000:1
Image Size 20" (50.8 cm) ~ 7.62 m (300")
Throw Ratio 1.4 to 2.24 (2540 mm@3100 mm)
Zoom Ratio 1.6x
Digital Zoom 2x
Lens F = f/2.5~f/3.26, f = 20.91 mm~32.62 mm, Manual Zoom, Manual Focus
Projection Mode Front, Rear, Ceiling, Rear Ceiling
Display Colour 1.07 Billion Colors (30-bit)
1.07 Billion Colors (30-bit)Vertical Sync Rate 24 ~ 120 Hz
Horizontal Sync Rate 15 to 100 kHz

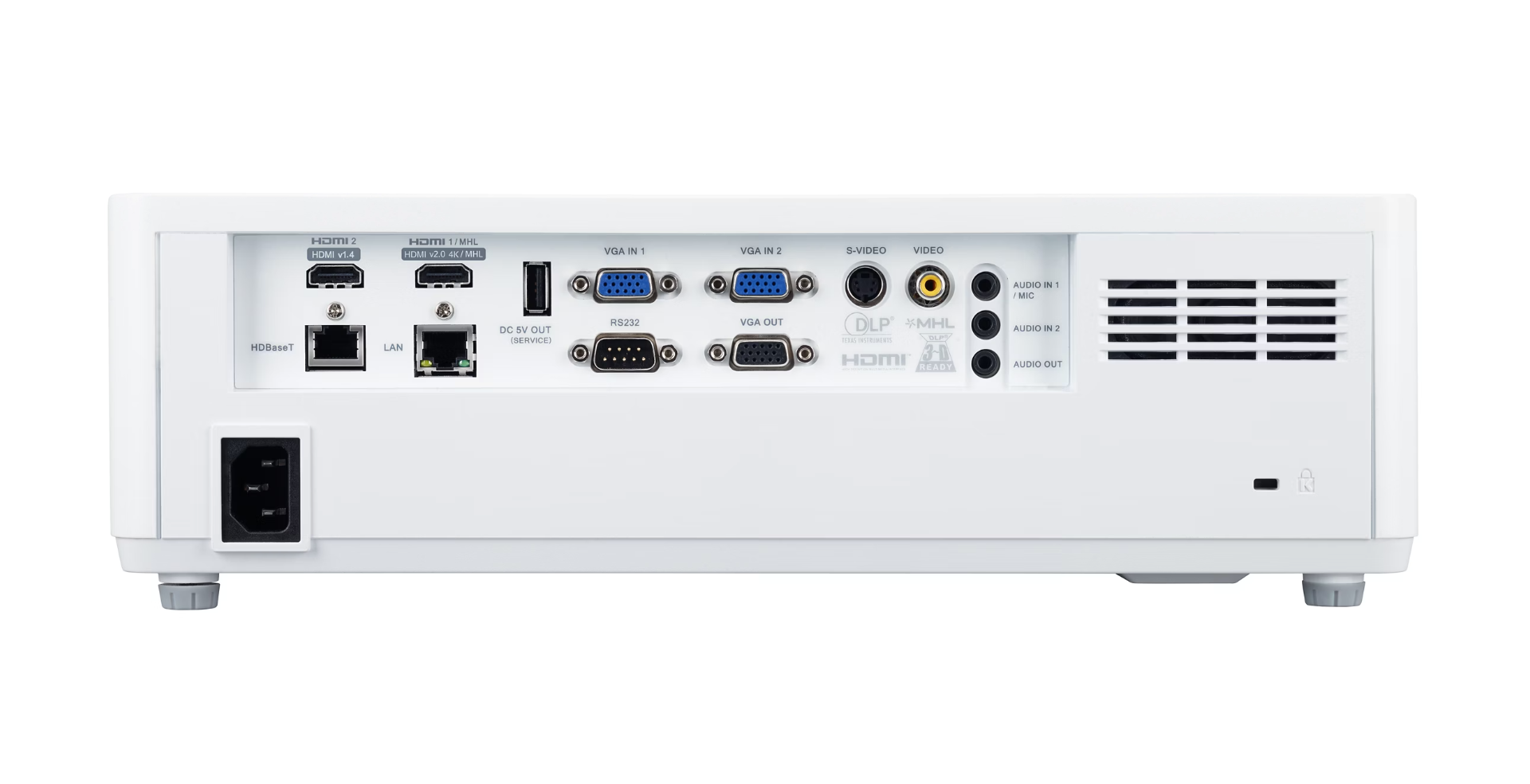

VGA In x2, D-sub
VGA Out x1, D-sub
Video x1, RCA
S-Video x1, Mini DIN
HDBaseT x1, RJ45
Audio In x2, 3.5mm mini jack
Audio Out x1, 3.5mm mini jack
S/PDIF
Speaker x2, 10 W Speaker
x2, 10 W SpeakerLan Ctrl x1, RJ45
Lan Ctrl Protocols Crestron
Power Supply 100 V AC ~ 240 V AC
Input Voltage 120 V AC
230 V ACOperating Power Consumption 321 W
Fan Noise 31 dB Approximate Standard Mode
28 dB Approximate Economy ModeOperating Temperature 0°C to 40°C
Operating Humidity 80%
Weight (Approximate) 6 kg
Form Factor Ceiling Mountable
Height 117 mm
Width 374 mm
Depth 302 mm
[1]Specifications vary depending on model and/or region.
[2]The actual operating life span of a projector lamp will vary according to model and/or region, operating conditions and usage patterns.
[3]Projector operation varies depending on product configuration, power settings and usage, among other factors.
[4]Content needs to be changed in advance for 360 degree projection and portrait mode.
