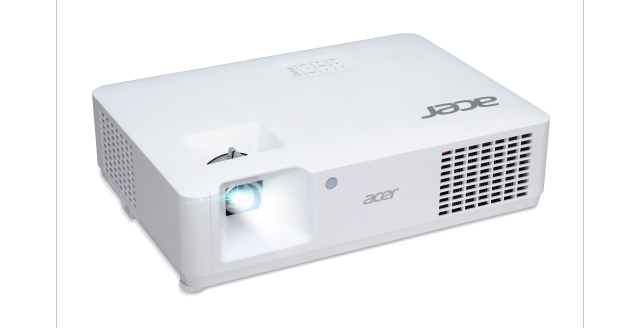

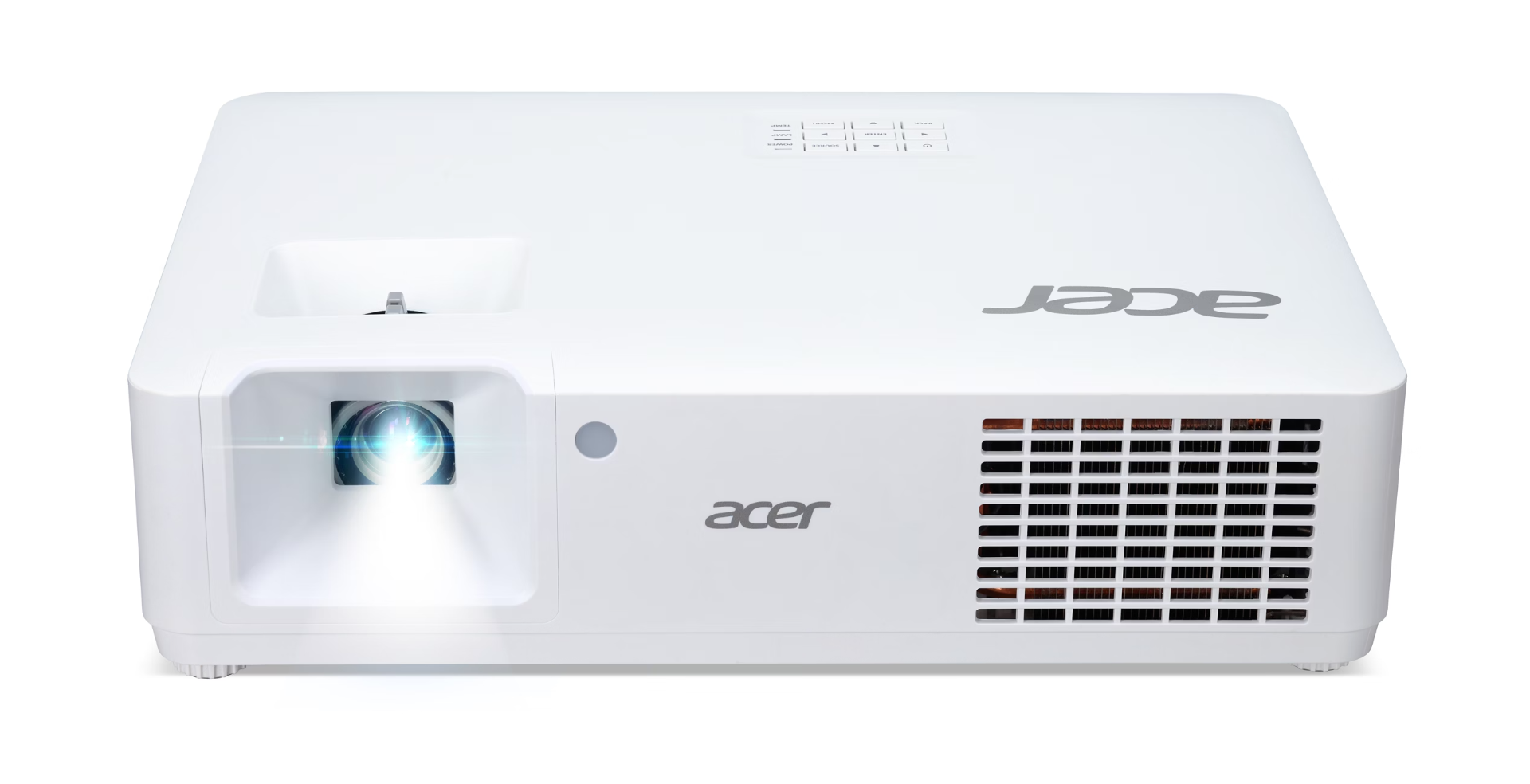

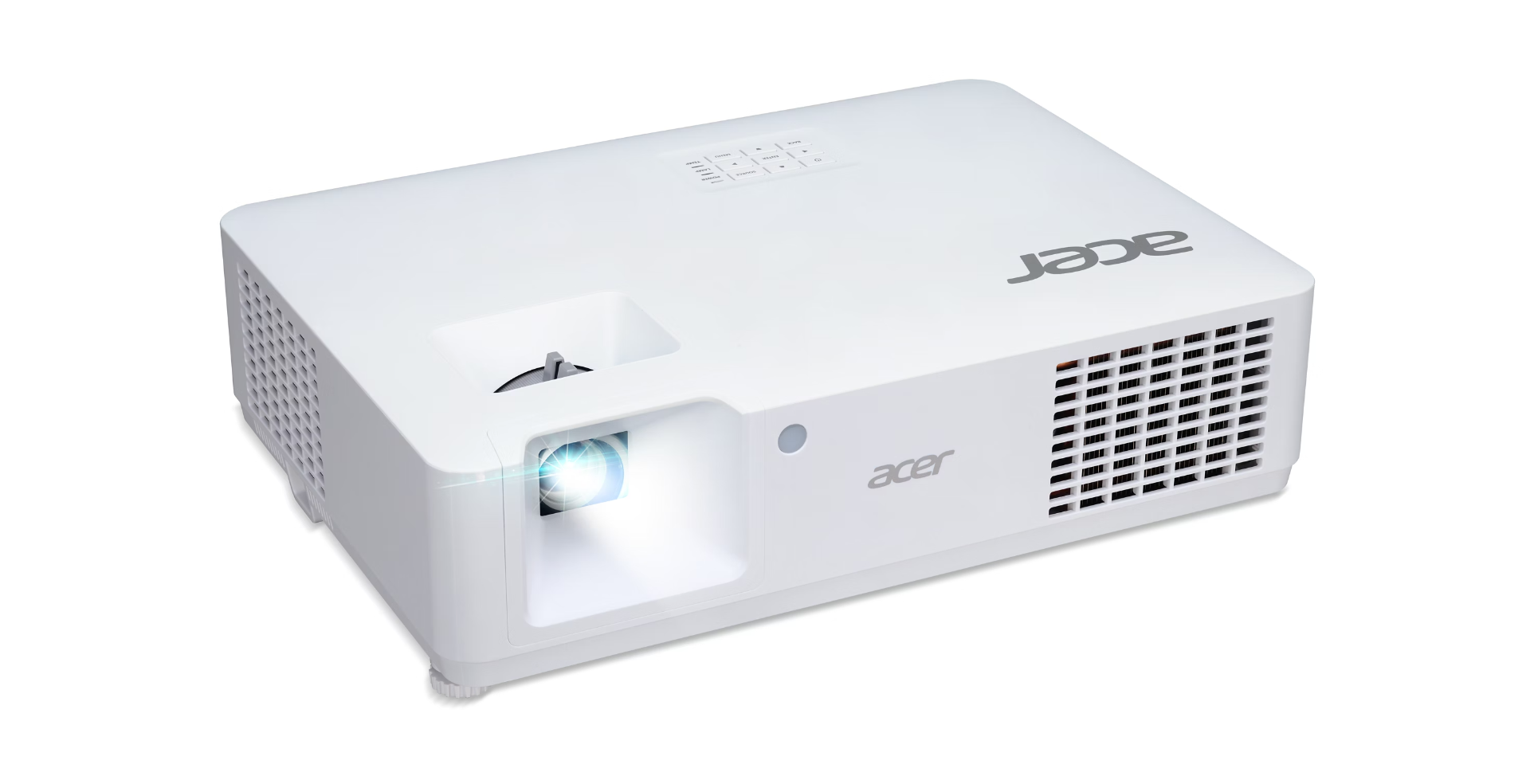

Model: PD1530i
Part: MR.JT811.001
Acer Essential series projectors are best value projectors ideal for everyday
use, at work or home. Make your presentations more compelling and
entertainment more exciting with high brightness, high contrast and DLP®
3D Ready2, while adhering to your bottom line.
A 100” image of pure beauty in 1080p Full HD looks so See crystal-clear, vibrant images from a distance in The extended 125% Rec. 709 wide color gamut is
real, you’ll swear you’re looking out the window. daylight or medium to large rooms with up to 3,000 achieved by using three separate red, green, and blue
LED emitter panels to reproduce a lifelike color balance
with up to a 2,000,000:1 contrast ratio.
Break free from the clutter of wires with easy wireless Use this projector as often as you like and for as long as Enjoy long-lasting and consistent brightness with an
projection options and wireless dongle design[1][2]. you like; with a 30,000-hour lifetime[3], you won't be LED light source, which has 5x less brightness decay
needing a replacement any time soon. than a lamp-based model.
The IP5X rating provides enhanced dust resistance so Control, maintain and monitor your device anywhere What you hear will be just as good as what you see with
your device delivers reliable performance in with an internet connection using Crestron® control the powerful built-in speakers.
challenging environments. systems.
Light Source LED RGB
Projection System DLP™
Light Source LED RGB
Brightness 3000 ANSI Lumens (Standard)
Aspect Ratio 16:9 (Native)
Native Resolution 1920 x 1080
Maximum Resolution 3840 x 2160
Brightness 3000 ANSI Lumens (Standard)
Aspect Ratio 16:9 (Native)
Contrast Ratio 2,000,000:1
Image Size 29" (73.7 cm) ~ 7.62 m (300")
Keystone Correction 4-corner Correction Vertical +/- 30° (Vertical), 4-corner Correction Horizontal +/- 30° (Horizontal, Manual)
Throw Ratio 1.3 to 1.56 (1752.6 mm@2000 mm)
Zoom Ratio 1.2x
Digital Zoom 2x
Lens F = f/1.6~f/1.76, f = 19.16 mm~23.02 mm, Manual Zoom, Manual Focus
Projection Mode Front, Rear, Ceiling, Rear Ceiling
Display Colour 1.07 Billion Colors (30-bit)
1.07 Billion Colors (30-bit)Vertical Sync Rate 24 ~ 120 Hz
Horizontal Sync Rate 15 to 100 kHz

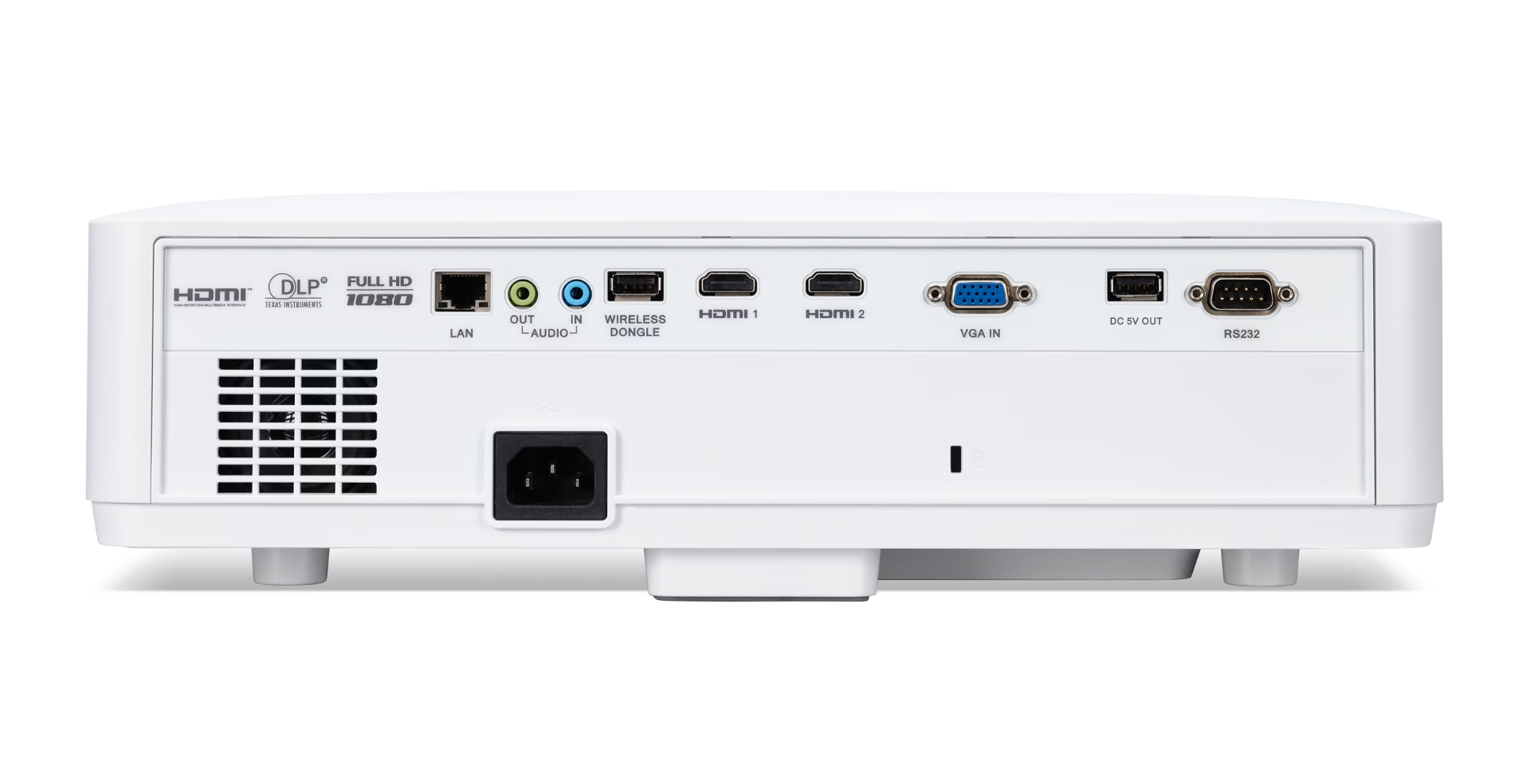

VGA In x1, D-sub
HDBaseT x1, RJ45
Audio In x1, 3.5mm mini jack
Audio Out x1, 3.5mm mini jack
S/PDIF
Speaker x1, 10 W Speaker
x1, 10 W SpeakerLan Ctrl x1, RJ45
Lan Ctrl Protocols Crestron
Wireless Projection EZCast, Miracast Wi-Fi
Noise Level 25 dB
Security PIN Code Locking
Security BarPower Supply 100 V AC ~ 240 V AC
Input Voltage 120 V AC
230 V ACOperating Power Consumption 320 W
Standby Power Consumption 500 mW
Fan Noise 30 dB Approximate Standard Mode
25 dB Approximate Economy ModeOperating Temperature 0°C to 40°C
Operating Humidity 80%
Security PIN Code Locking
Security BarWeight (Approximate) 6 kg
Form Factor Ceiling Mountable
Height 101 mm
Width 386 mm
Depth 276 mm
